  1. Wind Turbine Control Design to Reduce Capital Costs P. Jeff Darrow (Colorado School of Mines) Alan Wright (National Renewable Energy Laboratory) Kathryn E. Johnson (Colorado School of Mines)

  2. Overview • Introduction • Wind Turbine Description • Baseline Controller Description • Design Load Cases (DLCs) • Preliminary Results • Conclusions • Future Work

  3. Introduction - Work Site(s) • This research in this project is being performed at two sites • The National Wind Technology Center (NREL) • Colorado School of Mines

  4. Introduction - Motivation • Increasing demand for wind energy • Wind turbines operate in extreme conditions • Experiencing both fatigue and extreme loads • IEC dictates a minimum design life of 20 years • The current design approach is to use robust components • This causes a high capital cost of each wind turbine

  5. Introduction – Goals • Perform a full loads case analysis • Help guide wind turbine control research • Identify design driving events and the responsible factors • Develop advanced control techniques to mitigate prominent loads • Show a potential to reduce capital costs with controller design

  6. Introduction - General • This research is still in progress • Results are specific to the CART3

  7. Wind Turbine Description Controls Advanced Research Turbine

  8. Regions of Operation

  9. Controls Advanced Research Turbines • The NWTC has two primary research turbines • Model: Westinghouse WTG-600 • Originally from a wind farm in Oahu, Hawaii • However, they are not ordinary (industry) turbines • Specially outfitted with extra sensors and actuators for research purposes • Original pitch system replaced • New generator system added • New control system added

  10. Control Actuators • Blade pitch • Limit of 18˚/second • Generator torque • Limit of 3581 N*m • Yaw • Limit of 0.5 ˚/second

  11. CART3 Characteristics • 3 bladed, upwind • Active yaw • Rated power: ~600 kW • Rated torque: 3581 N*m • Class IIB rating by IEC • Rated wind speed: 13.5 m/s • Rated rotor speed: 41.7 rpm • Cp,max: 0.4666

  12. CART3 Model for Simulations • Three main components • Rotor • Tower • Nacelle • Modeled with the NREL design-code FAST • Uses many DOF’s to model turbine dynamics

  13. CART Model - DOFs 1st Tower Side-to-Side Mode Shaft Torsion 1st Tower Fore-Aft Mode

  14. Baseline Controller Description Design Implementation Verification

  15. Baseline Controller Design • Baseline controller works in regions 2, 2.5, and 3 • Region 2 uses torque control: • Regions 2.5 provides a linear torque curve • Region 3 uses a PID type collective pitch controller

  16. Baseline Controller Implementation • The fore mentioned control scheme is implemented using a DLL linked to the FAST model • Region 2 control is built into the FAST simulator • Region 3 control is defined in the linked DLL • Operation of overall controller was verified for proper operation

  17. Baseline Controller Verification

  18. Baseline Controller Verification

  19. Design Load Cases

  20. Design Load Cases (DLC’s) • Defined by IEC Document 61400-1 • Provides load cases to predict turbine loading • Focus on cases that do not require controller logic for start-up/shutdown • Each applicable case applied to the CART3 model • Resulting loads observed

  21. DLCs of Interest

  22. Preliminary Results Only a representative subset of the total available results is presented here

  23. DLC 1.3 -- Power Production-- Extreme Turbulence Model-- No faults

  24. DLC 1.3 -- Power Production-- Extreme Turbulence Model-- No faults

  25. DLC 1.3 -- Power Production-- Extreme Turbulence Model-- No faults

  26. DLC 1.3 -- Power Production-- Extreme Turbulence Model-- No faults

  27. DLC 2.3 -- Power Production-- Extreme Operating Gust-- Internal Electrical System Fault

  28. DLC 2.3 -- Power Production-- Extreme Operating Gust-- Internal Electrical System Fault

  29. DLC 2.3 -- Power Production-- Extreme Operating Gust-- Internal Electrical System Fault

  30. DLC 2.3 -- Power Production-- Extreme Operating Gust-- Internal Electrical System Fault

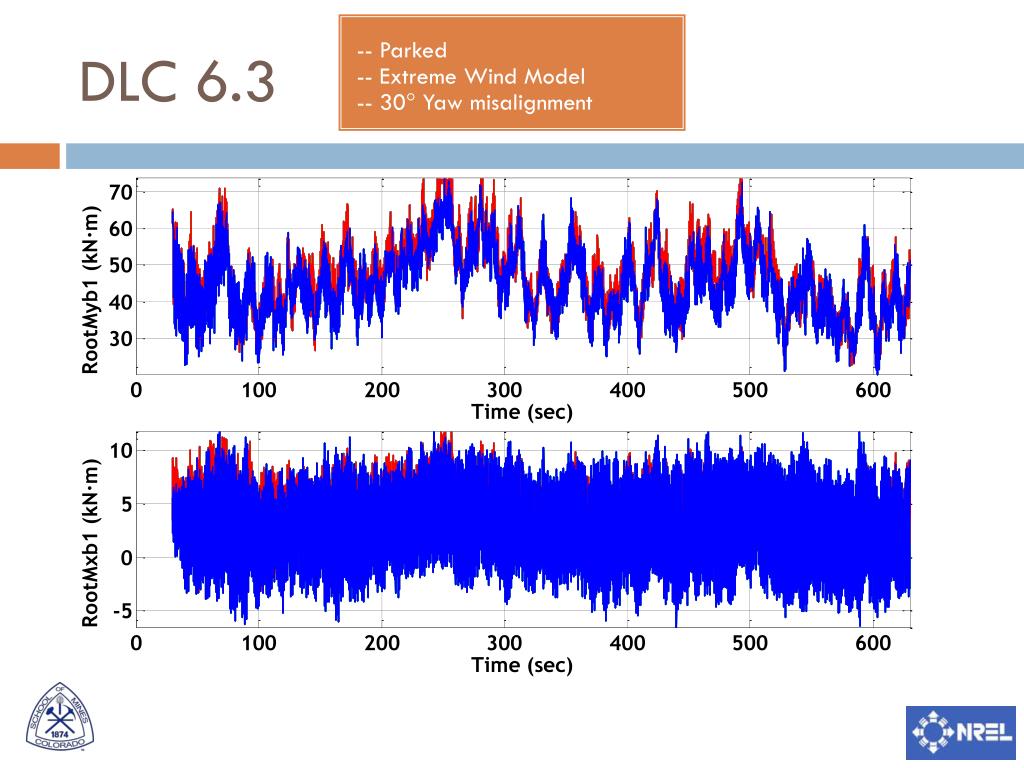

  31. DLC 6.3 -- Parked-- Extreme Wind Model-- 30° Yaw misalignment

  32. DLC 6.3 -- Parked-- Extreme Wind Model-- 30° Yaw misalignment

  33. DLC 6.3 -- Parked-- Extreme Wind Model-- 30° Yaw misalignment

  34. DLC 6.3 -- Parked-- Extreme Wind Model-- 30° Yaw misalignment

  35. Conclusions & Future Work

  36. Conclusions • The CART3 had been successfully modeled in FAST • The baseline controller has been developed and implemented in simulation • All DLCs of interest have been simulated • We currently have all of the data needed to conduct an in depth analysis

  37. Future Work • Continue work to quantify design driving events • Design and simulate controllers to handle prominent cases • Re-run the suite of DLCs to show new results • We hope to show a potential to reduce the capital costs of a wind turbine by controller design

  38. Acknowledgements • Marshall Buhl • NREL • Jason Jonkman • NREL

  39. Thank You Have a wonderful day
