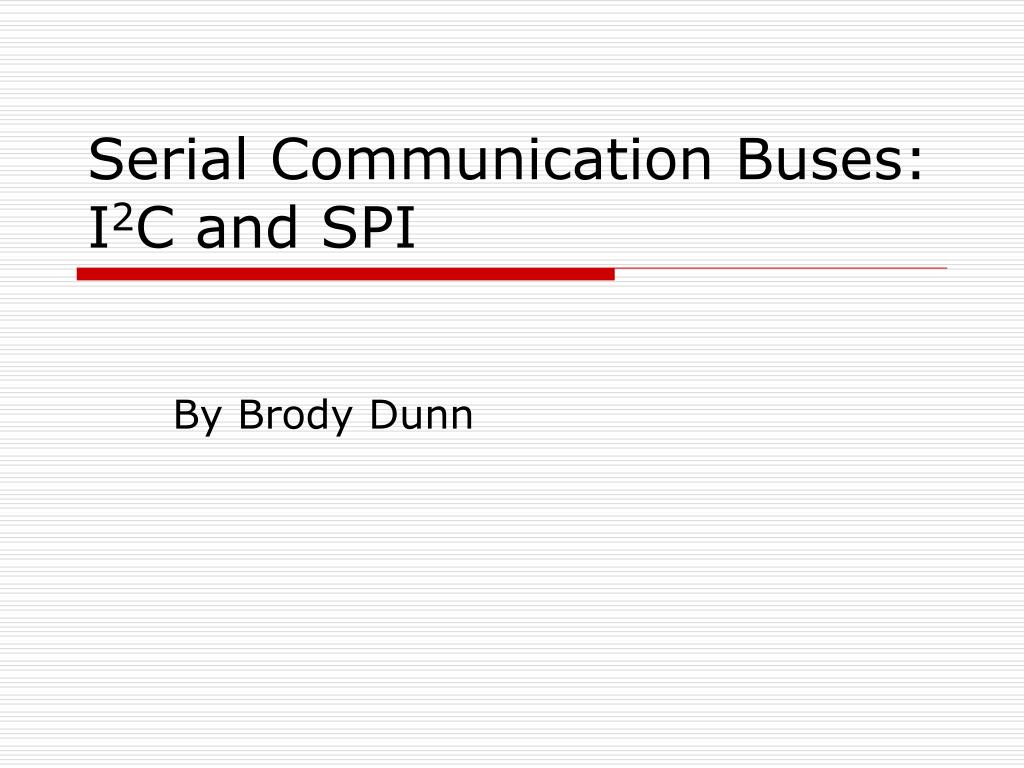

  1. Serial Communication Buses: I2C and SPI By Brody Dunn

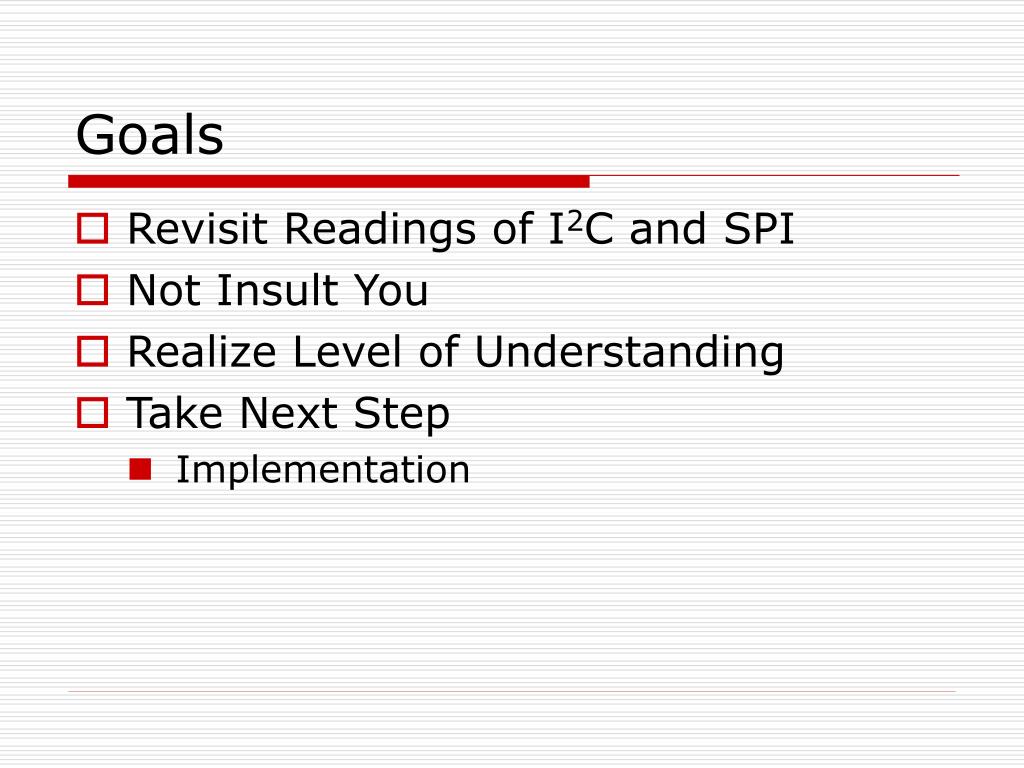

  2. Goals • Revisit Readings of I2C and SPI • Not Insult You • Realize Level of Understanding • Take Next Step • Implementation

  3. Inter-Integrated Circuit (I2C) • 2-Wire Serial Communication Bus • Introduced By Philips In 1992 • Communication Protocol Between Microcontroller And Peripherals • Real Time Clocks (RTCs) • Analog to Digital Converters (ADCs) • Various Sensors • Many, many, more

  4. I2C Characteristics • Only 2 Wires Needed On Bus • Serial Data (SDA) • Serial Clock (SCL) • Multiple Devices Connected On Bus • Typically Limited (i.e. 8, 20, 27, 210,...?) • Similar Code For All I2C Peripherals • Supports Various Data Transfer Rates

  5. Development of I2C • Version 1.0 Introduced in 1992 • “Standard” 100 Kbits/s • “Fast” 400 Kbits/s • Version 2.0 Released in 1998 • “High-Speed” 3.4 Mbits/s • Version 2.1 Released in 2000 • Clock Stretched • “High-Speed” Timings Relaxed

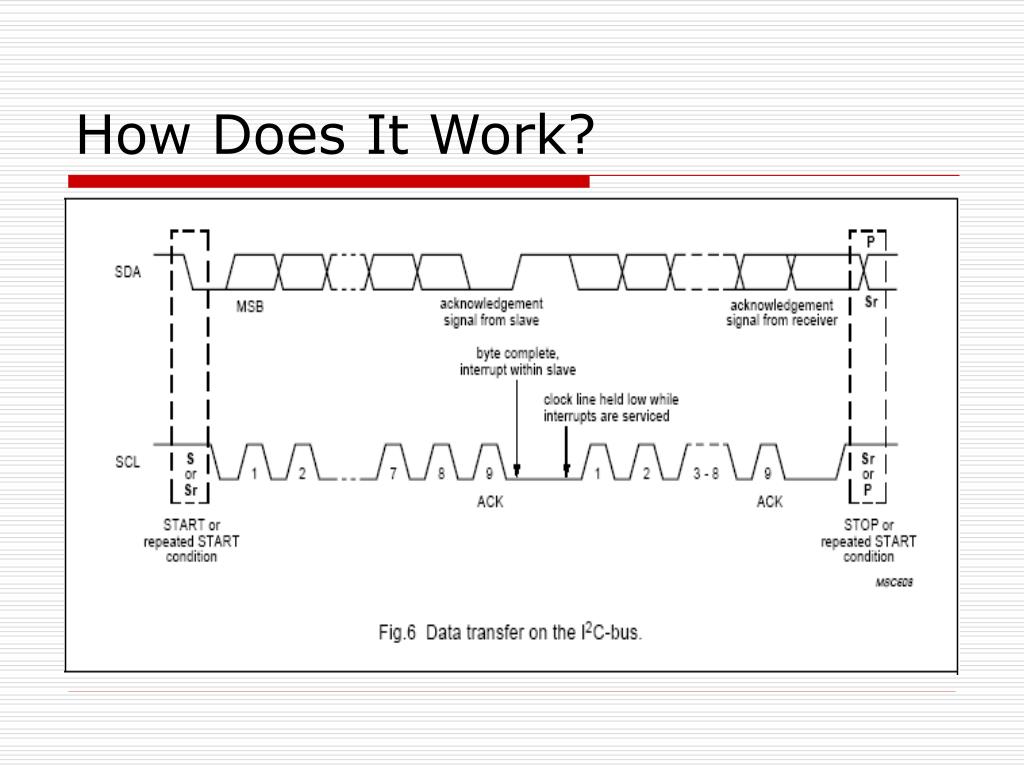

  6. How Does It Work?

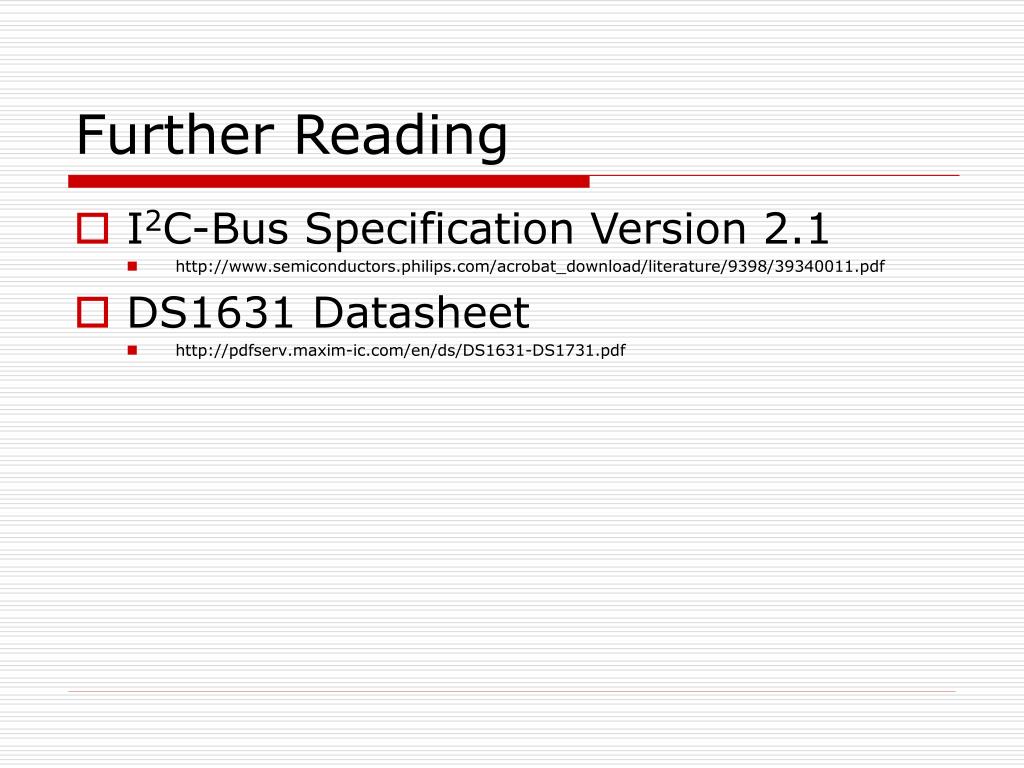

  7. Further Reading • I2C-Bus Specification Version 2.1 • http://www.semiconductors.philips.com/acrobat_download/literature/9398/39340011.pdf • DS1631 Datasheet • http://pdfserv.maxim-ic.com/en/ds/DS1631-DS1731.pdf

  8. Serial Peripheral Interface (SPI) • Synchronous Communication Protocol • 3-Wire (Plus 1 Chip-Select Pin/Device) • Hardware On Microcontroller • Developed By Motorola • “Loose” Standard • Broad Range of Devices Supported • Memory (i.e. EEPROM, RAM, Etc.) • Sensors

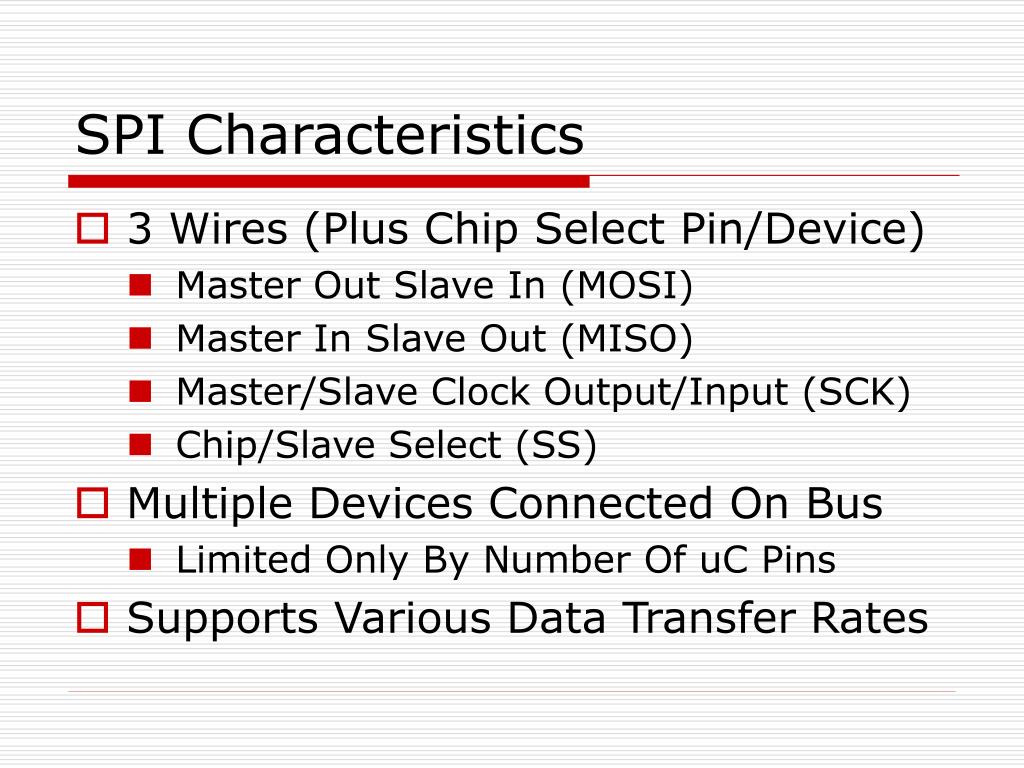

  9. SPI Characteristics • 3 Wires (Plus Chip Select Pin/Device) • Master Out Slave In (MOSI) • Master In Slave Out (MISO) • Master/Slave Clock Output/Input (SCK) • Chip/Slave Select (SS) • Multiple Devices Connected On Bus • Limited Only By Number Of uC Pins • Supports Various Data Transfer Rates

  10. How Does It Work?

  11. Configurations (AT89S53) • SPI Control Register (SPCR) • Sets Modes of Operation • SPI Status Register (SPSR) • Checks Flags • SPI Data Register (SPDR) • 8-Bit Shift Register Storing Data

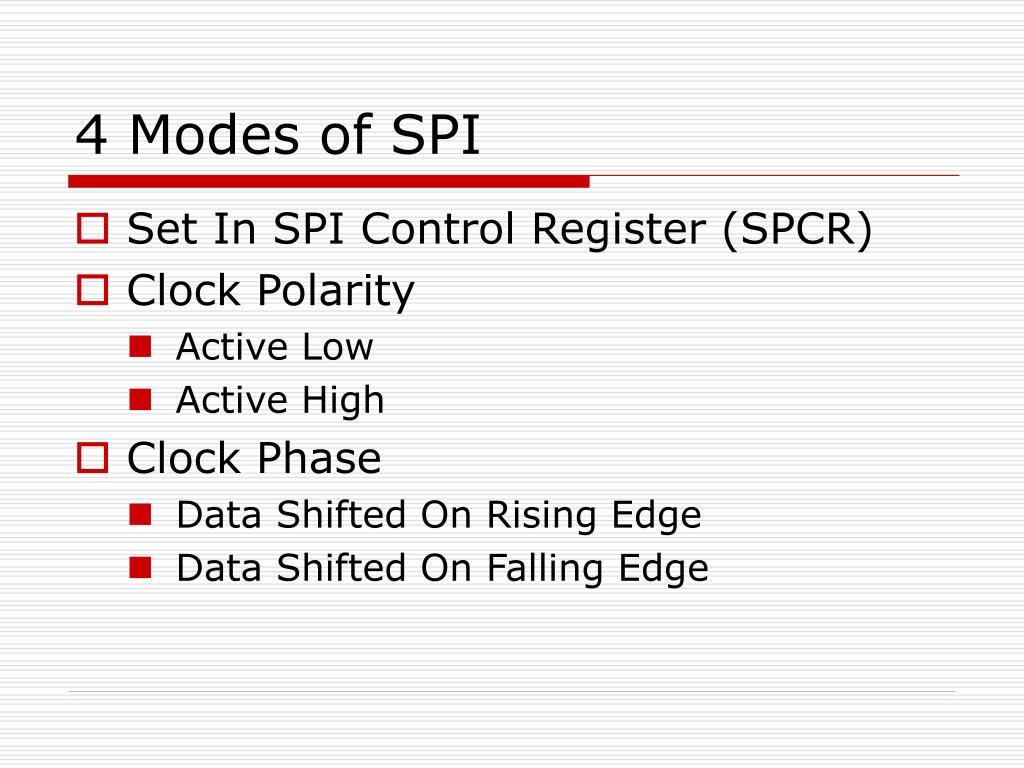

  12. 4 Modes of SPI • Set In SPI Control Register (SPCR) • Clock Polarity • Active Low • Active High • Clock Phase • Data Shifted On Rising Edge • Data Shifted On Falling Edge

  13. 4 Modes of SPI (CPHA = 0)

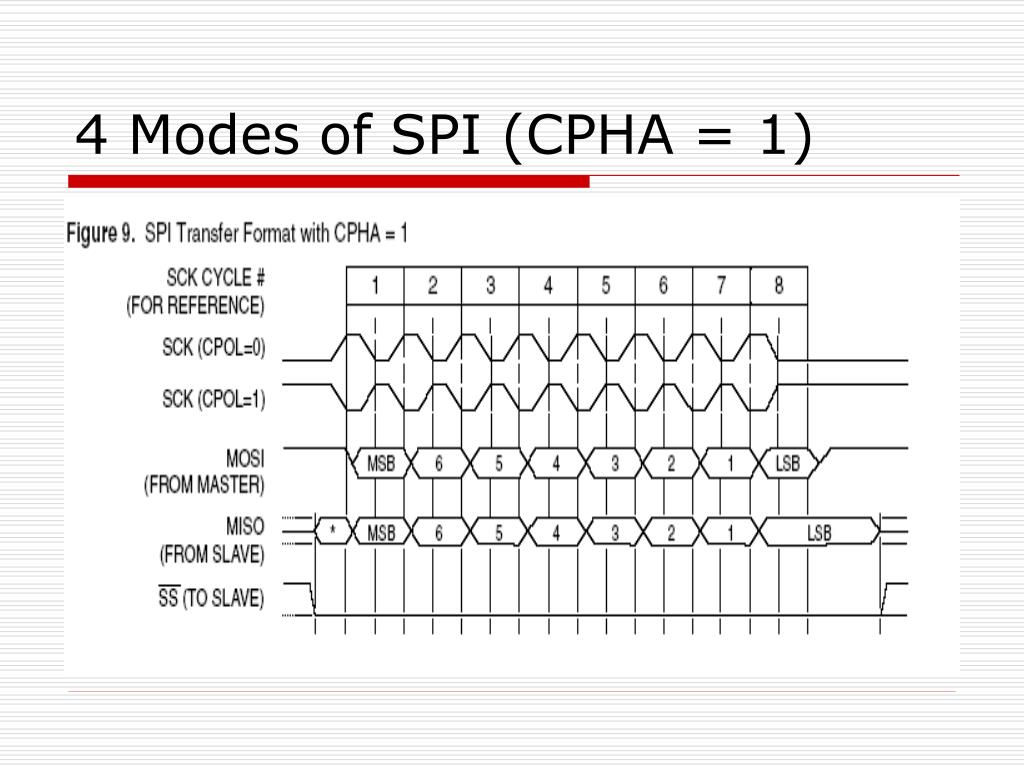

  14. 4 Modes of SPI (CPHA = 1)

  15. Further Reading • AT89S53 Datasheet (Pg. 8, 14-16) • http://www.atmel.com/dyn/resources/prod_documents/DOC0787.PDF • Pont Ch. 24

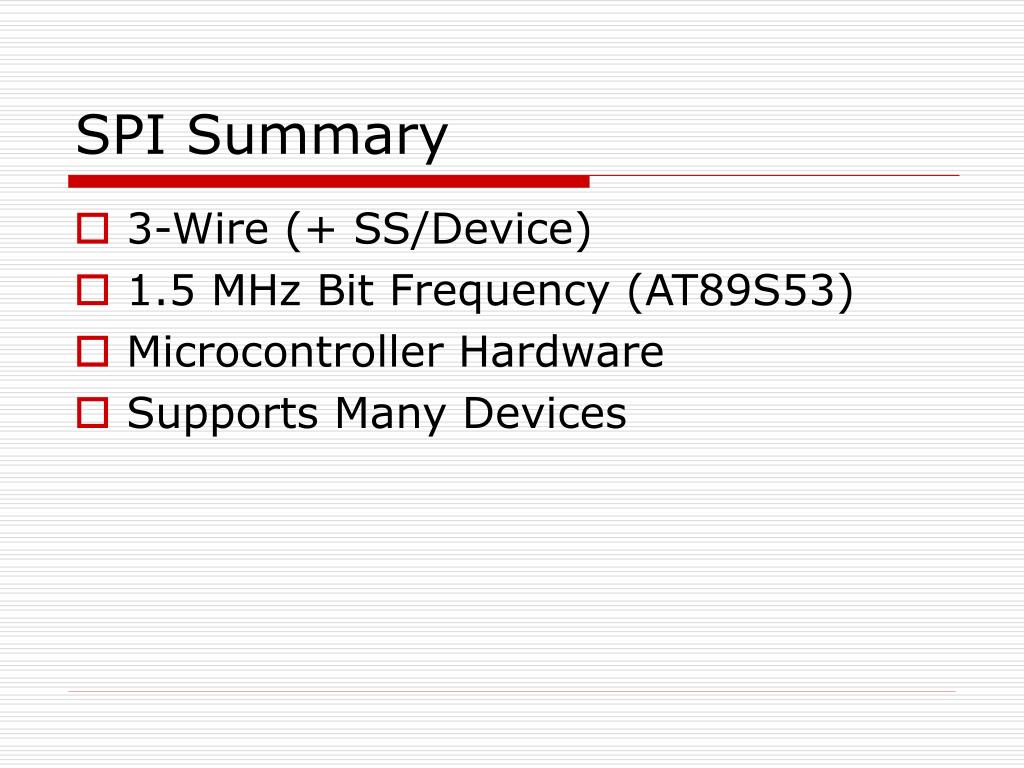

  16. SPI Summary • 3-Wire (+ SS/Device) • 1.5 MHz Bit Frequency (AT89S53) • Microcontroller Hardware • Supports Many Devices
