  1. Symbian程序结构分析

  2. 主要内容 • 程序结构 • 工程组织 • 应用图标及启动 • 资源文件 • 打包图片 • 打包文件格式 • 多视图程序

  3. 程序结构 • S60应用框架 • MVC设计模式

  4. 程序结构 • GUI应用运行分析 • 代码分析 • 应用类 • 文档类 • AppUi类 • 启动代码 • 运行分析

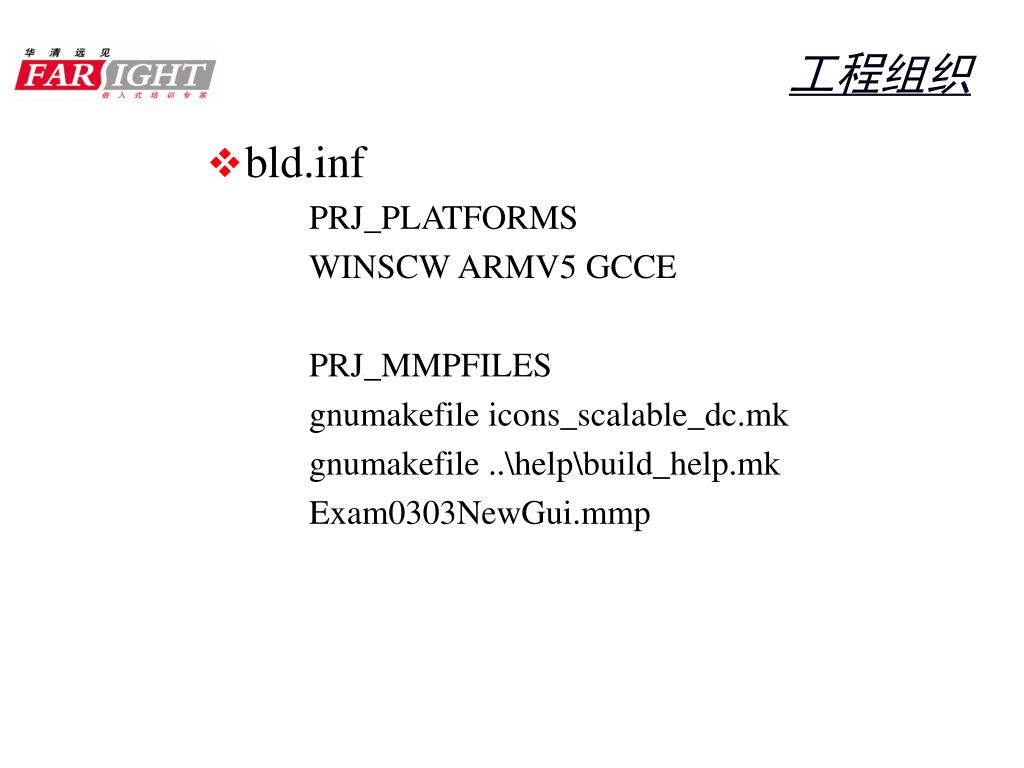

  5. 工程组织 • bld.inf PRJ_PLATFORMS WINSCW ARMV5 GCCE PRJ_MMPFILES gnumakefile icons_scalable_dc.mk gnumakefile ..\help\build_help.mk Exam0303NewGui.mmp

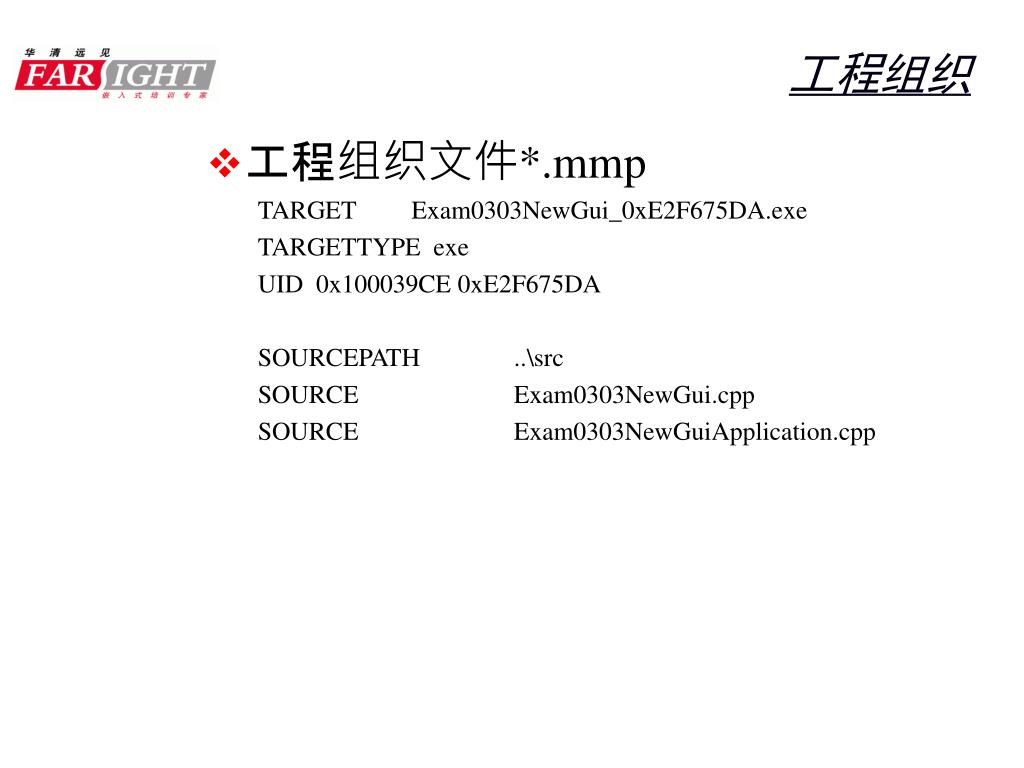

  6. 工程组织 • 工程组织文件*.mmp TARGET Exam0303NewGui_0xE2F675DA.exe TARGETTYPE exe UID 0x100039CE 0xE2F675DA SOURCEPATH ..\src SOURCE Exam0303NewGui.cpp SOURCE Exam0303NewGuiApplication.cpp

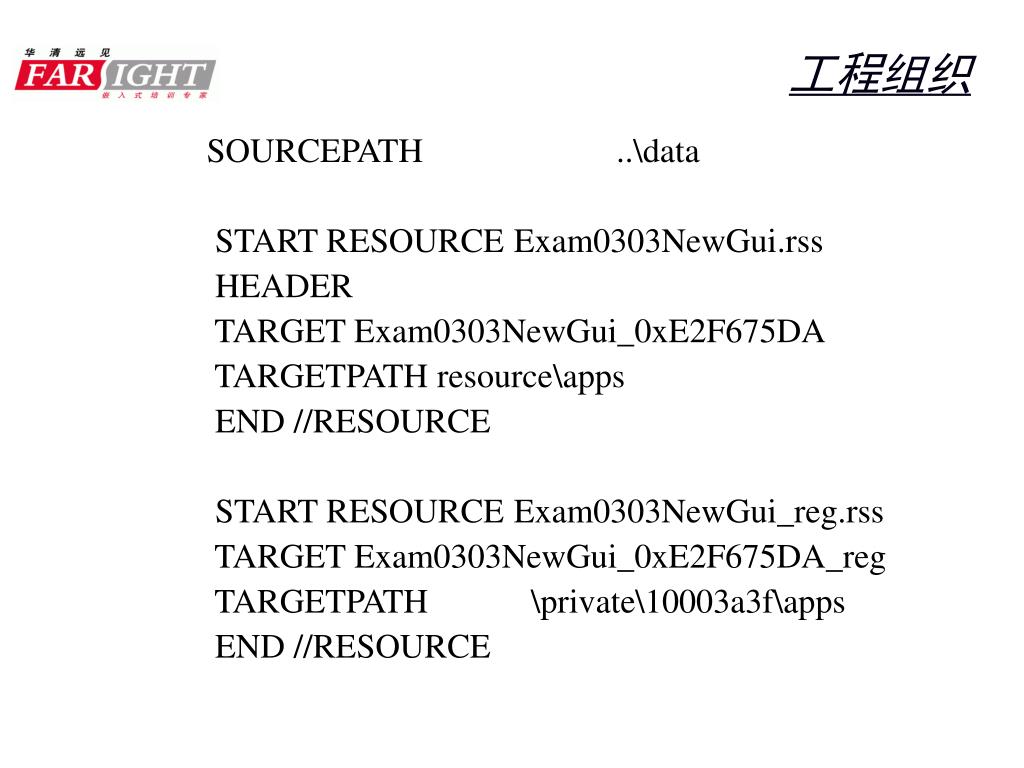

  7. 工程组织 SOURCEPATH ..\data START RESOURCE Exam0303NewGui.rss HEADER TARGET Exam0303NewGui_0xE2F675DA TARGETPATH resource\apps END //RESOURCE START RESOURCE Exam0303NewGui_reg.rss TARGET Exam0303NewGui_0xE2F675DA_reg TARGETPATH \private\10003a3f\apps END //RESOURCE

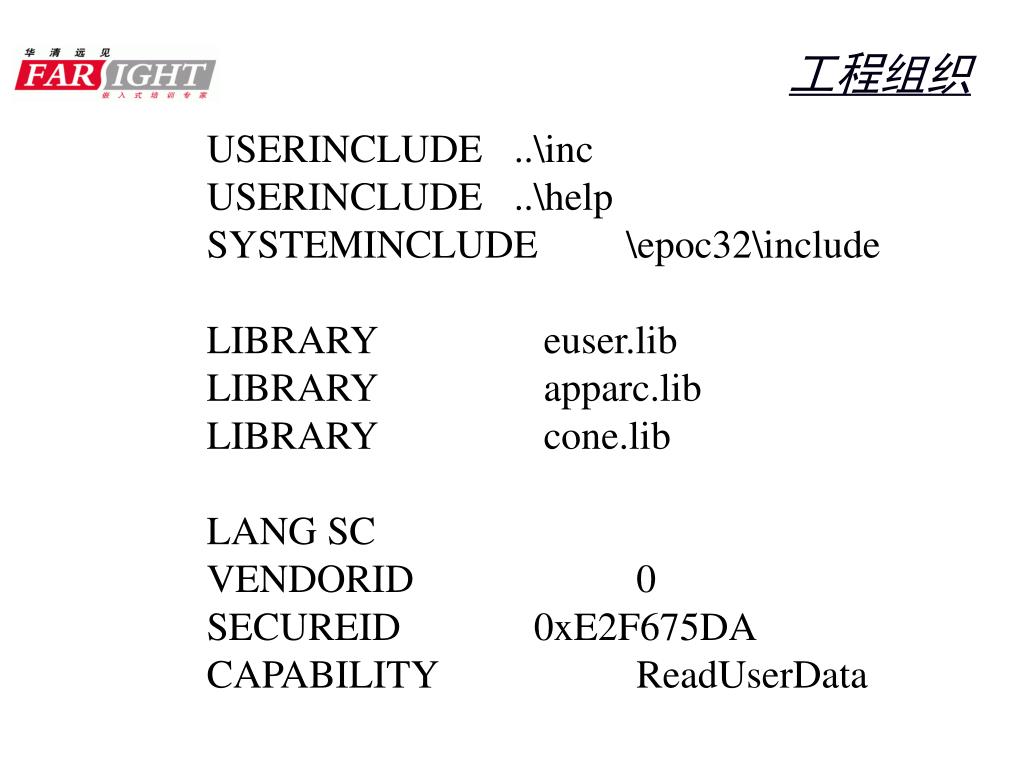

  8. 工程组织 USERINCLUDE ..\inc USERINCLUDE ..\help SYSTEMINCLUDE \epoc32\include LIBRARY euser.lib LIBRARY apparc.lib LIBRARY cone.lib LANG SC VENDORID 0 SECUREID 0xE2F675DA CAPABILITY ReadUserData

  9. 应用图标及启动 • 注册表资源文件 1. #include "Exam0303NewGui.hrh" 2. #include "Exam0303NewGui.rls" 3. #include <appinfo.rh> 4. #include <Exam0303NewGui_0xE2F675DA.rsg> 5. 6. UID2 KUidAppRegistrationResourceFile 7. UID3 _UID3 8. 9. RESOURCE APP_REGISTRATION_INFO 10. { 11. app_file="Exam0303NewGui_0xE2F675DA"; 12. localisable_resource_file = qtn_loc_resource_file_1; 13. localisable_resource_id = R_LOCALISABLE_APP_INFO; 14. 15. embeddability=KAppNotEmbeddable; 16. newfile=KAppDoesNotSupportNewFile; 17. }

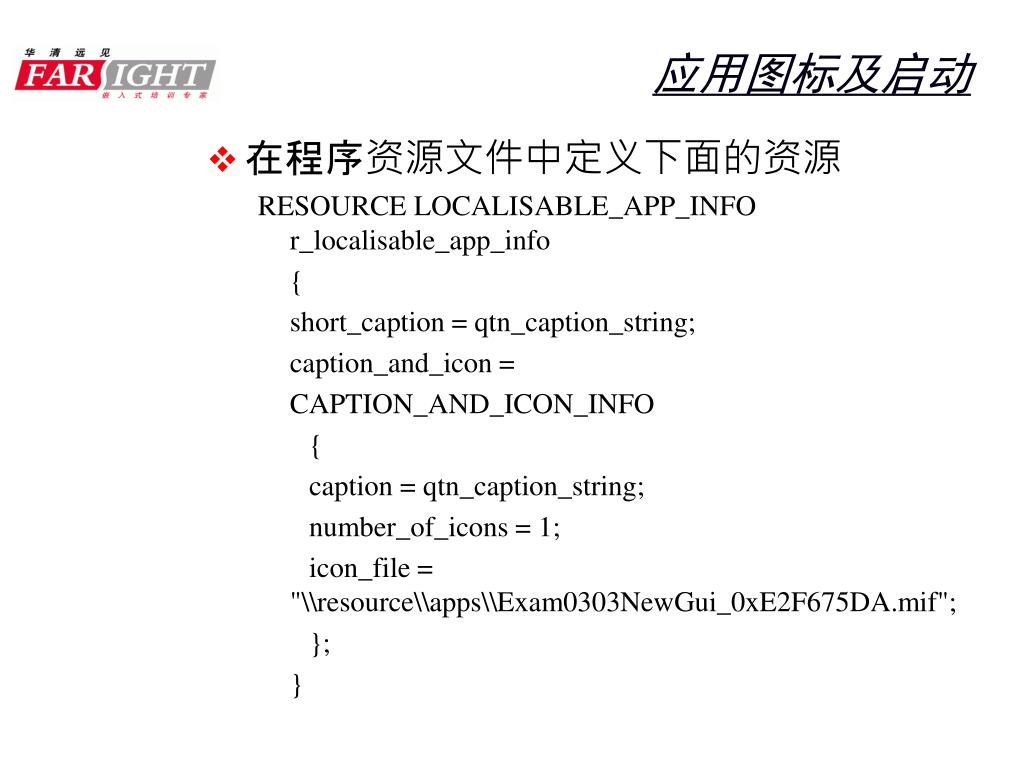

  10. 应用图标及启动 • 在程序资源文件中定义下面的资源 RESOURCE LOCALISABLE_APP_INFO r_localisable_app_info { short_caption = qtn_caption_string; caption_and_icon = CAPTION_AND_ICON_INFO { caption = qtn_caption_string; number_of_icons = 1; icon_file = "\\resource\\apps\\Exam0303NewGui_0xE2F675DA.mif"; }; }

  11. 打包图片 • 打包矢量图片 • 使用*.mk文件 • 例子Icons_scalable_dc.mk 1. ifeq (WINS,$(findstring WINS, $(PLATFORM))) 2. ZDIR=$(EPOCROOT)epoc32\release\$(PLATFORM)\$(CFG)\Z 3. else 4. ZDIR=$(EPOCROOT)epoc32\data\z 5. endif 6. 7. TARGETDIR=$(ZDIR)\resource\apps 8. ICONTARGETFILENAME=$(TARGETDIR)\ImiChatApp.mif 9. 11. ICONDIR=..\gfx 12. ... ... 13. RESOURCE : $(ICONTARGETFILENAME) 14. 15. $(ICONTARGETFILENAME) : $(ICONDIR)\qgn_menu_ImiChat.svg 16. mifconv $(ICONTARGETFILENAME) \ 17. /c32 $(ICONDIR)\qgn_menu_ImiChat.svg 18. ... ...

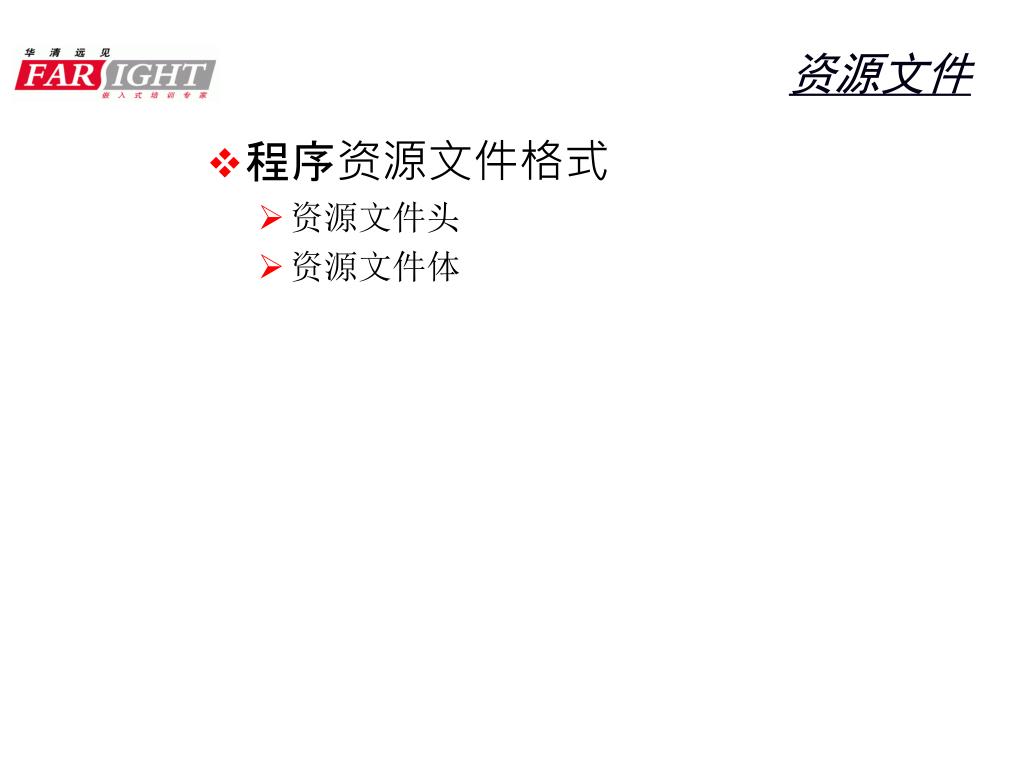

  12. 资源文件 • 程序资源文件格式 • 资源文件头 • 资源文件体

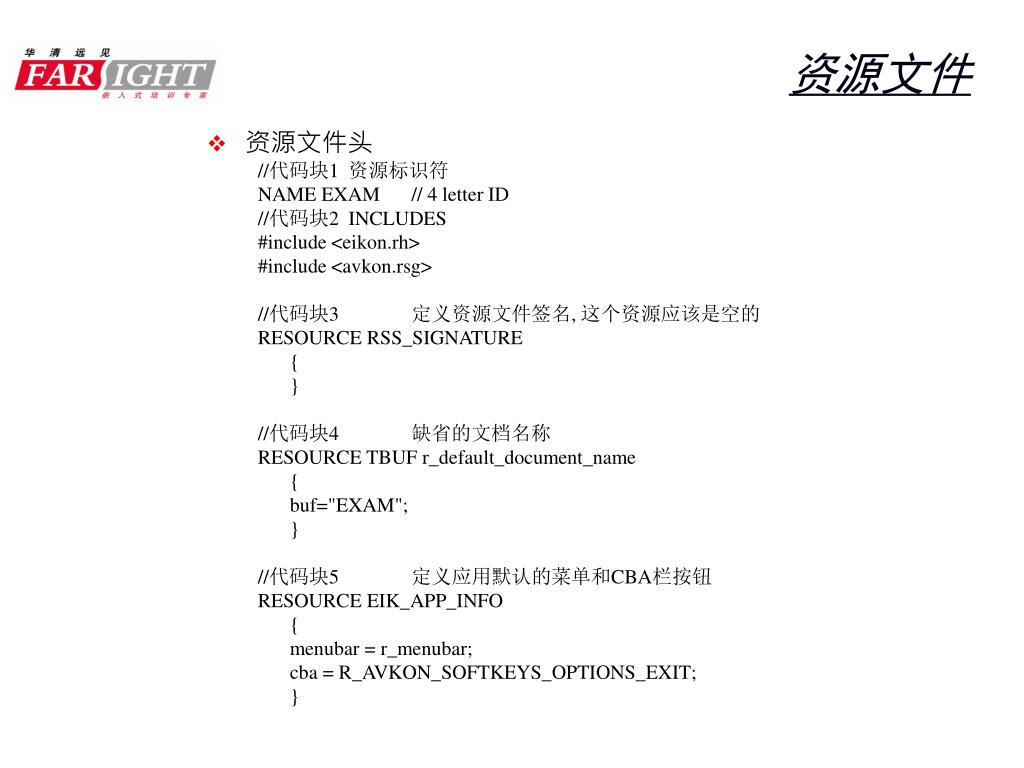

  13. 资源文件 • 资源文件头 //代码块1 资源标识符 NAME EXAM // 4 letter ID //代码块2 INCLUDES #include <eikon.rh> #include <avkon.rsg> //代码块3 定义资源文件签名, 这个资源应该是空的 RESOURCE RSS_SIGNATURE { } //代码块4 缺省的文档名称 RESOURCE TBUF r_default_document_name { buf="EXAM"; } //代码块5 定义应用默认的菜单和CBA栏按钮 RESOURCE EIK_APP_INFO { menubar = r_menubar; cba = R_AVKON_SOFTKEYS_OPTIONS_EXIT; }

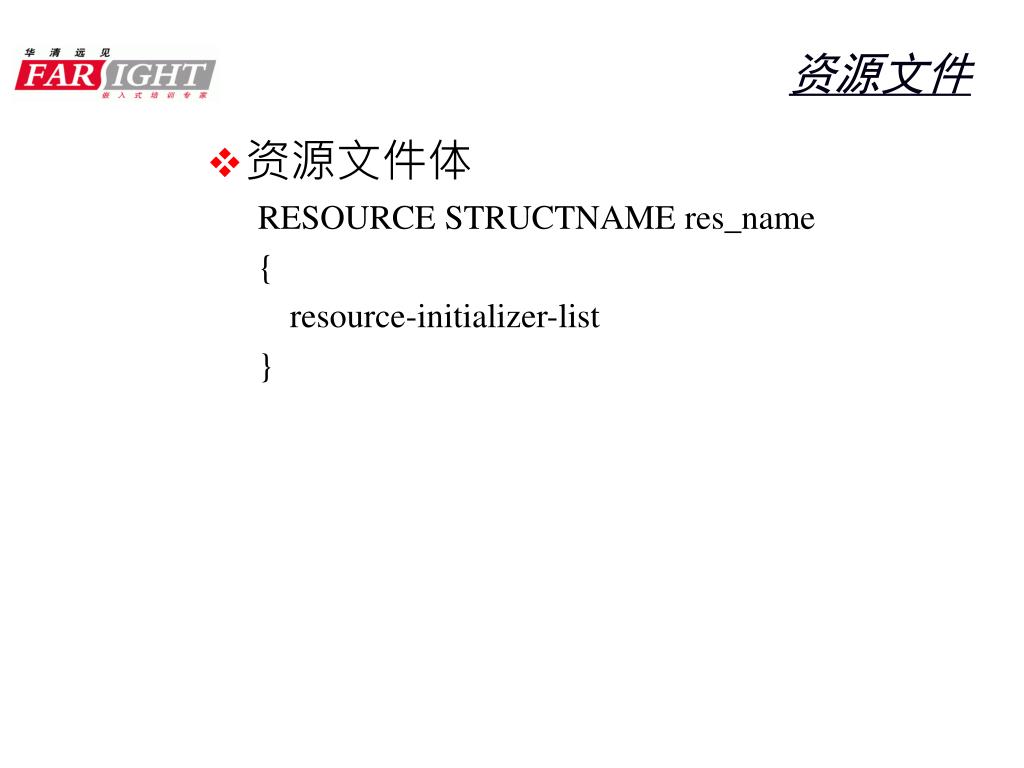

  14. 资源文件 • 资源文件体 RESOURCE STRUCTNAME res_name { resource-initializer-list }

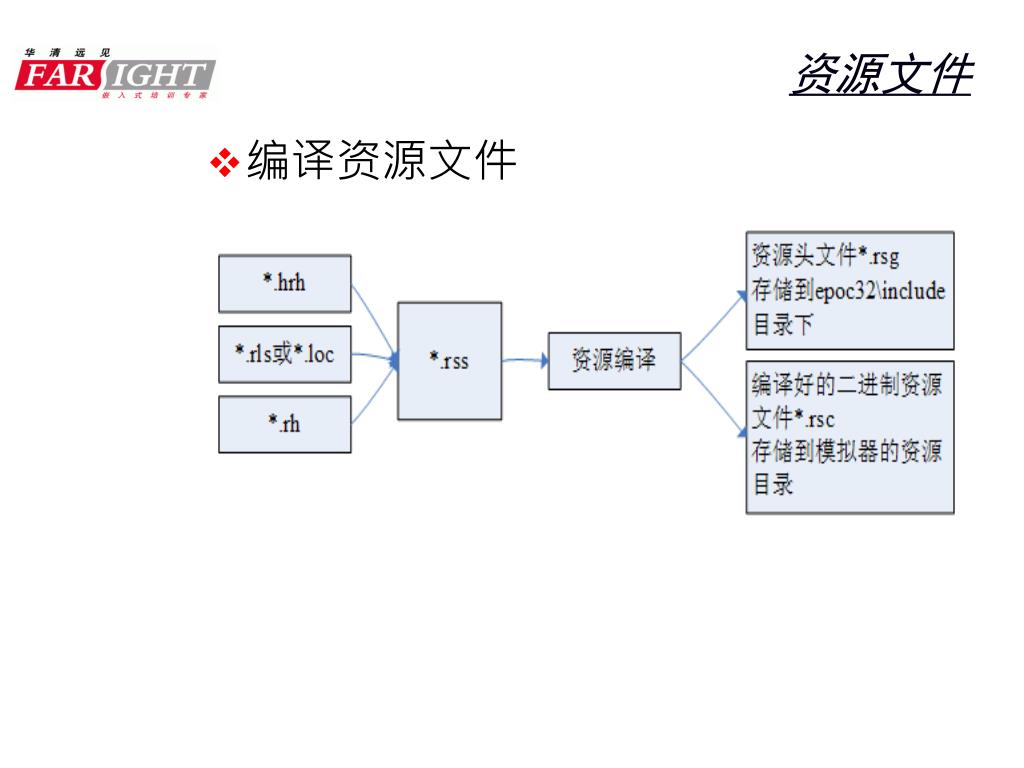

  15. 资源文件 • 编译资源文件

  16. 资源文件 • 定义菜单 1. RESOURCE MENU_BAR r_menubar 2. { 3. titles = 4. { 5. MENU_TITLE { menu_pane = r_menu; } 6. }; 8. } 9.

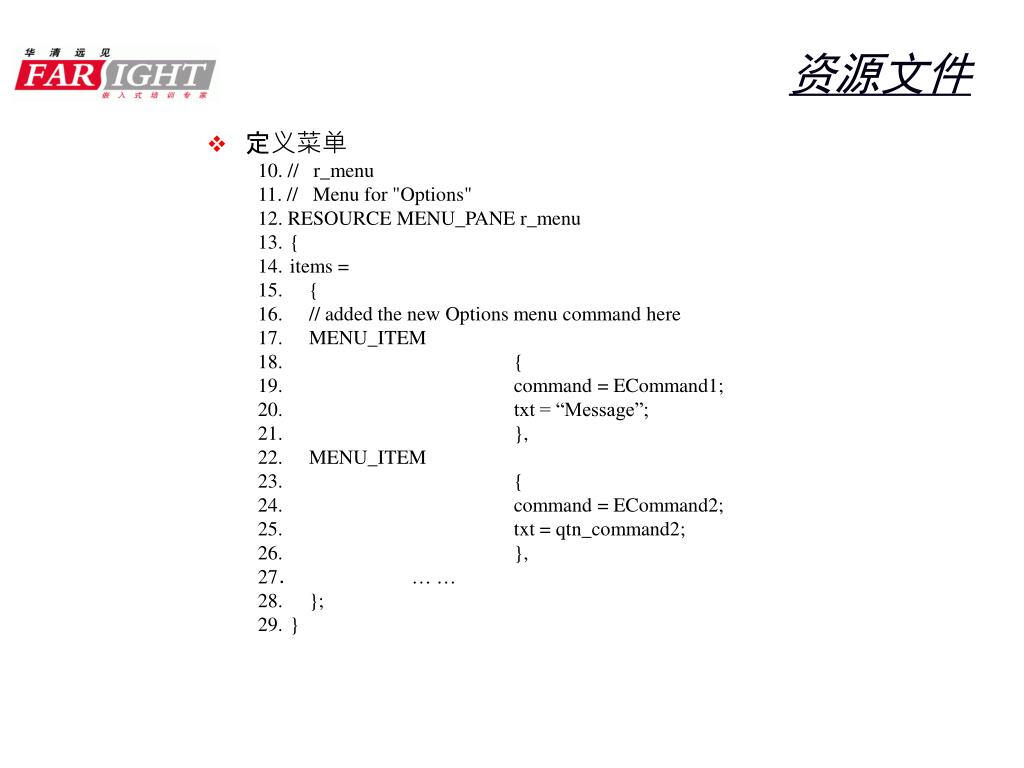

  17. 资源文件 • 定义菜单 10. // r_menu 11. // Menu for "Options" 12. RESOURCE MENU_PANE r_menu 13. { 14. items = 15. { 16. // added the new Options menu command here 17. MENU_ITEM 18. { 19. command = ECommand1; 20. txt = “Message”; 21. }, 22. MENU_ITEM 23. { 24. command = ECommand2; 25. txt = qtn_command2; 26. }, 27. … … 28. }; 29. }

  18. 资源文件 • 处理菜单命令 void CExam0303NewGuiAppUi::HandleCommandL(TInt aCommand) { switch (aCommand) { case EEikCmdExit: case EAknSoftkeyExit: Exit(); break; case ECommand1: // break; default: Panic(EExam0303NewGuiUi); break; } }

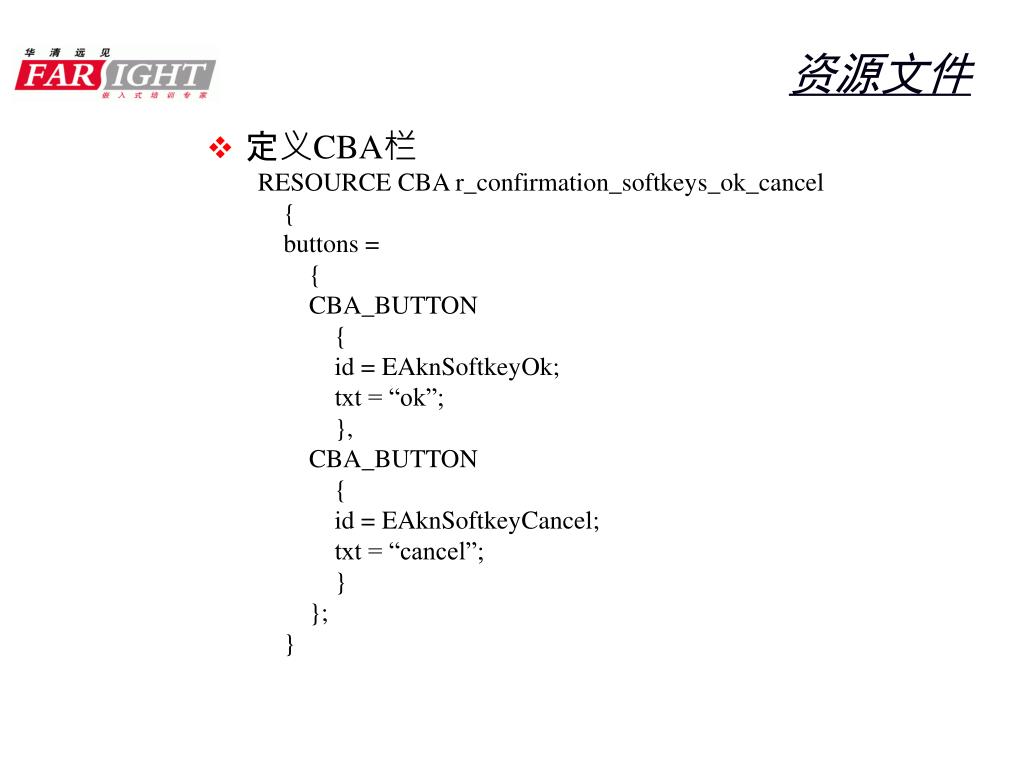

  19. 资源文件 • 定义CBA栏 RESOURCE CBA r_confirmation_softkeys_ok_cancel { buttons = { CBA_BUTTON { id = EAknSoftkeyOk; txt = “ok”; }, CBA_BUTTON { id = EAknSoftkeyCancel; txt = “cancel”; } }; }

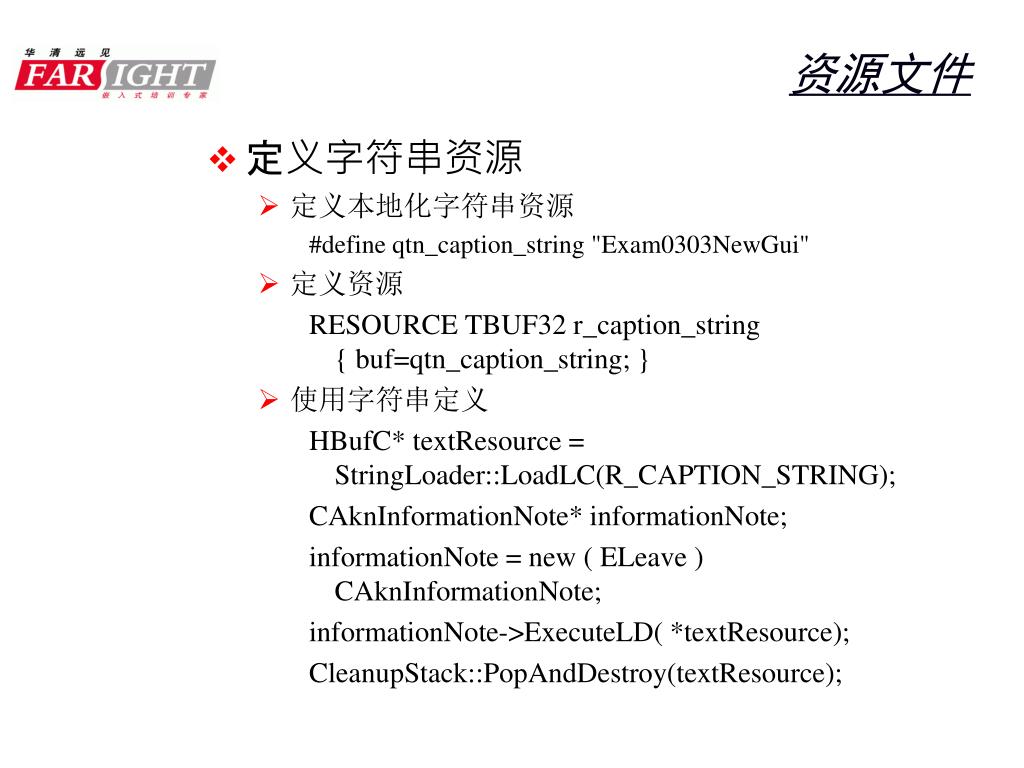

  20. 资源文件 • 定义字符串资源 • 定义本地化字符串资源 #define qtn_caption_string "Exam0303NewGui" • 定义资源 RESOURCE TBUF32 r_caption_string { buf=qtn_caption_string; } • 使用字符串定义 HBufC* textResource = StringLoader::LoadLC(R_CAPTION_STRING); CAknInformationNote* informationNote; informationNote = new ( ELeave ) CAknInformationNote; informationNote->ExecuteLD( *textResource); CleanupStack::PopAndDestroy(textResource);

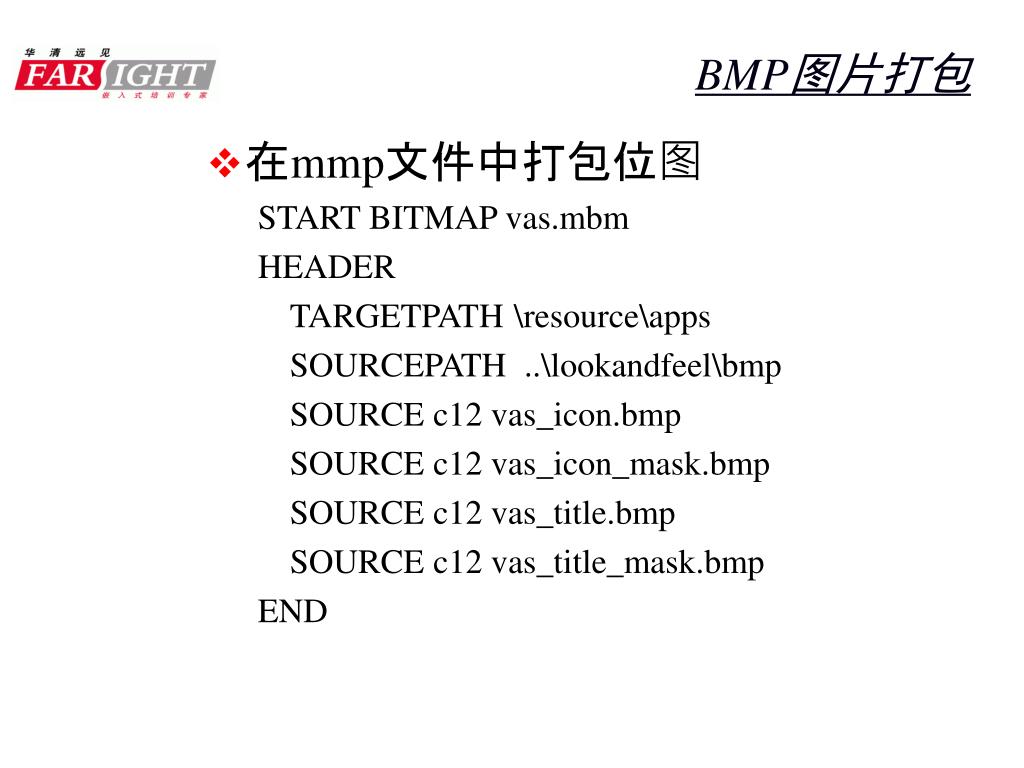

  21. BMP图片打包 • 在mmp文件中打包位图 START BITMAP vas.mbm HEADER TARGETPATH \resource\apps SOURCEPATH ..\lookandfeel\bmp SOURCE c12 vas_icon.bmp SOURCE c12 vas_icon_mask.bmp SOURCE c12 vas_title.bmp SOURCE c12 vas_title_mask.bmp END

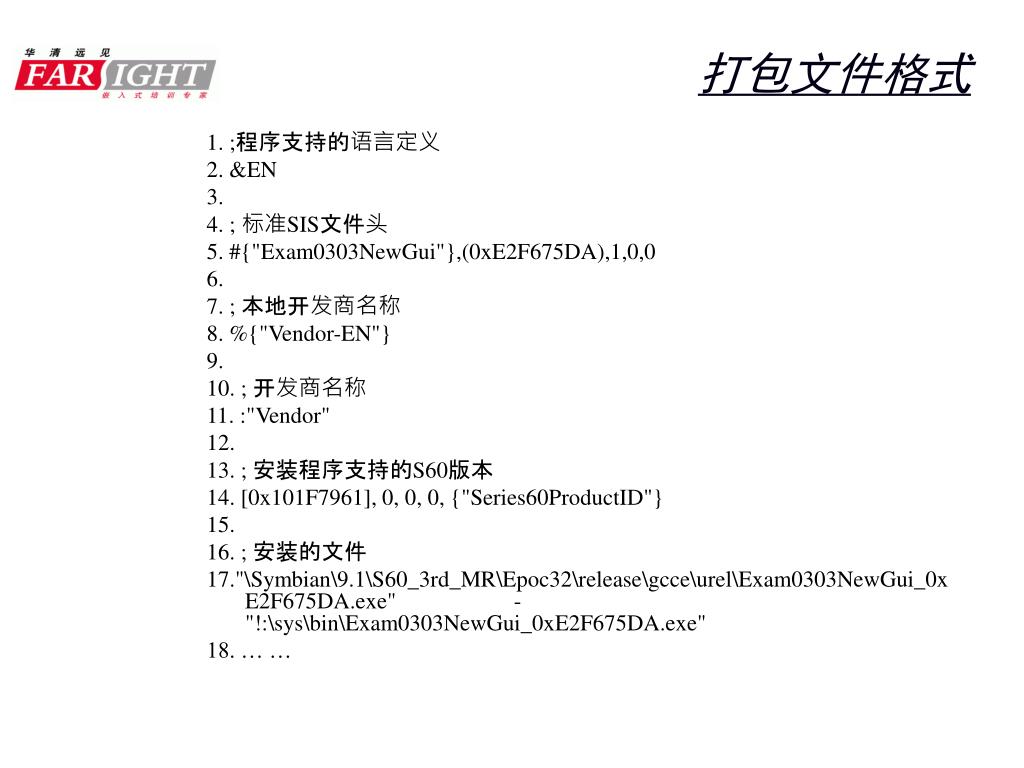

  22. 打包文件格式 1. ;程序支持的语言定义 2. &EN 3. 4. ; 标准SIS文件头 5. #{"Exam0303NewGui"},(0xE2F675DA),1,0,0 6. 7. ; 本地开发商名称 8. %{"Vendor-EN"} 9. 10. ; 开发商名称 11. :"Vendor" 12. 13. ; 安装程序支持的S60版本 14. [0x101F7961], 0, 0, 0, {"Series60ProductID"} 15. 16. ; 安装的文件 17."\Symbian\9.1\S60_3rd_MR\Epoc32\release\gcce\urel\Exam0303NewGui_0xE2F675DA.exe" -"!:\sys\bin\Exam0303NewGui_0xE2F675DA.exe" 18. … …

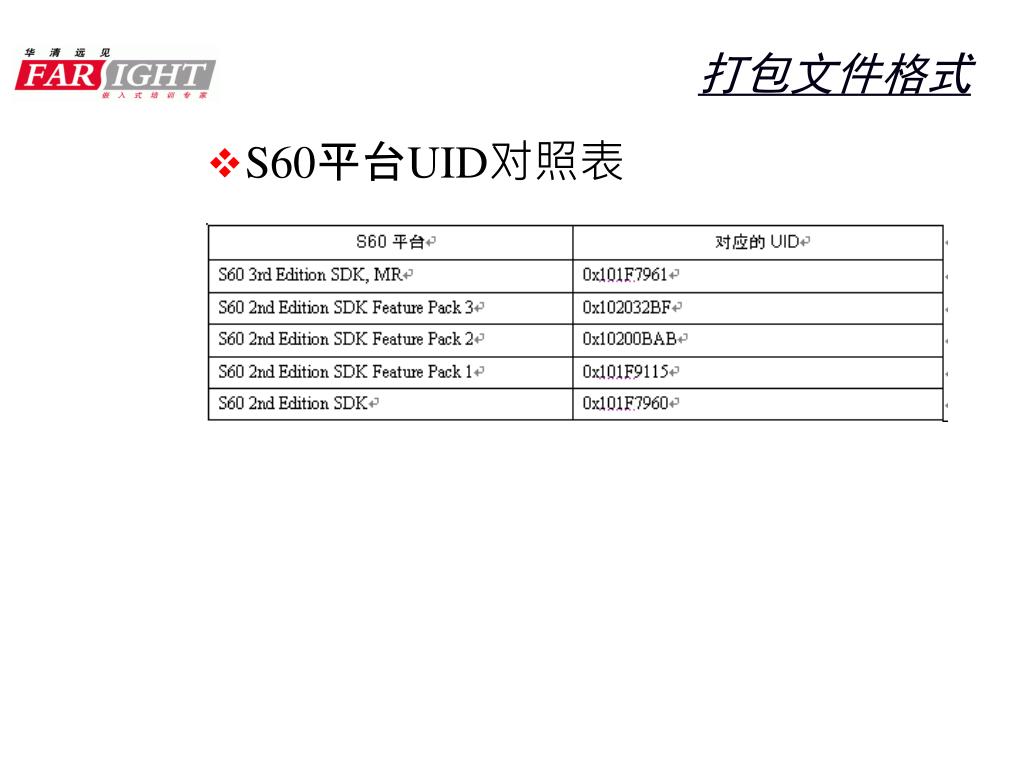

  23. 打包文件格式 • S60平台UID对照表
