  1. Hatchery and Design Considerations What to do BEFORE you start?

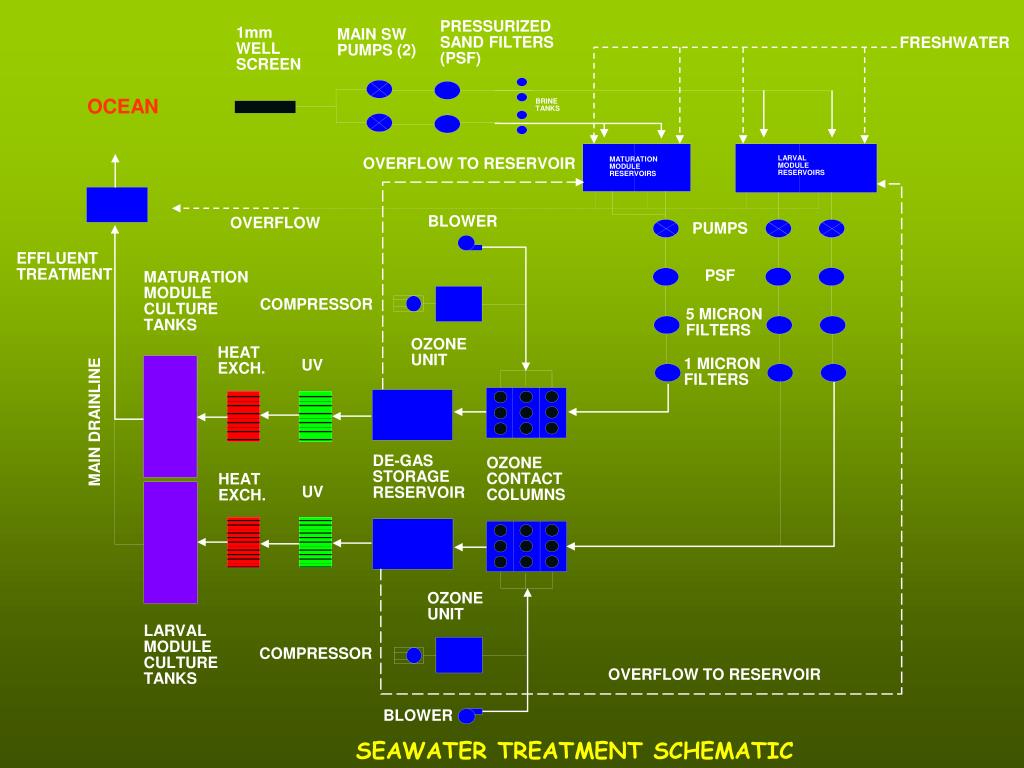

  2. PRESSURIZEDSAND FILTERS(PSF) 1mm WELLSCREEN MAIN SWPUMPS (2) FRESHWATER OCEAN BRINETANKS LARVALMODULERESERVOIRS MATURATIONMODULERESERVOIRS OVERFLOW TO RESERVOIR BLOWER OVERFLOW PUMPS EFFLUENTTREATMENT PSF MATURATIONMODULECULTURETANKS COMPRESSOR 5 MICRONFILTERS OZONEUNIT HEATEXCH. 1 MICRONFILTERS UV MAIN DRAINLINE DE-GASSTORAGERESERVOIR OZONECONTACTCOLUMNS HEATEXCH. UV OZONEUNIT LARVALMODULECULTURETANKS COMPRESSOR OVERFLOW TO RESERVOIR BLOWER SEAWATER TREATMENT SCHEMATIC

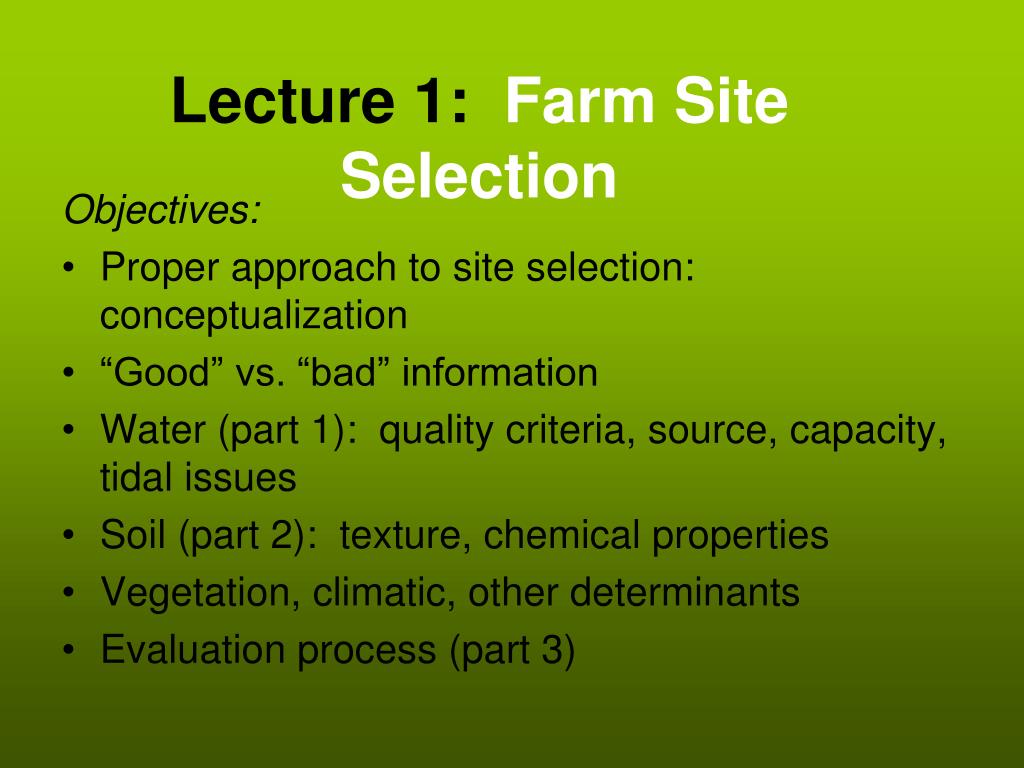

  3. Lecture 1: Farm Site Selection Objectives: • Proper approach to site selection: conceptualization • “Good” vs. “bad” information • Water (part 1): quality criteria, source, capacity, tidal issues • Soil (part 2): texture, chemical properties • Vegetation, climatic, other determinants • Evaluation process (part 3)

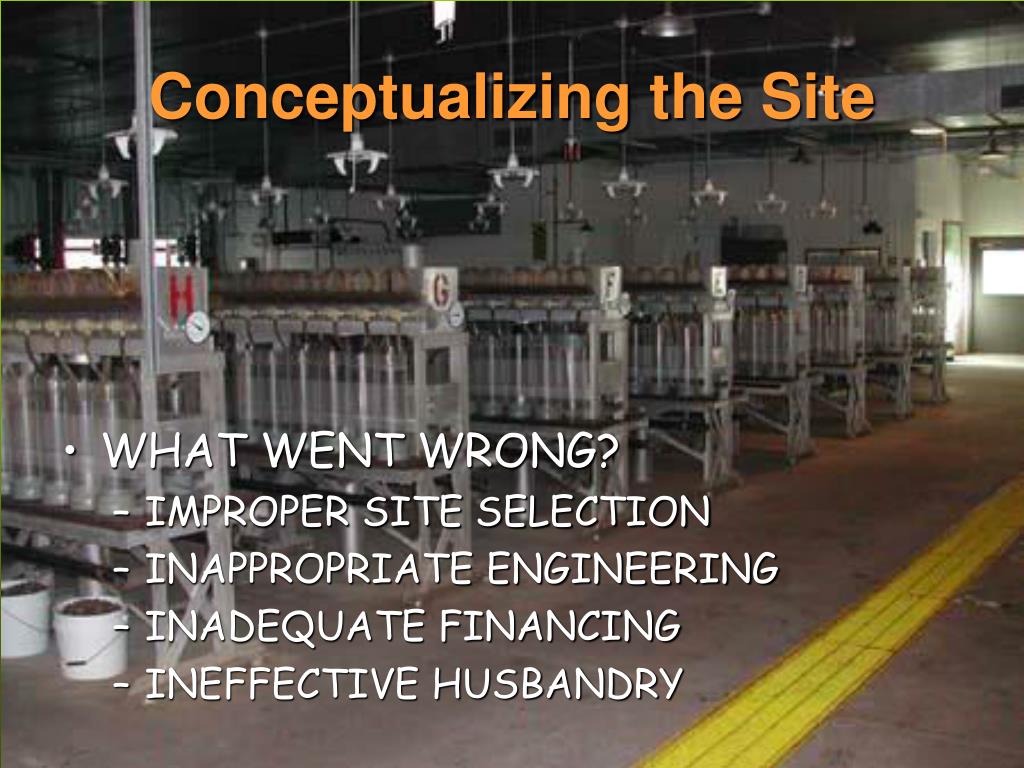

  4. Conceptualizing the Site • WHAT WENT WRONG? • IMPROPER SITE SELECTION • INAPPROPRIATE ENGINEERING • INADEQUATE FINANCING • INEFFECTIVE HUSBANDRY

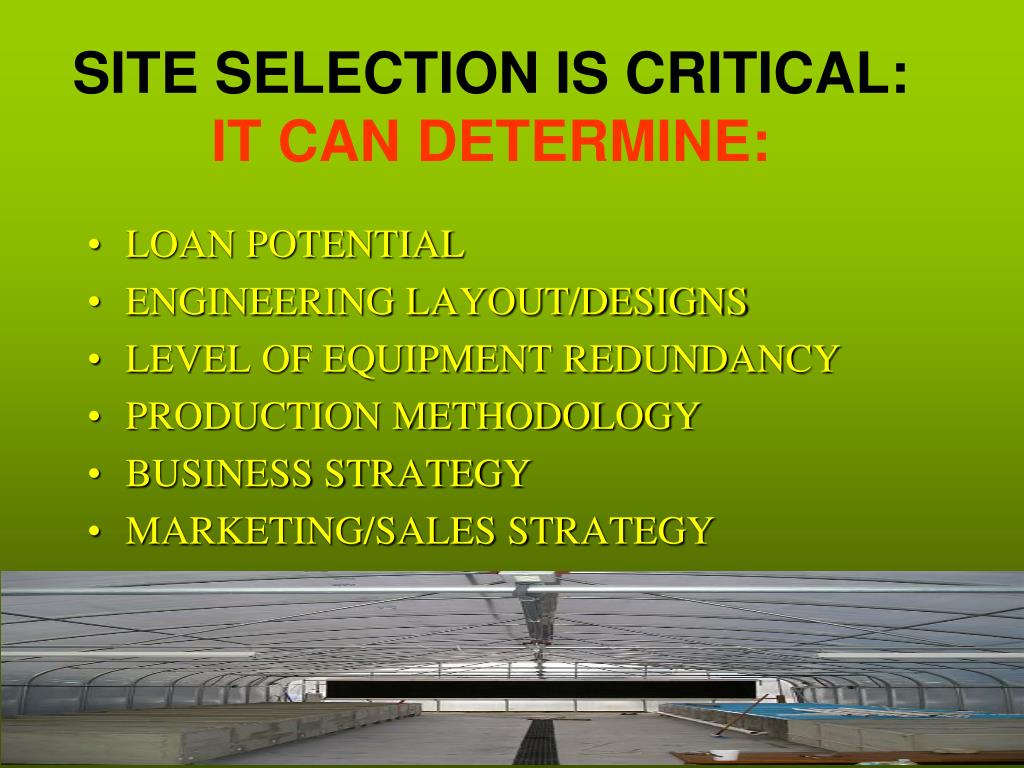

  5. SITE SELECTION IS CRITICAL:IT CAN DETERMINE: • LOAN POTENTIAL • ENGINEERING LAYOUT/DESIGNS • LEVEL OF EQUIPMENT REDUNDANCY • PRODUCTION METHODOLOGY • BUSINESS STRATEGY • MARKETING/SALES STRATEGY

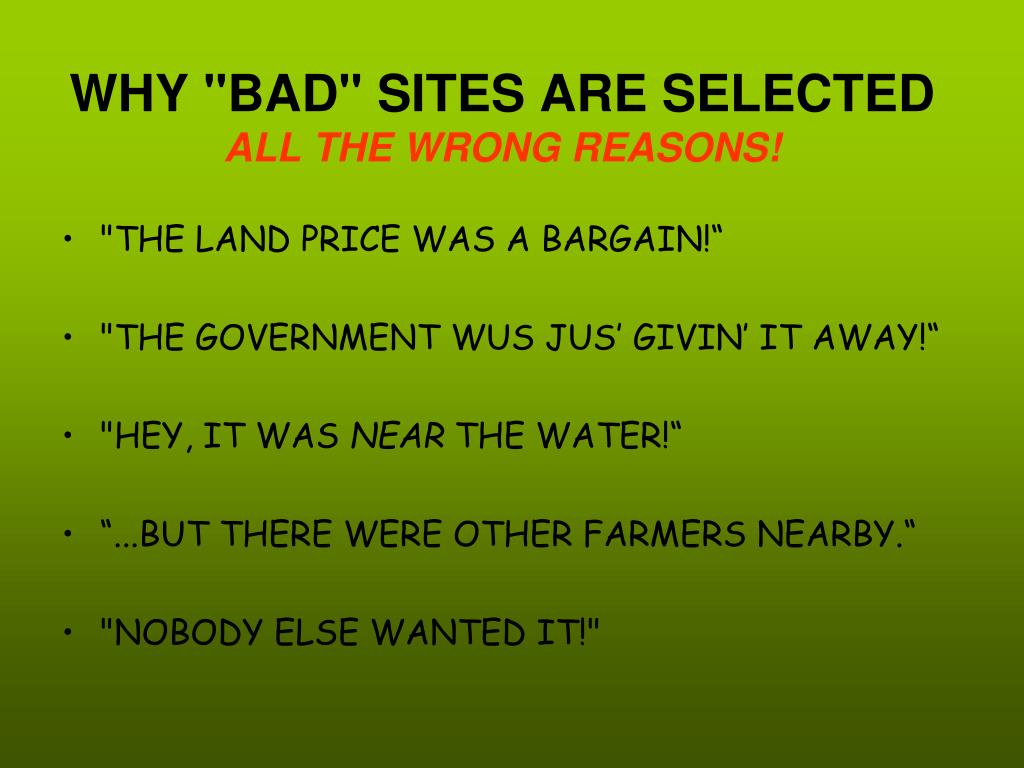

  6. WHY "BAD" SITES ARE SELECTEDALL THE WRONG REASONS! • "THE LAND PRICE WAS A BARGAIN!“ • "THE GOVERNMENT WUS JUS’ GIVIN’ IT AWAY!“ • "HEY, IT WAS NEAR THE WATER!“ • “...BUT THERE WERE OTHER FARMERS NEARBY.“ • "NOBODY ELSE WANTED IT!"

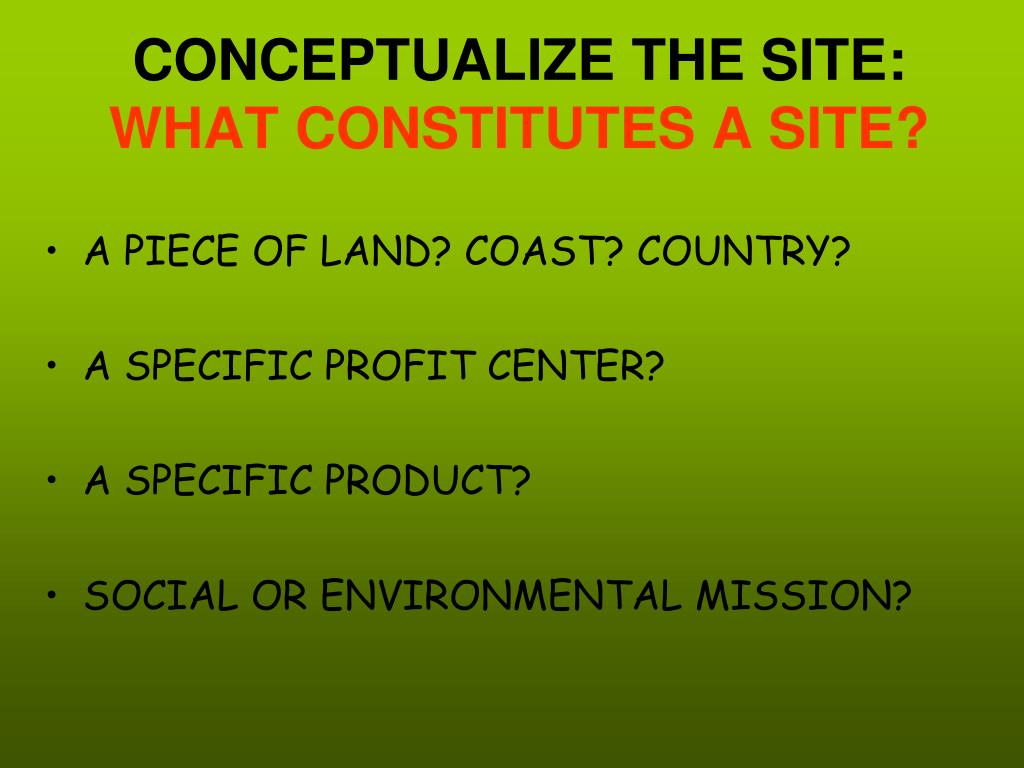

  7. CONCEPTUALIZE THE SITE:WHAT CONSTITUTES A SITE? • A PIECE OF LAND? COAST? COUNTRY? • A SPECIFIC PROFIT CENTER? • A SPECIFIC PRODUCT? • SOCIAL OR ENVIRONMENTAL MISSION?

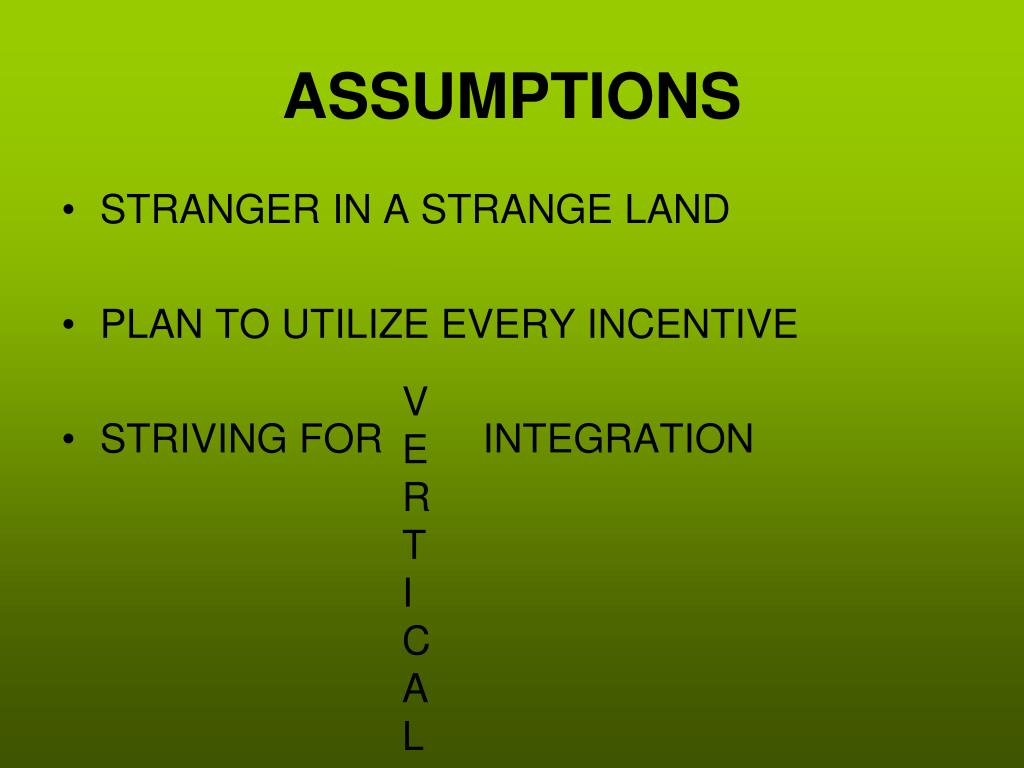

  8. ASSUMPTIONS • STRANGER IN A STRANGE LAND • PLAN TO UTILIZE EVERY INCENTIVE • STRIVING FOR INTEGRATION VERTICAL

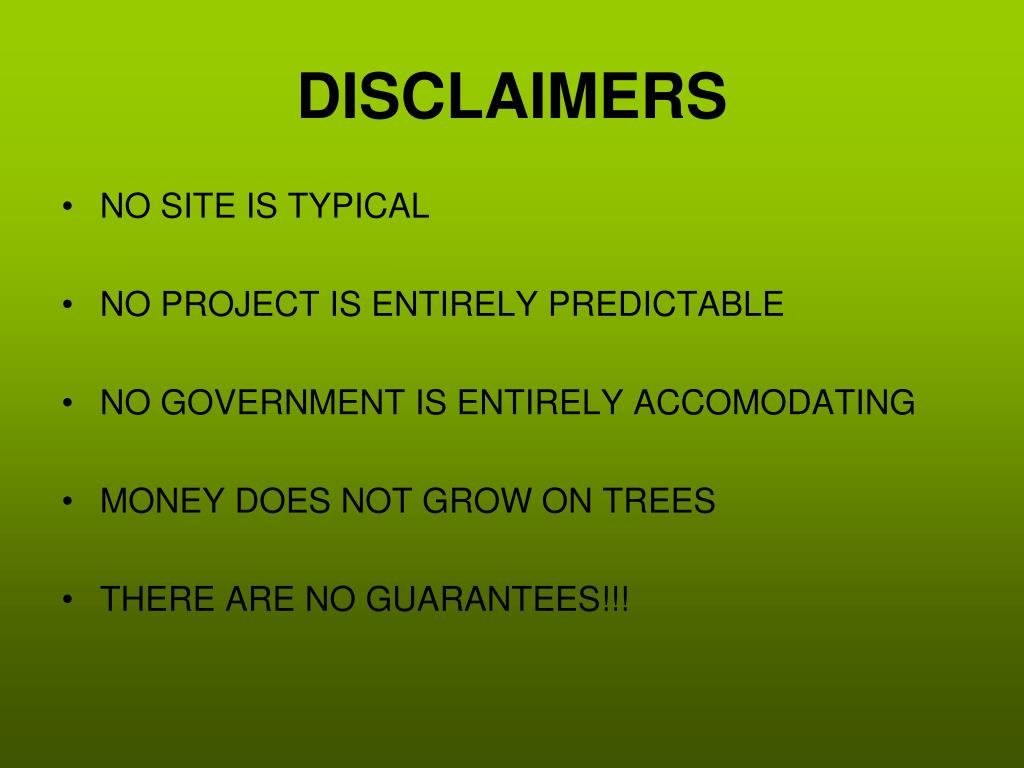

  9. DISCLAIMERS • NO SITE IS TYPICAL • NO PROJECT IS ENTIRELY PREDICTABLE • NO GOVERNMENT IS ENTIRELY ACCOMODATING • MONEY DOES NOT GROW ON TREES • THERE ARE NO GUARANTEES!!!

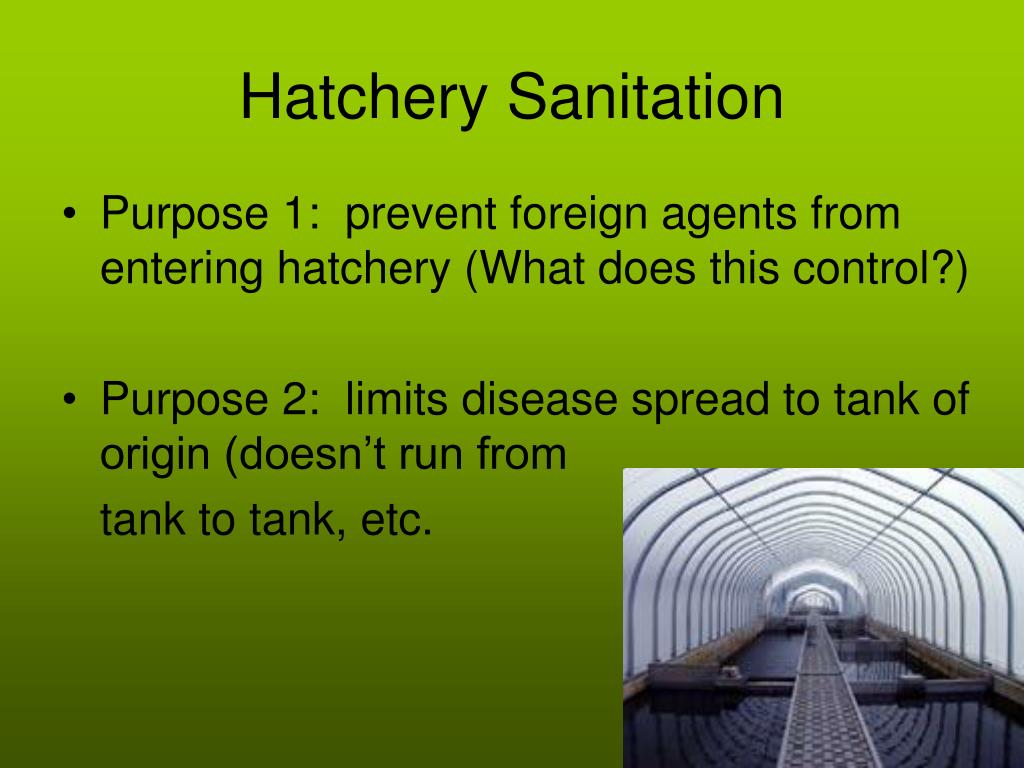

  10. Hatchery Sanitation • Purpose 1: prevent foreign agents from entering hatchery (What does this control?) • Purpose 2: limits disease spread to tank of origin (doesn’t run from tank to tank, etc.

  11. Is clear water clean??

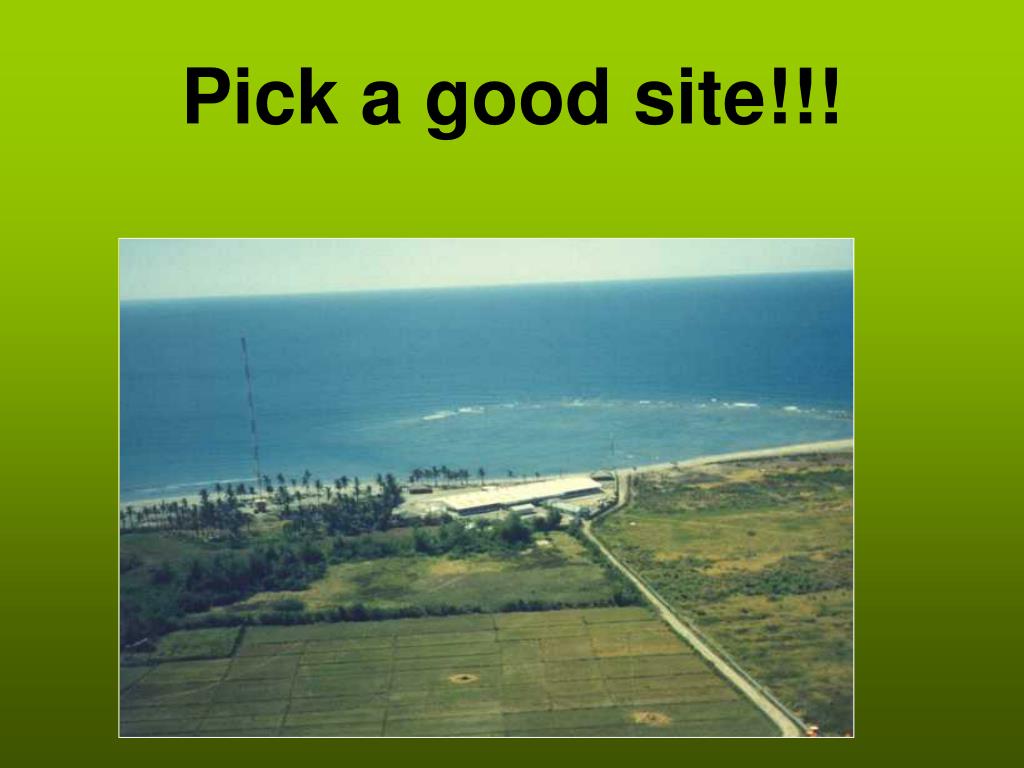

  12. Pick a good site!!!

  13. Hawaiian Hatcheries, Phillipines

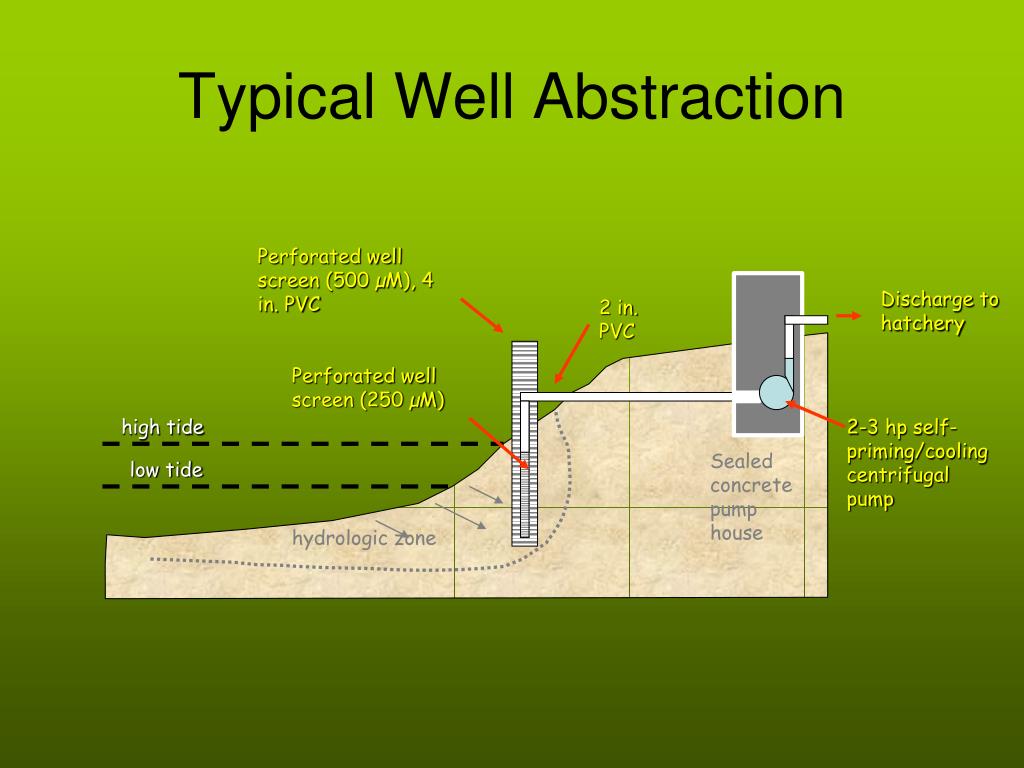

  14. Typical Well Abstraction Perforated well screen (500 µM), 4 in. PVC Discharge to hatchery 2 in. PVC Perforated well screen (250 µM) high tide 2-3 hp self-priming/cooling centrifugal pump Sealed concrete pump house low tide hydrologic zone

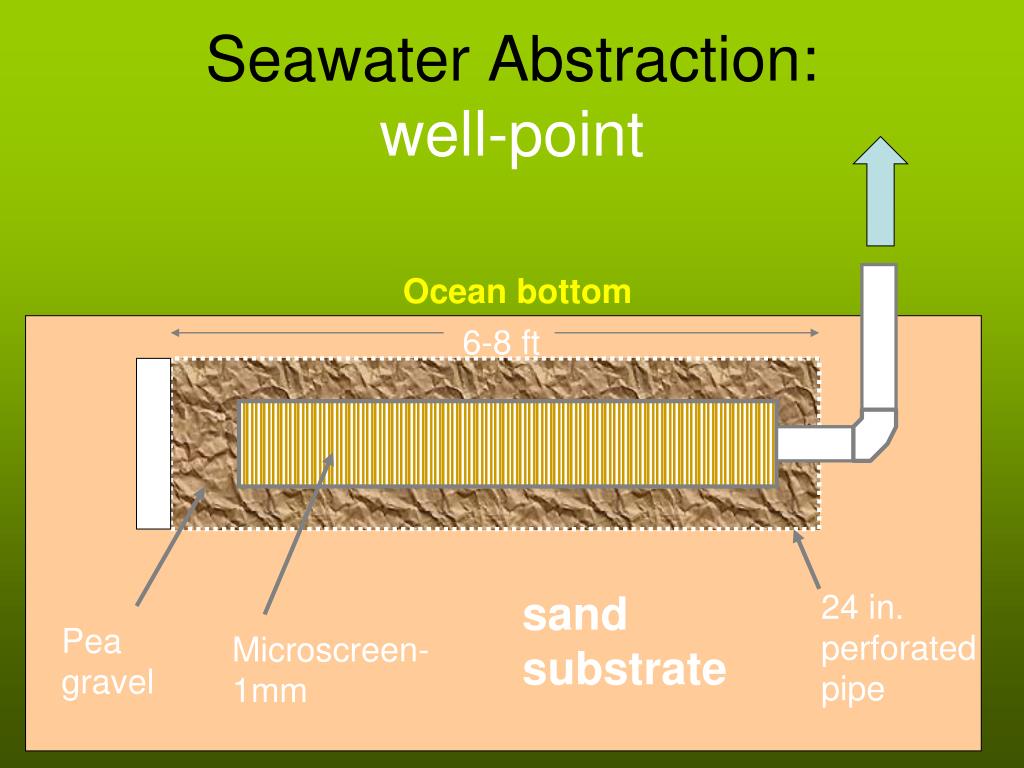

  15. Seawater Abstraction: well-point Ocean bottom 6-8 ft sand substrate 24 in. perforated pipe Pea gravel Microscreen- 1mm

  16. Seawater Abstraction:open ocean intake

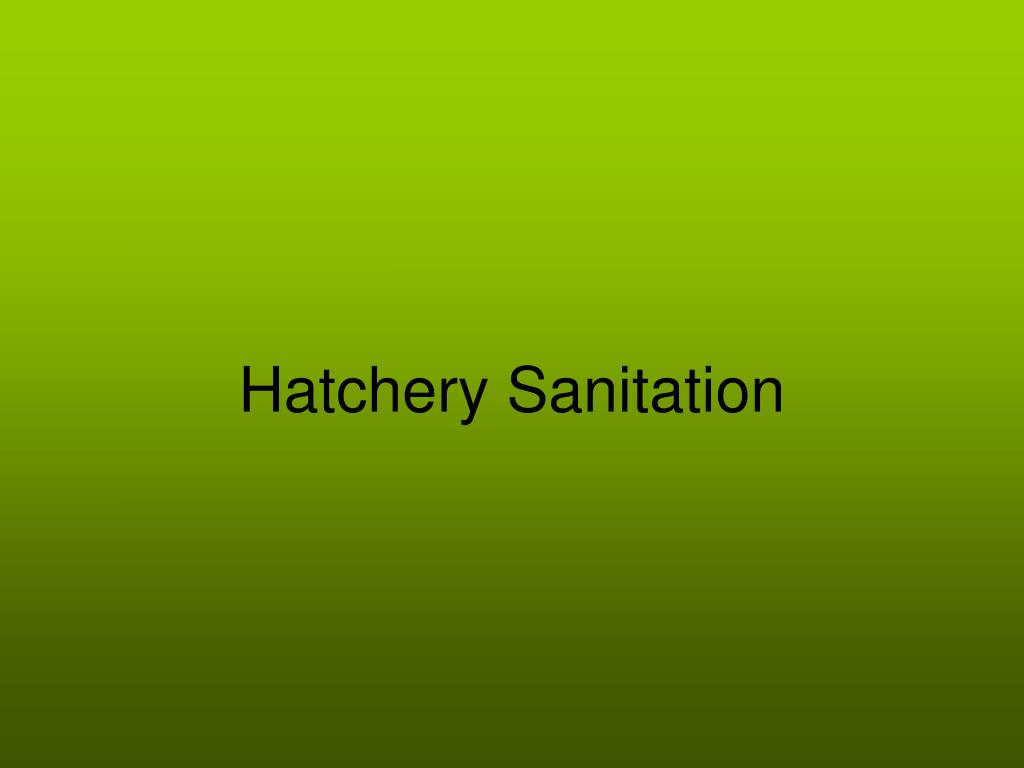

  17. Hatchery Sanitation

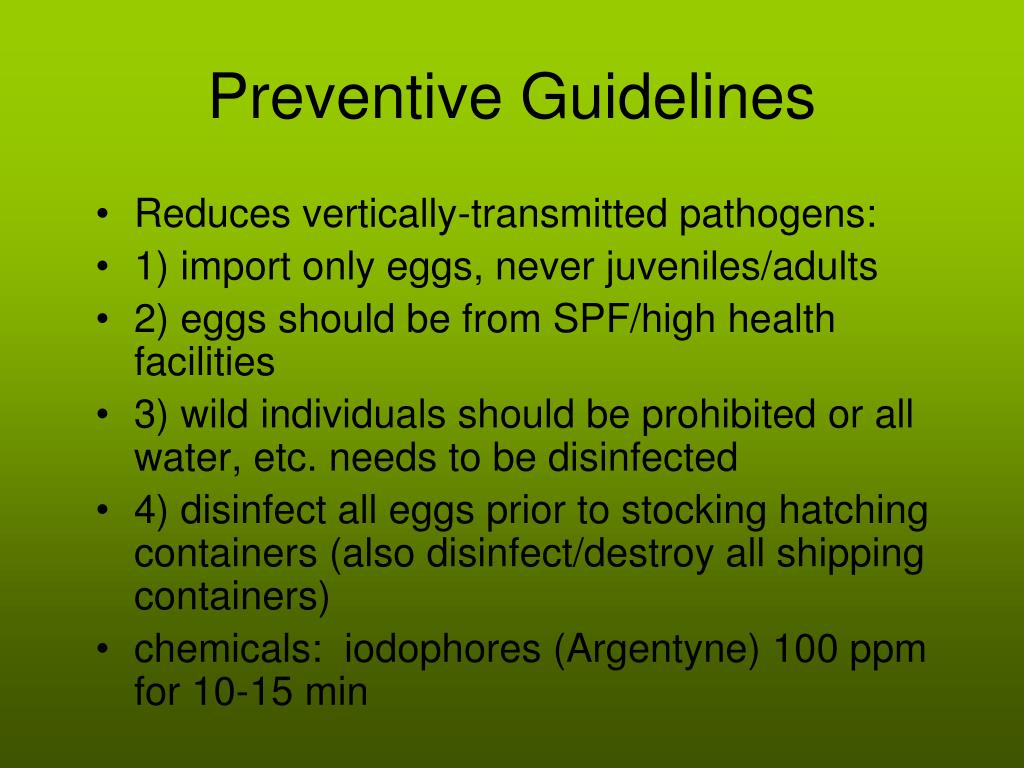

  18. Preventive Guidelines • Reduces vertically-transmitted pathogens: • 1) import only eggs, never juveniles/adults • 2) eggs should be from SPF/high health facilities • 3) wild individuals should be prohibited or all water, etc. needs to be disinfected • 4) disinfect all eggs prior to stocking hatching containers (also disinfect/destroy all shipping containers) • chemicals: iodophores (Argentyne) 100 ppm for 10-15 min

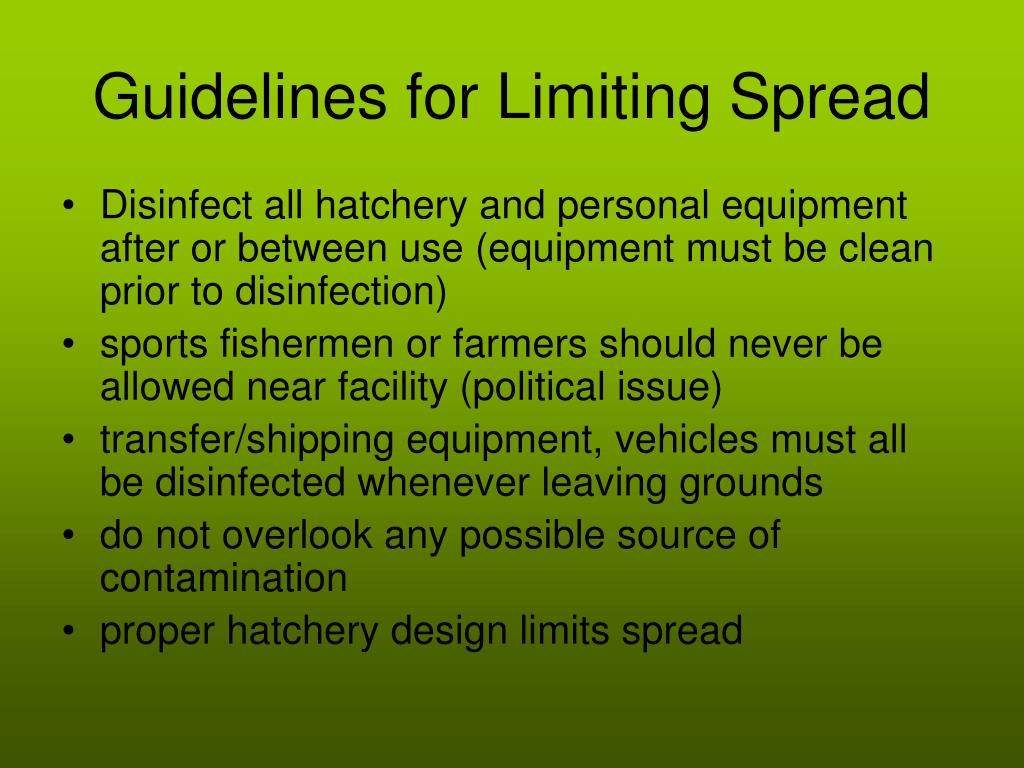

  19. Guidelines for Limiting Spread • Disinfect all hatchery and personal equipment after or between use (equipment must be clean prior to disinfection) • sports fishermen or farmers should never be allowed near facility (political issue) • transfer/shipping equipment, vehicles must all be disinfected whenever leaving grounds • do not overlook any possible source of contamination • proper hatchery design limits spread

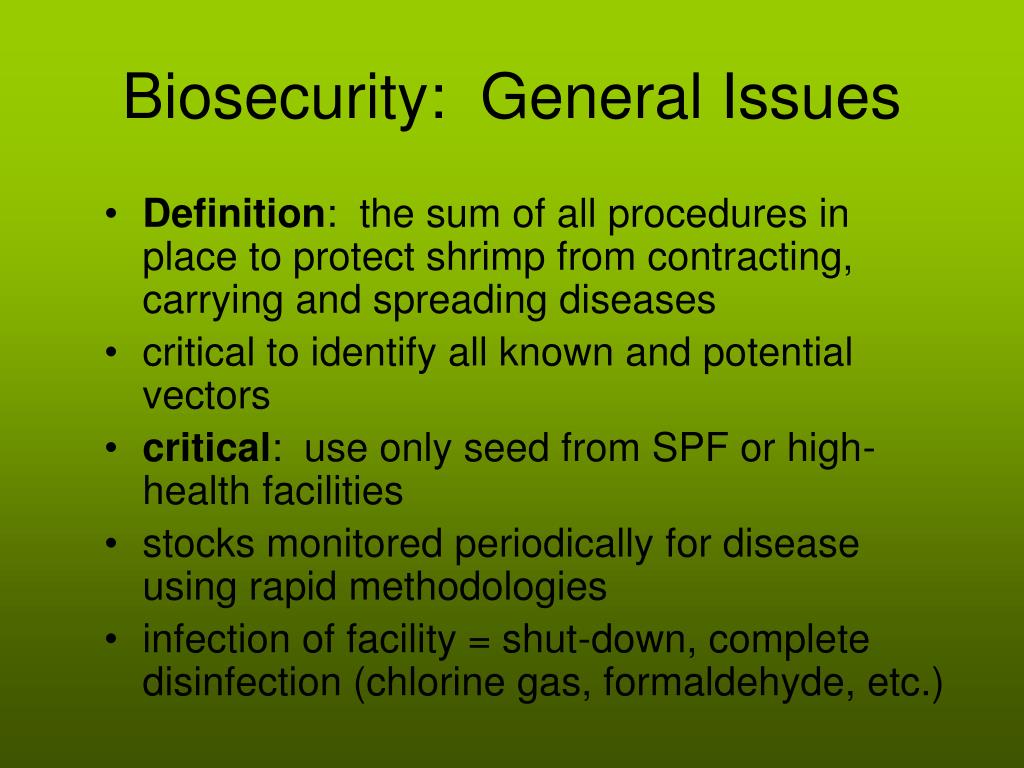

  20. Biosecurity: General Issues • Definition: the sum of all procedures in place to protect shrimp from contracting, carrying and spreading diseases • critical to identify all known and potential vectors • critical: use only seed from SPF or high-health facilities • stocks monitored periodically for disease using rapid methodologies • infection of facility = shut-down, complete disinfection (chlorine gas, formaldehyde, etc.)

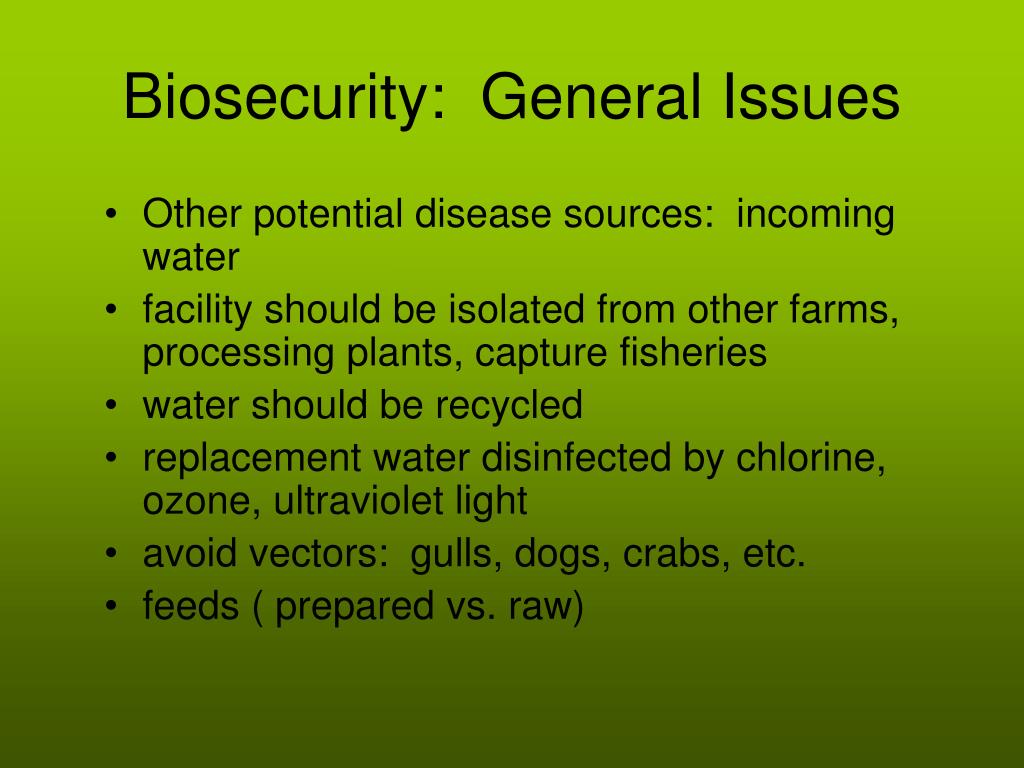

  21. Biosecurity: General Issues • Other potential disease sources: incoming water • facility should be isolated from other farms, processing plants, capture fisheries • water should be recycled • replacement water disinfected by chlorine, ozone, ultraviolet light • avoid vectors: gulls, dogs, crabs, etc. • feeds ( prepared vs. raw)

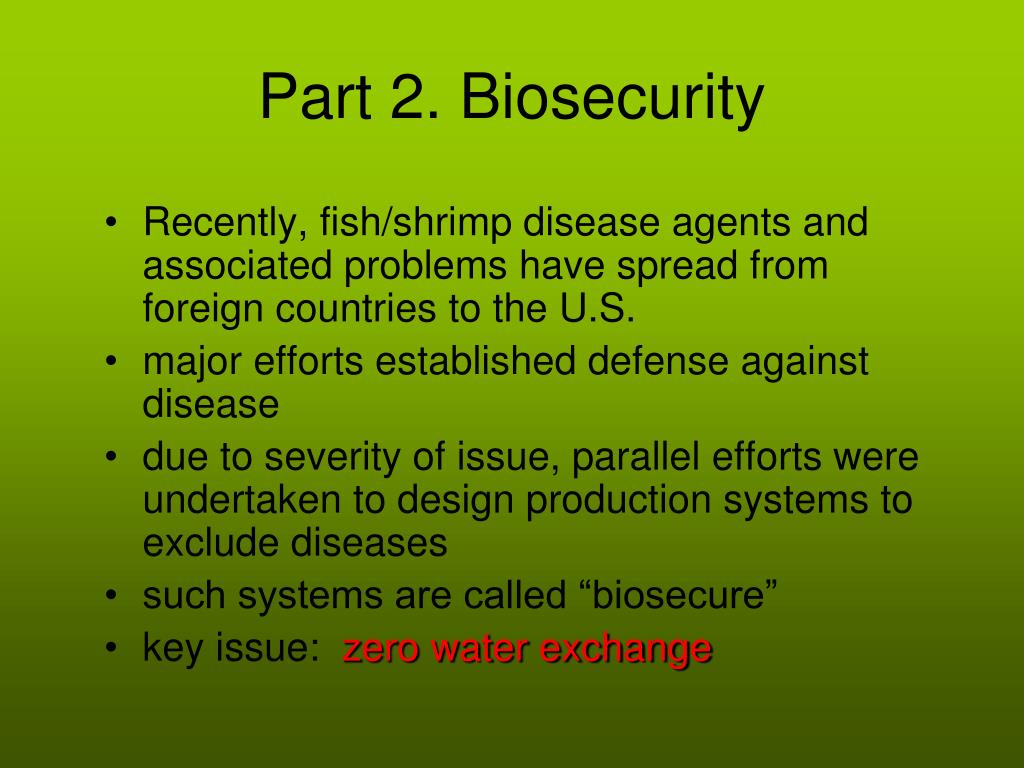

  22. Part 2. Biosecurity • Recently, fish/shrimp disease agents and associated problems have spread from foreign countries to the U.S. • major efforts established defense against disease • due to severity of issue, parallel efforts were undertaken to design production systems to exclude diseases • such systems are called “biosecure” • key issue: zero water exchange
