Synthesis Of Propionic Acid from Syngas

Synthesis Of Propionic Acid from Syngas Sabah Basrawi , Alex Guerrero, Mrunal Patel, Kevin Thompson University of Illinois at Chicago. Economics. Design Basis. Process Flow Diagram. 33,000 tons/year Inlet feeds of Syngas taken from Team Foxtrot and ethylene taken from Lyondellbasell

Download Presentation

Synthesis Of Propionic Acid from Syngas

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

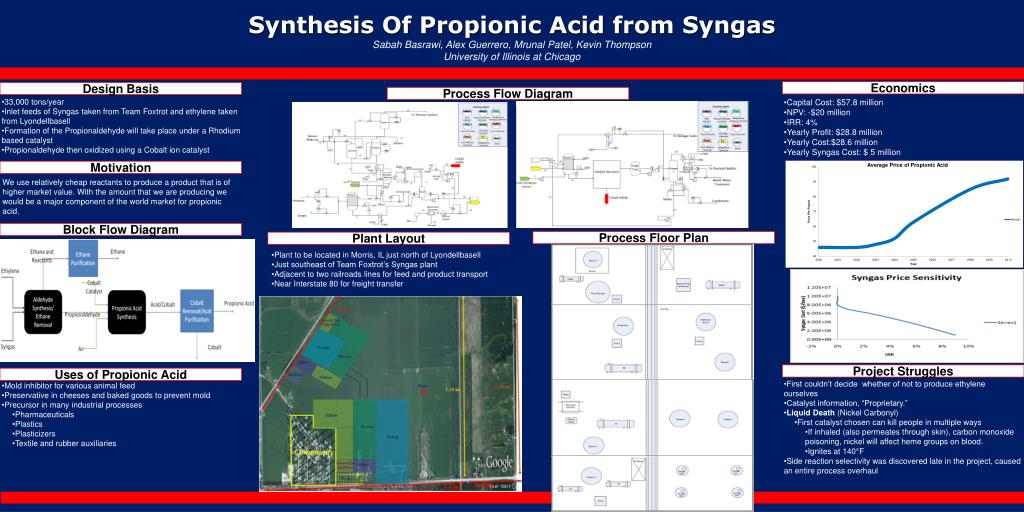

  1. Synthesis Of Propionic Acid from Syngas Sabah Basrawi, Alex Guerrero, Mrunal Patel, Kevin Thompson University of Illinois at Chicago Economics Design Basis Process Flow Diagram • 33,000 tons/year • Inlet feeds of Syngas taken from Team Foxtrot and ethylene taken from Lyondellbasell • Formation of the Propionaldehyde will take place under a Rhodium based catalyst • Propionaldehyde then oxidized using a Cobalt ion catalyst • Capital Cost: $57.8 million • NPV: -$20 million • IRR: 4% • Yearly Profit: $28.8 million • Yearly Cost:$28.6 million • Yearly Syngas Cost: $ 5 million Motivation We use relatively cheap reactants to produce a product that is of higher market value. With the amount that we are producing we would be a major component of the world market for propionic acid. Block Flow Diagram Process Floor Plan Plant Layout • Plant to be located in Morris, IL just north of Lyondellbasell • Just southeast of Team Foxtrot’s Syngas plant • Adjacent to two railroads lines for feed and product transport • Near Interstate 80 for freight transfer Project Struggles Uses of Propionic Acid • First couldn’t decide whether of not to produce ethylene ourselves • Catalyst information, “Proprietary.” • Liquid Death (Nickel Carbonyl) • First catalyst chosen can kill people in multiple ways • If inhaled (also permeates through skin), carbon monoxide poisoning, nickel will affect heme groups on blood. • Ignites at 140°F • Side reaction selectivity was discovered late in the project, caused an entire process overhaul • Mold inhibitor for various animal feed • Preservative in cheeses and baked goods to prevent mold • Precursor in many industrial processes • Pharmaceuticals • Plastics • Plasticizers • Textile and rubber auxiliaries
