Cause many diseases in plants, animals & humans Some viruses are easily controlled with a vaccine Mumps, Measles, Smallpox, Polio Some viruses are difficult to control with a vaccine Retroviruses (HIV: ssRNA  dsDNA) Common cold, Influenza (Flu), HIV Used as vectors in biotechnology
Importance of Viruses

An Image/Link below is provided (as is) to

Download Policy: Content on the Website is provided to you AS IS for your information and personal use only and may not be sold or licensed nor shared on other sites. SlideServe reserves the right to change this policy at anytime. While downloading, If for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Importance of virusesSlide 1

Cause many diseases in plants, animals & humans

Some viruses are easily controlled with a vaccine

Mumps, Measles, Smallpox, Polio

Some viruses are difficult to control with a vaccine

Retroviruses (HIV: ssRNA  dsDNA)

Common cold, Influenza (Flu), HIV

Used as vectors in biotechnology

Used to insert therapeutic genes into a host cell chromosome

Use viruses with provirus in life cycle

Importance of Viruses

Herpes dsdna dsdnaSlide 2

Herpes(dsDNA  dsDNA)

Cold sores

Herpes virus may rest inactive inside host cells for long periods

Adenovirus dsdnaSlide 3

Adenovirus (dsDNA)

Adenoviruses cause various respiratory diseases

Polio virus ssrna serves as mrnaSlide 4

Polio Virus(ssRNA serves as mRNA)

Polio is easily prevented with a vaccine

Measles ssrna template for mrna synthesisSlide 5

Measles(ssRNA template for mRNA synthesis)

Measles: a childhood disease that can be prevented with a vaccine

Couple at aids quilt hiv ssrna dsdnaSlide 6

Couple at AIDS quilt (HIV: ssRNA  dsDNA)

HIV is very difficult to control with a vaccine

1918 influenza epidemic ssrna template for mrna synthesisSlide 7

1918 Influenza epidemic(ssRNA template for mRNA synthesis)

>20 million died of the flu during WW I

A new influenza vaccine must be developed yearly

Influenza todaySlide 8

Influenza Today

Importance of virusesSlide 9

Enter H5N1, the avian flu virus

Why do new strains of influenza and bird flu arise in asiaSlide 15

Why do new strains of influenza and bird flu arise in Asia?

Importance of virusesSlide 16

Background: Influenza Virus Structure (1 of 3)

  • Flu viruses are named by the type of surface proteins

    • Hemagglutinin

      • Helps virus enter cell

      • Type A infects humans, birds and pigs

      • Type A has ~ 20 different sub types

  • Flu Viruses Currently infecting...

  • Humans: H1N1, H1N2, and H3N2

  • Avian Flu Virus: H5N1

Importance of virusesSlide 17

Background: Influenza Virus Structure (2 of 3)

  • Named for the type of surface proteins

    • Neuraminidase

      • Helps virus exit cell

      • 9 subtypes

  • Currently infecting Humans:

  • H1N1, H1N2, and H3N2

Importance of virusesSlide 18

Background: Influenza Virus Structure (3 of 3)

  • Influenza viral genome

    • ssRNA

    • 8 segments (pieces)

    • One gene per segment

  • Avian Flu Virus: H5N1

    • Transmitted from birds to humans

    • No evidence of human to human transmission

    • Antiviral drugs: Tamiflu

      • a neuraminidase inhibitor

      • Consequences of its action?

Genetic changes in influenza virusesSlide 19

Antigenic drift – due to errors in replication and lack of repair mechanism to correct errors

Results in ___________________ changes

Antigenic shift - reassortment of genetic materials when concurrent infection of different viral strains occurs

Results in ___________________ changes

Genetic Changes in Influenza Viruses

Importance of virusesSlide 20

Emergence of New Influenza Subtypes: H5N1

Antigenic shiftdue to genome reassortment within intermediate hosts drives flu epidemics and pandemics

Solid lines: transmission demonstrated;

Dotted lines: transmission postulated but not demonstrated.


  • Nonpathogenic H5 influenza virus: Wild fowl  domestic ducks and geese,  domestic chickens.

  • H5 virus became highly pathogenic in chickens  domestic ducks and geese.

  • Highly Pathogenic H5 virus reassorted its genome with those of other influenza viruses in aquatic birds,  spread to poultry farms, humans, and occasionally to pigs.

Importance of virusesSlide 21

Where do the “new flu” viruses come from?

Antigenic Drift:mutations result in changes to the Hemagglutinin (HA) molecules

  • - RNA replication is error prone

  • - New HA types are created frequently

  • Requires new vaccine every “season”

  • What is a vaccine?

Vaccines protection against virusesSlide 22

What is a vaccine?

Vaccines stimulate the production of memory cells

Give long-term protection against a specific antigen

Why are vaccines ineffective against the flu virus?

Why will this year’s flu vaccine be ineffective next year?

Why are vaccines effective against DNA viruses?

e.g. small pox and polio virus

Vaccines: Protection against viruses

Smallpox dsdna dsdnaSlide 23

Smallpox (dsDNA  dsDNA)

Smallpox has been irradicated worldwide due to a very successful vaccine

Why are vaccines for DNA viruses so successful?

Hepatitis b an rna virusSlide 24

Hepatitis B—an RNA virus

Hepatitis B

Infections may lead to liver cancer. Why?

Carry viral oncogene

Viruses and cancerSlide 25

Tumor Viruses: may transform normal cells into cancer cells

Hepatitis B Liver cancer

HTLV 1 leukemia (Human T-Cell Leukemia Virus)

Tumor viruses form a permanent provirus

Viral oncogenes

code for growth factors

Growth factors Stimulate cell to enter S phase

G1 or G0 S phase

Each of the following must happen for cancer to occur

Active host oncogenes + Active viral oncogenes  cancer

Activators of host oncogenes

Carcinogens, radiation, some viruses

Viruses and Cancer

Emerging virusesSlide 26

Emerging viruses

Ebola Virus

Hanta Virus

Both viruses: ssRNA template for mRNA synthesis

Either virus usually results in death within days!

Deer mouse carries hanta virus in fecesSlide 27

Deer Mouse: Carries Hanta virus in Feces

Mottling of squash and tobacco by the mosaic virusSlide 28

Mottling of Squash and Tobacco by the Mosaic Virus

Viruses can spread easily from cell to cell via the plasmodesmata junctions between cells

Tobacco mosaic virus rna virusSlide 29

Tobacco mosaic virus (RNA virus)

Comparing the size of a virus a bacterium and a eukaryotic cellSlide 30

Comparing the size of a virus, a bacterium, and a eukaryotic cell

  • Viral Size

  • Millions can fit on pinhead

  • Smaller than a ribosome!

Viral structureSlide 31

Viral structure

TMV Adenovirus Influenza virus Bacteriophage T4

Viral structure1Slide 32

Nucleic Acid + Protein Coat (Capsid)

Some viruses with Membrane (envelope) surrounding capsid

Envelope derived from plasma membrane of host cell

Helps virus infect host cell

No organelles

Obligate intracellular parasite

Lacks metabolic enzymes, ribosomes, mitochondria

Alone, can only infect host cell

Nucleic Acid: DNA or RNA

Single or Double Stranded

4 genes to a few hundred

Viral Structure

Importance of virusesSlide 33

Classes of Animal VirusesGrouped by Type of Nucleic Acid

Host rangeSlide 34

Host cell Recognition

Complementary fit between external viral proteins and host cell surface proteins

Some have a Broad host range

Swine flu and rabies viruses

Some have a narrow host range

Single tissue in a single species

e.g. Adenovirus, HIV

Phages of E. coli

Host Range

Viral reproductionSlide 35

Simplified DNA Virus Life Cycle

E.g. smallpox, herpes, chickenpox

“Lock and Key” fit between viral surface proteins and host cell receptors initiates endocytosis

Viral Reproduction

Electron micrograph of bacteriophage t4Slide 36

Electron micrograph of Bacteriophage T4

Bacteriophages are viruses that infects bacteria

Bacteriophage reproductionSlide 37

Bacteriophages (Bacterial Viruses)

Best understood of all viruses

Responsible for many advances in molecular biology

Hershey-Chase expmts that showed that DNA is the genetic material

Restriction Enzymes used in Genetic Engineering come from bacteria

Lytic Cycle of Bacteriophage T4

T4 is a Virulent Phage

Lyses host  death of host cell

Bacteriophage Reproduction

The lytic cycle of phage t4Slide 38

The lytic cycle of phage T4

Lytic and lysogenic reproductive cycles of phage a temperate phageSlide 39

Lytic and Lysogenic reproductive cycles of phage , a temperate phage

What is the adaptive value of forming a prophage?






The reproductive cycle of an enveloped virusSlide 40

RNA viruses

RNA serves as template to produce mRNA

e.g. viruses that cause rabies, measles, mumps, flu

DNA viruses

DNA serves as template to produce mRNA

Herpes (Cold sores, genital herpes)



The reproductive cycle of an enveloped Virus

Importance of virusesSlide 41

AIDS: Acquired Immunodeficiency Syndrome

  • AIDS—caused by HIV infection

  • HIV = Human Immunodeficiency Virus

HIV infecting a Helper T-Cell

Hiv infectionSlide 42

HIV infection

Aids around the world source unaidsSlide 43

AIDS around the world (Source: UNAIDS)

Importance of virusesSlide 44

The Structure of HIV: A Retrovirus (RNA virus)

Envelope protein


Lipid envelope




Capsid made of protein


(2 copies of its genome)

Animation of hiv life cycleSlide 45

Animation of HIV Life Cycle

Questions to Address:

  • Why does HIV infect a specific cell type,

    T-helper cells (CD-4 cells)?

  • What is HIV’s Genetic material?

  • What are the roles of Reverse Transcriptase, integrase, and protease?

  • How can knowledge of HIV’s life cycle be used to develop anti-HIV treatments?

  • Reverse Transcriptase does not “proof read” like DNA polymerase does.

    • What are the consequences?

    • Of what adaptive value is this?

Importance of virusesSlide 46

HIV primarily infects T-Helper Cells!

  • Why does HIV have a narrow host range?

  • Why does the virus that causes rabies have a broad host range?

3.) Infection


2.) Fusion

1.) Binding








Cytoplasm of white blood cell

(T-Helper Cell)

Helper protein

Plasma membrane of T-helper cell

Importance of virusesSlide 47

What’s happening?







Reverse transcriptase

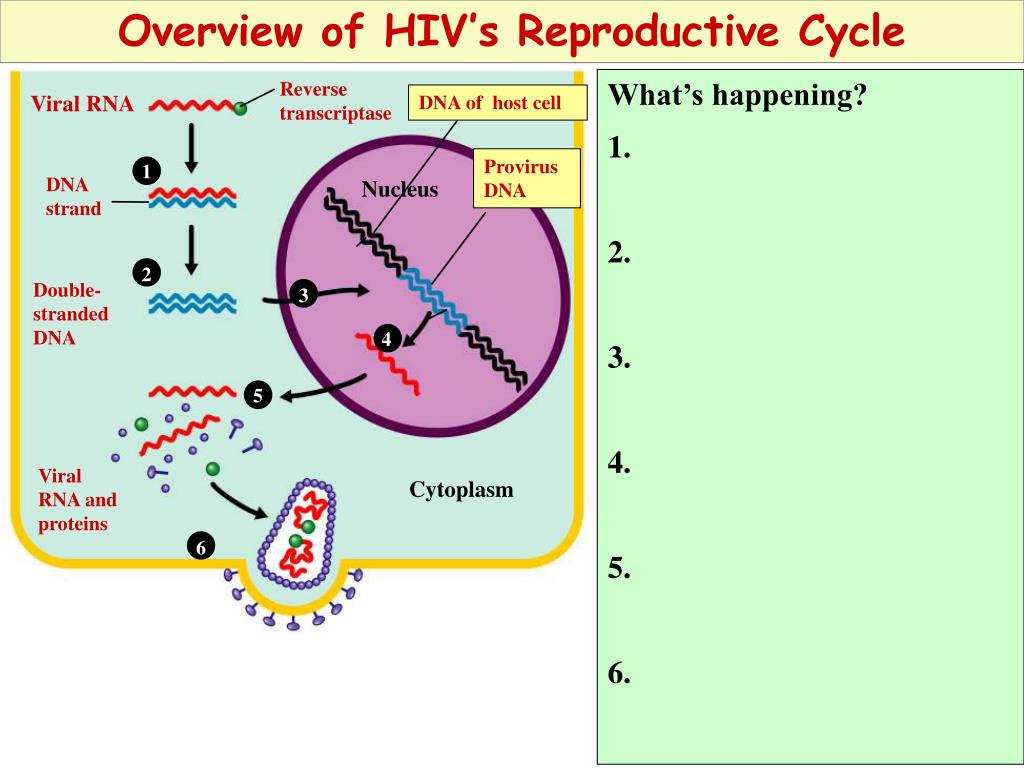

Overview of HIV’s Reproductive Cycle

DNA of host cell

Viral RNA

Provirus DNA


DNA strand



Double-stranded DNA




Viral RNA and proteins



Importance of virusesSlide 48

Reproductive Cycle of HIV—the details!



Reverse transcriptase

Viral RNA

Viral RNA


to viral DNA


Viral DNA

integrates into

cell chromosomes

andmakes more

viral RNA

Viral RNA


of HIV proteins

Protease cleaves large

proteins into smaller ones

HIV envelope proteins

come to cell surface

HIV assembles

and buds from cell

Importance of virusesSlide 49

Treatments for HIV

  • Vaccines have beenunsuccessful—why?

  • Reverse Transcriptase Inhibitors Block viral DNA formation from viral RNA

  • DNA base analogs Block DNA elongation

    • e.g. AZT, 3TC (3-thiocytosine)

  • Protease Inhibitors Block enzymes that process envelope proteins

  • Why use a “Shotgun” approach?

  • Possible future treatments:

    • Plug drugs—drugs that plug receptors for HIV on surface of host cell

    • Vaccines

Evolutionary origin of virusesSlide 50

Evolved from fragments of Cellular Nucleic Acids


Viral genetic material similar to host cells genetic material

Some viral genes are identical to host’s genes

Eukaryotic viral genetic material is quite different to prokaryotic and phage genetic material

Eukaryotic viral genetic material is similar to transposons (“jumping genes”)

Transposons: highly mobile eukaryotic genetic material

Phage DNA is similar to Plasmid DNA

Plasmid DNA: highly “mobile” extra-chromosomal circular DNA found in bacteria

Evolutionary Origin of Viruses

Lysogenic conversionSlide 51

Lysogenic Conversion

Expression of prophage genes to produce toxins


Bacterium  neurotoxin (coded by prophage)  paralysis  death

Are antibiotics effective against botulism poisoning?

Scarlet Fever

Bacterium  toxin (coded by prophage)  sore throat, strawberry-colored tongue, rash  death

Give antibiotics within 3 days

Lysogenic Conversion

Copyright © 2015 SlideServe. All rights reserved | Powered By DigitalOfficePro
