DO YOU KNOW THE DIFFERENCE during a control panel & A MCC?

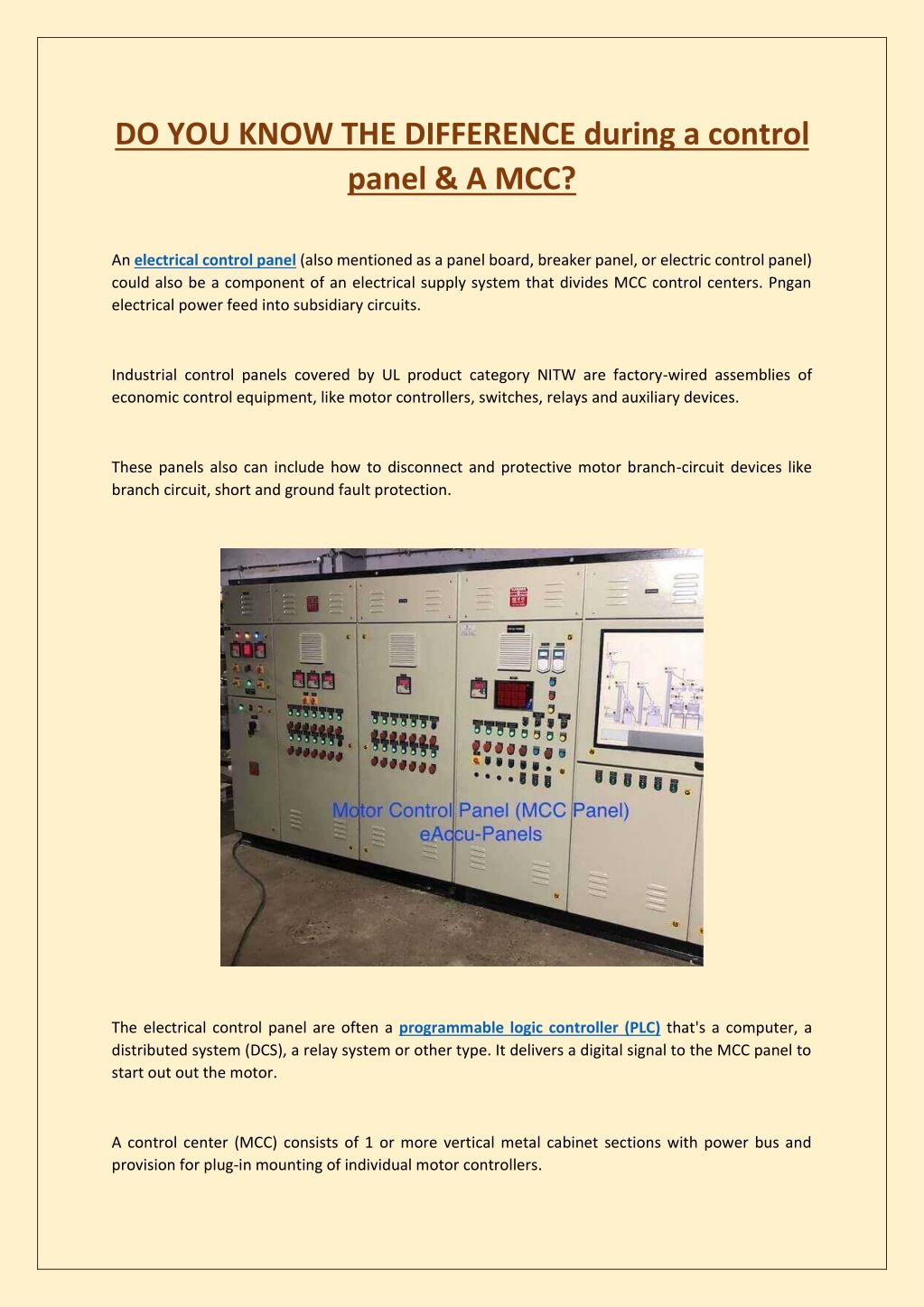

1. DO YOU KNOW THE DIFFERENCE during a control panel & A MCC? An electrical control panel (also mentioned as a panel board, breaker panel, or electric control panel) could also be a component of an electrical supply system that divides MCC control centers. Pngan electrical power feed into subsidiary circuits. Industrial control panels covered by UL product category NITW are factory-wired assemblies of economic control equipment, like motor controllers, switches, relays and auxiliary devices. These panels also can include how to disconnect and protective motor branch-circuit devices like branch circuit, short and ground fault protection. The electrical control panel are often a programmable logic controller (PLC) that's a computer, a distributed system (DCS), a relay system or other type. It delivers a digital signal to the MCC panel to start out out the motor. A control center (MCC) consists of 1 or more vertical metal cabinet sections with power bus and provision for plug-in mounting of individual motor controllers.

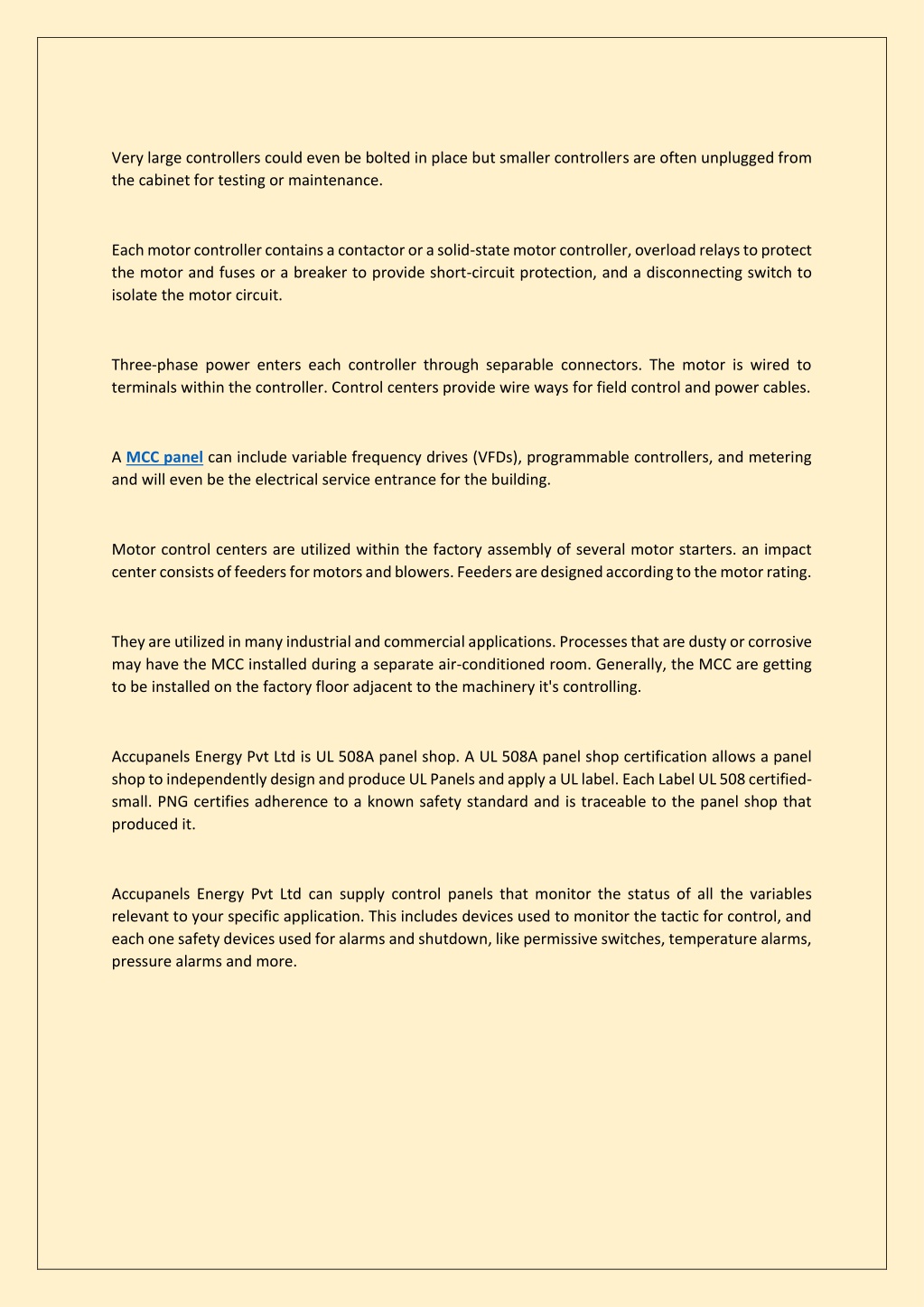

2. Very large controllers could even be bolted in place but smaller controllers are often unplugged from the cabinet for testing or maintenance. Each motor controller contains a contactor or a solid-state motor controller, overload relays to protect the motor and fuses or a breaker to provide short-circuit protection, and a disconnecting switch to isolate the motor circuit. Three-phase power enters each controller through separable connectors. The motor is wired to terminals within the controller. Control centers provide wire ways for field control and power cables. A MCC panel can include variable frequency drives (VFDs), programmable controllers, and metering and will even be the electrical service entrance for the building. Motor control centers are utilized within the factory assembly of several motor starters. an impact center consists of feeders for motors and blowers. Feeders are designed according to the motor rating. They are utilized in many industrial and commercial applications. Processes that are dusty or corrosive may have the MCC installed during a separate air-conditioned room. Generally, the MCC are getting to be installed on the factory floor adjacent to the machinery it's controlling. Accupanels Energy Pvt Ltd is UL 508A panel shop. A UL 508A panel shop certification allows a panel shop to independently design and produce UL Panels and apply a UL label. Each Label UL 508 certified- small. PNG certifies adherence to a known safety standard and is traceable to the panel shop that produced it. Accupanels Energy Pvt Ltd can supply control panels that monitor the status of all the variables relevant to your specific application. This includes devices used to monitor the tactic for control, and each one safety devices used for alarms and shutdown, like permissive switches, temperature alarms, pressure alarms and more.
