Details Of Motor Control Center Panels

MCC Panel is a very important panel for any industry. The machine runs for the production of the company. And the power supply to the motor running this machine comes from the MCC Panel.

mayankshah
Download Presentation

Details Of Motor Control Center Panels

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

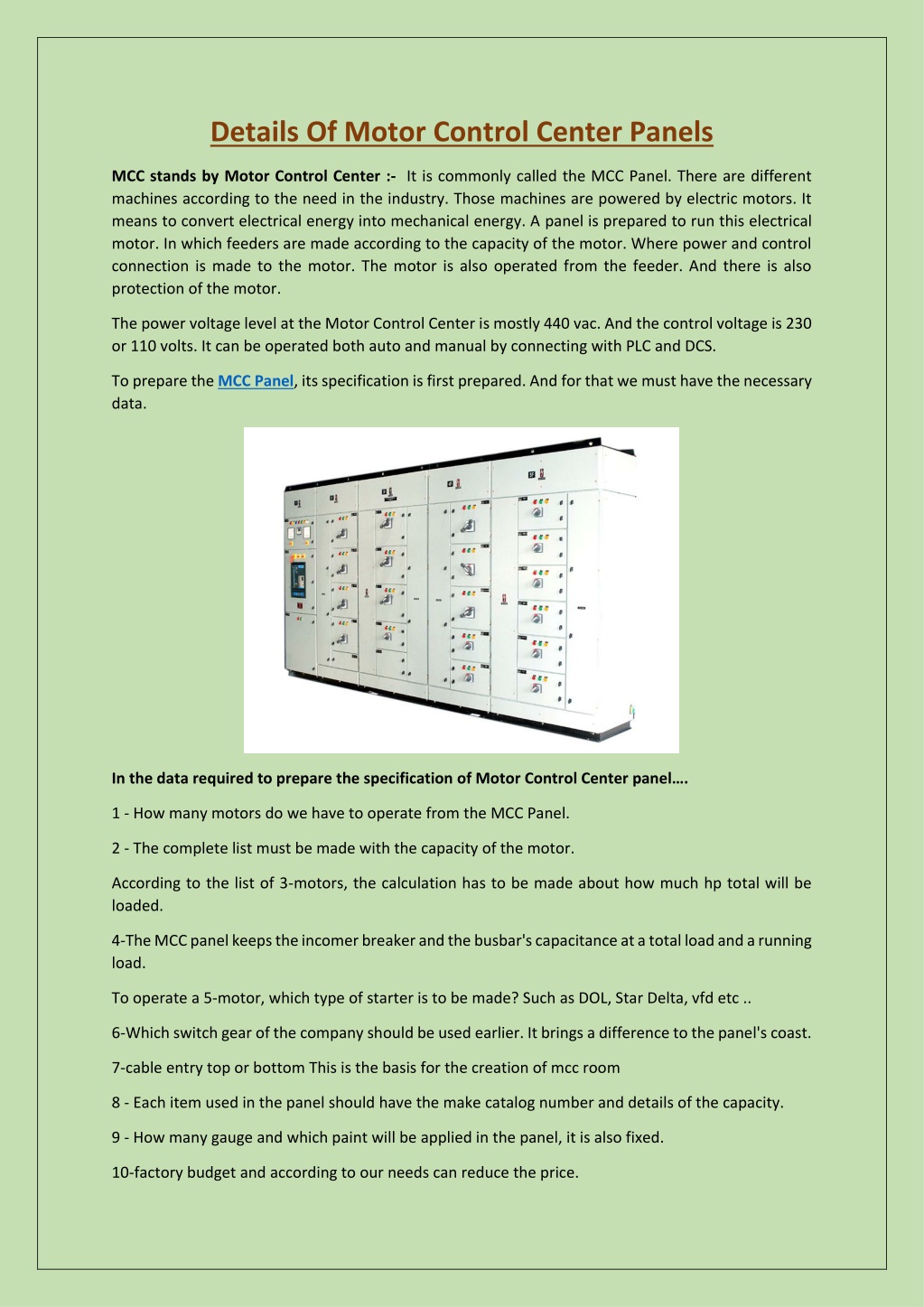

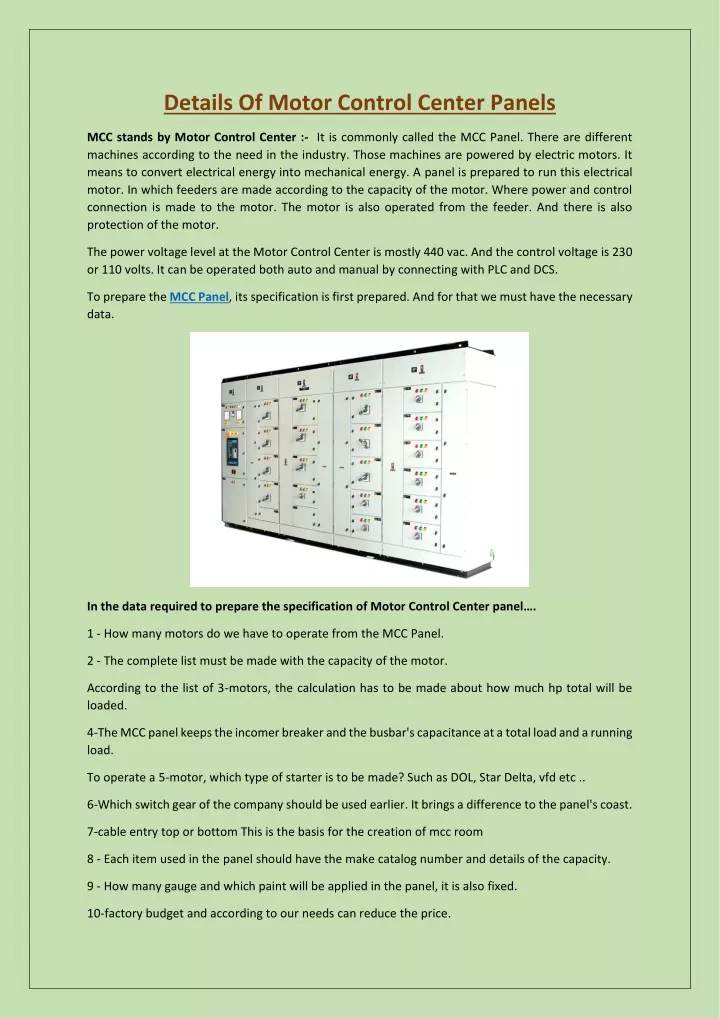

  1. Details Of Motor Control Center Panels MCC stands by Motor Control Center :- It is commonly called the MCC Panel. There are different machines according to the need in the industry. Those machines are powered by electric motors. It means to convert electrical energy into mechanical energy. A panel is prepared to run this electrical motor. In which feeders are made according to the capacity of the motor. Where power and control connection is made to the motor. The motor is also operated from the feeder. And there is also protection of the motor. The power voltage level at the Motor Control Center is mostly 440 vac. And the control voltage is 230 or 110 volts. It can be operated both auto and manual by connecting with PLC and DCS. To prepare the MCC Panel, its specification is first prepared. And for that we must have the necessary data. In the data required to prepare the specification of Motor Control Center panel…. 1 - How many motors do we have to operate from the MCC Panel. 2 - The complete list must be made with the capacity of the motor. According to the list of 3-motors, the calculation has to be made about how much hp total will be loaded. 4-The MCC panel keeps the incomer breaker and the busbar's capacitance at a total load and a running load. To operate a 5-motor, which type of starter is to be made? Such as DOL, Star Delta, vfd etc .. 6-Which switch gear of the company should be used earlier. It brings a difference to the panel's coast. 7-cable entry top or bottom This is the basis for the creation of mcc room 8 - Each item used in the panel should have the make catalog number and details of the capacity. 9 - How many gauge and which paint will be applied in the panel, it is also fixed. 10-factory budget and according to our needs can reduce the price.

  2. Control Transformer– Used for control supply in the MCC Panel. Step down transformers is selected based on the value of the control supply. The control supply is usually 230 volts or 110 volts. The entire motor control centre panel controls with this control supply. The switches used in the panel are used to energize the equipment such as breaker, contactor, multi-function meter, indicator. Over Load Relay - Relays are used to protect the motor. It has different types of relays. Such as a bi metal relay and an MPD motor protection device. MPD is advanced, it has more protection. The MCC is installed in every feeder of the Panel. The main job of which is to protect the motor. Timer - The star delta starter uses a timer. Hence, every feeder with a star delta starter will have a timer in each feeder. Its task is to command the delta from the star after 80% speed of the motor. In addition, components such as earthing bus, control and power wiring, control and power terminal strip, on of trip indication, selector switch, contuse fuse or mcb are in the mcc panel. IMCC Panel This is an integrated system. Compared to the mcc panel which is good functionality. These panels are not yet popular. But looking at its advanced technology, we can say that this is a panel of the future. IMCC works with very good protection and functionality. In this, we get information about more than 30 parameters by combining the parameters and history of the current situation. Which is enough to keep a system functioning without a breakdown. It can work in both auto and manual conditions. The PRO-V and PRO-C simocode (Motor Management and Control Systems) used in IMCC make the mcc panel advanced. PRO-C compact motor management system used in direct on-line starter and reverse / forward. The PRO-V variable motor management system used in the Star Delta starter. It has all the functions of pro-c with additional functions. And according to our need, we can also add to it. Benefits of IMCC 1 - It is made according to the international standard. 2 - Performance and quality are taken care of. 3 - Saves West Energy. In a way, energy saving works. Panel Maintenance The MCC Panel maintains a maintenance schedule. Usually done once a year. When the plant has an annual shutdown. Maintenance of electrical panel is very important. Maintenance has to be done according to the regular schedule to increase the efficiency of the panel that is under electrical load at all times and to avoid break down.

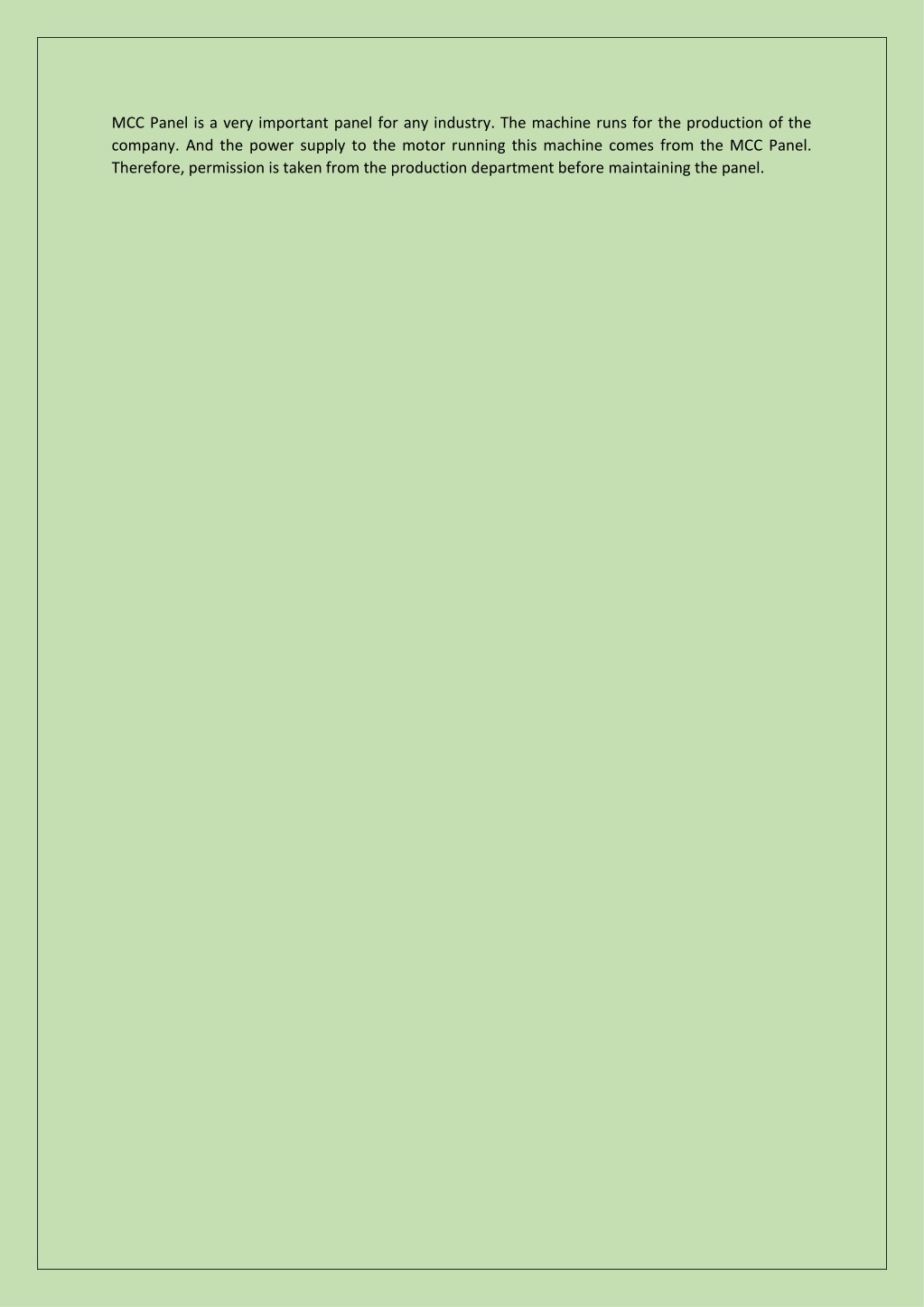

  3. MCC Panel is a very important panel for any industry. The machine runs for the production of the company. And the power supply to the motor running this machine comes from the MCC Panel. Therefore, permission is taken from the production department before maintaining the panel.
