a). b). a. a. b. HIGH. LOW. University of Pennsylvania MRSEC Michael L. Klein DMR-0520020 IRGs 2 and 3: Natural pore-forming proteins - Paul A. Heiney and Virgil Percec.

mavis
Download Presentation

HIGH

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

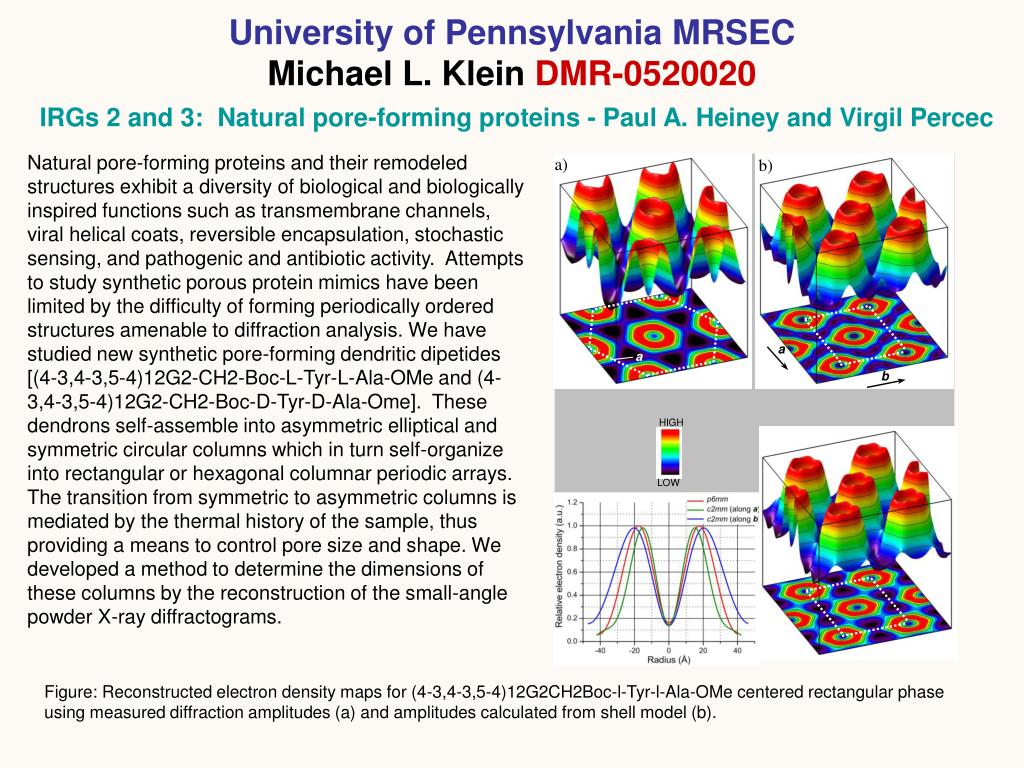

  1. a) b) a a b HIGH LOW University of Pennsylvania MRSECMichael L. Klein DMR-0520020IRGs 2 and 3: Natural pore-forming proteins - Paul A. Heiney and Virgil Percec Natural pore-forming proteins and their remodeled structures exhibit a diversity of biological and biologically inspired functions such as transmembrane channels, viral helical coats, reversible encapsulation, stochastic sensing, and pathogenic and antibiotic activity. Attempts to study synthetic porous protein mimics have been limited by the difficulty of forming periodically ordered structures amenable to diffraction analysis. We have studied new synthetic pore-forming dendritic dipetides [(4-3,4-3,5-4)12G2-CH2-Boc-L-Tyr-L-Ala-OMe and (4-3,4-3,5-4)12G2-CH2-Boc-D-Tyr-D-Ala-Ome]. These dendrons self-assemble into asymmetric elliptical and symmetric circular columns which in turn self-organize into rectangular or hexagonal columnar periodic arrays. The transition from symmetric to asymmetric columns is mediated by the thermal history of the sample, thus providing a means to control pore size and shape. We developed a method to determine the dimensions of these columns by the reconstruction of the small-angle powder X-ray diffractograms. Figure: Reconstructed electron density maps for (4-3,4-3,5-4)12G2CH2Boc-l-Tyr-l-Ala-OMe centered rectangular phase using measured diffraction amplitudes (a) and amplitudes calculated from shell model (b).
