  1. A Universal Technique for Relating Heterogeneous Data Models Nick Rossiter David Nelson Michael Heather email: d.a.nelson@sunderland.ac.uk

  2. Introduction • Looking at multi-level architecture for information systems • Need to handle higher levels than intension • Take object work two levels higher to achieve interoperability between heterogeneous systems • Formalisation using category theory and adjoints • Example using relational and object oriented databases

  3. Outline IRDS • Introduces concept of meta-meta data • based on ISO/IEC Standards • 10027 1990 Information Resource Dictionary System (IRDS) • Four-level approach • concepts • constructions • format • data values

  4. Extract IRDS Standard Framework

  5. Relating Extension to Intension levelexample • Application data Supplier(1,’Smith’) extension -direct addressing • Schema data Supplier (supp_no, name) intension - addressing by name level pair:

  6. Relating Intension to Constructs • Schema data Supplier (supp_no, name) intension - addressing by name • Meta data Table(supplier) data dictionary - addressing by concepts, constructs.

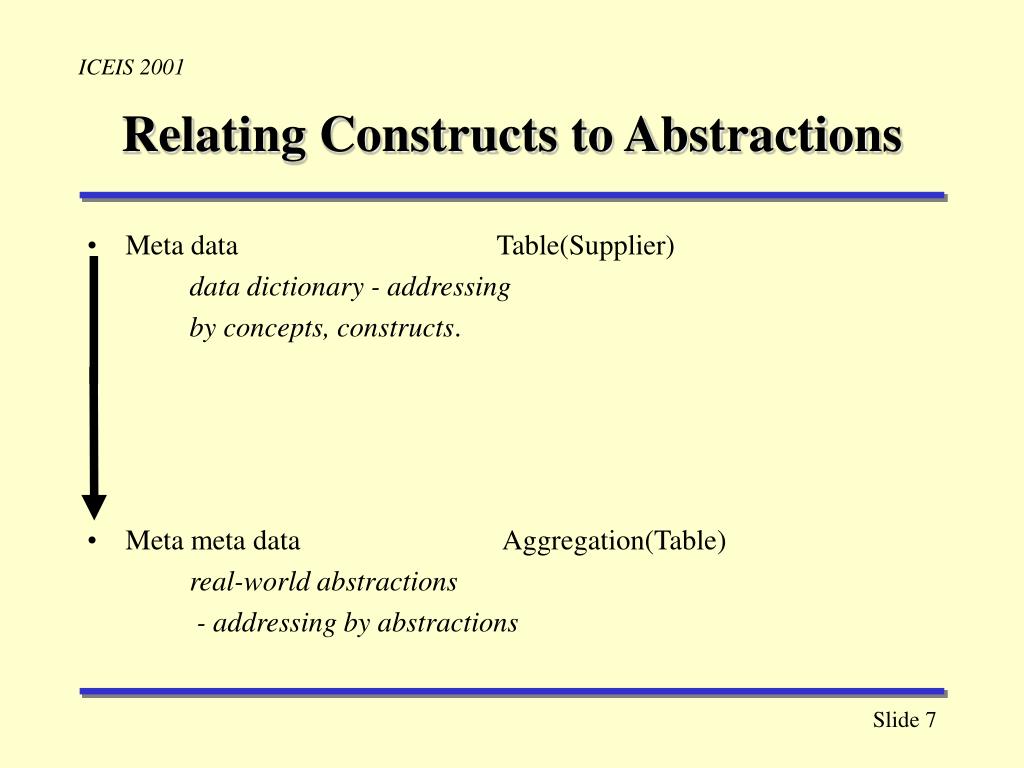

  7. Relating Constructs to Abstractions • Meta data Table(Supplier) data dictionary - addressing by concepts, constructs. • Meta meta data Aggregation(Table) real-world abstractions - addressing by abstractions

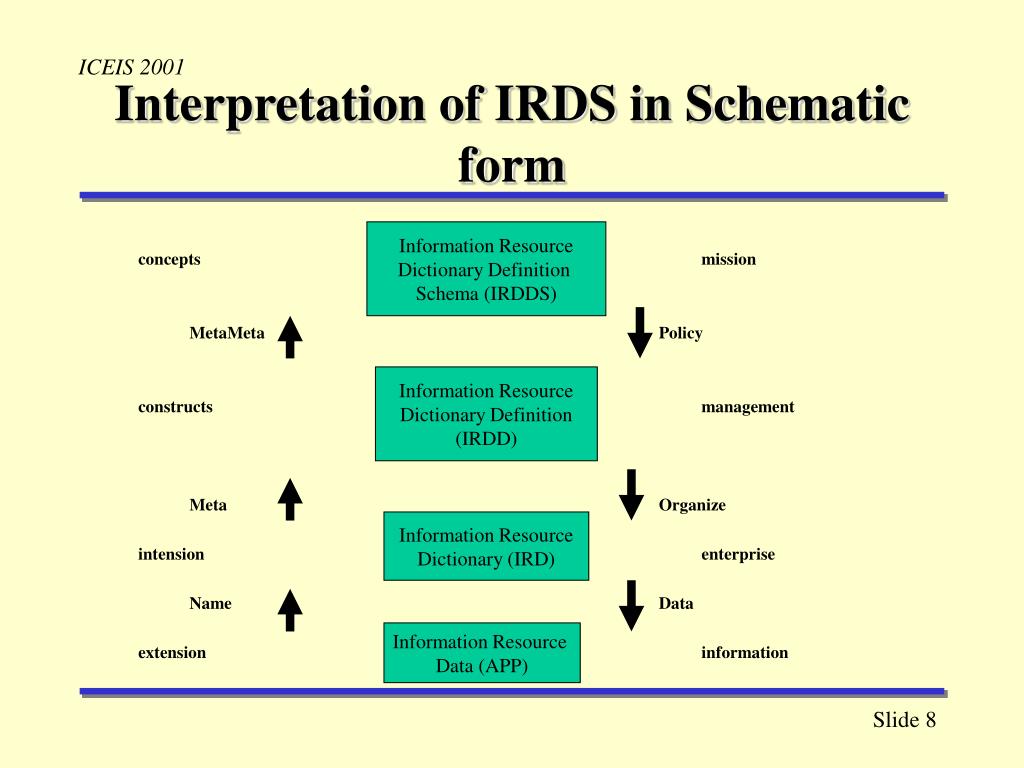

  8. Interpretation of IRDS in Schematic form concepts mission MetaMeta Policy constructs management Meta Organize intension enterprise Name Data extension information Information Resource Dictionary Definition Schema (IRDDS) Information Resource Dictionary Definition (IRDD) Information Resource Dictionary (IRD) Information Resource Data (APP)

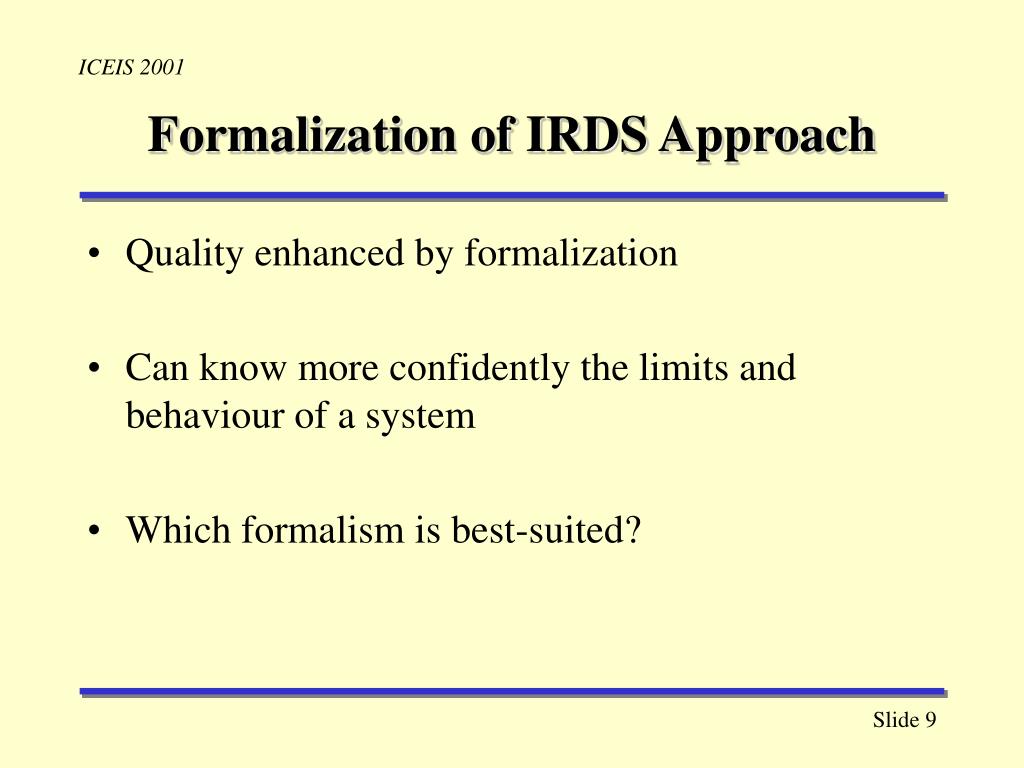

  9. Formalization of IRDS Approach • Quality enhanced by formalization • Can know more confidently the limits and behaviour of a system • Which formalism is best-suited?

  10. Category Theory? • Need relations to represent level-pairs • Multi-level construction (higher-order) • Category theory seems appropriate: - categories for basic structures - functors relate categories - natural transformations relate functors

  11. Adjointness

  12. Relational/OO Example Concept (IRDDS) Inheritance PolicyMetaMeta Constructs (IRDD) InherTable <Subtype, Supertype> Organize OrgUniDDR OrgUniDDO Meta Format (IRD) StudentR StudentO Postgrad Data DataUniDDR DataUniDDO Name Values StudentR{1234, ‘James’, {1234, ‘James’, {1234, ‘The Language X’} (APP) ‘15 Montfort Ave’, ‘The Language X’} ‘15 Montfort Ave’}

  13. Conclusions • Interoperability is considered in the context of ISO Information Resource Dictionary System • Provides a complete definition of an information system from real world abstractions through constructs employed to real data • Levels in IRDS can be mapped using category theory concept of adjoints • Future work to develop model and test constructions for a variety of data models
