A ports a distributed efficient technique for performance models on fpgas

A-Ports: A Distributed, Efficient Technique for Performance Models on FPGAs

†MIT Computer Science and AI Lab

Computation Structures Group

{pellauer, vmurali, arvind}

@csail.mit.edu

‡Intel

VSSAD Group

{michael.adler, joel.emer}

@intel.com

Michael Pellauer†

Muralidaran Vijayaraghavan†

Michael Adler‡

Arvind†

Joel Emer†‡


Introduction

Introduction

Interest to use FPGAs for Performance Models

HAsim: Re-implement Intel Asim simulator on FPGA (this talk)

Other Projects: Liberty, UT-FAST

Performance modeling efforts in RAMP

FPGAs used here

Alternative to ASIC tapeout

FPGAs used here

Create prototype for verification

  • The modern circuit design flow:

Specify

System

Requirements

Explore

Architecture

Alternatives

Write

Circuit

RTL

Verify

Physical

Manufacture


Performance models

Performance Models

Simulation speed

Accuracy

Development Time

  • Created early in the design process

  • Drive architectural exploration, feasibility analysis

    • parameterization, ease of change

  • Shows how many clock cycles an operation takes

    • Does not show what clock cycle time is

  • Homebrewed C or SystemC: synchronous simulation

  • The software performance modeling crisis:

FPGAs can help!

  • Performance models have high degree of parallelism within a model clock cycle

    • It’s all modeling gates

  • But many interesting circuits have no good implementations on LUT-based FPGAs

    • CAMs, many-ported register files, nested MUXes, etc

  • The solution:

    • Configure FPGA into circuit simulator

    • Virtualize the FPGA clock


Performance model on fpga

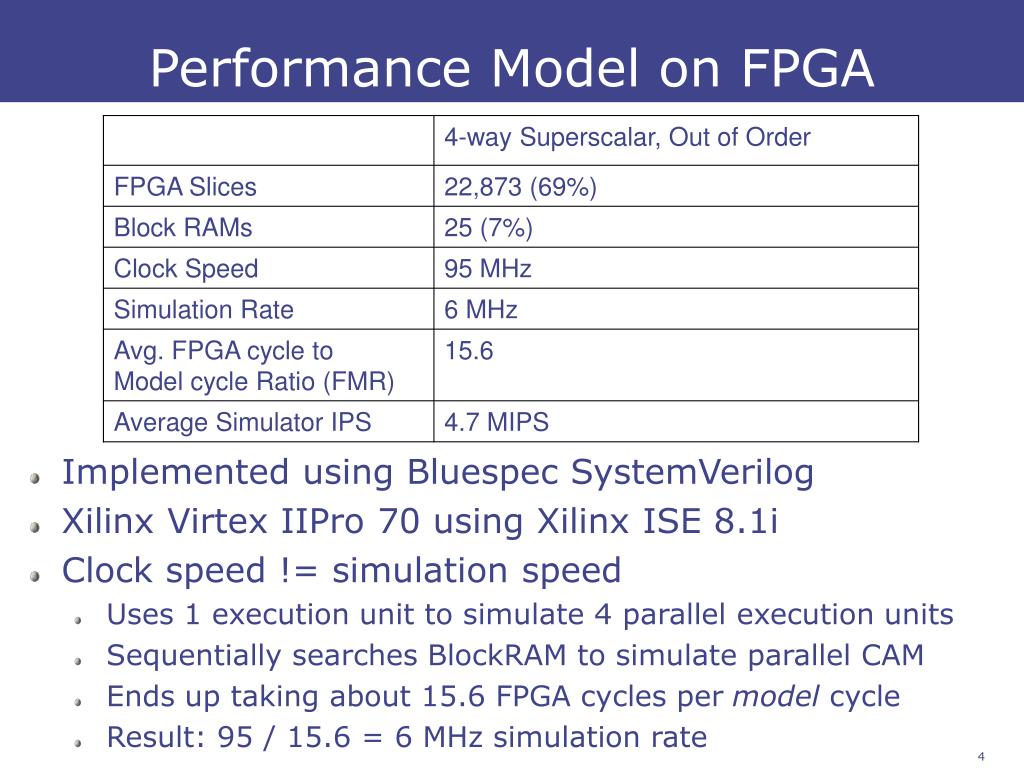

Performance Model on FPGA

  • Implemented using Bluespec SystemVerilog

  • Xilinx Virtex IIPro 70 using Xilinx ISE 8.1i

  • Clock speed != simulation speed

    • Uses 1 execution unit to simulate 4 parallel execution units

    • Sequentially searches BlockRAM to simulate parallel CAM

    • Ends up taking about 15.6 FPGA cycles per model cycle

    • Result: 95 / 15.6 = 6 MHz simulation rate


Example target

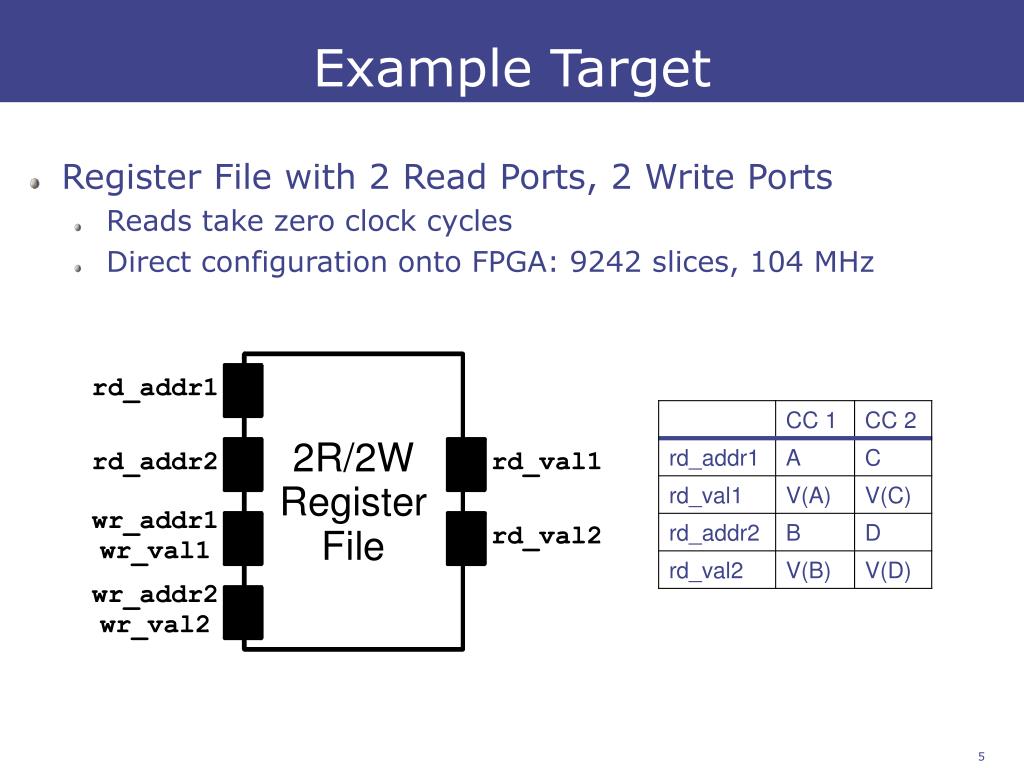

Example Target

  • Register File with 2 Read Ports, 2 Write Ports

    • Reads take zero clock cycles

    • Direct configuration onto FPGA: 9242 slices, 104 MHz


Example as performance model

Example as Performance Model

  • Simulate the circuit using synchronous BlockRAM

    • First do reads, then serialize writes

    • Only update model time when all requests are serviced

    • Results: 94 slices, 1 BlockRAM, 224 MHz

    • Simulation rate is 224 / 3 = 75 MHz (FPGA-to-Model Ratio)

Separated model clock from FPGA clock

How do we compose these modules into a correct, efficient system?

Let’s examine how a software performance model does it


Time in software asim model

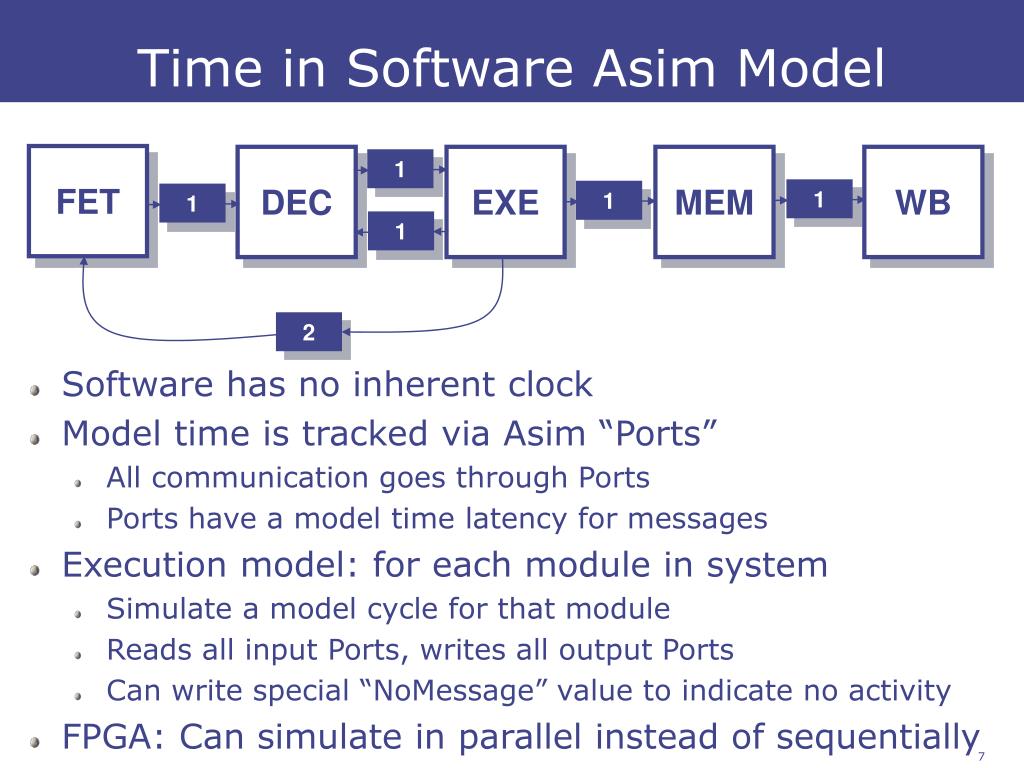

Time in Software Asim Model

FET

DEC

EXE

MEM

WB

1

  • Software has no inherent clock

  • Model time is tracked via Asim “Ports”

    • All communication goes through Ports

    • Ports have a model time latency for messages

  • Execution model: for each module in system

    • Simulate a model cycle for that module

    • Reads all input Ports, writes all output Ports

    • Can write special “NoMessage” value to indicate no activity

  • FPGA: Can simulate in parallel instead of sequentially

1

1

1

1

2


Barrier synchronization

Barrier Synchronization

Controller

curCC

FET

DEC

EXE

MEM

WB

  • Controller tracks current Model CC

    • Tells all modules “begin”

    • Modules copy input, compute, write output, say “done”

    • When all are done, increment cycle count and repeat

  • More fine-grained parallelism than parallel software models

  • FGPA-to-Model Ratio: Dynamic worst case

    • But what about clock rate?


The problem with barrier sync

The problem with Barrier Sync

  • Becomes critical path with large number of modules

    • Massive fan-in/fan-out from controller

    • Quickly becomes critical path

  • Experiment: Linear topology of modules

Could pipeline or cluster, but we can do better


A ports asim ports on an fpga

A-Ports: Asim Ports on an FPGA

FET

DEC

EXE

MEM

WB

1

1

1

1

1

2

  • Scalable: Distributed control, no combinational paths, no counters

  • Port with n latency starts with n NoMessage in it

  • Each module may proceed in a “dataflow” manner

    • Start a cycle whenever all inputs are available

    • Compute for any number of FPGA cycles

    • Stall if output ports are full

  • A module can derive the current model cycle by counting

  • Adjacent modules may not be on the same model cycle….


Modules can slip in model time

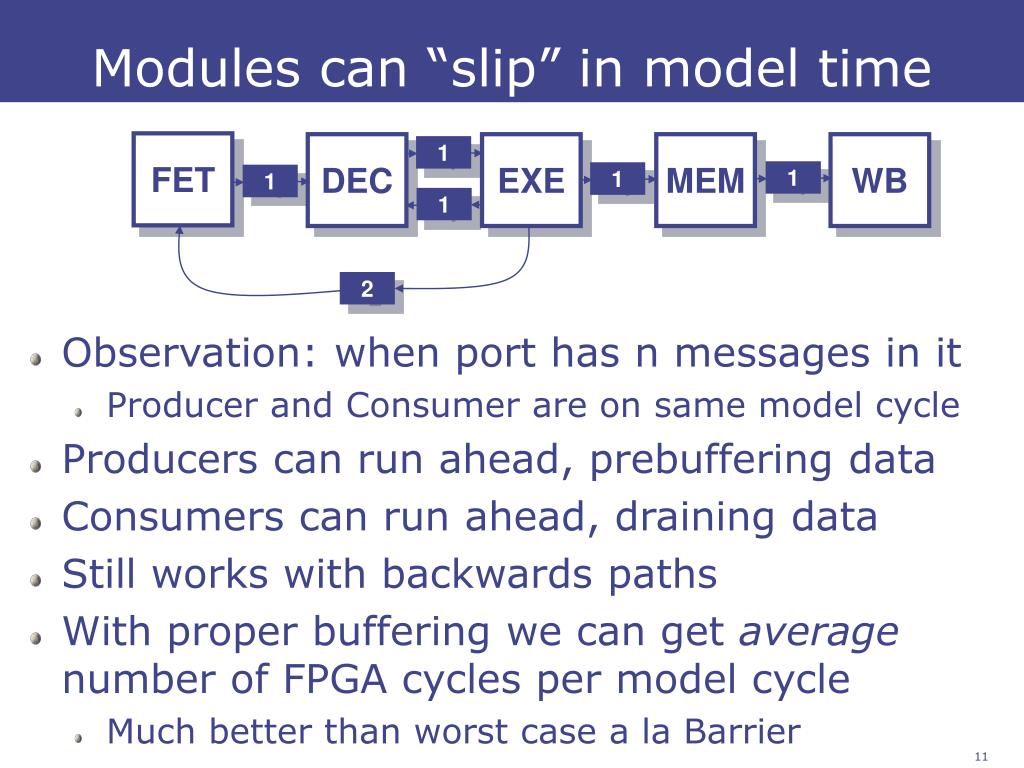

Modules can “slip” in model time

FET

DEC

EXE

MEM

WB

1

1

1

1

1

2

  • Observation: when port has n messages in it

    • Producer and Consumer are on same model cycle

  • Producers can run ahead, prebuffering data

  • Consumers can run ahead, draining data

  • Still works with backwards paths

  • With proper buffering we can get average number of FPGA cycles per model cycle

    • Much better than worst case a la Barrier


Example mips r10k like processor

Example: MIPS R10K-like Processor

  • 4-Way Superscalar, Out-of-order Issue


Results ooo simulator

Results: OOO Simulator


Takeaways

Takeaways

  • Performance Modeling on FPGAs shows great potential

    • Cycle-accurate simulation in MHz vs KHz

  • A-Ports:

    • Distributed, efficient tracking of time that scales

    • Manages dynamic “slip” in model time

    • Dynamic average case instead of worst case

  • In paper: a technique to resynchronize modules to the same model clock cycle

  • Underway: Effort to model realistic multicore systems

  • Future Work: Combine with Chung-style virtualization [FPGA 2008] to eliminate pipeline stalls
