5.5 Use Inequalities in A Triangle

5.5 Use Inequalities in A Triangle. Objectives:. Use triangle measurements to decide which side is longest or which angle is largest . Use the Triangle Inequality Theorem. largest angle. longest side. shortest side. smallest angle. Comparing Measurements of a .

marty
Download Presentation

5.5 Use Inequalities in A Triangle

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. 5.5 Use Inequalities in A Triangle

  2. Objectives: • Use triangle measurements to decide which side is longest or which angle is largest. • Use the Triangle Inequality Theorem

  3. largest angle longest side shortest side smallest angle Comparing Measurements of a  • The longest side and largest angle of a  are opposite each other. • The shortest side and smallest angle of a  are opposite each other.

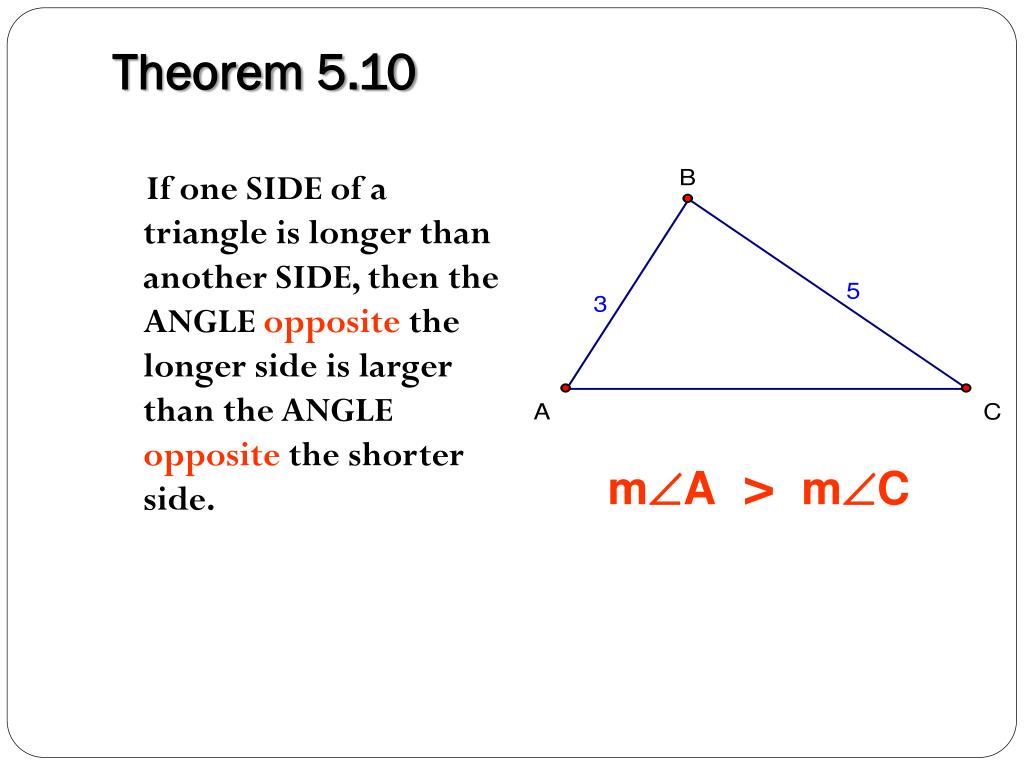

  4. Theorem 5.10 If one SIDE of a triangle is longer than another SIDE, then the ANGLE opposite the longer side is larger than the ANGLE opposite the shorter side. mA >mC

  5. Theorem 5.11 If one ANGLE of a triangle is larger than another ANGLE, then the SIDE opposite the larger angle is longer than the SIDE oppositethe smaller angle. 60° 40° EF > DF

  6. Example 1: Writing Measurements in Order from Least to Greatest Write the measurements of the triangles from least to greatest. m G < mH < m J JH < JG < GH 100° 45° 35°

  7. Example 2: Writing Measurements in Order from Least to Greatest Write the measurements of the triangles from least to greatest. QP < PR < QR m R < mQ < m P 8 7 5

  8. Using the Triangle Inequality • Not every group of three segments can be used to form a triangle. The lengths of the segments must fit a certain relationship.

  9. Activity: Constructing a Triangle • 2 cm, 2 cm, 5 cm • 3 cm, 2 cm, 5 cm • 4 cm, 2 cm, 5 cm Activity: Let’s try drawing triangles with the given side lengths.

  10. Activity: Constructing a Triangle • 2 cm, 2 cm, 5 cm • 3 cm, 2 cm, 5 cm • 4 cm, 2 cm, 5 cm Notice, only group (c) is possible. Thus, what we can deduce is that the sum of the first and second lengths must be greater than the third length.

  11. Theorem 5.12: Triangle Inequality Theorem • The sum of the lengths of any two sides of a triangle is greater than the length of the third side. AB + BC > AC AC + BC > AB AB + AC > BC

  12. Example 3: Finding Possible Side Lengths If x was the smallest side, then x + 10 > 14, so x > 4 If x was the longest side, then 10 + 14 > x, so 24 > x ► So, the length of the third side must be greater than 4 cm and less than 24 cm. • A triangle has one side of 10 cm and another of 14 cm. Describe the possible lengths of the third side • SOLUTION: Let x represent the length of the third side. Using the Triangle Inequality, you can write and solve inequalities.

  13. Example 4: Using Algebra to Find Possible Side Lengths • Solve the inequality: AB + AC > BC. (x + 2) +(x + 3) > 3x – 2 2x + 5 > 3x – 2 5 > x – 2 7 > x

  14. Assignment • Workbooks Pg. 97 – 99 #4 – 9, 13 – 29
