  1. Algorithm Efficiency in Hardwarewith an Emphasis on Skein By Phil Doughty

  2. Outline • Purpose of this Presentation • Full Custom (ASIC) Design • Digital Hardware Implementation Basics • Gates • Arithmetic • Field Programmable Gate Arrays (FPGAs) • Layout • How FPGA’s are used • Skein Hashing Algorithm

  3. Purpose • Touch upon basic hardware elements • Inform future cryptographers and designers of cryptographic algorithms of the benefits and limitations of hardware • Present Skein as an algorithm with pretty good hardware compatibility

  4. Full Custom (ASIC) Design Image contributed from Dr. Shaaban, CE Dept.

  5. Digital Logic Gates • Basic operation block • 1 or more input voltages, and exactly 1 output voltage • Voltage is either High or Low (1 or 0) • TTL (Bipolar Junction Transistors) • CMOS (Complementary Metal Oxide Semiconductor Field Effect Transistors)

  6. Primary Gates • INVERT, AND, OR • INVERT isn’t always necessary depending on underlying technology • NAND and NOR • NAND is an AND gate with INVERTed Output • NOR is an OR gate with INVERTed Output • Schematic is similar to AND and OR, but with a bubble on the output (representing inverse) • Either can be solely used to build any logic

  7. Inverter Schematic Truth Table Algebraic Notation Y = A’

  8. AND Gate Schematic Truth Table Algebraic Notation Y = AB

  9. OR Gate Schematic Truth Table Algebraic Notation Y = A + B

  10. XOR Gate Schematic Truth Table Algebraic Notation Y = A ⊕ B

  11. XOR Gate (Continued) • Can be composed of INVERT, AND, & OR • A ⊕ B = A’B + AB’ • But it can be easily implemented in hardware using faster methods

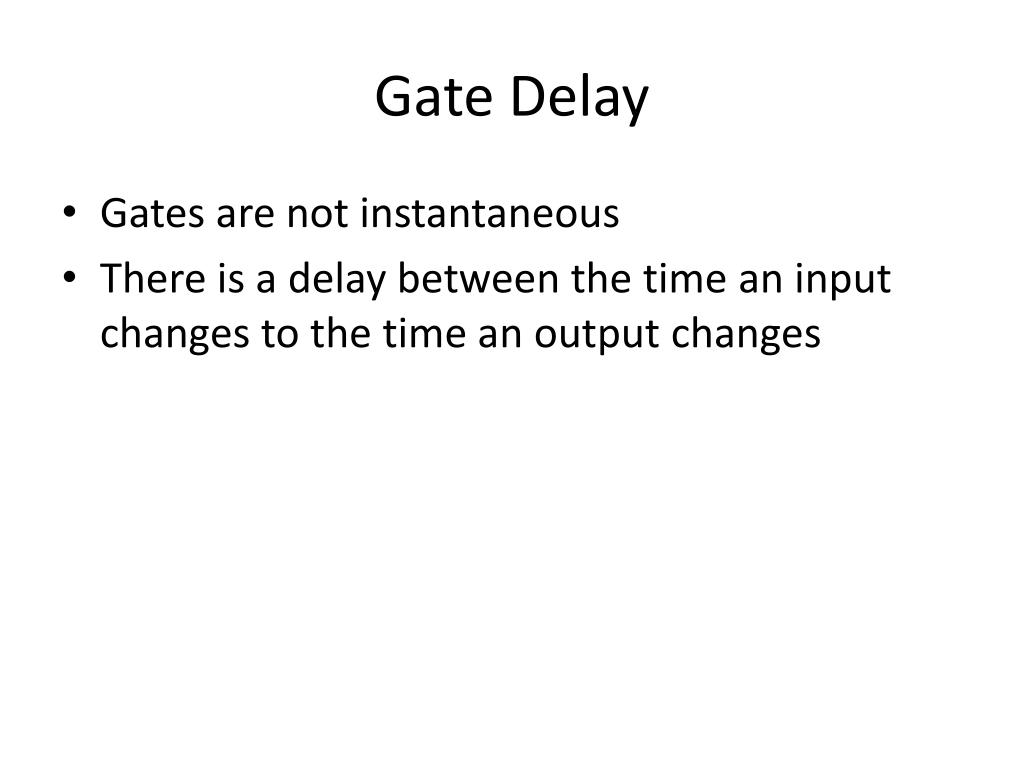

  12. Gate Delay • Gates are not instantaneous • There is a delay between the time an input changes to the time an output changes

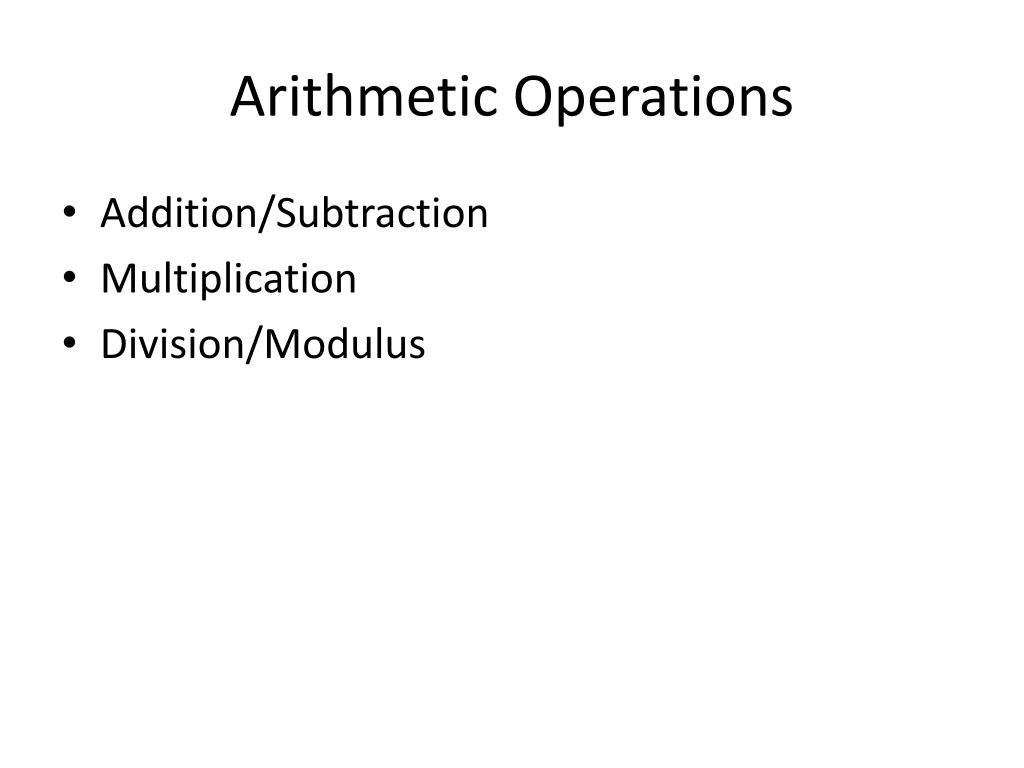

  13. Arithmetic Operations • Addition/Subtraction • Multiplication • Division/Modulus

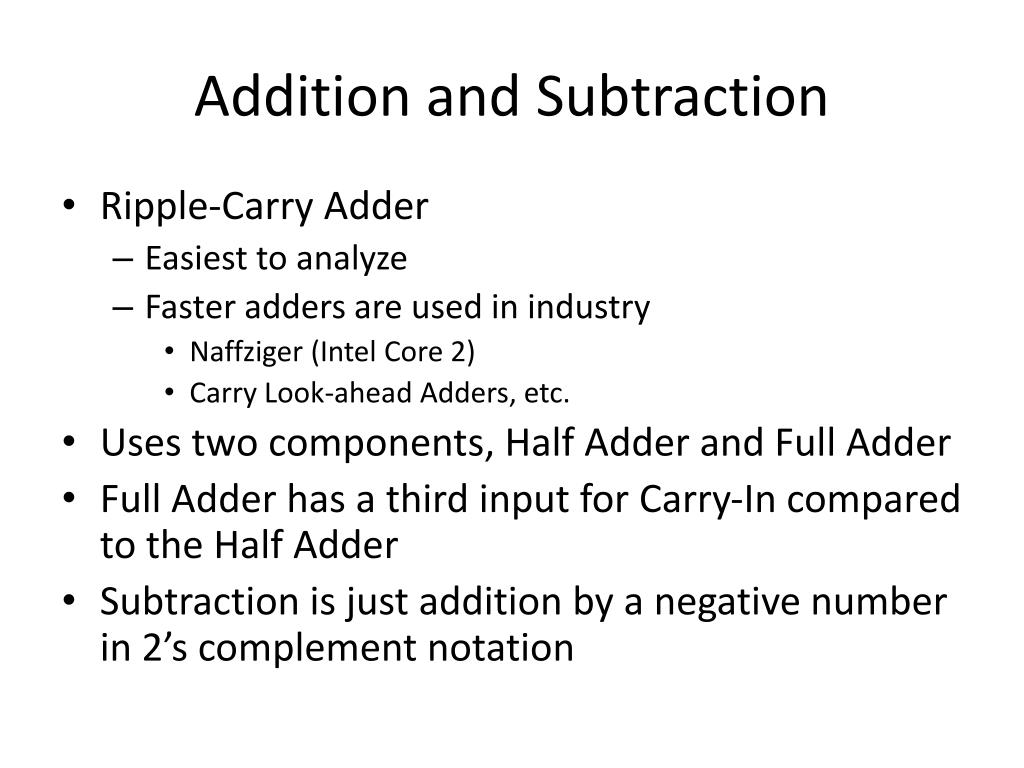

  14. Addition and Subtraction • Ripple-Carry Adder • Easiest to analyze • Faster adders are used in industry • Naffziger (Intel Core 2) • Carry Look-ahead Adders, etc. • Uses two components, Half Adder and Full Adder • Full Adder has a third input for Carry-In compared to the Half Adder • Subtraction is just addition by a negative number in 2’s complement notation

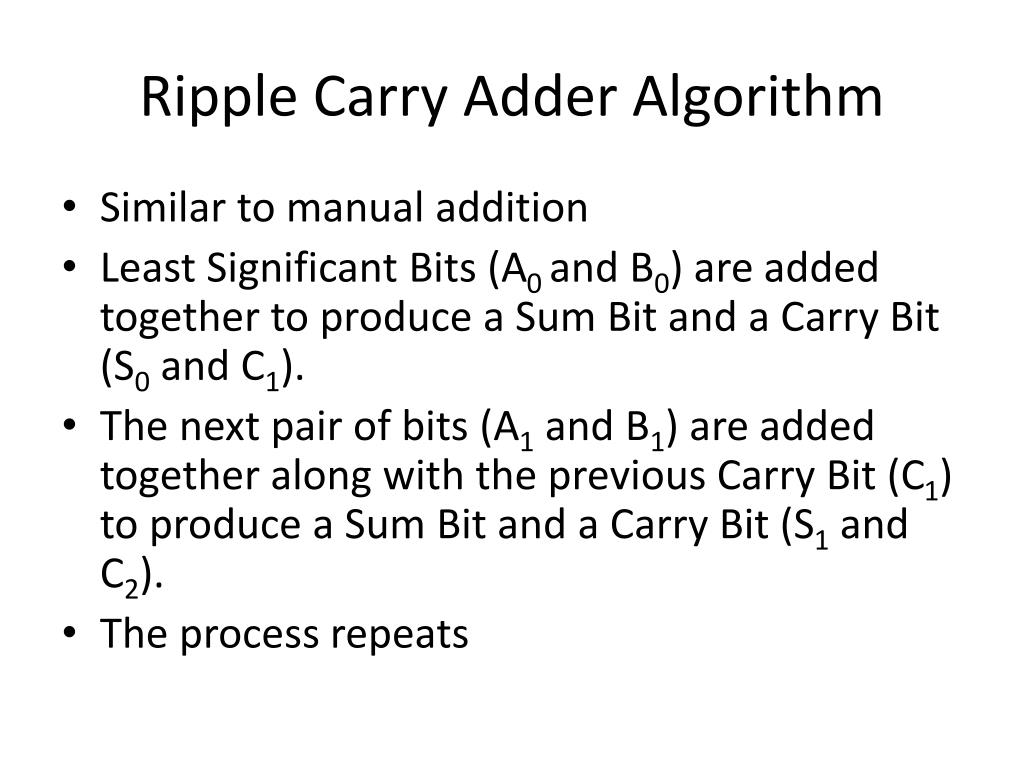

  15. Ripple Carry Adder Algorithm • Similar to manual addition • Least Significant Bits (A0 and B0) are added together to produce a Sum Bit and a Carry Bit (S0 and C1). • The next pair of bits (A1 and B1) are added together along with the previous Carry Bit (C1) to produce a Sum Bit and a Carry Bit (S1 and C2). • The process repeats

  16. Ripple-Carry Adder Components Half Adder Full Adder 2 Gate Delays for Sum bit 3 Gate Delays for Carry bit 1 Gate Delay to change the Sum Bit if the incoming Carry bit changes 2 Gate Delays to change the Carry bit if the incoming Carry bit changes 1 Gate Delay for both the Sum bit and the Carry bit

  17. Ripple-Carry Adder

  18. Ripple-Carry Adder Worst Case • Worst Case Scenario is when C0 is 0, A is all 1’s and B is all 0’s, and then C0 changes to 1 • The Carry has to propagate through all of the Full Adder Blocks • For an n-bit Ripple-Carry Adder • 2(n-1) + 1 gate delays to change the final Sum bit • 2n gate delays to change the final Carry bit

  19. Multiplication • Generic Multiplier • Any two numbers can be multiplied together • A * B = Y • n-bit inputs produces 2n-bit output • Constant Coefficient Multiplier • Multiplication by a constant • A * 5 = Y • Easier to implement • Used in Finite Impulse Response (FIR) Filters

  20. Generic Multipliers • O(n2) gate delays for an n-bit Generic Multiplier • Very slow compared to addition • Uses many resources compared to addition

  21. Optimized 3-bit Generic Multiplier At most 11 gate delays

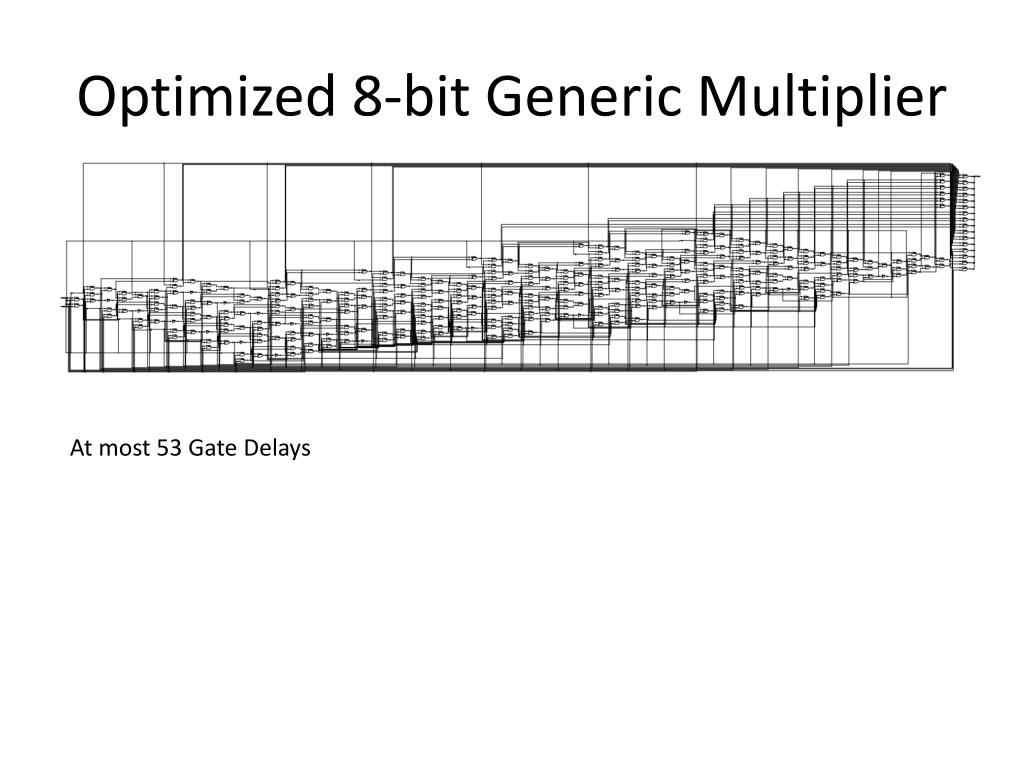

  22. Optimized 8-bit Generic Multiplier At most 53 Gate Delays

  23. Division/Modulus • More complex than Multiplication • Can be implemented as a series of subtractions • Sequential logic may be better suited • Uses Registers and a Clock signal

  24. Shortcuts • Multiplication • If multiplying by a power of 2, shift left by the power • Division • If dividing by a power of 2, shift right by the power • Modulus • If taking a modulus of a power of 2, AND the bits with the (modulus – 1)

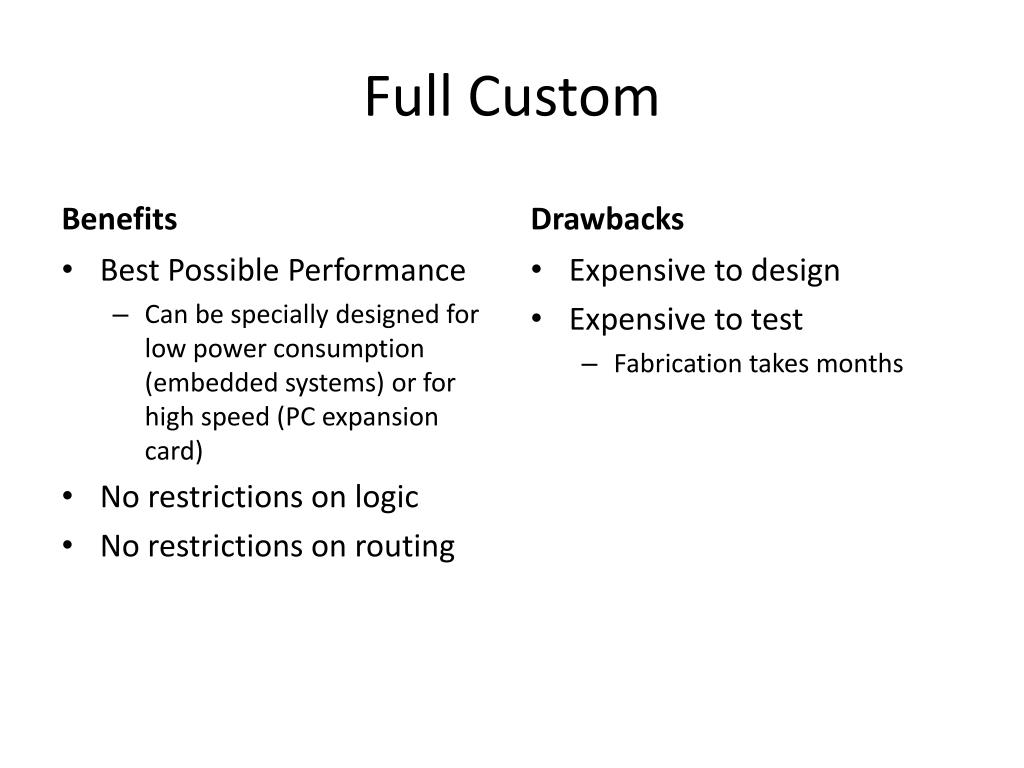

  25. Full Custom Benefits Drawbacks Expensive to design Expensive to test Fabrication takes months • Best Possible Performance • Can be specially designed for low power consumption (embedded systems) or for high speed (PC expansion card) • No restrictions on logic • No restrictions on routing

  26. FPGA Image contributed from Dr. Shaaban, CE Dept.

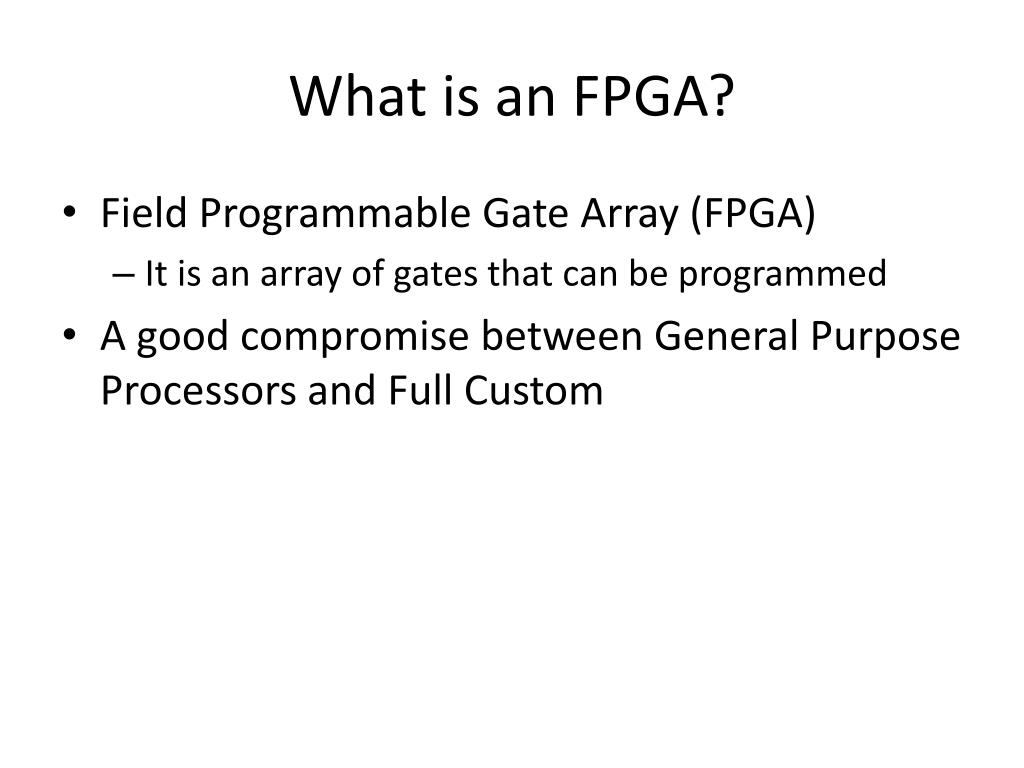

  27. What is an FPGA? • Field Programmable Gate Array (FPGA) • It is an array of gates that can be programmed • A good compromise between General Purpose Processors and Full Custom

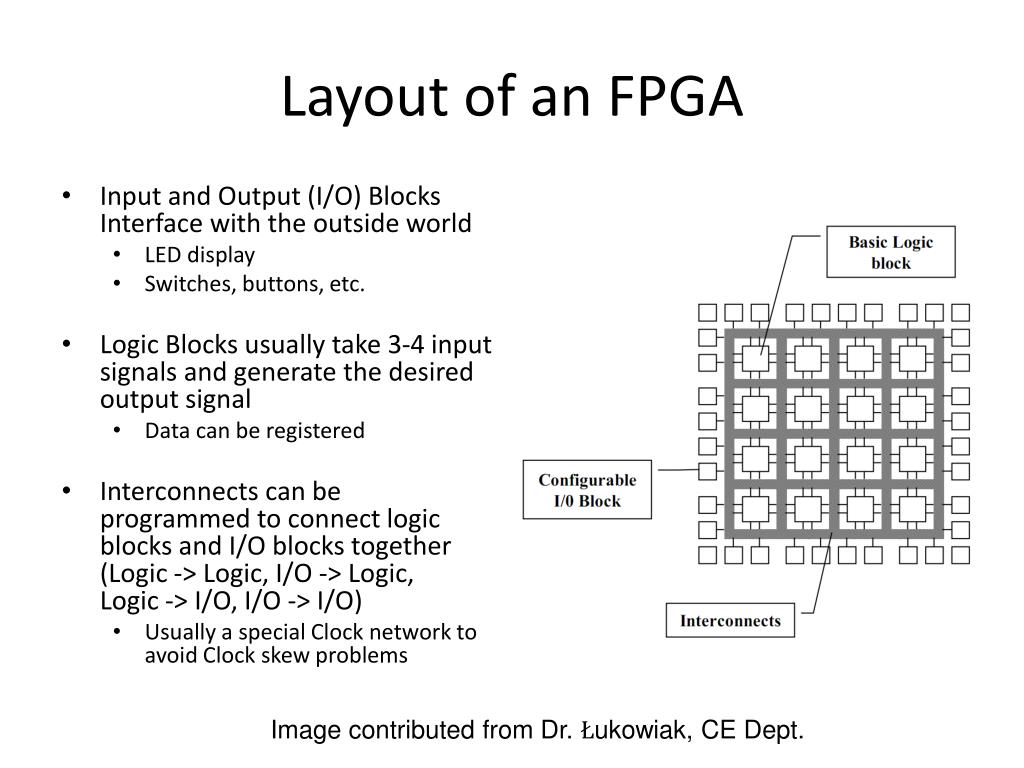

  28. Layout of an FPGA • Input and Output (I/O) Blocks Interface with the outside world • LED display • Switches, buttons, etc. • Logic Blocks usually take 3-4 input signals and generate the desired output signal • Data can be registered • Interconnects can be programmed to connect logic blocks and I/O blocks together (Logic -> Logic, I/O -> Logic, Logic -> I/O, I/O -> I/O) • Usually a special Clock network to avoid Clock skew problems Image contributed from Dr. Łukowiak, CE Dept.

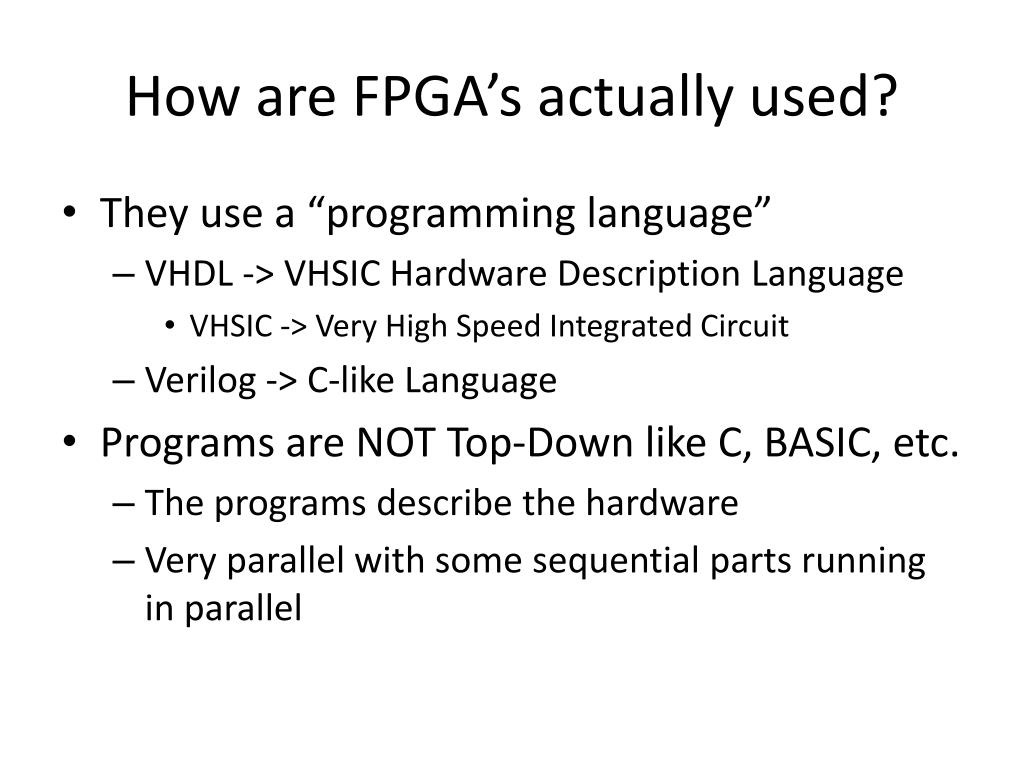

  29. How are FPGA’s actually used? • They use a “programming language” • VHDL -> VHSIC Hardware Description Language • VHSIC -> Very High Speed Integrated Circuit • Verilog -> C-like Language • Programs are NOT Top-Down like C, BASIC, etc. • The programs describe the hardware • Very parallel with some sequential parts running in parallel

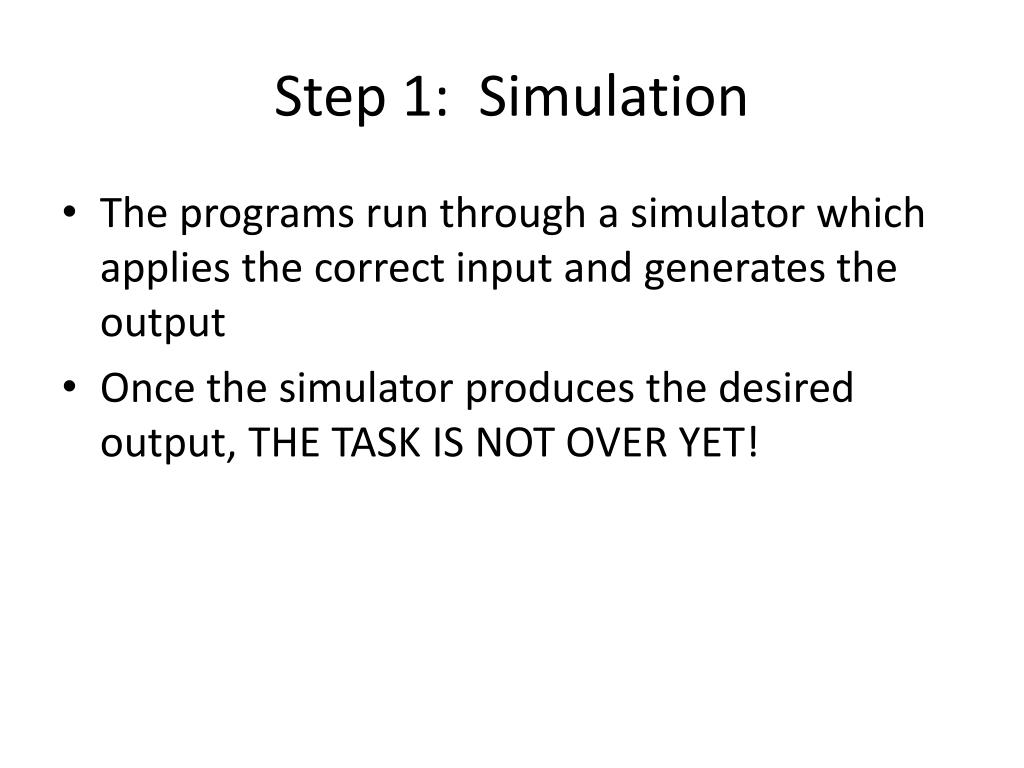

  30. Step 1: Simulation • The programs run through a simulator which applies the correct input and generates the output • Once the simulator produces the desired output, THE TASK IS NOT OVER YET!

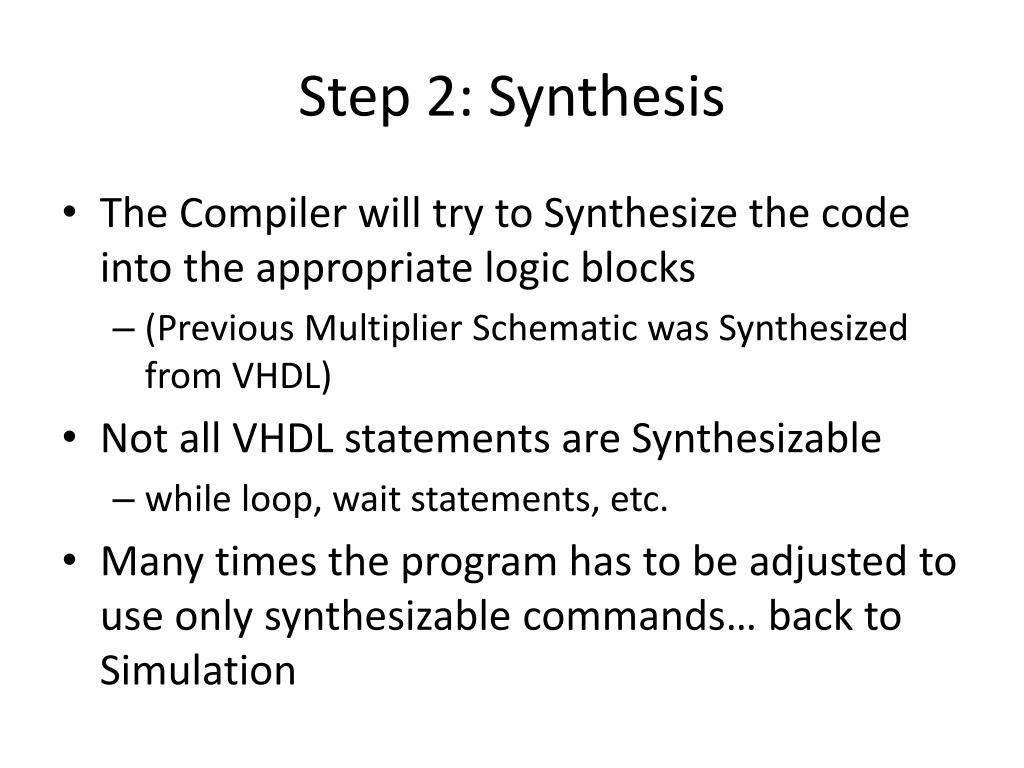

  31. Step 2: Synthesis • The Compiler will try to Synthesize the code into the appropriate logic blocks • (Previous Multiplier Schematic was Synthesized from VHDL) • Not all VHDL statements are Synthesizable • while loop, wait statements, etc. • Many times the program has to be adjusted to use only synthesizable commands… back to Simulation

  32. Step 3: Place & Route • The compiler now figures out where to place each logic block, and how the logic blocks are interconnected • Sometimes more hardware is needed than is actually on the specific FPGA device • Buy a bigger FPGA • Redesign the program to reuse more hardware, or to route data differently… back to Simulation

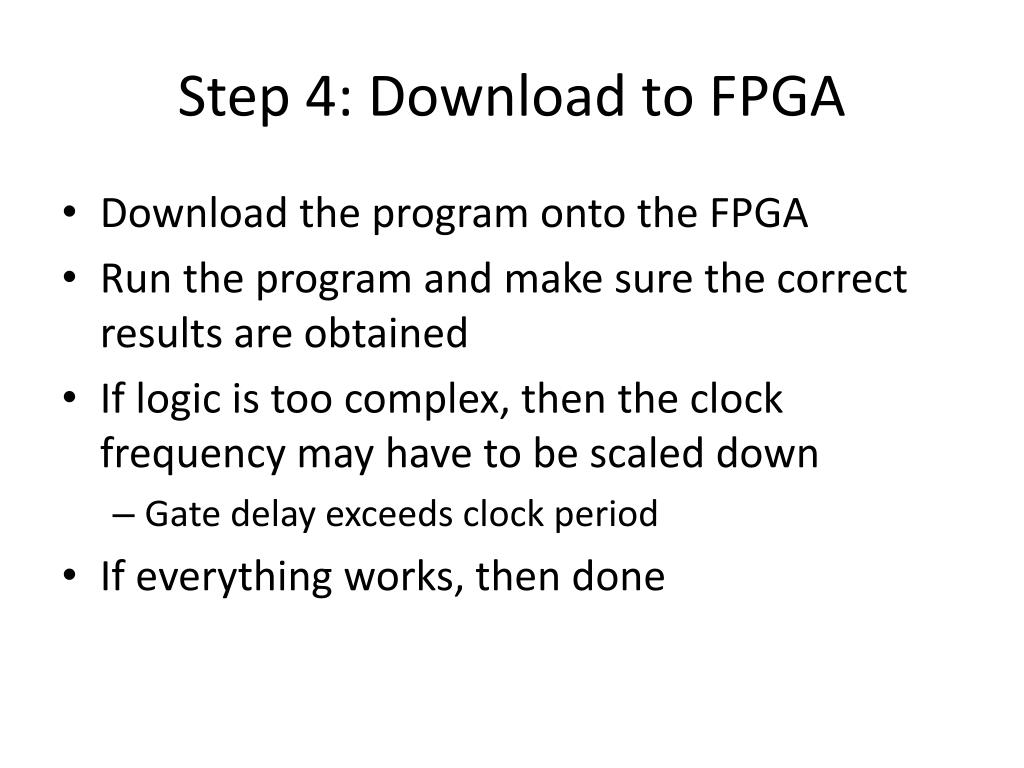

  33. Step 4: Download to FPGA • Download the program onto the FPGA • Run the program and make sure the correct results are obtained • If logic is too complex, then the clock frequency may have to be scaled down • Gate delay exceeds clock period • If everything works, then done

  34. FPGA Benefits Drawbacks Not a Production-Grade piece of hardware No application uses 100% of everything available on the FPGA Some FPGA’s reset on power loss, and need to be reprogrammed • Better performance than General Purpose Processors • Even though clock frequency may be 50-200MHz • Easier to design than Full Custom • Easier to test than Full Custom • Good for prototyping Full Custom

  35. Skein Hashing Algorithm • Different versions depending on the internal state and output size • Skein-512-1024 has a 512-bit internal state, and 1024 output bits • Skein-512-512 is the default proposal • Skein-512-512 will be examined in this presentation • Only 256, 512, and 1024 internal states supported • Any output size may be used • Skein-256 and Skein-512 have 72 rounds; Skein-1024 has 80 rounds • Based on the Threefish Block Cipher (introduced alongside Skein) • Threefish Block Cipher has 3 components • MIX • Permute • Add Subkey • Skein wraps a 512-bit XOR around Threefish to create a UBI block, which is chained together

  36. Threefish Block Cipher • Encryption starts with 8 64-bit Subkey additions • Then there are 4 rounds of MIX and Permute followed by the next Subkey addition • There are a total of 72 rounds • The Cipher ends with the 18th Subkey addition

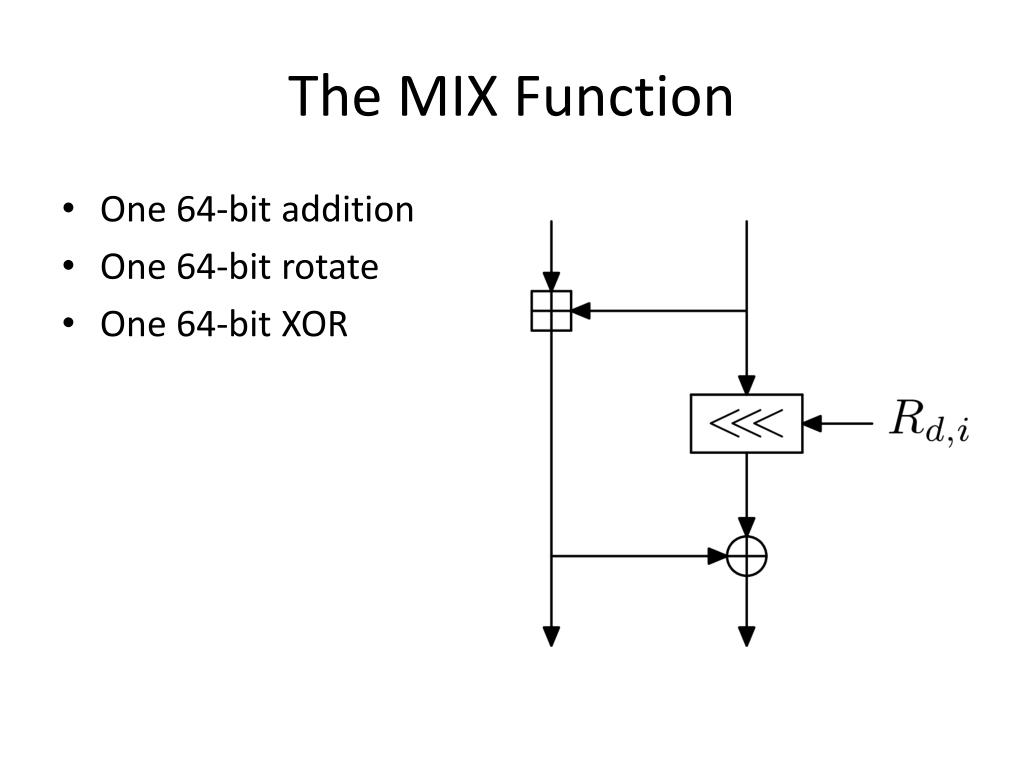

  37. The MIX Function • One 64-bit addition • One 64-bit rotate • One 64-bit XOR

  38. MIX Function Hardware Analysis • 64-bit Addition • Full Custom (ASIC) isn’t too bad • FPGA’s can handle a few of these • Bit Rotation • Simply a wire-mapping • 64-bit XOR • Even easier than Addition • 1 Gate Delay

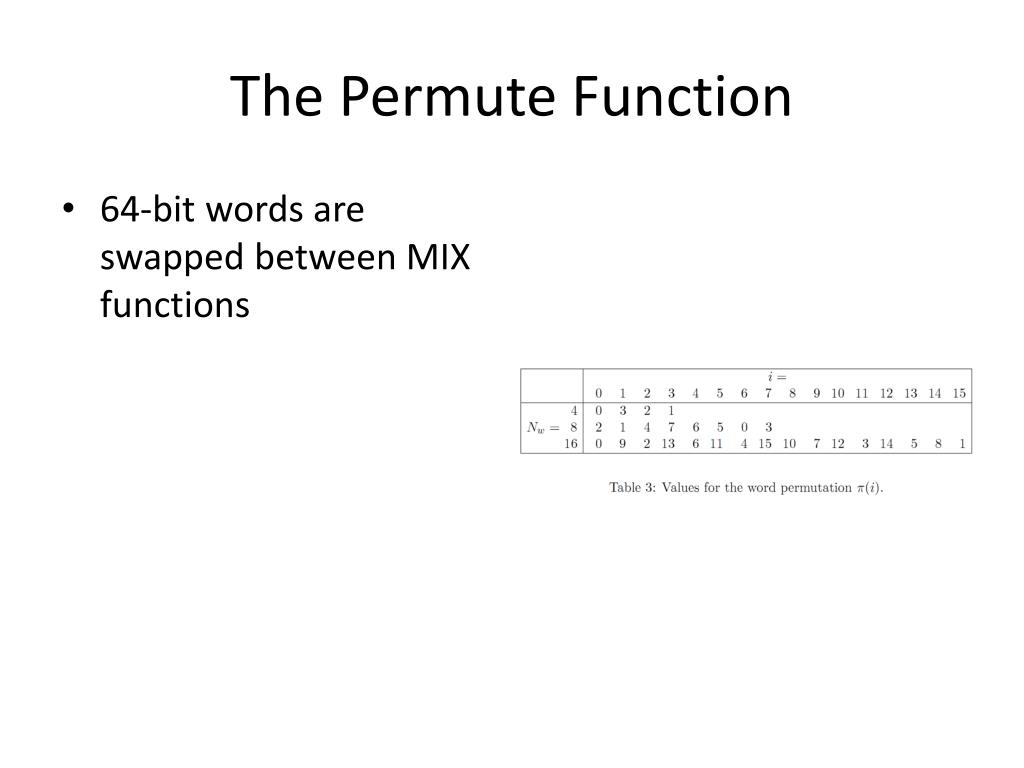

  39. The Permute Function • 64-bit words are swapped between MIX functions

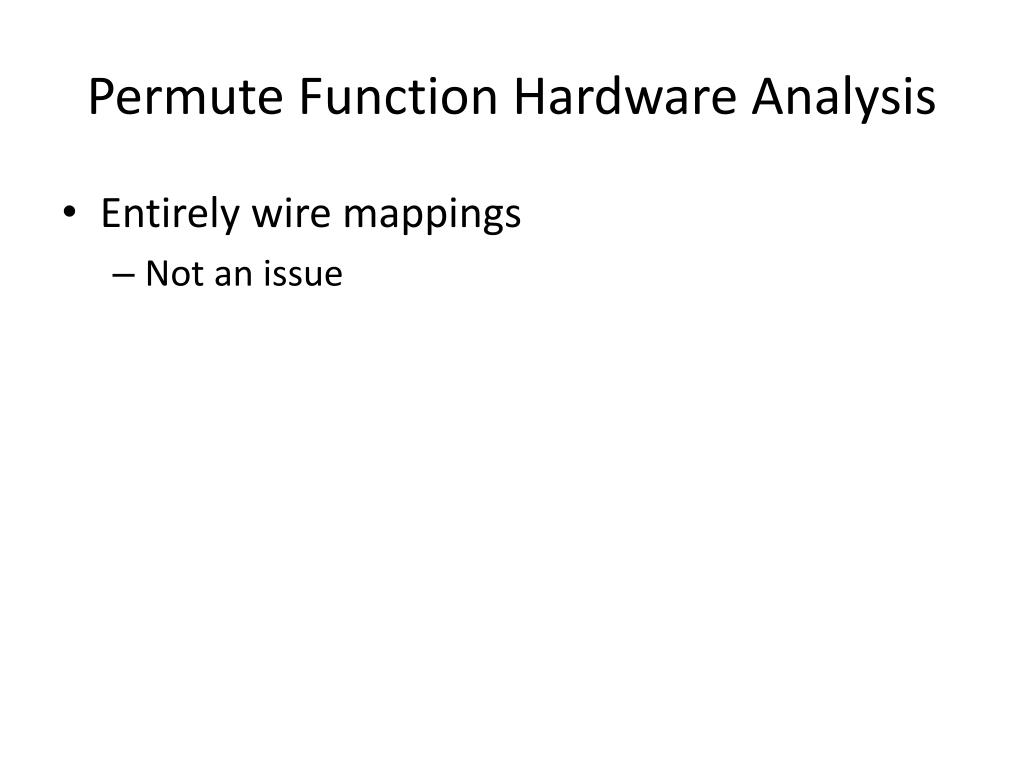

  40. Permute Function Hardware Analysis • Entirely wire mappings • Not an issue

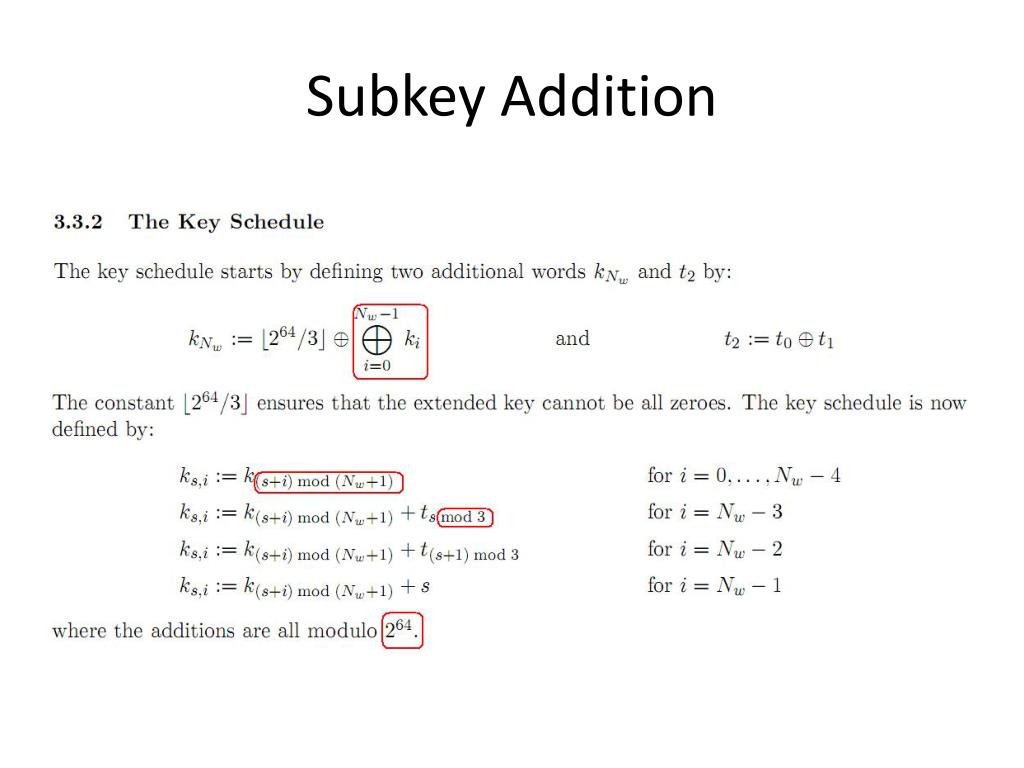

  41. Subkey Addition

  42. Subkey Hardware Analysis • 8 XOR’s chained together • 8 Gate Delays • Subkey Index mod 9 (and 3) • Full Custom (ASIC) can be hard-coded • Creative methods must be done in FPGA • Two 64-bit Additions chained together • Additions taken mod 264 • Our only good news!

  43. Subkey Hardware Analysis Continued • Eight 64-bit Additions happen “logically” in parallel • Each of those Eight is really 2 64-bit Additions chained together, as mentioned previously • To actually do this in parallel is a large hardware commitment • To save on hardware, each addition should happen serially using the same Logic Blocks (FPGA) • This may require external memory I/O between additions to swap out the addends • VERY SLOW

  44. UBI Blocks

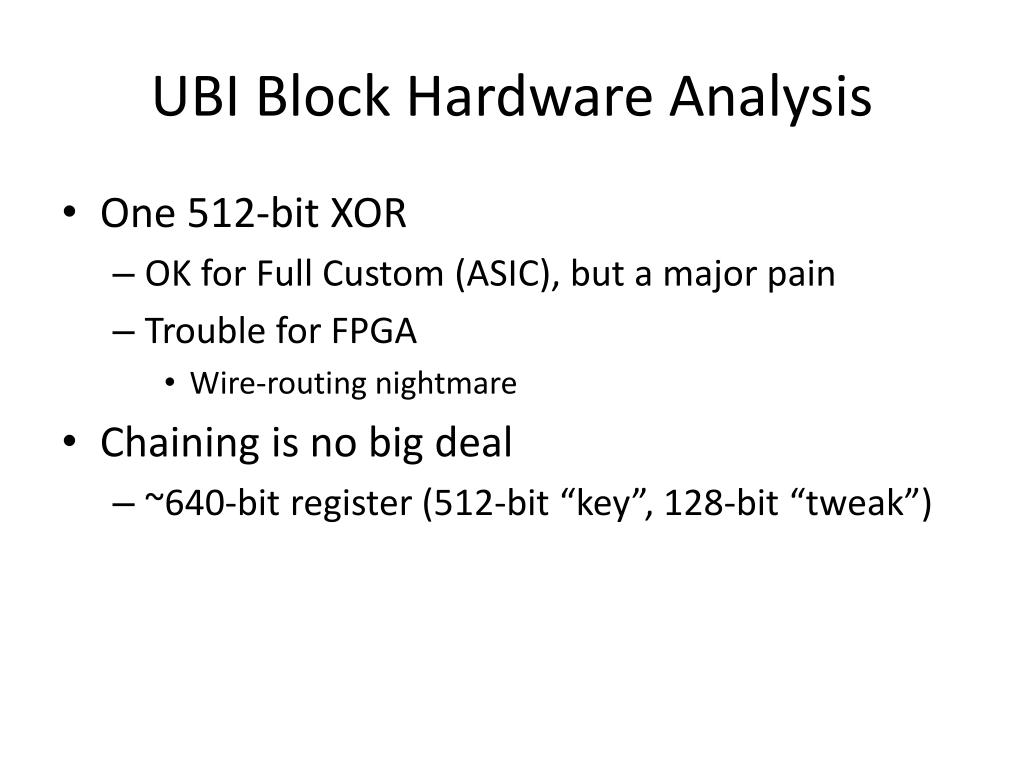

  45. UBI Block Hardware Analysis • One 512-bit XOR • OK for Full Custom (ASIC), but a major pain • Trouble for FPGA • Wire-routing nightmare • Chaining is no big deal • ~640-bit register (512-bit “key”, 128-bit “tweak”)

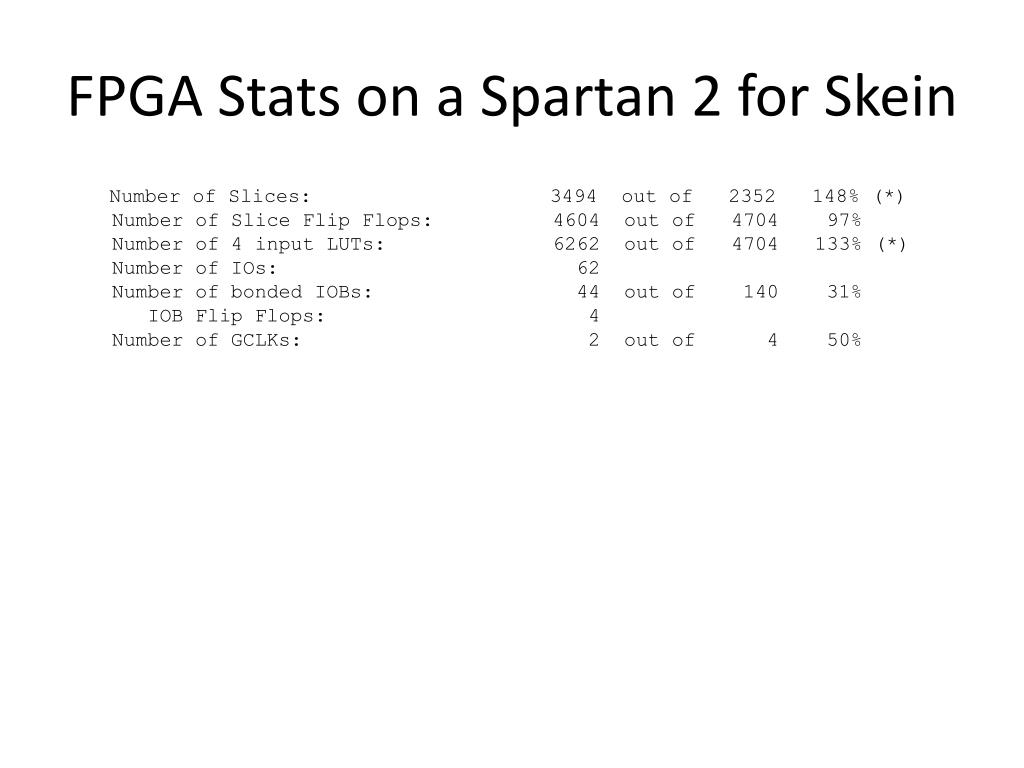

  46. FPGA Stats on a Spartan 2 for Skein  Number of Slices:                 3494  out of   2352   148% (*)  Number of Slice Flip Flops:          4604  out of   4704    97%   Number of 4 input LUTs:              6262  out of   4704   133% (*)  Number of IOs:                         62 Number of bonded IOBs:                 44  out of    140    31%      IOB Flip Flops:                      4 Number of GCLKs:                        2  out of      4    50%

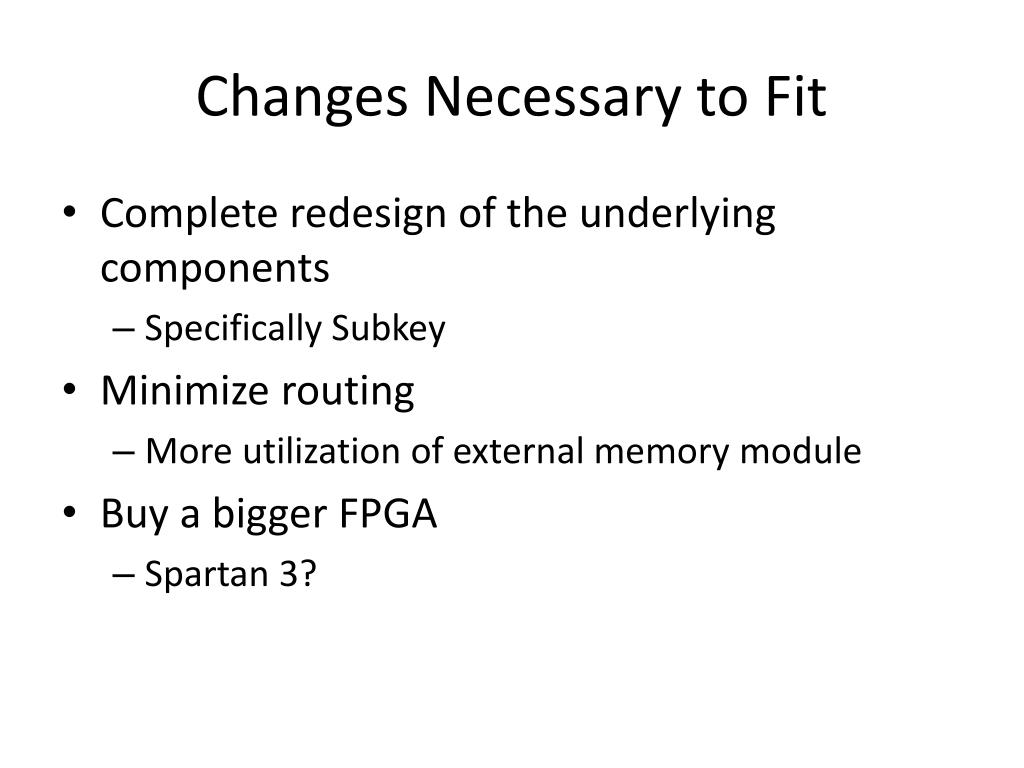

  47. Changes Necessary to Fit • Complete redesign of the underlying components • Specifically Subkey • Minimize routing • More utilization of external memory module • Buy a bigger FPGA • Spartan 3?

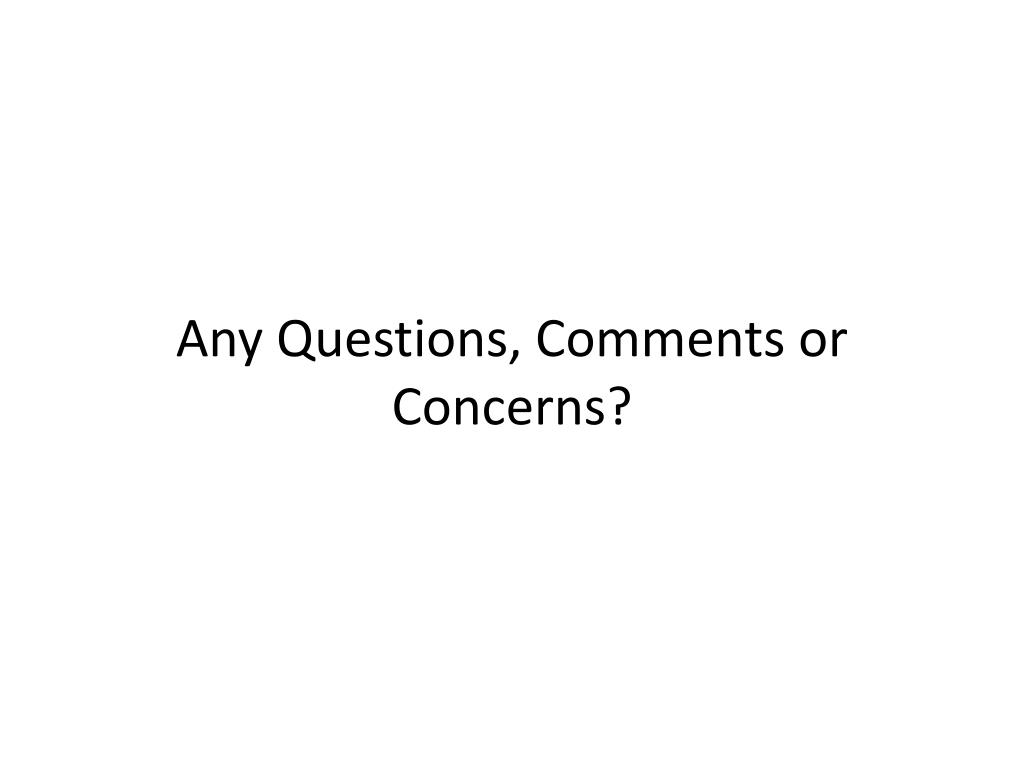

  48. Any Questions, Comments or Concerns?

  49. References • Dr. Łukowiak, C.E. Department • Dr. Shaaban, C.E. Department • http://en.wikipedia.org/wiki/Logic_gate • Images • http://en.wikipedia.org/wiki/Adder_(electronics) • Images • http://www.skein-hash.info/downloads • Images, Paper
