  1. Igneous Rocks

  2. Key Concepts • What geologic processes must happen to form igneous rock? • How does the formation of magma affect igneous rocks? • Where do they form? • What are the types of igneous rocks? • What are the physical/chemical properties of igneous rocks? • What part do igneous rocks play in the rock cycle?

  3. Formation of Igneous Rocks • Forms when magma cools & hardens • Minerals crystallize • Identity is determined by the chemical composition of the minerals & texture • 3 factors that affect melting: temperature, pressure & presence of fluids

  4. How magma affects formation of igneous rocks… Partial Melting • Process by which different minerals in the rock melt at different temperatures. • Affects the composition of the magma Fractional Crystallization • Cooling process of magma where different minerals crystallize at different rates • Opposite of partial melting *Size of crystals is determined by the cooling rate of the magma

  5. Textures of Igneous Rocks • Classified according to where magma cools & hardens • 2 types: intrusive or extrusive • Determined by the size of crystals & cooling rate of magma

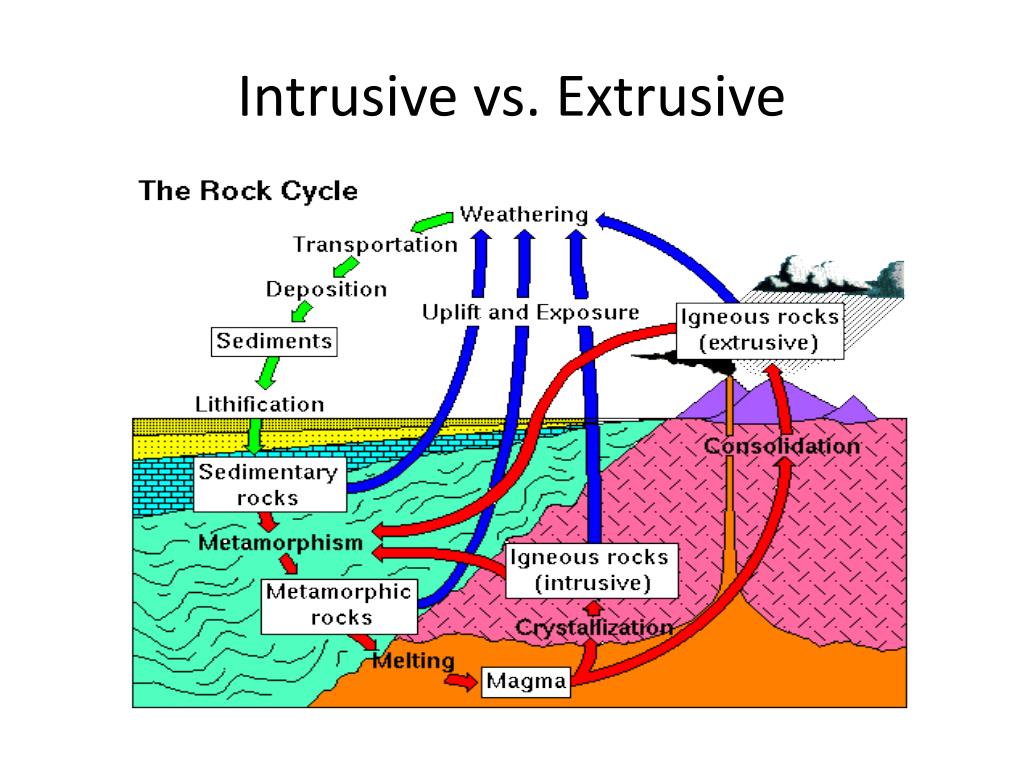

  6. Intrusive vs. Extrusive

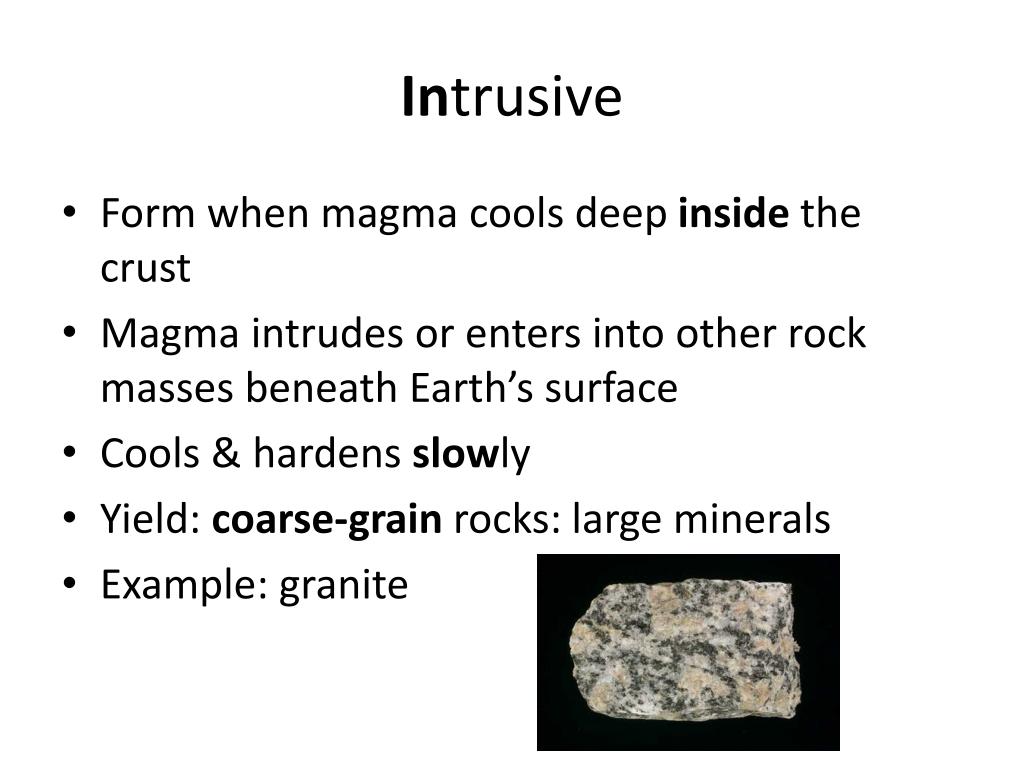

  7. Intrusive • Form when magma cools deep inside the crust • Magma intrudes or enters into other rock masses beneath Earth’s surface • Cools & hardens slowly • Yield: coarse-grain rocks: large minerals • Example: granite

  8. Extrusive • Forms when lava cools at Earth’s surface (outside) • Cools & hardens rapidly…small crystals • Yield: fine-grain rocks: small minerals • Example: basalt & rhyolite

  9. Other Igneous Rock Textures • Porphyritic--Combination of both large & small crystals • Glassy texture—very few crystals • Vesicular texture—cools rapidly & gas bubbles cause holes

  10. Composition of Igneous Rocks • Mineral composition is determined by the chemical composition of the magma that formed the rock • 3 families • Felsic • Mafic • Intermediate

  11. Felsic Rock • Contains a large proportion of silica • Light-coloring • Main minerals: potassium feldspar & quartz • Examples: granite, rhyolite, obsidian, & pumice

  12. Mafic Rock • Contains lower proportions of silica • Rich in iron & magnesium • Main minerals: plagioclase feldspar & pyroxene • Dark colored • Examples: basalt & gabbro

  13. Intermediate Rocks • Lower silica content than felsic but more than mafic • Main minerals: plagioclase feldspar, hornblende, pyroxene, & biotite mica • Examples: diorite & andesite

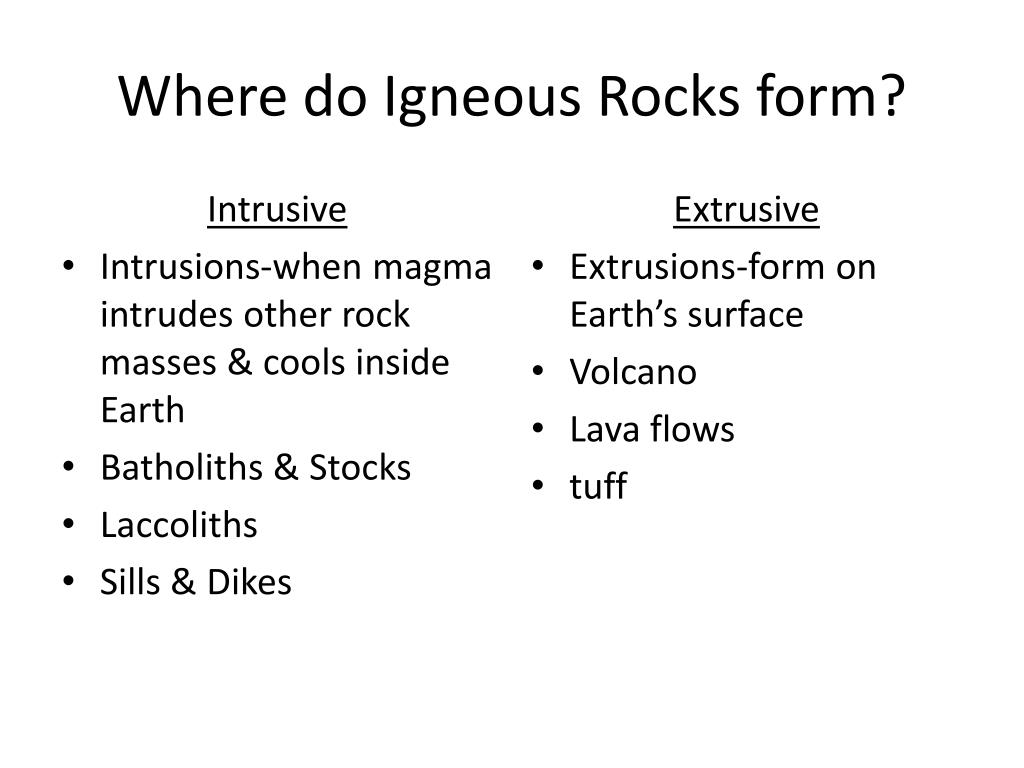

  14. Where do Igneous Rocks form? Intrusive • Intrusions-when magma intrudes other rock masses & cools inside Earth • Batholiths & Stocks • Laccoliths • Sills & Dikes Extrusive • Extrusions-form on Earth’s surface • Volcano • Lava flows • tuff
