  1. Igneous Rocks Definition, Classification, Formations

  2. Igneous Rocks:Outline • Rocks in General • Intro. to the Rock Cycle • Definition of an Igneous Rock • How igneous rocks “fit in” the Cycle • Classification of an Igneous Rock • Crystal Size and Implications • Composition and Implications • Igneous Rock Formations • Intrusions • Other

  3. What is rock? • Rock = collection of minerals • i.e., several natural, pure compounds in a solid mixture • Type of rock depends on process of formation http://en.wikipedia.org/wiki/File:Rhcp-live-pinkpop05.jpg

  4. Intro. to the Rock Cycle http://www.washington.edu/uwired/outreach/teched/projects/web/rockteam/WebSite/rcycle.gif

  5. Igneous Rocks:Definition • Igneous rocks are solidified from hot liquid materials • i.e., cooled from magma OR lava http://en.wikipedia.org/wiki/File:Pahoeoe_fountain_edit2.jpg

  6. Igneous Rocks:Classification • Classified by two criteria • “Texture”: size of the crystals • three distinctions (see upcoming slides) • Composition: the minerals present in the rock • especially how much SILICA (i.e., SiO2) • multiple distinctions (see upcoming slides)

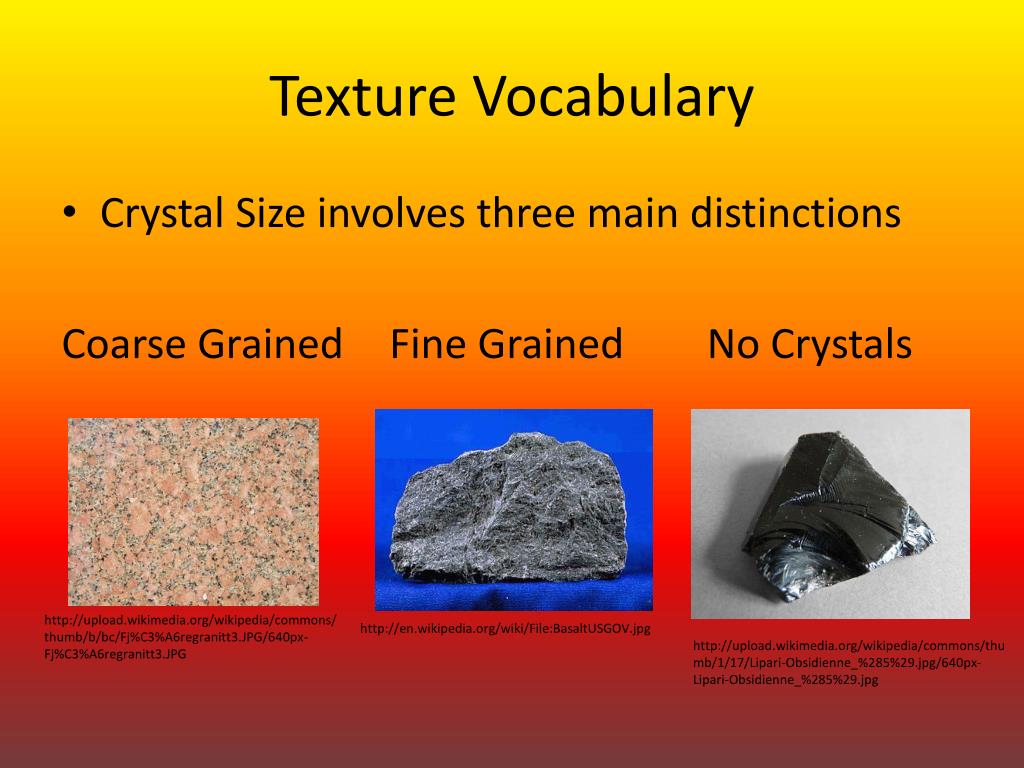

  7. Texture Vocabulary • Crystal Size involves three main distinctions Coarse Grained Fine Grained No Crystals http://upload.wikimedia.org/wikipedia/commons/thumb/b/bc/Fj%C3%A6regranitt3.JPG/640px-Fj%C3%A6regranitt3.JPG http://en.wikipedia.org/wiki/File:BasaltUSGOV.jpg http://upload.wikimedia.org/wikipedia/commons/thumb/1/17/Lipari-Obsidienne_%285%29.jpg/640px-Lipari-Obsidienne_%285%29.jpg

  8. Rock Cycle: What Can Texture Tell Us? http://www.washington.edu/uwired/outreach/teched/projects/web/rockteam/WebSite/rcycle.gif

  9. Texture Indicates Cooling Time Intrusive Igneous Rocks Extrusive Igneous Rocks Cooled from lava above the surface from volcanoes, e.g. Can cool in a few days or even minutes Fine grains or no crystals • Cooled from magma under the surface • Can take millions of years • Coarse grains http://en.wikipedia.org/wiki/File:Diorite2.tif http://en.wikipedia.org/wiki/File:Teidepumice.jpg

  10. Porphyry – Mix and Match!What could cause coarse AND fine grains? http://en.wikipedia.org/wiki/File:Rhyolite_porphyry.jpg

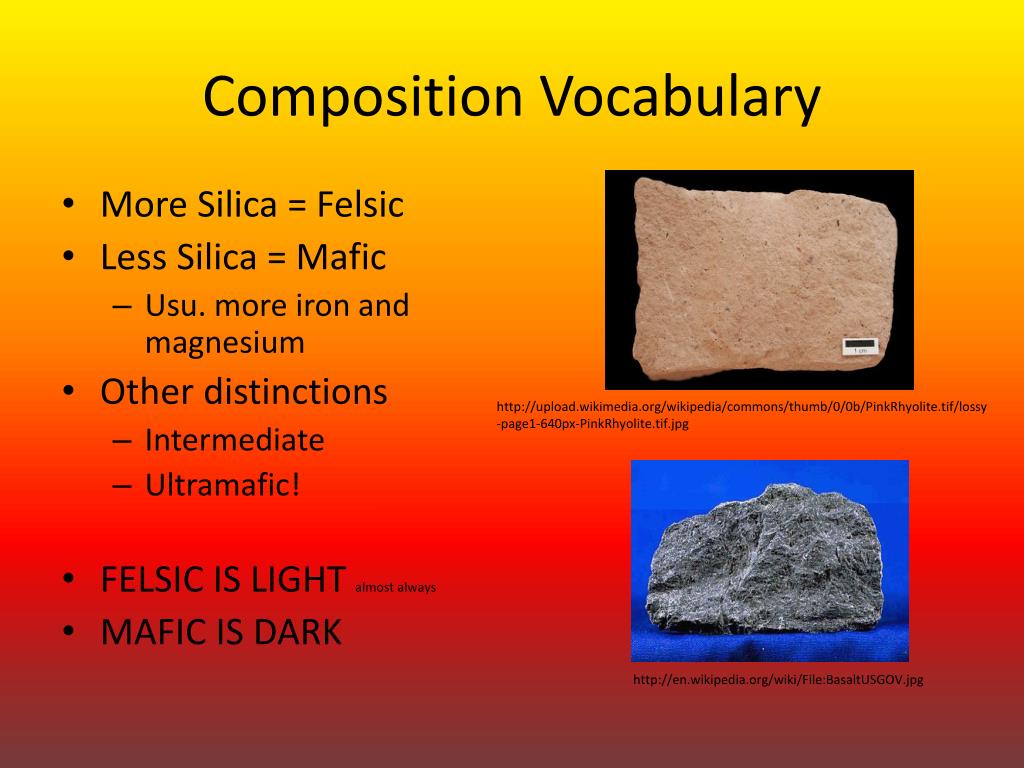

  11. Composition Vocabulary • More Silica = Felsic • Less Silica = Mafic • Usu. more iron and magnesium • Other distinctions • Intermediate • Ultramafic! • FELSIC IS LIGHT almost always • MAFIC IS DARK http://upload.wikimedia.org/wikipedia/commons/thumb/0/0b/PinkRhyolite.tif/lossy-page1-640px-PinkRhyolite.tif.jpg http://en.wikipedia.org/wiki/File:BasaltUSGOV.jpg

  12. What Composition Tells Us • More silicates (felsic) are more viscous when liquid • i.e., they resist flow and cause different formations • Less silicates (mafic) are denser • may indicate the source of the magma/lava http://en.wikipedia.org/wiki/File:Pahoeoe_fountain_edit2.jpg http://en.wikipedia.org/wiki/File:Mayon_0052.jpg

  13. Six Common Igneous Rocks(In Words)

  14. Six Common Igneous Rocks(In Pictures) http://en.wikipedia.org/wiki/File:Amygdaloidal_andesite.jpg http://en.wikipedia.org/wiki/File:GabbroRockCreek1.jpg

  15. Igneous Rock Formations:Intrusions • Intrusions form from intrusive rock • Can take millions of years to form, followed by a very long time to surface • Types that we study: • Batholiths • Stocks • Laccoliths • Dikes • Sills

  16. Batholiths and Stocks • Batholith from Greek, “deep rock” • HUGE intrusions • form deep in the Earth’s crust • most are granite • Stocks are just smaller versions (may be tip of a batholith) http://en.wikipedia.org/wiki/File:Enchanted_rock_2006.jpg http://en.wikipedia.org/wiki/File:Half_Dome_from_Glacier_Point,_Yosemite_NP_-_Diliff.jpg

  17. Laccoliths and Dikes • Laccolith from Greek, “pond rock” • magma intrudes into a space, causing layers of rock to bulge into an arch • Dikes are thin intrusions that cut across layers http://en.wikipedia.org/wiki/File:Laccolith.svg

  18. Examples http://en.wikipedia.org/wiki/File:Laccolith_Montana.jpg http://en.wikipedia.org/wiki/File:Dike_diabase_AZ.jpg

  19. Intrusions that get in between layers Resemble laccoliths, but remain flat (no arch) Sills http://en.wikipedia.org/wiki/File:Sill.JPG

  20. Example http://en.wikipedia.org/wiki/File:Edinburgh_Salisbury_Crags_2004-05-18.jpg

  21. Lava Plateaus Layers of lava that have built up Formed as lava flows over flat areas Any volcanoes are also extrusions (details in a later unit) Igneous Rock Formations:Extrusions http://en.wikipedia.org/wiki/File:Pahoeoe_fountain_edit2.jpg

  22. Example
