Presentation Transcript


Slide1 l.jpg

Process Design


Slide2 l.jpg

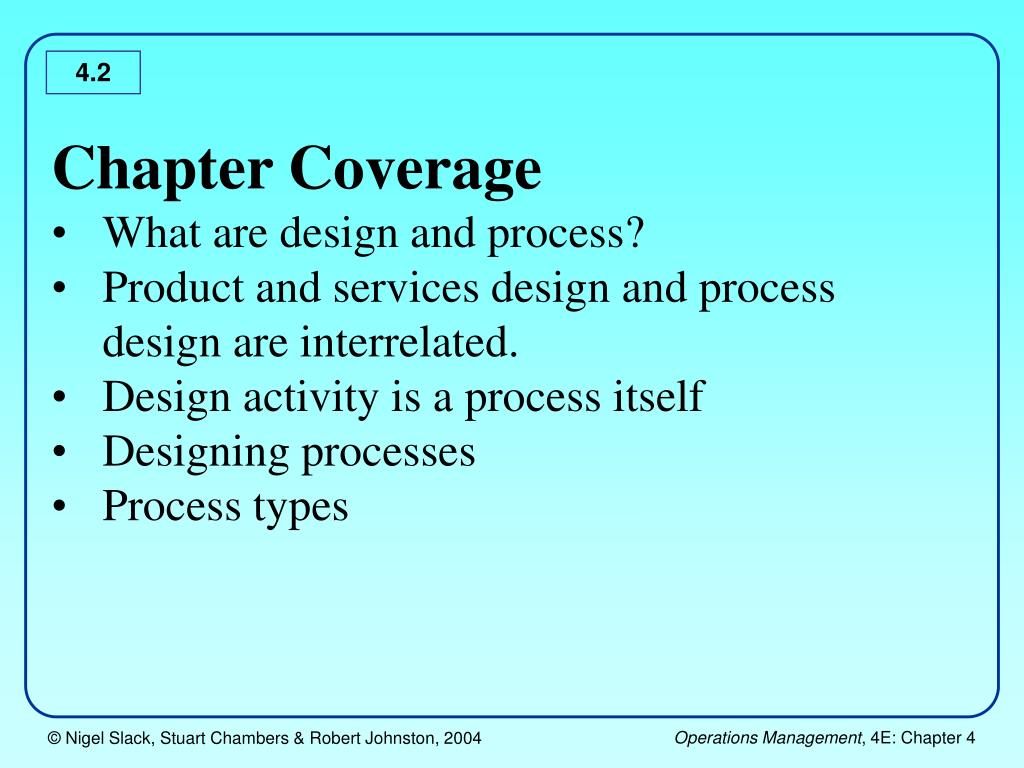

  • Chapter Coverage

  • What are design and process?

  • Product and services design and process design are interrelated.

  • Design activity is a process itself

  • Designing processes

  • Process types


Slide3 l.jpg

Design:

“To design” refers to the process of originating and developing a plan for a product, service or process.

Process:

Is any part of an organization which takes a set of input resources which are then used to transform something into outputs of products or services.


Slide4 l.jpg

Preliminary Design

Concept Generation

Screening

Process design

Evaluation and Improvement

Prototyping and final design

Process Design

Processes that Design Products

and Services

Processes that Produce Products and Services

Supply Network Design

Layout

and Flow

Process Technology

Job

Design


Slide5 l.jpg

  • Nature of the design activity:

  • Design is inevitable – products, services and the processes which produce them all have to be designed.

  • Product design influences process design – decisions taken during the design of a product or service will have an impact on the decisions taken during the design of the process which produces those products or services and vice versa.


Slide6 l.jpg

Designing the Processes that Produce the Product or Service

Designing the Product or Service

Processes should be designed so they can create all products and services which the operation is likely to introduce

Products and services should be designed in such a way that they can be created effectively

Decisions taken during the design of the product or service will have an impact on the process that produces them and vice versa

Product & services design are interrelated to its process design


Slide7 l.jpg

  • Process Design and Product/Service Design are Interrelated

  • To commit to the detailed design of a product or service consideration must be given to how it is to be produced.

  • Design of process can constrain the design of products and services.

  • The overlap is greater in the service industry:

    • Service industry - it is impossible to separate service design and process design – they are the same thing.

    • Manufacturing industry - it is possible to separate product design and process design but it is beneficial to consider them together because the design of products has a major effect on the cost of making them.


Slide8 l.jpg

  • Process and product/service design must satisfy customer

  • Products/services designer customers satisfaction criteria

    • Aesthetically pleasing

    • Reliability

    • Meets expectation

    • Inexpensive

    • Quality

    • Easy to manufacture and deliver

    • Speedy

  • Process designer customers satisfaction achieved through:

    • Layout

    • Location

    • Process technology

    • Human skills


Slide9 l.jpg

Finished designs which are:

TRANSFORMED RESOURCES

High quality: Error-free designs which fulfil their purpose in an effective and creative way

Speedily produced: Designs which have moved from concept to detailed specification in a short time

Dependably delivered: Designs which are delivered when promised

Produced flexibly: Designs which include the latest ideas to emerge during the process

Low cost: Designs produced without consuming excessive resources

Technical information

Market information

Time information

THE DESIGN ACTIVITY

OUTPUT

INPUTS

Test and design equipment

Design and technical staff

TRANSFORMING RESOURCES

The design activity is itself a process


Slide10 l.jpg

100%

Percentage of final product cost committed by the design

Percentage of design costs incurred

0%

Finish of the design activity

Start of the design activity

Relatively early in the design activity the decisions taken will commit the operation to costs which will be incurred later


Slide11 l.jpg

  • Designing processes

  • Process mapping

  • Process mapping symbols

  • Improving processes

  • Process performance

  • Throughput, cycle time & work in process


Slide12 l.jpg

  • Process mapping

  • Used to identify different types of activities.

  • Shows the flow of material, people or information.

  • Critical analysis of process maps can improve the process.


Slide13 l.jpg

Process mapping symbols

Beginning or end of process

Operation (an activity that directly adds value)

Activity

Inspection (a check of some sort)

Transport (a movement of some thing)

Input or Output from the process

Delay (a wait, e.g. for materials)

Direction of flow

Storage (deliberate storage, as opposed to a delay)

Decision (exercising discretion)

Process mapping symbols derived from Systems Analysis

Process mapping symbols derived from “Scientific Management”


Slide14 l.jpg

Raw Materials

Stored Sandwiches

Move to Outlets

Stored Sandwiches

Take Payment

Assembly

Sell

Standard sandwich process

Customer Request

Take Payment

Raw Materials

Assembly

Customer Request

Customized sandwich old process


Slide15 l.jpg

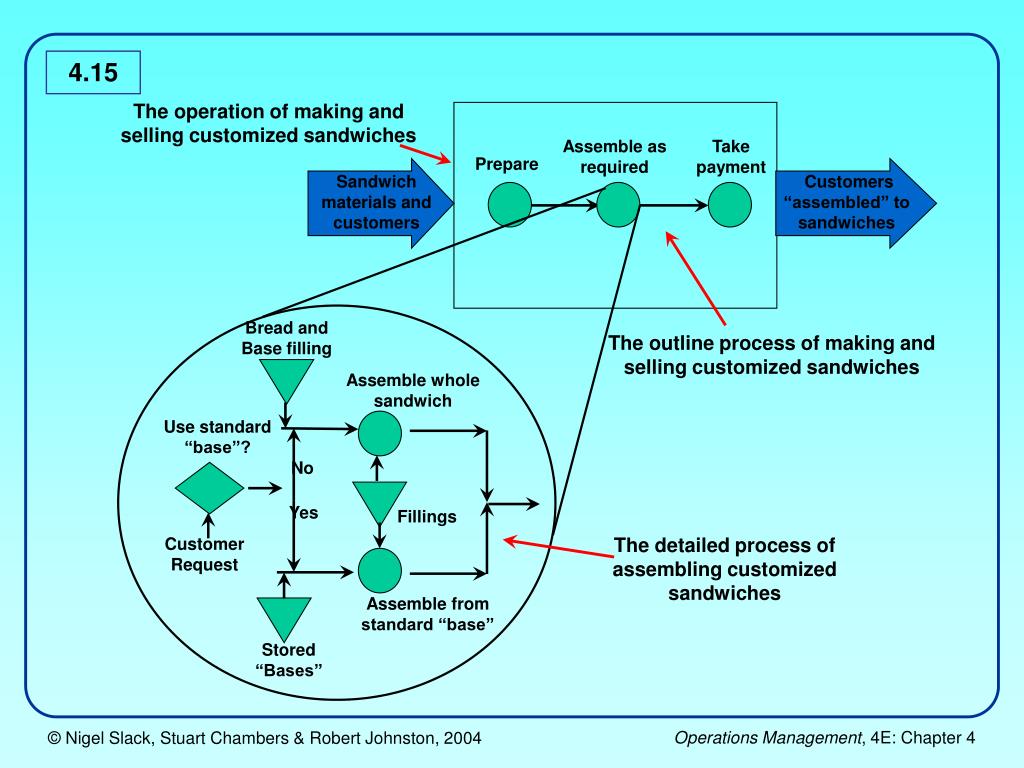

The operation of making and selling customized sandwiches

Assemble as required

Take payment

Prepare

Sandwich materials and customers

Customers “assembled” to sandwiches

Bread and Base filling

The outline process of making and selling customized sandwiches

Assemble whole sandwich

Use standard “base”?

No

Yes

Fillings

The detailed process of assembling customized sandwiches

Customer Request

Assemble from standard “base”

Stored “Bases”


Slide16 l.jpg

Assemble whole sandwich

Assembly of “sandwich bases”

Take Payment

Use standard “base”?

No

Fillings

Yes

Bread and Base filling

Customer Request

Assemble from standard “base”

Stored “Bases”

Customized sandwich improved new process


Slide17 l.jpg

Right hand

Left hand

Wait

Pick up base plate

Insert into fixture

Hold base plate

Pick up two supports

Locate back plate

Pick up screws

Locate screws

Pick up air driver

Fasten screws

Wait

Replace air driver

Pick up centre assembly

Inspect centre assembly

Hold centre assembly

Locate and fix

Switch on timer

Wait to end test

Inspect

Inspect

Transfer grasp

Transfer grasp

Wait

Put aside

‘Two handed’ process chart


Slide18 l.jpg

  • Process performance

  • Process performance can be judge against the five key performance objective:

    • Quality

    • Speed

    • Dependability

    • Flexibility

    • Cost


Slide19 l.jpg

  • Throughput, work content, cycle time, and work in process

    • Throughput – the time for a unit to move through the process

    • Work content – the total amount of work required to produce a unit of output (measured in time)

    • Cycle time – The average time between units of output emerging form the process

    • Work in process (WIP) –unfinished items in a production process waiting for further processing e. g. when customers join a queue in a process they become WIP

  • throughput = work in process x cycle time


Project processes l.jpg

One-off, complex, large scale, high work content “products”

Speciallymade, every one customized

Defined start and finish: time, quality and cost objectives

Many different skills have to be coordinated

Fixed position layout

Project Processes


Slide21 l.jpg

Project Process


Jobbing processes l.jpg

Very small quantities: “one-offs”, or only a few required

Speciallymade. High variety, low repetition.

Skill requirements are usually very broad

Skilled jobber, or team of jobbers complete whole product

Fixed position or process layout (routing decided by jobbers)

Jobbing Processes


Slide23 l.jpg

Jobbing Process


Batch processes l.jpg

Higher volumes and lower variety than for jobbing

Standard products, repeating demand. But can make specials

Specialized, narrower skills

Set-ups (changeovers) at each stage of production

Process or cellular layout

Batch Processes


Slide25 l.jpg

Batch Process


Mass line processes l.jpg

Higher volumes than Batch

Standard, repeat products

Low and/or narrow skills

No set-ups, or almost instantaneous ones

Cell or product layout

Mass (Line)Processes


Slide27 l.jpg

Mass Process


Continuous process l.jpg

Extremely high volumes and low variety: often single product

Standard, repeat products

Highly capital-intensive and automated

Few changeovers required

Difficult and expensive to start and stop the process

Product layout: usually flow along conveyors or pipes

Continuous Process


Slide29 l.jpg

Continuous Process


Slide30 l.jpg

Manufacturing process types

Service process types

High

High

Project

Professional service

Jobbing

Service shop

Batch

Variety

Variety

Mass

Mass service

Contin-

uous

Low

Low

High

Low

Volume

High

Low

Volume
