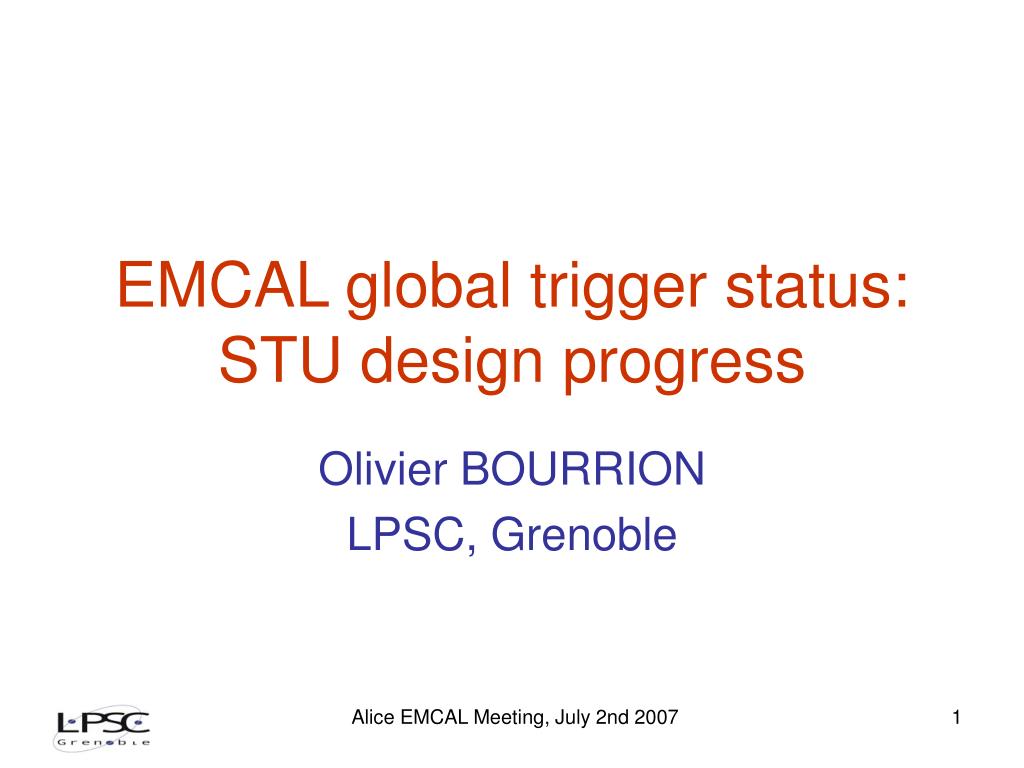

EMCAL global trigger status: STU design progress

Olivier BOURRION

LPSC, Grenoble

Alice EMCAL Meeting, July 2nd 2007

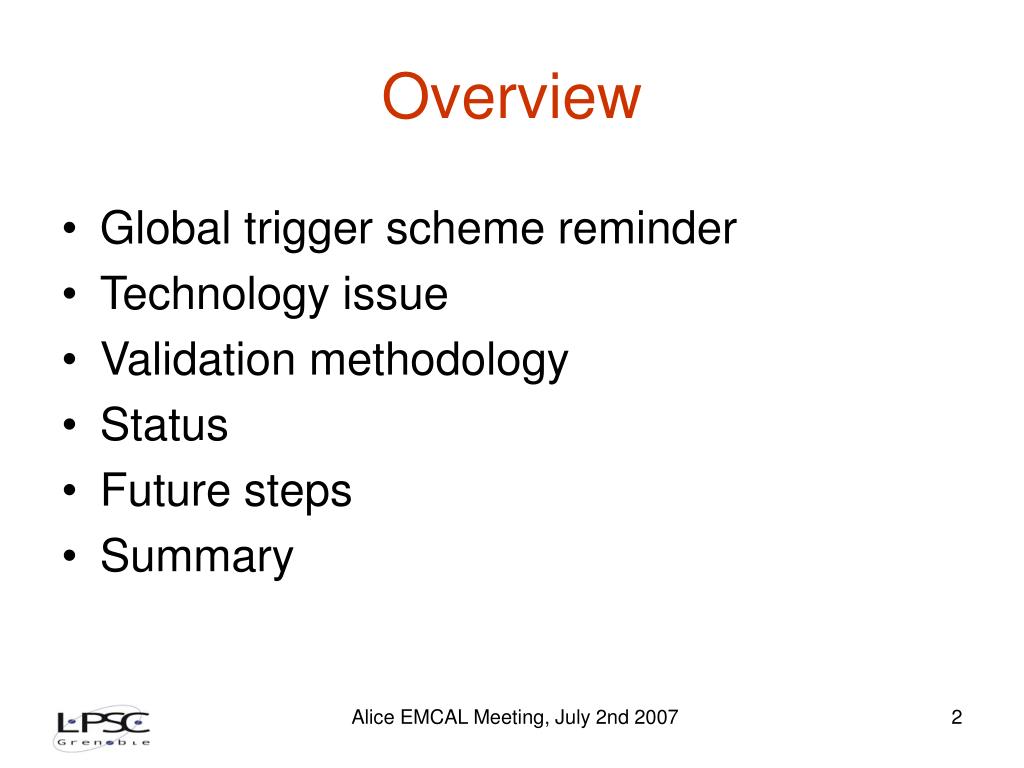

Overview
Overview

  • Global trigger scheme reminder

  • Technology issue

  • Validation methodology

  • Status

  • Future steps

  • Summary

Alice EMCAL Meeting, July 2nd 2007


Position of the summary trigger unit in the global trigger scheme

TTC link

TRU

L0

STU

L1-gamma

To CTP

34 TRU

LVDS links

L1-jet

DDL

4 diff pair

Ethernet CAT7 cable

TRU

DCS

Put trigger data in the data stream on L2a (via DDL)

TRU is clocked by the BC clock forwarded by STU (40.08MHz)

Multiplicity from V0

Position of the Summary Trigger Unit in the global trigger scheme

Trigger specification :

  • L0 trigger : OR of the 34 L0 calculated by the TRU.

  • L1-gamma trigger: Energy summed over sliding window of 4x4 towers (2x2 fast OR) and compared to a multiplicity corrected threshold.

  • L1-jet trigger : Energy summed over a sliding window of n*n subregions and compared to a multiplicity corrected threshold (a subregion is defined as 8x8 towers)

Alice EMCAL Meeting, July 2nd 2007


The technology issue
The technology issue

  • The feasibility of a LVDS link (TRUSTU)

    working at 2*400.8 Mbs over 15m has to be checked.

    (see Frascati presentation)

  • The STU design and fabrication on hold

     waiting for this validation.

Alice EMCAL Meeting, July 2nd 2007


Validation methodology

USB LVDS

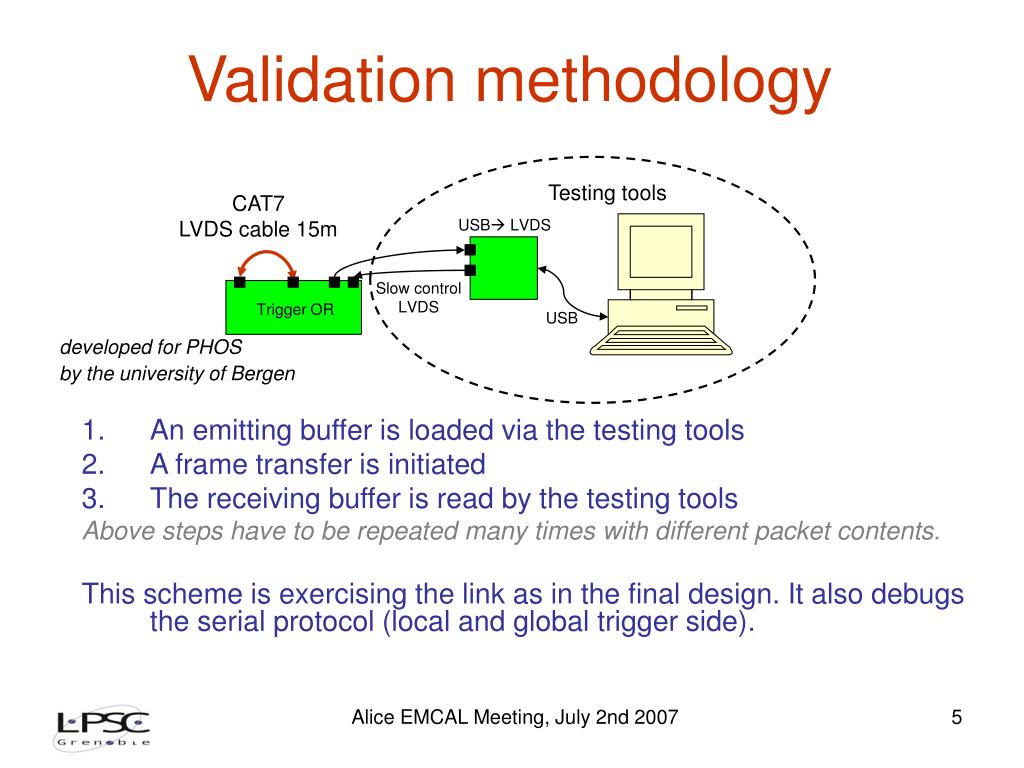

Validation methodology

  • An emitting buffer is loaded via the testing tools

  • A frame transfer is initiated

  • The receiving buffer is read by the testing tools

    Above steps have to be repeated many times with different packet contents.

    This scheme is exercising the link as in the final design. It also debugs the serial protocol (local and global trigger side).

Testing tools

CAT7

LVDS cable 15m

Slow control

LVDS

Trigger OR

USB

developed for PHOS

by the university of Bergen

Alice EMCAL Meeting, July 2nd 2007

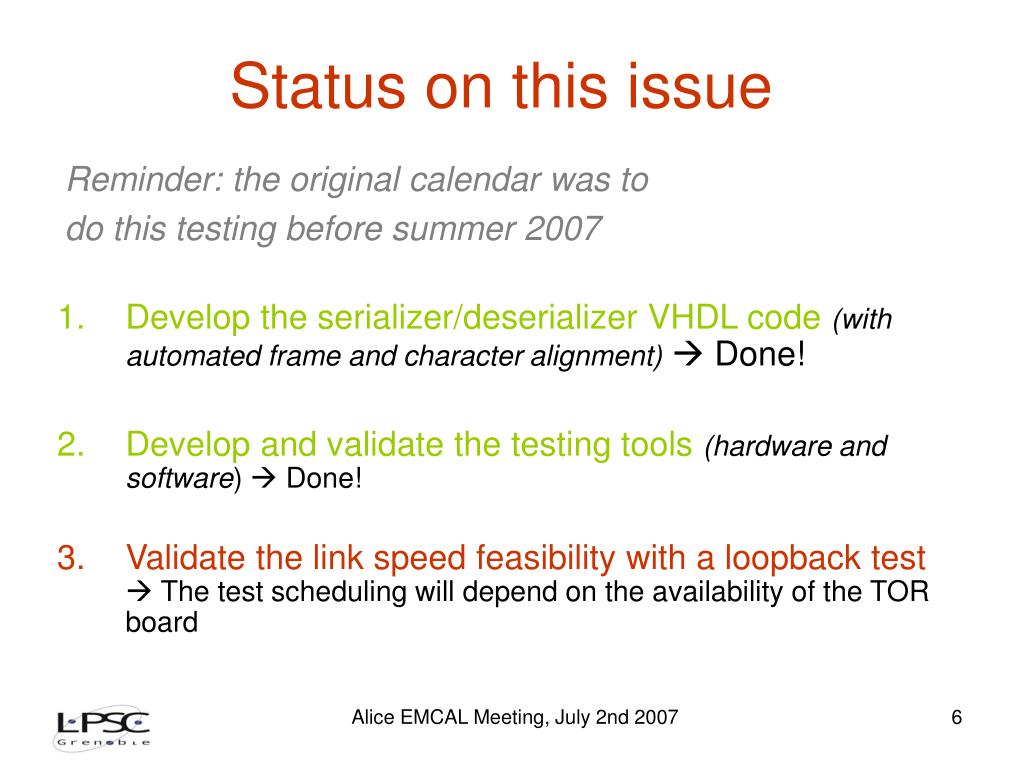

Status on this issue
Status on this issue

Reminder: the original calendar was to

do this testing before summer 2007

  • Develop the serializer/deserializer VHDL code (with automated frame and character alignment) Done!

  • Develop and validate the testing tools (hardware and software)  Done!

  • Validate the link speed feasibility with a loopback test  The test scheduling will depend on the availability of the TOR board

Alice EMCAL Meeting, July 2nd 2007


Future steps
Future steps

  • Design and built the first STU prototype (on hold)

  • Implement a global L1-(could be validated with 2 TRU).This step could also be done with a TOR.

  • Implement a first version of a L1-jet

  • Implement and test the DDL interface(LPSC is about to be equipped with a Acquisition computer running DATE)

  • Implement and test the DCS interface

Alice EMCAL Meeting, July 2nd 2007


Summary
Summary

  • LVDS Link prototyping issue (test to be scheduled)

  • Agreement on link protocol (no counter proposal since Frascati)  High speed serializer provided to local trigger (TRU) by LPSC

  • Open questions:

    • ADC channel numbering versus physical location (to be confirmed or a new map ???)

      - Region orientation (mirroring between A and C side ???)

Alice EMCAL Meeting, July 2nd 2007

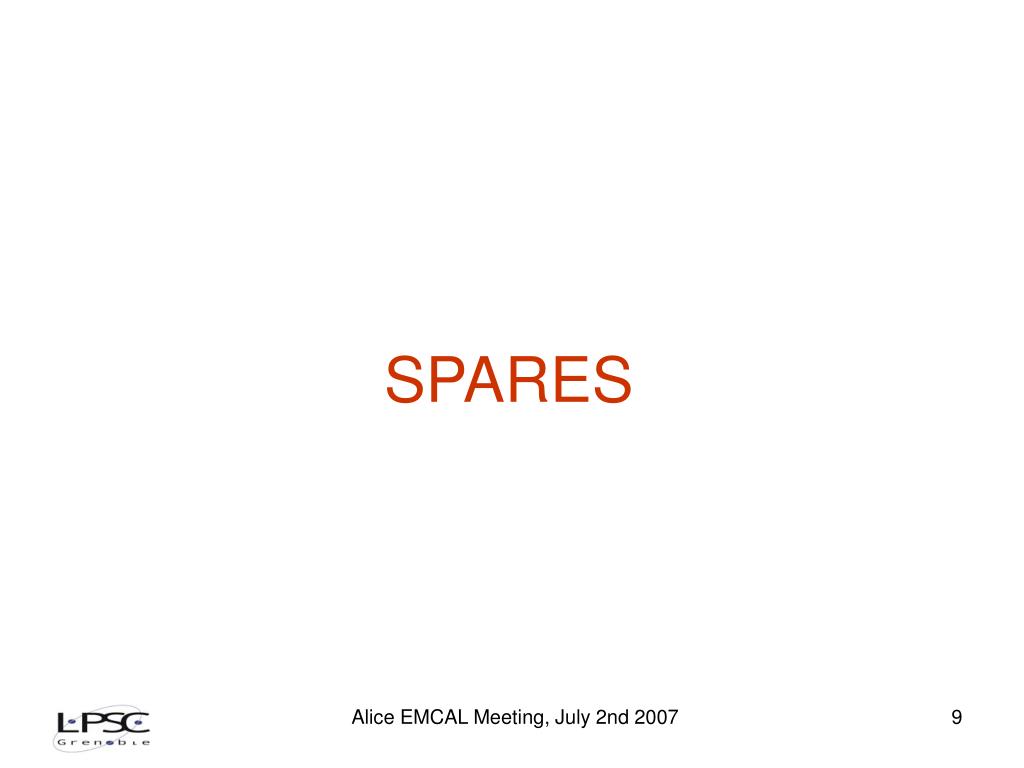

Spares
SPARES

Alice EMCAL Meeting, July 2nd 2007

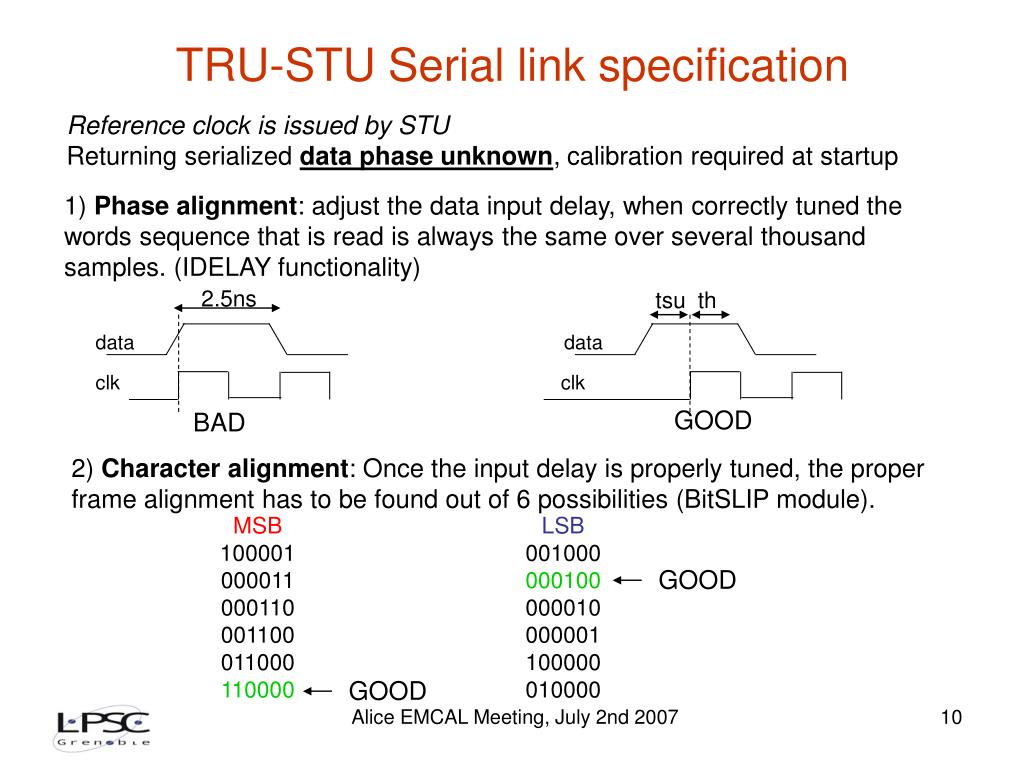

Tru stu serial link specification
TRU-STU Serial link specification

Reference clock is issued by STU

Returning serialized data phase unknown, calibration required at startup

1) Phase alignment: adjust the data input delay, when correctly tuned the words sequence that is read is always the same over several thousand samples. (IDELAY functionality)

2.5ns

tsu

th

data

data

clk

clk

GOOD

BAD

2) Character alignment: Once the input delay is properly tuned, the proper frame alignment has to be found out of 6 possibilities (BitSLIP module).

MSB

100001

000011

000110

001100

011000

110000

LSB

001000

000100

000010

000001

100000

010000

GOOD

GOOD

Alice EMCAL Meeting, July 2nd 2007


Emcal layout 2 2
EMCAL layout (2/2)

Confirmation of the ADC channel affectation vs geometrical position

The ADC channel number has to be known by STU, in order to compute the triggers

For instance, one 4X4 window is channel 5,6,9 and 10

Alice EMCAL Meeting, July 2nd 2007

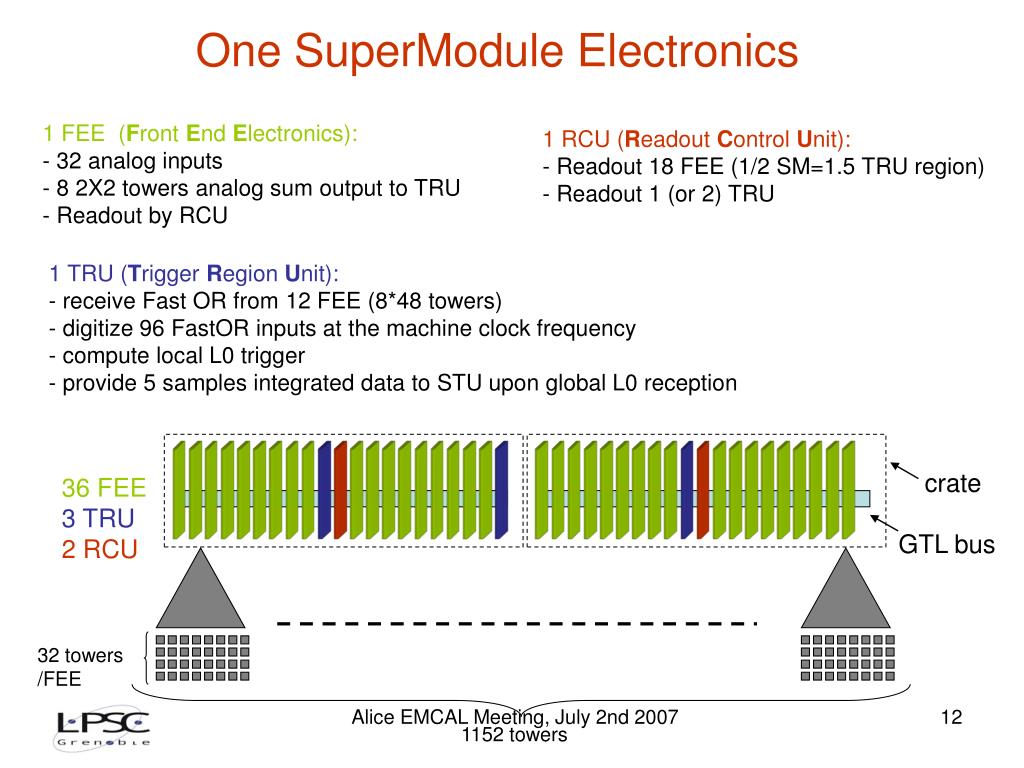

One SuperModule Electronics

1 FEE (Front End Electronics):

- 32 analog inputs

- 8 2X2 towers analog sum output to TRU

- Readout by RCU

1 RCU (Readout Control Unit):

- Readout 18 FEE (1/2 SM=1.5 TRU region)

- Readout 1 (or 2) TRU

1 TRU (Trigger Region Unit):

- receive Fast OR from 12 FEE (8*48 towers)

- digitize 96 FastOR inputs at the machine clock frequency

- compute local L0 trigger

- provide 5 samples integrated data to STU upon global L0 reception

crate

36 FEE

3 TRU

2 RCU

GTL bus

32 towers

/FEE

Alice EMCAL Meeting, July 2nd 2007

1152 towers


ad
