Five Basic Geometries

Five Basic Geometries. Linear. Trigonal. Tetrahedral. Octahedral. Trigonal bipyramidal. SeF 6 , IF 5 , and XeF 4. SeF 6 : Octahedron. All bond angles are 90°. IF 5 and XeF 4. The 1st lone pair can occupy any site The 2nd lone pair is arranged opposite to the 1st. IF 5. XeF 4.

marge
Download Presentation

Five Basic Geometries

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Five Basic Geometries Linear Trigonal Tetrahedral Octahedral Trigonal bipyramidal

  2. SeF6, IF5, and XeF4

  3. SeF6: Octahedron All bond angles are 90°

  4. IF5 and XeF4 • The 1st lone pair can occupy any site • The 2nd lone pair is arranged opposite to the 1st IF5 XeF4 Square Pyramidal Square Planar

  5. Octahedral Electronic Geometry • If lone pairs are incorporated into the octahedral structure, there are 2 possible new shapes • 1 lone pair – Square pyramid • 2 lone pairs – Square planar

  6. Chemical Bonding • How are the chemical bonds formed? • Formation of a chemical bond usually involves pairing of unpaired electrons from the atoms being bound • Example – H2 molecule H· + ·H  H:H

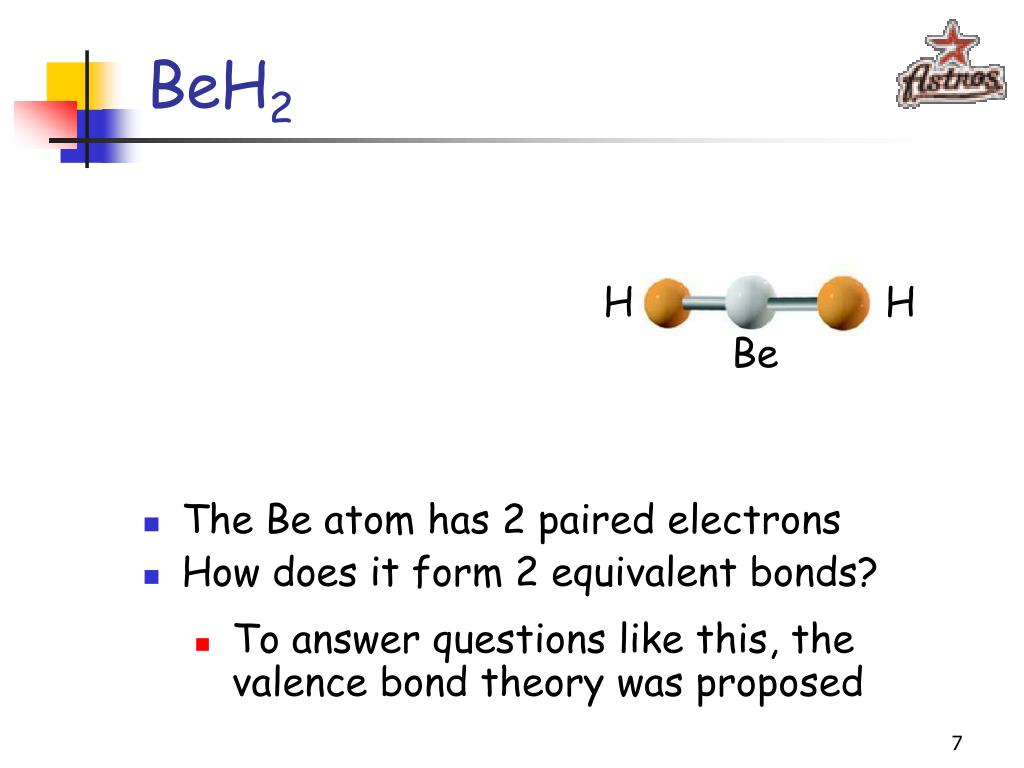

  7. H H Be BeH2 • The Be atom has 2 paired electrons • How does it form 2 equivalent bonds? • To answer questions like this, the valence bond theory was proposed

  8. Valence Bond Theory • When an atom is nearby other atoms, its outer shell orbitals can mix and get modified • They form a new set of orbitals that are more appropriate for bonding • This process is called hybridization • The new orbitals are therefore called hybrid orbitals • Hybrid orbitals are arranged in the same way as predicted by VSEPR

  9. BeH2 Be: 1s22s2 sp - hybridization

  10. BeH2 sp sp 1s 1s Be + + H H

  11. F F B F BF3

  12. BF3 B: 1s22s22p1 sp2 - hybridization

  13. BF3 B + 3 F 2p

  14. CH4 and CF4 109.5°

  15. CH4 and CF4 C: 1s22s22p2 sp3 - hybridization

  16. C CH4 + 4 H 1s

  17. C CF4 + 4 F 2p

  18. NH3 and NF3 NH3 NF3 107.3° 102.1° • Just like in CH4 and CF4, the orbitals are arranged in the tetrahedral fashion which means that the sp3 hybridization takes place • One of the orbitals, however, contains a pair of electrons and is not used for bonding

  19. N Four sp3 orbitals NH3 and NF3 N: 1s22s22p3 sp3 - hybridization

  20. NH3 and NF3 N + 3 H 1s

  21. NH4+ 1s + H+ +

  22. PF5 P: [Ne]3s23p3 sp3d - hybridization

  23. PF5 Trigonal bipyramidal electronic geometry is achieved by sp3d - hybridization

  24. SF6 S: [Ne]3s23p4 sp3d2 - hybridization

  25. SF6 Octahedral electronic geometry is achieved by sp3d2 - hybridization

  26. VB vs. VSEPR Theories

  27. Double Bond: C2H4 • An sp2 hybridized C atom has one electron in each of the three sp2 lobes Side view of the sp2 hybrid + the unhybridized p orbital Top view of the sp2 hybrid

  28. Double Bond: C2H4 • Two sp2 hybridized C atoms plus p-orbitals in proper orientation to form a C=C double bond

  29. Double Bond: C2H4 • The portion of the double bond formed from the head-on overlap of the sp2 hybrids is designated as a s bond • The other portion of the double bond, resulting from the side-on overlap of the p orbitals, is designated as a p bond

  30. Triple Bond: C2H2 A  bond results from the head-on overlap of two sp hybrid orbitals

  31. Triple Bond: C2H2 • The unhybridized p orbitals form two p bonds • Note that a triple bond consists of one  and two p bonds

  32. Assignments & Reminders • Go through the lecture notes • Read Chapter 8 completely • Homework #5 covers Chapters 7 & 8 and is due by Oct. 31 • Monday (10/31) and Tuesday (11/1) – lecture quiz #5 (Chapter 8)
