  1. Generation Grammars in Design

  2. http: www.shapegrammar.org

  3. Languages • types • natural • music, art, design • formal – mathematics, logic • programming • components • semantics – meaning / function • syntax – structure/form 3

  4. Syntax • alphabet • primitive elements • letters, phonemes • vocabulary • words, phrases, sentences • grammar • legal composition of vocabulary • rules, operators 4

  5. Semantics • derived from syntax • from vocabulary within a context • dictionary lookup not sufficient 5

  6. Grammars • rules or operators • define legal operations on syntax • how vocabulary can be composed 6

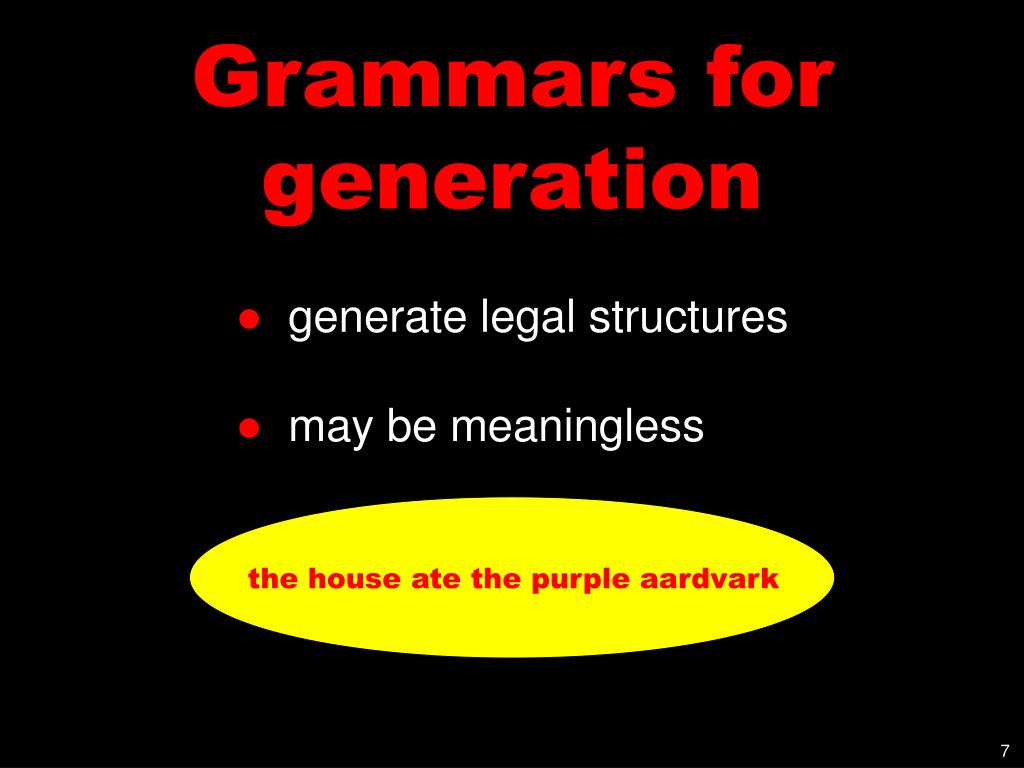

  7. the house ate the purple aardvark Grammars for generation • generate legal structures • may be meaningless 7

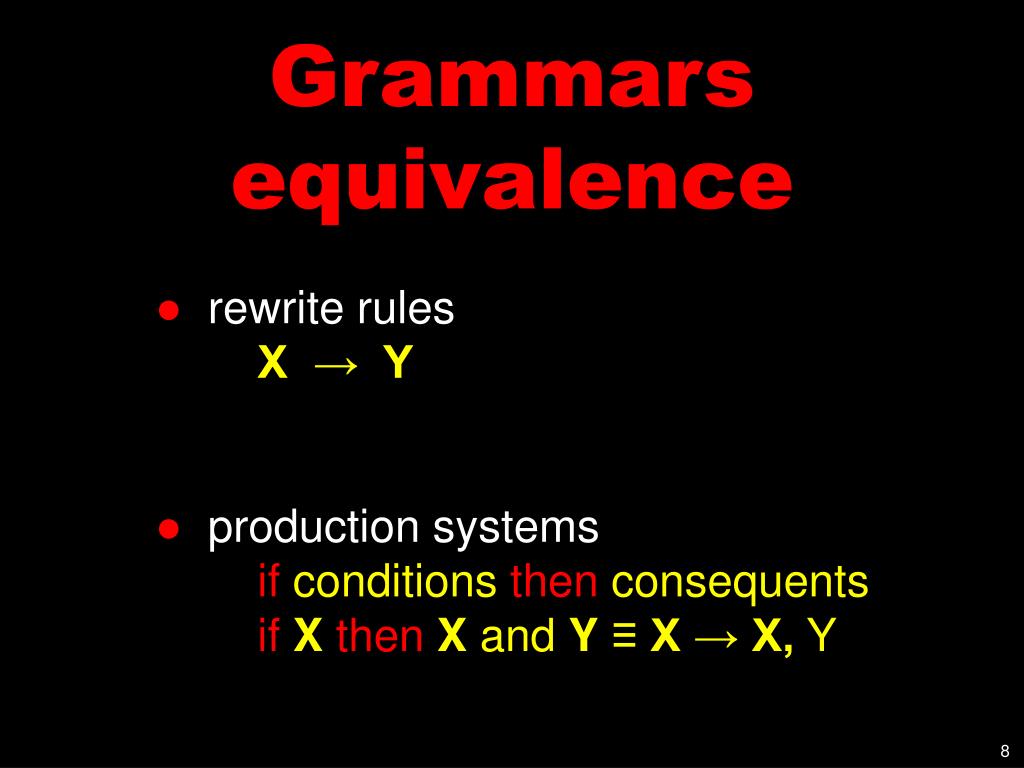

  8. Grammars equivalence • rewrite rules X → Y • production systems if conditions then consequents ifXthenX and Y ≡ X → X, Y 8

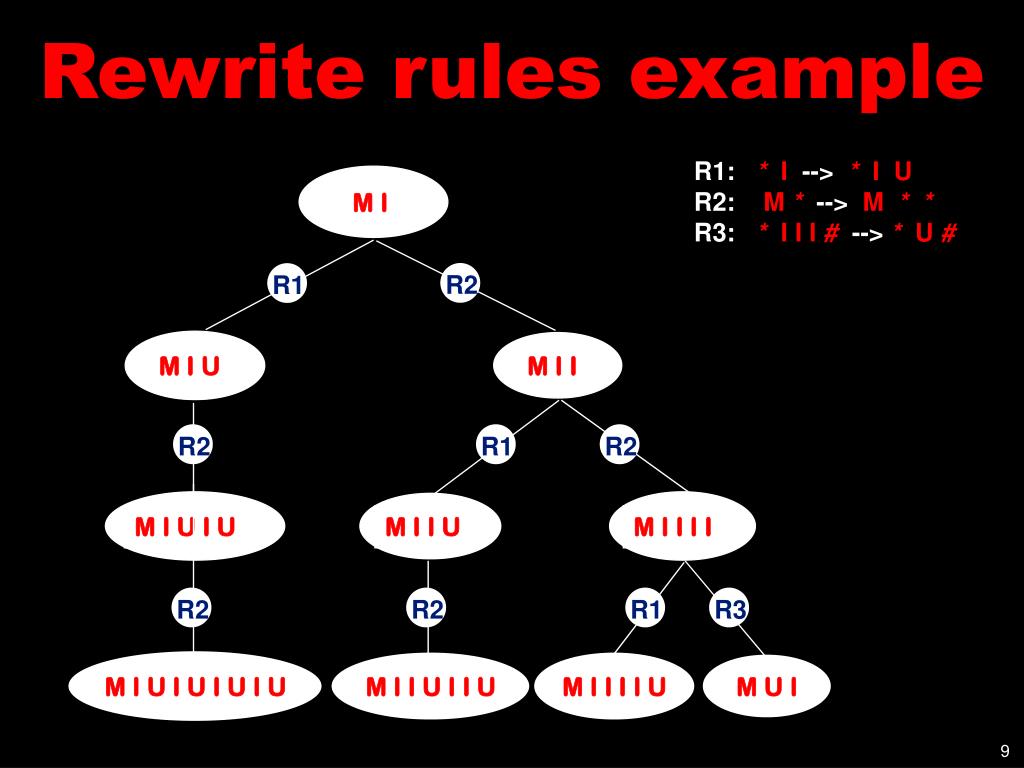

  9. M I R1 R2 M I U M I I R2 R1 R2 M I U I U M I I U M I I I I R2 R2 R1 R3 M I U I U I U I U M I I U I I U M I I I I U M U I Rewrite rules example R1: * I --> *I U R2: M* --> M * * R3: * I I I #--> * U # 9

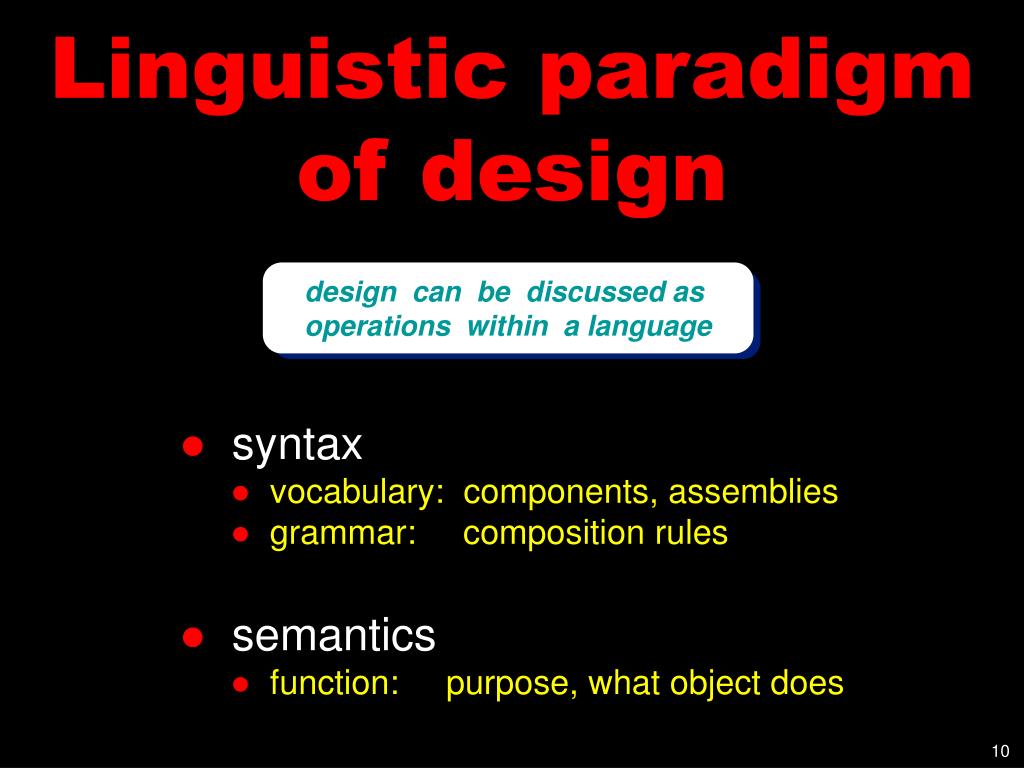

  10. design can be discussed as operations within a language Linguistic paradigm of design • syntax • vocabulary: components, assemblies • grammar: composition rules • semantics • function: purpose, what object does 10

  11. what configuration of design elements will constitute a design solution with a satisfactory performance Generation • problem • grammars • from initial state • apply grammar rules successively • produce legal designs • Universe of Discourse (UOD) 11

  12. Shape Grammars • Stiny 1980 • introduction to shape grammars • language of forms • spatial forms • vocabulary – maximal lines • four components • finite set of shapes • finite set of symbols • finite set of shape grammar rules • initial shape 12

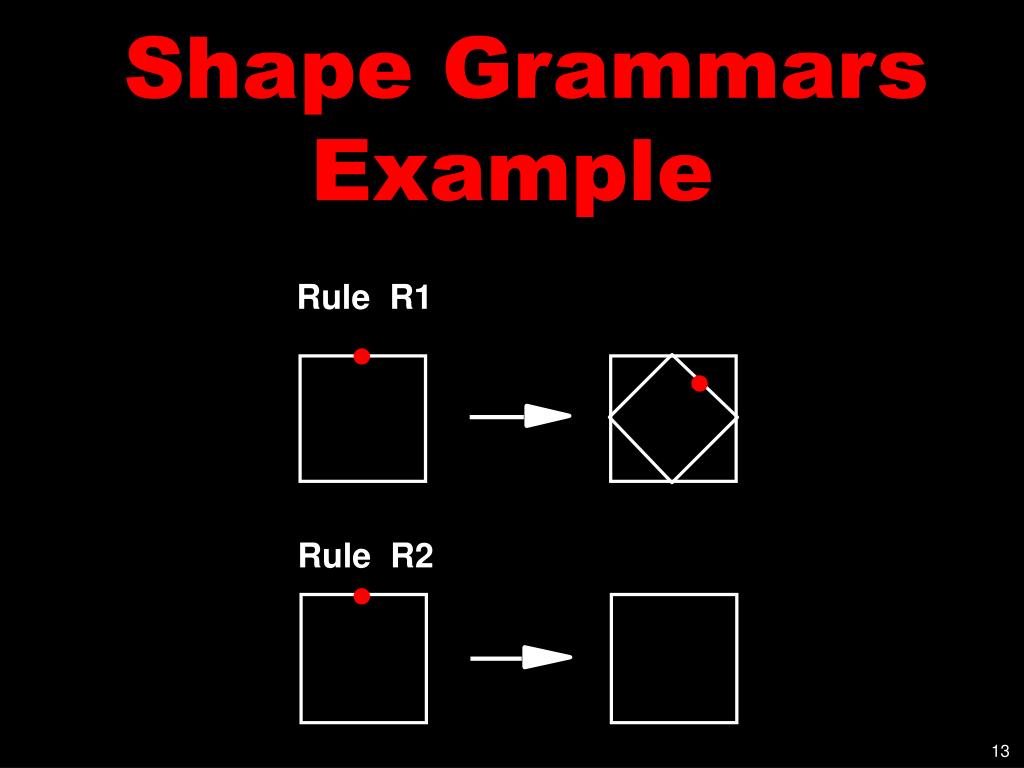

  13. Rule R1 Rule R2 Shape Grammars Example 13

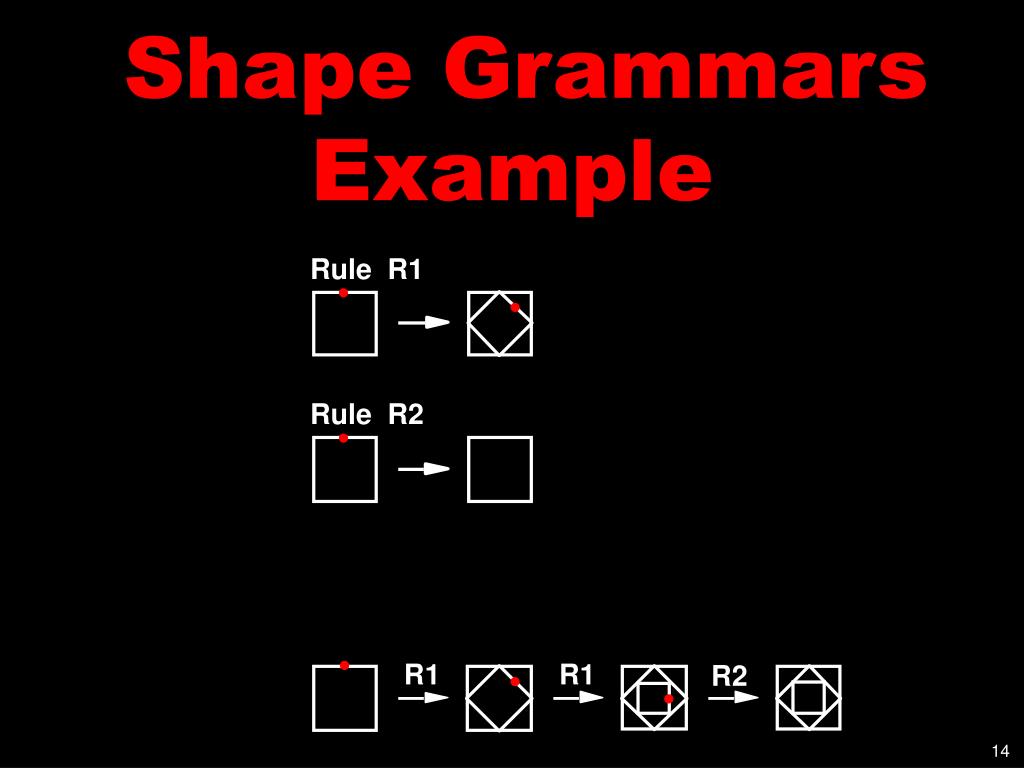

  14. R1 R1 R2 Shape Grammars Example Rule R1 Rule R2 14

  15. Rule R1 Initial shape R1 R1 R1 R1 R1 R1 Shape Grammars Example 15

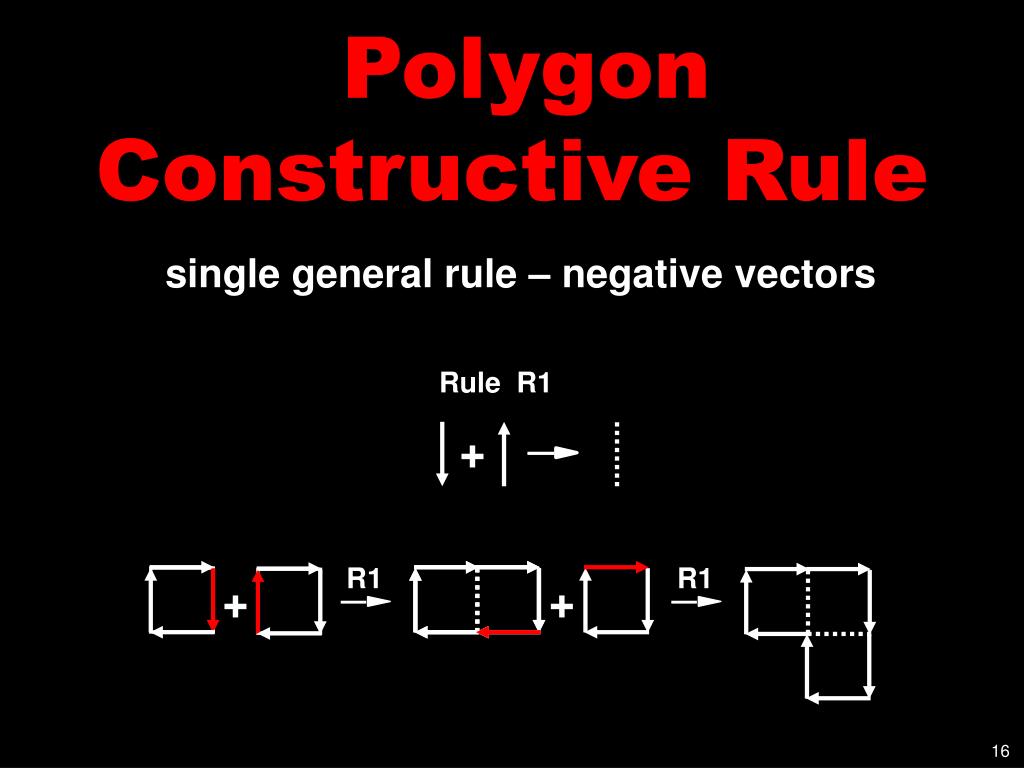

  16. R1 R1 + Polygon Constructive Rule single general rule – negative vectors Rule R1 + + 16

  17. Examples of Design Grammars • shape grammars • tables • blocks • Palladian villas • Frank Lloyd Wright Houses • set grammars • EAVE • Glenn Murcutt 17

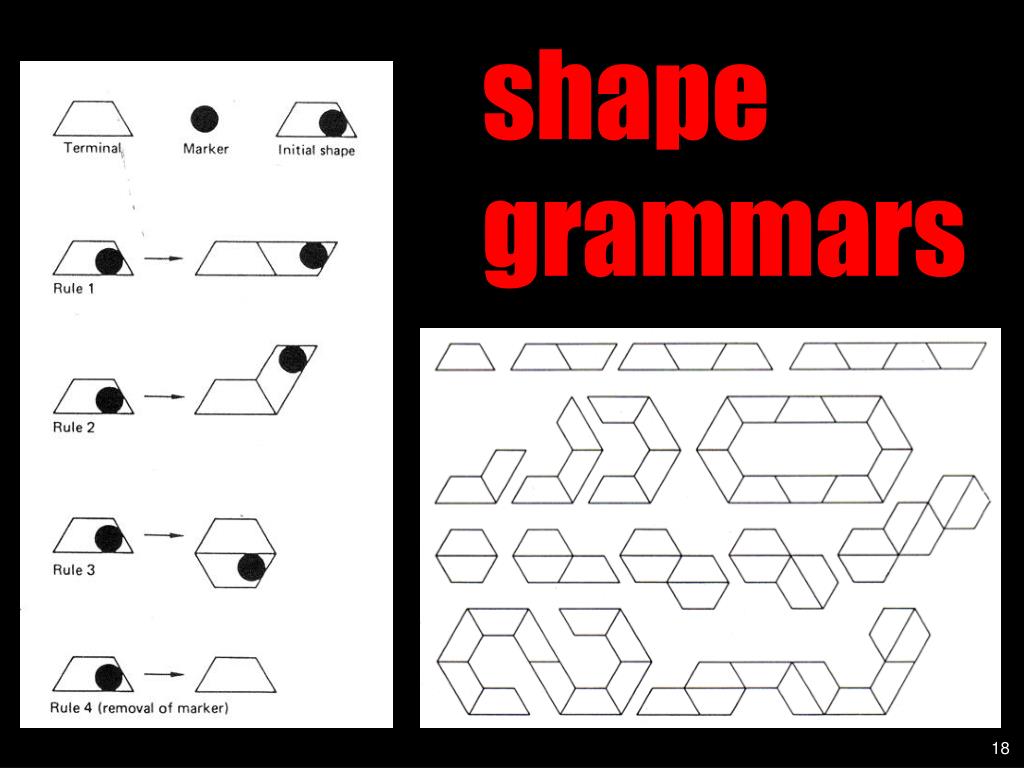

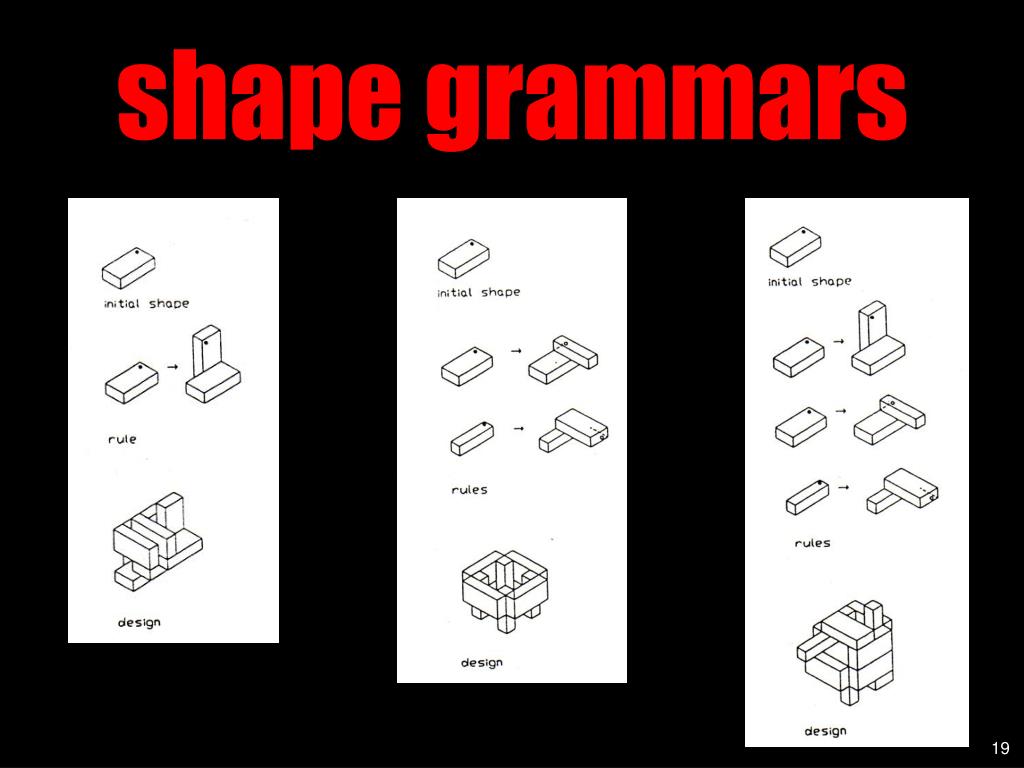

  18. shape grammars 18

  19. shape grammars 19

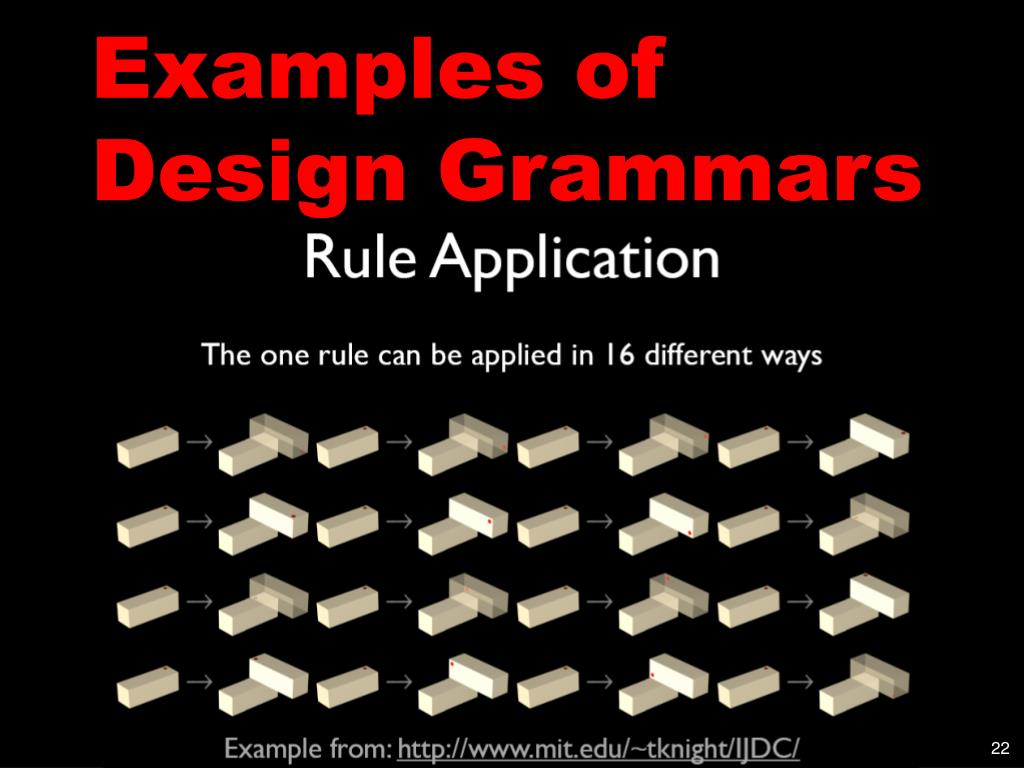

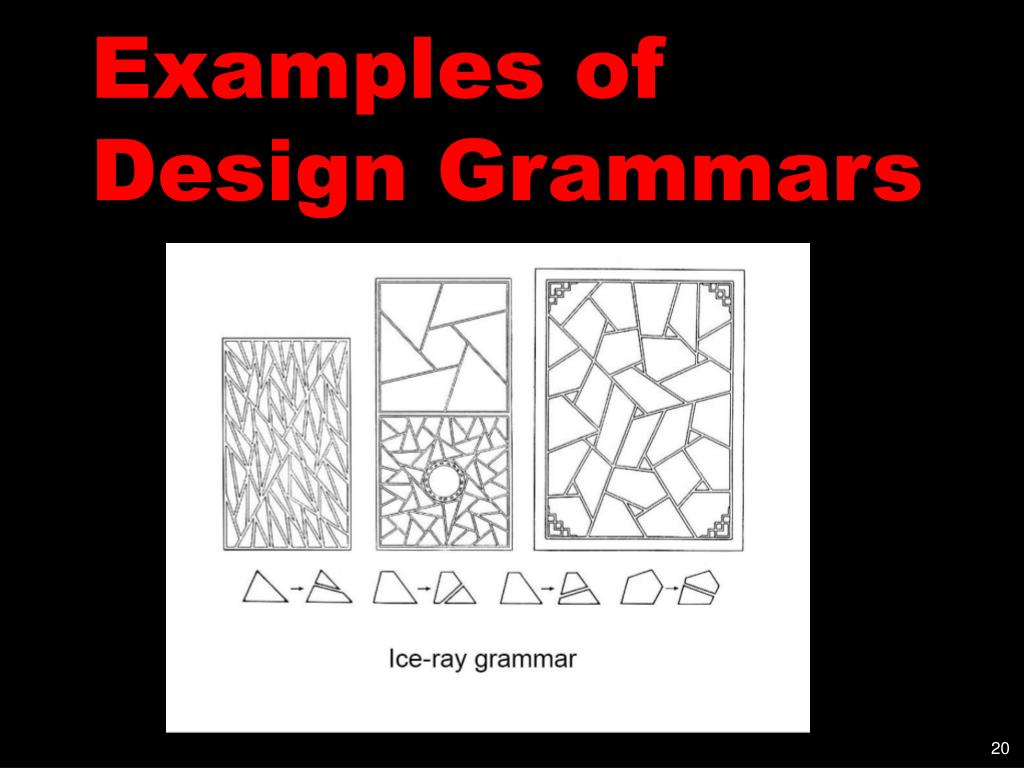

  20. Examples of Design Grammars 20

  21. Examples of Design Grammars 21

  22. Examples of Design Grammars 22

  23. Examples of Design Grammars 23

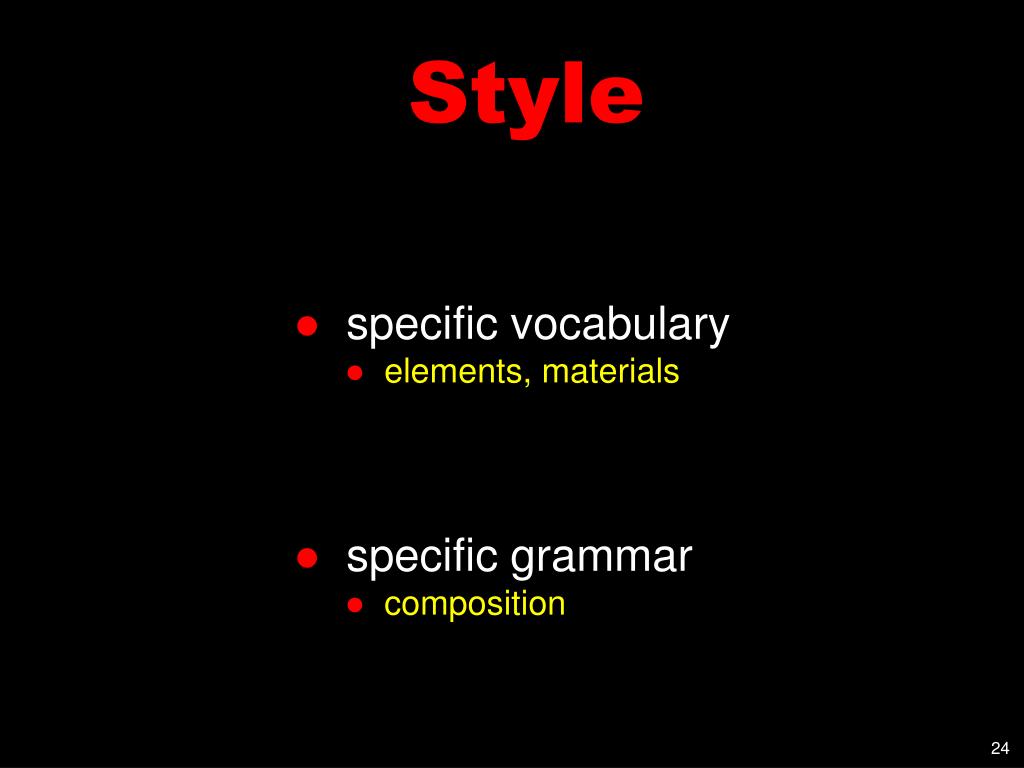

  24. Style • specific vocabulary • elements, materials • specific grammar • composition 24

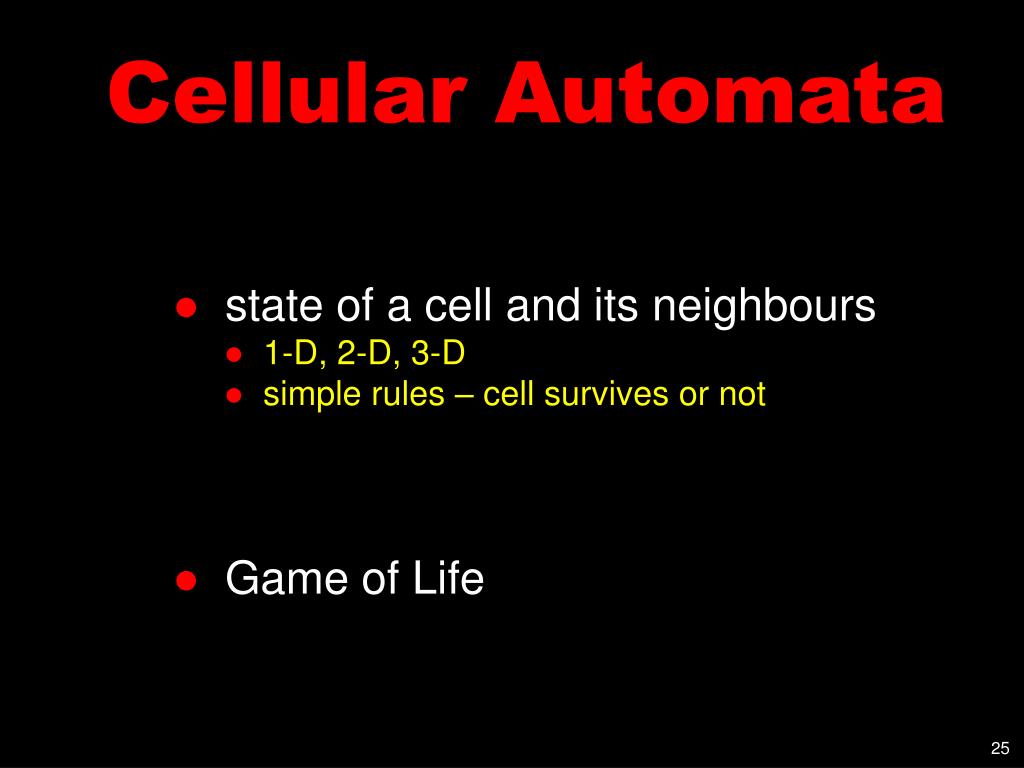

  25. Cellular Automata • state of a cell and its neighbours • 1-D, 2-D, 3-D • simple rules – cell survives or not • Game of Life 25

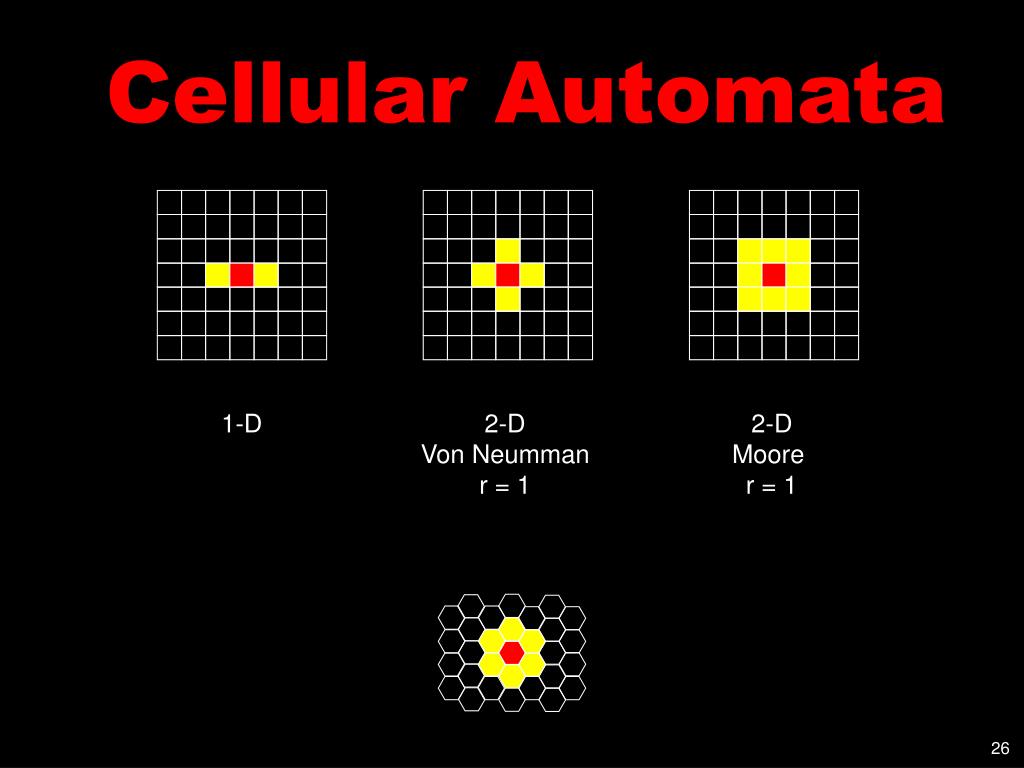

  26. 1-D 2-D Von Neumman r = 1 2-D Moore r = 1 Cellular Automata 26

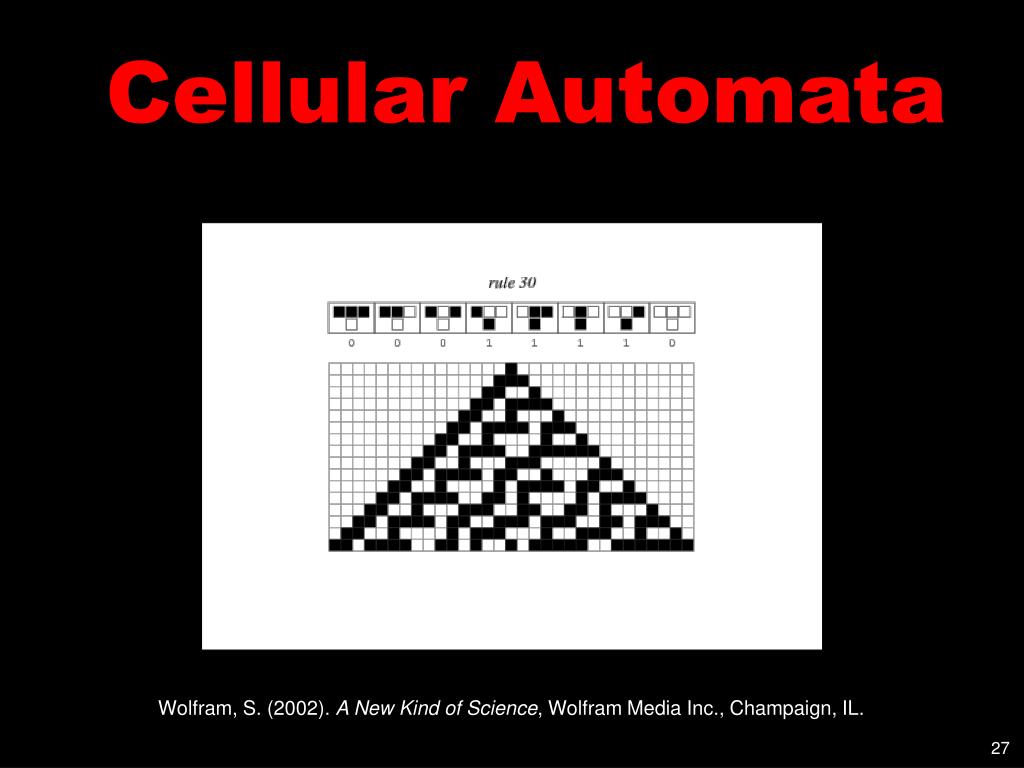

  27. Cellular Automata Wolfram, S. (2002). A New Kind of Science, Wolfram Media Inc., Champaign, IL. 27

  28. Cellular Automata Wolfram, S. (2002). A New Kind of Science, Wolfram Media Inc., Champaign, IL. 28

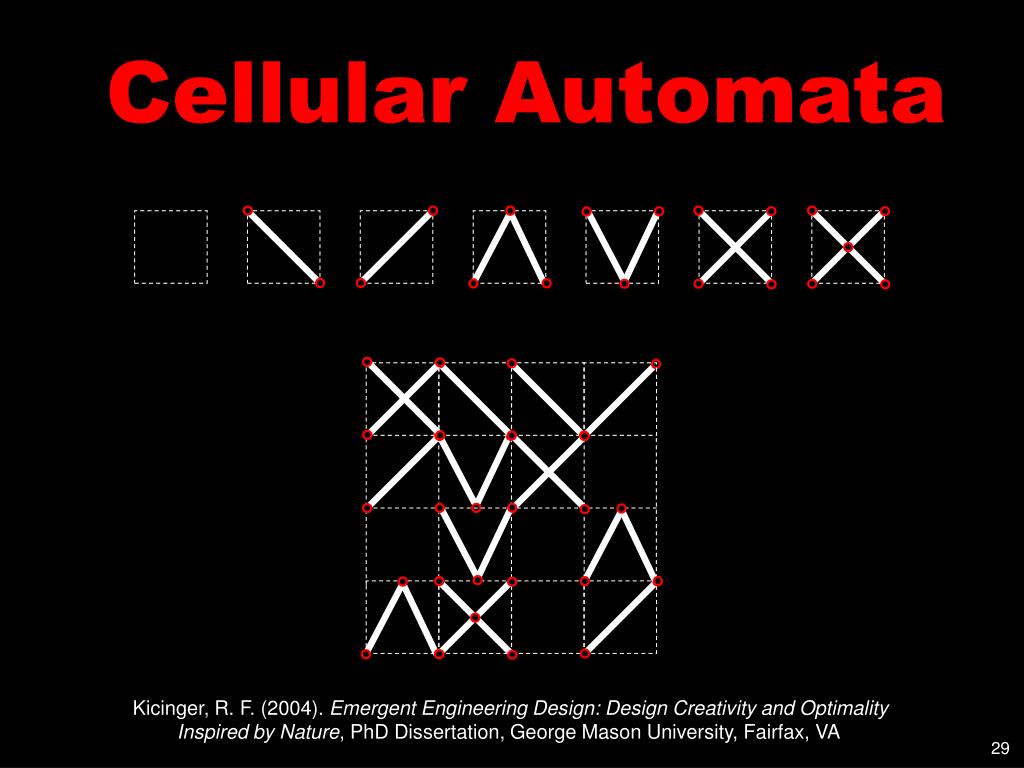

  29. Cellular Automata Kicinger, R. F. (2004). Emergent Engineering Design: Design Creativity and Optimality Inspired by Nature, PhD Dissertation, George Mason University, Fairfax, VA 29

  30. Control of Generation • meaningful design solutions • grammars syntactic only • methods • exhaustive search • satisficing - optimization • evolutionary approach • Generate and Test • simple approach 30

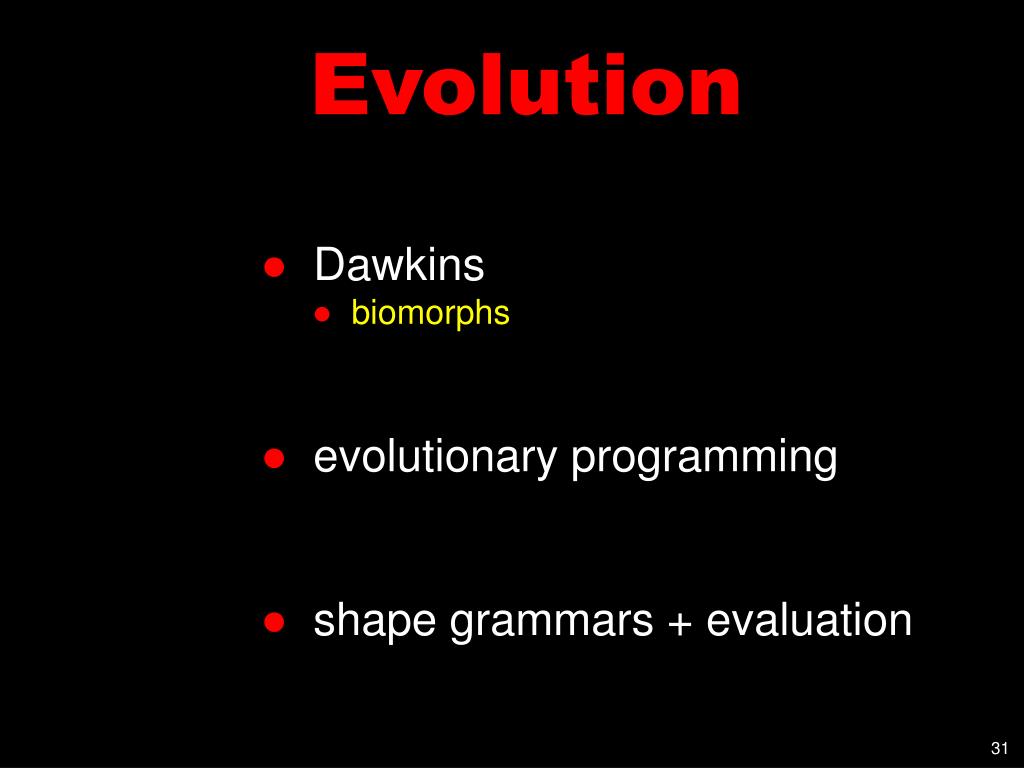

  31. Evolution • Dawkins • biomorphs • evolutionary programming • shape grammars + evaluation 31

  32. creative design ? 32
