Presentation Transcript
Grammars l.jpg

Grammars

CPSC 5135


Formal definitions l.jpg
Formal Definitions

  • A symbol is a character. It represents an abstract entity that has no inherent meaning

  • Examples:

    a, A, 3, *, - ,=


Formal definitions3 l.jpg
Formal Definitions

  • An alphabet is a finite set of symbols.

  • Examples:

    A = { a, b, c }

    B = { 0, 1 }


Formal definitions4 l.jpg
Formal Definitions

  • A string (or word) is a finite sequence of symbols from a given alphabet.

  • Examples:

    S = { 0, 1 } is a alphabet

    0, 1, 11010, 101, 111 are strings from S

    A = { a, b, c ,d } is an alphabet

    bad, cab, dab, d, aaaaa are strings from A


Formal definitions5 l.jpg
Formal Definitions

  • A language is a set of strings from an alphabet.

  • The set can be finite or infinite.

  • Examples:

    A = { 0, 1}

    L1 = { 00, 01, 10, 11 }

    L2 = { 010, 0110, 01110,011110, …}


Formal definitions6 l.jpg
Formal Definitions

  • A grammar is a quadruple G = (V, Σ, R, S) where

    1) V is a finite set of variables (non-terminals),

    2) Σ is a finite set of terminals, disjoint from V,

    3) R is a finite set of rules. The left side of each rule is a string of one or more elements from V U Σ and whose right side is a string of 0 or more elements from V U Σ

    4) S is an element of V and is called the start symbol


Formal definitions7 l.jpg
Formal Definitions

  • Example grammar:

  • G = (V, Σ, R, S)

    V = { S, A }

    Σ = { a, b }

    R = { S → aA

    A → bA

    A → a }


Derivations l.jpg
Derivations

R = S → aA

A → bA

A → a

  • A derivation is a sequence of replacements , beginning with the start symbol, and replacing a substring matching the left side of a rule with the string on the right side of a rule

    S → aA

    →abA

    → abbA

    → abba


Derivations9 l.jpg
Derivations

  • What strings can be generated from the following grammar?

    S → aBa

    B → aBa

    B → b


Formal definitions10 l.jpg
Formal Definitions

  • The language generated by a grammar is the set of all strings of terminal symbols which are derivable from S in 0 or more steps.

  • What is the language generated by this grammar?

  • S → a

    S → aB

    B → aB

    B → a


Kleene closure l.jpg
Kleene Closure

  • Let Σ be a set of strings. Σ* is called the Kleene closure of Σ and represents the set of all concatenations of 0 or more strings in Σ.

  • Examples

    Σ* = { 1 }* = { ø, 1, 11, 111, 1111, …}

    Σ* = { 01 }* = { ø, 01, 0101, 010101, …}

    Σ* = { 0 + 1 }* = set of all possible strings of 0’s and 1’s. (+ means union)


Formal definitions12 l.jpg
Formal Definitions

  • A grammar G = (V,Σ, R, S) is right-linear if all rules are of the form:

    A → xB

    A → x

    where A, B ε V and x εΣ*


Right linear grammar l.jpg
Right-linear Grammar

  • G = { V, Σ, R, S }

    V = { S, B }

    Σ = { a, b }

    R = { S → aS ,

    S → B ,

    B → bB ,

    B → ε }

    What language is generated?


Formal definitions14 l.jpg
Formal Definitions

  • A grammar G = (V,Σ, R, S) is left-linear if all rules are of the form:

    A → Bx

    A → x

    where A, B ε V and x εΣ*


Formal definitions15 l.jpg
Formal Definitions

  • A regular grammar is one that is either right or left linear.

  • Let Q be a finite set and let Σ be a finite set of symbols. Also let δ be a function from Q x Σ to Q,   let q0 be a state in Q and let A be a subset of Q. We call each element of Q a state, δ the transition function, q0 the initial state and A the set of accepting states. Then a deterministic finite automaton (DFA) is a 5-tuple < Q , Σ , q0 , δ , A >

  • Every regular grammar is equivalent to a DFA


Language definition l.jpg
Language Definition

  • Recognition – a machine is constructed that reads a string and pronounces whether the string is in the language or not. (Compiler)

  • Generation – a device is created to generate strings that belong to the language. (Grammar)


Chomsky hierarchy l.jpg
Chomsky Hierarchy

  • Noam Chomsky (1950’s) described 4 classes of grammars

    1) Type 0 – unrestricted grammars

    2) Type 1 – Context sensitive grammars

    3) Type 2 – Context free grammars

    4) Type 3 – Regular grammars


Grammars18 l.jpg
Grammars

  • Context-free and regular grammars have application in computing

  • Context-free grammar – each rule or production has a left side consisting of a single non-terminal


Backus naur form bnf l.jpg
Backus-Naur form (BNF)

  • BNF was used to describe programming language syntax and is similar to Chomsky’s context free grammars

  • A meta-language is a language used to describe another language

  • BNF is a meta-language for computer languages


Slide20 l.jpg
BNF

  • Consists of nonterminal symbols, terminal symbols (lexemes and tokens), and rules or productions

  • <if-stmt> → if <logical-expr> then <stmt>

  • <if-stmt> → if <logical-expr> then <stmt> else <stmt>

  • <if-stmt> → if <logical-expr> then <stmt>

    | if <logical-expr> then <stmt>

    else <stmt>


A small grammar l.jpg
A Small Grammar

<program>  begin <stmt_list> end

<stmt_list>  <stmt>

| <stmt> ; <stmt_list>

<stmt>  <var> = <expression>

<var>  A | B | C

<expression>  <var> + <var>

| <var> - <var>

| <var>


A derivation l.jpg
A Derivation

<program>  begin <stmt_list> end

 begin <stmt> end

begin <var> = <expression> end

begin A = <expression> end

begin A = <var> + <var> end

begin A = B + <var> end

begin A = B + C end


Terms l.jpg
Terms

  • Each of the strings in a derivation is called a sentential form.

  • If the leftmost non-terminal is always the one selected for replacement, the derivation is a leftmost derivation.

  • Derivations can be leftmost, rightmost, or neither

  • Derivation order has no effect on the language generated by the grammar


Derivations yield parse trees l.jpg
Derivations Yield Parse Trees

<program>  begin <stmt_list> end

 begin <stmt> end

begin <var> = <expression> end

begin A = <expression> end

begin A = <var> + <var> end

begin A = B + <var> end

begin A = B + C end

<Program>

begin <stmt_list> end

<stmt>

<var> = <expression>

A <var> + <var>

B C


Parse trees l.jpg
Parse Trees

  • Parse trees describe the hierarchical structure of the sentences of the language they define.

  • A grammar that generates a sentence for which there are two or more distinct parse trees is ambiguous.


An ambiguous grammar l.jpg
An Ambiguous Grammar

<assign>  <id> = <expr>

<id>  A | B | C

<expr>  <expr> + <expr>

| <expr> * <expr>

| ( <expr> )

| <id>


Two parse trees same sentence l.jpg
Two Parse Trees – Same Sentence

<assign>

<id> = <expr>

A <expr> + <expr>

<id> <expr> * <expr>

B <id> <id>

C A

<assign>

<id> = <expr>

A <expr> * <expr>

<expr> + <expr> <id>

<id> <id> A

B C


Derivation 1 l.jpg
Derivation 1

<assign>  <id> = <expr>

 A = <expr>

 A = <expr> + <expr>

 A = <id> + <expr>

 A = B + <expr>

 A = B + <expr> * <expr>

 A = B + <id> * <expr>

 A = B + C * <expr>

 A = B + C * <id>

 A = B + C * A


Derivation 2 l.jpg
Derivation 2

<assign>  <id> = <expr>

 A = <expr>

 A = <expr> * <expr>

 A = <expr> + <expr> * <expr>

 A = <id> + <expr> * <expr>

 A = B + <expr> * <expr>

 A = B + <id> * <expr>

 A = B + C * <expr>

 A = B + C * <id>

 A = B + C * A


Ambiguity l.jpg
Ambiguity

  • Parse trees are used to determine the semantics of a sentence

  • Ambiguous grammars lead to semantic ambiguity - this is intolerable in a computer language

  • Often, ambiguity in a grammar can be removed


Unambiguous grammar l.jpg
Unambiguous Grammar

<assign>  <id> = <expr>

<id>  A | B | C

<expr>  <expr> + <term> | <term>

<term>  <term> * <factor> | <factor>

<factor>  ( <expr> ) | <id>

  • This grammar makes multiplication take precedence over addition

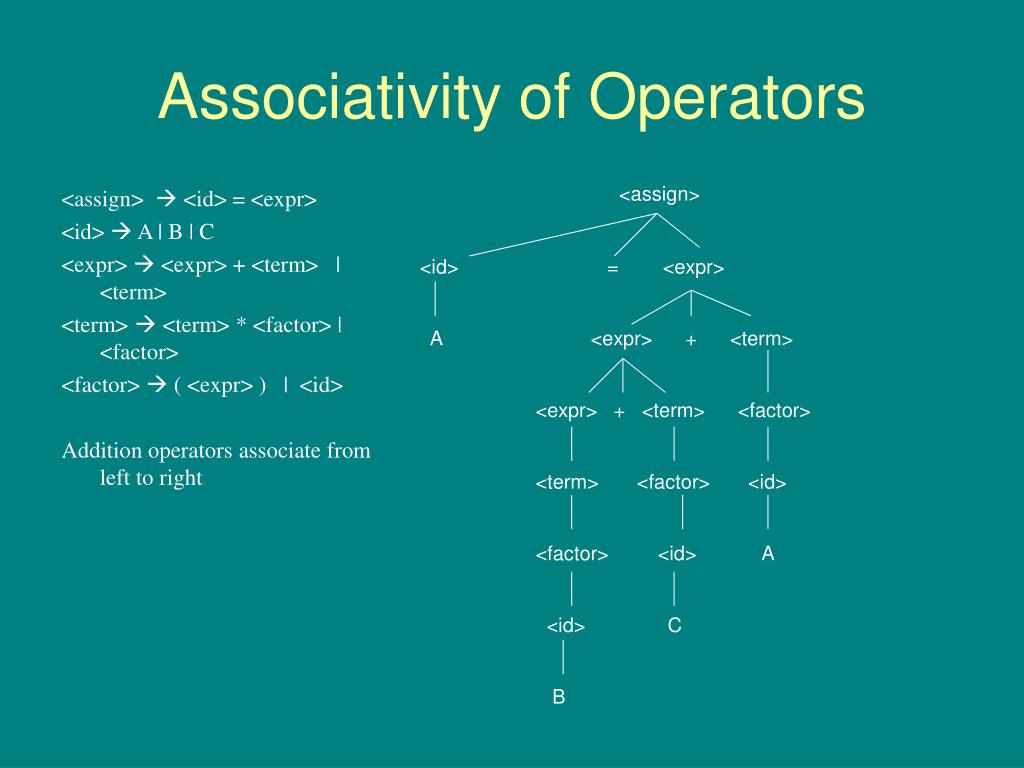

Associativity of operators l.jpg
Associativity of Operators

<assign>

<id> = <expr>

A <expr> + <term>

<expr> + <term> <factor>

<term> <factor> <id>

<factor> <id> A

<id> C

B

<assign>  <id> = <expr>

<id>  A | B | C

<expr>  <expr> + <term> | <term>

<term>  <term> * <factor> | <factor>

<factor>  ( <expr> ) | <id>

Addition operators associate from left to right


Slide33 l.jpg
BNF

  • A BNF rule that has its left hand side appearing at the beginning of its right hand side is left recursive .

  • Left recursion specifies left associativity

  • Right recursion is usually used for associating exponetiation operators

    <factor>  <exp> ** <factor> | <exp>

    <exp>  ( <expr> ) | <id>


Ambiguous if grammar l.jpg
Ambiguous If Grammar

<stmt>  <if_stmt>

<if_stmt>  if <logic_expr> then <stmt> |

if <logic_expr> then <stmt> else <stmt>

  • Consider the sentential form:

    if <logic_expr> then if <logic_expr> then <stmt> else <stmt>


Parse trees for an if statement l.jpg
Parse Trees for an If Statement

<if_stmt>

If <logic_expr> then <stmt> else <stmt>

<if_stmt>

if <logic_expr> then <stmt>

<if_stmt>

If <logic_expr> then <stmt>

<if_stmt>

if <logic_expr> then <stmt> else <stmt>


Unambiguous grammar for if statements l.jpg
Unambiguous Grammar for If Statements

<stmt>  <matched> | <unmatched>

<matched>  if <logic_expr> then <matched> else <matched>

| any non-if statement

<unmatched>  if <logic_expr> then <stmt>

| if <logic_expr> then <matched> else <unmatched>

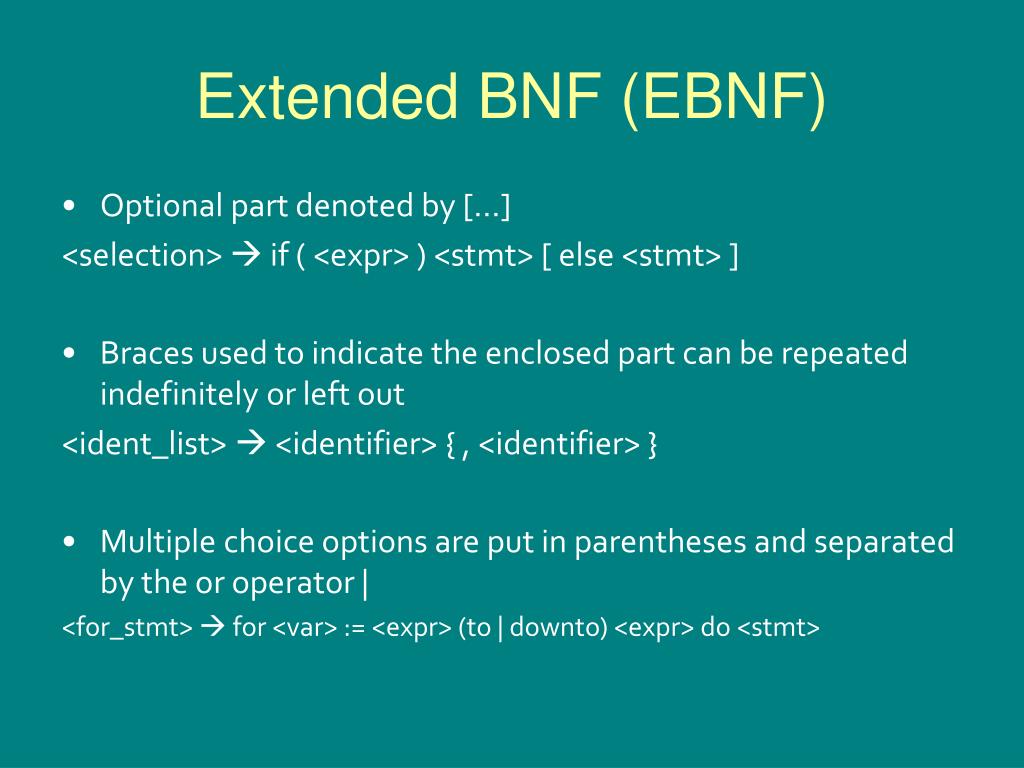

Extended bnf ebnf l.jpg
Extended BNF (EBNF)

  • Optional part denoted by […]

    <selection>  if ( <expr> ) <stmt> [ else <stmt> ]

  • Braces used to indicate the enclosed part can be repeated indefinitely or left out

    <ident_list>  <identifier> { , <identifier> }

  • Multiple choice options are put in parentheses and separated by the or operator |

    <for_stmt>  for <var> := <expr> (to | downto) <expr> do <stmt>


Bnf vs ebnf for expressions l.jpg
BNF vs EBNF for Expressions

BNF:

<expr>  <expr> + <term>

| <expr> - <term>

| <term>

<term>  <term> * <factor>

| <term> / <factor>

| <factor>

EBNF:

<expr>  <term> { (+ | - ) <term> }

<term>  <factor> { ( * | / ) <factor>
