  1. Copy Number Variants in Autism …what are we missing? Lauren A. Weiss Dept. Psychiatry Institute for Human Genetics Center for Neurobiology and Psychiatry

  2. Autism • Specific impairment in: • Language and communication • Social skills • Restricted and repetitive behavior • Clinically very heterogeneous • MR, epilepsy, hyperserotonemia, GI problems, regression, savant skills, sensory hypersensitivity, head growth

  3. What we know • A Pervasive Developmental Disorder • Prevalence of ASDs ~0.6% • 4:1 male to female ratio • Estimates of >90% heritability • Siblings at increased risk • Large role for inherited genetics vs. sporadic events and environmental factors • no genes identified in majority

  4. Known Genetic Causes of Autism • Chromosomal/Structural variants associated with autism • Rare mutations associated with autism • Account for ~10%

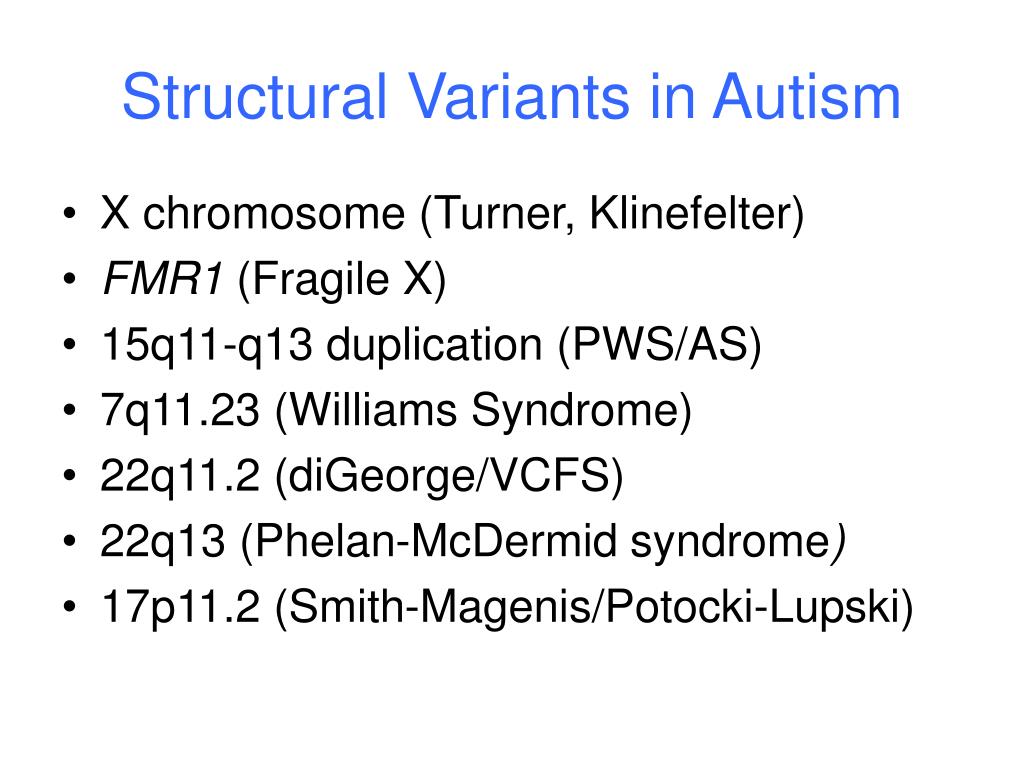

  5. Structural Variants in Autism • X chromosome (Turner, Klinefelter) • FMR1 (Fragile X) • 15q11-q13 duplication (PWS/AS) • 7q11.23 (Williams Syndrome) • 22q11.2 (diGeorge/VCFS) • 22q13 (Phelan-McDermid syndrome) • 17p11.2 (Smith-Magenis/Potocki-Lupski)

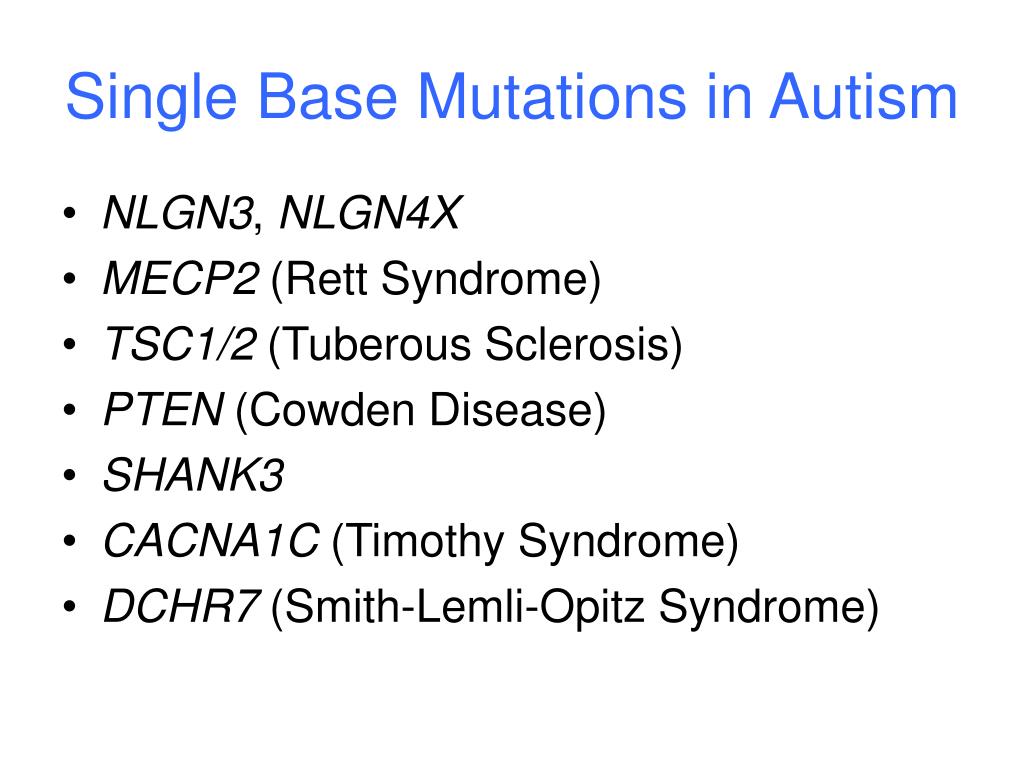

  6. Single Base Mutations in Autism • NLGN3, NLGN4X • MECP2 (Rett Syndrome) • TSC1/2 (Tuberous Sclerosis) • PTEN (Cowden Disease) • SHANK3 • CACNA1C (Timothy Syndrome) • DCHR7 (Smith-Lemli-Opitz Syndrome)

  7. Complex Genetics genes QTs environment disease

  8. Complex Genetics Common polymorphism Rare variant

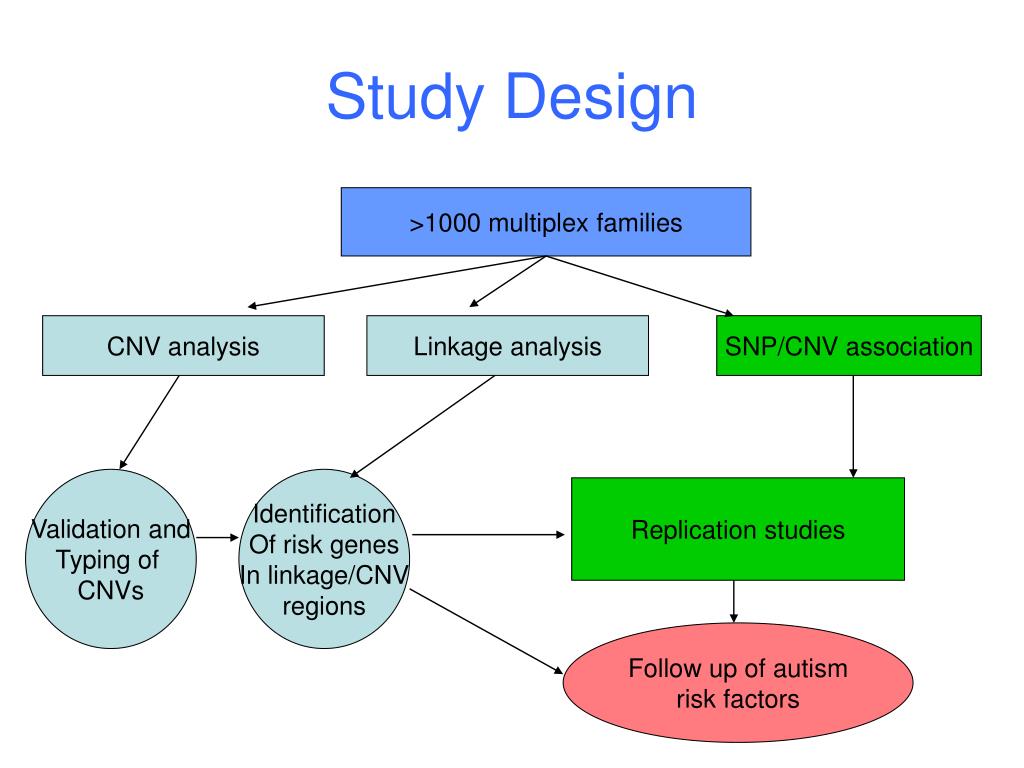

  9. Study Design >1000 multiplex families CNV analysis Linkage analysis SNP/CNV association Validation and Typing of CNVs Identification Of risk genes In linkage/CNV regions Replication studies Follow up of autism risk factors

  10. Genome-Wide Association • Common polymorphism • Usually case-control • TDT for family-based association

  11. Genome-Wide Association • Common polymorphism • Usually case-control • TDT for family-based association • LARGE sample size required • 1,000s to 10,000s • MANY markers across the genome • 500,000 to 1,000,000

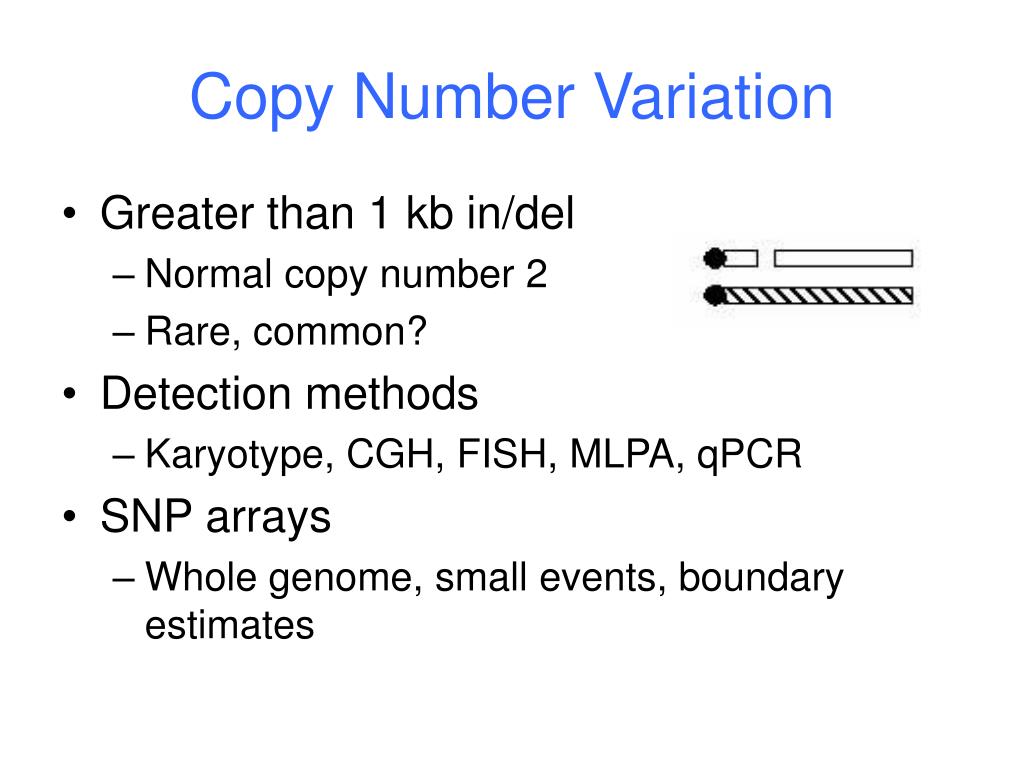

  12. Copy Number Variation • Greater than 1 kb in/del • Normal copy number 2 • Rare, common? • Detection methods • Karyotype, CGH, FISH, MLPA, qPCR • SNP arrays • Whole genome, small events, boundary estimates

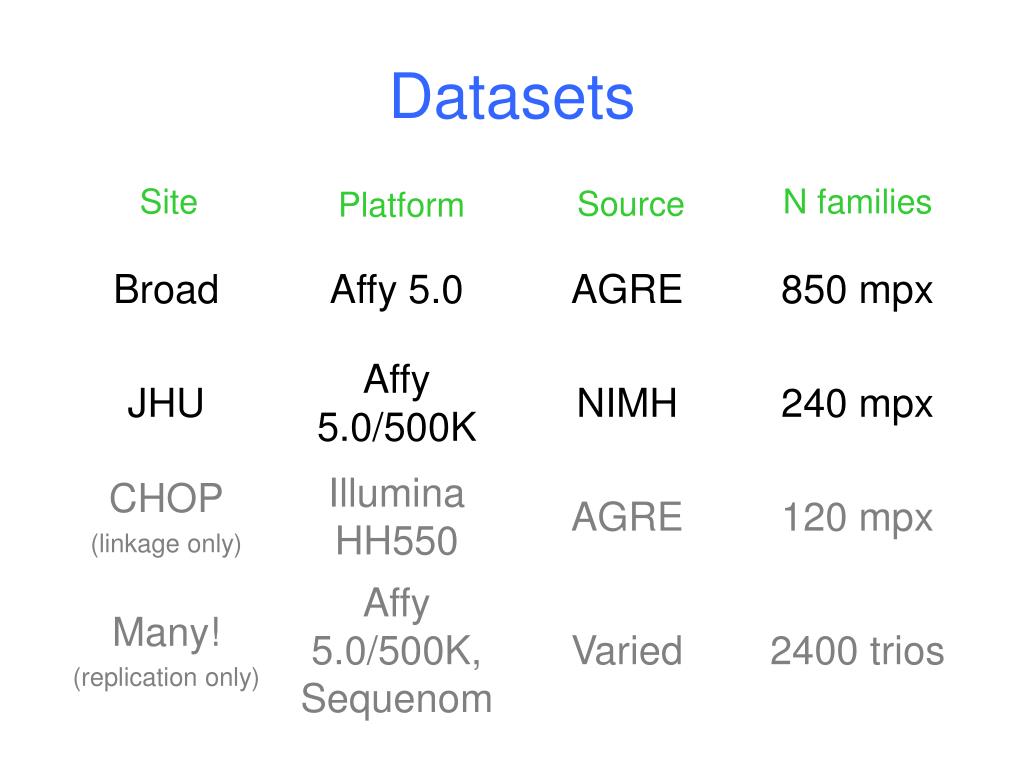

  13. Datasets Site N families Source Platform

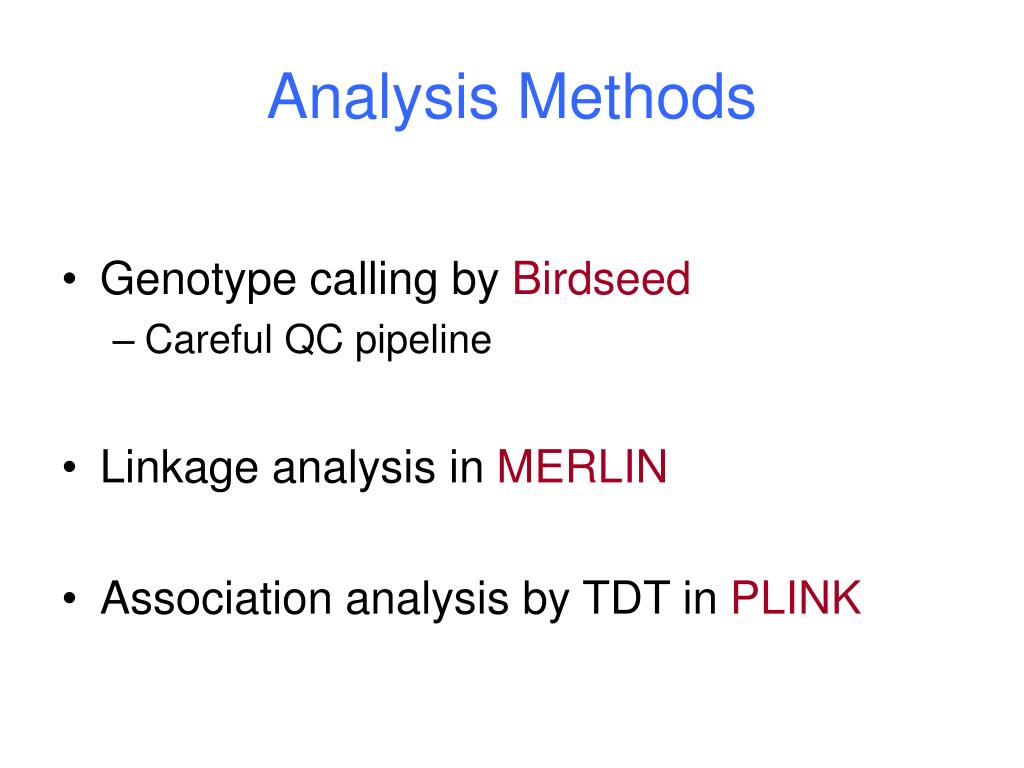

  14. Analysis Methods • Genotype calling by Birdseed • Careful QC pipeline • Linkage analysis in MERLIN • Association analysis by TDT in PLINK

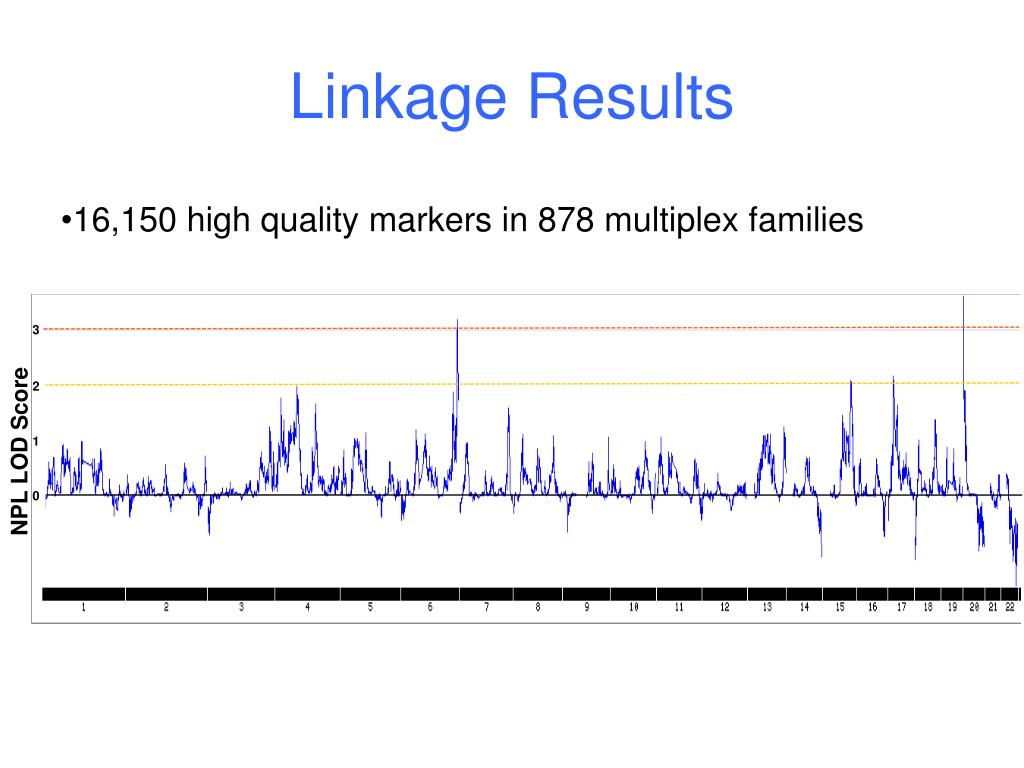

  15. Linkage Results • 16,150 high quality markers in 878 multiplex families 3 2 1 NPL LOD Score 0

  16. Top Linkage Chr15 Chr6 Chr15 Chr6 Chr20 Chr17 Chr20 Chr17

  17. SNP Association Results 6 5 4 3 2 1 -log10P 1234567891011121314151618 20 22 chr 17 1921X

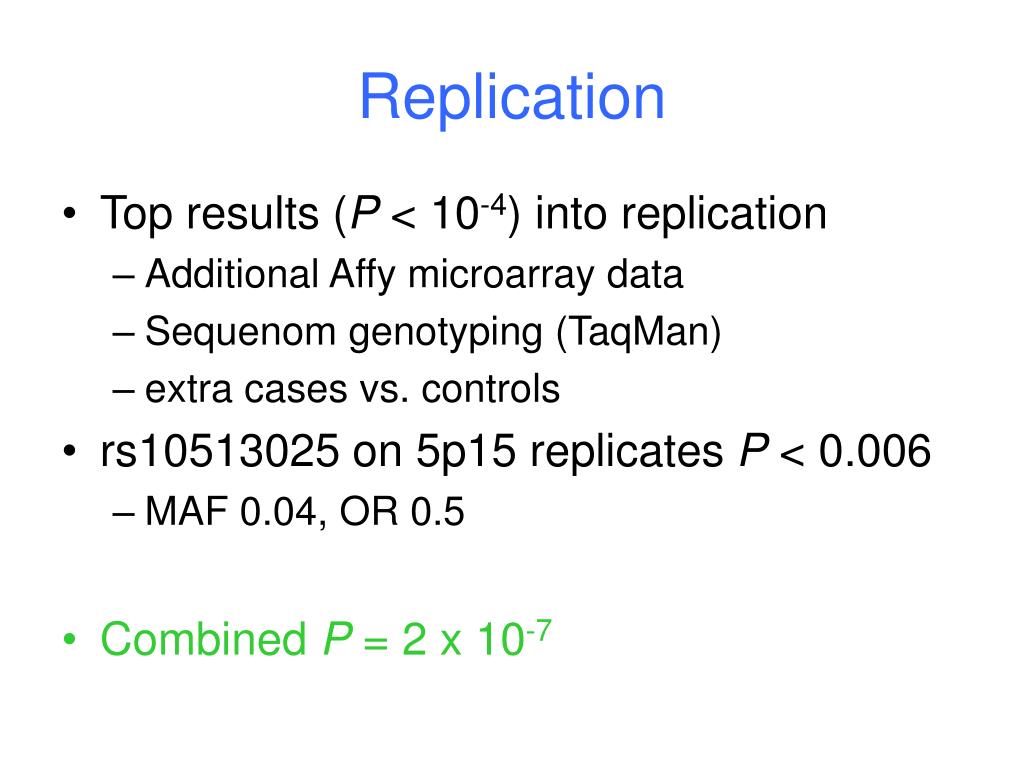

  18. Replication • Top results (P < 10-4) into replication • Additional Affy microarray data • Sequenom genotyping (TaqMan) • extra cases vs. controls • rs10513025 on 5p15 replicates P < 0.006 • MAF 0.04, OR 0.5 • Combined P = 2 x 10-7

  19. Top Association TAS2R1 SEMA5A Chr5, kb

  20. Top Association rs10513025 meta-P = 2 x 10-7 TAS2R1 SEMA5A Chr5, kb

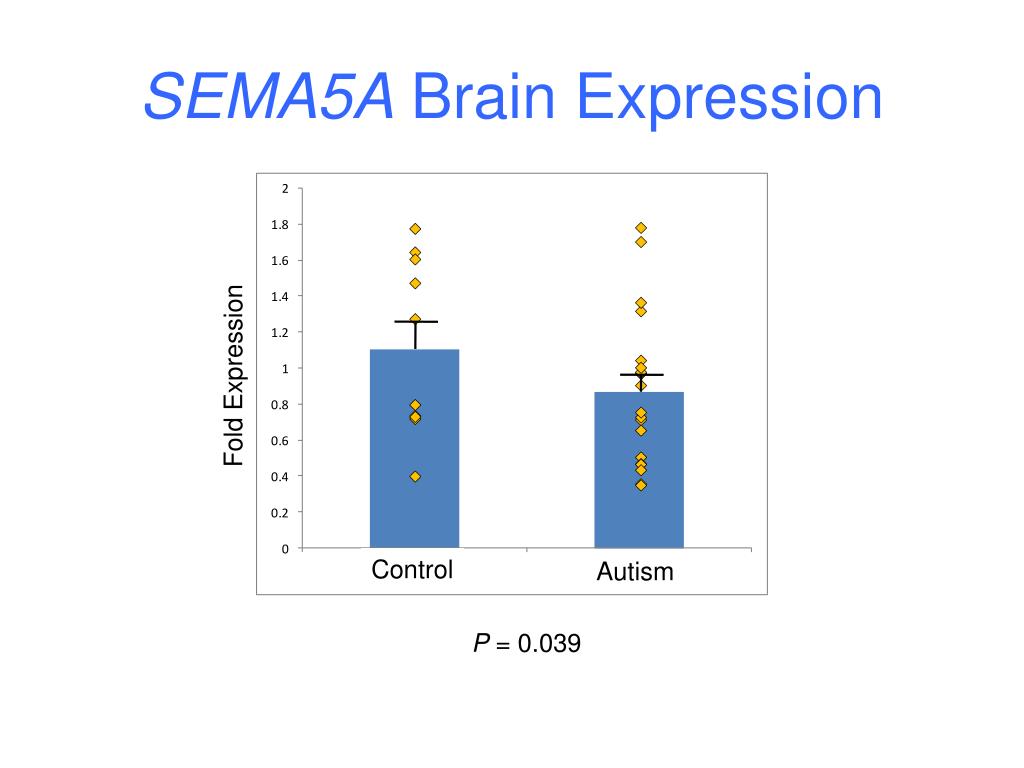

  21. SEMA5A Brain Expression Fold Expression Control Autism P = 0.039

  22. SNP Results Summary • Genome-wide significant linkage on 20p • Association on 5p15 near SEMA5A • Replicated independently • Very low/high frequency variation implicated • More to find!

  23. Chr 15 Duplications 0 1 2 3 4 5 0 1 2 3 4 5 mom autism Individual 0 1 2 3 4 5 0 1 2 3 4 5 dad autism Physical position (kb) Copy Number Analysis

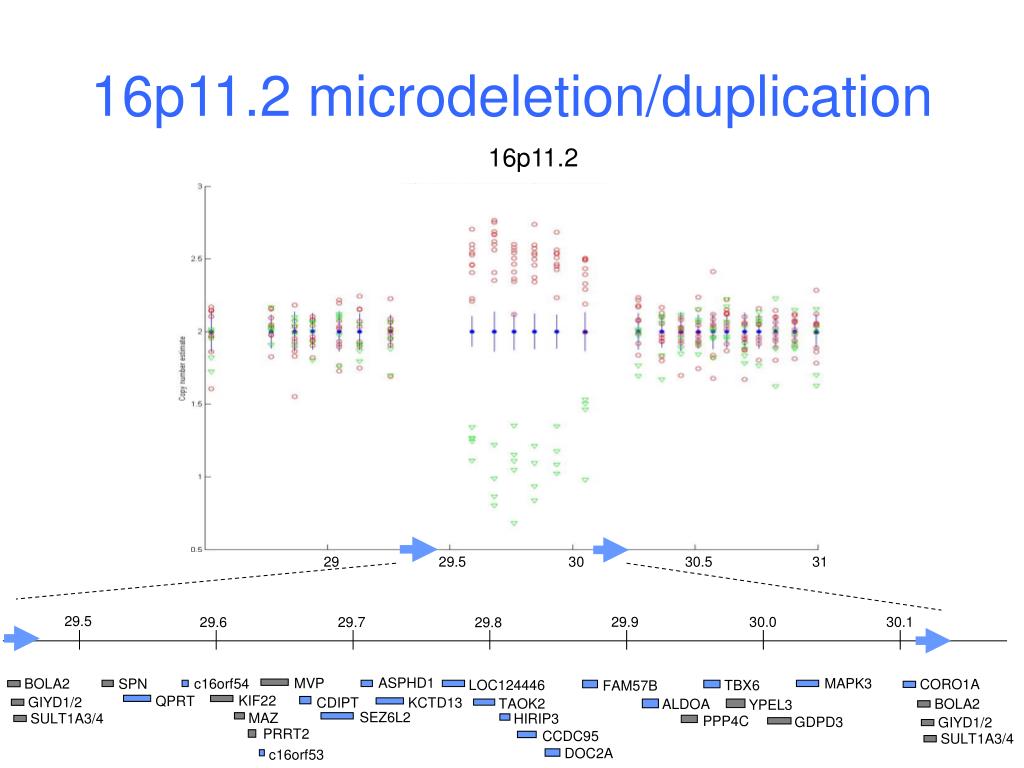

  24. 16p11.2 microdeletion/duplication 16p11.2 29 29.5 30 30.5 31 29.5 29.9 30.0 30.1 29.6 29.7 29.8 ASPHD1 MVP MAPK3 BOLA2 c16orf54 SPN CORO1A LOC124446 TBX6 FAM57B KIF22 QPRT GIYD1/2 CDIPT KCTD13 TAOK2 BOLA2 ALDOA YPEL3 SEZ6L2 MAZ SULT1A3/4 HIRIP3 PPP4C GDPD3 GIYD1/2 PRRT2 CCDC95 SULT1A3/4 DOC2A c16orf53

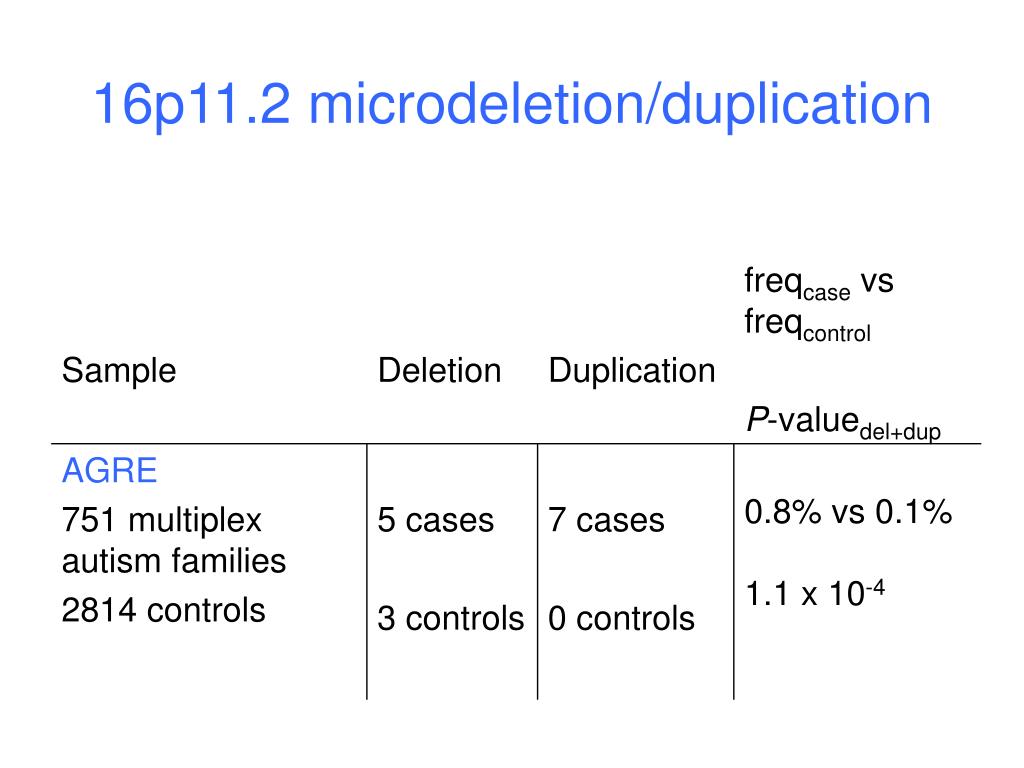

  25. 16p11.2 microdeletion/duplication

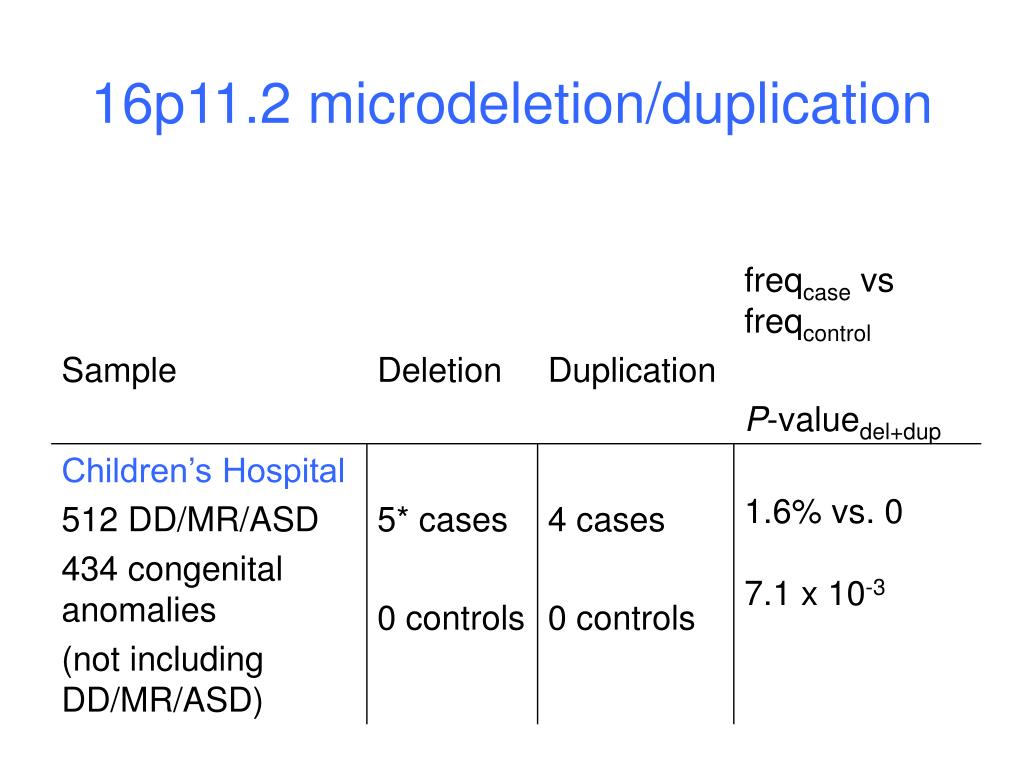

  26. 16p11.2 microdeletion/duplication

  27. 16p11.2 microdeletion/duplication

  28. Copy Number Summary • 16p11.2 microdeletion/duplication found in 1-2% of autism cases, <0.1% controls • Three independent samples • Large Icelandic population sample • 0.1% in psych/lang disorder, 0.01% population • 15q11-q13 duplications, including partial • Follow-up and additional controls required for more common and inherited events

  29. Novel CNVs associated with autism • 16p11.2 • Deletion, high penetrance, variable expression • Duplication, reduced penetrance, variable expression • 15q13.3 • Deletion, high penetrance, variable expression • Duplication, reduced penetrance, variable expression • 1q21.1 • Deletion, high penetrance, variable expression • Duplication, reduced penetrance, variable expression

  30. Novel CNVs associated with autism • 16p11.2 • Autism, PDD/Asperger’s, ADHD, MR/DD, epilepsy, schizophrenia, bipolar disorder, dyslexia • 15q13.3 • Epilepsy, MR/DD, schizophrenia, autism, language delay, dysmorphism • 1q21.1 • Micro/macrocephaly, MR/LD, autism, ADHD, schizophrenia, epilepsy, dysmorphism, congenital anomalies, short stature

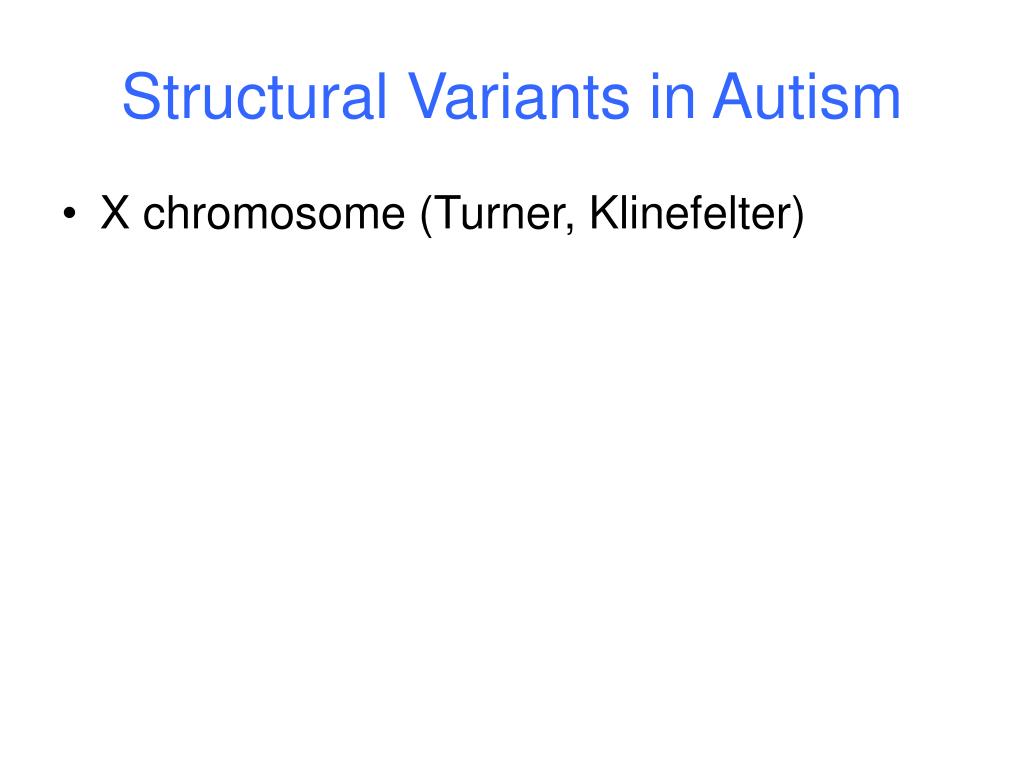

  31. Structural Variants in Autism • X chromosome (Turner, Klinefelter)

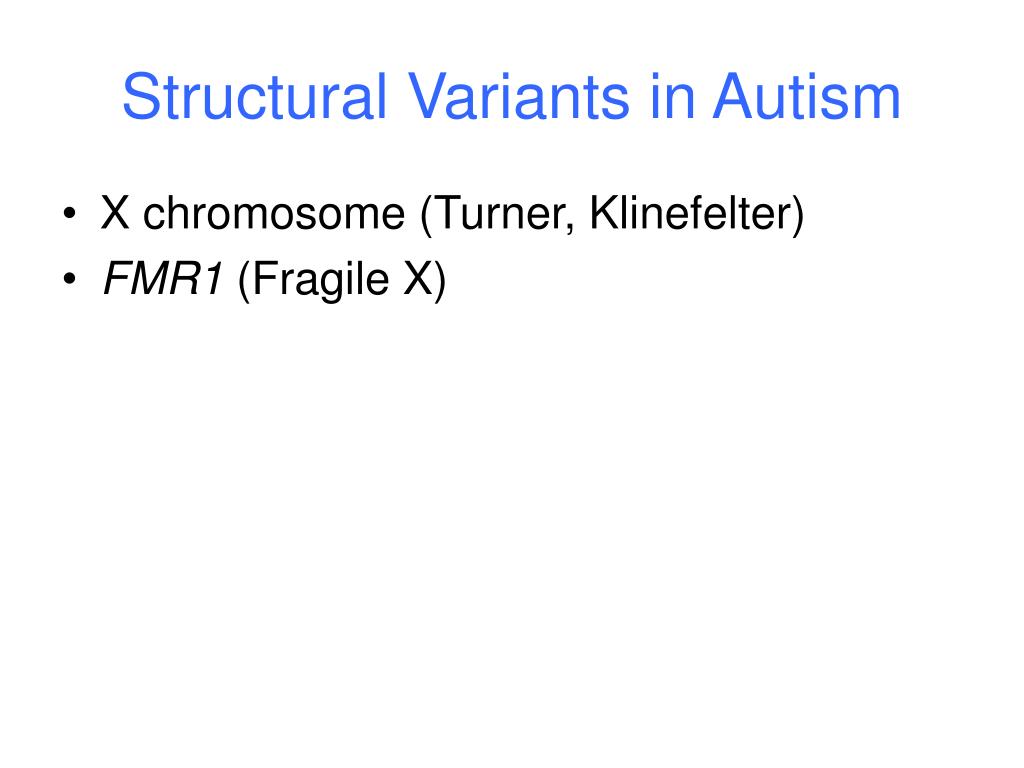

  32. Structural Variants in Autism • X chromosome (Turner, Klinefelter) • FMR1 (Fragile X)

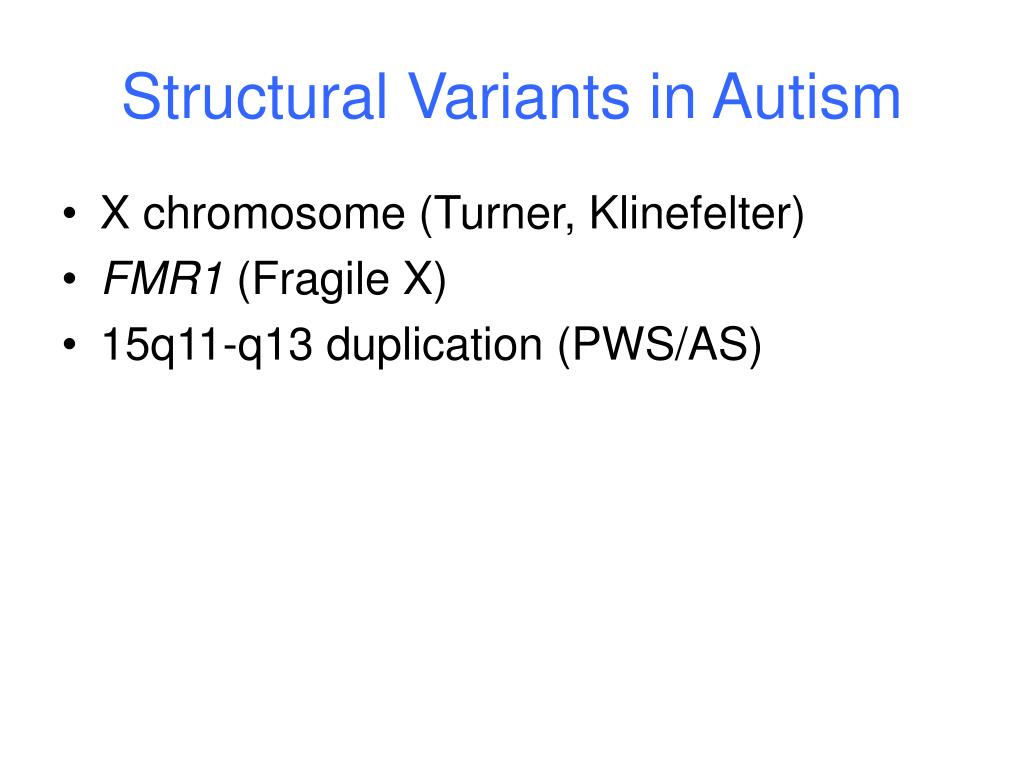

  33. Structural Variants in Autism • X chromosome (Turner, Klinefelter) • FMR1 (Fragile X) • 15q11-q13 duplication (PWS/AS)

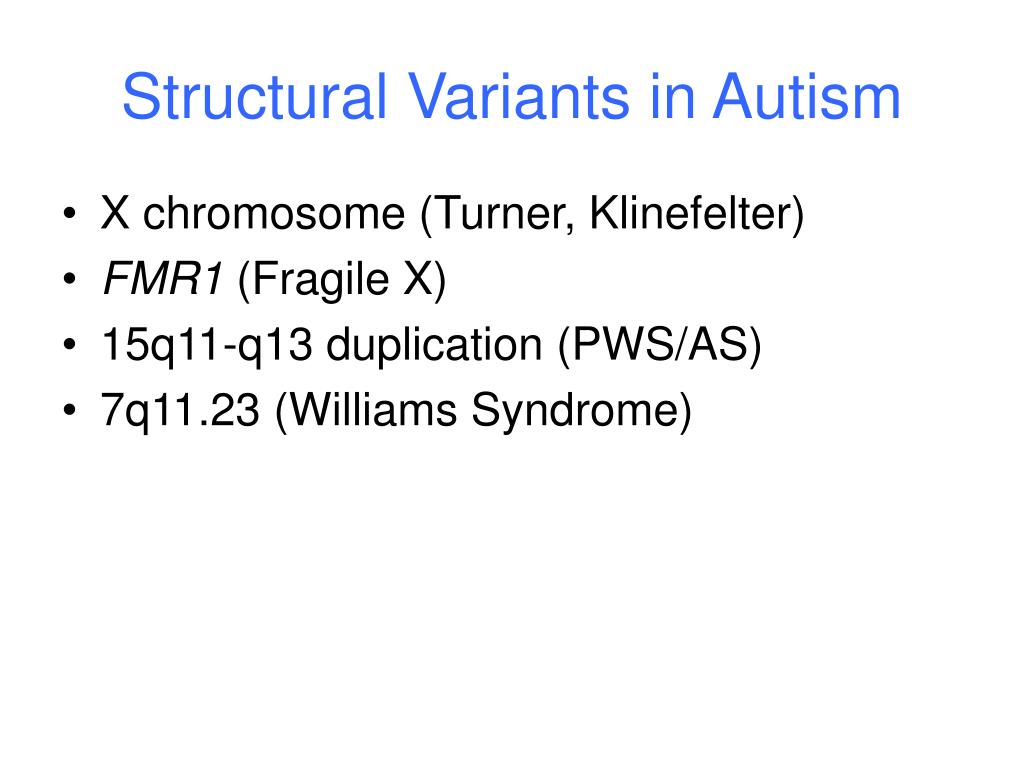

  34. Structural Variants in Autism • X chromosome (Turner, Klinefelter) • FMR1 (Fragile X) • 15q11-q13 duplication (PWS/AS) • 7q11.23 (Williams Syndrome)

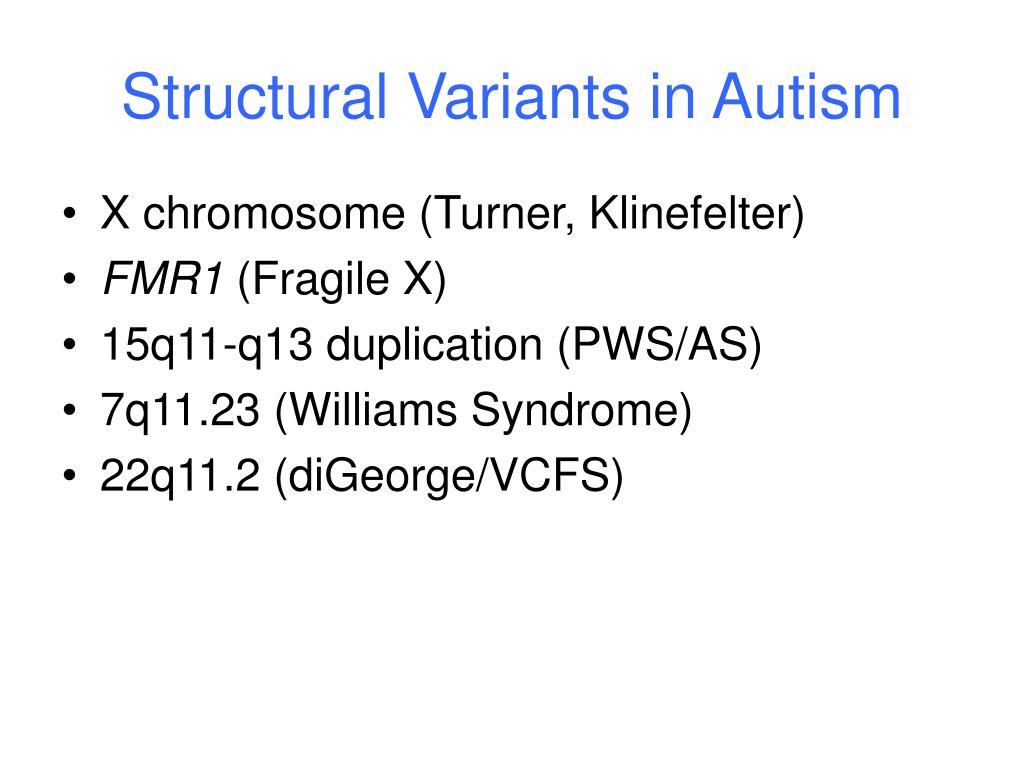

  35. Structural Variants in Autism • X chromosome (Turner, Klinefelter) • FMR1 (Fragile X) • 15q11-q13 duplication (PWS/AS) • 7q11.23 (Williams Syndrome) • 22q11.2 (diGeorge/VCFS)

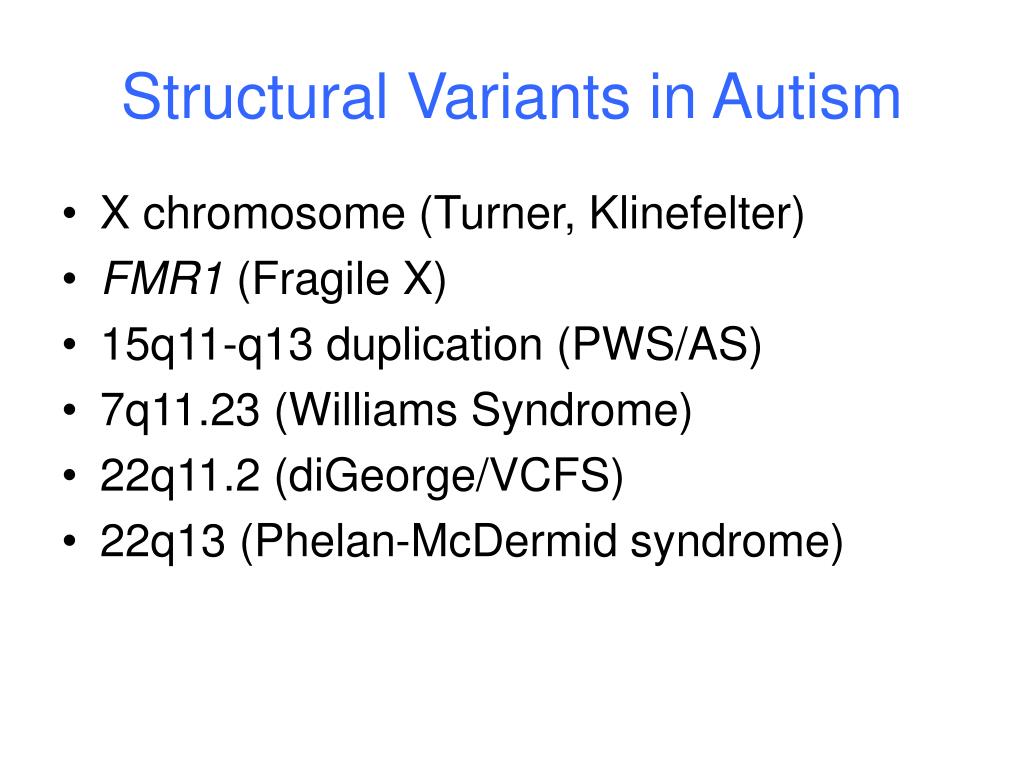

  36. Structural Variants in Autism • X chromosome (Turner, Klinefelter) • FMR1 (Fragile X) • 15q11-q13 duplication (PWS/AS) • 7q11.23 (Williams Syndrome) • 22q11.2 (diGeorge/VCFS) • 22q13 (Phelan-McDermid syndrome)

  37. Structural Variants in Autism • X chromosome (Turner, Klinefelter) • FMR1 (Fragile X) • 15q11-q13 duplication (PWS/AS) • 7q11.23 (Williams Syndrome) • 22q11.2 (diGeorge/VCFS) • 22q13 (Phelan-McDermid syndrome) • 17p11.2 (Smith-Magenis/Potocki-Lupski)

  38. Implications for CNV studies • Reverse genetic screen • Common, small CNV associations?

  39. Single Base Mutations in Autism • NLGN3, NLGN4X • MECP2 (Rett Syndrome) • TSC1/2 (Tuberous Sclerosis) • PTEN (Cowden Disease) • SHANK3 • CACNA1C (Timothy Syndrome) • DCHR7 (Smith-Lemli-Opitz Syndrome)

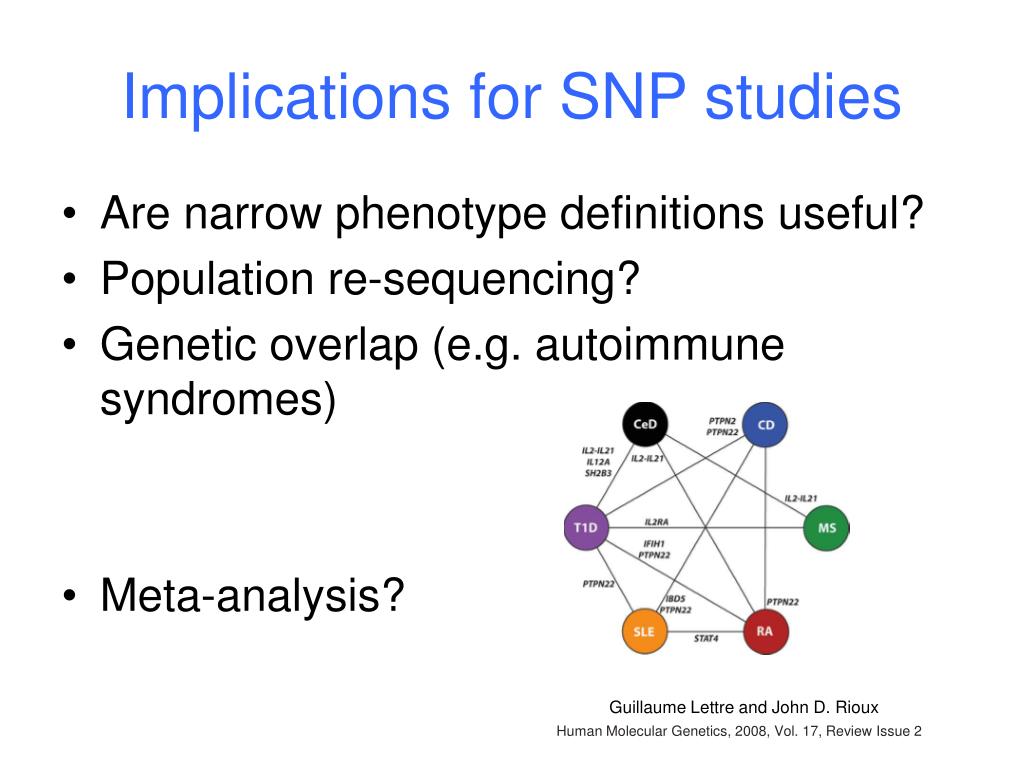

  40. Implications for SNP studies • Are narrow phenotype definitions useful? • Population re-sequencing? • Genetic overlap (e.g. autoimmune syndromes) • Meta-analysis? Guillaume Lettre and John D. Rioux Human Molecular Genetics, 2008, Vol. 17, Review Issue 2

  41. Implications for Neurobiology • Underlying QT • E.g. Diabetic retinopathy, neuropathy, periodontal disease, nephropathy, cardiovascular disease, reproductive disorders • Heritable modifiers?

  42. Acknowledgements • Mark Daly • Pamela Sklar • Aravinda Chakravarti • Dan Arking • AGP, CHOP, and replication groups
