  1. Organic Waste Converter https://nachiketgroup.com/

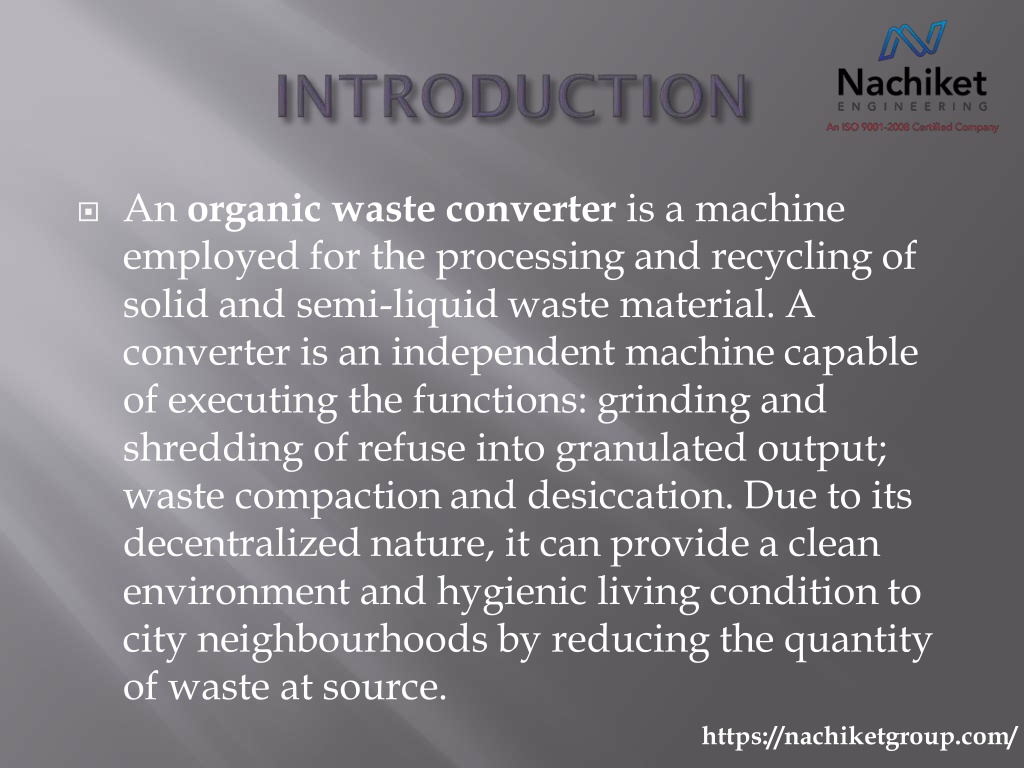

  2.  An organic waste converter is a machine employed for the processing and recycling of solid and semi-liquid waste material. A converter is an independent machine capable of executing the functions: grinding and shredding of refuse into granulated output; waste compaction and desiccation. Due to its decentralized nature, it can provide a clean environment and hygienic living condition to city neighbourhoods by reducing the quantity of waste at source. https://nachiketgroup.com/

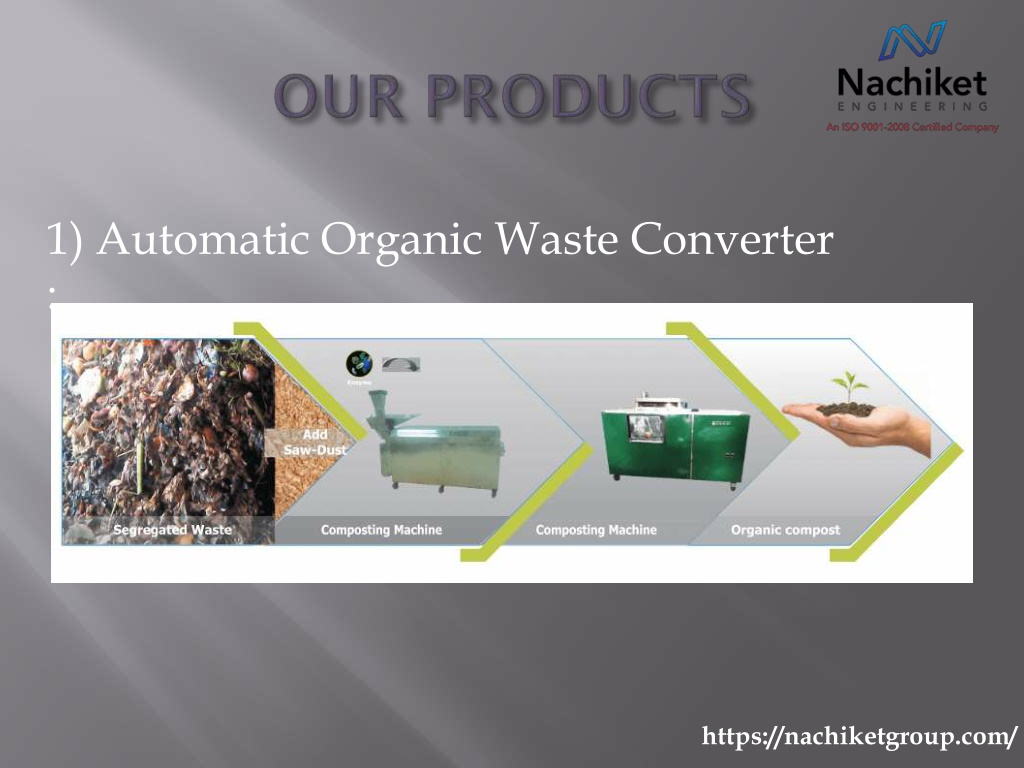

  3. 1) Automatic Organic Waste Converter : https://nachiketgroup.com/

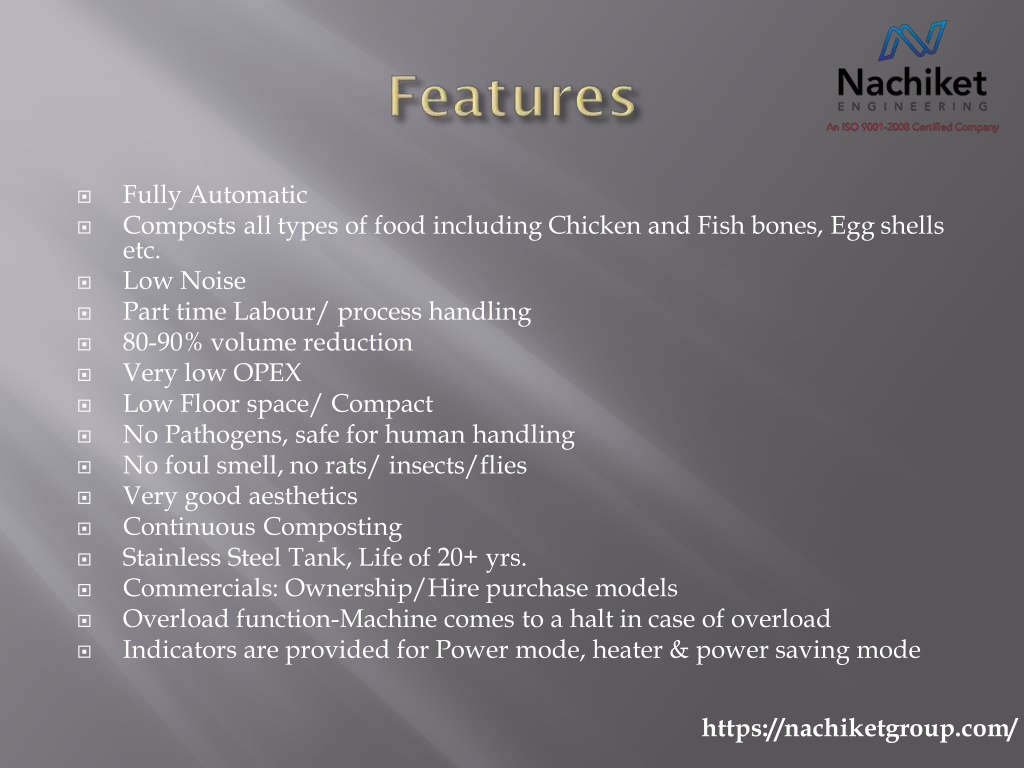

  4. Fully Automatic Composts all types of food including Chicken and Fish bones, Egg shells etc. Low Noise Part time Labour/ process handling 80-90% volume reduction Very low OPEX Low Floor space/ Compact No Pathogens, safe for human handling No foul smell, no rats/ insects/flies Very good aesthetics Continuous Composting Stainless Steel Tank, Life of 20+ yrs. Commercials: Ownership/Hire purchase models Overload function-Machine comes to a halt in case of overload Indicators are provided for Power mode, heater & power saving mode                https://nachiketgroup.com/

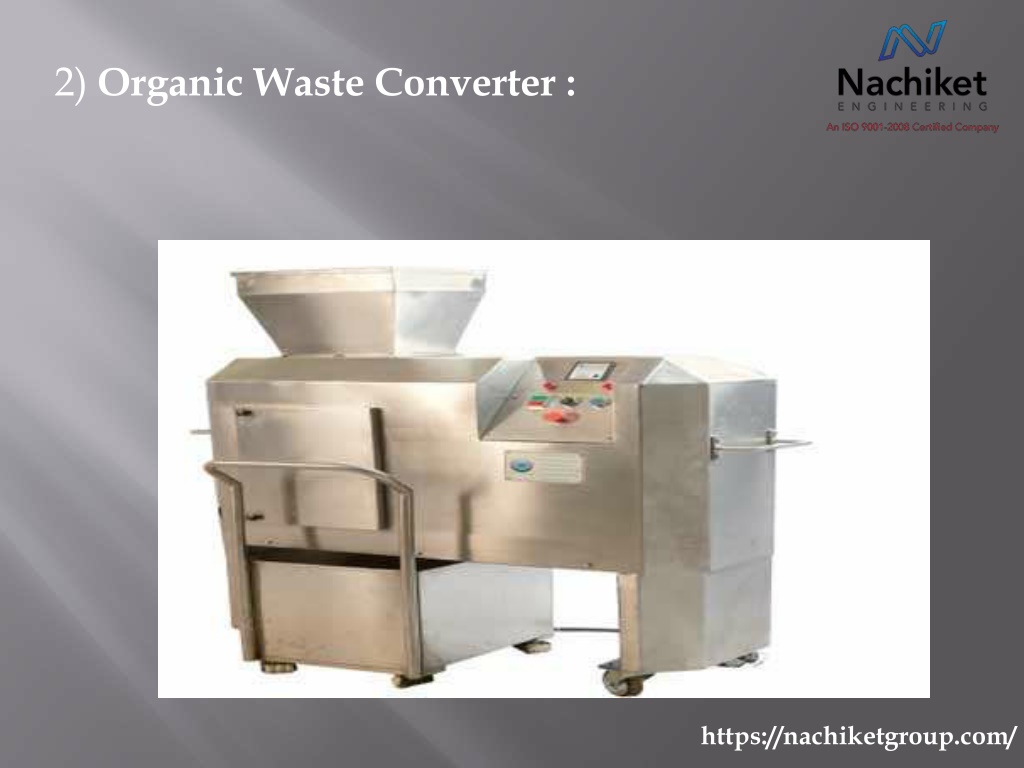

  5. 2) Organic Waste Converter : https://nachiketgroup.com/

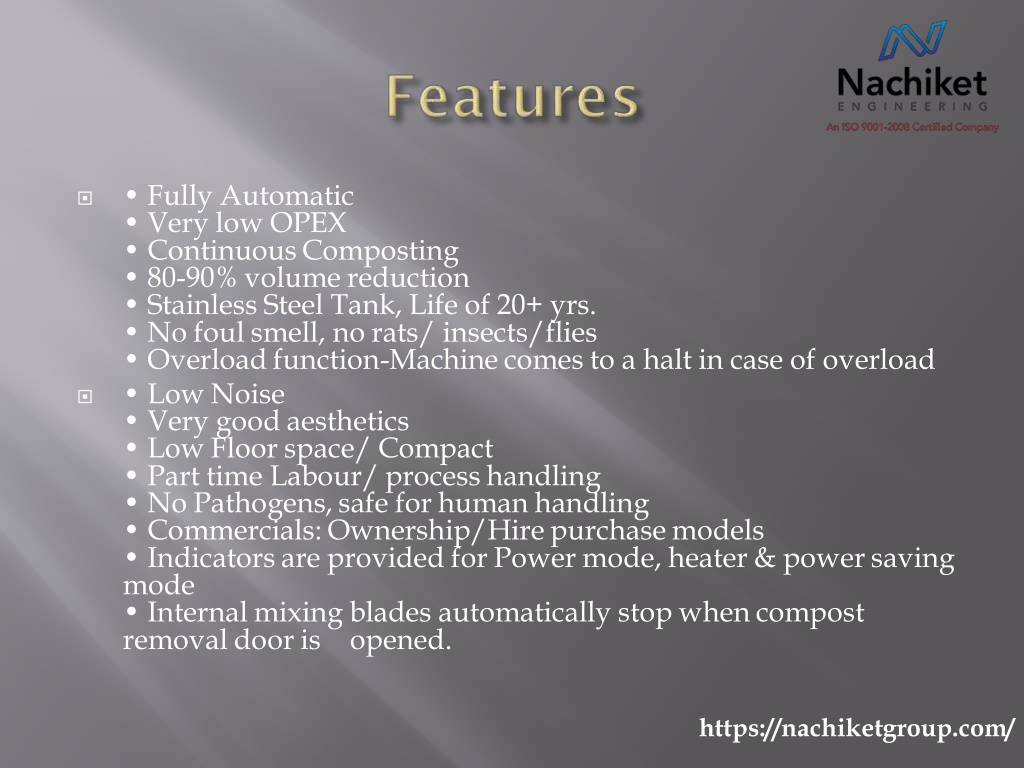

  6. • Fully Automatic • Very low OPEX • Continuous Composting • 80-90% volume reduction • Stainless Steel Tank, Life of 20+ yrs. • No foul smell, no rats/ insects/flies • Overload function-Machine comes to a halt in case of overload • Low Noise • Very good aesthetics • Low Floor space/ Compact • Part time Labour/ process handling • No Pathogens, safe for human handling • Commercials: Ownership/Hire purchase models • Indicators are provided for Power mode, heater & power saving mode • Internal mixing blades automatically stop when compost removal door is opened.   https://nachiketgroup.com/

  7. https://nachiketgroup.com/

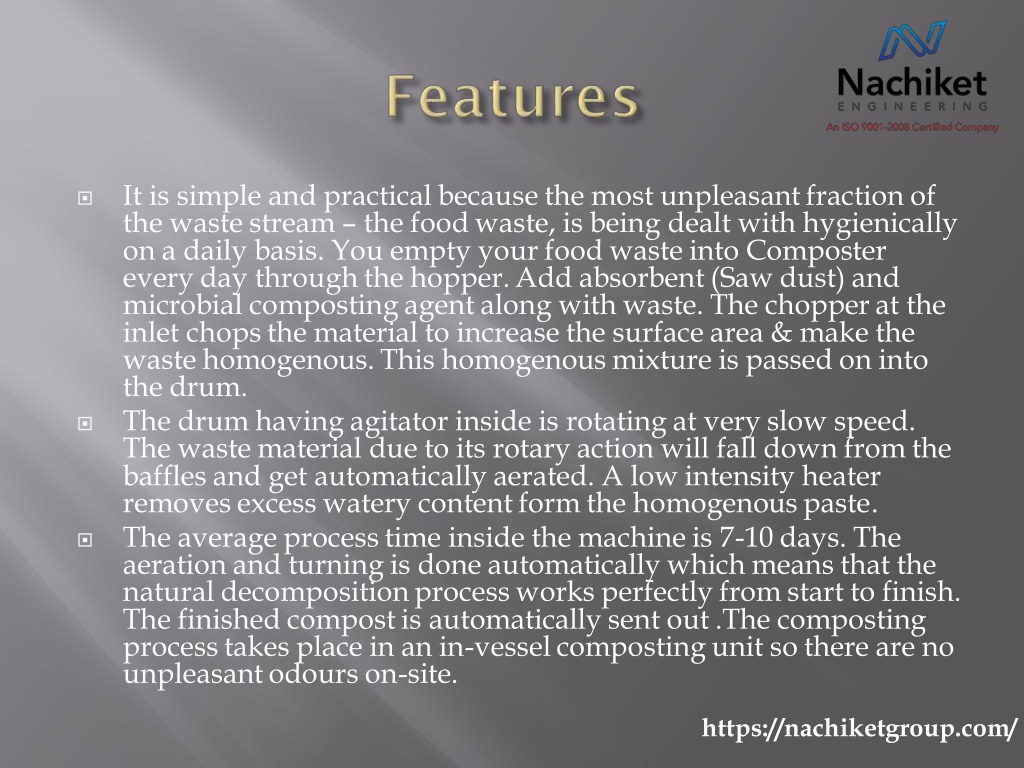

  8. It is simple and practical because the most unpleasant fraction of the waste stream – the food waste, is being dealt with hygienically on a daily basis. You empty your food waste into Composter every day through the hopper. Add absorbent (Saw dust) and microbial composting agent along with waste. The chopper at the inlet chops the material to increase the surface area & make the waste homogenous. This homogenous mixture is passed on into the drum. The drum having agitator inside is rotating at very slow speed. The waste material due to its rotary action will fall down from the baffles and get automatically aerated. A low intensity heater removes excess watery content form the homogenous paste. The average process time inside the machine is 7-10 days. The aeration and turning is done automatically which means that the natural decomposition process works perfectly from start to finish. The finished compost is automatically sent out .The composting process takes place in an in-vessel composting unit so there are no unpleasant odours on-site.    https://nachiketgroup.com/

  9. https://nachiketgroup.com/

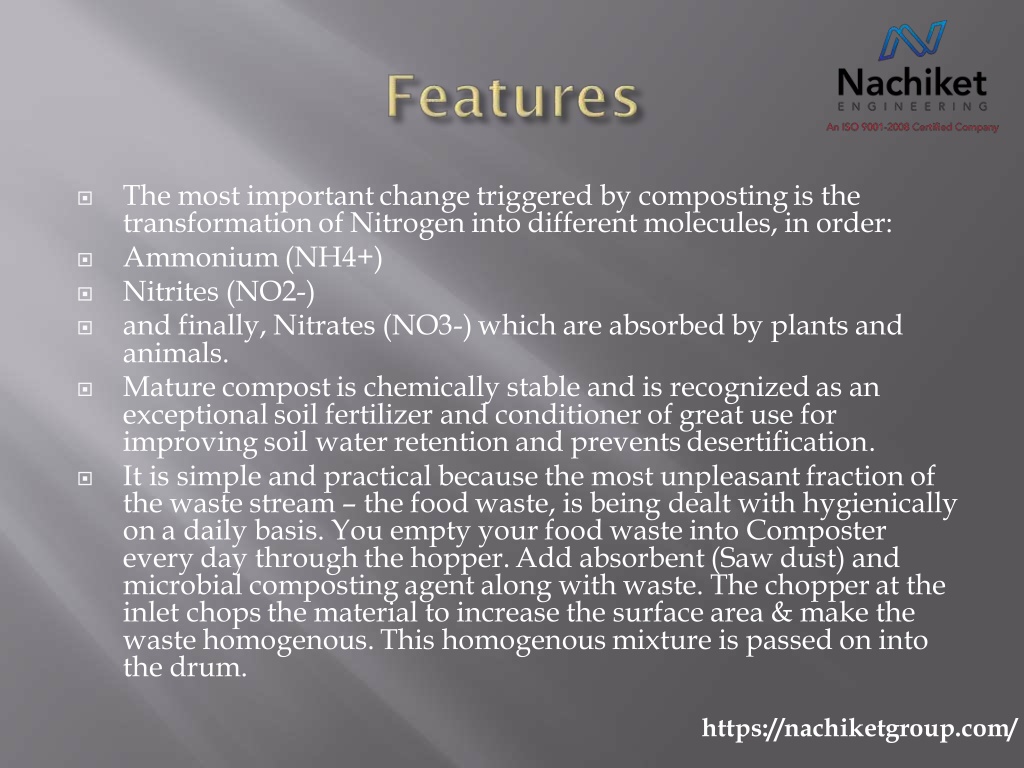

  10. The most important change triggered by composting is the transformation of Nitrogen into different molecules, in order: Ammonium (NH4+) Nitrites (NO2-) and finally, Nitrates (NO3-) which are absorbed by plants and animals. Mature compost is chemically stable and is recognized as an exceptional soil fertilizer and conditioner of great use for improving soil water retention and prevents desertification. It is simple and practical because the most unpleasant fraction of the waste stream – the food waste, is being dealt with hygienically on a daily basis. You empty your food waste into Composter every day through the hopper. Add absorbent (Saw dust) and microbial composting agent along with waste. The chopper at the inlet chops the material to increase the surface area & make the waste homogenous. This homogenous mixture is passed on into the drum.       https://nachiketgroup.com/

  11. https://nachiketgroup.com/

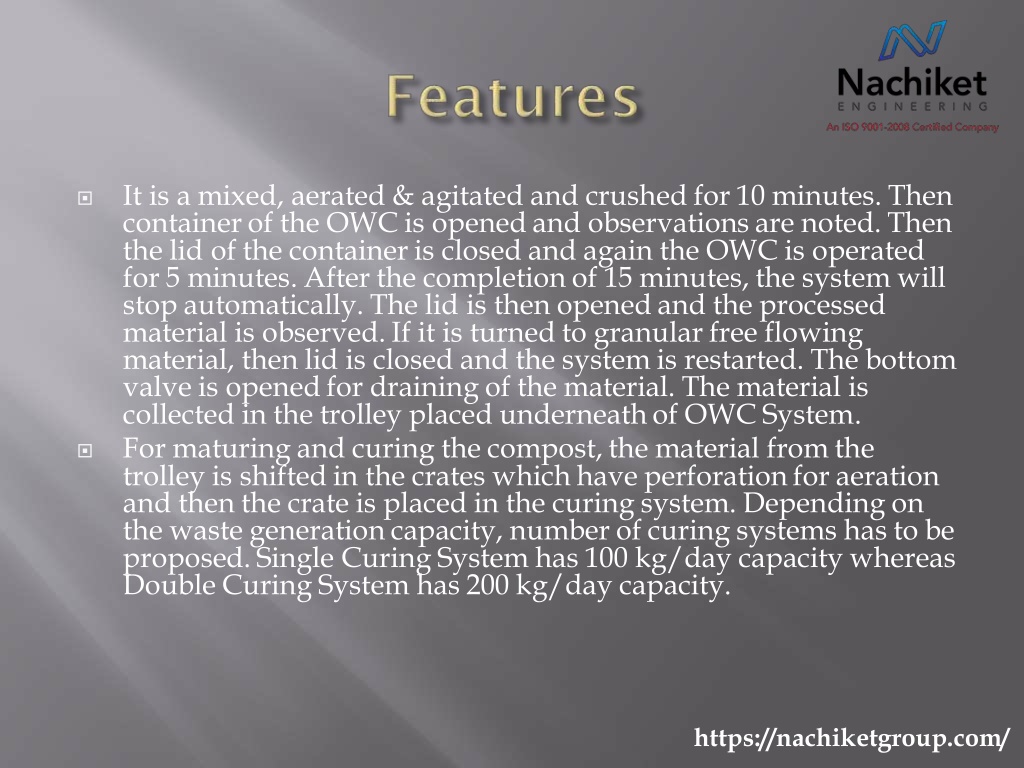

  12. It is a mixed, aerated & agitated and crushed for 10 minutes. Then container of the OWC is opened and observations are noted. Then the lid of the container is closed and again the OWC is operated for 5 minutes. After the completion of 15 minutes, the system will stop automatically. The lid is then opened and the processed material is observed. If it is turned to granular free flowing material, then lid is closed and the system is restarted. The bottom valve is opened for draining of the material. The material is collected in the trolley placed underneath of OWC System. For maturing and curing the compost, the material from the trolley is shifted in the crates which have perforation for aeration and then the crate is placed in the curing system. Depending on the waste generation capacity, number of curing systems has to be proposed. Single Curing System has 100 kg/day capacity whereas Double Curing System has 200 kg/day capacity.   https://nachiketgroup.com/

  13. https://nachiketgroup.com/
