  1. Knee Brandon Mines, MD Emory Sports Medicine Center

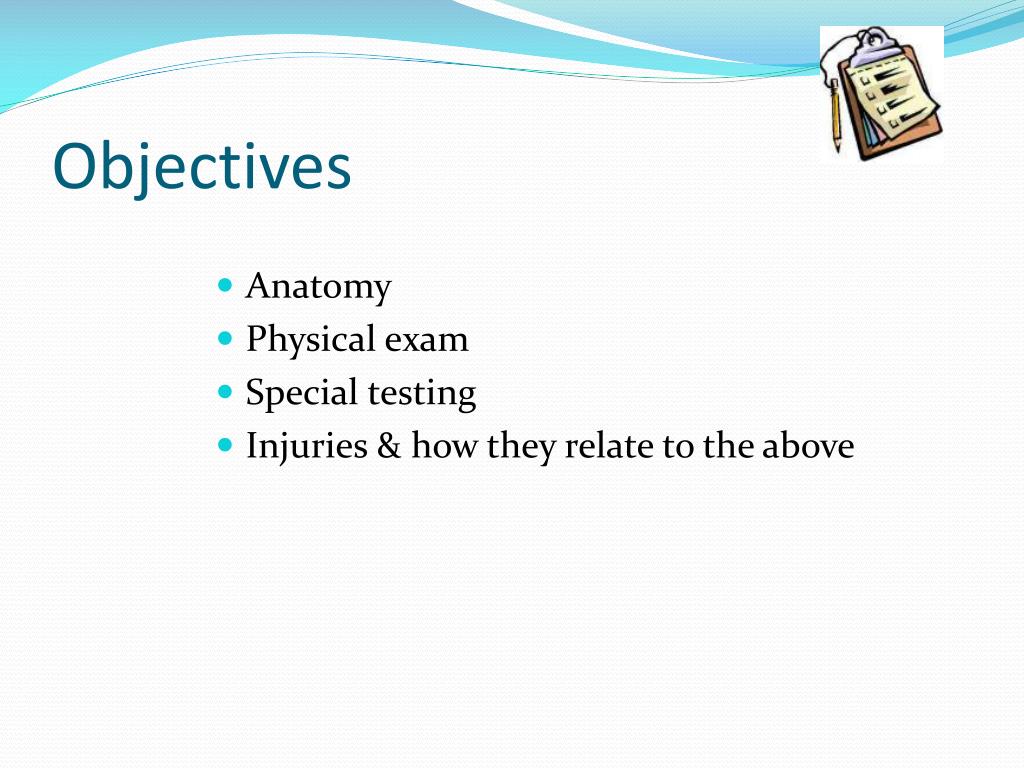

  2. Anatomy Physical exam Special testing Injuries & how they relate to the above Objectives

  3. Don’t feel overwhelmed! Develop systematic examination Try not to skip regions of the knee Don’t forget joint above and below Knee

  4. Acute or chronic injury? Effusion present? Mechanism of injury? Aggravating/alleviating factors? Important areas to address

  5. Knee overview • Knee pain ~ 33% of MSK problems seen in primary care clinics • Up to 55% of athletes complain of knee pain in a given year

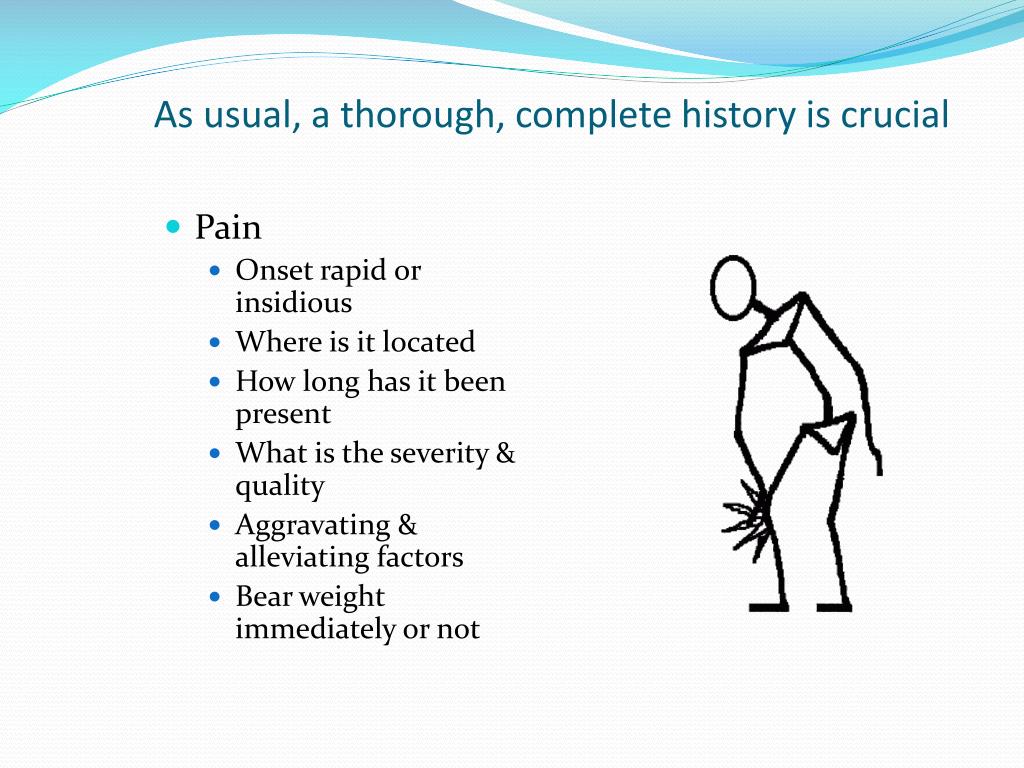

  6. As usual, a thorough, complete history is crucial • Pain • Onset rapid or insidious • Where is it located • How long has it been present • What is the severity & quality • Aggravating & alleviating factors • Bear weight immediately or not

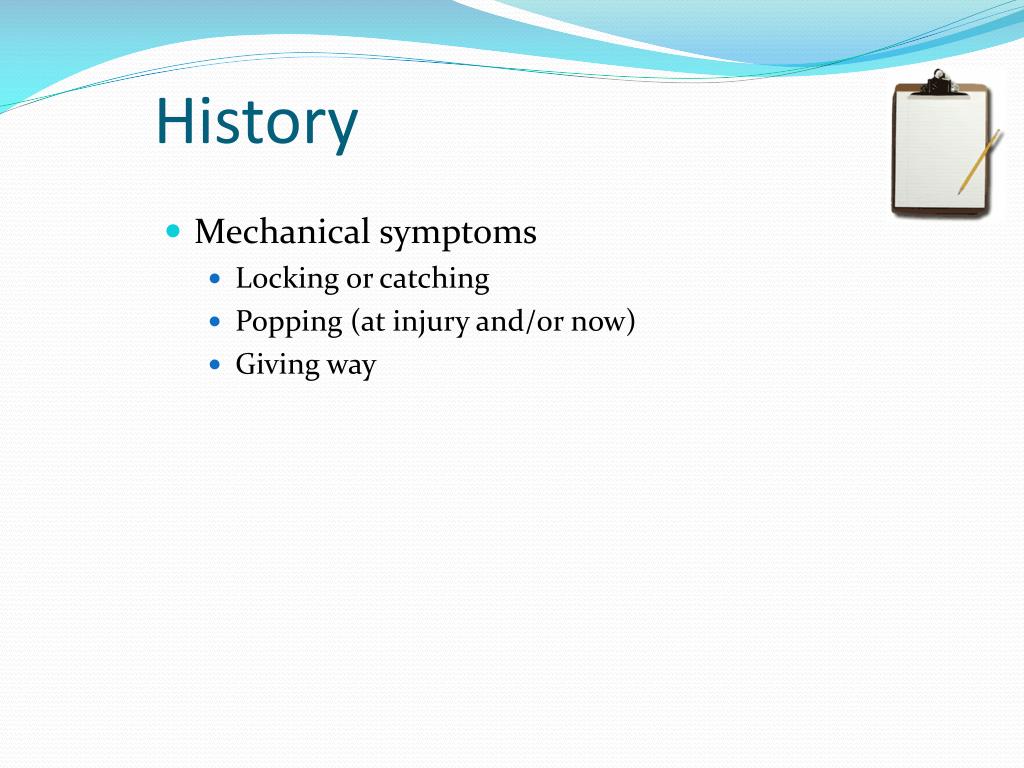

  7. History • Mechanical symptoms • Locking or catching • Popping (at injury and/or now) • Giving way

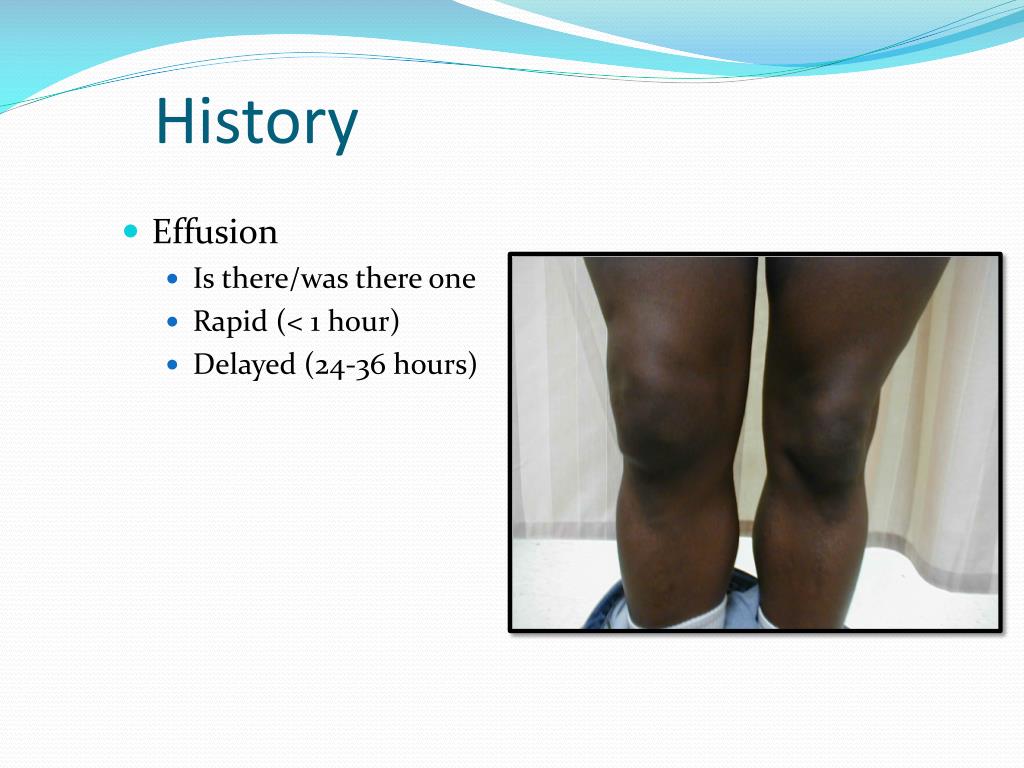

  8. History • Effusion • Is there/was there one • Rapid (< 1 hour) • Delayed (24-36 hours)

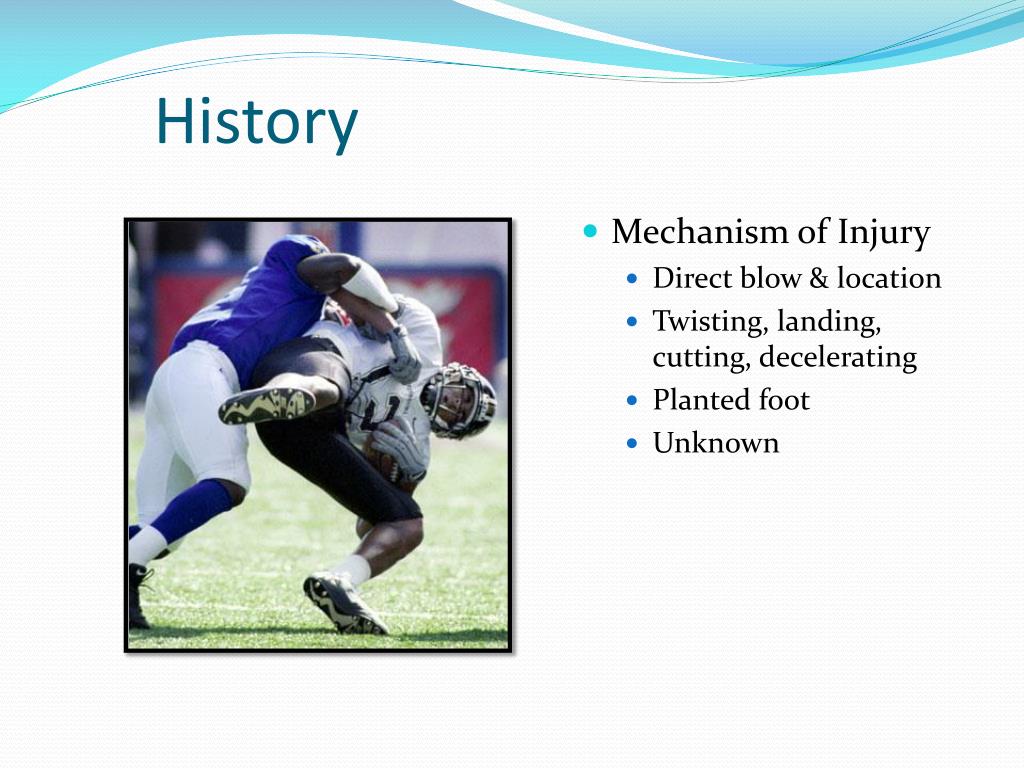

  9. History • Mechanism of Injury • Direct blow & location • Twisting, landing, cutting, decelerating • Planted foot • Unknown

  10. Medical history Previous injury or hx of surgery Meds used to treat sxs Physical therapy Braces or other devices used Hx of gout, RA, DJD History

  11. Anatomy

  12. Anatomy

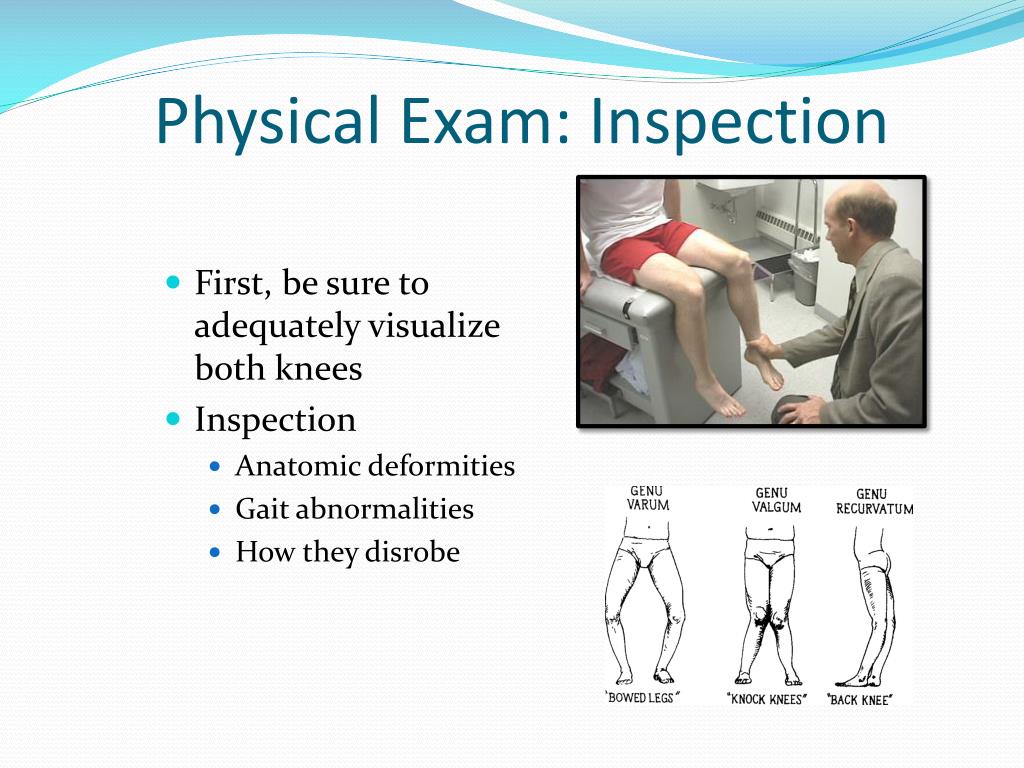

  13. Physical Exam: Inspection • First, be sure to adequately visualize both knees • Inspection • Anatomic deformities • Gait abnormalities • How they disrobe

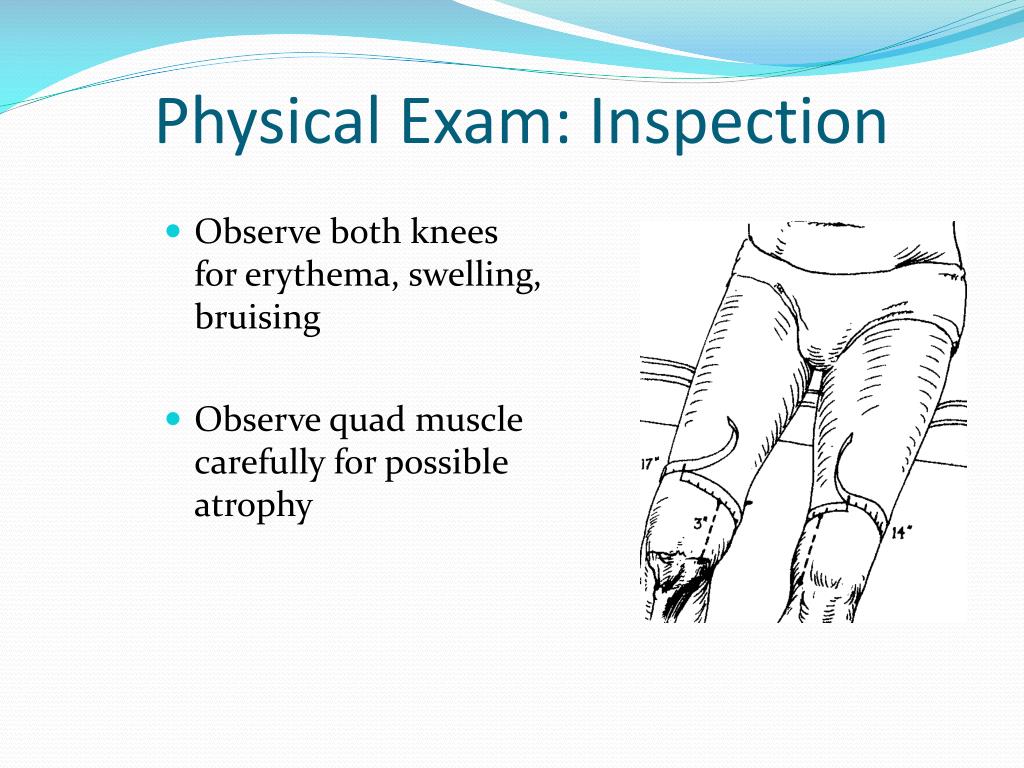

  14. Physical Exam: Inspection • Observe both knees for erythema, swelling, bruising • Observe quad muscle carefully for possible atrophy

  15. Physical Exam • Examine uninjured knee first to keep patient at ease • Save most ‘obnoxious’ maneuvers until the end

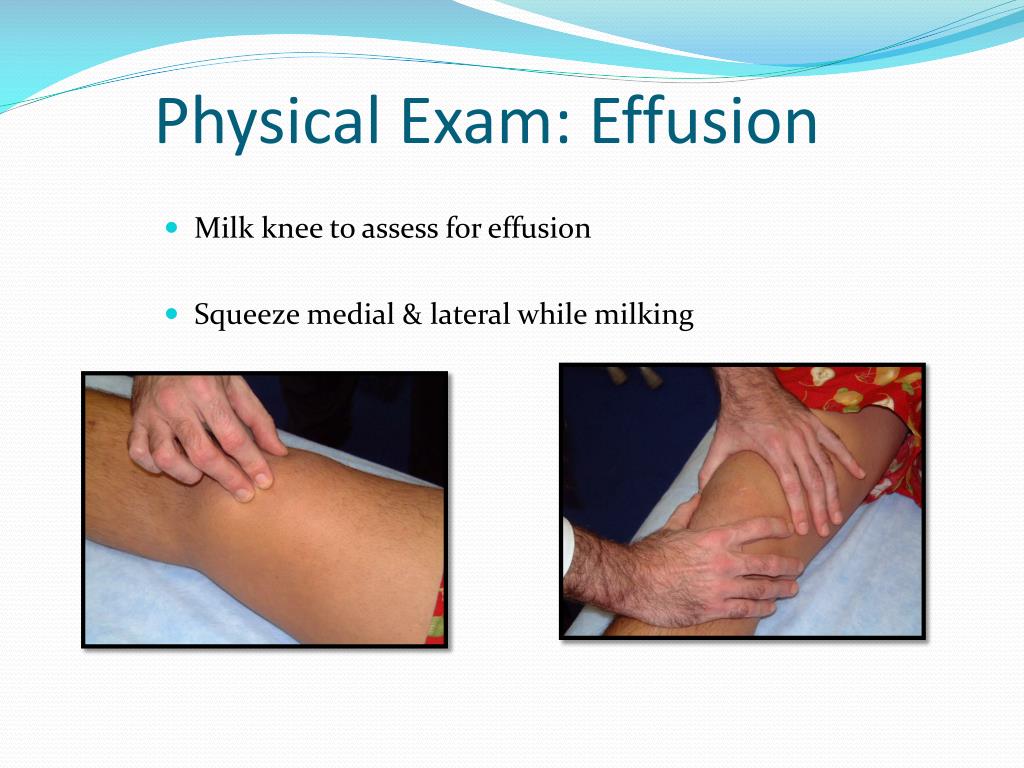

  16. Physical Exam: Effusion • Milk knee to assess for effusion • Squeeze medial & lateral while milking

  17. Physical Exam: Milking an effusion

  18. Physical Exam: Effusion • Ballotable patella

  19. Physical Exam: Effusion • Compare this with ‘good’ knee • Intra-articular vs bursal Bursal Intra-articular

  20. Patellofemoral assessment • Patella apprehension test

  21. Patellofemoral assessment • Important to assess how the patella moves when the knee is flexed & extended Patellar tracking

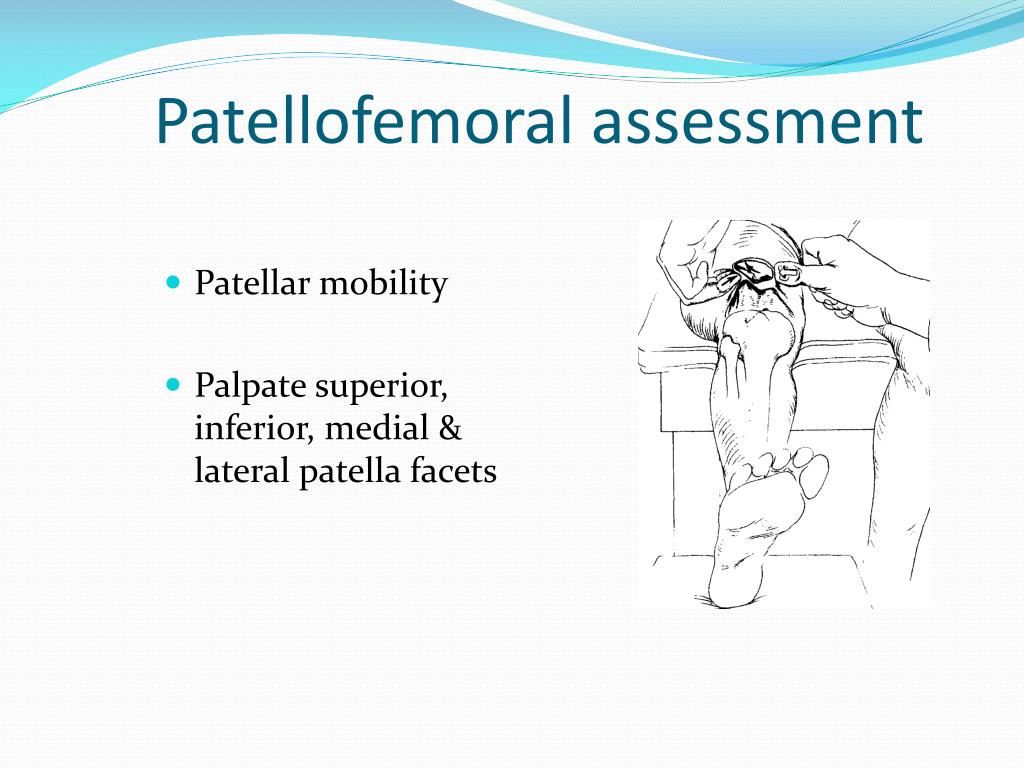

  22. Patellofemoral assessment • Patellar mobility • Palpate superior, inferior, medial & lateral patella facets

  23. Patellofemoral assessment • Integrity of patellar & quad tendon • Compression test • Patellar inhibition

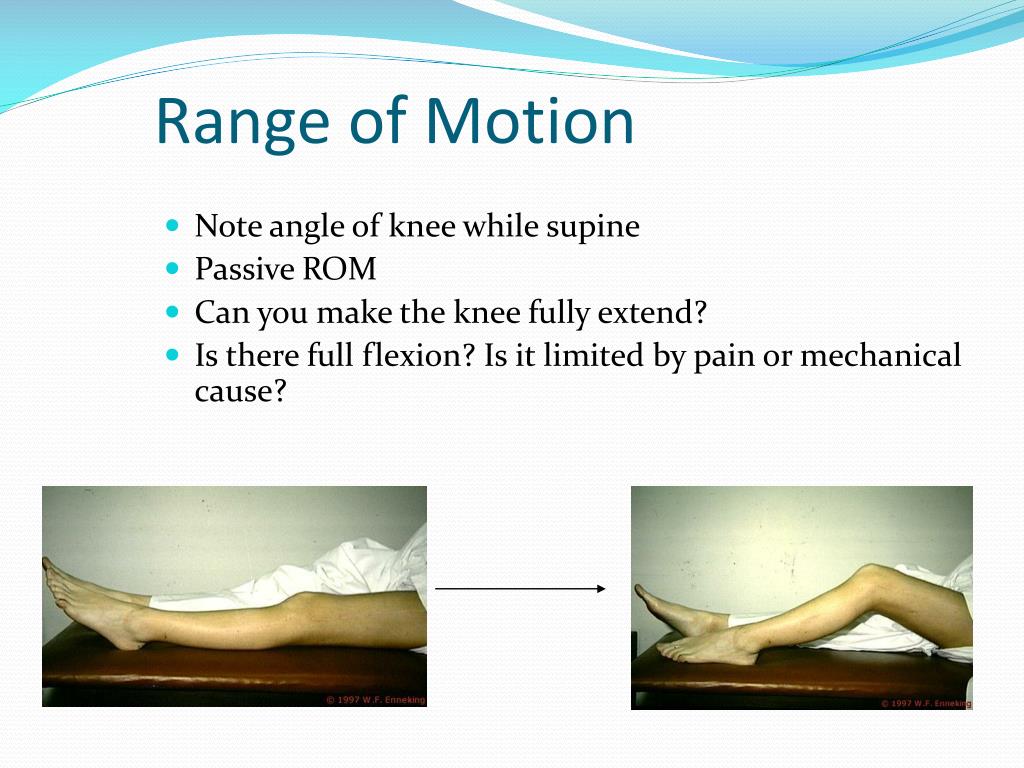

  24. Range of Motion • Note angle of knee while supine • Passive ROM • Can you make the knee fully extend? • Is there full flexion? Is it limited by pain or mechanical cause?

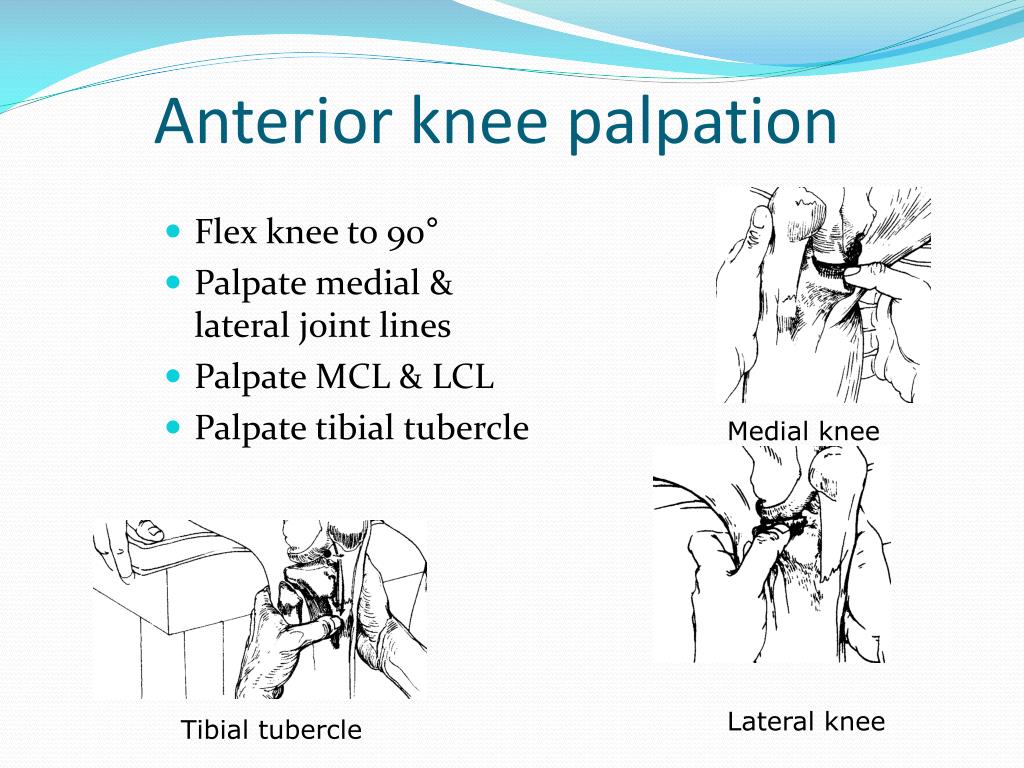

  25. Anterior knee palpation • Flex knee to 90° • Palpate medial & lateral joint lines • Palpate MCL & LCL • Palpate tibial tubercle Medial knee Lateral knee Tibial tubercle

  26. Ligament testing • ACL testing • Lachman’s - 30° flexion • Anterior Drawer - 90° flexion Lachman’s Anterior drawer

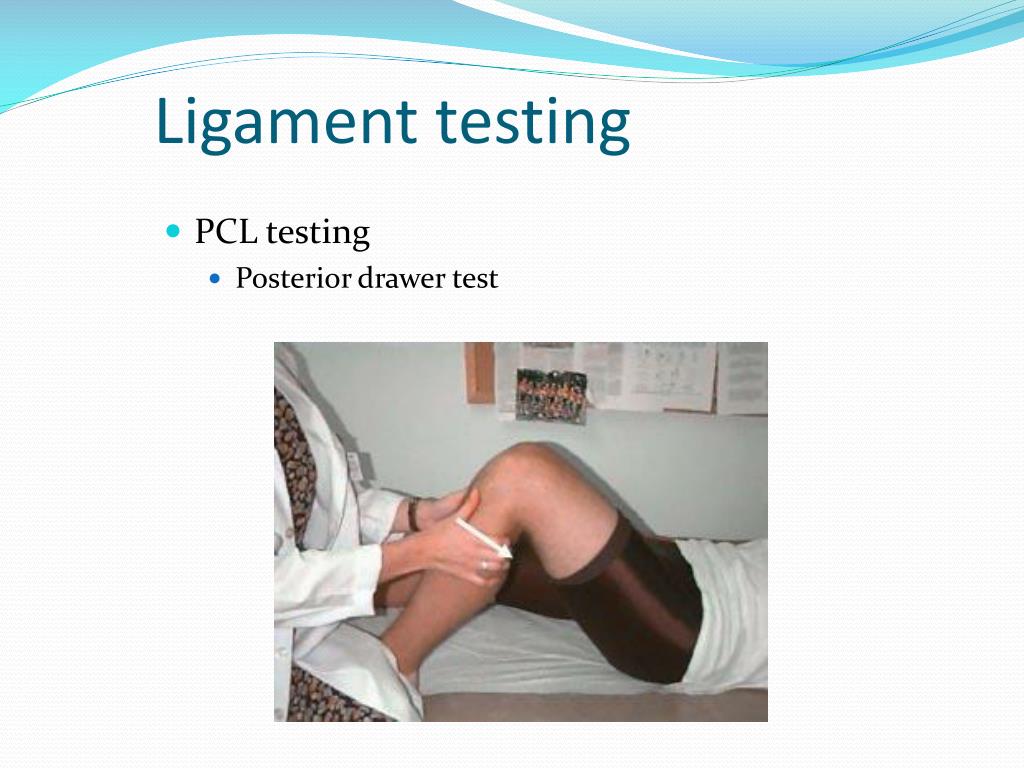

  27. Ligament testing • PCL testing • Posterior drawer test

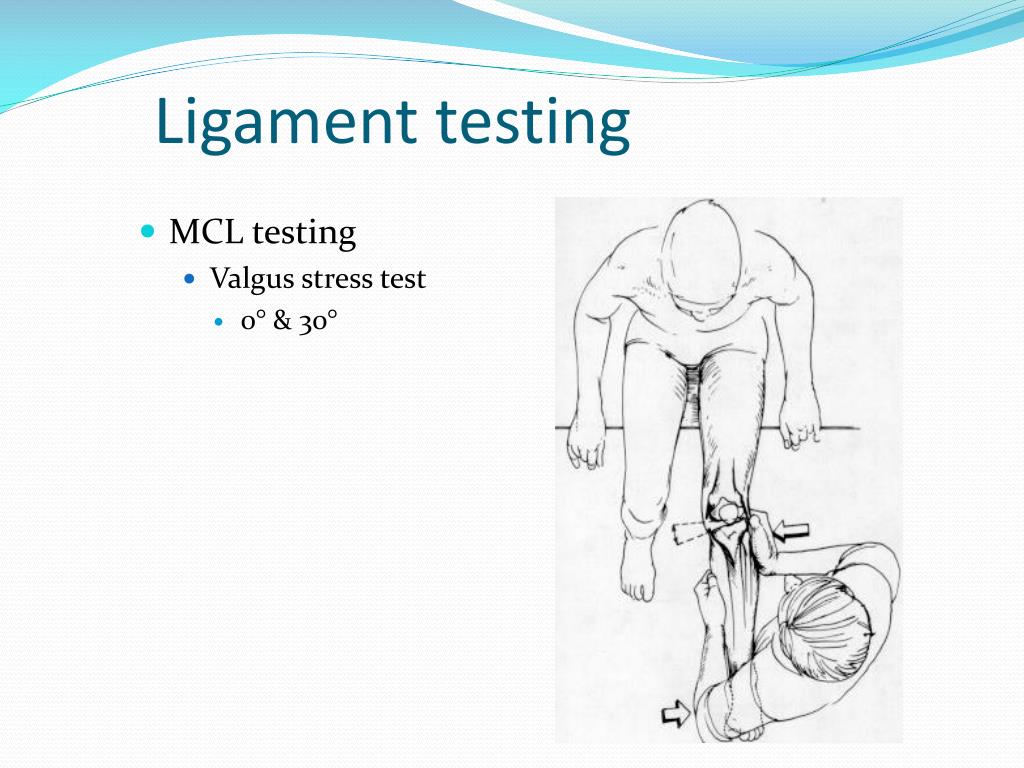

  28. Ligament testing • MCL testing • Valgus stress test • 0° & 30°

  29. Ligament testing • LCL testing • Varus stress test • 0° & 30°

  30. Meniscus • Meniscus testing • McMurray test

  31. Knee Injuries

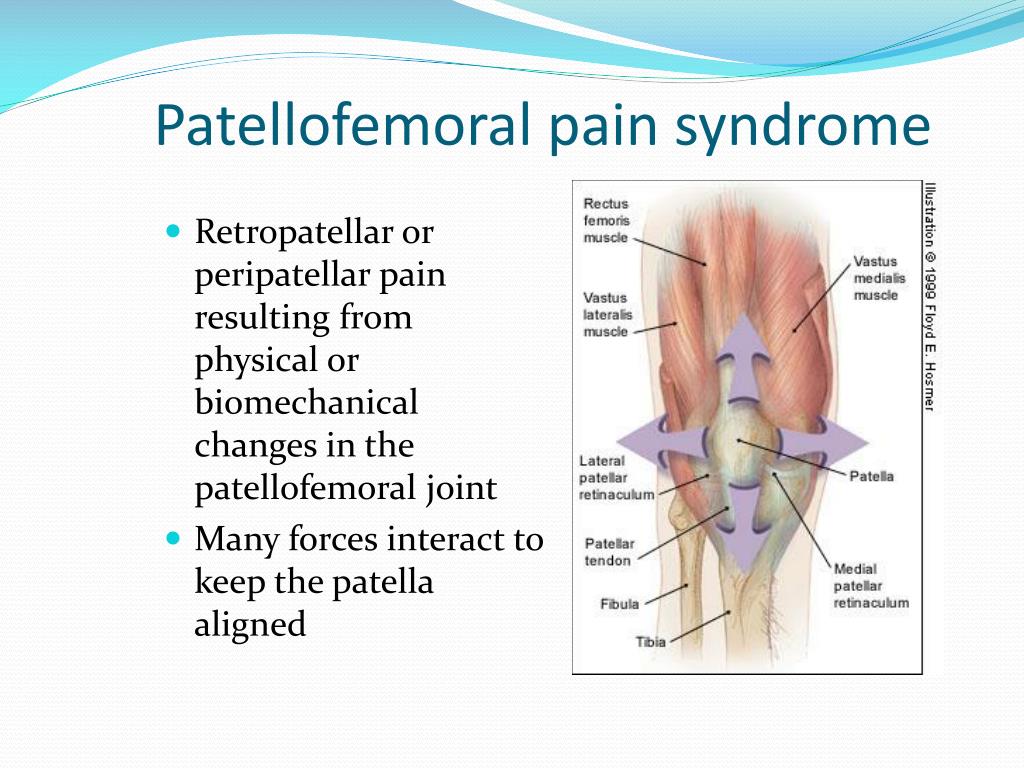

  32. Patellofemoral pain syndrome • Retropatellar or peripatellar pain resulting from physical or biomechanical changes in the patellofemoral joint • Many forces interact to keep the patella aligned

  33. Patellofemoral pain syndrome • Patella not only moves up and down, but rotates and tilts • Many points of contact between patella and femoral structures

  34. Patellofemoral pain syndrome • Hx: • Vague anterior knee pain with insidious onset • Common cause of anterior knee pain in women • Tend to point to front of knee when asked to localize pain • Worse with certain activities, i.e. ascending or descending hills & stairs • Pain with prolonged sitting → theater sign • No meniscal or ligamentous sxs

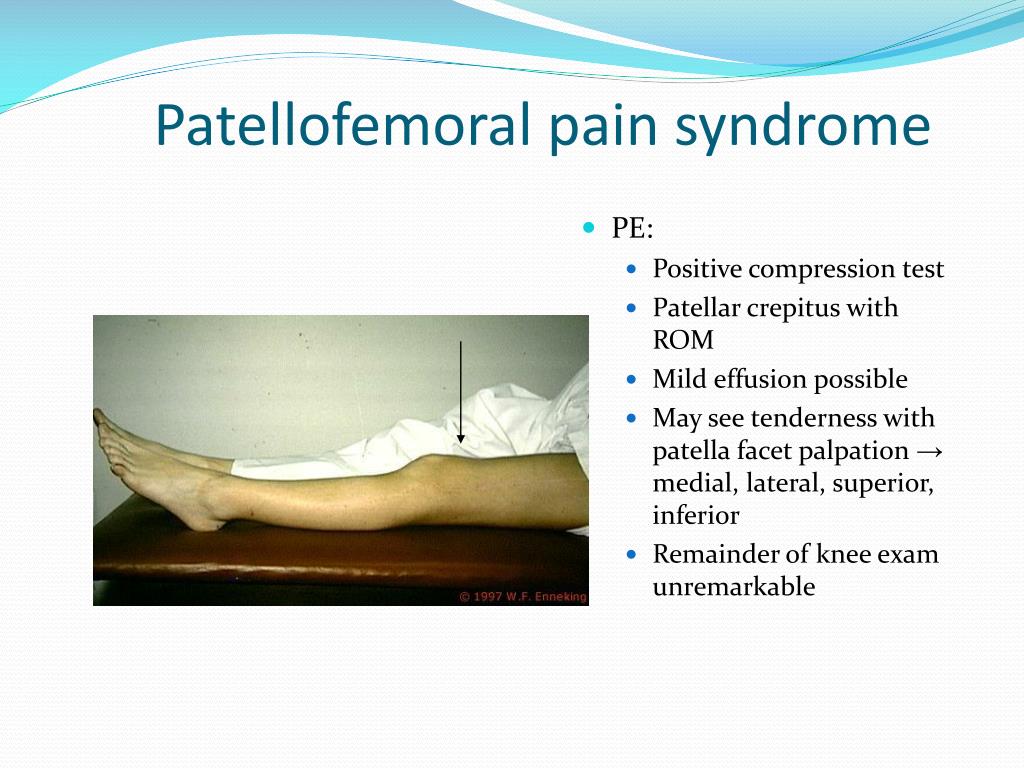

  35. Patellofemoral pain syndrome • PE: • Positive compression test • Patellar crepitus with ROM • Mild effusion possible • May see tenderness with patella facet palpation → medial, lateral, superior, inferior • Remainder of knee exam unremarkable

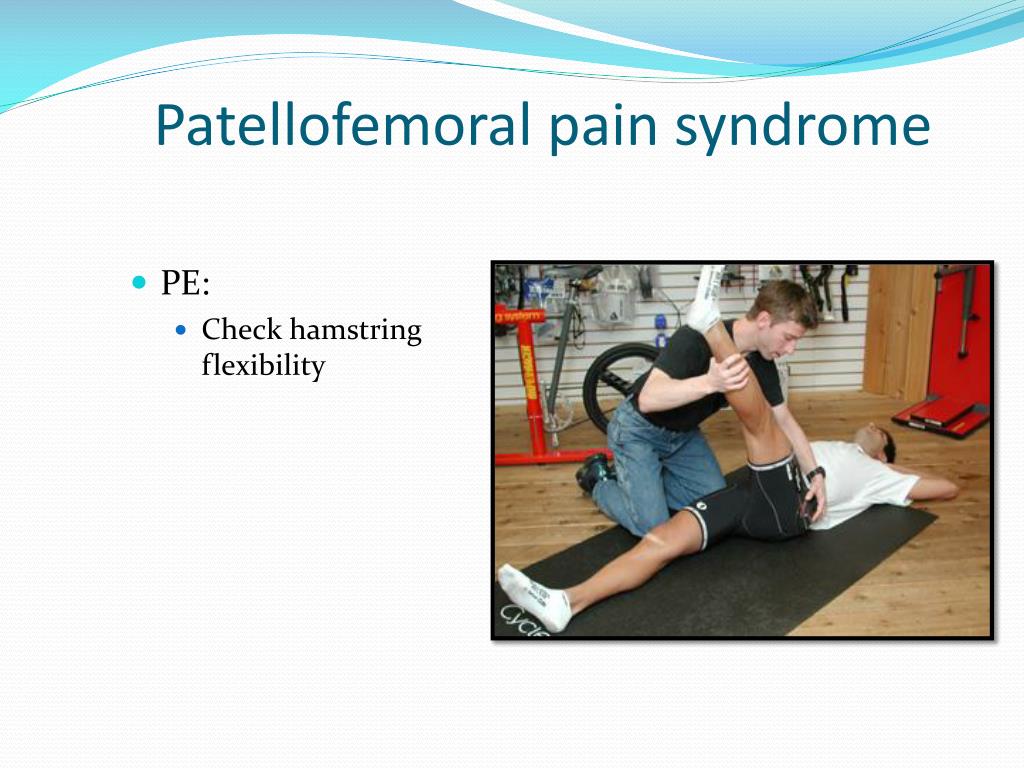

  36. Patellofemoral pain syndrome • PE: • Check hamstring flexibility

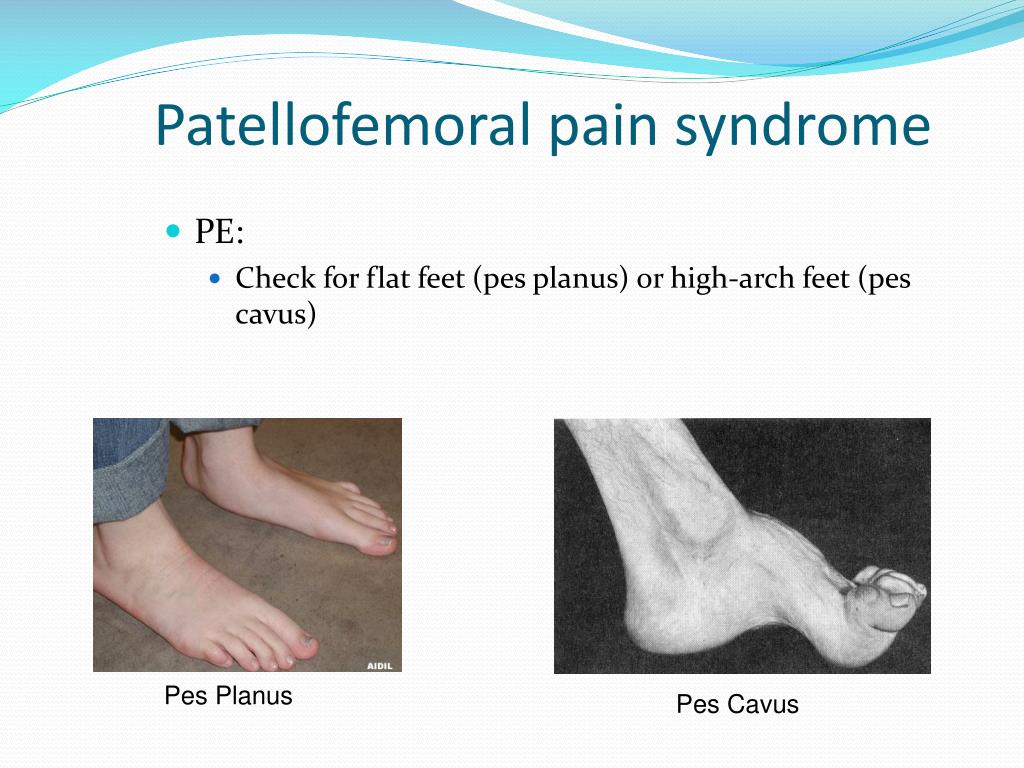

  37. Patellofemoral pain syndrome • PE: • Check for flat feet (pes planus) or high-arch feet (pes cavus) Pes Planus Pes Cavus

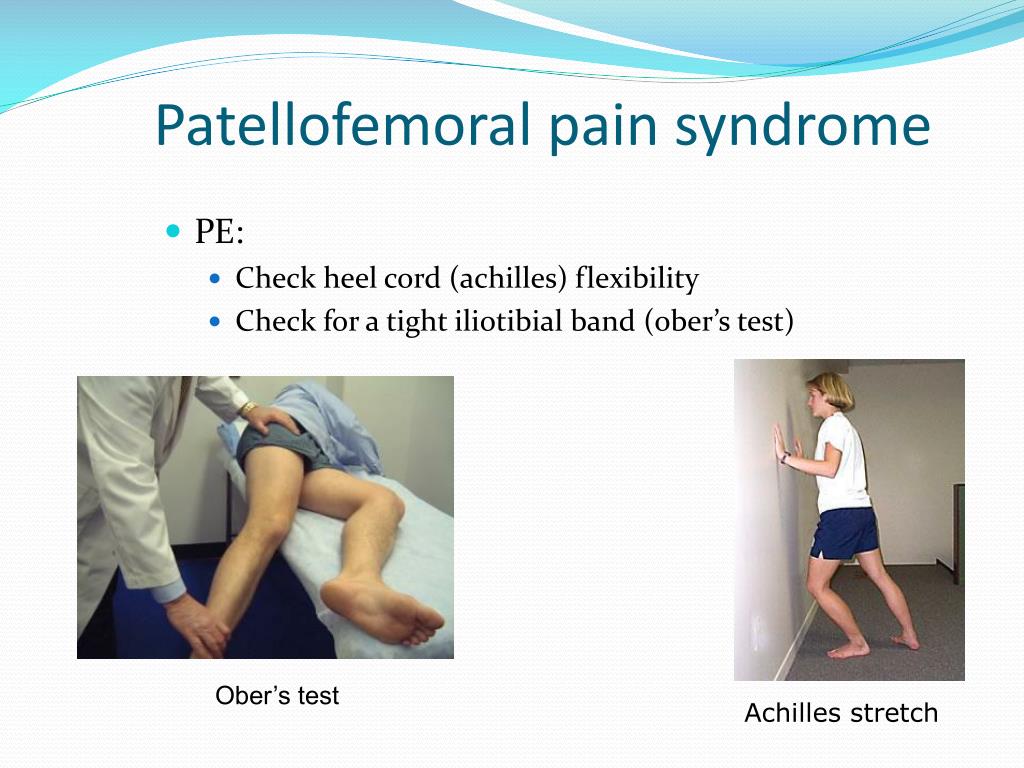

  38. Patellofemoral pain syndrome • PE: • Check heel cord (achilles) flexibility • Check for a tight iliotibial band (ober’s test) Ober’s test Achilles stretch

  39. Patellofemoral pain syndrome • Tx: • Physical therapy • Improve flexibility • Quad strengthening, especially VMO • Other modalities, i.e. soft tissue release, U/S • Patellar taping

  40. Patellofemoral pain syndrome • Tx: • Relative rest/Modification of activities • Icing • NSAIDS • Patellar braces • Addressing foot problems with foot wear and orthotics • Surgery

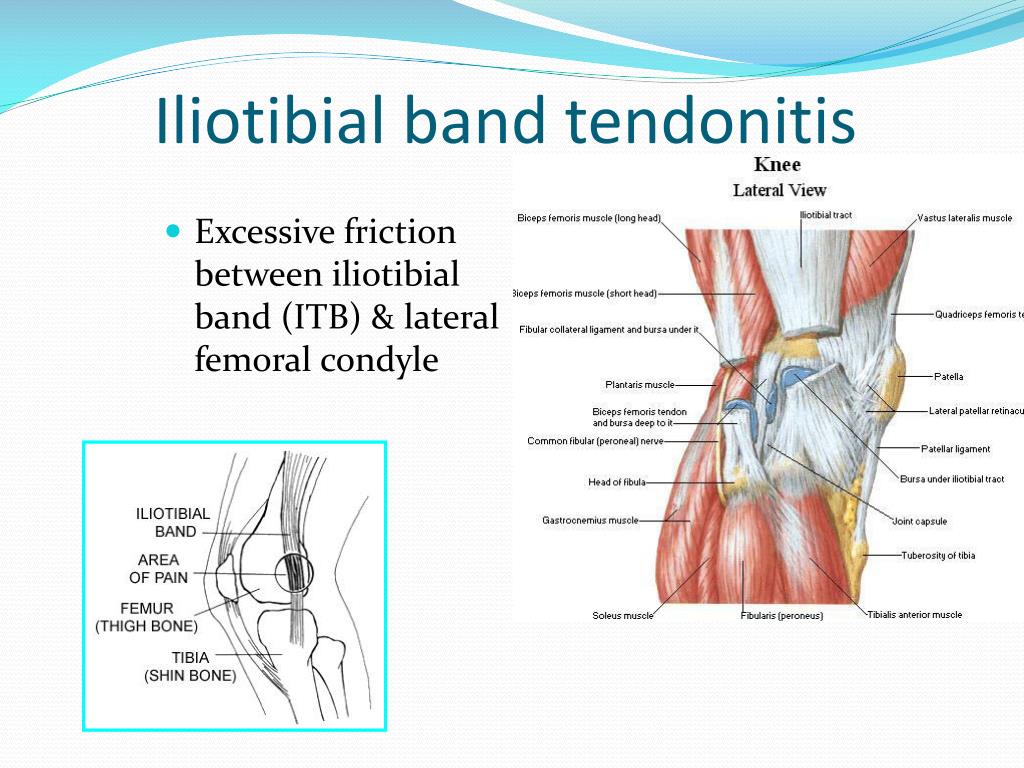

  41. Iliotibial band tendonitis • Excessive friction between iliotibial band (ITB) & lateral femoral condyle

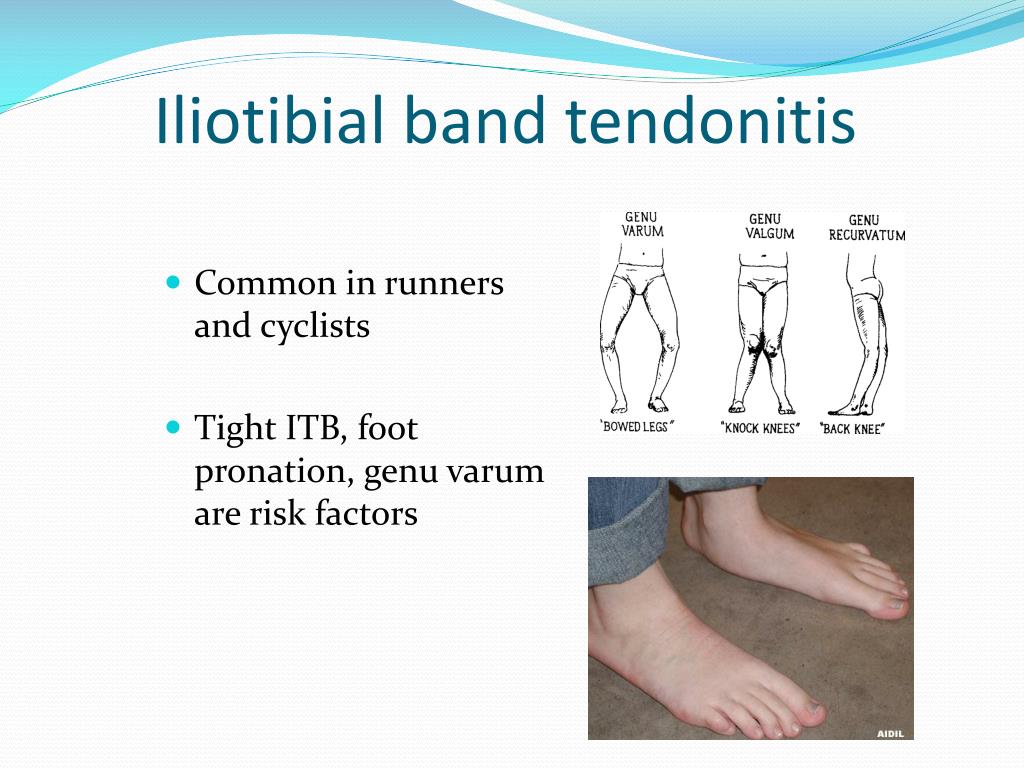

  42. Iliotibial band tendonitis • Common in runners and cyclists • Tight ITB, foot pronation, genu varum are risk factors

  43. Iliotibial band tendonitis • Hx: • Pain at lateral knee • At first, sxs only after a certain period of activity • Progresses to pain immediately with activity

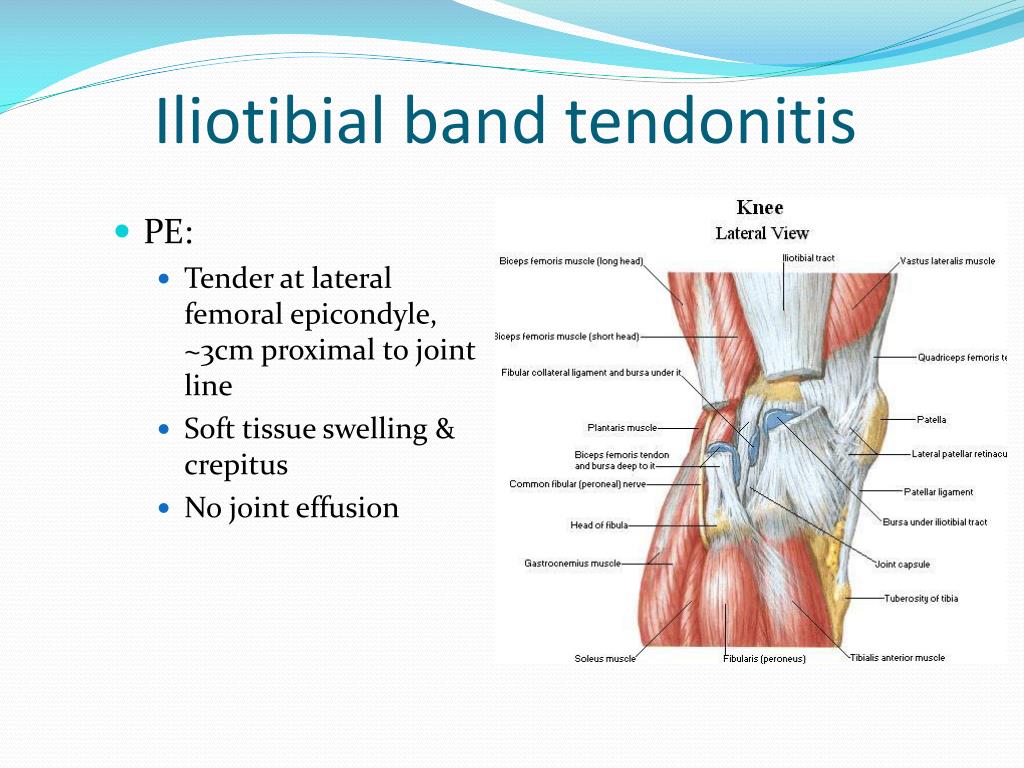

  44. Iliotibial band tendonitis • PE: • Tender at lateral femoral epicondyle, ~3cm proximal to joint line • Soft tissue swelling & crepitus • No joint effusion

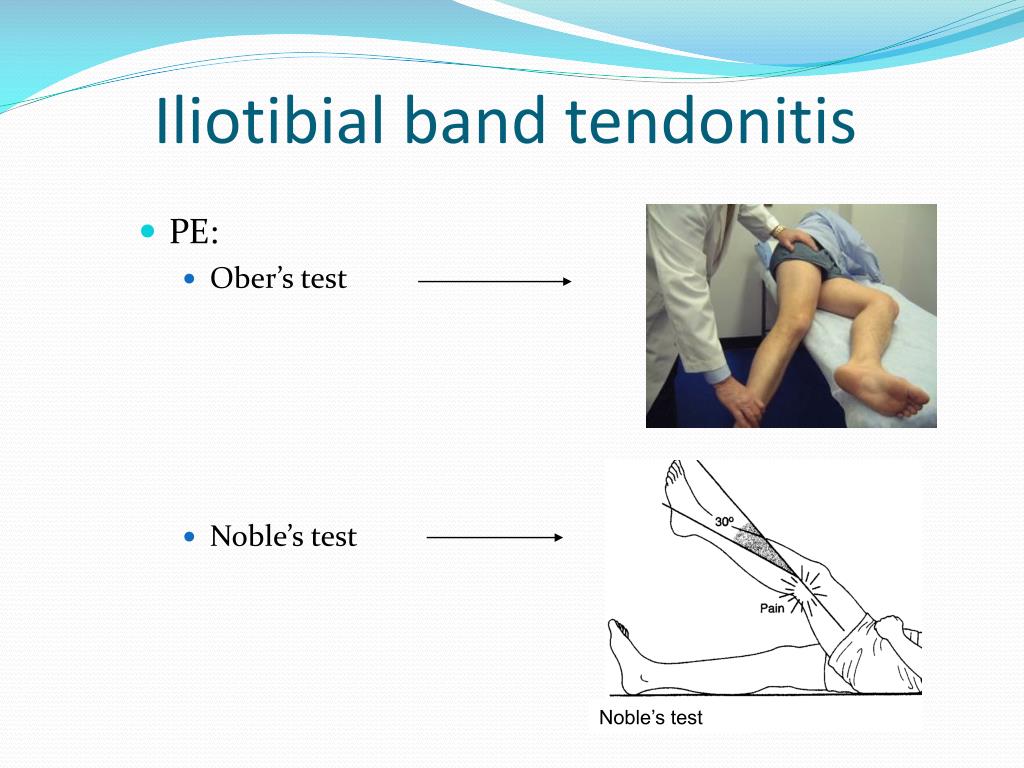

  45. Iliotibial band tendonitis • PE: • Ober’s test • Noble’s test Noble’s test

  46. Iliotibial band tendonitis • Tx: • Relative rest • Ice • NSAIDS • Stretching • Cortisone • Platelet-Rich Plasma

  47. Iliotibial band tendonitis • Prognosis: • Improves with rest • Expect long recovery time • When to refer: • Intractable pain • Surgery = release

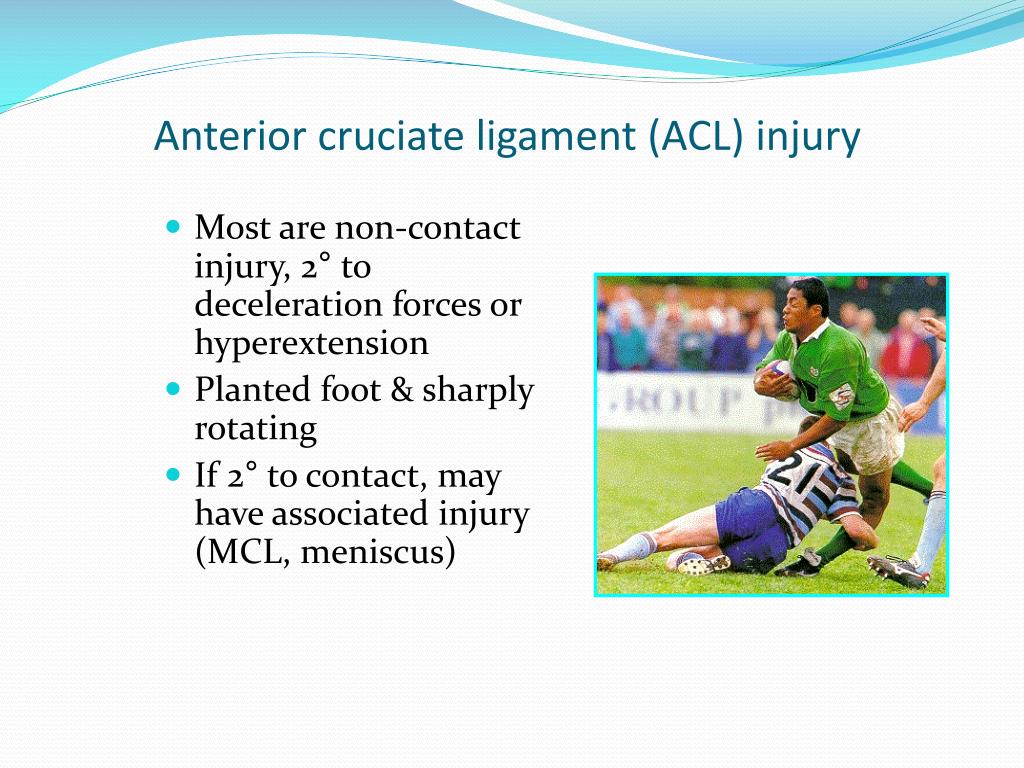

  48. Anterior cruciate ligament (ACL) injury • Most are non-contact injury, 2° to deceleration forces or hyperextension • Planted foot & sharply rotating • If 2° to contact, may have associated injury (MCL, meniscus)
