Shared Pages


Operating systems

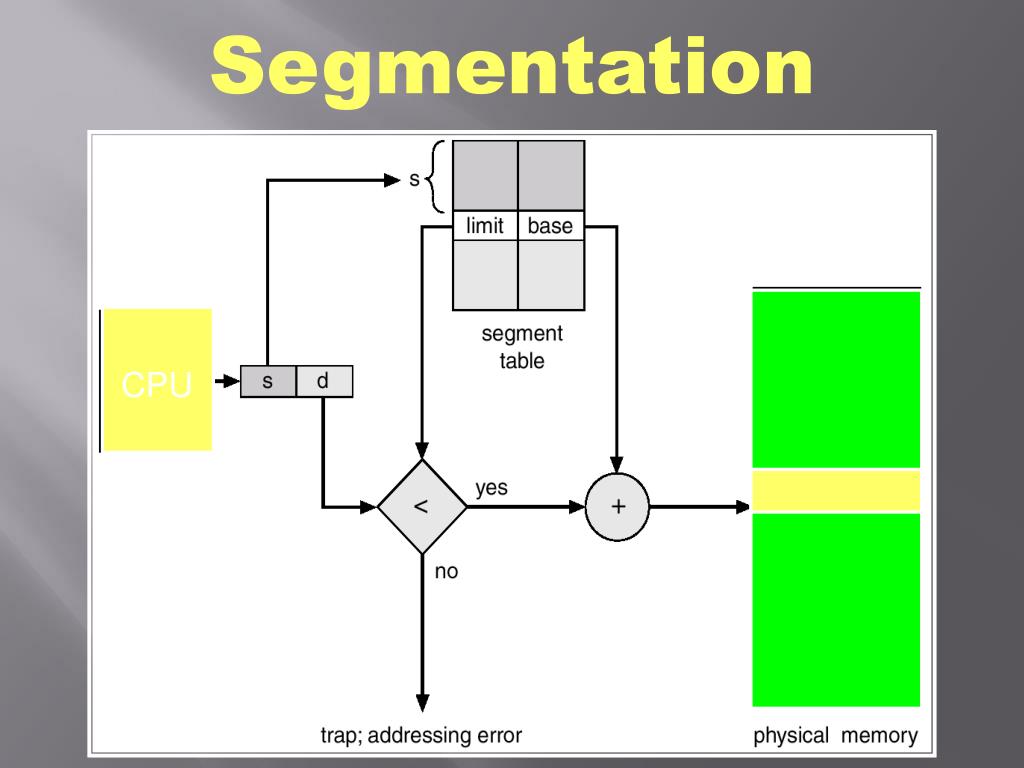

Segmentation

CPU


Operating systems

Example


Operating systems

Sharing of Segments


Operating systems

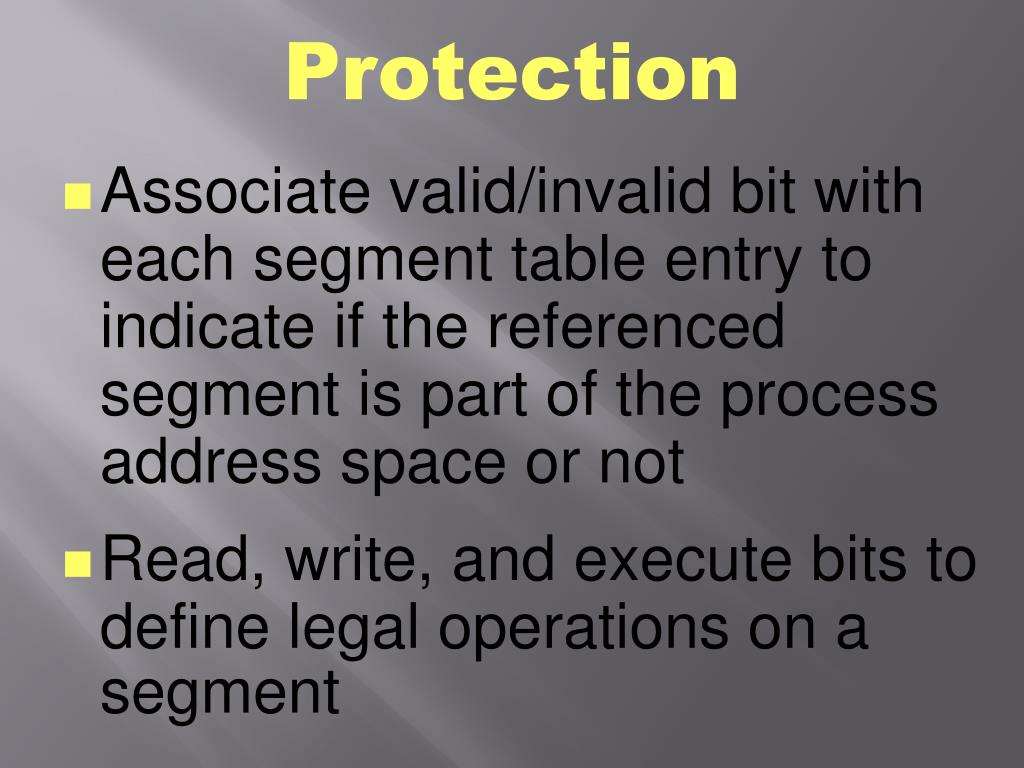

Protection

  • Associate valid/invalid bit with each segment table entry to indicate if the referenced segment is part of the process address space or not

  • Read, write, and execute bits to define legal operations on a segment


Operating systems

Paged Segmentation

  • Divide every segment in a process into fixed size pages

  • Need for a page table per segment

  • CPU’s memory management unit must support both segmentation and paging


Operating systems

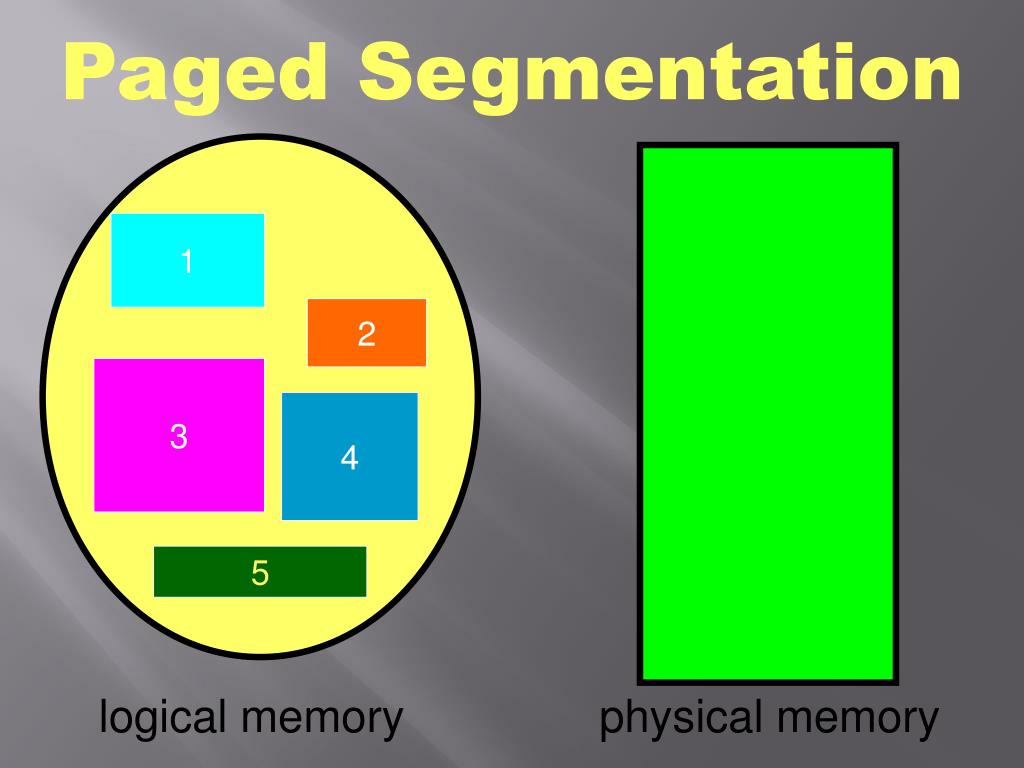

Paged Segmentation

1

2

3

4

5

logical memory

physical memory


Operating systems

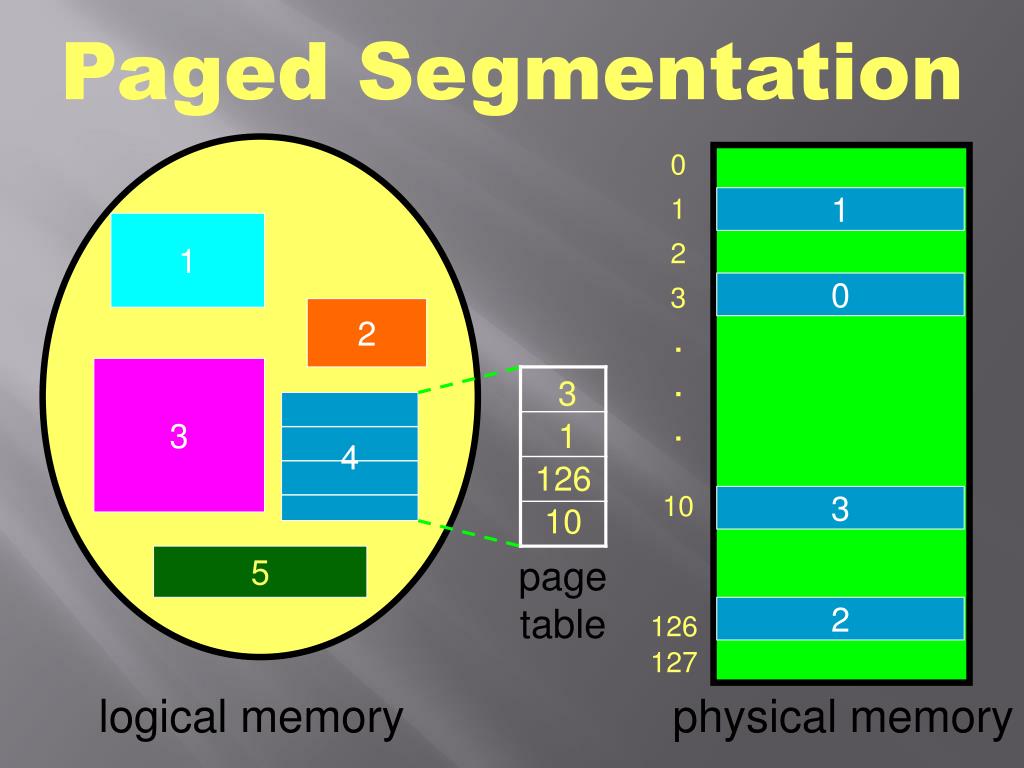

Paged Segmentation

0

1

2

3

.

.

.

10

126127

1

1

0

2

3

3

4

1

126

3

10

5

page table

2

logical memory

physical memory


Operating systems

Paged Segmentation

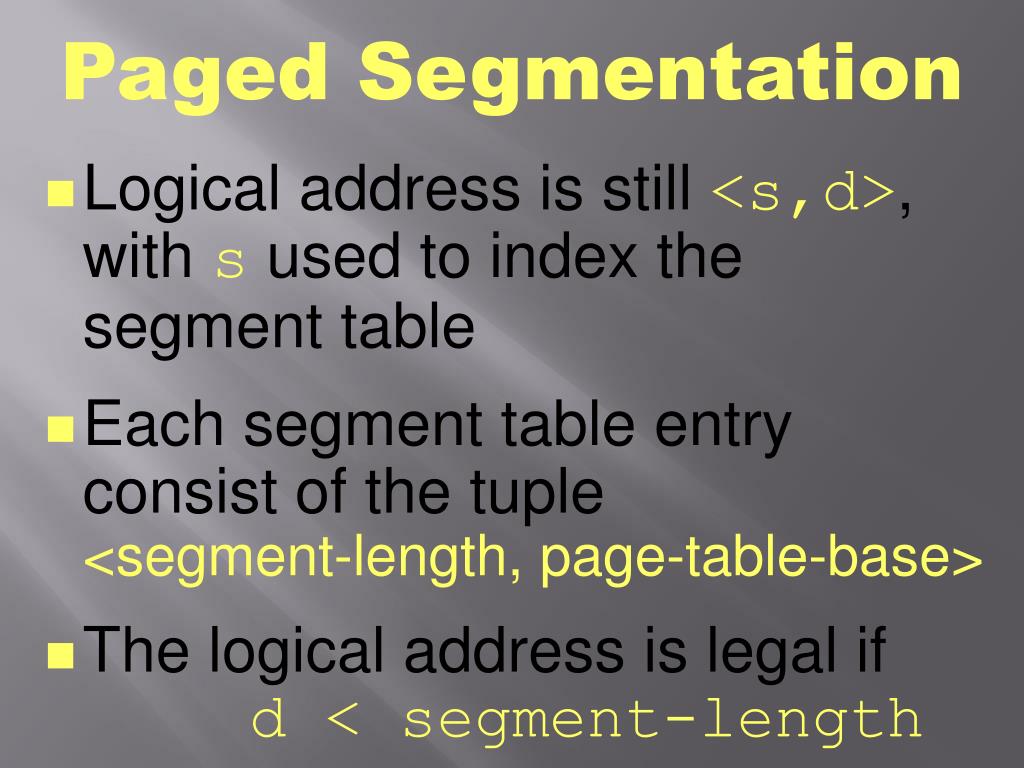

  • Logical address is still <s,d>, with s used to index the segment table

  • Each segment table entry consist of the tuple <segment-length, page-table-base>

  • The logical address is legal if d < segment-length


Operating systems

Paged Segmentation

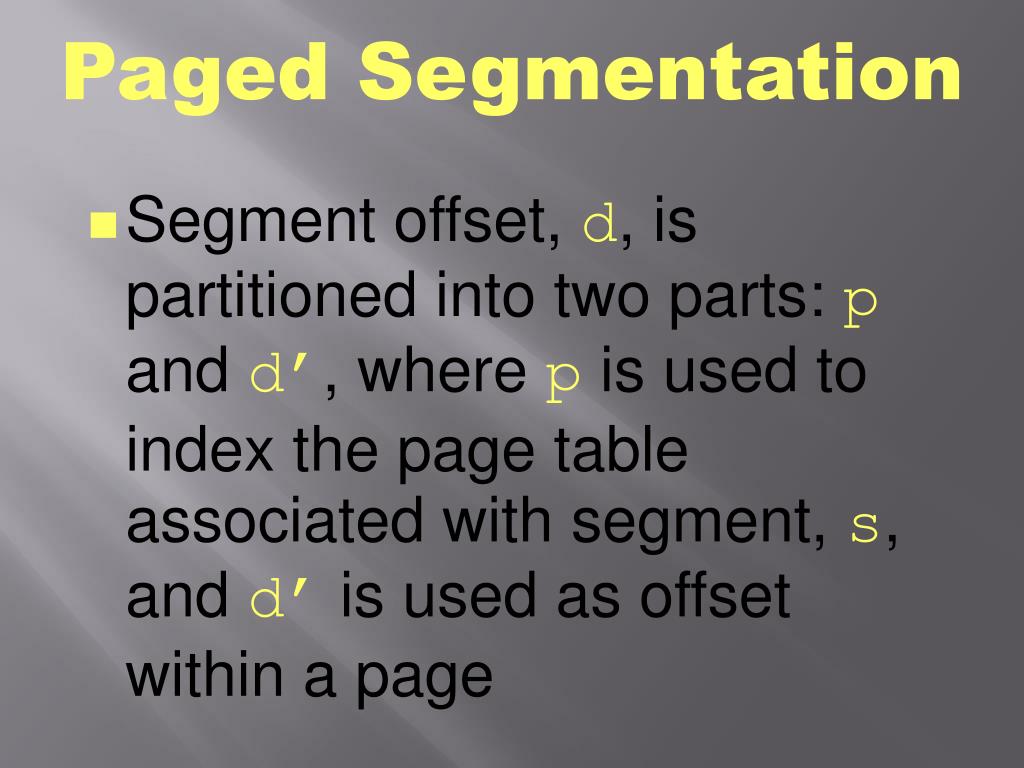

  • Segment offset,d, is partitioned into two parts: p and d’, where p is used to index the page table associated with segment, s, and d’ is used as offset within a page


Operating systems

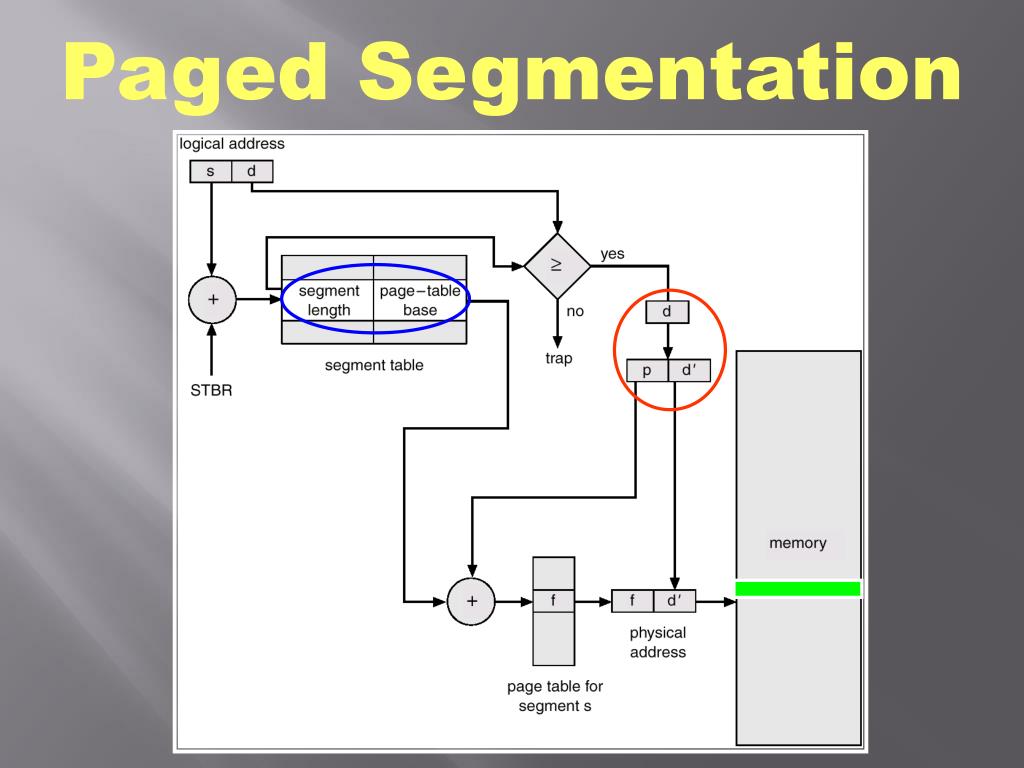

Paged Segmentation

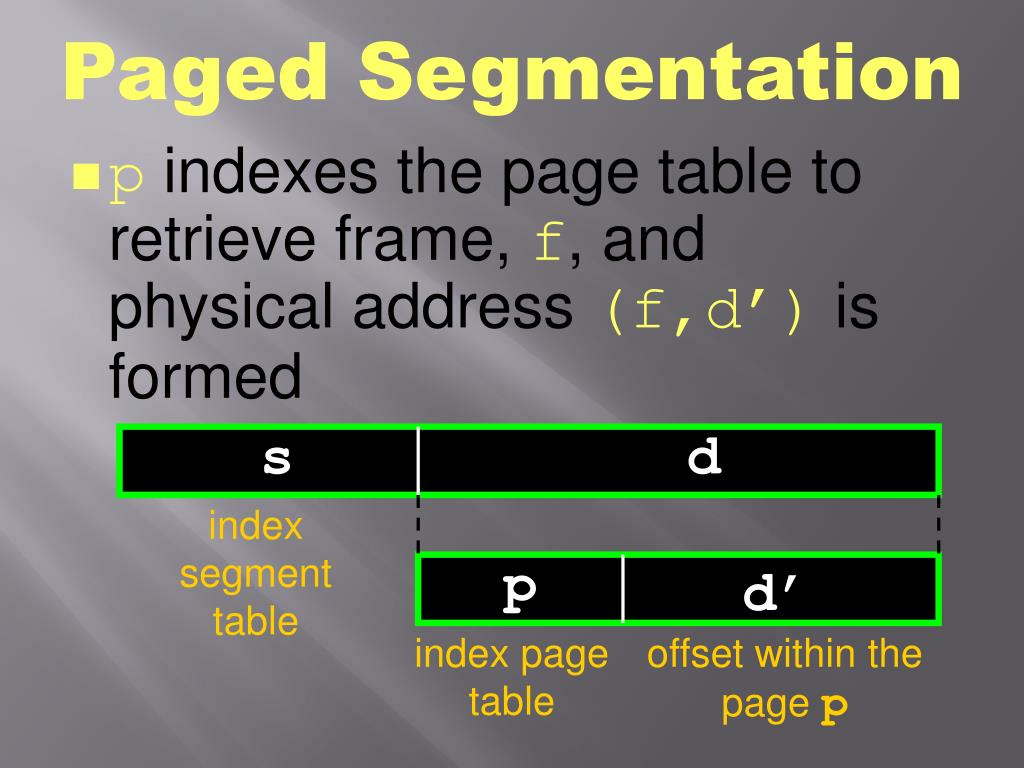

  • pindexes the page table to retrieve frame, f, and physical address (f,d’) is formed

s

d

index segment table

p

d’

index page table

offset within the page p


Operating systems

Paged Segmentation


Multics example

MULTICS Example

  • GE 345 processor

  • Logical address = 34 bits

  • Page size = 1 KB

  • s is 18 bits and d is 16 bits

  • Size of p and d’, largest segment size, and max. number of segments per process?


Multics example1

MULTICS Example

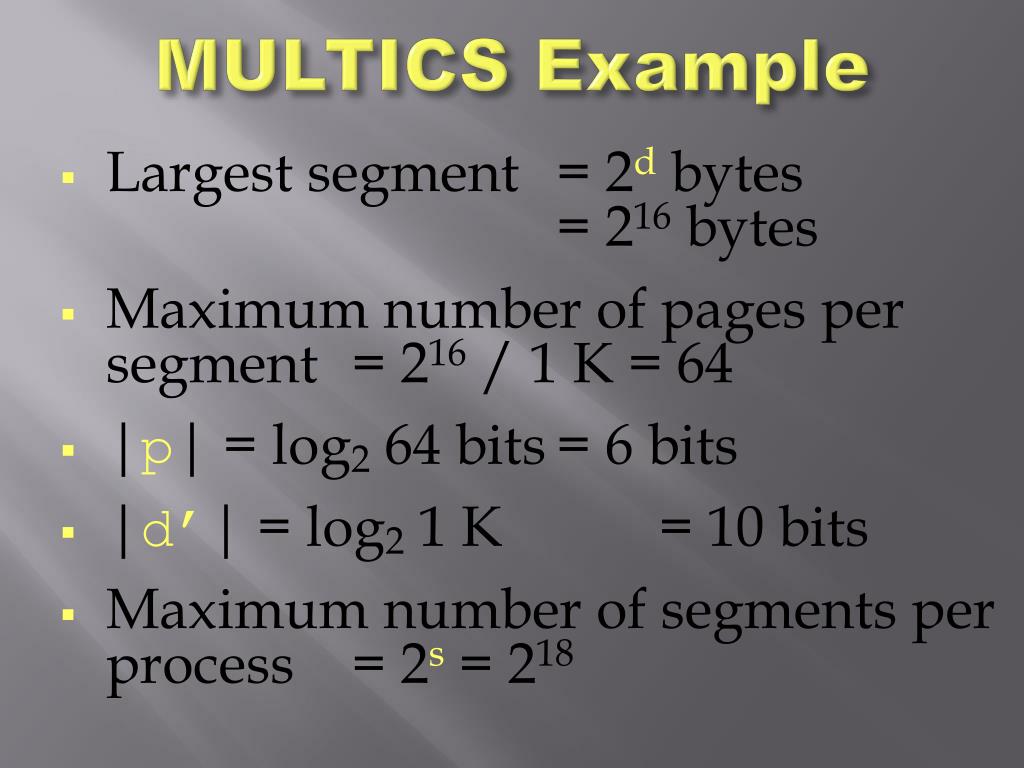

  • Largest segment= 2d bytes= 216 bytes

  • Maximum number of pages per segment= 216 / 1 K = 64

  • |p| = log2 64 bits= 6 bits

  • |d’| = log2 1 K= 10 bits

  • Maximum number of segments per process= 2s = 218


Multics example2

MULTICS Example

s

d

18 bits

p

d’

6 bits

10 bits


Multics example3

MULTICS Example

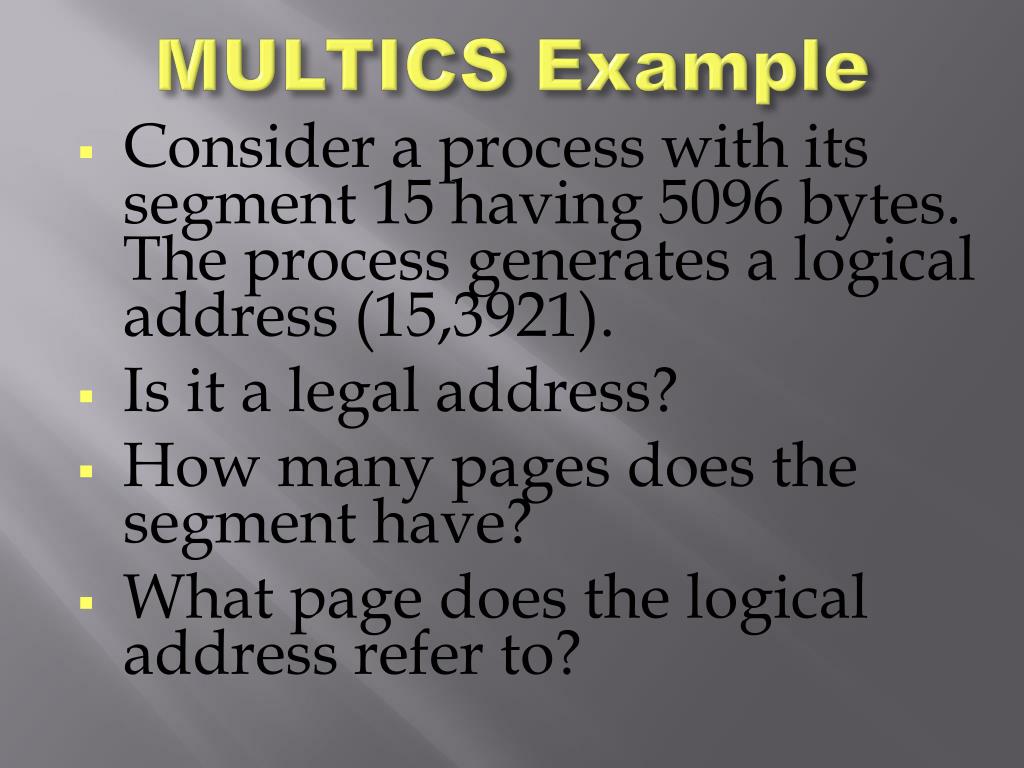

  • Consider a process with its segment 15 having 5096 bytes. The process generates a logical address (15,3921).

  • Is it a legal address?

  • How many pages does the segment have?

  • What page does the logical address refer to?


Multics example4

MULTICS Example

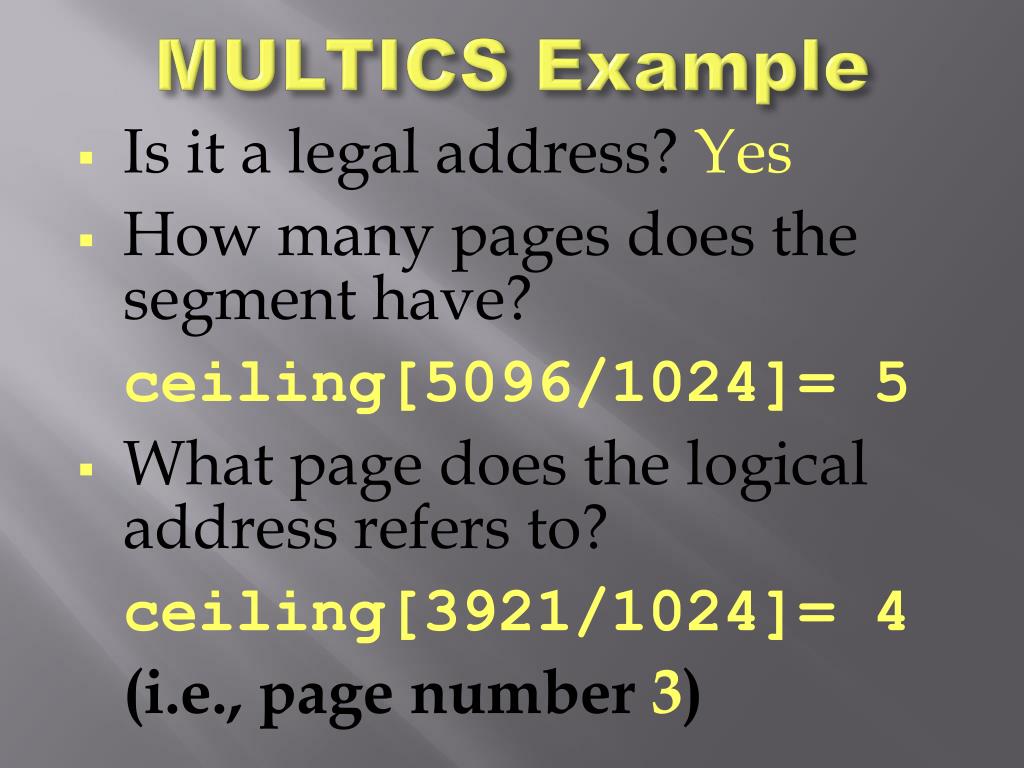

  • Is it a legal address? Yes

  • How many pages does the segment have?

    ceiling[5096/1024]= 5

  • What page does the logical address refers to?

    ceiling[3921/1024]= 4

    (i.e., page number 3)


Multics example5

MULTICS Example

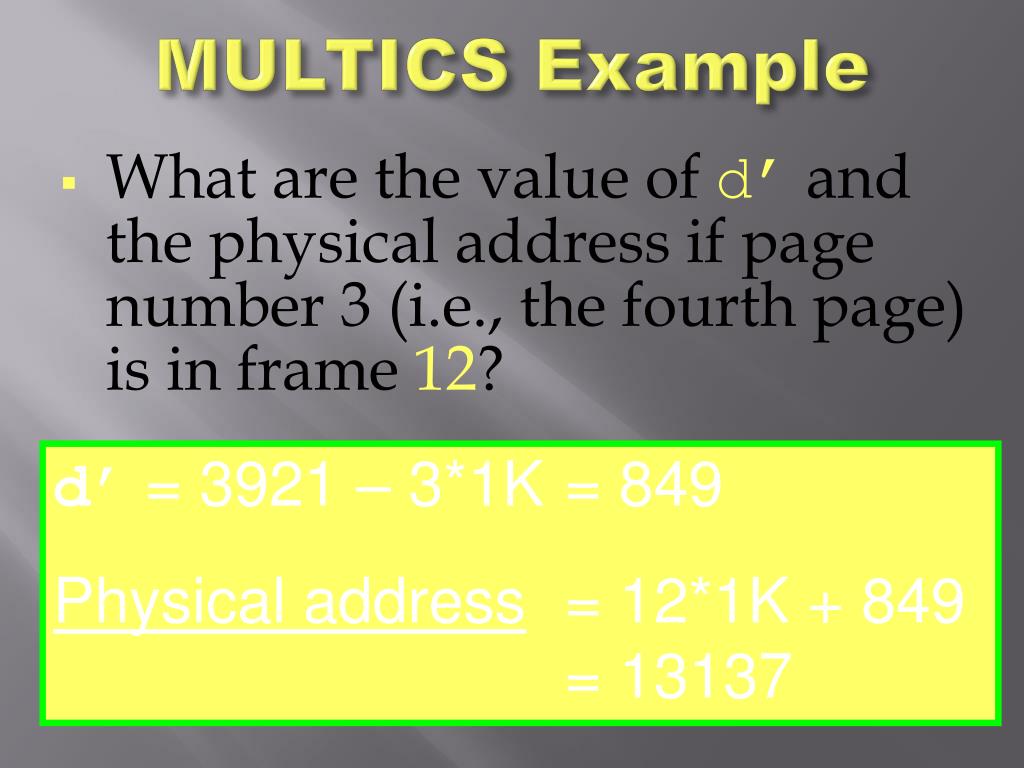

  • What are the value of d’ and the physical address if page number 3 (i.e., the fourth page) is in frame 12?

d’ = 3921 – 3*1K= 849

Physical address= 12*1K + 849 = 13137


Multics example6

MULTICS Example

15

3921

s

d

3

849

p

d’

0

1

2

3

4

12

page table for

segment 15


Multics example7

MULTICS Example

15 3921

3921

3 849

12

12 849

13137


Intel 80386 example

Intel 80386 Example

  • IBM OS/2, Microsoft Windows, and Linux

  • Paged segmentationwithtwo-level paging

  • Logical address = 48 bits

  • 16-bit selector and 32-bit offset

  • Page size = 4 KB


Intel 80386 example1

Intel 80386 Example

  • 4-byte page table entry

  • 32-entry TLB, covering 32*4K (128 KB) memory … TLB Reach


Intel 80386 example2

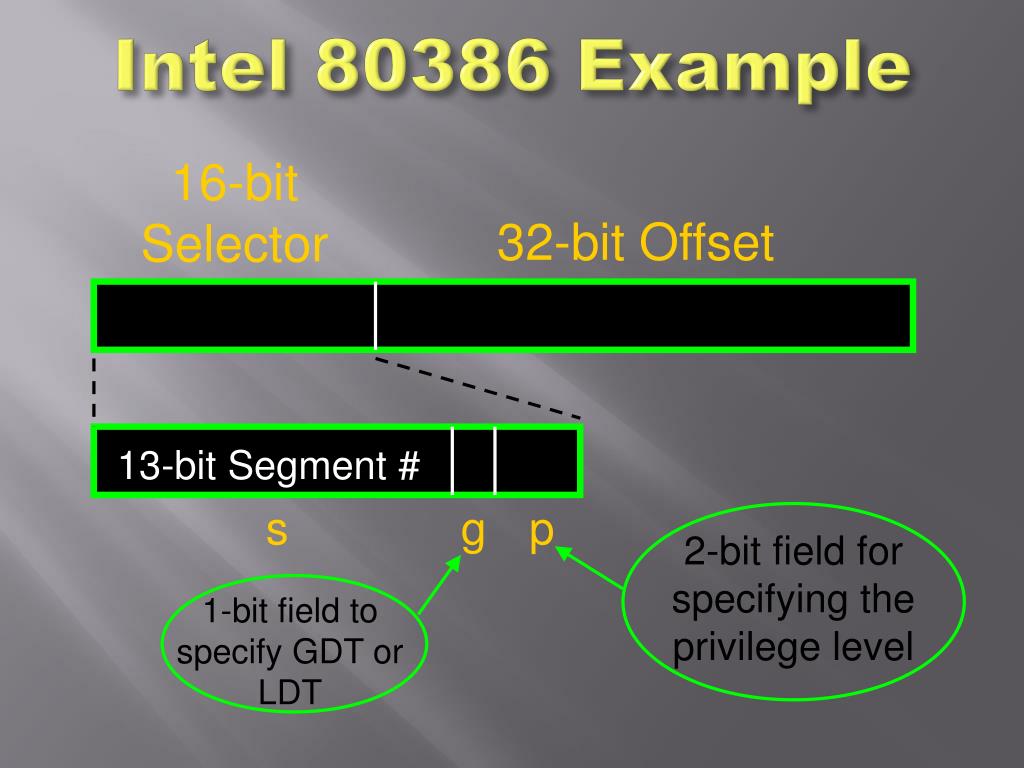

Intel 80386 Example

16-bit Selector

32-bit Offset

13-bit Segment #

s

g

p

2-bit field for specifying the privilege level

1-bit field to specify GDT or LDT


Intel 80386 example3

Intel 80386 Example

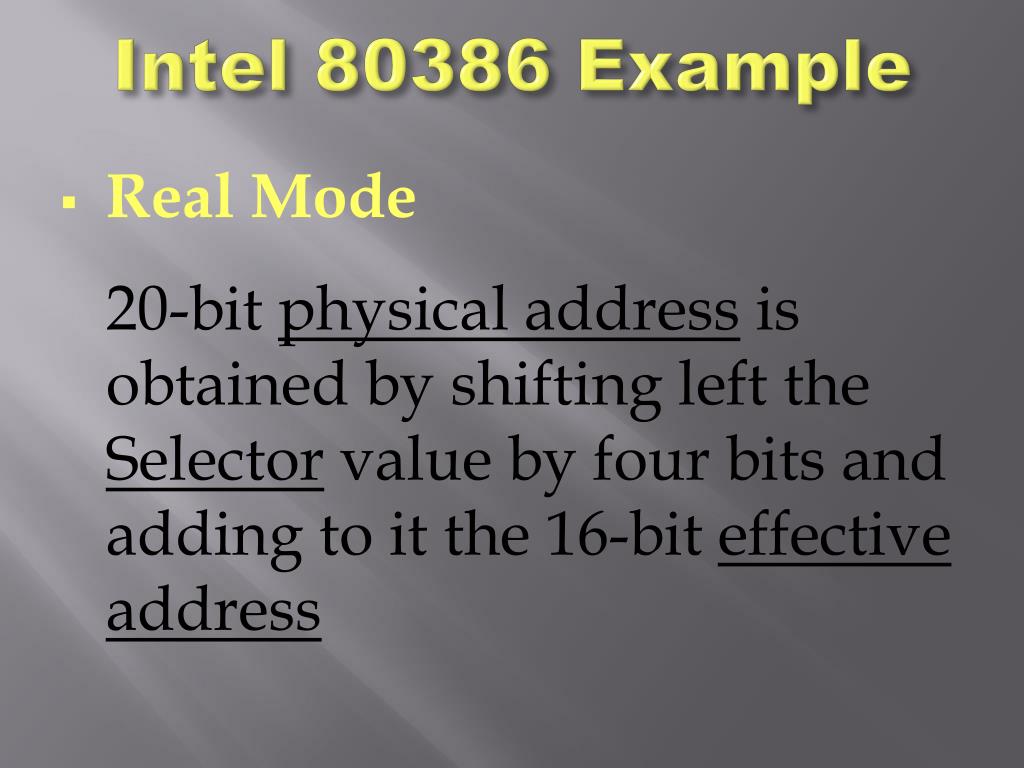

  • Real Mode

    20-bit physical address is obtained by shifting left the Selector value by four bits and adding to it the 16-bit effective address
