How To Operate 4 axis CNC Wood Router machine

Theu00a04 Axis Woodworking CNC Routeru00a0with Rotary Axis is equipped with a right rotation axis, multi-purpose and cost-effective, which has both flat plate carving and column engraving functions.It is mainly used for 3D engraving process, wave board processing, wooden door processing, solid wood furniture carving, solid wood art mural carving, etc.bw5f28sd

madelynn
Download Presentation

How To Operate 4 axis CNC Wood Router machine

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

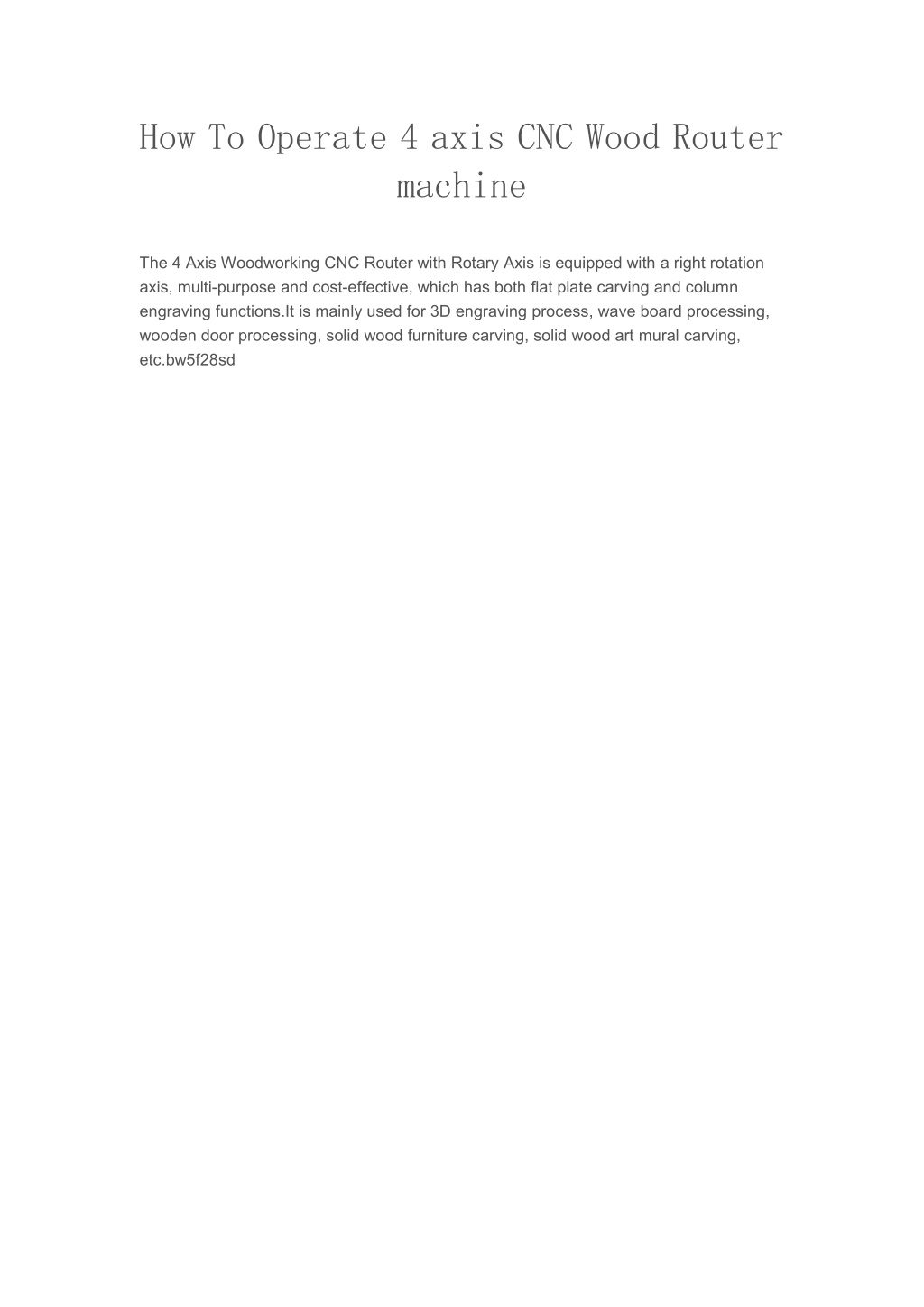

  1. How To Operate 4 axis CNC Wood Router machine The 4 Axis Woodworking CNC Router with Rotary Axis is equipped with a right rotation axis, multi-purpose and cost-effective, which has both flat plate carving and column engraving functions.It is mainly used for 3D engraving process, wave board processing, wooden door processing, solid wood furniture carving, solid wood art mural carving, etc.bw5f28sd

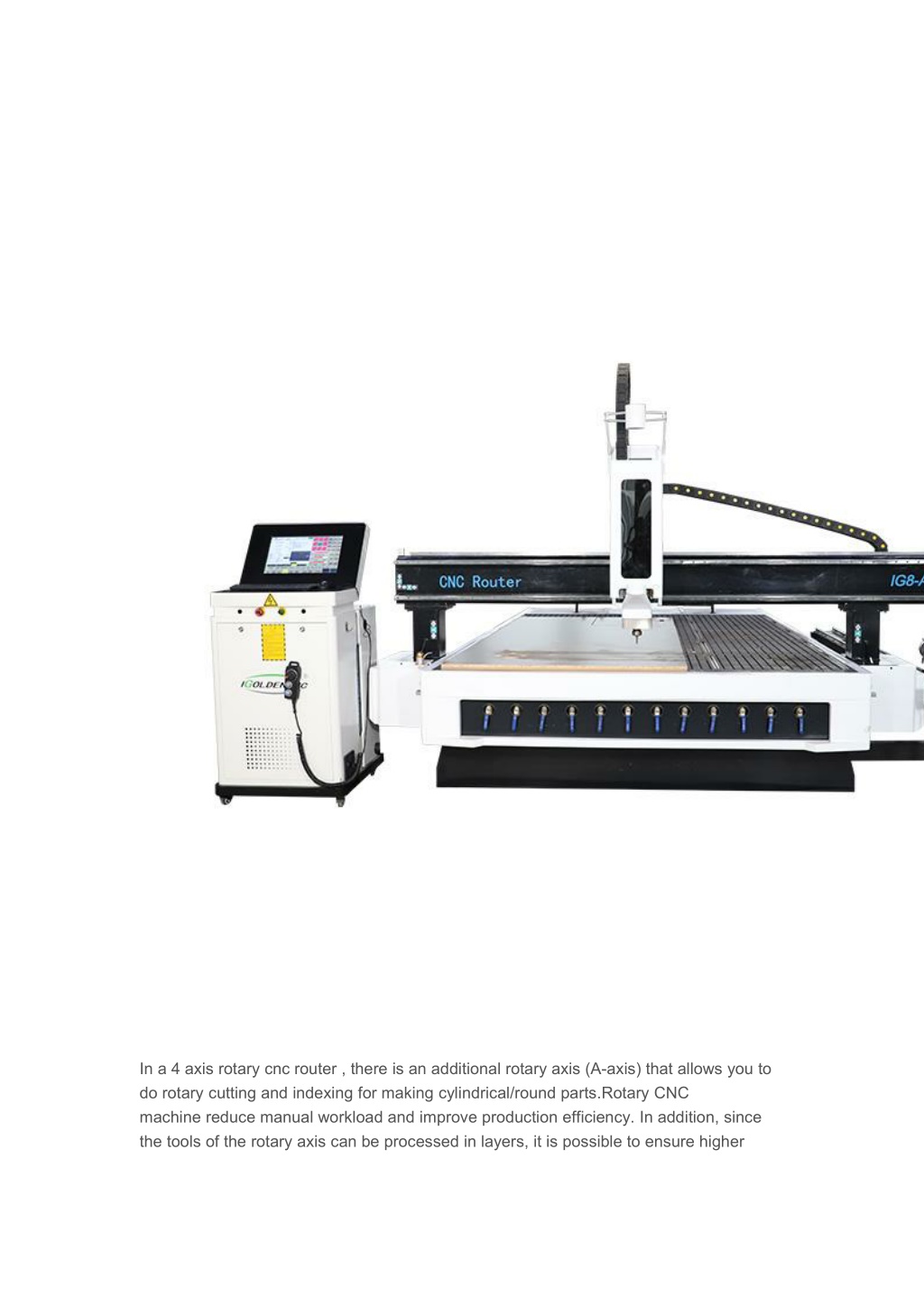

  2. In a 4 axis rotary cnc router , there is an additional rotary axis (A-axis) that allows you to do rotary cutting and indexing for making cylindrical/round parts.Rotary CNC machine reduce manual workload and improve production efficiency. In addition, since the tools of the rotary axis can be processed in layers, it is possible to ensure higher

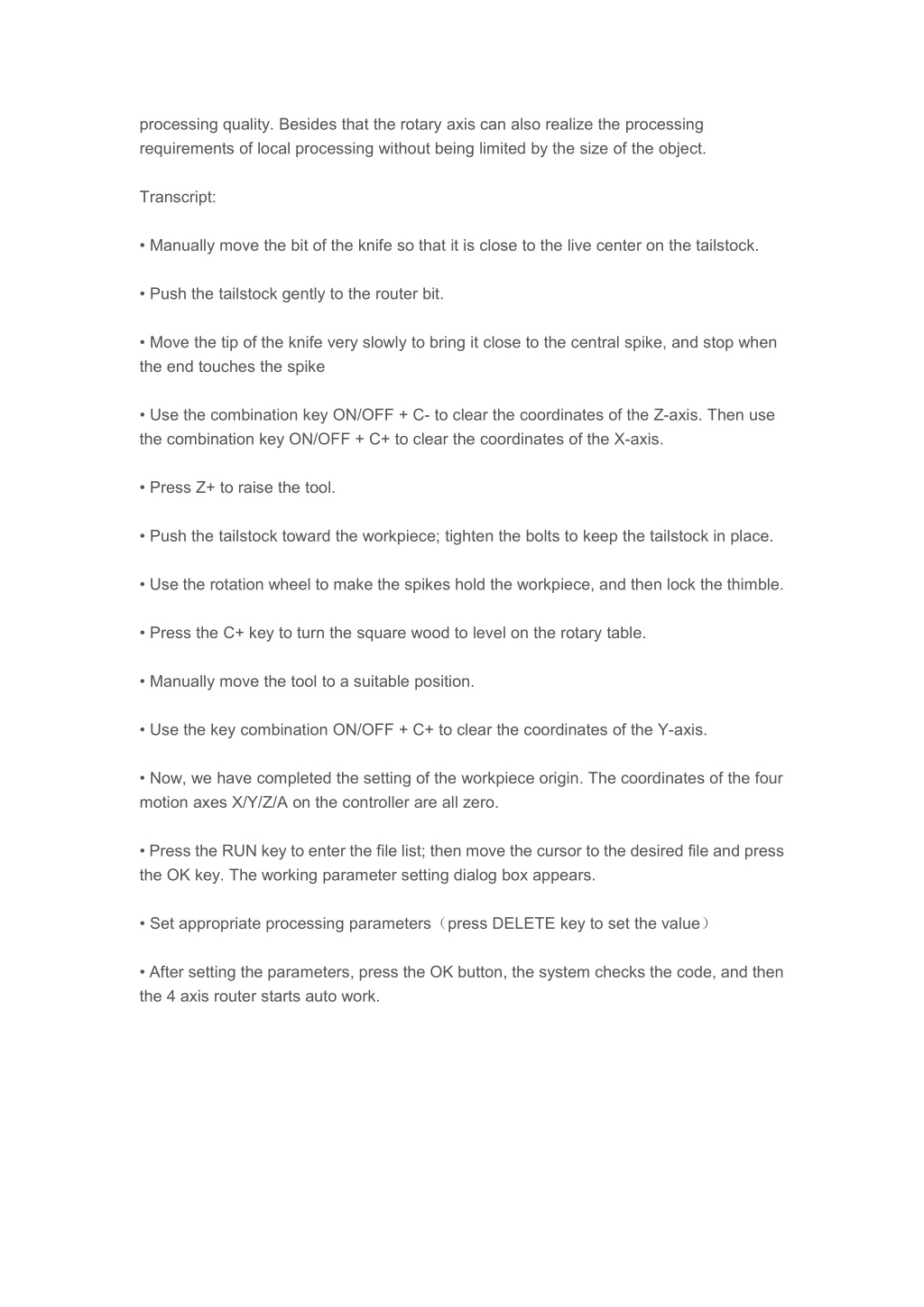

  3. processing quality. Besides that the rotary axis can also realize the processing requirements of local processing without being limited by the size of the object. Transcript: • Manually move the bit of the knife so that it is close to the live center on the tailstock. • Push the tailstock gently to the router bit. • Move the tip of the knife very slowly to bring it close to the central spike, and stop when the end touches the spike • Use the combination key ON/OFF + C- to clear the coordinates of the Z-axis. Then use the combination key ON/OFF + C+ to clear the coordinates of the X-axis. • Press Z+ to raise the tool. • Push the tailstock toward the workpiece; tighten the bolts to keep the tailstock in place. • Use the rotation wheel to make the spikes hold the workpiece, and then lock the thimble. • Press the C+ key to turn the square wood to level on the rotary table. • Manually move the tool to a suitable position. • Use the key combination ON/OFF + C+ to clear the coordinates of the Y-axis. • Now, we have completed the setting of the workpiece origin. The coordinates of the four motion axes X/Y/Z/A on the controller are all zero. • Press the RUN key to enter the file list; then move the cursor to the desired file and press the OK key. The working parameter setting dialog box appears. • Set appropriate processing parameters（press DELETE key to set the value） • After setting the parameters, press the OK button, the system checks the code, and then the 4 axis router starts auto work.

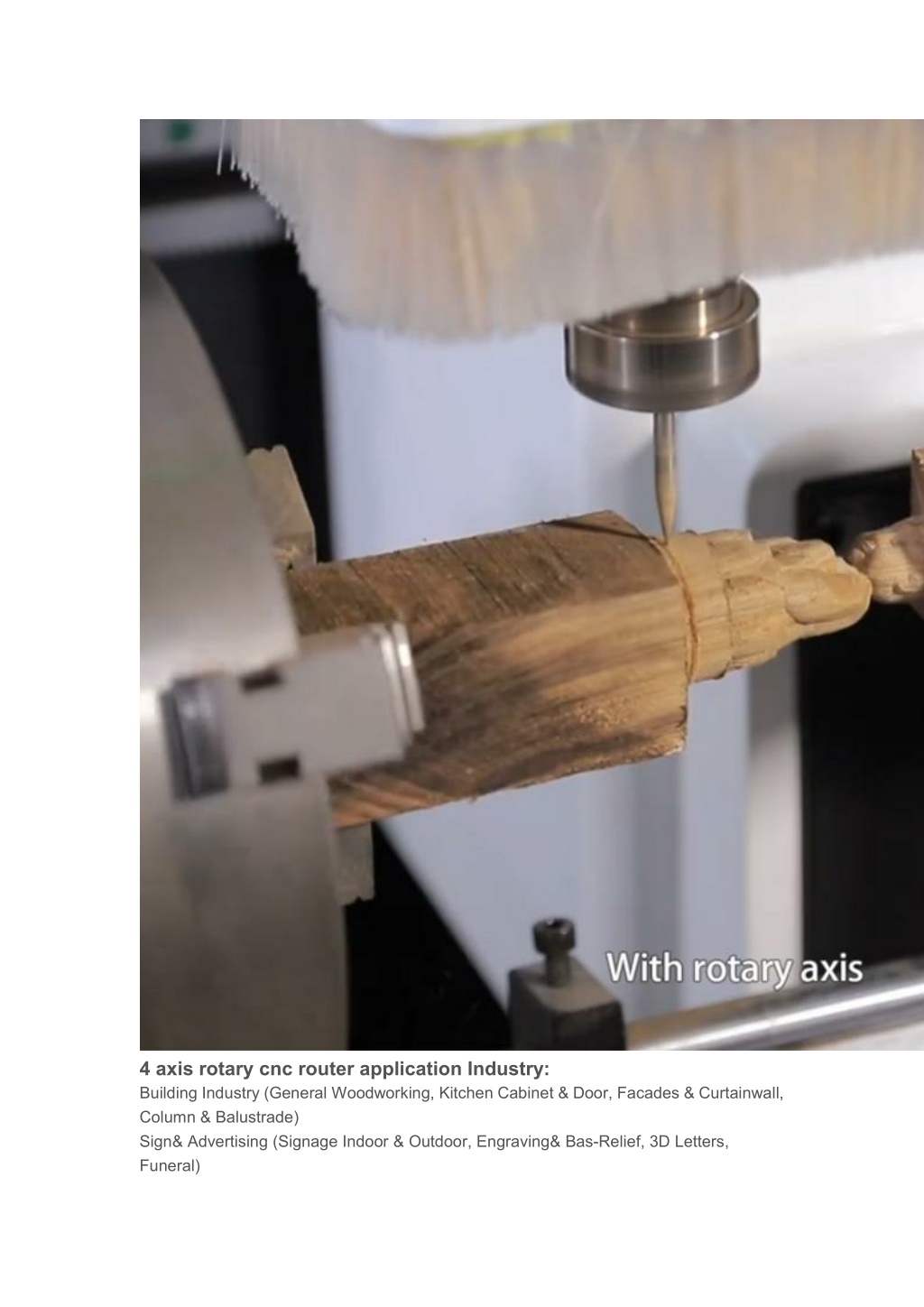

  4. 4 axis rotary cnc router application Industry: Building Industry (General Woodworking, Kitchen Cabinet & Door, Facades & Curtainwall, Column & Balustrade) Sign& Advertising (Signage Indoor & Outdoor, Engraving& Bas-Relief, 3D Letters, Funeral)

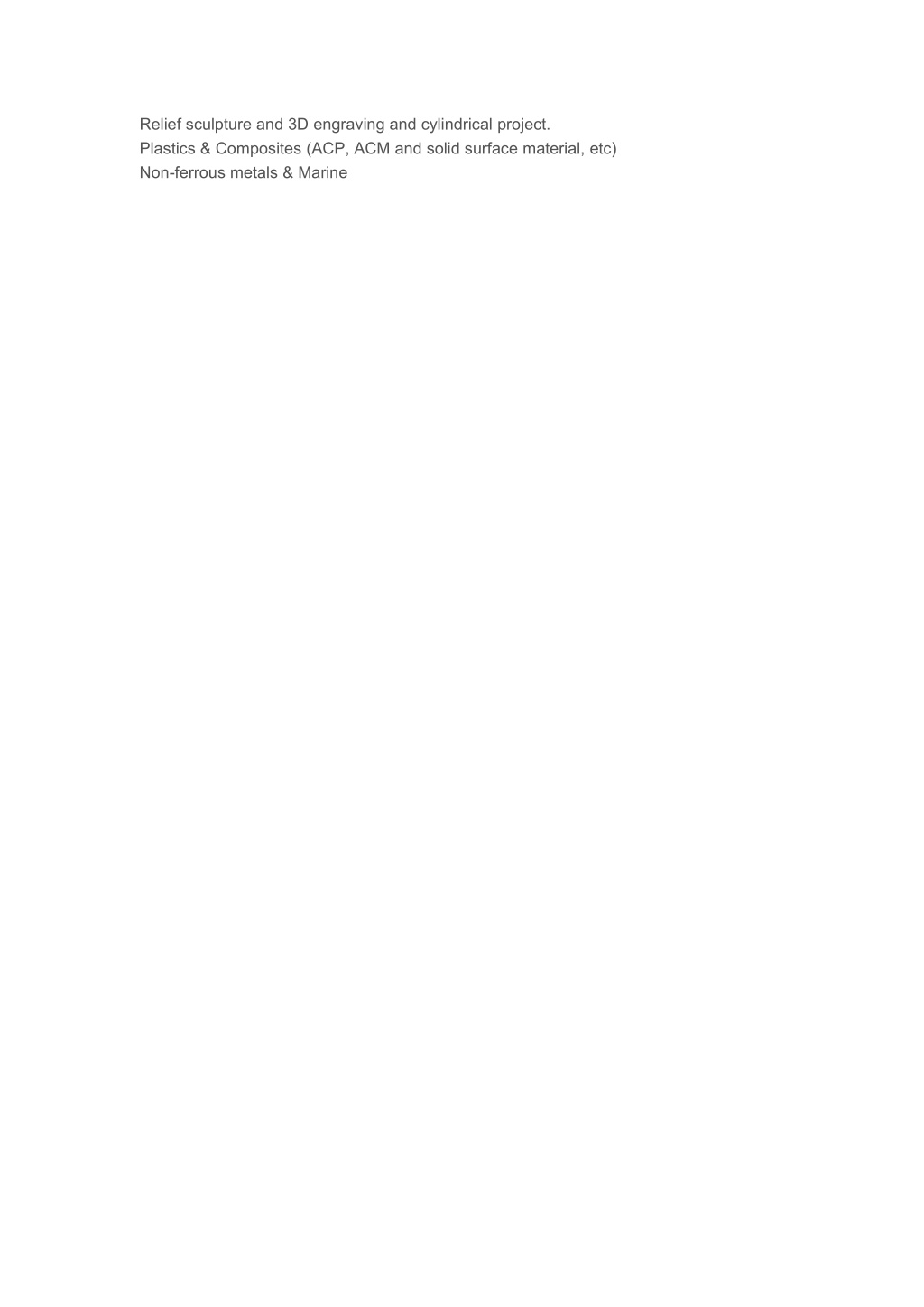

  5. Relief sculpture and 3D engraving and cylindrical project. Plastics & Composites (ACP, ACM and solid surface material, etc) Non-ferrous metals & Marine
