Puget Sound EnergyColumbia Grid Presentation

August 15, 2007

John Phillips


Pse strategy l.jpg

PSE Strategy

  • Meet service obligations

  • Follow best practices for reliable, cost efficient system

  • Work collaboratively with stakeholders

  • Consider all alternatives (single utility)


Areas of concern l.jpg

Areas of Concern

  • Transmission capacity for Whatcom and Skagit Counties

  • King County capacity

  • Cross Cascade capacity

  • Transmission capacity for Pierce and Thurston Counties


Slide4 l.jpg

Winter/Spring Power Flow

Monroe – Echo Lake

BPA’s 500 kV


Slide5 l.jpg

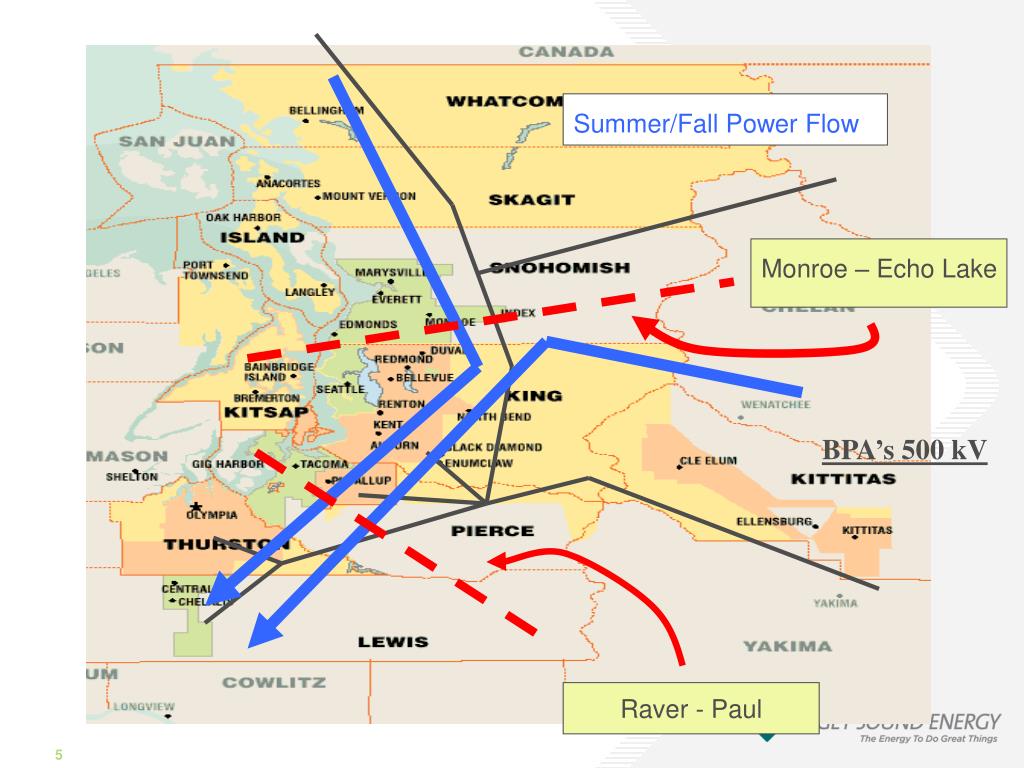

Summer/Fall Power Flow

Monroe – Echo Lake

BPA’s 500 kV

Raver - Paul


Whatcom skagit counties l.jpg

Whatcom/Skagit Counties

  • South of Sedro Cut Plane operational limits

    • Can be limiting S-N and N-S with single 230kV line outages

  • New service needs

    • New resources being proposed in US and Canada

    • Changing generation and industrial loads

  • BPA and Snohomish in parallel


Identified alternatives l.jpg

Identified Alternatives

  • Sedro-Horse Ranch #2 230kV line

    • Rebuild 30 miles of existing 115kV

    • Utilizes existing ROW

    • Adds third 230kV line across South of Sedro Cutplane


King county l.jpg

King County

  • Monroe-Echo Lake Cutplane

    • BPA internal cutplane

    • Operational limitations

    • Highest PSE load density

  • North of Covington

    • Operational limitations

    • Growing load service needs

  • BPA, SCL, and Snohomish in parallel


Monroe echo lake alternative l.jpg

Monroe-Echo Lake Alternative

  • Sammamish-Lakeside-Talbot 230kV line

    • Rebuild 16 miles of existing 115kV

    • Utilize existing ROW

    • Adds fourth 230kV line across Monroe-Echo Lake

    • Provide load service to North King County


North of covington l.jpg

North of Covington

  • Covington-Berrydale 230kV project scheduled for 2008

  • Relieves operational limits north of Covington

  • Provides loop feed to PSE loads at Berrydale and Talbot


Cross cascades l.jpg

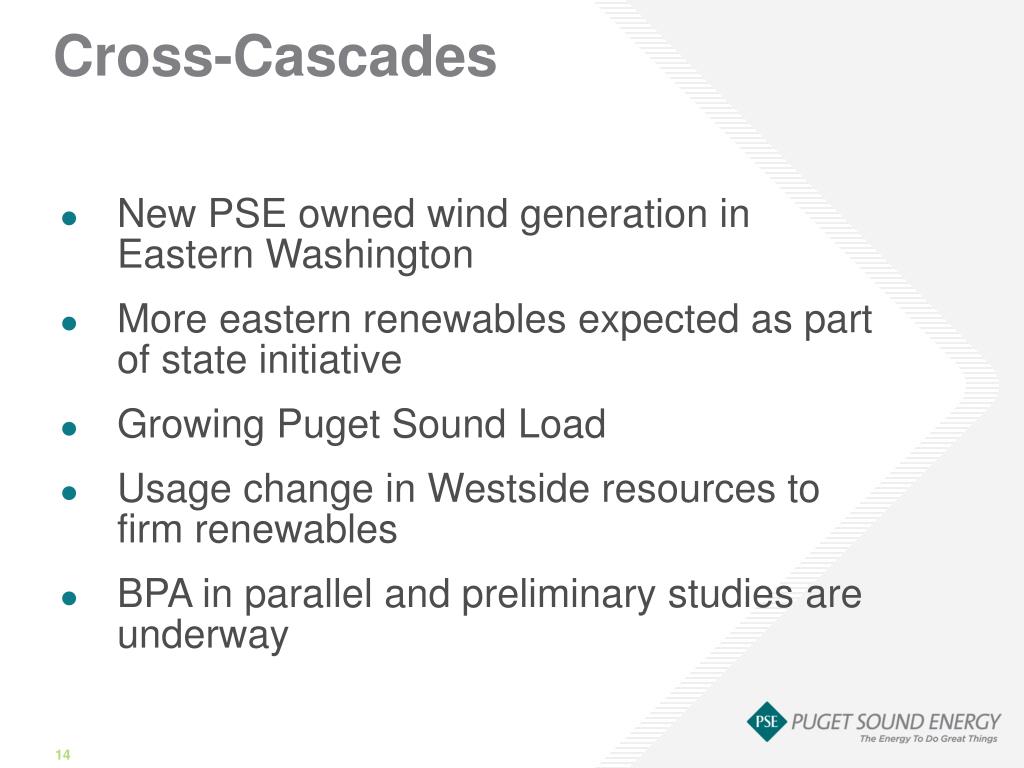

Cross-Cascades

  • New PSE owned wind generation in Eastern Washington

  • More eastern renewables expected as part of state initiative

  • Growing Puget Sound Load

  • Usage change in Westside resources to firm renewables

  • BPA in parallel and preliminary studies are underway


Identified pse alternative l.jpg

Identified PSE Alternative

  • Conversion of I.P. 115kV line to 230kV

    • Adds new 230kV line across Cascades

    • Directly connects to wind resources

    • Improves load service to Kittitas County

    • Mostly on existing R.O.W.


Pierce and thurston counties l.jpg

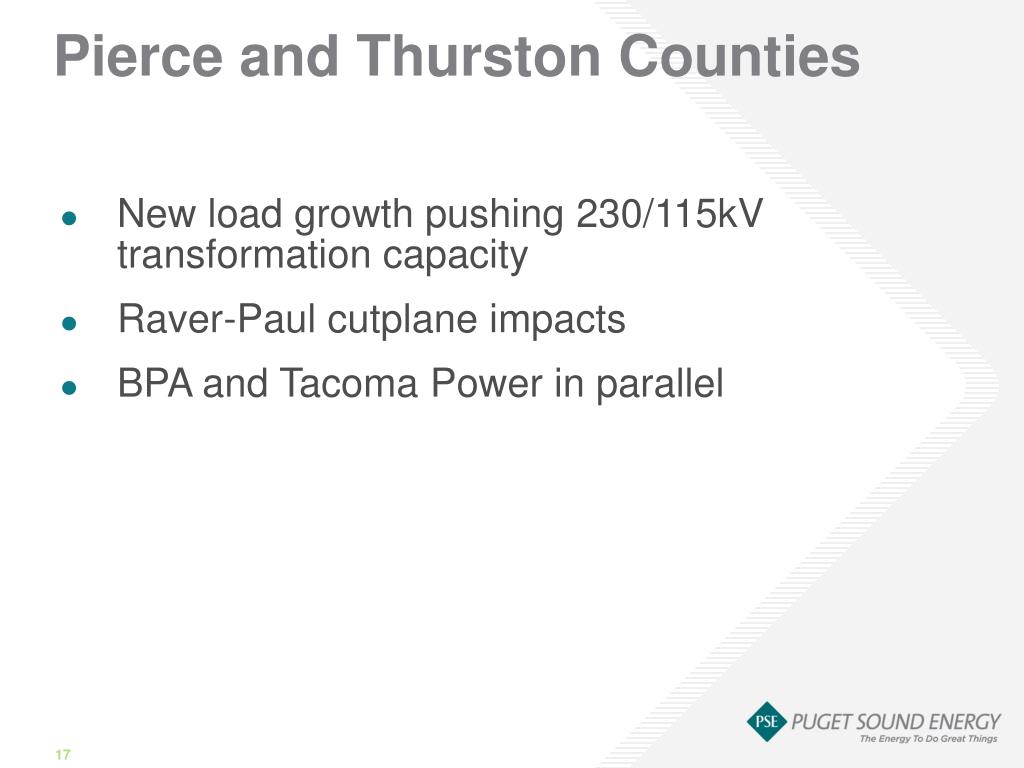

Pierce and Thurston Counties

  • New load growth pushing 230/115kV transformation capacity

  • Raver-Paul cutplane impacts

  • BPA and Tacoma Power in parallel


Pierce county alternative l.jpg

Pierce County Alternative

  • Add 230/115kV transformer at Alderton Substation

  • 230kV source from White River or BPA

    • Interconnection studies initiated with BPA

  • Provides load service to south King & Pierce Counties

  • Relieves Raver-Paul 115kV constraints north of Alderton


Thurston county alternative l.jpg

Thurston County Alternative

  • Add 230/115kV transformer at Saint Clair or Spurgeon Creek (pending site adequacy review)

  • 230kV source from BPA

    • Interconnection studies being initiated with BPA

  • Provides load service to south Thurston County

  • Relieves BPA Olympia and Tono loading


Additional 115kv projects l.jpg

Additional 115kV Projects

  • Reconductor Bellingham-Sedro Woolley 115kV lines

    • Ties between Whatcom and Skagit Counties

    • 4/0 CU to 1272 Bittern

  • Novelty 230/115kV transformer

    • Load service to north King County

  • Woodland-St Clair 115kV project

    • Adds 3rd 115kV line between Pierce and Thurston Counties. (contingent on Timing of 230 kV projects)


Slide23 l.jpg

Northern Intertie: S-N All lines In Service – 35F

Constraints: Whatcom/Skagit & South of Sedro


Slide24 l.jpg

Northern Intertie: S-N Echo Lake - Maple Valley Out of Service – 35F

Constraints: North of Covington


Slide25 l.jpg

Northern Intertie: N-S All lines In Service – 85F

Constraints: Whatcom/Skagit and South of Sedro


Slide26 l.jpg

Northern Intertie: 7/25-8/08 N-S 1-500kV and 3-230kV lines Out of Service – 85F

Constraints: Primarily Monroe-Echo Lake
