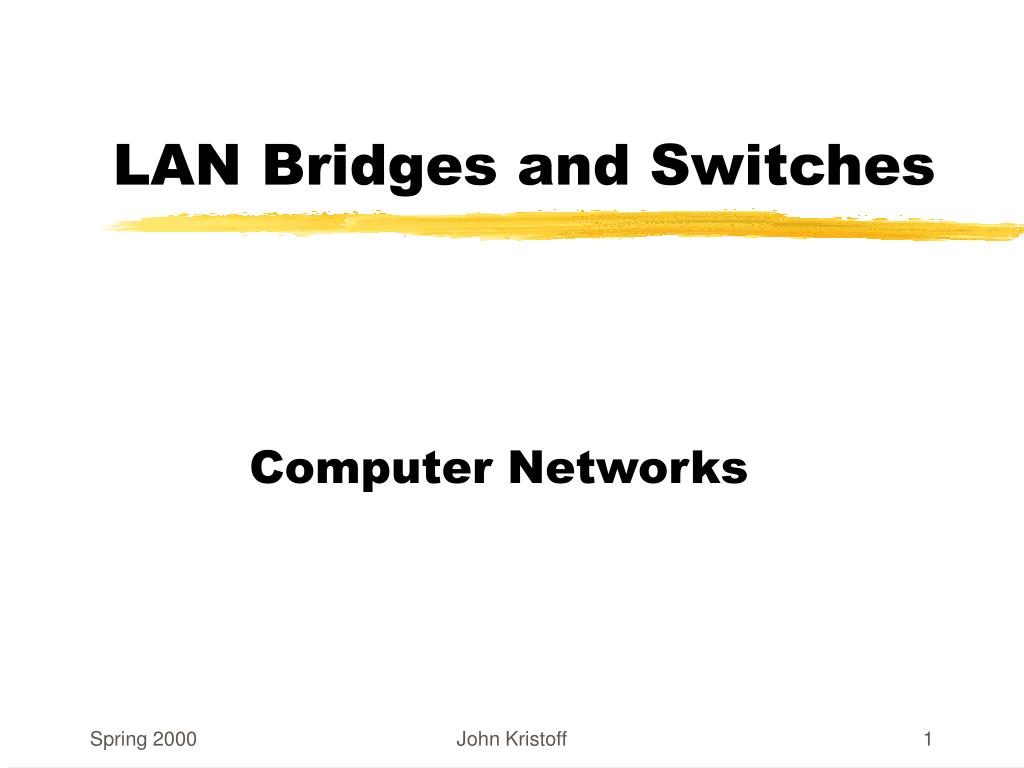

1. LAN Bridges and Switches Computer Networks John Kristoff

2. Where are we? John Kristoff

3. Recall • LANs have physical distance limitations • Performance suffers when LAN utilization increases • Separate LANs may eventually want to connect to each other John Kristoff

4. Motivation • Users require arbitrary distance connections • Example: 2 computers across a corporate campus are part of one workgroup • May not want to forward all transmissions to all workgroups for performance or security reasons • May want to avoid a single point of failure (redundancy/reliability) The books: Interconnections - Radia Perlman, The Switch Book - Rich Seifert John Kristoff

5. LAN Bridges/Switches • A hardware device with minimal software • Connects 2 or more similar LANs together • Forwards frames between connected LANs • Does not forward collisions, noise, beacons, etc. • Examines data link layer information • Allows each LAN to operate independently John Kristoff

6. Bridge/Switch Operation • Listen to all LANs in promiscuous mode • Only move frames between LANs if necessary • Only act on layer 1/2 information John Kristoff

7. Connections John Kristoff

8. Transparent Bridging Illustrated John Kristoff

9. Transparent Bridging Rules • 1. Watch all frames on each LAN • 2. For each frame, store the source address in a cache along with the associated LAN the frame arrived on (bridge table) • 3. For each frame, the cache is queried for the destination address • a. If found, the frame is forwarded to the LAN associated with the address, unless its the LAN the frame arrived on (filtered) • b. If not found, the frame is forwarded to all LAN interfaces except the one on which the frame arrive (flooding) • Transparent bridges make all the forwarding decisions, end stations don’t even know the bridge is there! John Kristoff

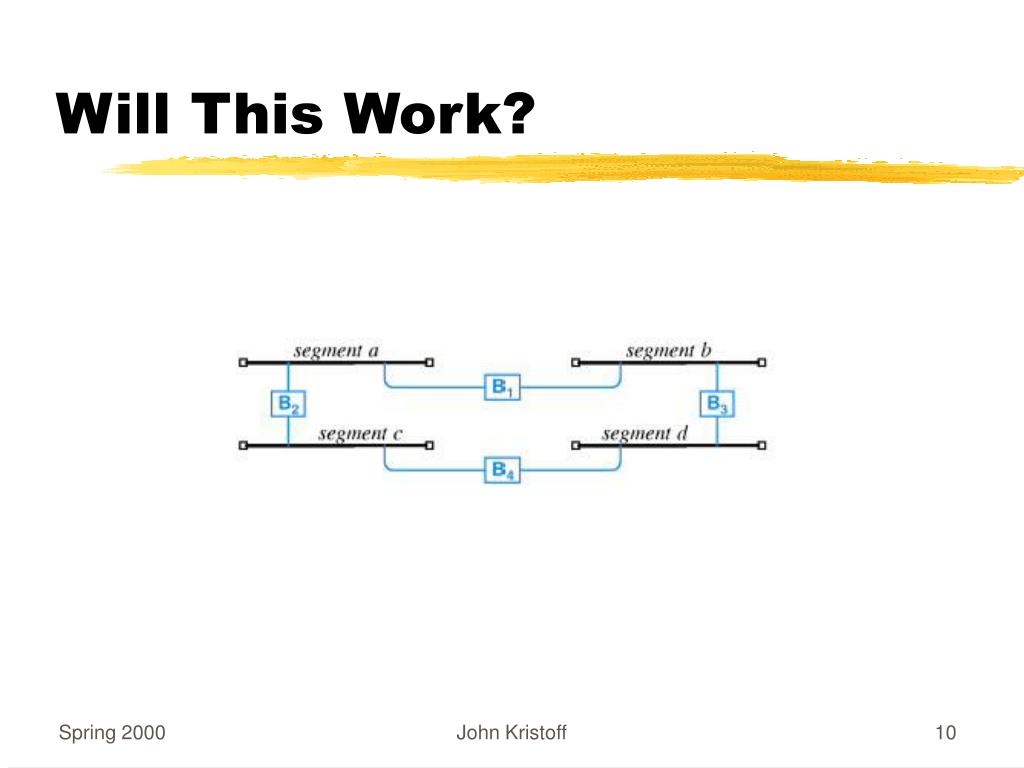

10. Will This Work? John Kristoff

11. Introducing Spanning Tree • Allow a path between every LAN without causing loops (loop-free environment) • Bridges communicate with special configuration messages (BPDUs) • Standardized by IEEE 802.1d Note: redundant paths are good, active redundant paths are bad (they cause loops) John Kristoff

12. Spanning Tree Requirements • Each bridge is assigned a unique identifier • Consists of the MAC address and a priority • A group address for bridges on a LAN • A unique port identifier for all ports on all bridges John Kristoff

13. Spanning Tree Concepts: Root Bridge • The bridge with the lowest bridge ID value is elected the root bridge • One root bridge chosen among all bridges • Every other bridge calculates a path to this root bridge John Kristoff

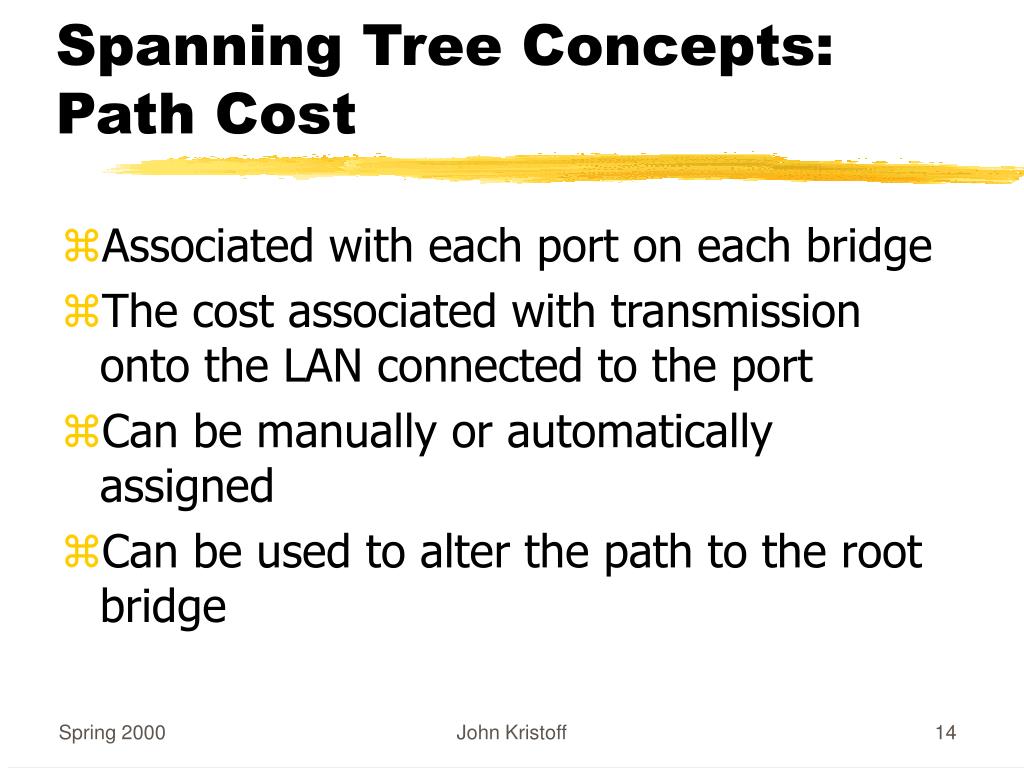

14. Spanning Tree Concepts:Path Cost • Associated with each port on each bridge • The cost associated with transmission onto the LAN connected to the port • Can be manually or automatically assigned • Can be used to alter the path to the root bridge John Kristoff

15. Spanning Tree Concepts:Root Port • The port on each bridge that is on the path towards the root bridge • The root port is part of the lowest cost path towards the root bridge • If port costs are equal on a bridge, the port with the lowest ID becomes root port John Kristoff

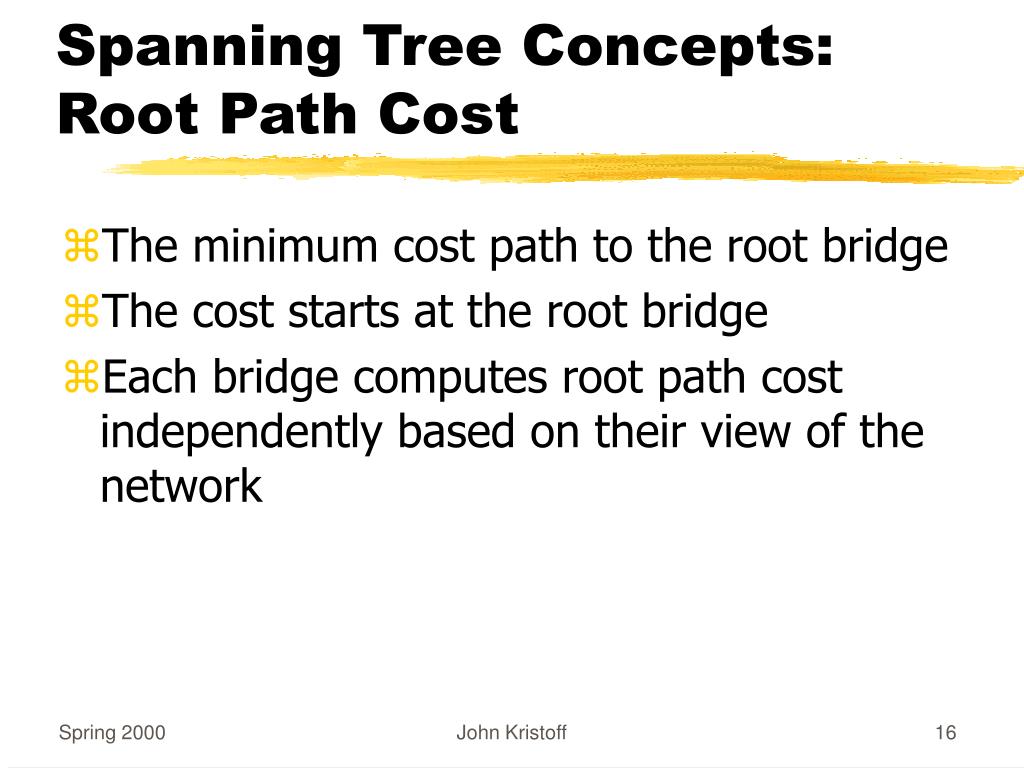

16. Spanning Tree Concepts:Root Path Cost • The minimum cost path to the root bridge • The cost starts at the root bridge • Each bridge computes root path cost independently based on their view of the network John Kristoff

17. Spanning Tree Concepts: Designated Bridge • Only one bridge on a LAN at one time is chosen the designated bridge • This bridge provides the minimum cost path to the root bridge for the LAN • Only the designated bridge passes frames towards the root bridge John Kristoff

18. Spanning Tree Concepts:Illustrated John Kristoff

19. Spanning Tree Concepts:Illustrated [continued] John Kristoff

20. Spanning Tree Algorithm:An Overview • 1. Determine the root bridge among all bridges • 2. Each bridge determines its root port • The port in the direction of the root bridge • 3. Determine the designated port on each LAN • The port which accepts frames to forward towards the root bridge John Kristoff

21. Spanning Tree Algorithm:Selecting Root Bridge • 1. Initially, each bridge considers itself to be the root bridge • 2. Bridges send BDPU frames to its attached LANs • a. The bridge and port ID of the sending bridge • b. The bridge and port ID of the bridge the sending bridge considers root • c. The root path cost for the sending bridge • 3. Best one wins (lowest ID/cost/priority) John Kristoff

22. Spanning Tree Algorithm:Selecting Root Ports • Each bridge selects one of its ports which has the minimal cost to the root bridge • In case of a tie, the lowest uplink (transmitter) bridge ID is used • In case of another tie, the lowest port ID is used John Kristoff

23. Spanning Tree Algorithm:Select Designated Bridges • 1. Initially, each bridge considers itself to be the designated bridge • 2. Bridges send BDPU frames to its attached LANs • a. The bridge and port ID of the sending bridge • b. The bridge and port ID of the bridge the sending bridge considers root • c. The root path cost for the sending bridge • 3. Best one wins (lowest ID/cost/priority) John Kristoff

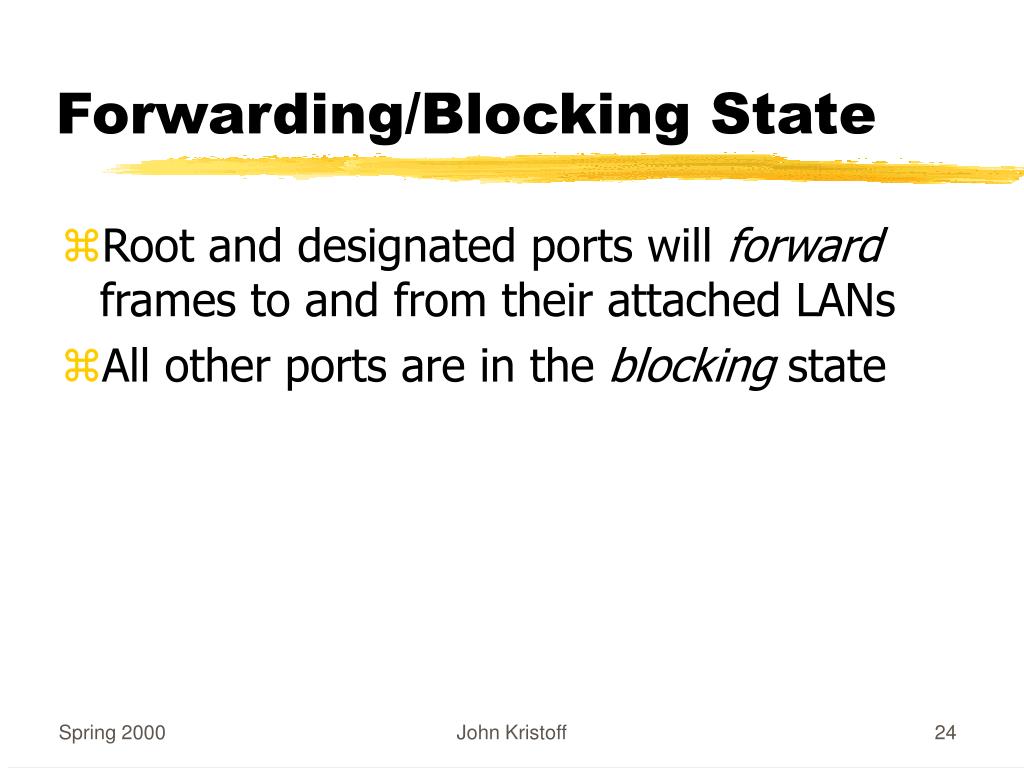

24. Forwarding/Blocking State • Root and designated ports will forward frames to and from their attached LANs • All other ports are in the blocking state John Kristoff

25. Configuration Messages John Kristoff

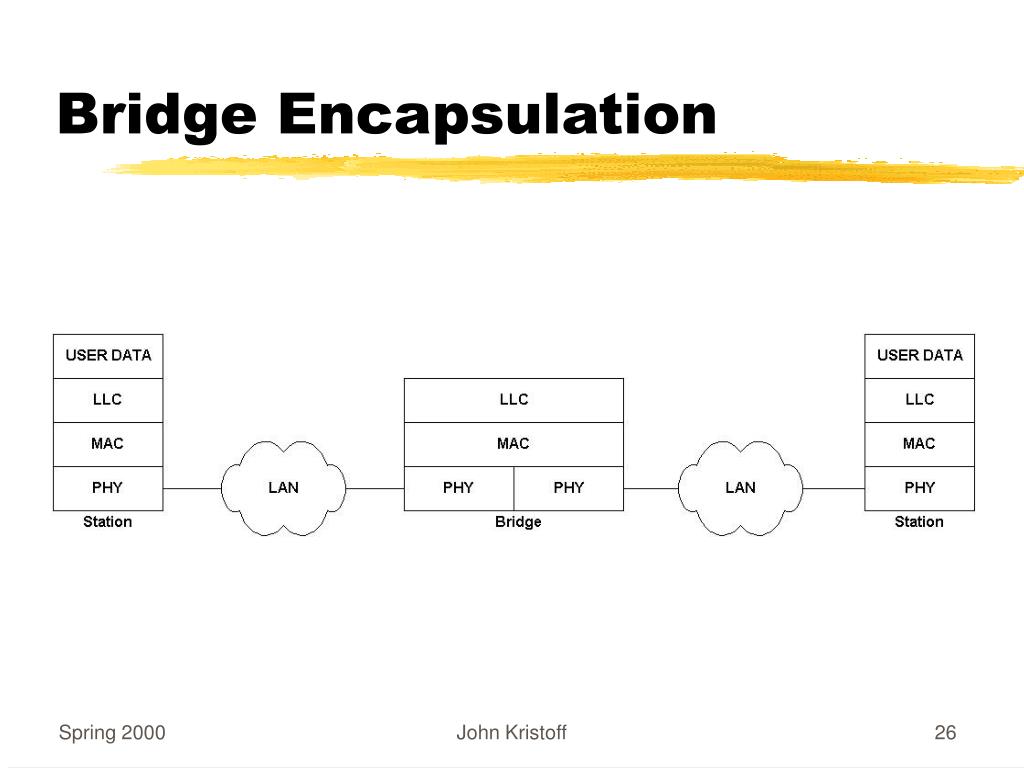

26. Bridge Encapsulation John Kristoff

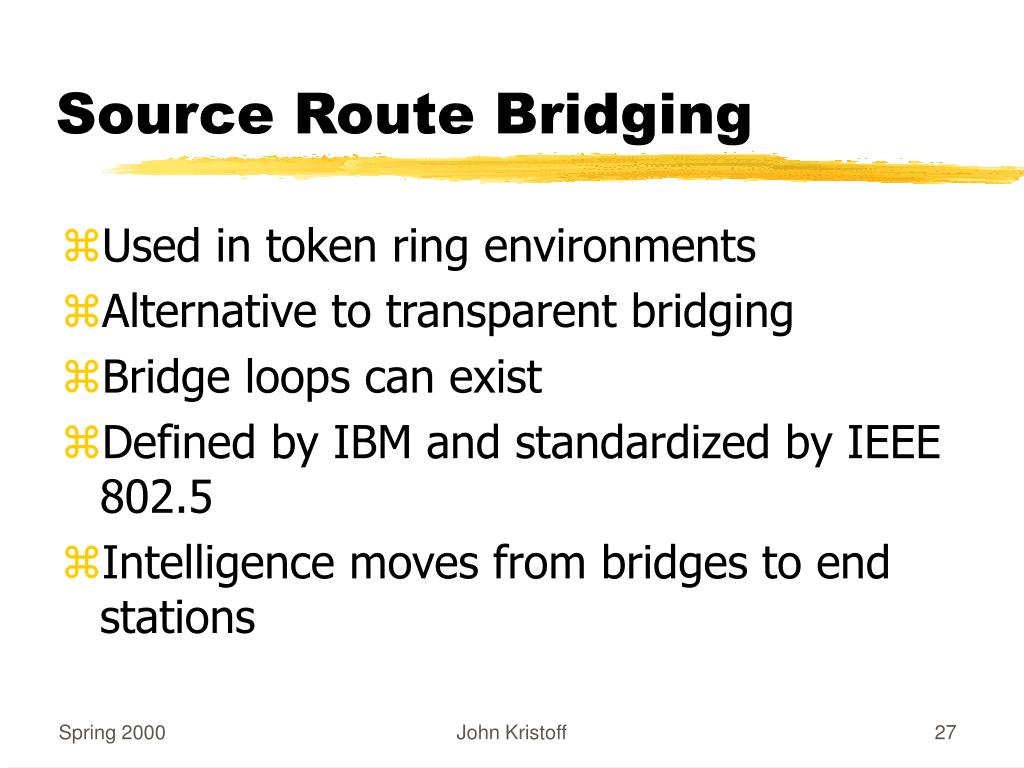

27. Source Route Bridging • Used in token ring environments • Alternative to transparent bridging • Bridge loops can exist • Defined by IBM and standardized by IEEE 802.5 • Intelligence moves from bridges to end stations John Kristoff

28. Source Routing Bridging John Kristoff

29. Source Route Destinations • Null - destination on the same LAN • Non-broadcast - includes a route to destination • All routes broadcast - flooded to each LAN, bridges record route along the way • Single route broadcast - only one frame per LAN, spanning tree used John Kristoff

30. Route Discovery • Transmit “all-route” broadcast to destination • Destination sends non-broadcast response to the first frame received (using that route) • Transmit “single-route” broadcast to destination • Destination sends back an all-route broadcast response • Sender picks the first response received from destination Routes can also be manually configured on stations John Kristoff

31. Source Route Discovery:Illustrated John Kristoff

32. Routing Information Field • If bit 0 of byte 0 in the source address is set to 1, then this frame is a source routed frame John Kristoff

33. Bridge Filters • Useful for controlling LAN traffic • Examines data link layer information • Examples • Do not forward frames from MAC address X • Do not forward Ethernet frames of type X • Do not forward broadcast frames from X • Limit source route hops to 6 John Kristoff

34. Switches • Physically similar to hubs • Logically similar to bridges • Takes advantage of improvements in ASIC technology • Permits full duplex operation • Quickly replacing hub/bridge technology • The name switch is a marketing gimmick John Kristoff

35. Inside a Switch • Conceptual operation • One LAN segment per host • Bridge interconnects each host/segment John Kristoff

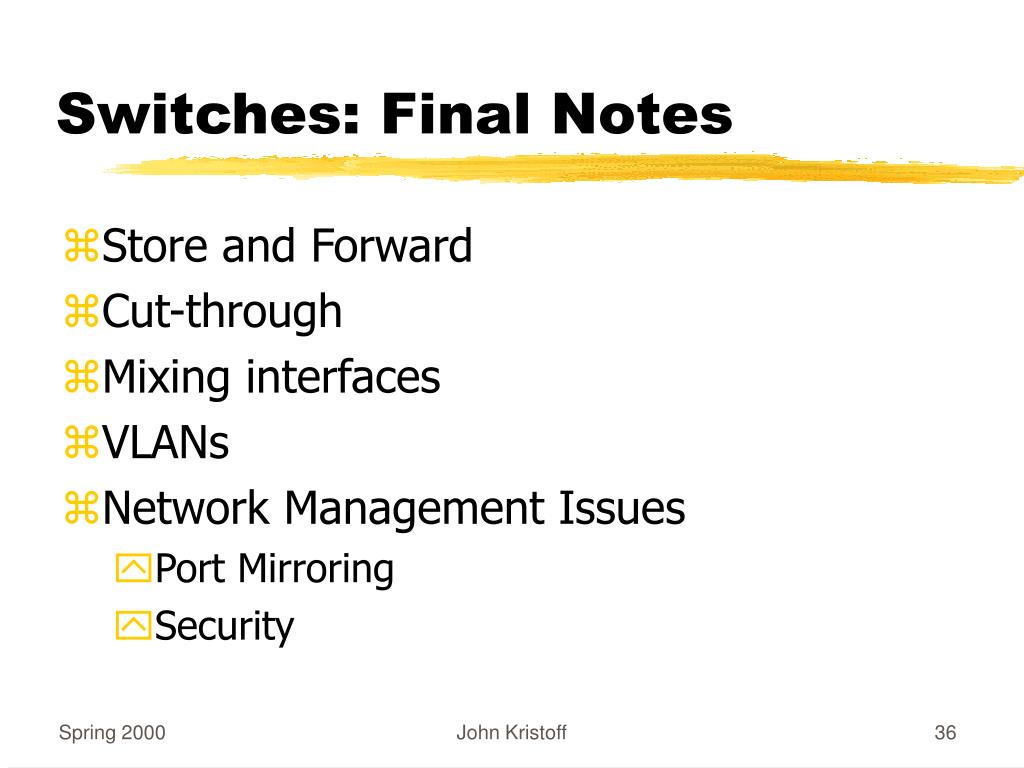

36. Switches: Final Notes • Store and Forward • Cut-through • Mixing interfaces • VLANs • Network Management Issues • Port Mirroring • Security John Kristoff

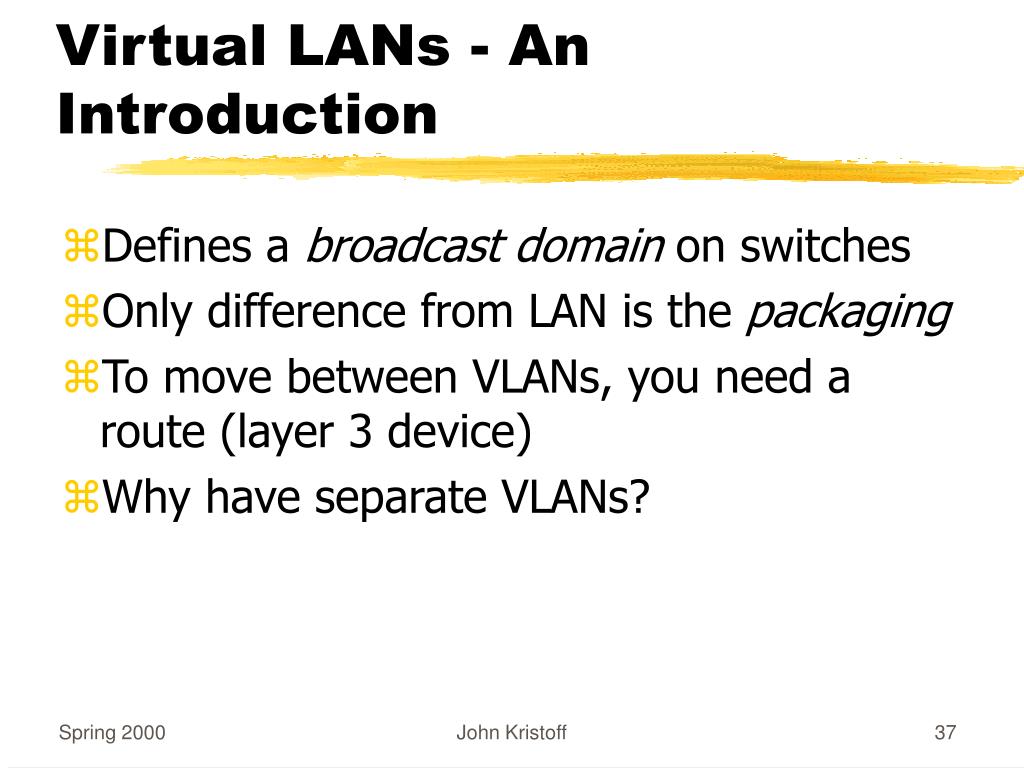

37. Virtual LANs - An Introduction • Defines a broadcast domain on switches • Only difference from LAN is the packaging • To move between VLANs, you need a route (layer 3 device) • Why have separate VLANs? John Kristoff

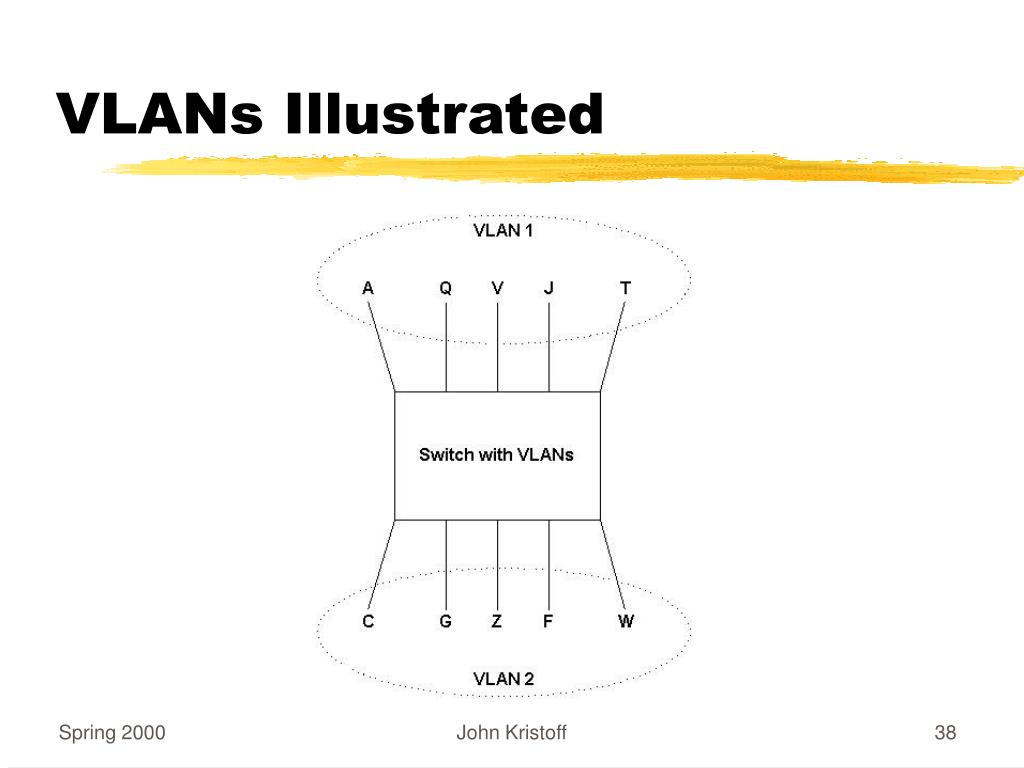

38. VLANs Illustrated John Kristoff
