  1. Architectural Drawing Views Unit 4

  2. Architectural Drawings • Types of Views • Plan Views • Elevation Views • Section Views • Detail Views

  3. Plan Views • Views taken from the top of the imaginary glass box. (Floor plan) • The floor plan is a simplified drawing that shows the size and arrangement of rooms, hallways, doors, windows, and storage areas on one floor of a home. • Square Footage is often used when discussing plan views. • A measurement of a house size that refers to the amount of living space in the home

  4. Elevation Views • Shows the finished exterior appearance of a given side of the house. • Includes: height dimensions

  5. Section Views and Detailed Views • Used to show individual structural parts of the house and how they fit together • Section View: imaginary cut through a part of the house, like a wall. • Detail View: usually an enlargement of some construction feature, like a room.

  6. Renderings and Models • Rendering: presentation drawing--usually with color, texture, and shadows—that shows a realistic view of the completed house. • Model: 3D miniature of a design.

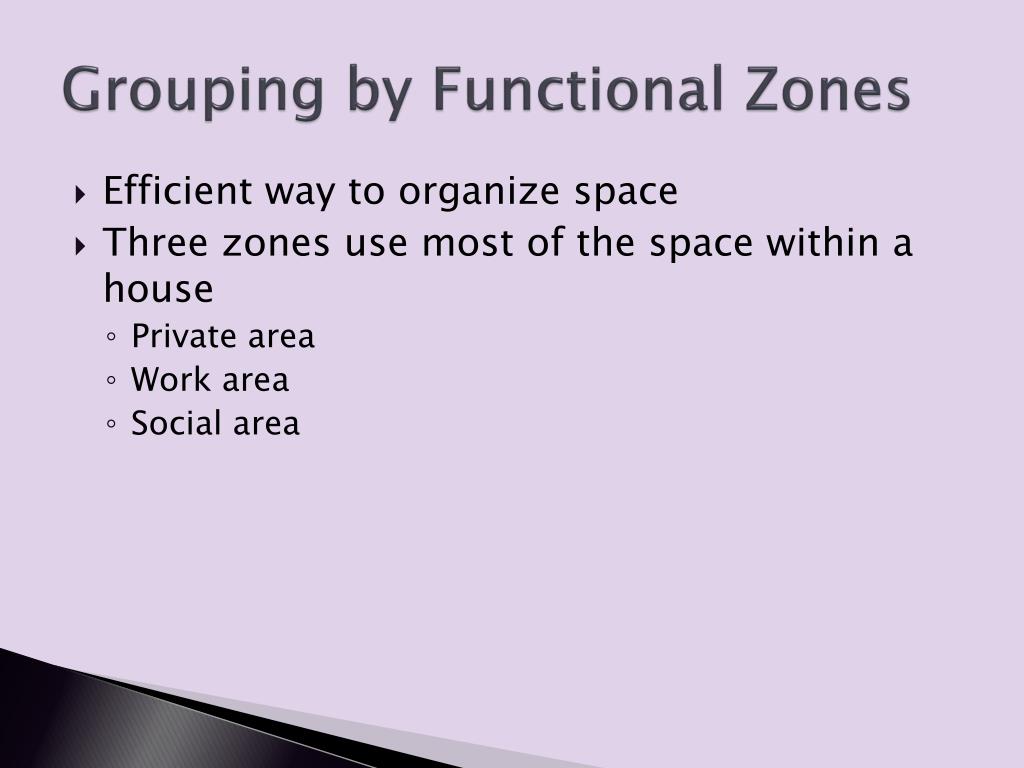

  7. Grouping by Functional Zones • Efficient way to organize space • Three zones use most of the space within a house • Private area • Work area • Social area

  8. Private Area • Bedrooms and Bathrooms • The goal for private areas is to ensure the comfort of each person and put his or her spatial needs ahead of group needs.

  9. The Work Area • All parts of the house needed to maintain and service the other areas. • Kitchen, laundry, utility room, garage, workshop, home office, or sewing room. • Knowing who will use the space will determine where you want to put it.

  10. The Kitchen Work Area • Work Triangle • Food Preparation and storage center (Refrigerator) • Cleanup Center (sink and dishwasher) • Cooking and serving center (stove and oven) • In a well designed work triangle’s sides will not add up to be over 22 ft.

  11. The Social Area • Space for daily living, entertaining, and recreation. • Entrances, dining rooms, living rooms, and family rooms

  12. Separating Areas and Rooms • Private areas are best upstairs (back of house) • Workings areas and social areas are best on the ground floor (front of house)

  13. Traffic Patterns • Paths you follow to move from room to room in a home • Traffic patters should • Be convenient and direct • Provide enough space to move • Avoid cutting through the middle of rooms • Avoid interference with private areas/hazardous areas • etc

  14. Survey the Storage Space • Built-in storage • Shelves and drawers that are built into a housing unit. • You cannot sell, replace, or move built-in storage • Common-Use storage • Used by all who live in a house • Desks, chests, armoires, dressers, etc.

  15. Modifications for People with Special Needs • Housing should provide convenience, safety, and accessibility for all members of the household. • By spending about 2 % above base cost on a new house, builders can incorporate design features to make it barrier free.
