CONTINUOUS MONITORING OF THE ICP FOLLOWING ETV IN THE MANAGEMENT OF CSF-SHUNT FAILURE

1. CONTINUOUS MONITORING OF THE ICP FOLLOWING ETV IN THE MANAGEMENT OF CSF-SHUNT FAILURE Essam Elgamal FRCS(SN) King Saud University - Riyadh

2. Neuroendoscopic indications in Hydrocephalus • 1ry treatment: • ETV • Shunt Insertion • Aqueductoplasty • Choroid plexectomy • Shunt Complications: • ETV • Shunt liberation • Marsupilization • Shunt removal

3. Shuunt Failure • Most neurosurgeons manage shunt malfunction by: • shunt revision or • replacement, • temporary EVD followed by VPS

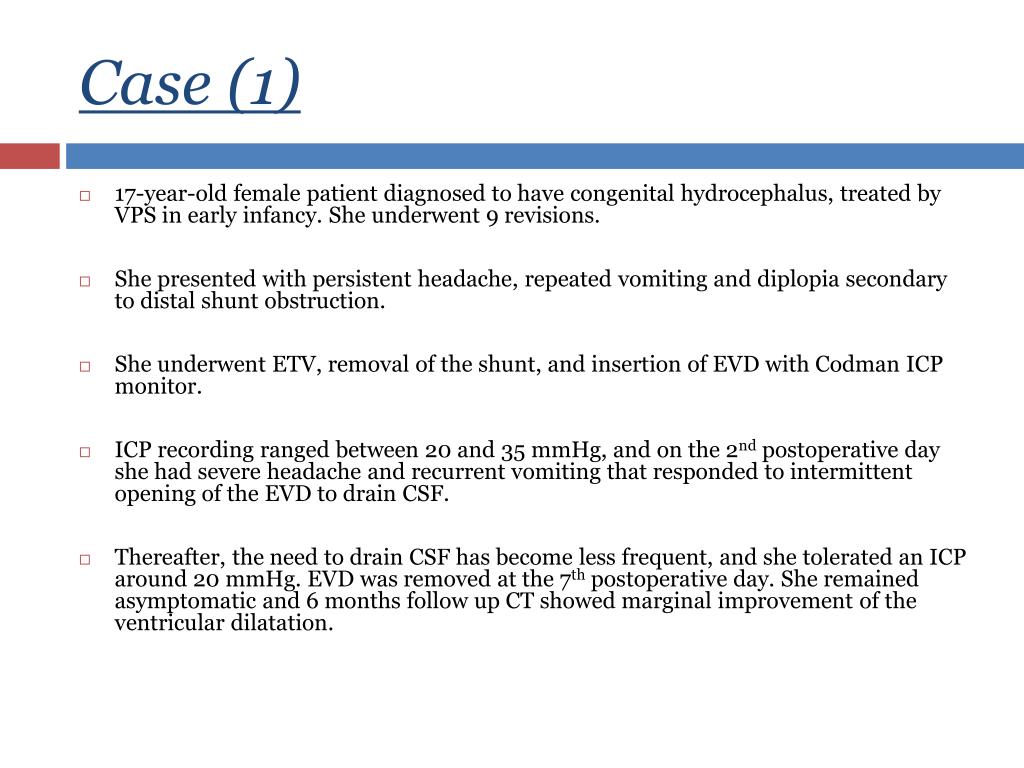

4. Case (1) • 17-year-old female patient diagnosed to have congenital hydrocephalus, treated by VPS in early infancy. She underwent 9 revisions. • She presented with persistent headache, repeated vomiting and diplopia secondary to distal shunt obstruction. • She underwent ETV, removal of the shunt, and insertion of EVD with Codman ICP monitor. • ICP recording ranged between 20 and 35 mmHg, and on the 2nd postoperative day she had severe headache and recurrent vomiting that responded to intermittent opening of the EVD to drain CSF. • Thereafter, the need to drain CSF has become less frequent, and she tolerated an ICP around 20 mmHg. EVD was removed at the 7th postoperative day. She remained asymptomatic and 6 months follow up CT showed marginal improvement of the ventricular dilatation.

5. Case (1) functioning shunt

6. Case (1) isolated IV ventricle

7. Case (1) shunt obstruction

8. EVD catheter, ICP sensor

9. Case (1) ETV, EVD, ICPM

10. Case (1)

11. Case (1) 6 months later

12. Case (2) • 2 years-old girl had VPS at the age 6 weeks for congenital hydrocephalus. She underwent 4 revisions, 3 of them at the distal end. • Her mother has seen the tip of the peritoneal catheter coming out through the anus. She was ill-looking with tachycardia and fever. CSF analysis from the shunt reservoir grew Gram negative bacilli. • The shunt was removed and replaced by an EVD for one week till CSF was clear of infection.

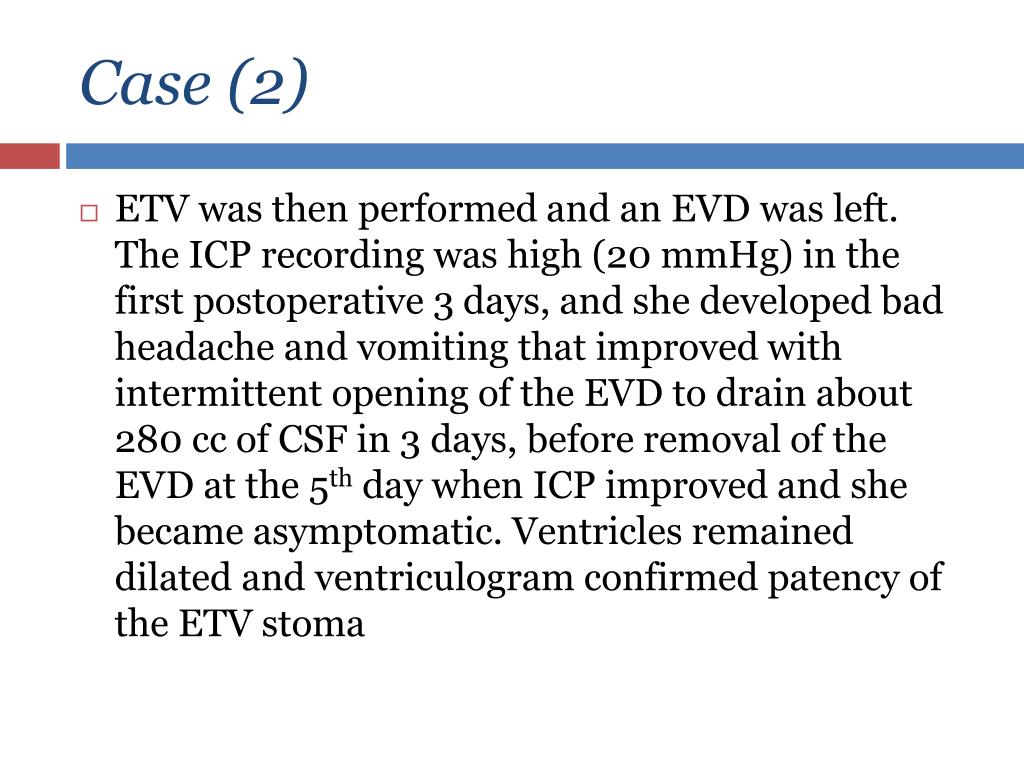

13. Case (2) • ETV was then performed and an EVD was left. The ICP recording was high (20 mmHg) in the first postoperative 3 days, and she developed bad headache and vomiting that improved with intermittent opening of the EVD to drain about 280 cc of CSF in 3 days, before removal of the EVD at the 5th day when ICP improved and she became asymptomatic. Ventricles remained dilated and ventriculogram confirmed patency of the ETV stoma

14. Case (2) VPS

15. Case (2) complications

16. Case (2) complications

17. Case (2) ETV, EVD, ICPM

18. Case (2) ventriculogram

19. Case (2) ETV, EVD, ICPM

20. Case (2) 6 months F.U.

21. Case (4) • 20-year-old man diagnosed to have periaqueductal midbrain lesion causing occlusive hydrocephalus. • He had a VPS at the age of 12 years, and later on revised when developed subdural collection. • At the age of 20 years he presented with features of shunt obstruction. • He underwent ETV, insertion of EVD and ICP. ICP reading was within normal for 24 hours, then removed successfully. • Follow up showed reduction in the ventricular size and persistence of the midbrain lesion

22. Case (4) VPS, tectal lesion

23. Case (4) VPS obstruction, ETV

24. Case (4) 2 years later

25. Case (5) • One year old boy who had post-meningitic multiloculated hydrocephalus soon after birth ended by having two shunts. • He presented with fever, irritability, vomiting and abdominal distension, and examination of shunt CSF grew G+ve cocci. • He underwent Endoscopic fenestration of intraventricular cysts through frontal burr holes, and ETV

26. Case (5) • An EVD containing ICP sensor was left in the ventricle. His ICP was slowly rising, with irritablity, and vomiting, and ICP reaching 35 mmHg. Symptoms improve by temporary drainage of CSF. • EVD was utilized for installation of antibiotics and a CT ventriculogram. • He did not tolerate closure of the EVD and a permanent VPS was inserted.

27. Case (5) multiloculated

28. Case (5) ventriculogram

29. Case (5) single VPS

30. Case (6) ependymoma pre&postop

31. Case (6) hydrocephalus, VPS

32. Case (6) functioning shunt

33. Case (6) obstructed shunt

34. Case (6) ETV, EVD, ICP

35. Case (6) 2 years later

36. Case (7) Re-do ETV

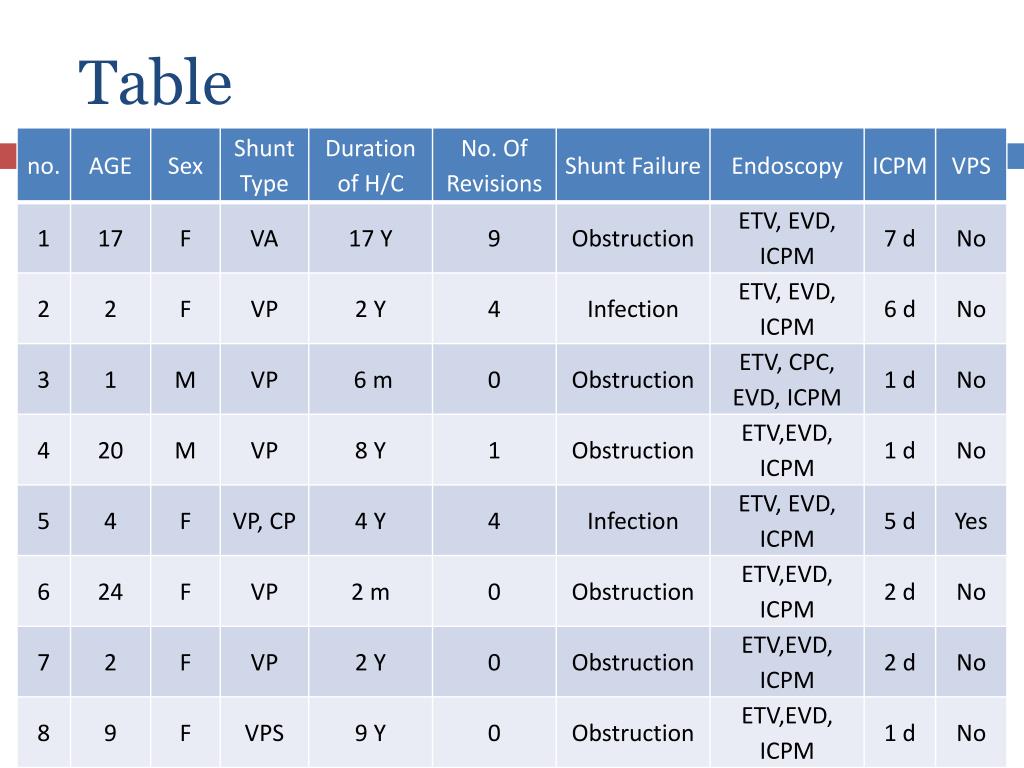

37. Table

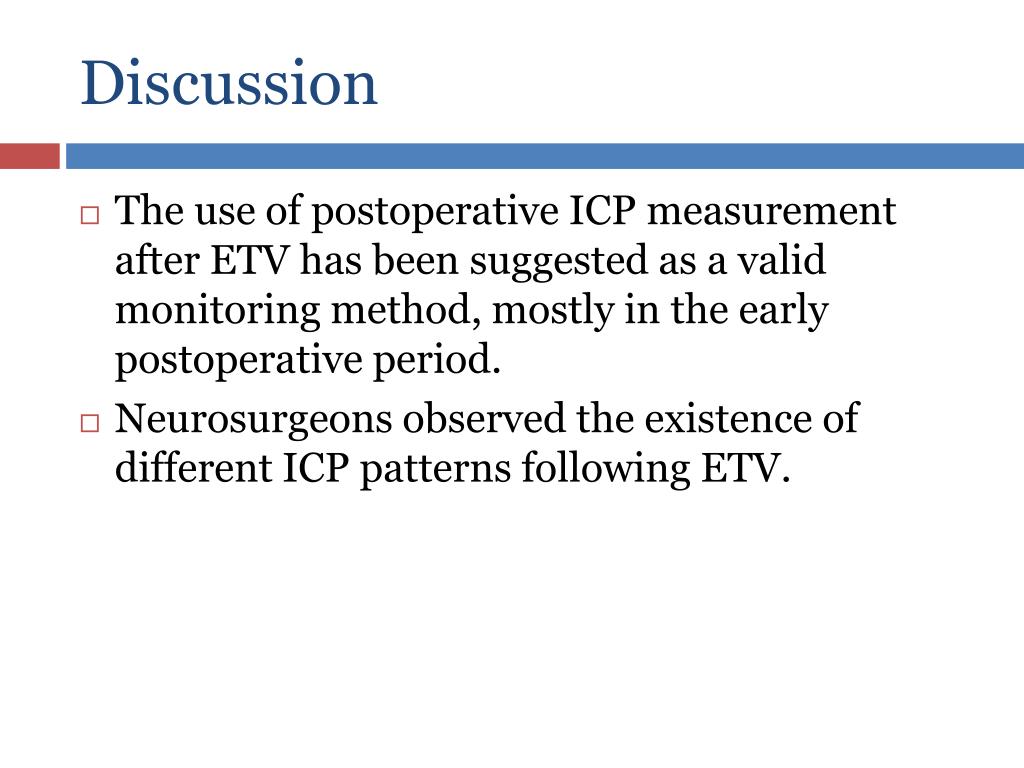

38. Discussion • The use of postoperative ICP measurement after ETV has been suggested as a valid monitoring method, mostly in the early postoperative period. • Neurosurgeons observed the existence of different ICP patterns following ETV.

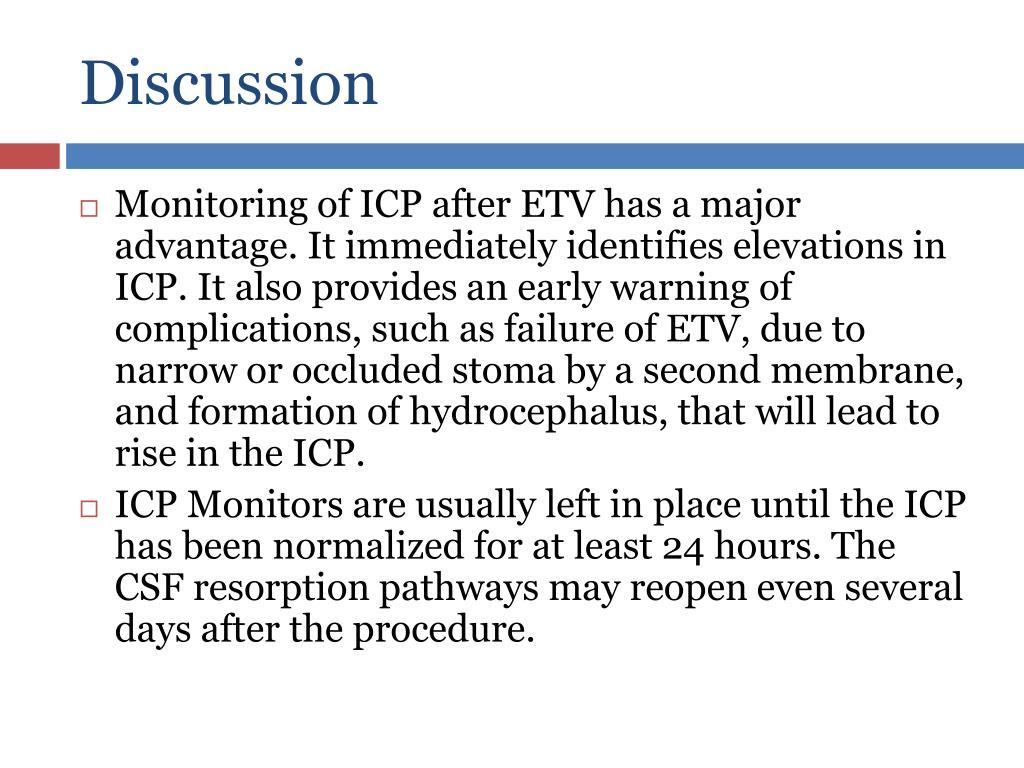

39. Discussion • Monitoring of ICP after ETV has a major advantage. It immediately identifies elevations in ICP. It also provides an early warning of complications, such as failure of ETV, due to narrow or occluded stoma by a second membrane, and formation of hydrocephalus, that will lead to rise in the ICP. • ICP Monitors are usually left in place until the ICP has been normalized for at least 24 hours. The CSF resorption pathways may reopen even several days after the procedure.

40. Conclusion • When ETV is required to treat patients with shunt malfunction or infection, the most benign procedure may be that involving removal of the failed or infected shunt, and insertion of ICP monitor and EVD in the same procedure. • It can be used to intermittently drain CSF when patient is symptomatic of raised ICP, to inject intrventricular antibiotics, and to perform ventriculogrm.
