Blr s safety training presentations

BLR’s Safety Training Presentations

Respirator Fit Testing29 CFR 1910.134 App.A


Goals

Goals

  • General fit test requirements and qualitative fit test procedures

  • Quantitative fit test procedures

  • Quiz


Selecting a respirator

Selecting a Respirator

  • Choose from different models and sizes

  • Find the best fit

  • Learn how to put on respirator

  • Become familiar with the respirator

  • Wear for 5 minutes


Assess comfort

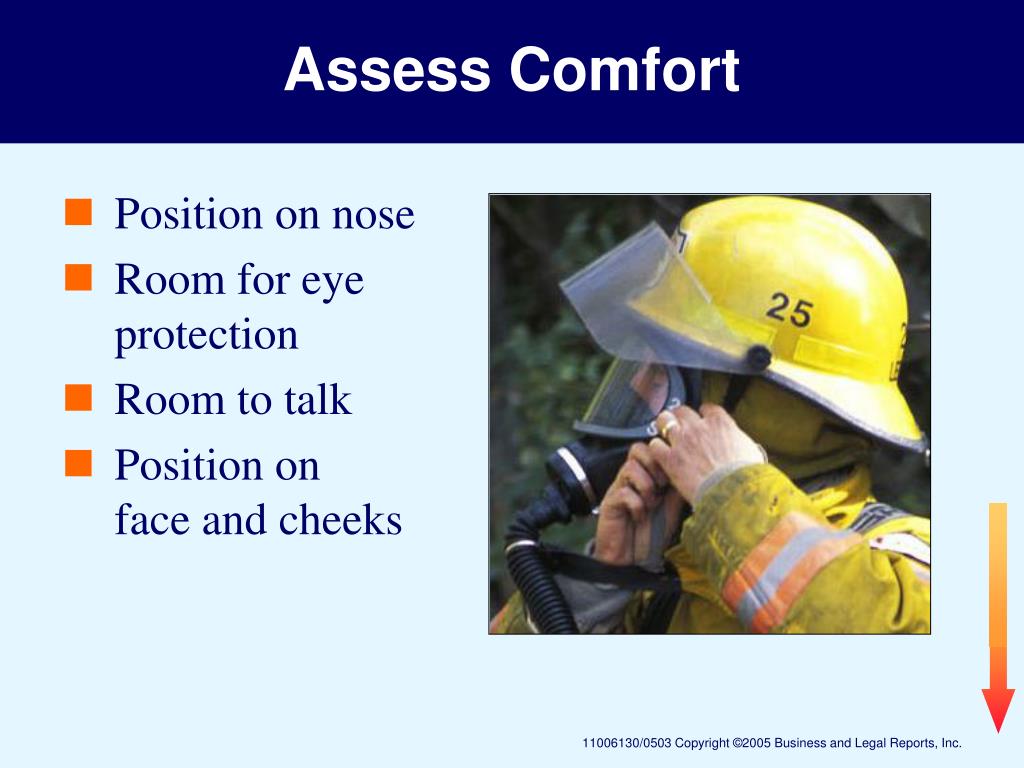

Assess Comfort

  • Position on nose

  • Room for eye protection

  • Room to talk

  • Position on face and cheeks


Respirator fit

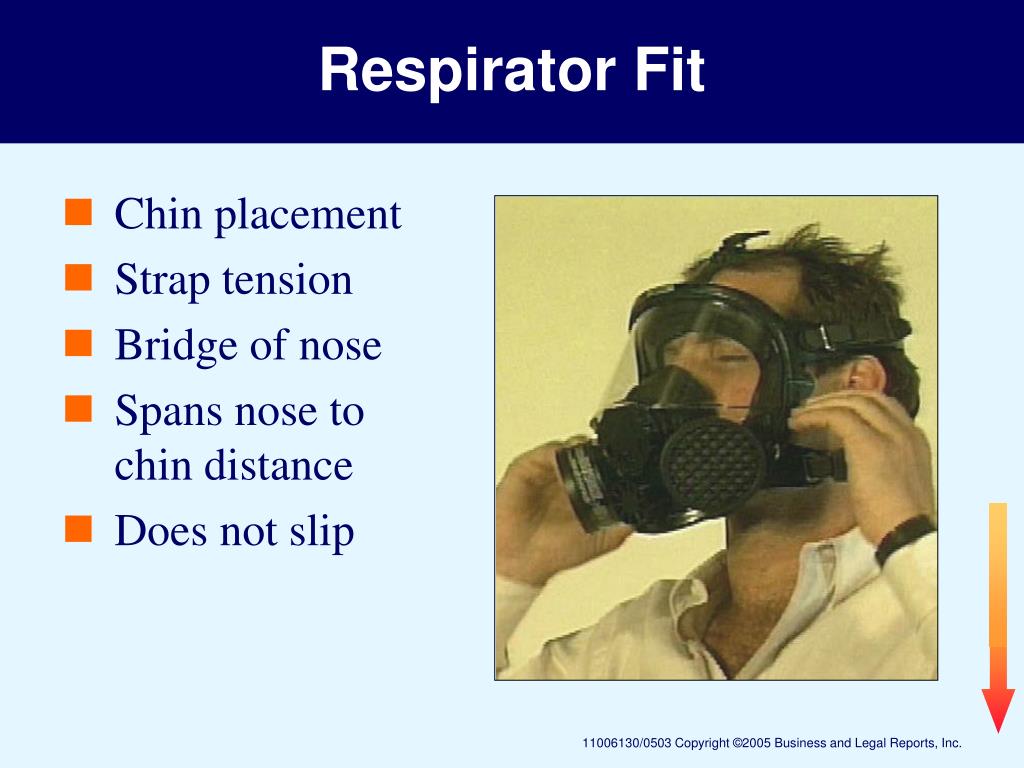

Respirator Fit

  • Chin placement

  • Strap tension

  • Bridge of nose

  • Spans nose to chin distance

  • Does not slip


Positive pressure seal check

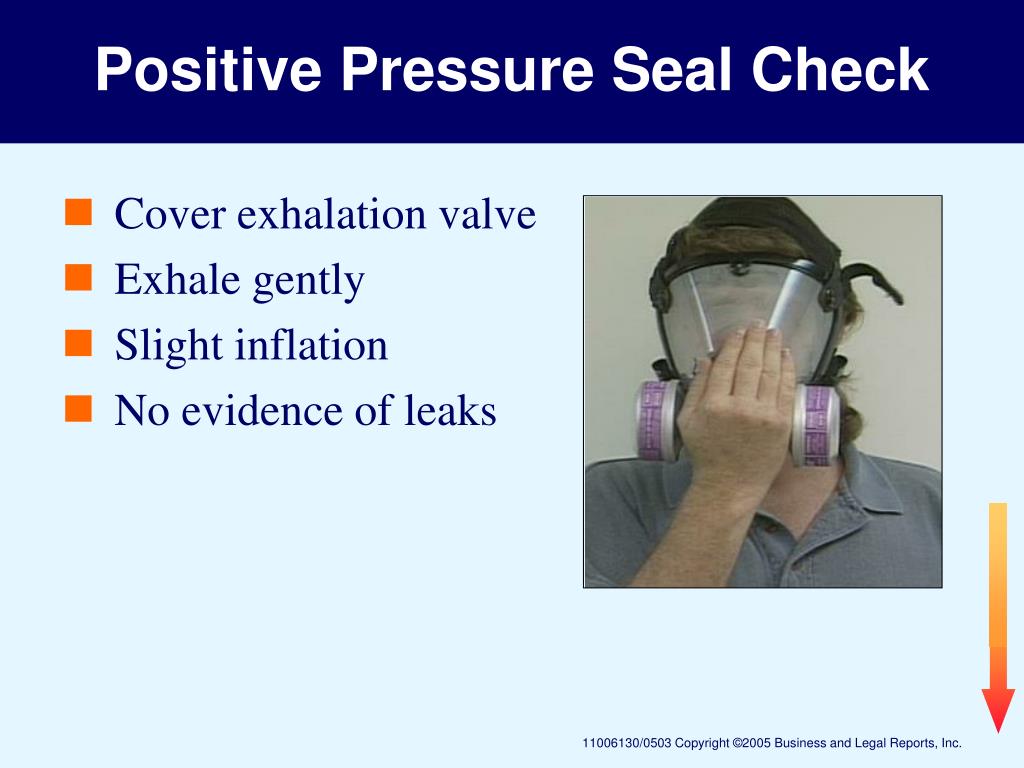

Positive Pressure Seal Check

  • Cover exhalation valve

  • Exhale gently

  • Slight inflation

  • No evidence of leaks


Negative pressure seal check

Negative Pressure Seal Check

  • Cover inlet opening

  • Inhale gently and hold breath

  • Face piece remains deflated

  • No inward leakage


Fit test issues

Fit Test Issues

  • Facial hair

  • Difficulty breathing

  • Unacceptable respirator fit

  • Exercise description

  • Applicable safety equipment


Test exercises

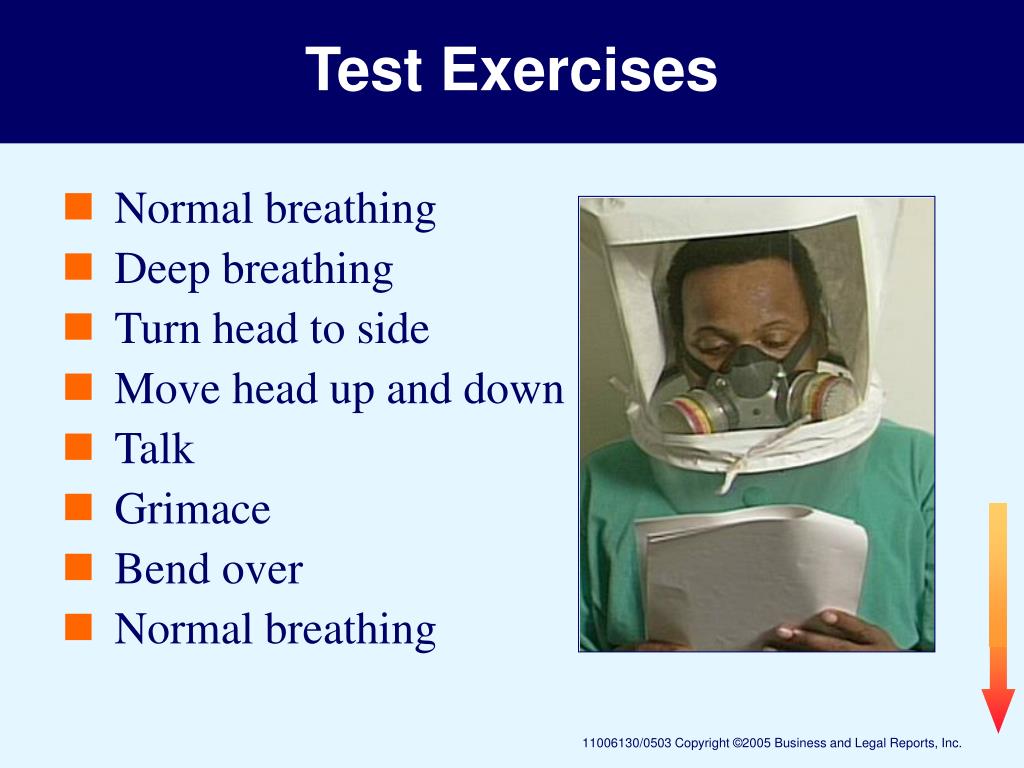

Test Exercises

  • Normal breathing

  • Deep breathing

  • Turn head to side

  • Move head up and down

  • Talk

  • Grimace

  • Bend over

  • Normal breathing


Isoamyl acetate protocol

Isoamyl Acetate Protocol

  • Odor screening

  • Two bottles prepared

  • Bottle shaken and sniffed

  • Unidentified—no fit test

  • Identified—fit test


Isoamyl acetate fit test

Isoamyl Acetate Fit Test

  • Test chamber

  • Organic vapor cartridges

  • IAA in test chamber

  • 2-minute waiting period

  • Fit test exercises

  • Smell—fail test

  • Pass—remove respirator and take breath


Saccharin solution

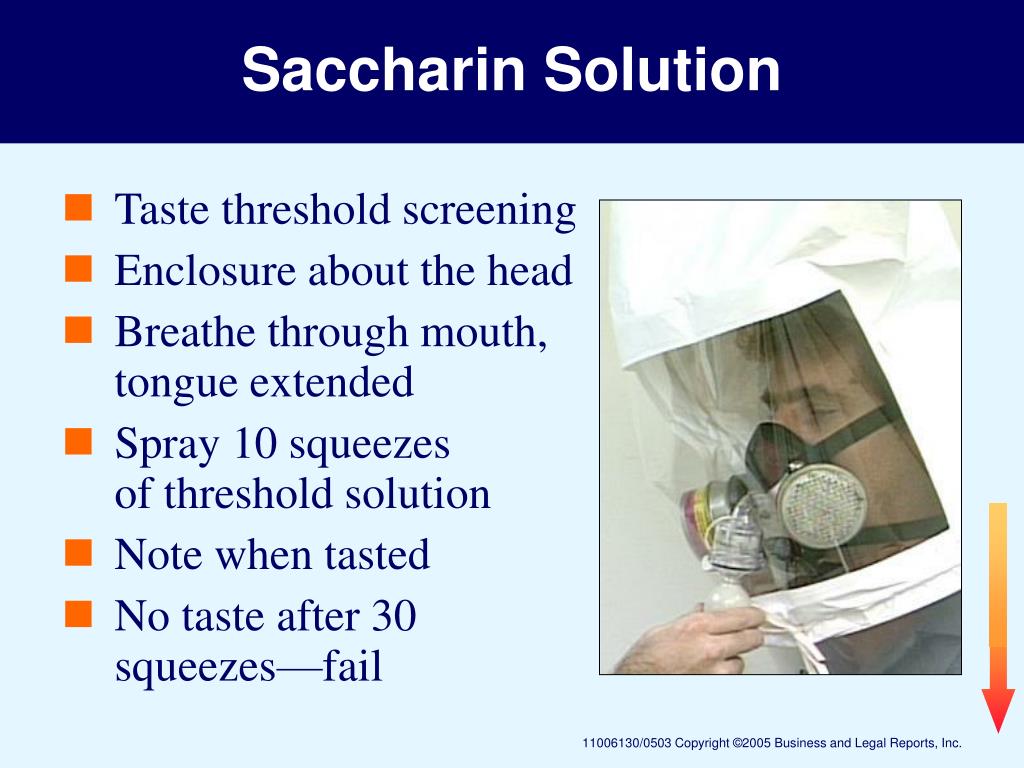

Saccharin Solution

  • Taste threshold screening

  • Enclosure about the head

  • Breathe through mouth, tongue extended

  • Spray 10 squeezes of threshold solution

  • Note when tasted

  • No taste after 30 squeezes—fail


Saccharin fit test

Saccharin Fit Test

  • Do not eat, drink, smoke, chew gum

  • Wear respirator, put on enclosure

  • Breathe through mouth, tongue extended

  • Spray same number of squeezes

  • Perform fit test exercises

  • Taste saccharin—fail

  • No taste—pass


Bitrex tm solution

BitrexTM Solution

  • Taste threshold screening

  • Enclosure about the head

  • Breathe through mouth, tongue extended

  • Spray 10 squeezes of threshold solution

  • Note when tasted

  • No taste after 30—fail


Bitrex tm fit test

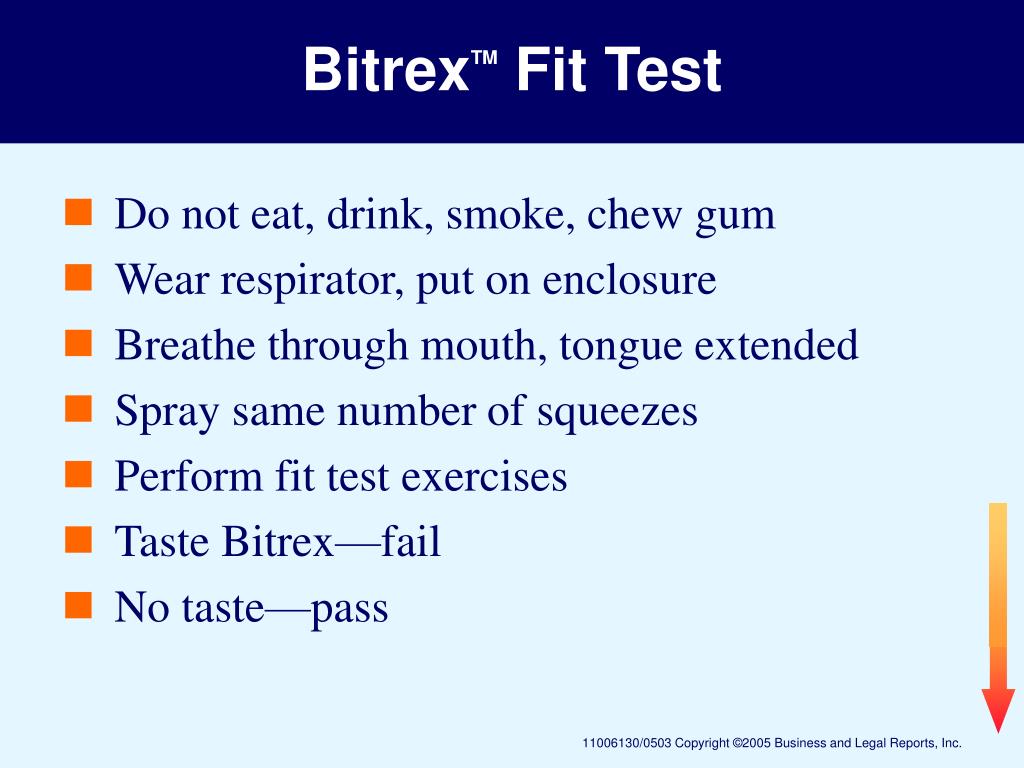

BitrexTM Fit Test

  • Do not eat, drink, smoke, chew gum

  • Wear respirator, put on enclosure

  • Breathe through mouth, tongue extended

  • Spray same number of squeezes

  • Perform fit test exercises

  • Taste Bitrex—fail

  • No taste—pass


Irritant smoke

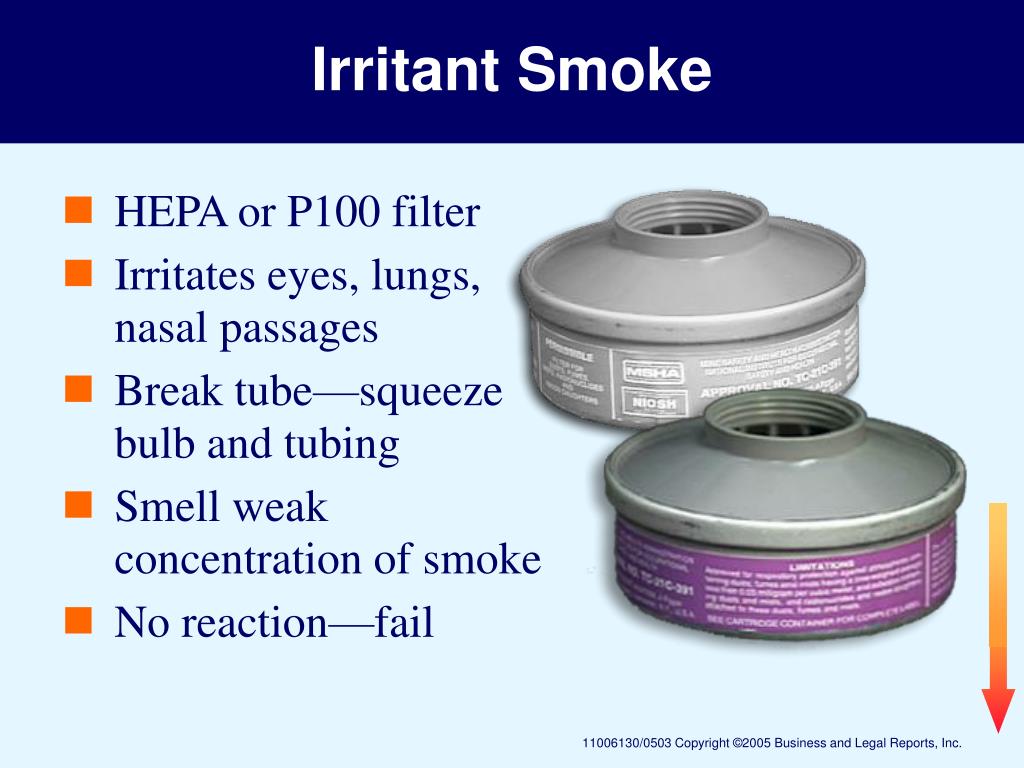

Irritant Smoke

  • HEPA or P100 filter

  • Irritates eyes, lungs,nasal passages

  • Break tube—squeeze bulb and tubing

  • Smell weak concentration of smoke

  • No reaction—fail


Irritant smoke fit test

Irritant Smoke Fit Test

  • Close eyes

  • Direct smoke around face seal

  • Begin test exercises

  • Smoke detected—fail

  • No response—pass

  • Sensitivity check


Goals1

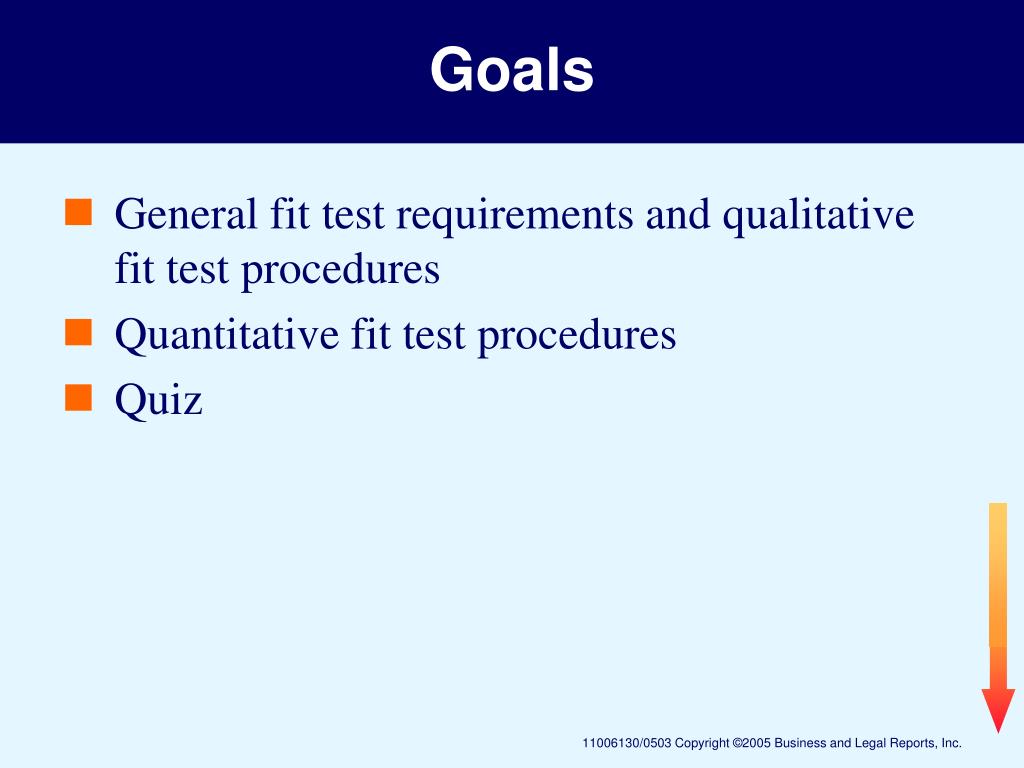

Goals

  • General fit test requirements and qualitative fit test procedures

  • Quantitative fit test procedures

  • Quiz


Quantitative fit test

Quantitative Fit Test

  • Nonhazardous test aerosols

  • Ambient aerosols

  • Controlled negative pressure

  • Performed by qualified persons

  • Clean and calibrated equipment


Aerosol quantitative fit test

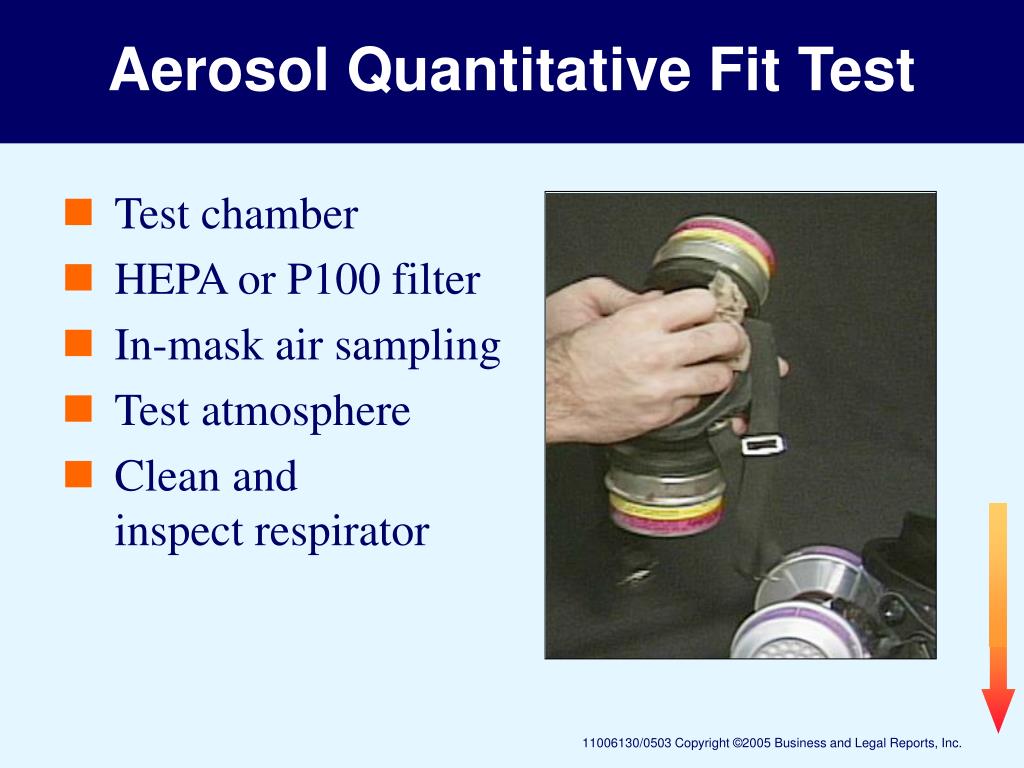

Aerosol Quantitative Fit Test

  • Test chamber

  • HEPA or P100 filter

  • In-mask air sampling

  • Test atmosphere

  • Clean and inspect respirator


Aerosol quantitative procedure

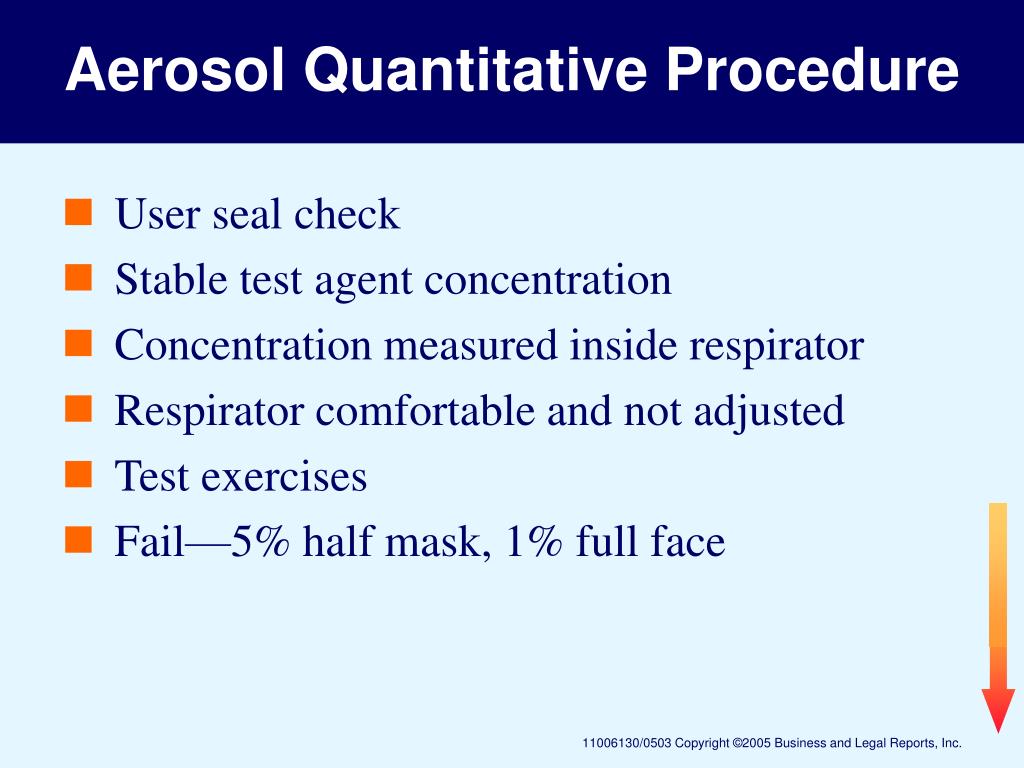

Aerosol Quantitative Procedure

  • User seal check

  • Stable test agent concentration

  • Concentration measured inside respirator

  • Respirator comfortable and not adjusted

  • Test exercises

  • Fail—5% half mask, 1% full face


Cnc quantitative fit test

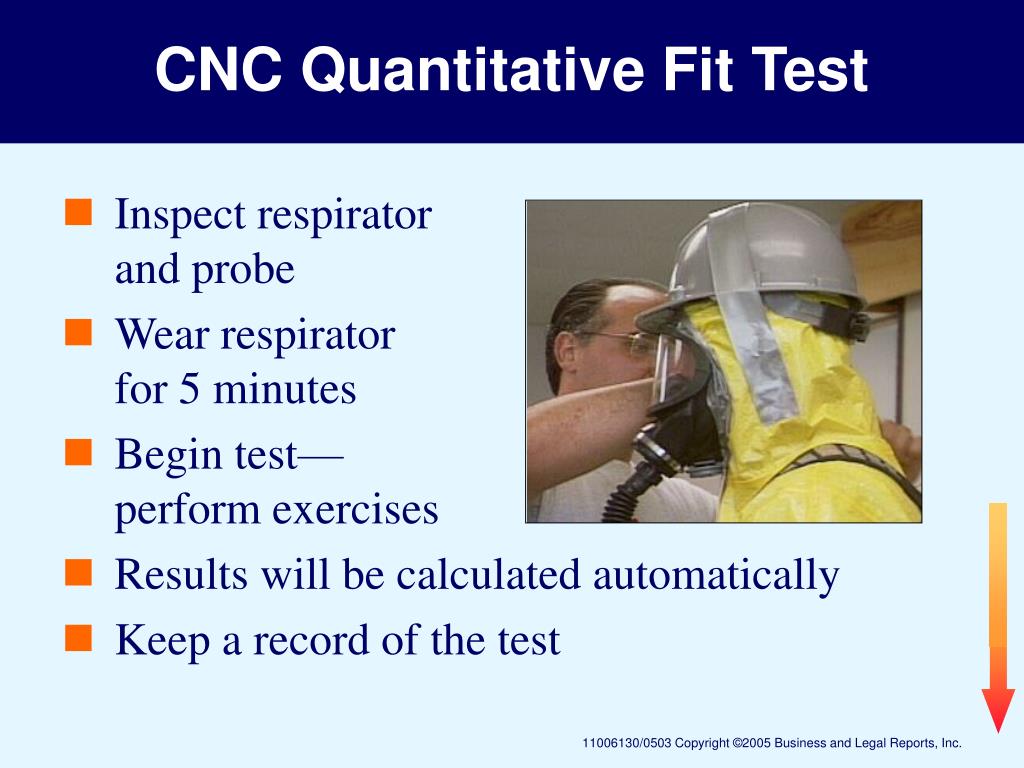

CNC Quantitative Fit Test

  • Inspect respirator and probe

  • Wear respirator for 5 minutes

  • Begin test—perform exercises

  • Results will be calculated automatically

  • Keep a record of the test


Controlled negative pressure

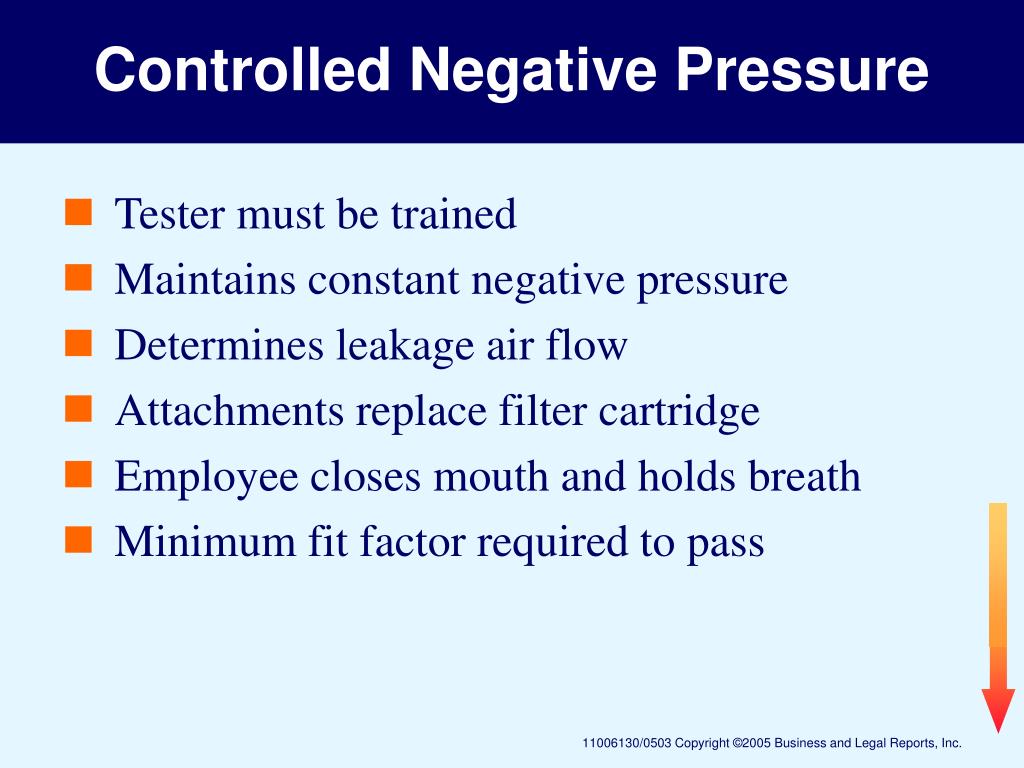

Controlled Negative Pressure

  • Tester must be trained

  • Maintains constant negative pressure

  • Determines leakage air flow

  • Attachments replace filter cartridge

  • Employee closes mouth and holds breath

  • Minimum fit factor required to pass


Cnp fit test

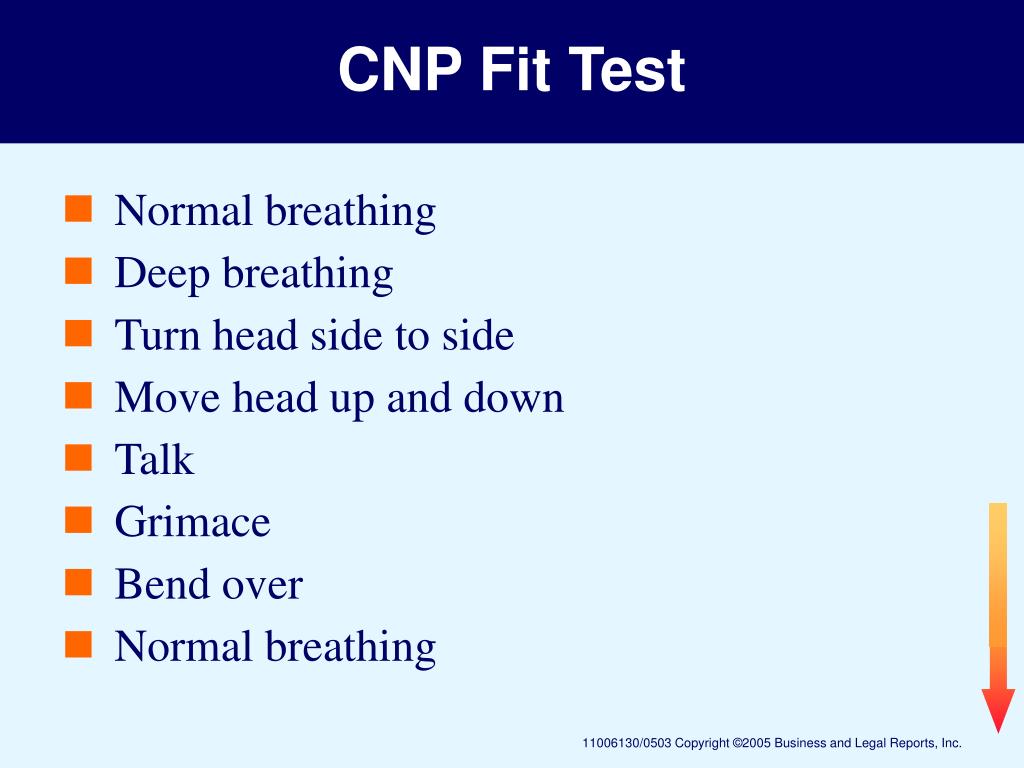

CNP Fit Test

  • Normal breathing

  • Deep breathing

  • Turn head side to side

  • Move head up and down

  • Talk

  • Grimace

  • Bend over

  • Normal breathing


Cnp redon

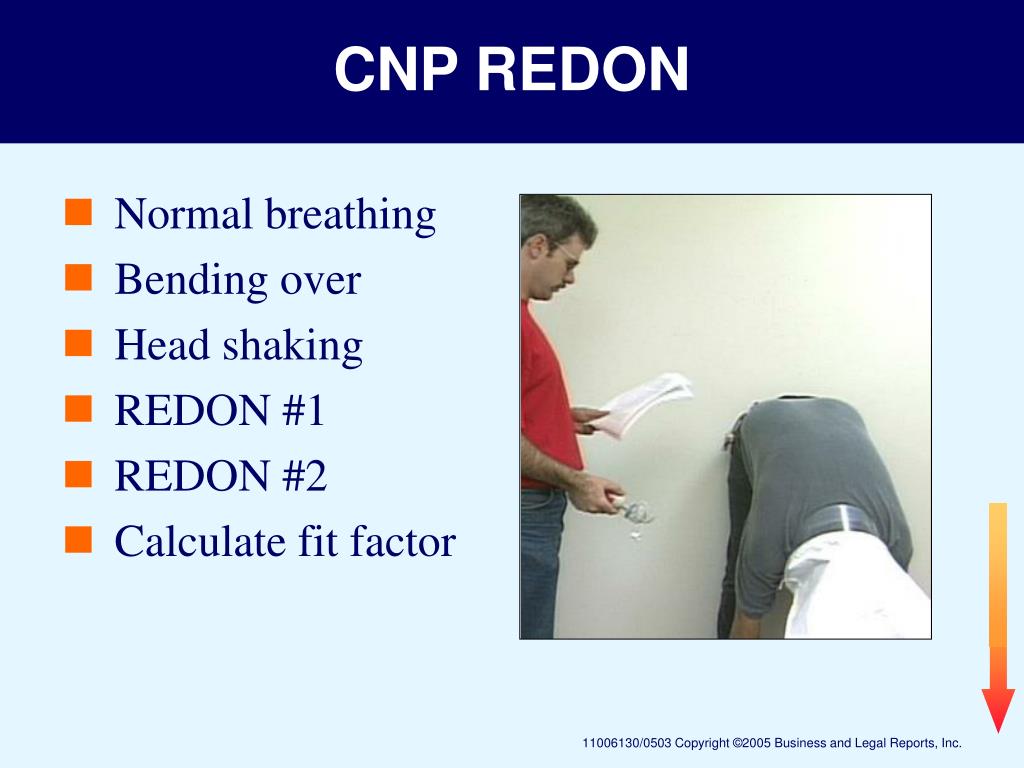

CNP REDON

  • Normal breathing

  • Bending over

  • Head shaking

  • REDON #1

  • REDON #2

  • Calculate fit factor


Goals2

Goals

  • General fit test requirements and qualitative fit test procedures

  • Quantitative fit test procedures

  • Quiz


Summary

Summary

  • Select a comfortable respirator

  • Do user seal checks

  • Tell the tester when the chemical is tasted or smelled

  • Perform all the test exercises

  • Only wear respirators that have been fit tested


Blr s safety training presentations

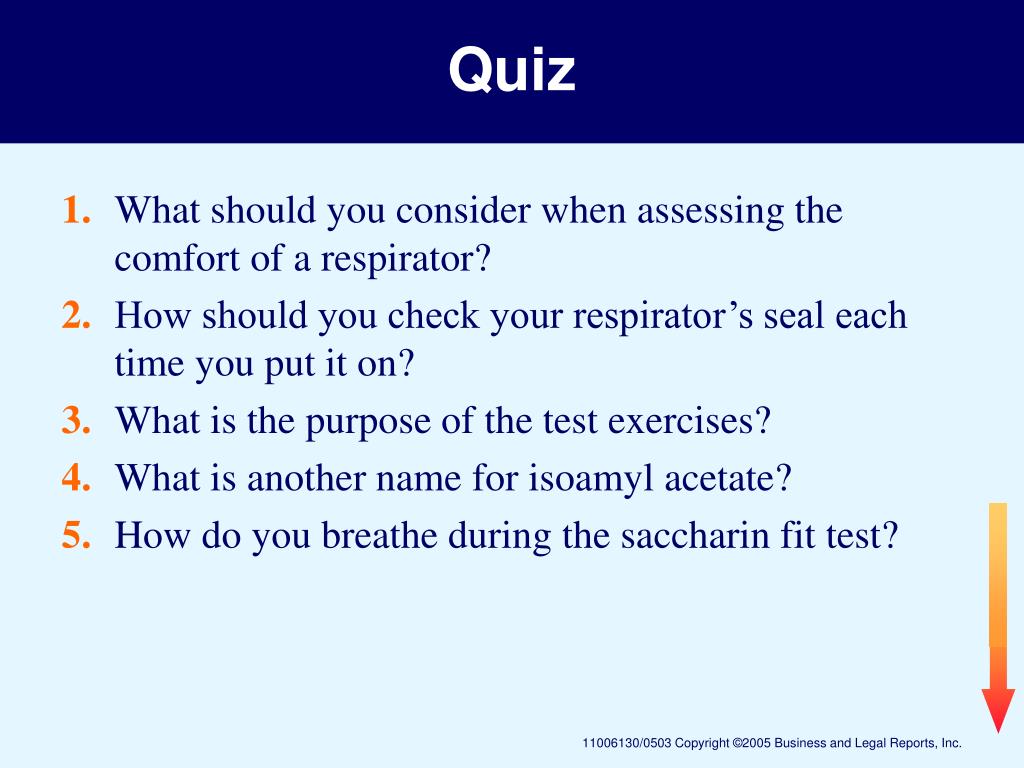

Quiz

1.What should you consider when assessing the comfort of a respirator?

2.How should you check your respirator’s seal each time you put it on?

3.What is the purpose of the test exercises?

4.What is another name for isoamyl acetate?

5.How do you breathe during the saccharin fit test?


Quiz cont

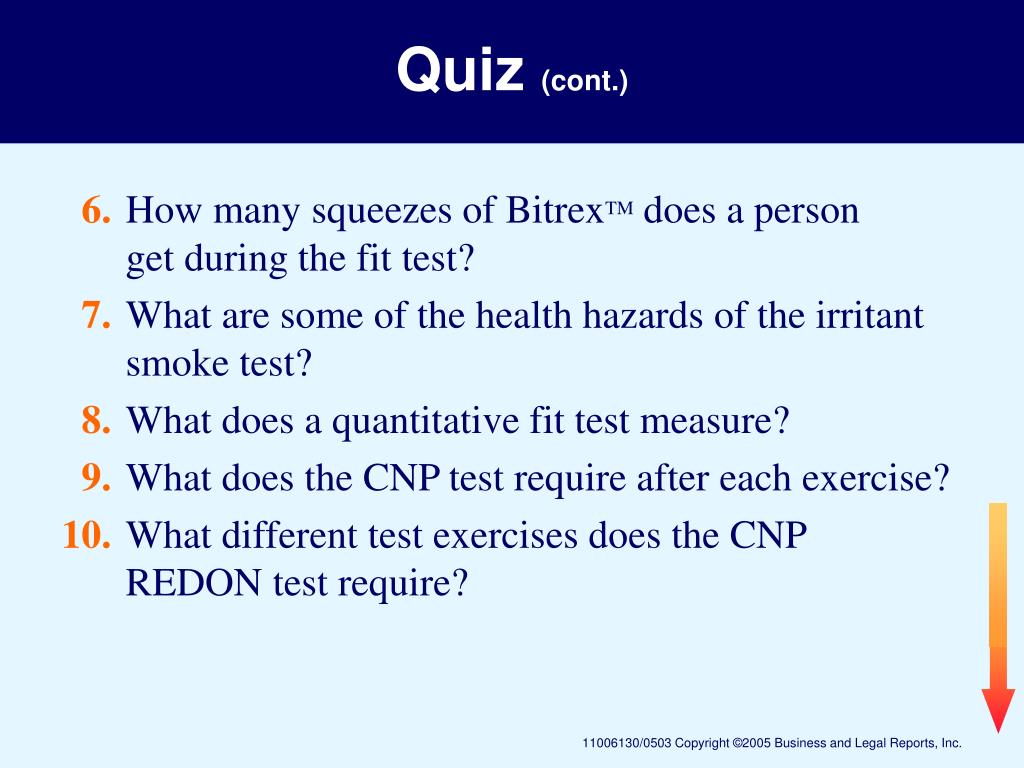

Quiz (cont.)

6.How many squeezes of BitrexTM does a person get during the fit test?

7.What are some of the health hazards of the irritant smoke test?

8.What does a quantitative fit test measure?

9.What does the CNP test require after each exercise?

10.What different test exercises does the CNP REDON test require?


Quiz answers

Quiz Answers

1.Position on nose, room for eye protection, room to talk, fit on cheeks

2.Perform positive and negative seal checks

3.To simulate movement during work to see if the respirator remains sealed

4.Banana oil

5.Breathe through open mouth with tongue out


Quiz answers cont

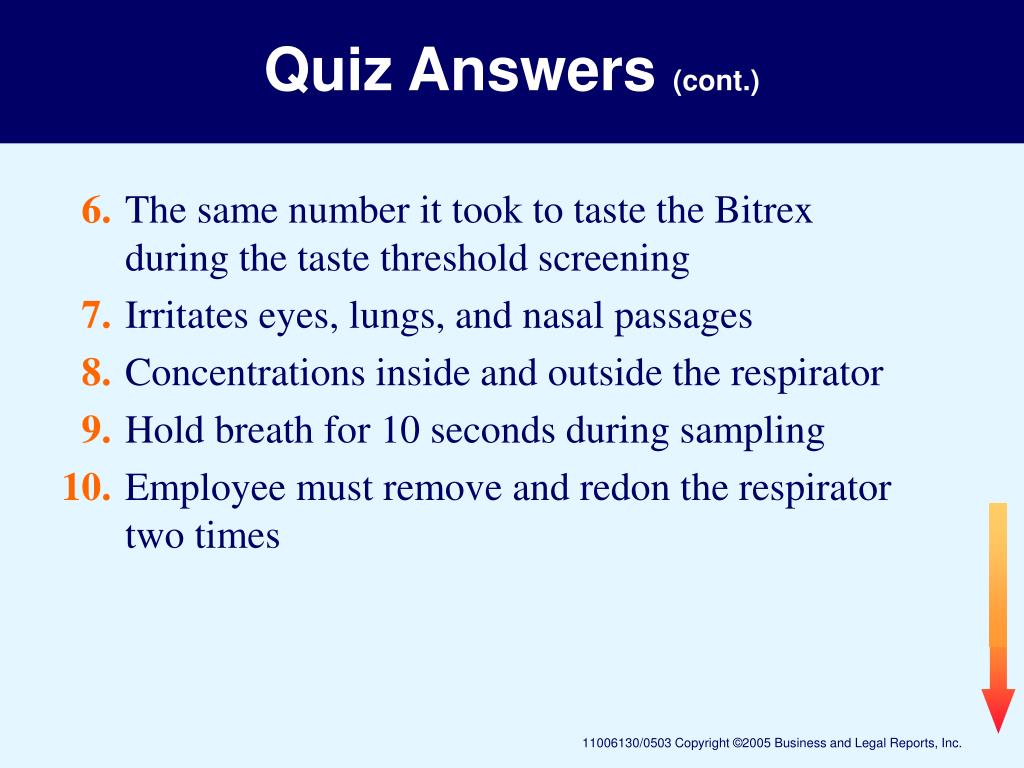

Quiz Answers (cont.)

6.The same number it took to taste the Bitrex during the taste threshold screening

7.Irritates eyes, lungs, and nasal passages

8.Concentrations inside and outside the respirator

9.Hold breath for 10 seconds during sampling

10.Employee must remove and redon the respirator two times
