Presentation Transcript


  1. Our Clients

  2. Driving Questions

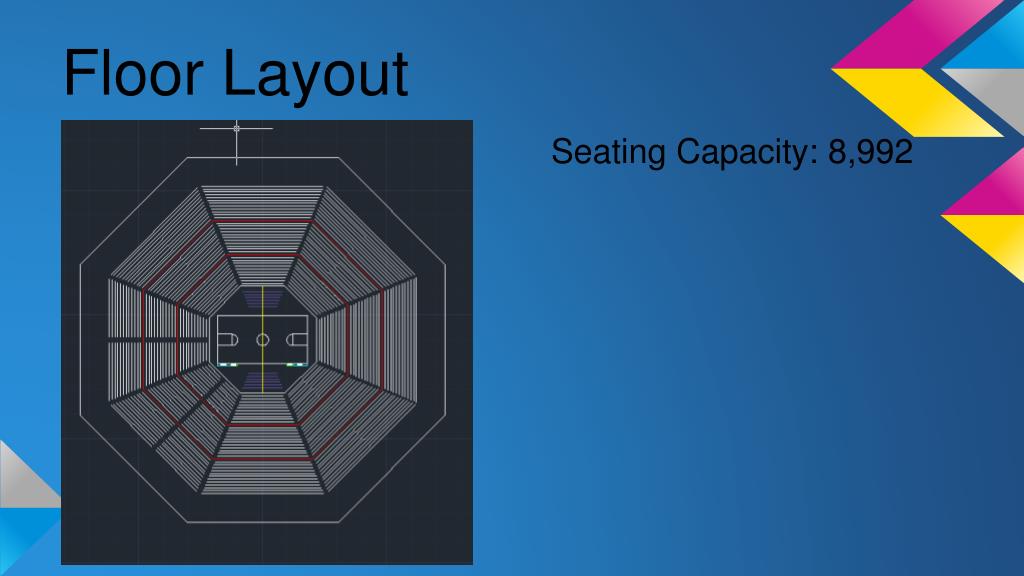

  3. Floor Layout Seating Capacity: 8,992

  4. Floor Area Area: 123,607.73 ft^2

  5. Cross Section

  6. Viewing Distance (Trigonometric ratio) 211’ 83’ 158.47’ 50’ 135’ 9’

  7. Viewing Angle 66.8 -60 6.8 6.8

  8. Viewing Distance (Pythagorean theorem) 211’ 83’ 158.47’ 50’ 135’ 9’

  9. Arc 166’

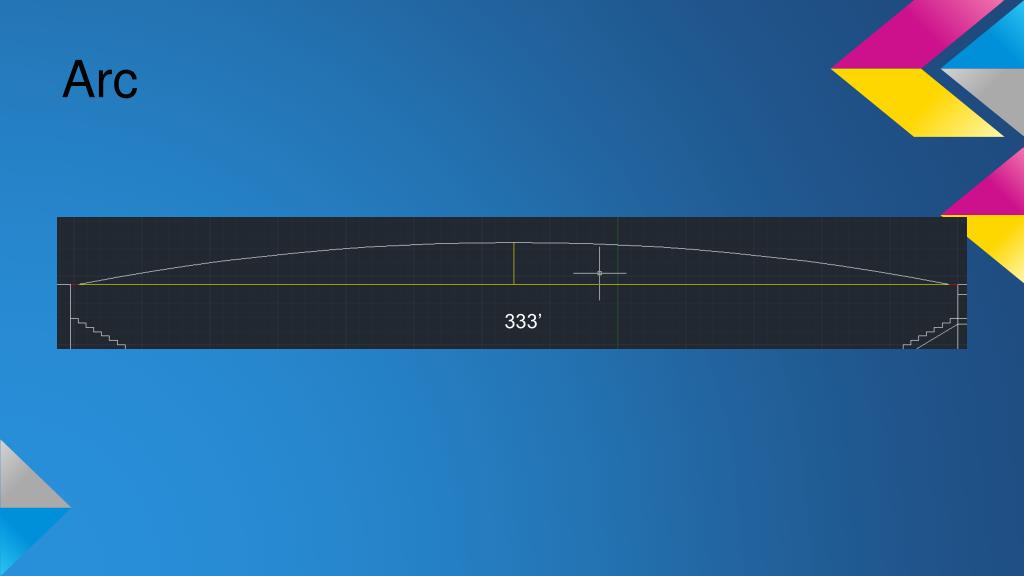

  10. Arc 333’

  11. Chord 333’

  12. Volume

  13. Volume V=h x A V=113’ x 123,607.73 V=13,967,673.5 ft^3

  14. Perimeter 160 160 160 160 160 160 160 +160 1,280

  15. Cost Estimates (Area of walls) http://www.athleticbusiness.com/Stadium-Arena/how-stadium-construction-costs-reached-the-billions.html <$800 Million

  16. Arcs in Buildings
