  1. Motherboard John Baez Andrade Period 3

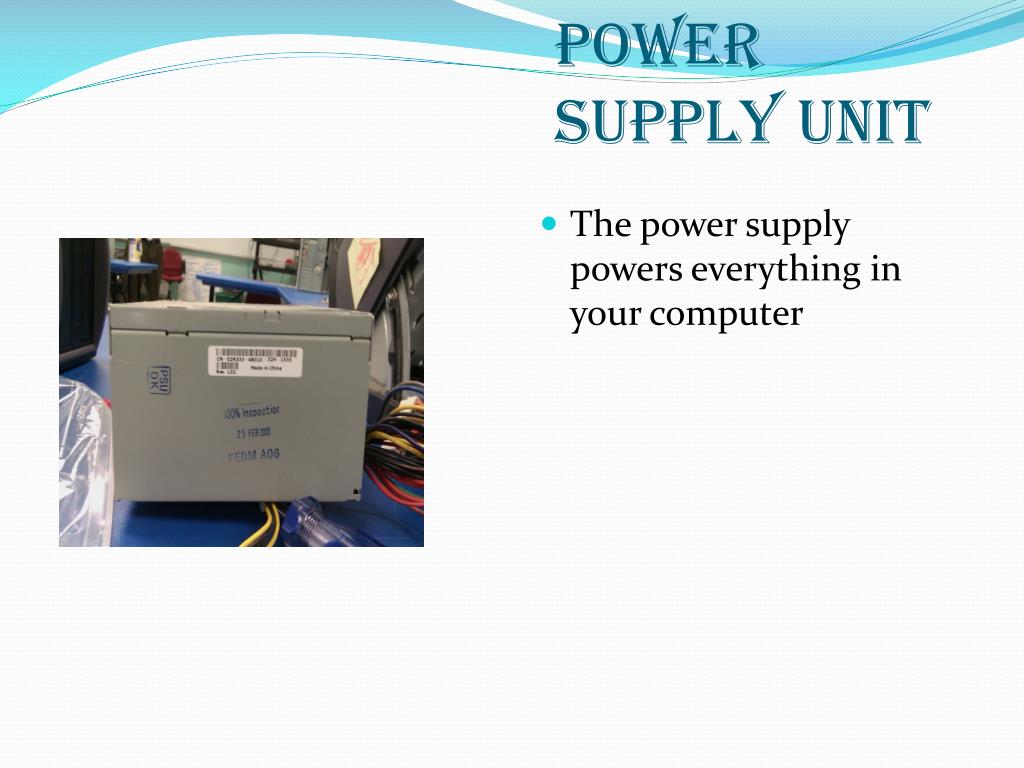

  2. Power supply unit • The power supply powers everything in your computer

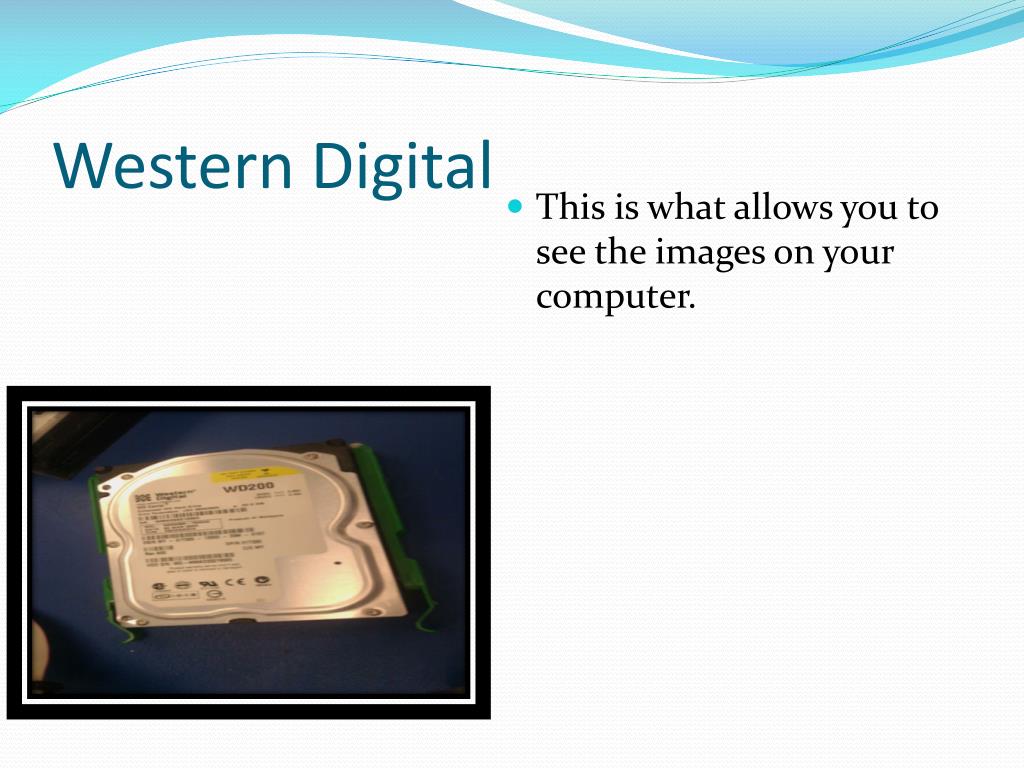

  3. Western Digital • This is what allows you to see the images on your computer.

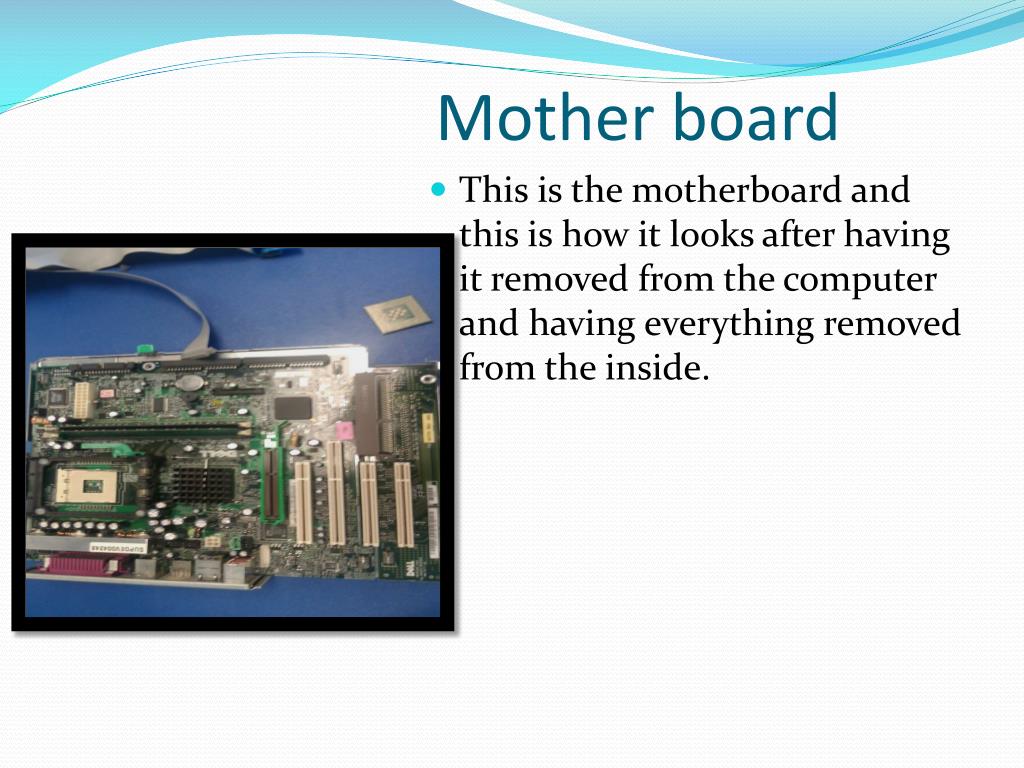

  4. Mother board • This is the motherboard and this is how it looks after having it removed from the computer and having everything removed from the inside.

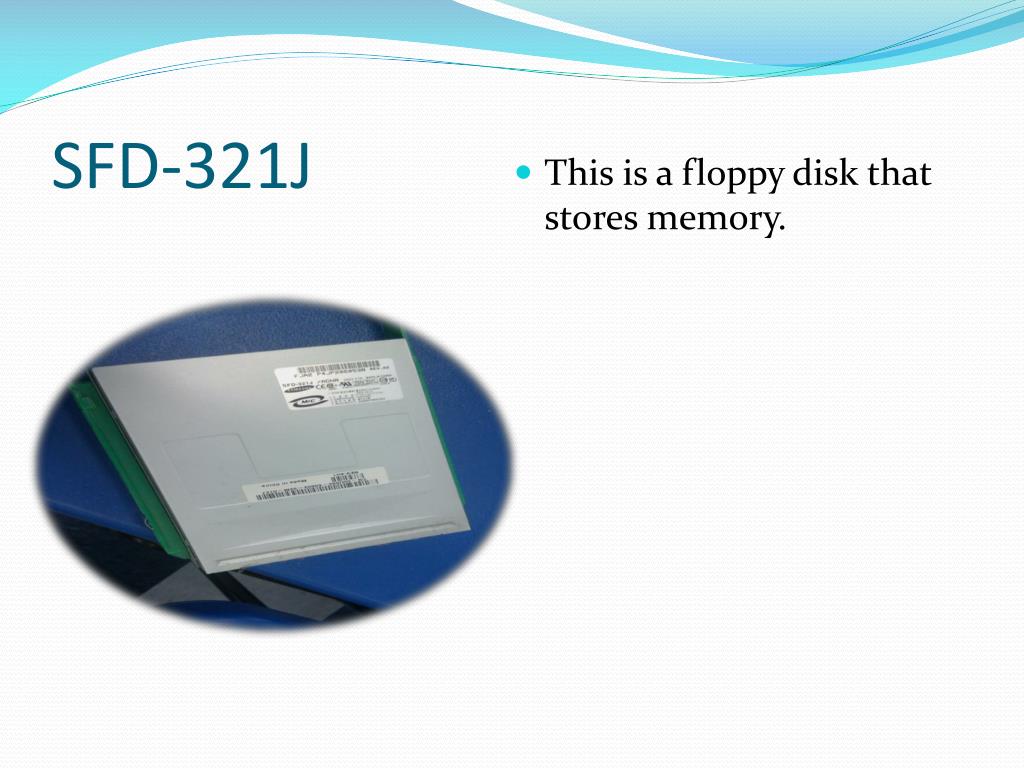

  5. SFD-321J • This is a floppy disk that stores memory.

  6. Samsung SC-148 • This is also more memory on the computer. This makes the computer much faster.

  7. Computer fan • This is the other half of the computer fan. It is originally connected to the fan protector but I broke it down.

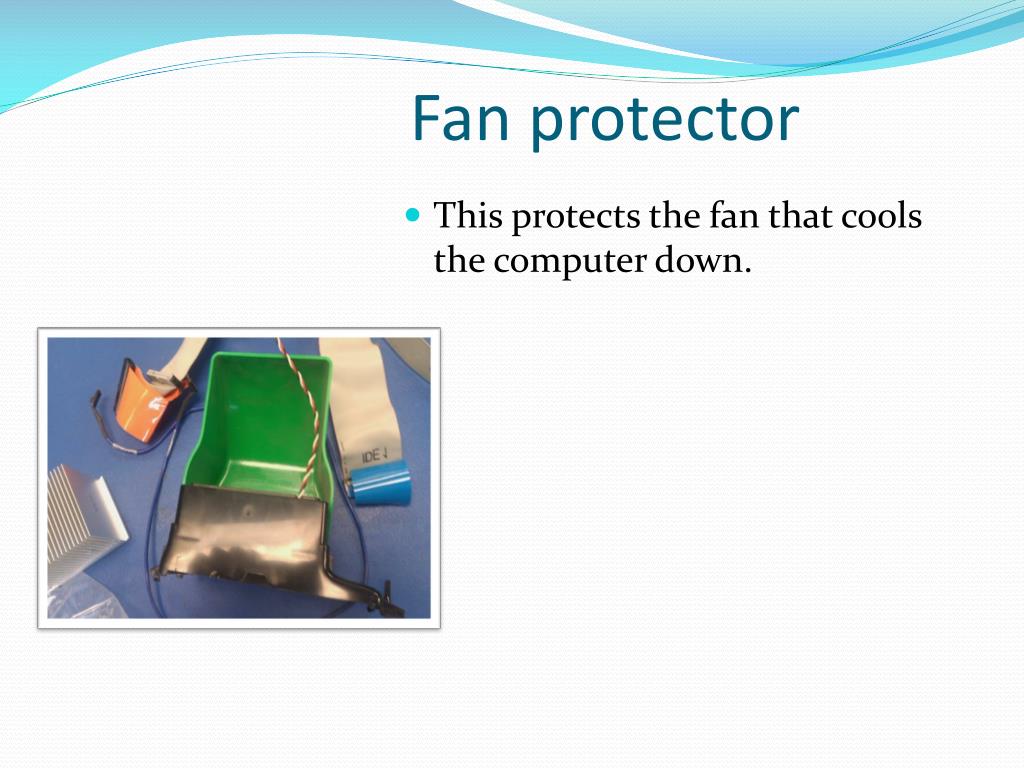

  8. Fan protector • This protects the fan that cools the computer down.

  9. processor • This is your processor and it tells you how quick your computer will be.

  10. Computer Shell • This is the inside shell of the computer after having taken everything out of it.

  11. Computer Skill • This is another picture of the empty computer from a different angle after I had finished removing all its pieces.

  12. Intel Debuts • This is the brain of the entire computer. Everything is processed before it goes anywhere.

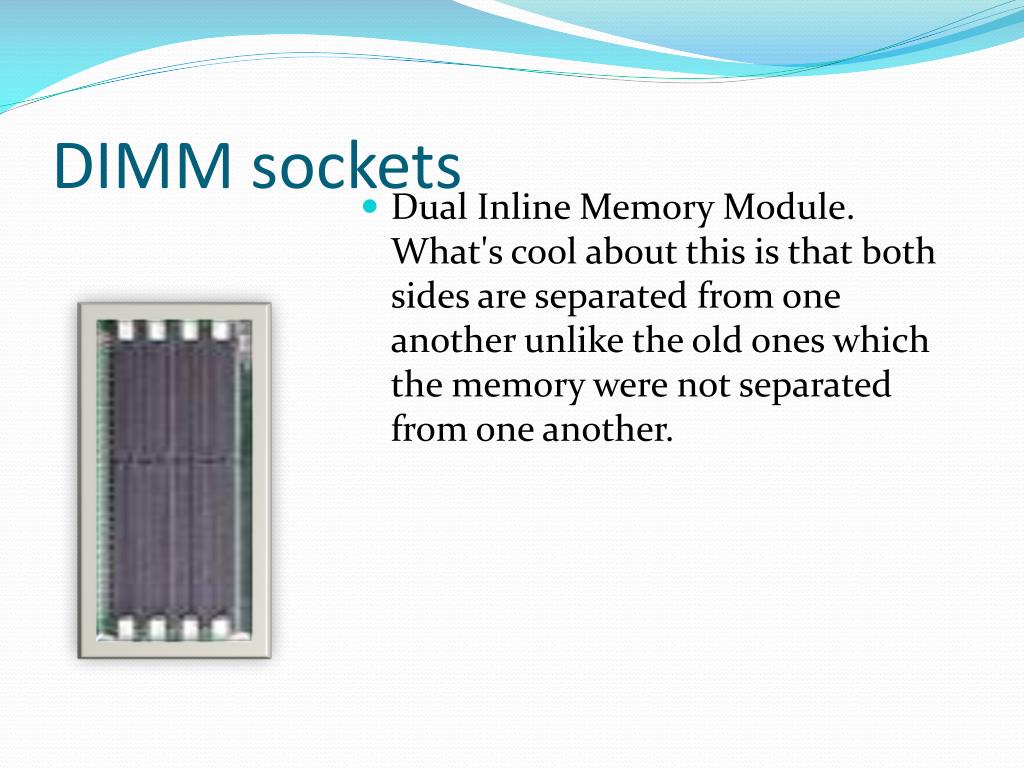

  13. DIMM sockets • Dual Inline Memory Module. What's cool about this is that both sides are separated from one another unlike the old ones which the memory were not separated from one another.

  14. CPU

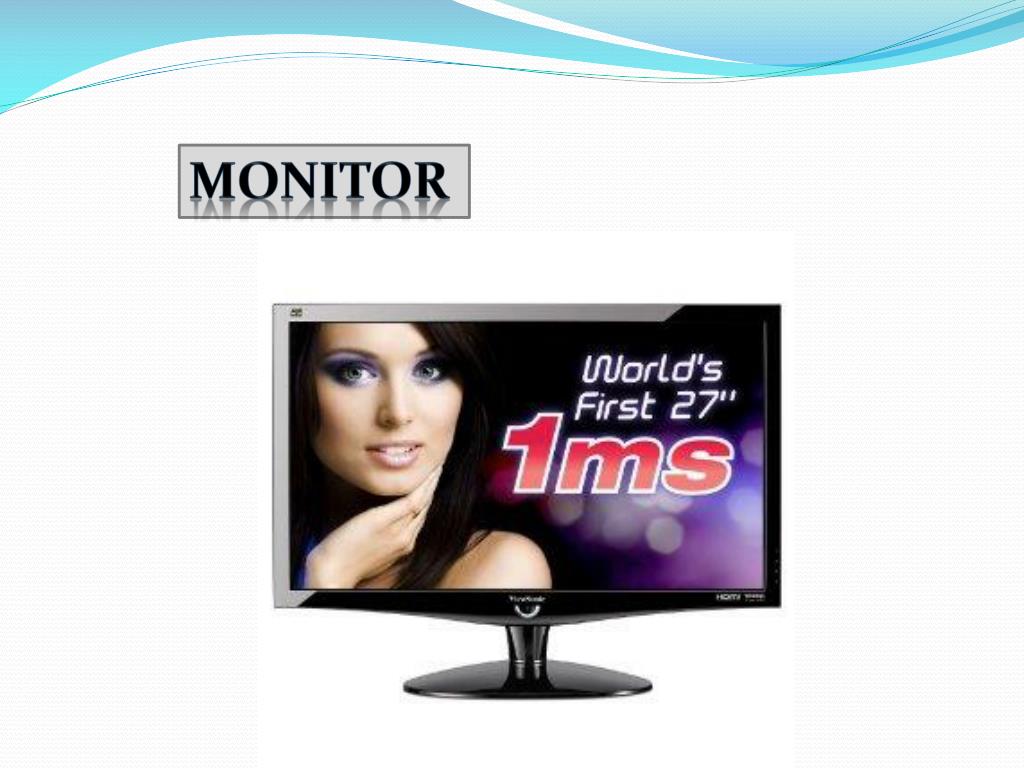

  15. Monitor

  16. AMD Processor 2000xy

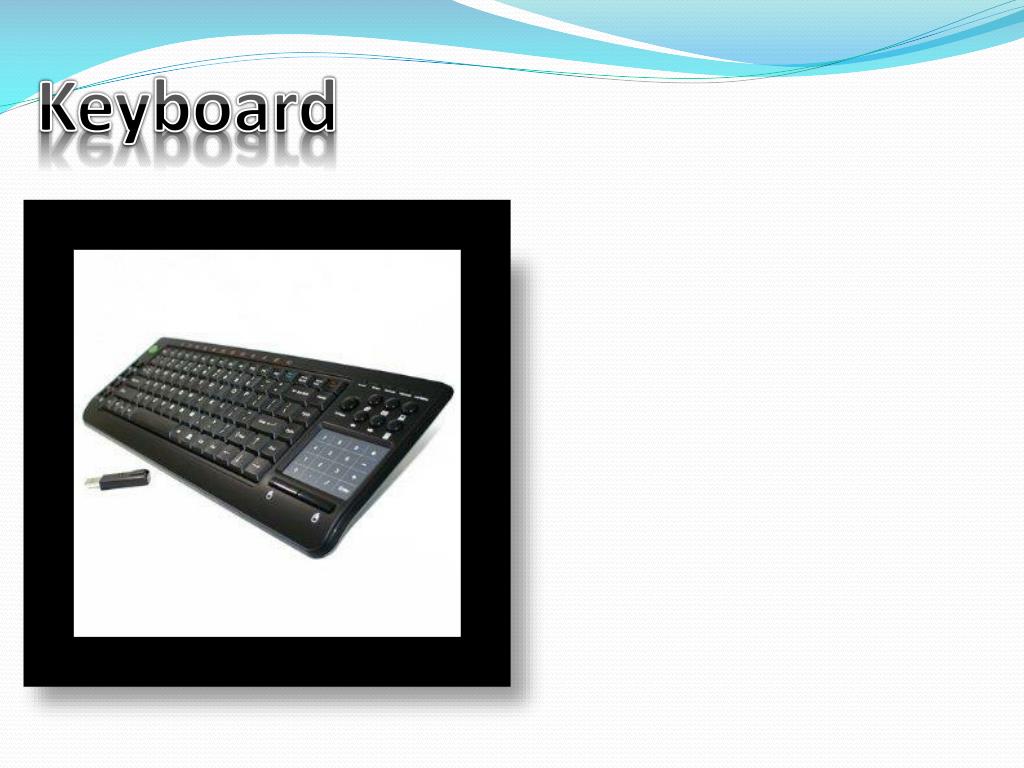

  17. Keyboard

  18. T H E E N D
