  1. Programming Safety Improvements on Resurfacing, Restoration, and Rehabilitation Projects Cameron Grile February 18, 2004

  2. Presentation Overview • Background • Literature Review • Resurfacing Safety Resource Allocation Program (RSRAP) • Methodology • Results • Conclusions

  3. Background • What are Preservation Projects • Funding Limitations • Effectiveness of Current Allocation • Need for an Optimum Allocation Process • Research Objectives

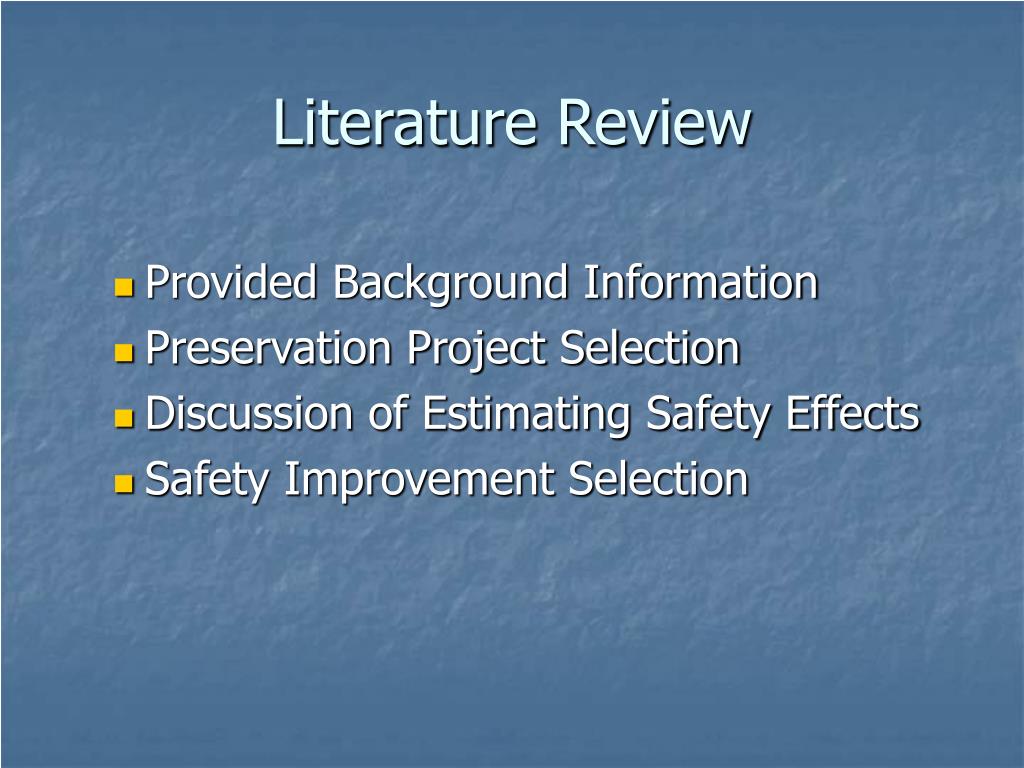

  4. Literature Review • Provided Background Information • Preservation Project Selection • Discussion of Estimating Safety Effects • Safety Improvement Selection

  5. RSRAP Procedure • Developed in NCHRP Report 486 • Assumptions • Sites represent all possible sites eligible for the input budget • Budget is the only source of funding • 9 Step Process

  6. RSRAP Procedure

  7. Methodology • Identify ODOT Projects • Gather Project Information • Project Partitions • Identify Safety Goals • Cost Data • Apply to RSRAP

  8. Identify ODOT Projects • Region 2 Preservation Projects from 04-07 STIP • Non-Freeway Locations • 33 Total Projects www.odot.state.or.us

  9. Data for Each Site: Highway Number Site Description Site Length Number of Lanes* Type of Roadway* Urban/Rural* ADT* Crash Data Average Travel Speed* Lane Width* Shoulder Width/Type* Gather Project Information * Data collected using GIS Layers

  10. Methods of Data Collection • GIS Layers • Crash Reports • Highway Inventories • Digital Video Log

  11. Methods of Data Collection ODOT Digital Video Log

  12. Project Partitions • RSRAP requires consistent cross sections • 33 Projects split into 101 sites • Based on: • Lane Number and Width • Shoulder Width and Type • ADT • Speed • Area type

  13. Identify Safety Goals • Improvement Types: • Lane Widening • Shoulder Widening • Shoulder Paving • Roadside Improvements • Horizontal Curve Improvements • Turn Lane Improvements • User-Defined Improvements

  14. Identify Safety Goals • Lane Widening if lane width less than 12 ft. • Shoulder Widening if shoulder width less than 8 ft. • Retain Paved Shoulders • No User-Defined Alternatives

  15. Roadside Improvements • IHSDM used to determine expected number of crashes (rural only) • Roadside Hazard Rating: • 7 different ratings in 4 groups • Descriptions and example photos used as reference IHSDM = Interactive Highway Safety Design Module

  16. Roadside Improvements

  17. Roadside Improvements ODOT Digital Video Log

  18. Horizontal Curve Improvements • IHSDM used to determine expected number of crashes (rural only) • Not considered on Urban Sites • Curves with < 4 crashes/5 yrs • 1 site considered Curve Improvements • ODOT’s ITIS used to gather Curve Information • New curve length based on minimum design radius

  19. Turn Lane Improvements • IHSDM used to determine expected number of crashes (rural only) • 4 sites • 1 or 2 intersections per site • Digital Video Log used for determining existing number of Turn Lanes • Crash Report • TURN =Left Turn Lane • REAR END = Right Turn Lane

  20. Default Cost Data • Average from Various Highway Agencies

  21. Cost Data • Based on RS Means Cost Estimating Guides or • ODOT Average Prices

  22. Apply to RSRAP • Optimize Safety Improvements Only • Safety Only or Safety and Speed Benefits • Penalty for Resurfacing without Safety Improvements • Budgets • Region 2 Budget = $19,840,000 • Multiple Budgets tested to see effects on Project Selection

  23. Results • Challenges with RSRAP • Region 2 Results • Safety and Speed Benefits • Safety Benefits Only • ODOT Scheduled Projects

  24. RSRAP Challenges • Safety Improvements • Determination of Improvements • Roadside Hazard Ratings • Improvement Costs • User-Defined Improvements

  25. RSRAP Challenges • Optimization Procedure • Software Compatibility Problems • VB Code designed for Excel 97 • Multiple Alternatives Selected • Funding allocated to do same thing twice • Midwest Research Institute contacted

  26. Region 2 Results • 6 Different budgets tested in RSRAP • Safety and Speed Benefits • Region 2 Budget – 27 Sites improved • Shoulder Widening, Roadside, and Turn Lane improvements • Some Sites had a combination of improvements

  27. Safety and Speed Benefits

  28. Safety Benefits Only • 4 of 6 budgets returned same selections • 12 Sites received improvements

  29. ODOT Projects • 3 out of 33 Projects scheduled to receive Safety Money • Remaining 28 have some Safety Improvements • Widening Shoulders, adding Turn Lane

  30. ODOT Projects

  31. Region 2 Results Region 2 Safety Costs

  32. Conclusions • 25% of Safety funds • Data Collection Process • Number of Sites • Crash Expectation

  33. Recommendations • RSRAP could be used if: • Data Collection Methods Simplified • Further Research on Program • Effects of the Number of Sites • User-Defined Alternatives

  34. Questions
