Genetic disorders sex linked traits

Genetic Disorders&Sex Linked Traits

Honors Biology

Unit 5

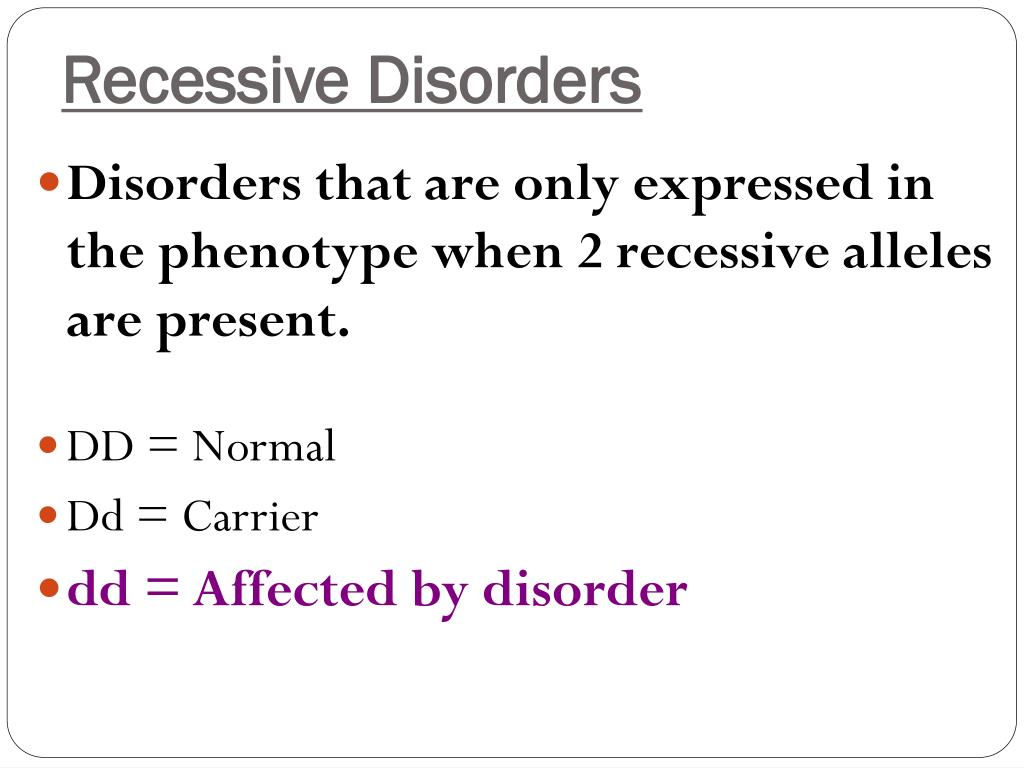

Recessive disorders

Recessive Disorders

  • Disorders that are only expressed in the phenotype when 2 recessive alleles are present.

  • DD = Normal

  • Dd = Carrier

  • dd = Affected by disorder

2 examples of recessive disorders

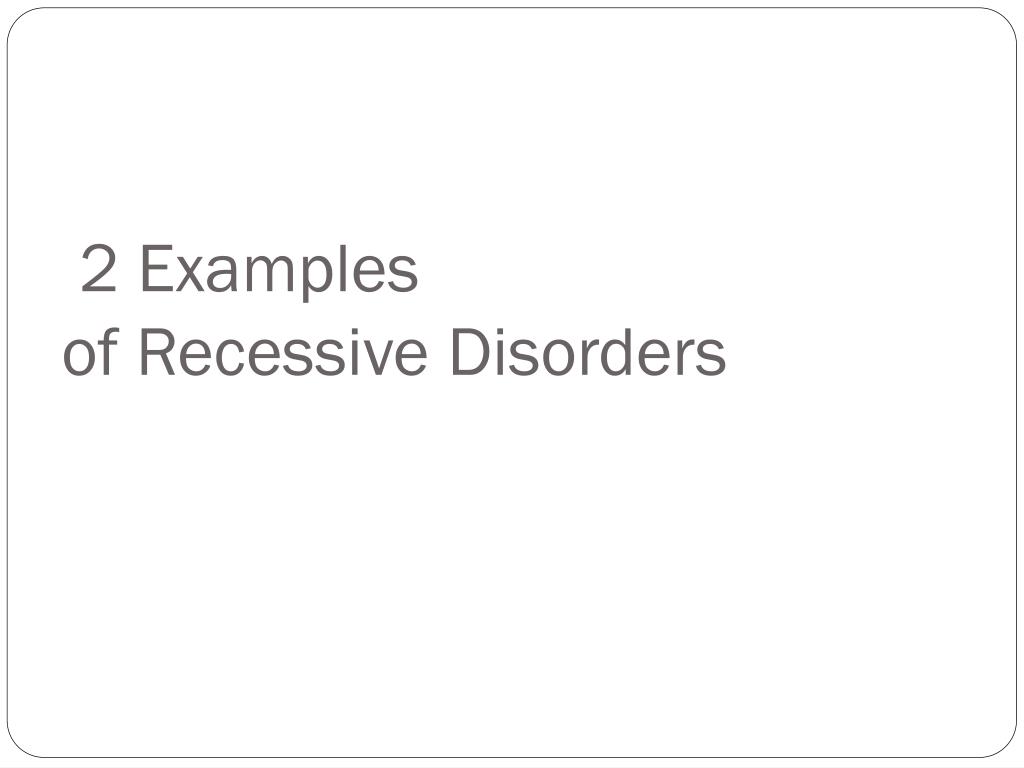

2 Examples of Recessive Disorders

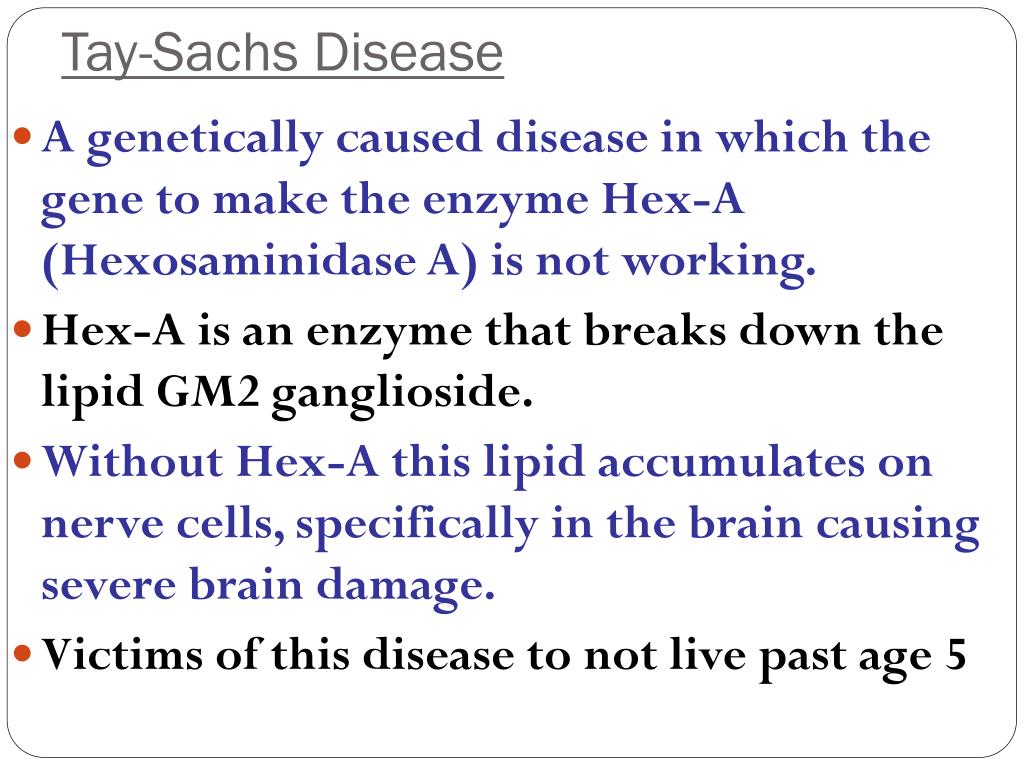

Tay sachs disease

Tay-Sachs Disease

  • A genetically caused disease in which the gene to make the enzyme Hex-A (Hexosaminidase A) is not working.

  • Hex-A is an enzyme that breaks down the lipid GM2 ganglioside.

  • Without Hex-A this lipid accumulates on nerve cells, specifically in the brain causing severe brain damage.

  • Victims of this disease to not live past age 5

Common in eastern european ashkenazi jews

Common in Eastern European Ashkenazi Jews

  • This is a group of people descendent of medieval Jews from the Rhineland area. (Rhineland: near the river Rhine in Germany)

  • Common in this population (1 in 30)

Tay sachs brain

Tay-Sachs Brain

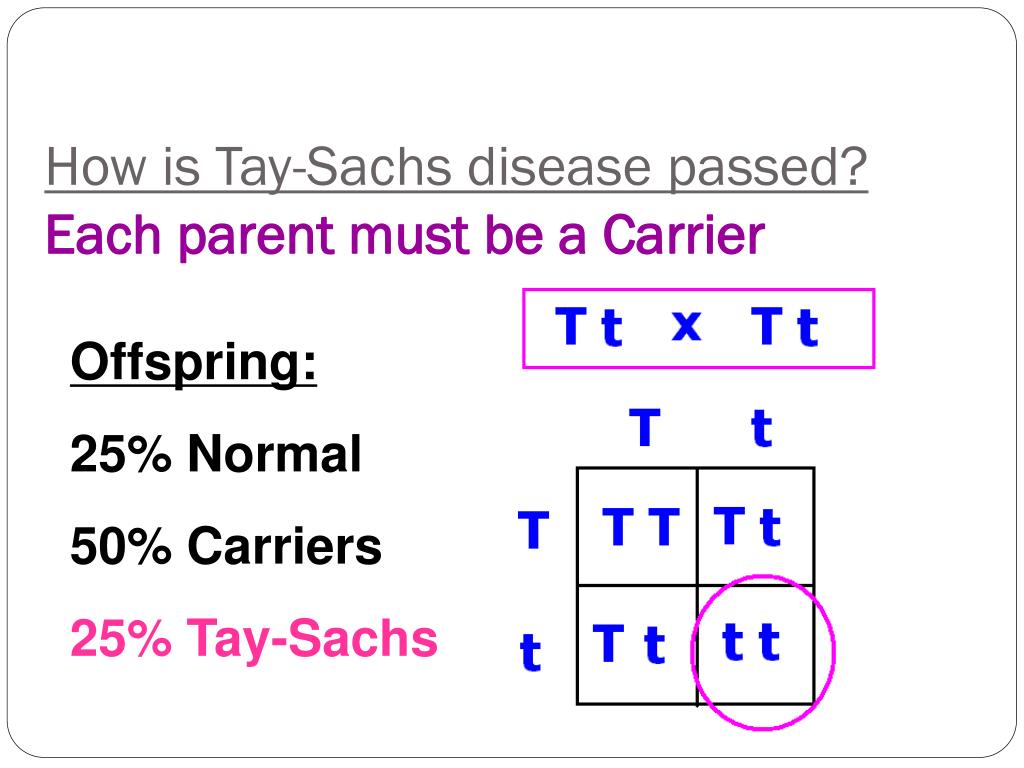

How is tay sachs disease passed each parent must be a carrier

How is Tay-Sachs disease passed? Each parent must be a Carrier


25% Normal

50% Carriers

25% Tay-Sachs

Cystic fibrosis

Cystic Fibrosis

  • Thick mucus is produced by the body

    • Mucus fills lungs causing lung infections

    • Mucus blocks pancreas which causes digestive problems

    • Mucus can block bile ducts in liver causing liver failure.

Cystic fibrosis1

Cystic Fibrosis

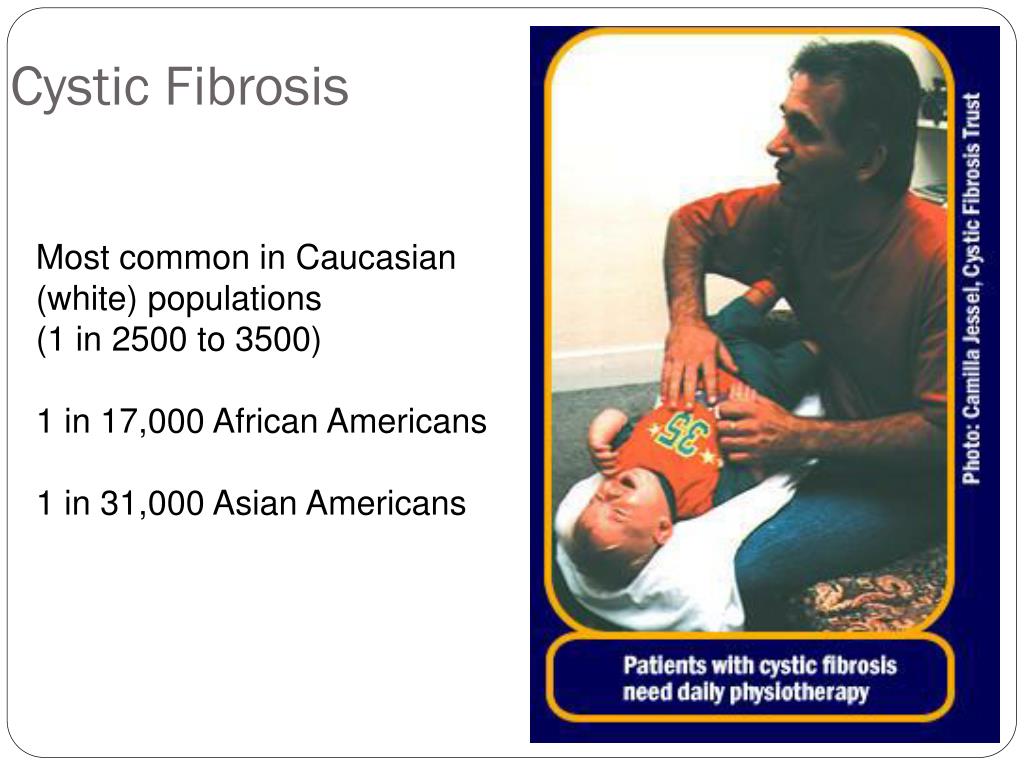

Cystic fibrosis2

Cystic Fibrosis

Most common in Caucasian (white) populations

(1 in 2500 to 3500)

1 in 17,000 African Americans

1 in 31,000 Asian Americans

Carriers of cystic fibrosis

Carriers of Cystic Fibrosis


25% Normal

50% Carriers

25% Cystic Fibrosis

Dominant disorders

Dominant Disorders

Disorders that are expressed in the phenotype of heterozygous and homozygous dominant individuals

  • DD = Affected

  • Dd = Affected

  • dd = Normal

2 examples

2 Examples

1 huntington s disease

1) Huntington’s Disease

  • Brain cells degenerate over time

  • Mood swings, loss of muscle control, loss of memory and inability to learn, death.

  • Usually adult-onset, appears around ages 40-50

  • Outlook is 10-15 years of survivablity

  • hh = Normal

  • HH or Hh = will get and die of this disease

Person with huntington s and a person without huntington s

Person with Huntington’s and a person without Huntington’s

Hh x hh


50% Huntington’s

50% Normal

Genetic disorders sex linked traits

Huntington’s is most common in certain parts of Venezuela (700 in 100,000)Generally affect 3-7 in 100,000 of European ancestryLess common in African-American & Asian American

2 marfan s syndrome

2) Marfan’s Syndrome

  • Defective gene for fibrillin-1 that results in abnormal connective tissue

  • Aorta may stretch or become weak, causing aortic rupture, the leading cause of death

  • Eye/lens problems

  • Excessive long bone growth (long arms & fingers)

  • Hypermobile joints (too flexible)

Chromosome structure variations

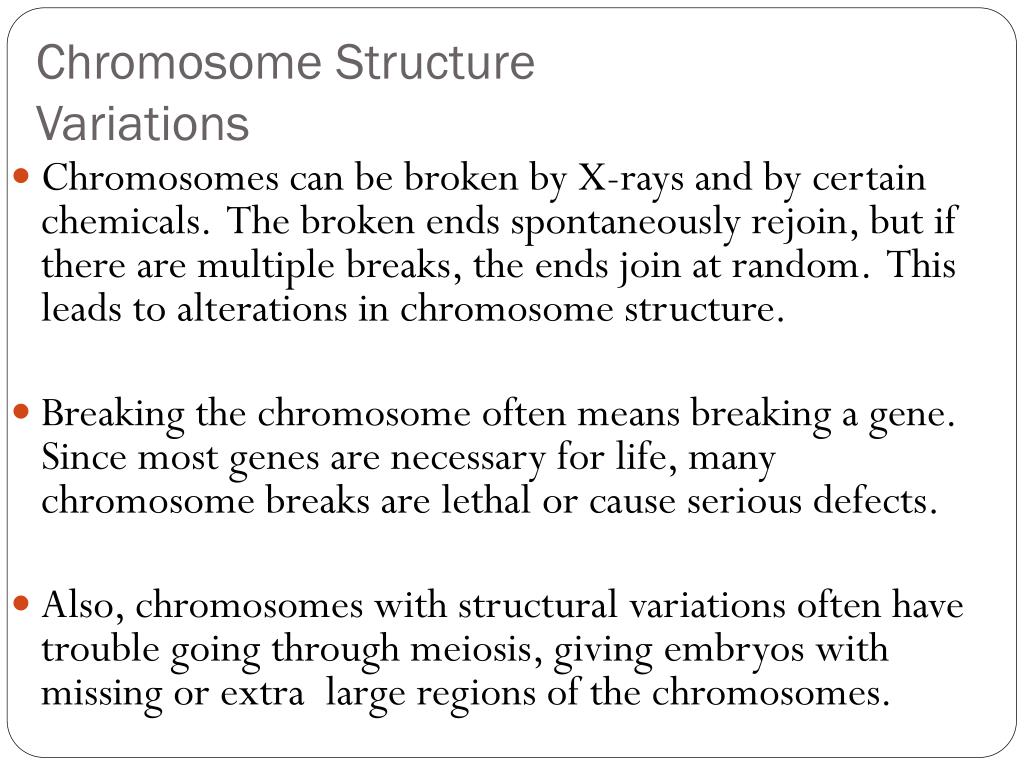

Chromosome Structure Variations

  • Chromosomes can be broken by X-rays and by certain chemicals. The broken ends spontaneously rejoin, but if there are multiple breaks, the ends join at random. This leads to alterations in chromosome structure.

  • Breaking the chromosome often means breaking a gene. Since most genes are necessary for life, many chromosome breaks are lethal or cause serious defects.

  • Also, chromosomes with structural variations often have trouble going through meiosis, giving embryos with missing or extra large regions of the chromosomes.

Chromosome structure variations1

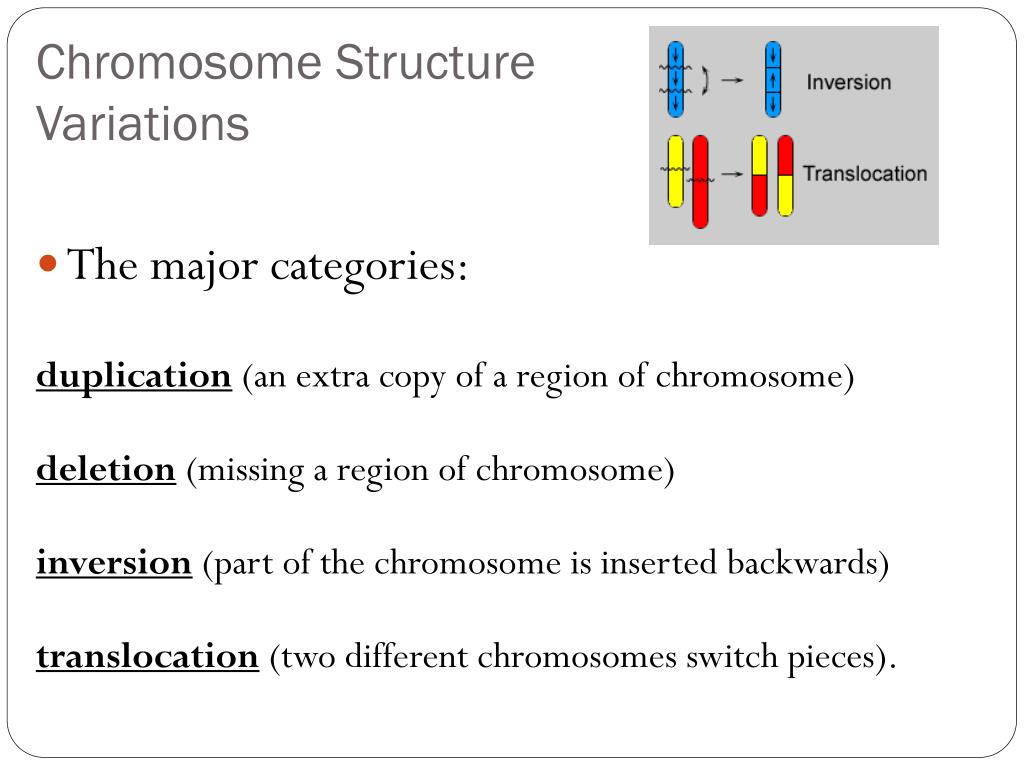

Chromosome Structure Variations

  • The major categories:

    duplication(an extra copy of a region of chromosome)

    deletion(missing a region of chromosome)

    inversion(part of the chromosome is inserted backwards)

    translocation(two different chromosomes switch pieces).

Chromosome variations

Chromosome Variations

  • Changes in number and structure are possible: first look at number variations.

  • Aneuploidy: having an extra or missing chromosome– is fairly common in sperm and eggs. Errors in meiosis causes chromosomes to not separate equally into the gametes.

The rate of aneuploidy in males is constant: 1-2% of sperm have an extra or missing chromosome.

Chromosome variations1

Chromosome Variations

  • In females, the rate increases with age. This is illustrated by the frequency of Down syndrome births at different ages of mother. Down syndrome is the most frequent result of aneuploidy.

Chromosome number variations aneuploidy

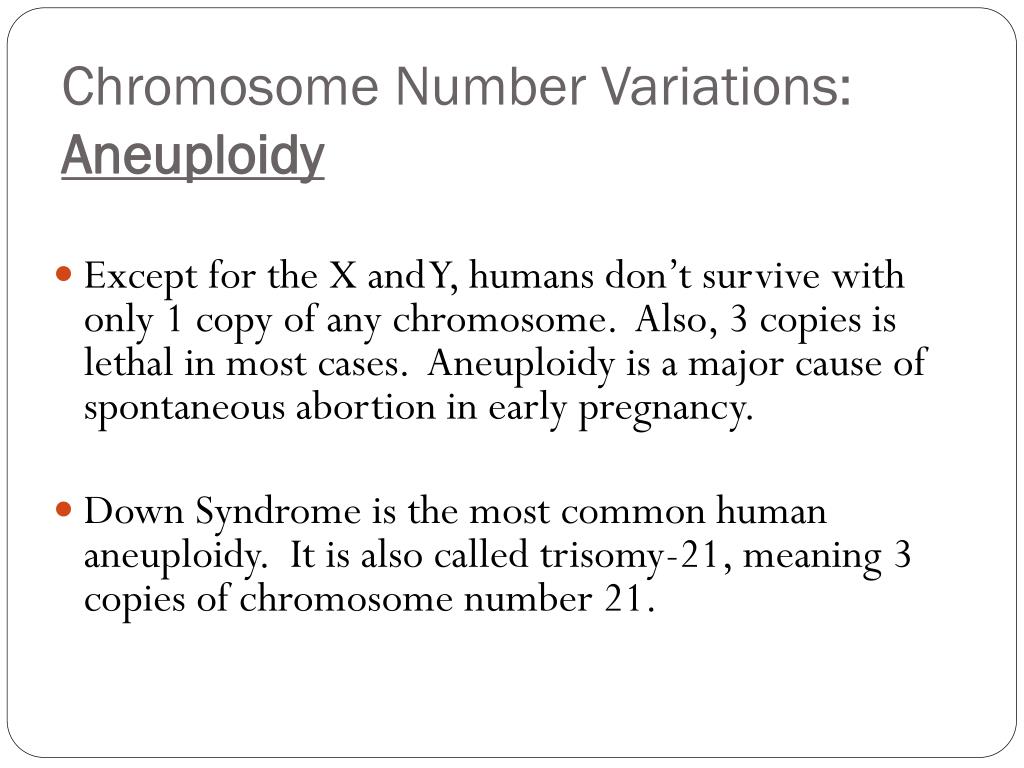

Chromosome Number Variations:Aneuploidy

  • Except for the X and Y, humans don’t survive with only 1 copy of any chromosome. Also, 3 copies is lethal in most cases. Aneuploidy is a major cause of spontaneous abortion in early pregnancy.

  • Down Syndrome is the most common human aneuploidy. It is also called trisomy-21, meaning 3 copies of chromosome number 21.

Having 3 chromosomes of each kind instead of 2 normally trisomy results in death

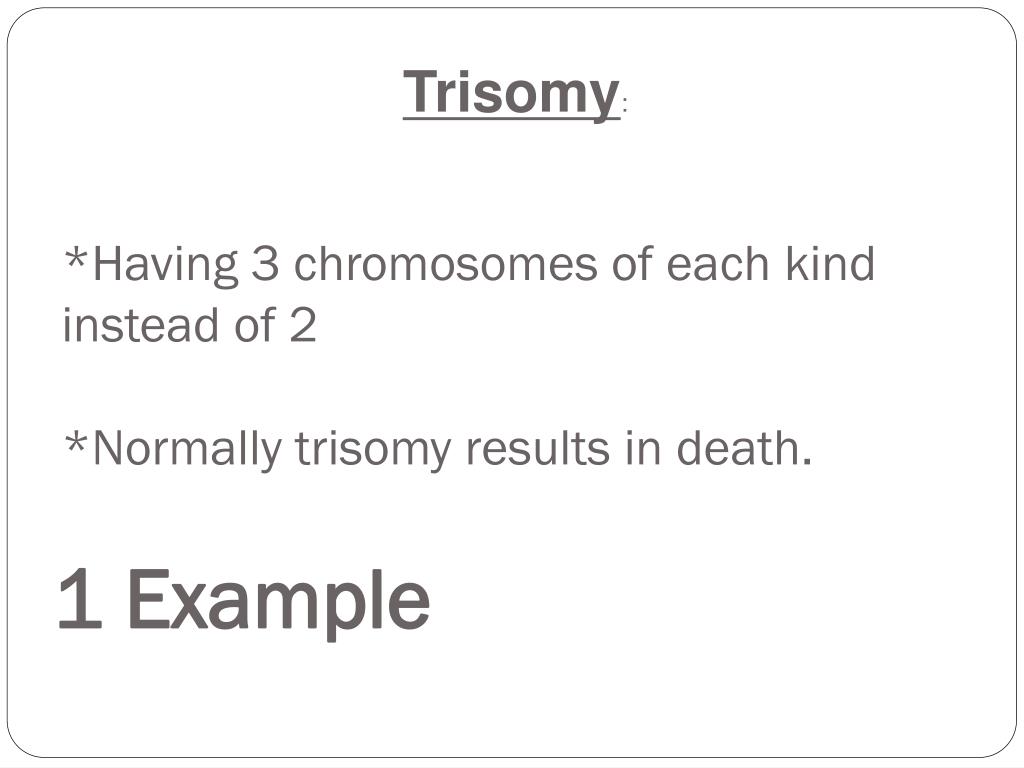

*Having 3 chromosomes of each kind instead of 2*Normally trisomy results in death.


1 Example

Down syndrome

Down Syndrome:

  • a genetic condition in which the individual has 3 copies of the 21st chromosome.

  • Genotype: 3 copies of 21st chromosome

Down syndrome1

Down Syndrome:

  • Phenotype: People with Down’s have a characteristic appearance: flattened face, turned up nose, epicanthal folds at the outer corners of the eyes. In most cases the diagnosis is made immediately at birth. Heart defects, protruding tongue, and mental retardation are also found in most people with Down’s. Occurs about 1 in 1000 births.

Sex linked traits

Sex Linked Traits

Sex linked traits1

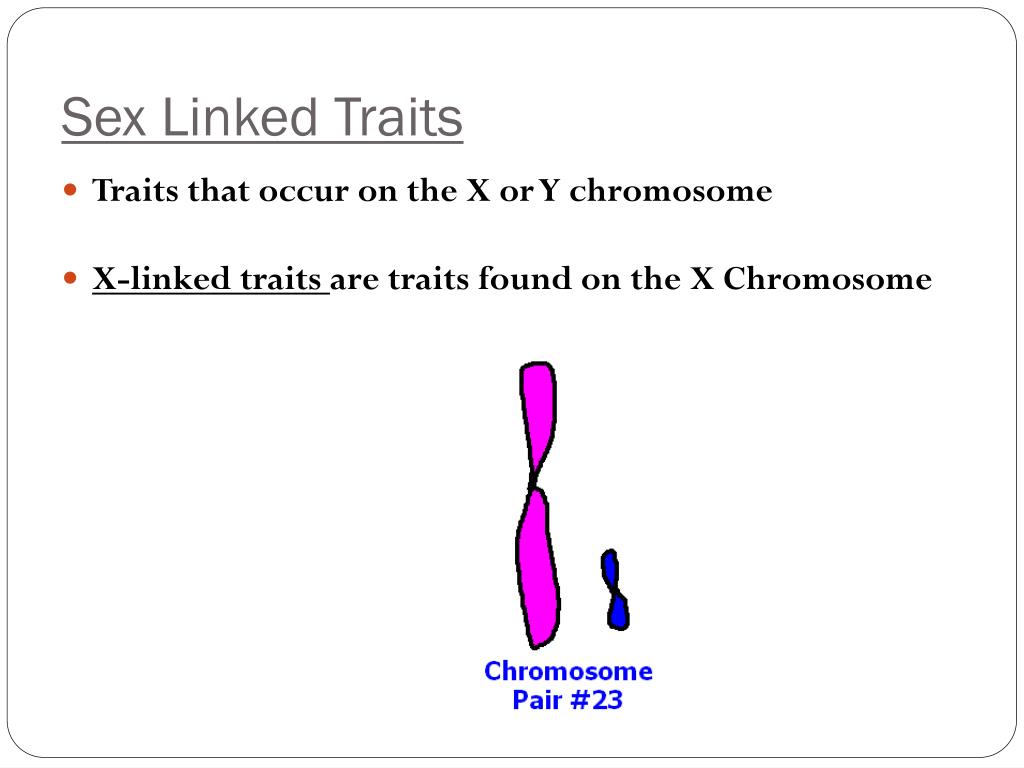

Sex Linked Traits

  • Traits that occur on the X or Y chromosome

  • X-linked traits are traits found on the X Chromosome

Sex linked genes

Sex-linked Genes

  • Genes on the X chromosome are called “sex-linked”, because they expressed more often in males than in females

  • There are very few genes on the Y chromosome.

  • Since males only have one X chromosome, all genes on it, whether dominant or recessive, are expressed.

Sex linked genes1

Sex-linked Genes

  • In contrast, a mutant gene on an X chromosome in a female is usually covered up by the normal allele on the other X. Most mutations are recessive. So, most people with sex-linked genetic conditions are male.

  • Another fact about sex-linked genes. Males produce ½ their sperm with their X chromosome, and half with their Y chromosome. The X-bearing sperm lead to daughters and the Y-bearing sperm lead to sons. So, sons get their only X from their mothers, and the father’s X goes only to daughters.

  • The Y chromosome is passed from father to son.

Why can females have 2 copies of the x chromosome when 2 copies of most chromosomes is deadly

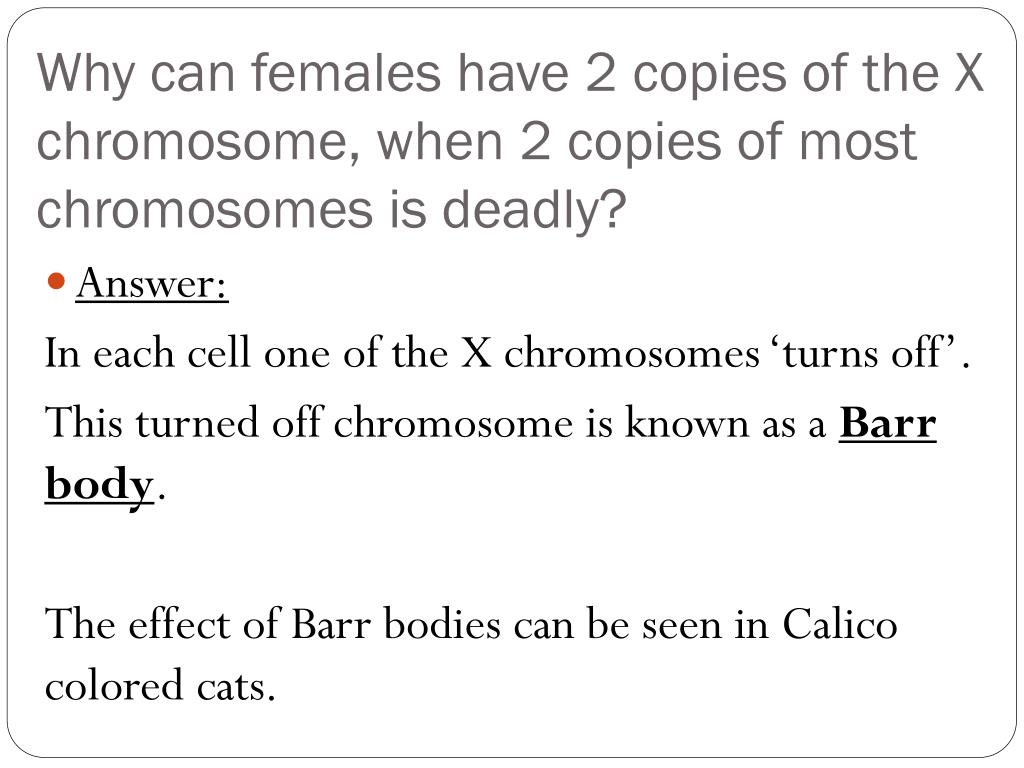

Why can females have 2 copies of the X chromosome, when 2 copies of most chromosomes is deadly?

  • Answer:

    In each cell one of the X chromosomes ‘turns off’.

    This turned off chromosome is known as a Barr body.

    The effect of Barr bodies can be seen in Calico colored cats.

Why can females have 2 copies of the x chromosome when 2 copies of most chromosomes is deadly1

Why can females have 2 copies of the X chromosome, when 2 copies of most chromosomes is deadly?

  • Example: Calico Colored cats.

    A calico cat has patches of orange and patches of black

    X = orange X1 = black

    Males: XY = orange / X1Y = black

    Females: XX = orange / X1X1 = black / XX1 = calico

    Because individual cells determine which X chromosome to deactivate, the patches of color arise



  • We have 3 color receptors in the retinas of our eyes. They respond best to red, green, and blue light.

  • Each receptor is made by a gene. The blue receptor is on an autosome, while the red and green receptors are on the X chromosome (sex-linked).



  • Most colorblind people are males, who have mutated, inactive versions of either the red or the green (sometimes both) color receptors. Most females with a mutant receptor gene are heterozygous: the normal version of the receptor genes gives them normal color vision.

Colorblind test

Colorblind Test!

  • You will see circles with many colors of dots

  • The dot pattern makes up a number

  • What number do you see?

Genetic disorders sex linked traits

With Color Vision:

This one you can even see in black and white

This one you can even see in black and white

Color blind test

Color Blind Test

What number do you see?

Color blind test1

Color Blind Test

What number do you see?

This what you would see if you were color blind

This what you would see if you were color blind

What number do you see?

Color blind test2

Color Blind Test

What number do you see?

Color blind test3

Color Blind Test

What number do you see?

Color blind test4

Color Blind Test

What number do you see?

Color blind test5

Color Blind Test

What number do you see?

Genetic disorders sex linked traits

With color vision you see this:

But if you were red-green colorblind….

You would see the #:


What do the colorblind see

What do the colorblind see?

Types of Colorblindness

Types of colorblindness

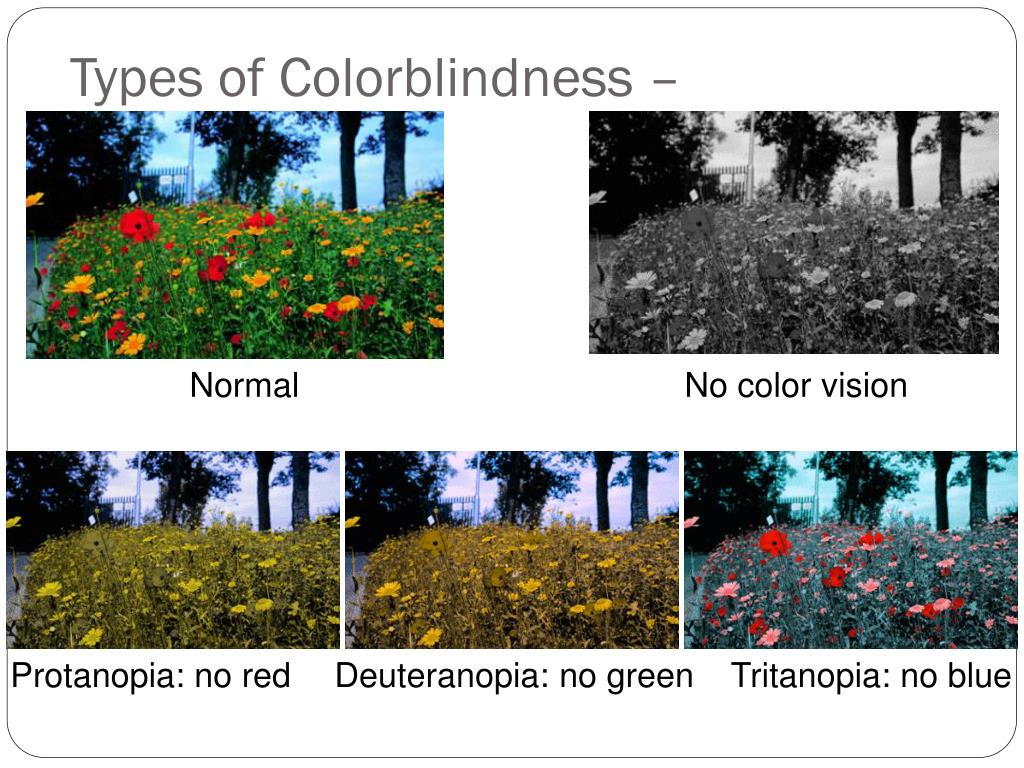

Types of Colorblindness –


No color vision

Protanopia: no red

Deuteranopia: no green

Tritanopia: no blue

How to write alleles for x linked traits

How to write Alleles for X-Linked Traits

  • Women:

    • Normal: XBXB

    • Carrier: XBXb

    • Colorblind: XbXb

  • Men:

    • Normal: XBY

    • Colorblind: XbY



  • Hemophilia is a disease in which the blood does not clot when exposed to air. People with hemophilia can easily bleed to death from very minor wounds. Hemophilia is another sex-linked trait.

  • Hemophilia is treated by injecting the proper clotting proteins, isolated from the blood of normal people. In the early 1980’s, the blood supply was contaminated by HIV, the AIDS virus, and many hemophiliacs contracted AIDS at that time.

Small cuts, scrapes and bruises can be life threatening

1 in 10, 000 males

1 in 100,000,000 females

Common amongst royalty in europe

Common amongst royalty in Europe

Queen Victoria = Carrier

Turner syndrome

Turner Syndrome

  • Also called XO, because people with Turner’s have only 1 X chromosome

  • No Y means Turner’s people are female. However, no ovaries develop, so they don’t undergo the body changes of puberty and they are sterile.

  • Hormone treatment cures all but the sterility.

  • Other symptoms: short stature, webbed skin and low hairline at the neck, some oddities of spatial perception. Not retarded.

Klinefelter syndrome

Klinefelter Syndrome

  • Non-disjunction can also result in a person with 2 X’s and a Y: XXY. This is called Klinefelter Syndrome.

  • The Y chromosome makes a person with Klinefelter’smale: possessing testes.

  • Symptoms: female body hair pattern, breast development, sterile, can be some developmental delay or retardation, especially for verbal skills.

  • Often not diagnosed, or diagnosed only accidentally.

  • Most symptoms are helped by testosterone treatment.

Other number variations

Other Number Variations

  • Triplo-X, having 3 X chromosomes. No Y chromosome means female. Many with this syndrome are undiagnosed because they have no symptoms. Some have slight social and developmental problems, especially language-related. Occasional fertility problems, but many have normal fertility. Not well studied.

  • XYY: having 2 Y chromosomes plus an X. Male because they have a Y. Many are never diagnosed due to a lack of symptoms. Tend to be taller, more physically active, slightly retarded, prone to acne.

A few oddities

A few oddities

  • It is possible to be XY and female. Two ways this can happen:

  • 1. the SRY gene can be inactivated by a mutation. If SRY doesn’t work, testes don’t develop and the embryo develops as a normal female.

  • 2. In a condition called “androgen insensitivity”, the person is XY with a functional SRY gene, but her cells lack the testosterone receptor protein, so the cells don’t ever get the message that the testosterone is sending. Testes develop in the abdominal cavity, and no ovaries, fallopian tubes, or uterus develop. At puberty, the internal testes secrete testosterone, which gets converted into estrogen and the body develops as a normal (but sterile) adult female.

Xy women show some male like features that make them good models

XY women show some “male-like” features that make them good models

  • Taller than most women

  • Chiseled Jaw:

  • Good Muscle definition:

  • Don’t have as much body fat


Hermaphrodites ?!?

  • Hermaphrodite: An individual that has all female reproductive parts, and all male reproductive parts

  • No such thing in Humans



In some cases, androgen insensitivity is only partial: the cells respond a little bit to testosterone produced by the testes. The embryo develops with ambiguous genitalia, neither completely male not completely female.

Another condition, congenital adrenal dysplasia, causes the adrenal glands to produce an abnormally large amount of testosterone in a female embryo, This can also cause development of ambiguous genitalia.

  • Another rare condition: a chimera occurs when two separate embryos fuse together. This can result in a person with some XX cells and some XY cells. This condition is extremely rare: more people say they have it than actually do.



  • 2% of births

  • Monozygotic (Identical) 30% of twins

    A single zygote splits into two. This happens between 1 to 9 days after the zygote forms.

    The twins share the same genome

  • Dizygotic (Fraternal) 70% of twins

    Two separate eggs are fertilized with two separate sperm. Two totally independent zygotes are created.

    The twins have different genomes

  • Conjoined twins – very rare (1 in 200,000)

    Identical twins who fail to completely separate after the 13th day after fertilization

    This may be due to the fusion, or incomplete separation of zygotes

    May be two fully formed individuals connected at various locations, or rarely, parasitic twins, where one is much smaller and less formed, or even completely contained.

Sex influenced traits

Sex-Influenced Traits

  • Some traits appear to be specific to one sex, but are not sex-linked: their genes are not on the X chromosome. It is sex-influenced.

  • The best human example is male pattern baldness.

  • Baldness is dominant in males: heterozygotes and homozygotes both become bald. In females, baldness is recessive: only homozygotes (which are relatively rare) become bald. Also, females tend to lose hair more evenly than men, giving a sparse hair pattern rather than completely baldness.
