SASHA code for probabilistic hazard assessment: the new version 2.03

1. Dario Albarello Dipartimento di Scienze Fisiche, della Terra e dell’Ambiente Universityof Siena, Italy Vera D’Amico Istituto Nazionale di Geofisica e Vulcanologia Sez. di Milano, Italy SASHA code for probabilistic hazard assessment: the new version 2.03

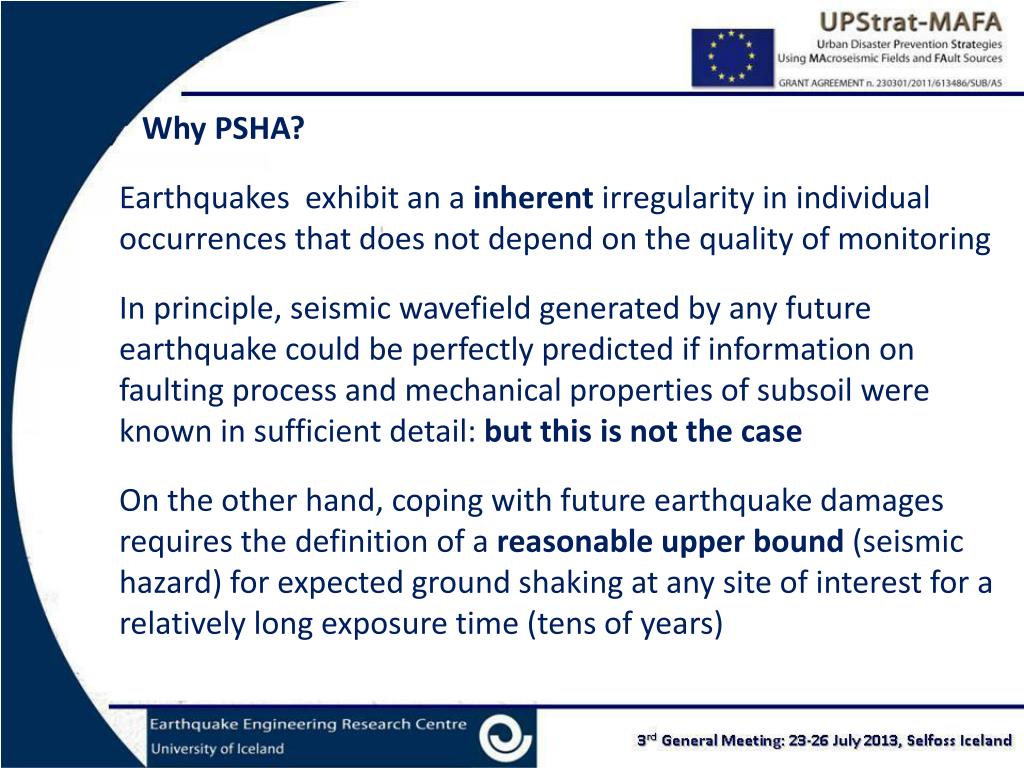

2. Why PSHA? Earthquakes exhibit an a inherent irregularity in individual occurrences that does not depend on the quality of monitoring In principle, seismic wavefield generated by any future earthquake could be perfectly predicted if information on faulting process and mechanical properties of subsoil were known in sufficient detail: but this is not the case On the other hand, coping with future earthquake damages requires the definition of a reasonable upper bound (seismic hazard) for expected ground shaking at any site of interest for a relatively long exposure time (tens of years)

3. In this situation, each forecast is a bet about possible future occurrences Seismological knowledge only allows the identification of a (large) number of possible future scenarios (without any fixed upper bound) What we can do is to attribute to each of these scenarios a different degree of belief (probability distribution) on the basis of available knowledge This makes mandatory the use of a probabilistic language when we deal with seismic hazard

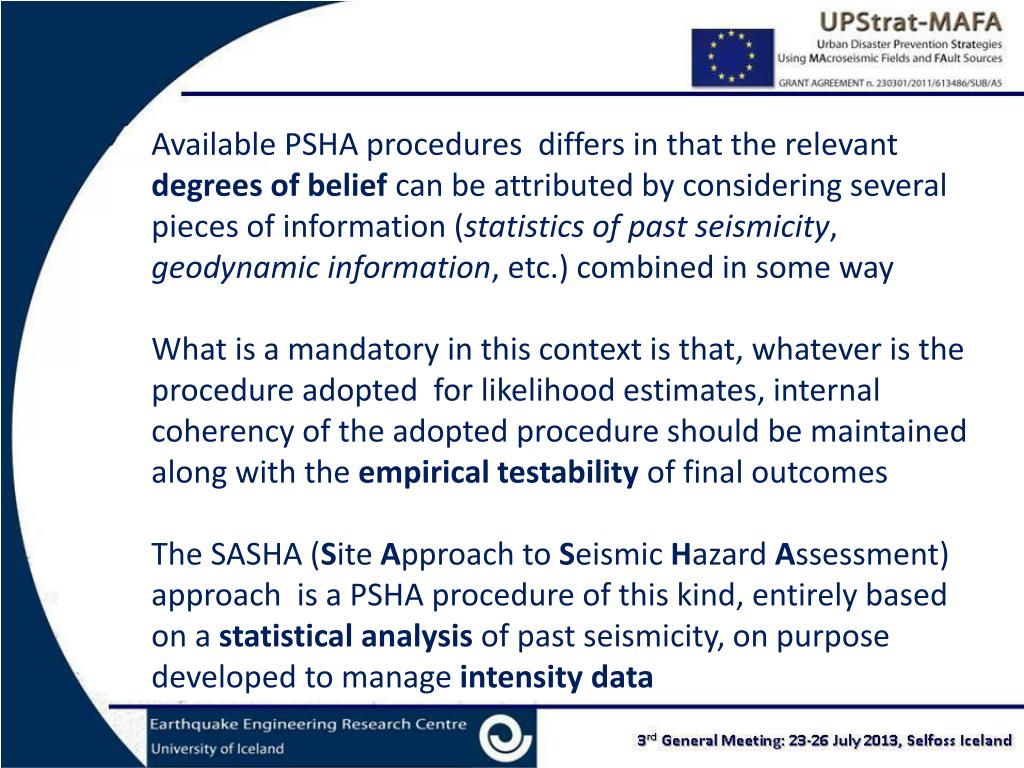

4. Available PSHA procedures differs in that the relevant degrees of belief can be attributed by considering several pieces of information (statistics of past seismicity, geodynamic information, etc.) combined in some way What is a mandatory in this context is that, whatever is the procedure adopted for likelihood estimates, internal coherency of the adopted procedure should be maintained along with the empirical testability of final outcomes The SASHA (Site Approachto Seismic Hazard Assessment) approach is a PSHA procedure of this kind, entirely based on a statistical analysis of past seismicity, on purpose developed to manage intensity data

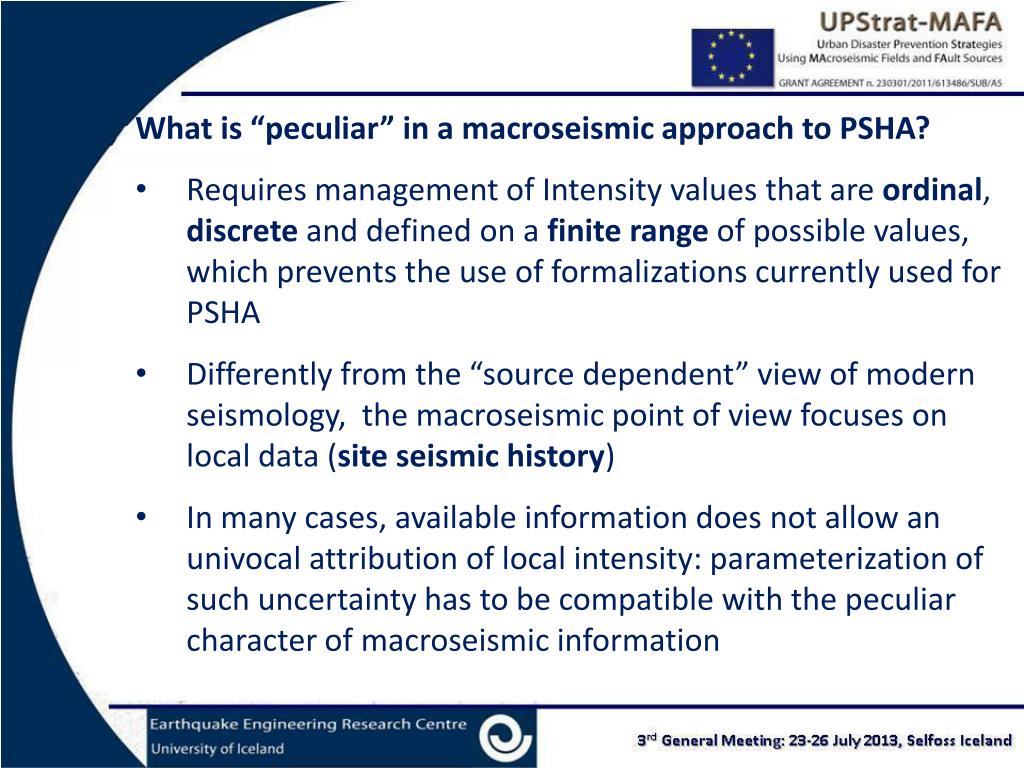

5. Why Intensity? Because we are mainly interested in Risk assessment and Intensity is direct expression of the effects produced by earthquakes on the anthropic environment Because most of information concerning past earthquakes are only expressed in the form of documentary data: this is particularly true where seismicity rates are relatively low and long lasting historical records are available (in Italy 70% of damaging earthquakes are only known from historical descriptions)

6. What is “peculiar” in a macroseismic approach to PSHA? • Requires management of Intensity values that are ordinal, discrete and defined on a finite range of possible values, which prevents the use of formalizations currently used for PSHA • Differently from the “source dependent” view of modern seismology, the macroseismic point of view focuses on local data (site seismic history) • In many cases, available information does not allow an univocal attribution of local intensity: parameterization of such uncertainty has to be compatible with the peculiar character of macroseismicinformation

7. Outcomes of SASHA • Hazard Curve where, for each Intensity threshold Is , the probability is assessed that at least one event with Intensity not less than Is will occur in the exposure time at the site under study • From this hazard curve any reference Intensity Iref can be determined by considering specific applications of concern • Deaggregation analysis can be performed to identify magnitude/distance couples more representative for the reference ground motion. Furthermore, significant past events responsible for local hazard can be identified

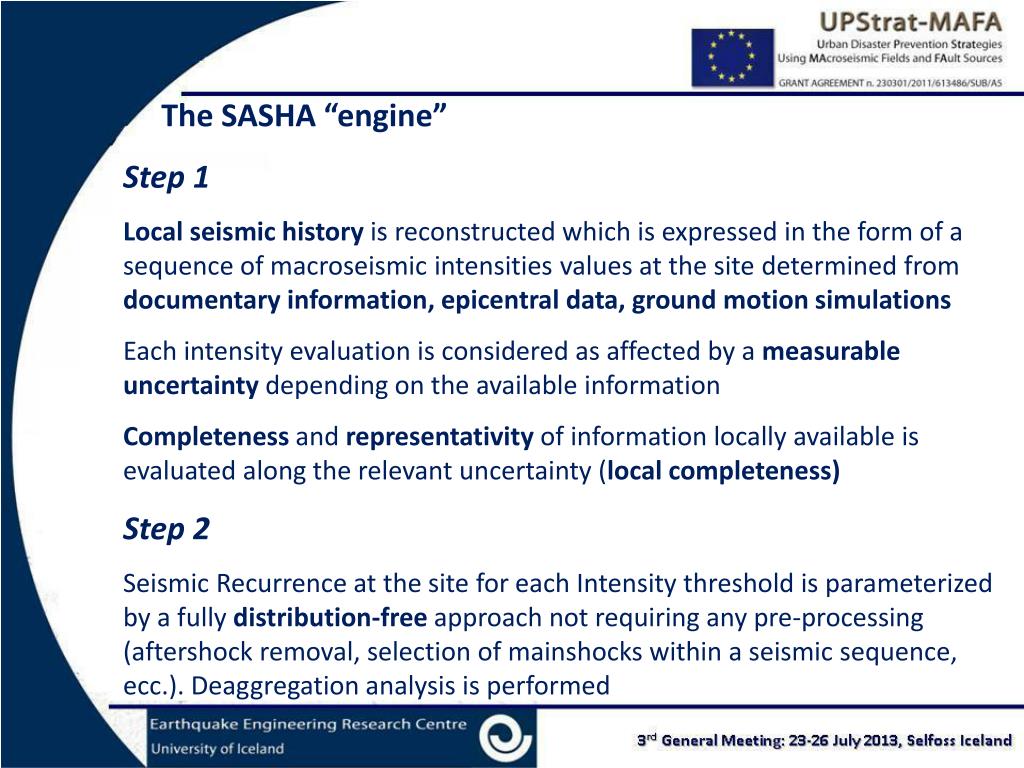

8. The SASHA “engine” Step 1 Local seismic history is reconstructed which is expressed in the form of a sequence of macroseismic intensities values at the sitedetermined from documentary information, epicentral data, ground motion simulations Each intensity evaluation is considered as affected by a measurable uncertainty depending on the available information Completeness and representativity of information locally available is evaluated along the relevant uncertainty (local completeness) Step 2 Seismic Recurrence at the site for each Intensity threshold is parameterized by a fully distribution-free approach not requiring any pre-processing (aftershock removal, selection of mainshocks within a seismic sequence, ecc.). Deaggregation analysis is performed

9. Step 1 (feeding) • Local seismic history can be retrieved by combining four different sources: • Macroseismic felt effects documented at the site (observed intensity) • Epicentral information (distance from the source, orientation with respect to the fault, magnitude, epicentral intensity, etc.) by using empirical probabilistic attenuation relationships (expected intensity) • Macroseismic effects documented nearby the site (neighbouring observations) • Geophysical/Geological information by numerical/physical ground motion simulations (synthetic intensity)

10. Observed Intensity • Uncertainty affecting Intensity values is the effect of the relevant lack of information • To parameterize and manage this uncertainty, each intensity value is implemented in the form of a discrete probability distribution P(Is) representing for each value Is the degree of belief (probability) associated to the statement • “During the i-th event, seismic effects at the site where not less than Is”

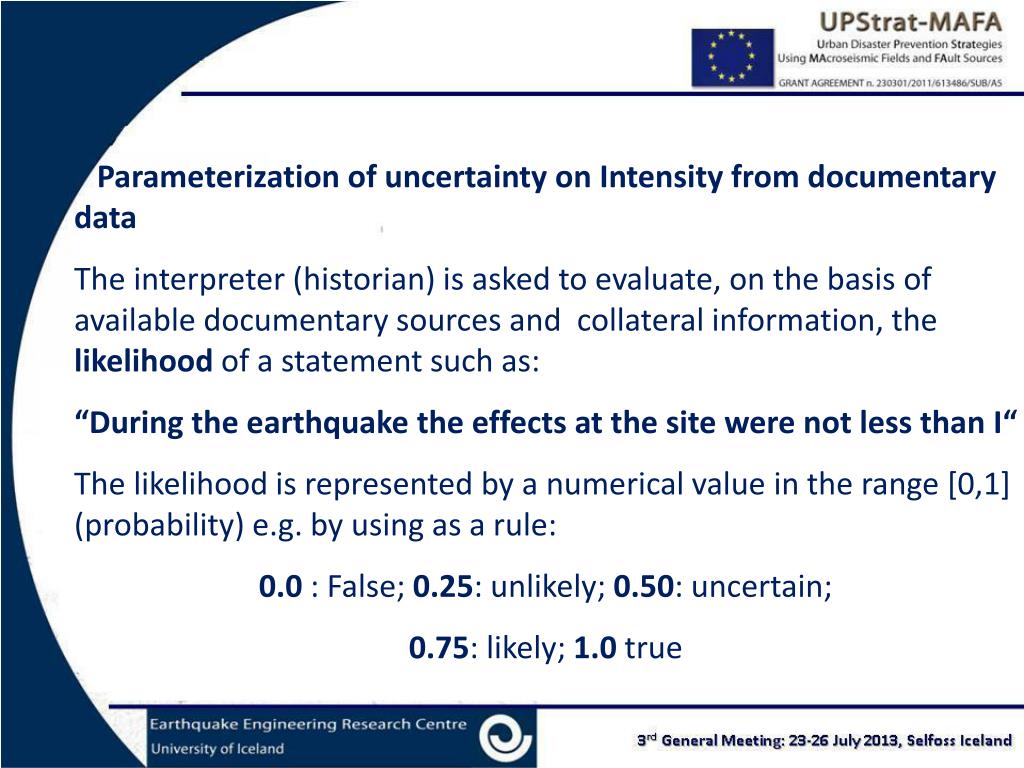

11. Parameterization of uncertainty on Intensity from documentary data The interpreter (historian) is asked to evaluate, on the basis of available documentary sources and collateral information, the likelihood of a statement such as: “During the earthquake the effects at the site were not less than I“ The likelihood is represented by a numerical value in the range [0,1] (probability) e.g. by using as a rule: 0.0 : False; 0.25: unlikely; 0.50: uncertain; 0.75: likely; 1.0true

12. “Observation” No! More severe VI MCS Possible VII MCS VIII MCS Possible Possible IX MCS • Possible alternative codings • >VI MCS and < X MCS • VII-IX MCS • p(VII)=33%; p(VIII)=33%; p(IX)=33% • P(≥VII)=100%; P(≥VIII)=66%; P(≥IX)=33% No! Less severe X MCS

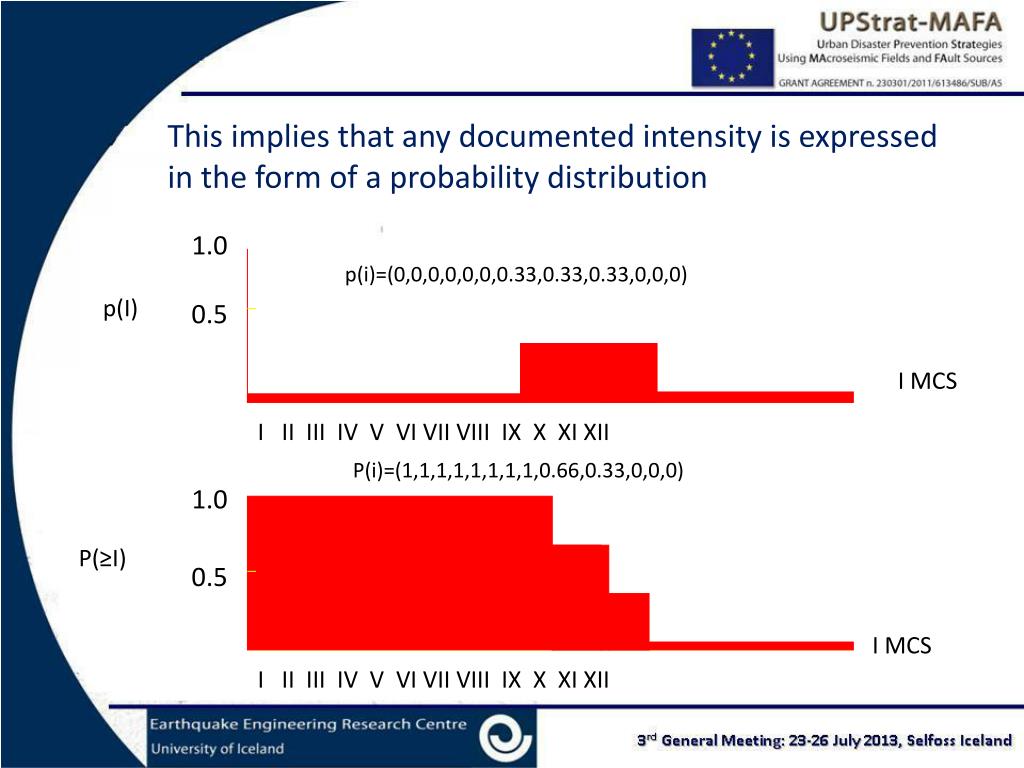

13. p(I) 0.5 I II III IV V VI VII VIII IX X XI XII P(≥I) 0.5 I MCS I II III IV V VI VII VIII IX X XI XII This implies that any documented intensity is expressed in the form of a probability distribution 1.0 p(i)=(0,0,0,0,0,0,0.33,0.33,0.33,0,0,0) I MCS P(i)=(1,1,1,1,1,1,1,1,0.66,0.33,0,0,0) 1.0

14. Site seismic histories (if available) are provided in the form of a list of macroseismic observations NCPTI11 Year Mo Da NDBMI11 Istat01 LatIDPLonIDPIloc 1 1005 0 0 1 09051002 43.463 11.879 7.5 1 1005 0 0 2 09047014 43.932 10.913 5 2 1005 0 0 5 12060019 41.488 13.831 7 General information Feltintensity(intermediate values indicate uncertaintybetween the twocontiguousvalues) Site Code Codingof the seismicevent Site Coordinates Codingof the individual information

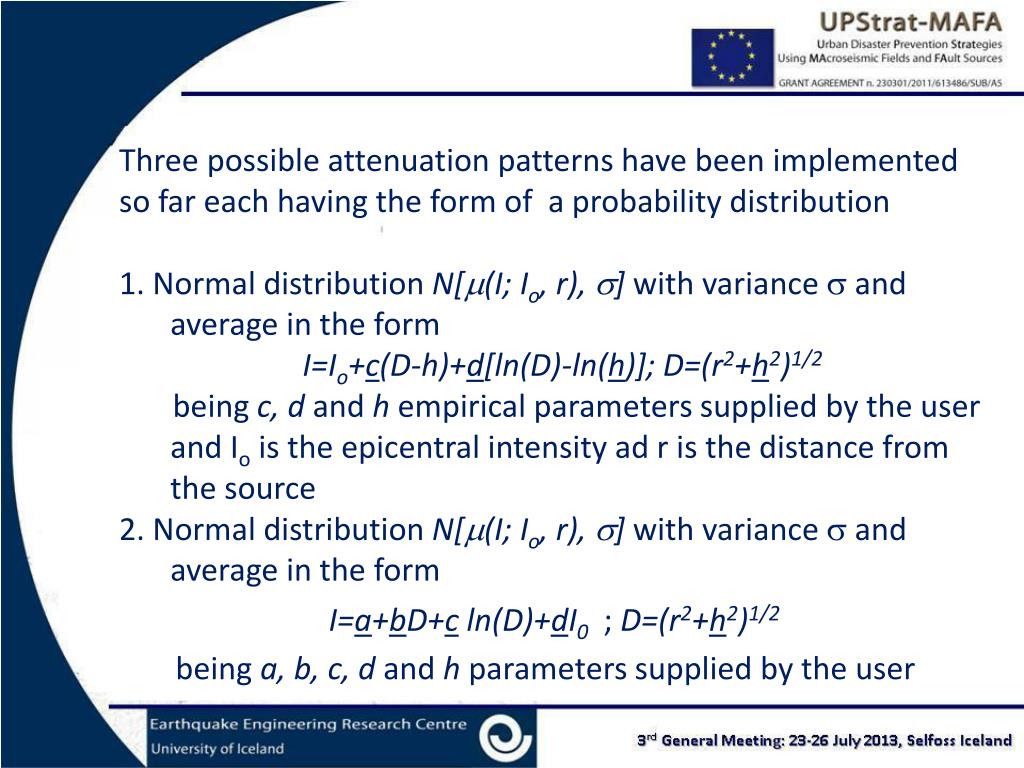

15. Epicentral data and attenuation pattern to compute expected intensity (if required) Epicentral information Attenuation pattern In the newversionof the SASHA code (2.03), attenuation pattern isattributedindividuallytoeachearthquake

16. Three possible attenuation patterns have been implemented so far each having the form of a probability distribution 1. Normal distribution N[m(I; Io, r), s]with variance s and average in the form I=Io+c(D-h)+d[ln(D)-ln(h)]; D=(r2+h2)1/2 being c, d and h empirical parameters supplied by the user and Io is the epicentral intensity ad r is the distance from the source 2. Normal distribution N[m(I; Io, r), s]with variance s and average in the form I=a+bD+cln(D)+dI0 ; D=(r2+h2)1/2 beinga, b, c, d and hparameterssuppliedby the user

17. A third probability distribution is the one provided by (Rotondiand Zonno, 2004; Azzaro et al., 2012), requires 8 parameters supplied by the user and accounts for anysotropic attenuation patterns

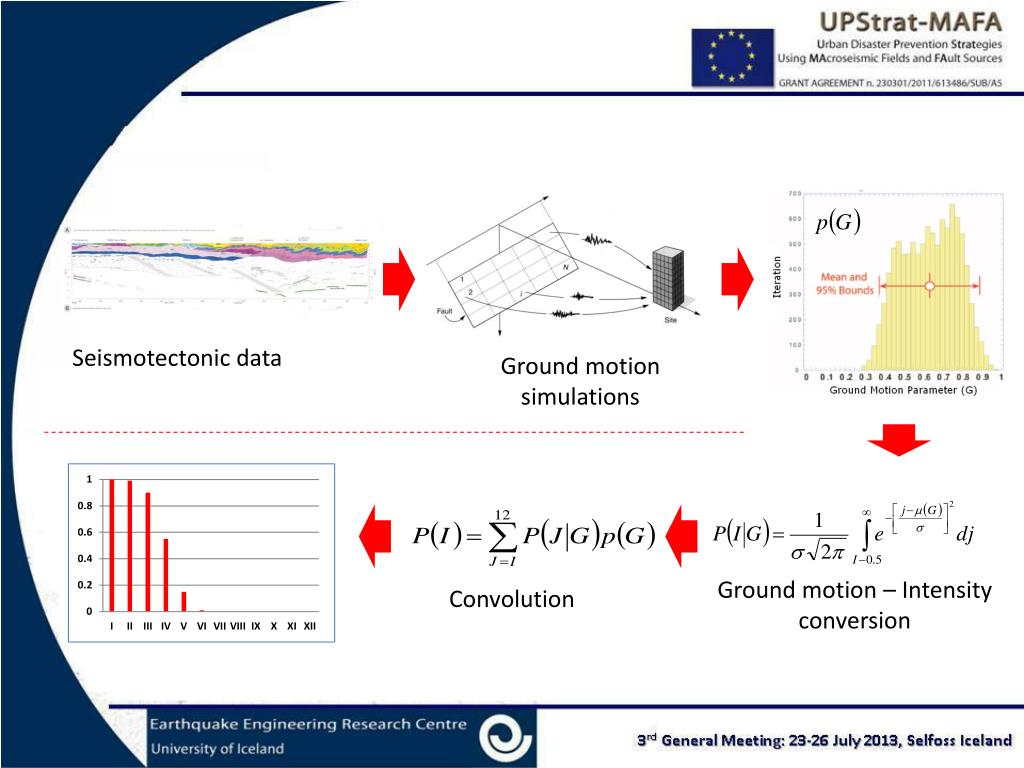

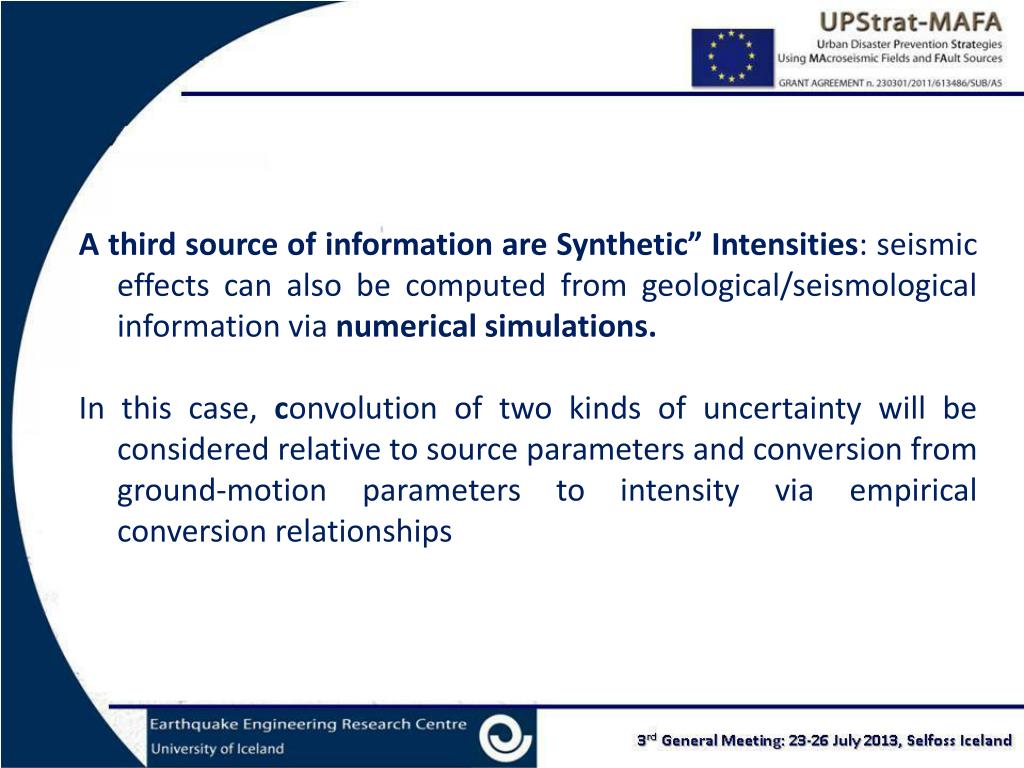

18. A third source of information are Synthetic” Intensities: seismic effects can also be computed from geological/seismological information via numerical simulations. In this case, convolution of two kinds of uncertainty will be considered relative to source parameters and conversion from ground-motion parameters to intensity via empirical conversion relationships

19. Seismotectonic data Ground motionsimulations Ground motion – Intensityconversion Convolution

20. Earthquake code Site coordinates Probabilitydistributionassociatedtoeachsimualatedintensity (this can bealsousedtosupplyintensityobservationsaffectedbyuncertaintylargerthantwocontiguousdegrees Occurrencetime (notused) Locality code

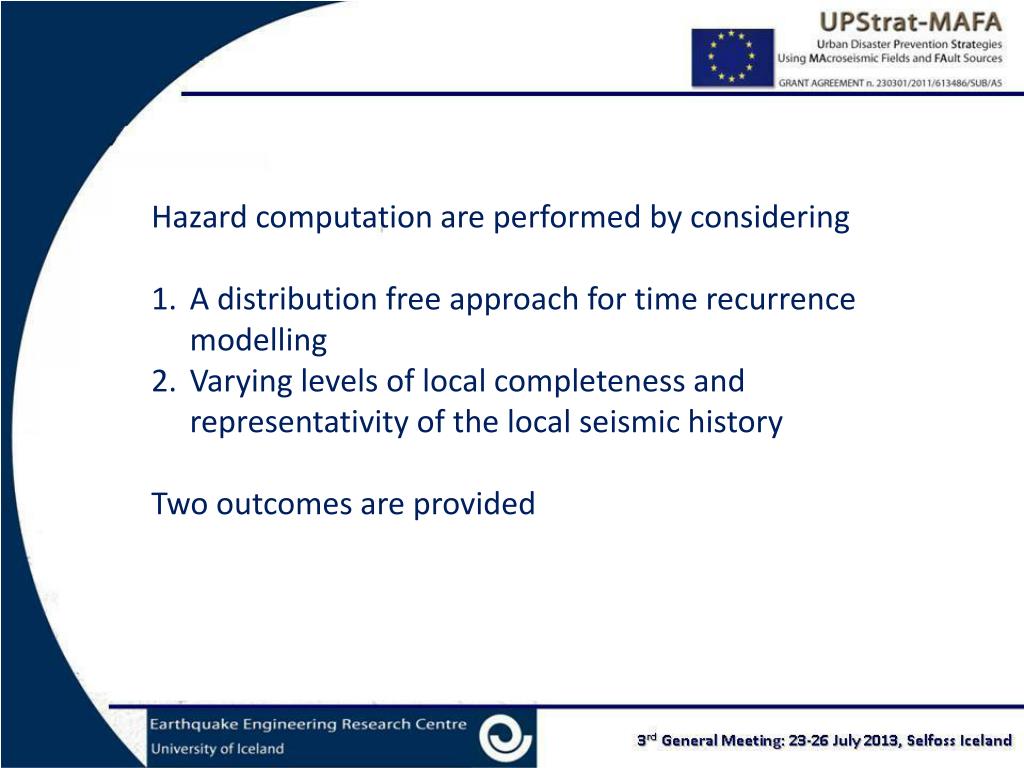

21. Feeding Hazardcomputations

22. Hazard computation are performed by considering A distribution free approach for time recurrence modelling Varying levels of local completeness and representativity of the local seismic history Two outcomes are provided

23. An hazard curve relative to a fixed exposure time Iref It is worth noting that Irefmust correspond to one value of the scale No non-integer value (e.g.,VII-VIII) is possible by definition

24. In order to compare distribution-free SASHA outcomes (function of the exposure time) with results commonly provided by a Poissonian modelling (function of of the average return time or ART) suitable correspondence rules have to be accounted for

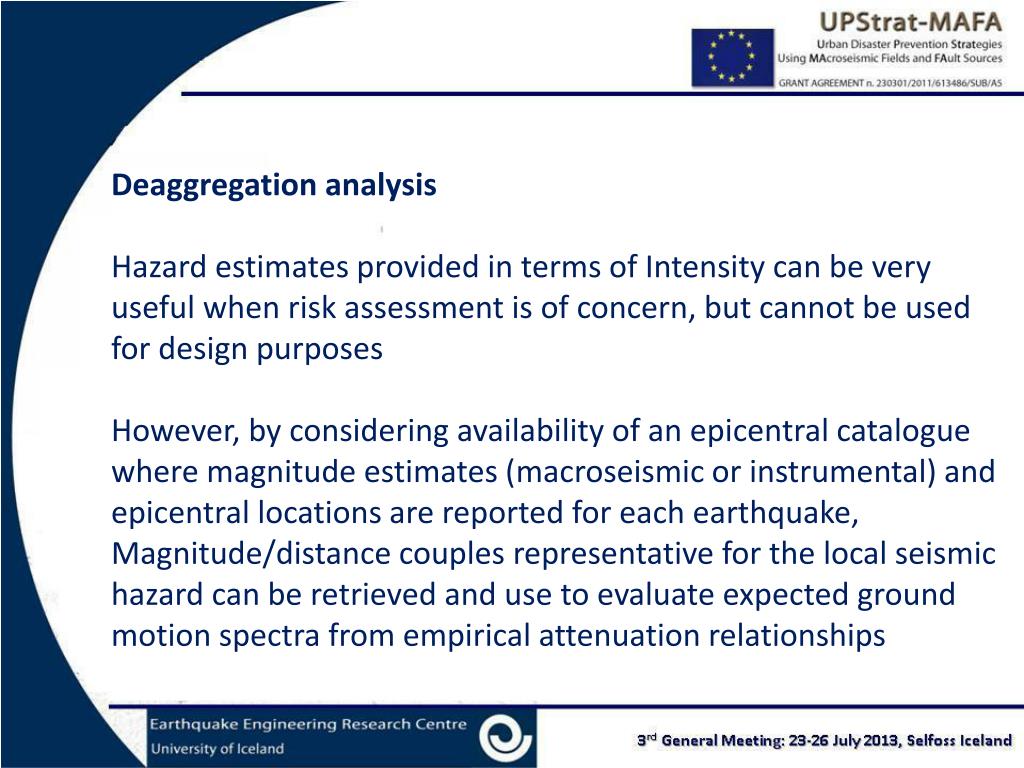

25. Selfoss – July 24-27 2012 SASHA WORKSHOP Urban Disaster Prevention Strategies Using MAcroseismic Fields and FAult Sources (UPStrat-MAFA)GRANT AGREEMENT n. 230301/2011/613486/SUB/A5 Deaggregation analysis Hazard estimates provided in terms of Intensity can be very useful when risk assessment is of concern, but cannot be used for design purposes However, by considering availability of an epicentral catalogue where magnitude estimates (macroseismic or instrumental) and epicentral locations are reported for each earthquake, Magnitude/distance couples representative for the local seismic hazard can be retrieved and use to evaluate expected ground motion spectra from empirical attenuation relationships

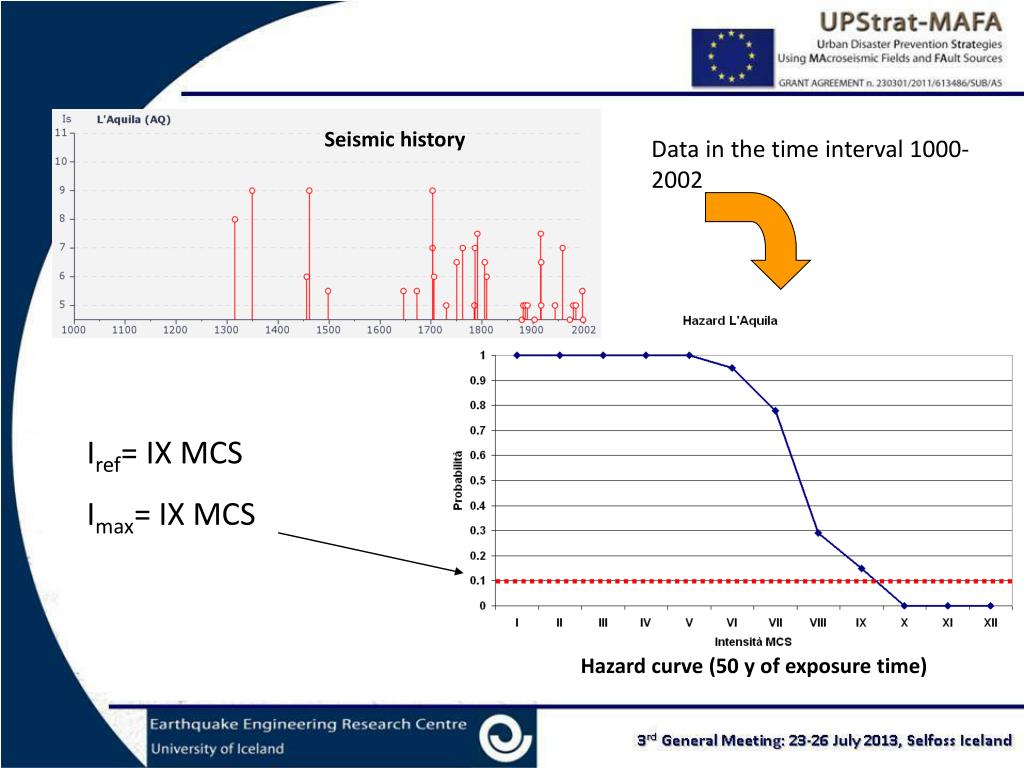

26. Seismichistory Data in the timeinterval 1000-2002 Iref= IX MCS Imax= IX MCS Hazard curve (50 y ofexposuretime)

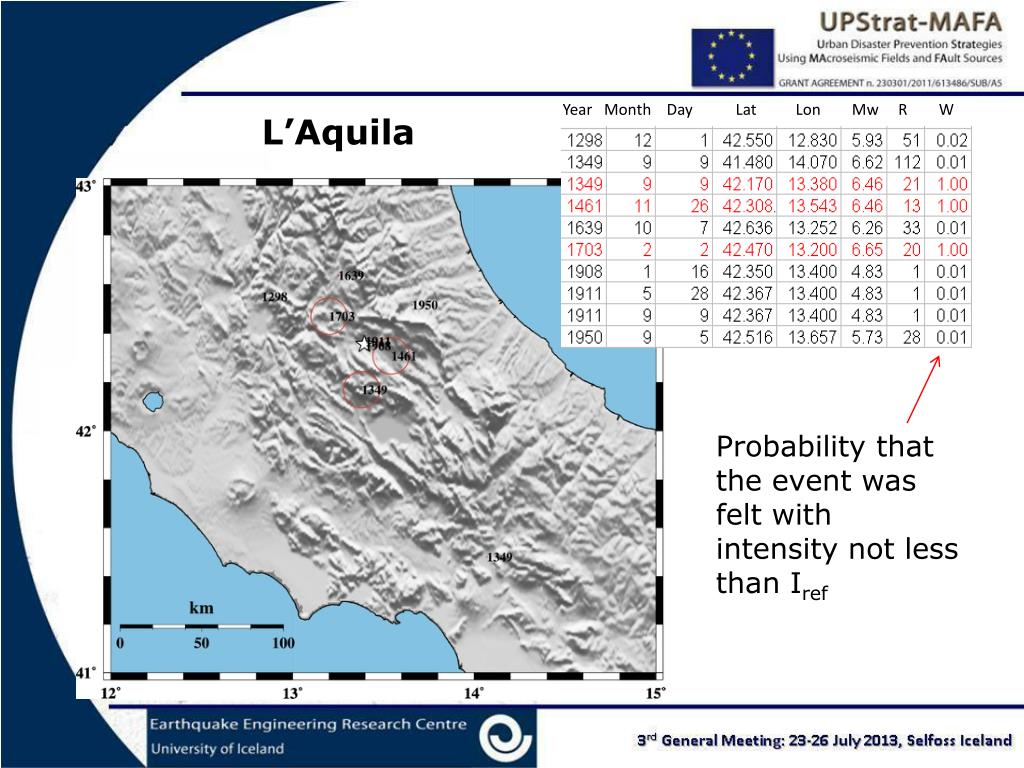

27. YearMonthDay Lat LonMw R W L’Aquila Probabilitythat the eventwasfeltwithintensitynotlessthanIref

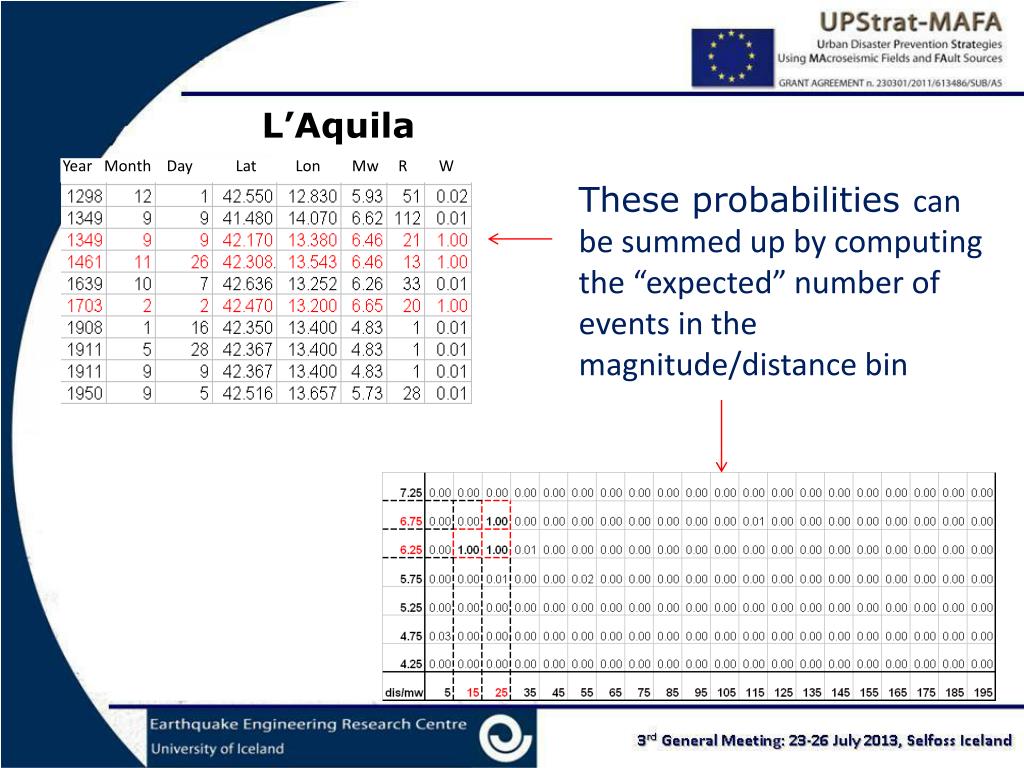

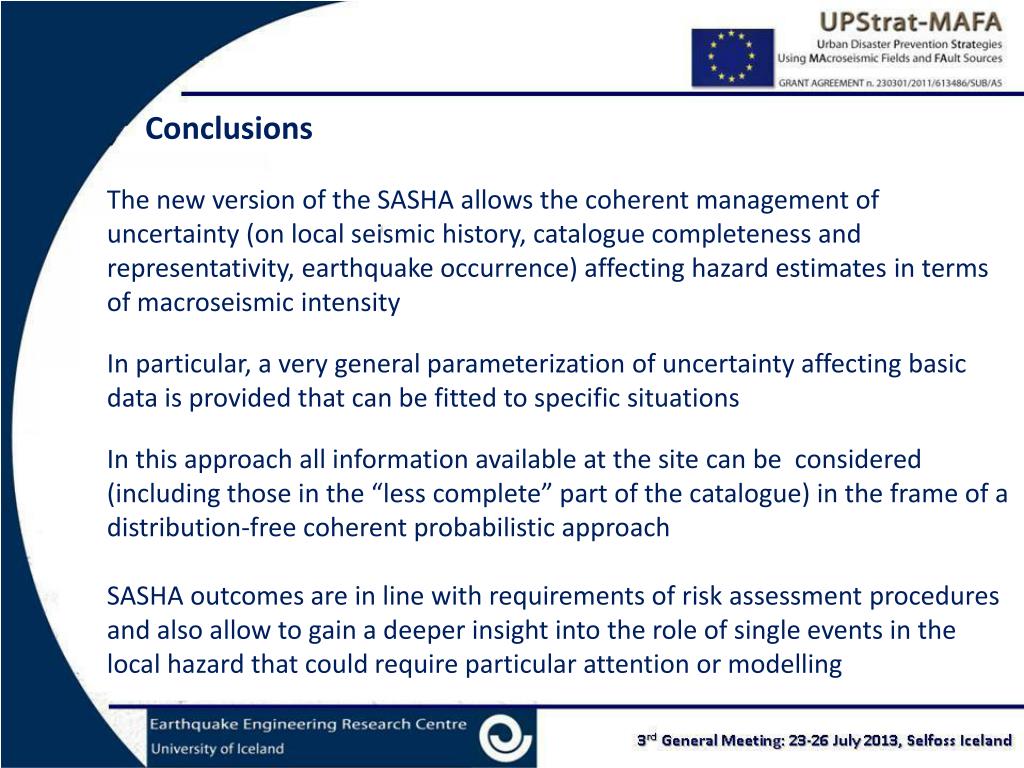

28. L’Aquila YearMonthDay Lat LonMw R W These probabilities can be summed up by computing the “expected” number of events in the magnitude/distance bin
