Te epc

TE-EPC

LINAC4 BCC

Transfer Line Powering

D. Nisbet – LINAC4 TL Powering

1


Te epc

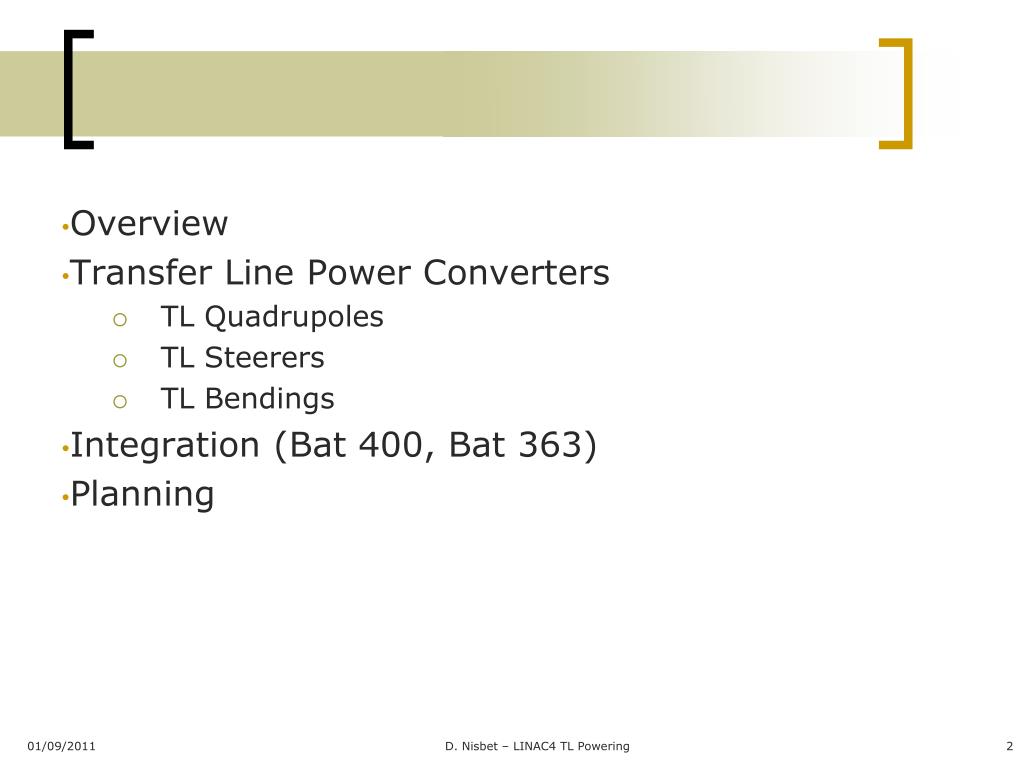

Overview

Transfer Line Power Converters

TL Quadrupoles

TL Steerers

TL Bendings

Integration (Bat 400, Bat 363)

Planning

D. Nisbet – LINAC4 TL Powering


Workpackage from 3mev

Workpackage (from 3MeV)

D. Nisbet – LINAC4 TL Powering


Workpackage transfer line

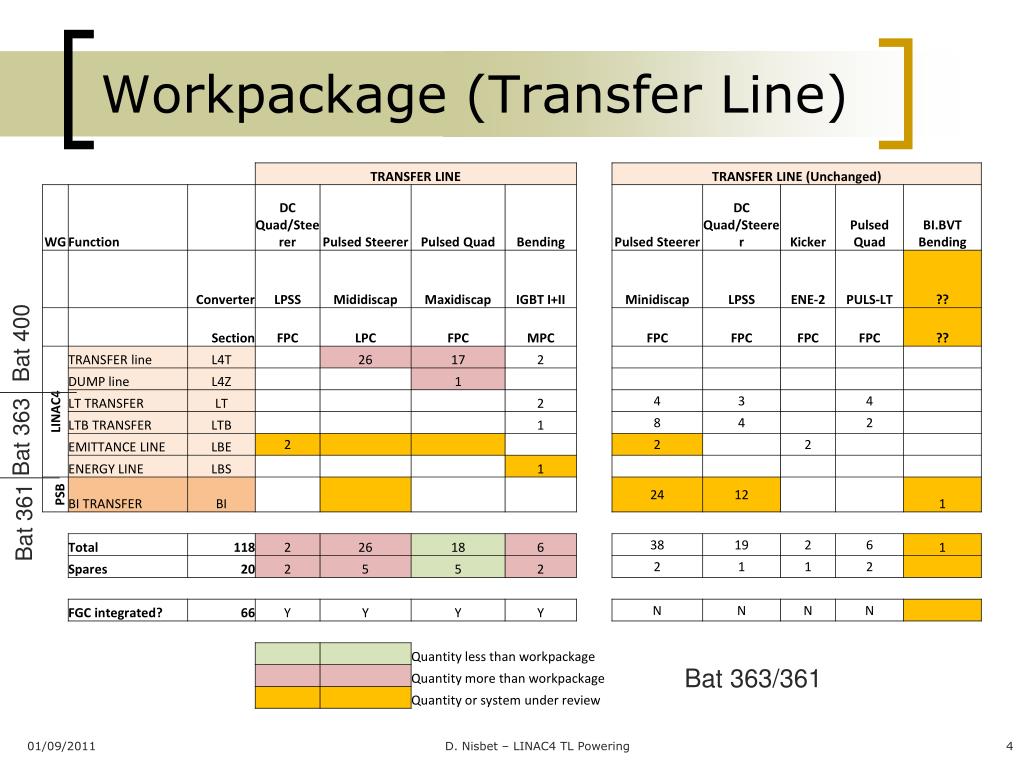

Workpackage (Transfer Line)

Bat 400

Bat 363

Bat 361

Bat 363/361

D. Nisbet – LINAC4 TL Powering


Quadrupole power converters

Quadrupole Power Converters

D. Nisbet – LINAC4 TL Powering


Quadrupole power updates

Quadrupole Power Updates

D. Nisbet – LINAC4 TL Powering


Quadrupole power updates1

Quadrupole Power Updates

D. Nisbet – LINAC4 TL Powering


Quadrupole powering

Quadrupole Powering

All Quadrupole Pulsed Power Converters (maxidiscap) will be extended

Using latest, more compact, capacitor technology

Negligible cost increase

Compatible with all proposed magnet designs

Standard system for LINAC and TL

Power module production

Invitation to tender will be launched in September 2011

Series production of power modules will start ~May 2012

FGC Electronic development ongoing

Series production from ~March 2012

Rack cabling, distribution and filter chassis

Begins November 2011

D. Nisbet – LINAC4 TL Powering


Steerer power converters

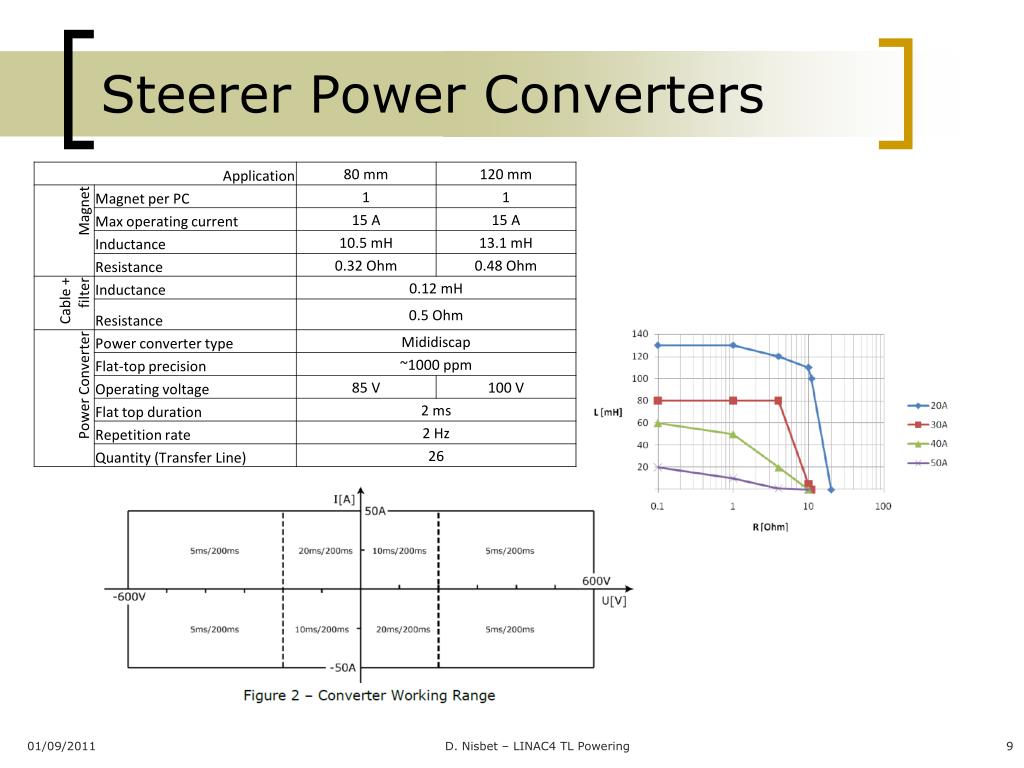

Steerer Power Converters

D. Nisbet – LINAC4 TL Powering


Steerer power converters1

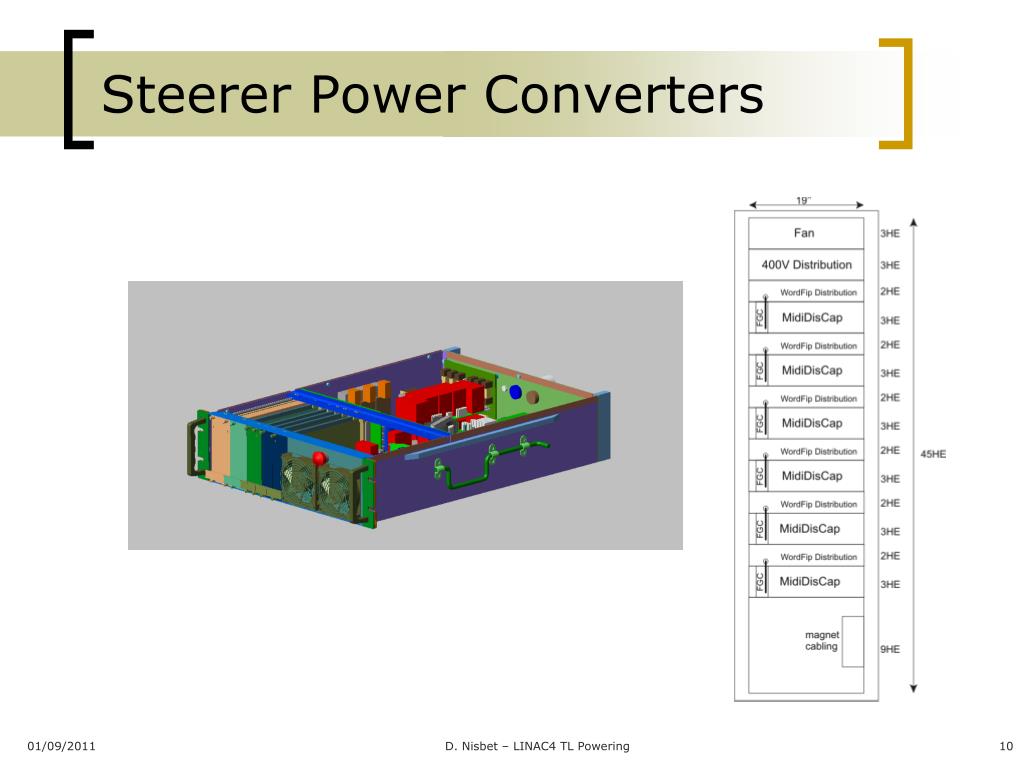

Steerer Power Converters

D. Nisbet – LINAC4 TL Powering


Steerer powering

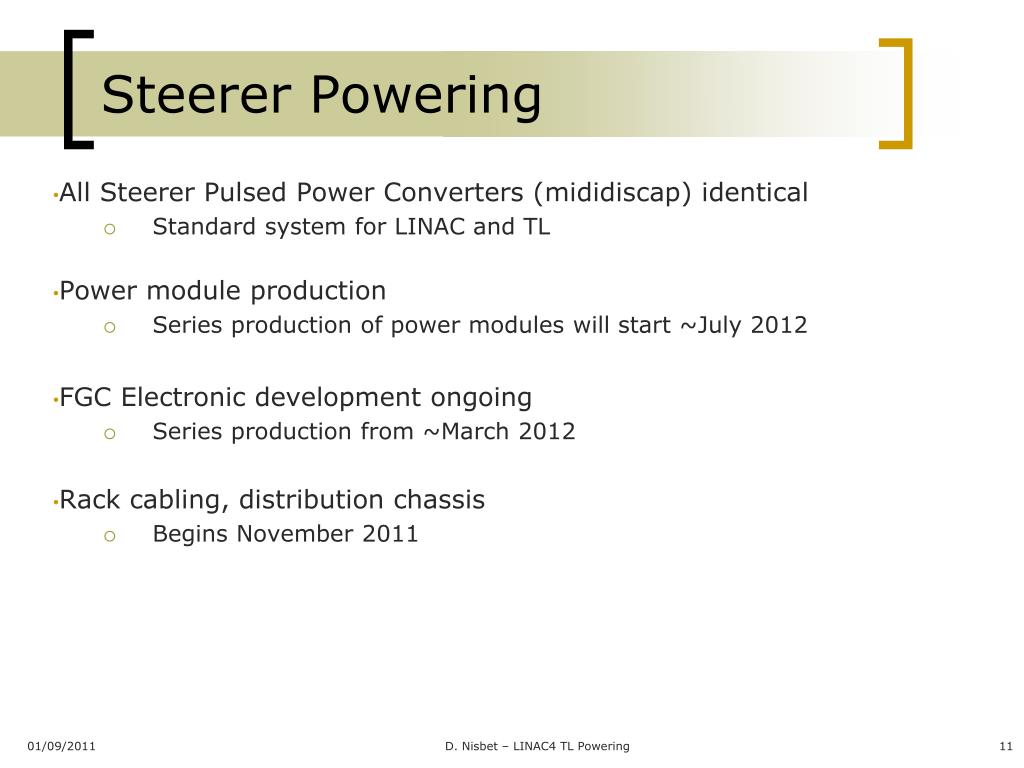

Steerer Powering

All Steerer Pulsed Power Converters (mididiscap) identical

Standard system for LINAC and TL

Power module production

Series production of power modules will start ~July 2012

FGC Electronic development ongoing

Series production from ~March 2012

Rack cabling, distribution chassis

Begins November 2011

D. Nisbet – LINAC4 TL Powering


Bending power converters

Bending Power Converters

The assumption is that the total magnet inductance/resistance remains the same for 3x magnets

What will be the characteristics for the LBS magnet?

D. Nisbet – LINAC4 TL Powering


Bending power converters1

Bending Power Converters

Type 1: [±450V, ±450A], 200Arms

Type 2: [±450V, ±900A], 400Arms

D. Nisbet – LINAC4 TL Powering


Bending powering

Bending Powering

All Bending Power Converters based on same template

Type 2 for all systems except BHZ40 (Type 1)

Power converter production

Production at CERN

Purchasing will begin later this year

Assembly and test late 2012 and 2013

FGC Electronic development ongoing

D. Nisbet – LINAC4 TL Powering


Planning overview

Planning - overview

Mar 2013

Jun 2012

Jan 2013

May 2013

Jan 2013

July 2013

Jan 2014

PSB Modifications

Transfer Line to PSB

3 MeV Front End

(re-used from 3 MeV Test Stand)

Linac4 machine

-BI Septa (x3)

-Foil Chicane (x4)

-Q-strip Trim (x8)

-BI BVT (x1)

  • -H- source; (x4)

  • Klystron Modulator (x1)

  • Quadrupole magnets (x11)

  • Steering magnets (DC) (x8)

  • Solenoid magnets (x2)

  • Testbench magnets (x5)

-Bending magnets (x5)

-Quad DC magnets (x2)

-Quad magnets (x18)

-Steering magnets(x26)

-LBS(x1)

  • Klystron Modulators (x13)

  • Quadrupole magnets (x20)

  • Steering magnets (x24)

52 newpower converters

D. Nisbet – LINAC4 TL Powering

15

15


Conclusion

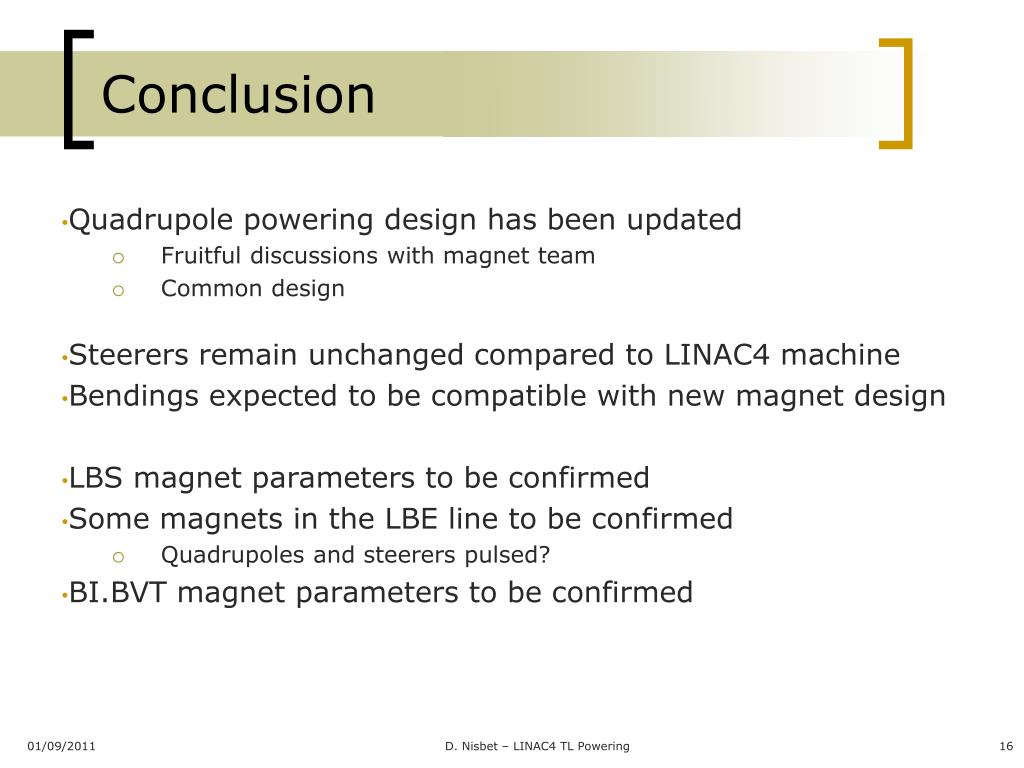

Conclusion

Quadrupole powering design has been updated

Fruitful discussions with magnet team

Common design

Steerers remain unchanged compared to LINAC4 machine

Bendings expected to be compatible with new magnet design

LBS magnet parameters to be confirmed

Some magnets in the LBE line to be confirmed

Quadrupoles and steerers pulsed?

BI.BVT magnet parameters to be confirmed

D. Nisbet – LINAC4 TL Powering


Te epc

END

D. Nisbet – LINAC4 TL Powering
