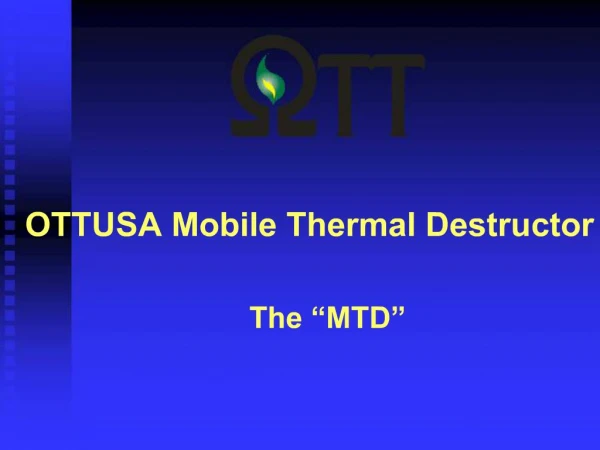

1. OTTUSA Mobile Thermal Destructor The “MTD”
2. OTTUSA Mobile Thermal Destructor 2 Basic Capabilities of the MTD Environmentally responsible and safe destruction of:
Ammunition up to 50 caliber
Class “C” deflagrating explosives
Hazardous liquids
Toxic gas
3. OTTUSA Mobile Thermal Destructor 3 Optional Capabilities of the MTD Environmentally responsible and safe destruction of chemical and biological weapon of mass destruction materials
Improvised Explosive Device RSP package
Continuous Feed
4. OTTUSA Mobile Thermal Destructor 4 Basic MTD Specifications Overall length 26 ft
Over the road height 12 ft
Stack erect height 18 ft
Width 8 ft 6 in
Curb weight – 24,000 lbs
40 kilowatt Diesel generator
25 horsepower air compressor
2 - 110V – 20amp electrical outlets
2 – 110 psig compressed air connections
5. OTTUSA Mobile Thermal Destructor 5 Basic MTD Specifications, contd... 100 psig water hose connection
200 gallons onboard fuel storage (#2 oil)
250 gallons onboard water storage
Integrated chemical pump for liquid combustion
Aspirator for hazardous gas combustion
Multi stage air pollution control system
Automated control with manual overrides
Failsafe interlock package
6. OTTUSA Mobile Thermal Destructor 6 Trailer Mount MTD – General Views
7. OTTUSA Mobile Thermal Destructor 7 MTD Combustor Characteristics Primary chamber operating temperature
Normal - 1,400OF
Maximum -1,650OF
Secondary chamber operating temperature
Normal – 1,800OF
Maximum – 2,650OF
Minimum gas residence time in secondary chamber is 2.5 seconds at full capacity
8. OTTUSA Mobile Thermal Destructor 8 Guaranteed Operating Capacity in Batch Mode Batch Mode
50 lbs per batch
2 hours per batch
200 lbs per 8 hour shift
9. OTTUSA Mobile Thermal Destructor 9 Achieved Operating Capacity in Batch Mode Batch Mode
100 lbs per batch
2 hours per batch
400 lbs per 8 hour shift
10. OTTUSA Mobile Thermal Destructor 10 Projected Operating Capacity Continuous Feed
100 lbs per hour
800 pounds per 8 hour shift
11. OTTUSA Mobile Thermal Destructor 11 General Flow – Typical Operation
12. OTTUSA Mobile Thermal Destructor 12 General Flow – Maximum Temperature
13. OTTUSA Mobile Thermal Destructor 13 Failsafe Operation Safety interlocks interdict operator error
Operating sequence ensures safe completion of process
Inherent safe containment even under catastrophic loss of generator power
14. OTTUSA Mobile Thermal Destructor 14 Operating Permit The MTD Unit 001 is an asset of the New Jersey State Police Bomb and Arson Unit
It has undergone full review by the State of New Jersey Department of Environmental Protection and was granted a permit to operate.
15. OTTUSA Mobile Thermal Destructor 15 Liquid Intake Chemical pump sends hazardous liquids to primary chamber burner
Liquids are safely destroyed
16. OTTUSA Mobile Thermal Destructor 16 Gas Intake Aspirator withdraws gases and sends them to the primary chamber
Gases are safely destroyed
17. OTTUSA Mobile Thermal Destructor 17 Gas Aspirator Removes and destroys Chem and Bio fugitive emissions from hoods, total explosive containment chambers, confined spaces (i.e. railroad cars, subways, rooms, disposable tents and kevlar™ tents)
18. OTTUSA Mobile Thermal Destructor 18 Molten Salt WMD Material Destruction Proven to achieve 99.999999999% destruction
Applicable to all chemical and biological WMD material
Ideal for on site destruction
19. OTTUSA Mobile Thermal Destructor 19 Optional IED Package which includes: Air Blaster flameless IED disruptor - a “clean shot” every time
6,000 psig SCBA quality air supply for the Air Blaster operation, Chem Bio foaming and recharge of self contained breathing units
20. OTTUSA Mobile Thermal Destructor 20 Advantages of the Air Blaster Cannon Residue contamination of evidence is eliminated by using air as the propellant
The Flameless Disrupter is ideal for use in RSP operations involving weapons of mass destruction (WMD)
21. OTTUSA Mobile Thermal Destructor 21 Air Blaster Advantages Contd…
22. OTTUSA Mobile Thermal Destructor 22 Truck Mounted MTD Eliminate the need for a towing vehicle
Integrate all of the capabilities and supplies into one quick response unit
23. OTTUSA Mobile Thermal Destructor 23 Additional Information
