Presentation Transcript

Cinema science

CINEMA Science




  • Science Overview

    • The ring current

    • Electron Microbursts

  • 1) Energetic Neutral Atom (ENA) Imaging of the ring current

    • Requirements

  • 2) Electron Microburst Spectrum

    • Requirements

  • 3) Mag Observations

  • 4) Auroral Particle Observations

A quick tour the magnetosphere

A quick tour: The Magnetosphere

Magnetic storms

Magnetic Storms

  • Magnetic storms occur ~monthly

  • >10x enhancement of Ring current

  • Changes the magnetic field at earth’s surface: captured by Dst Index

Ring current

Ring current

  • The ring current is not always a ring, local time variations are important

  • IMAGE captured ENA images of the ring current from high above the magnetic poles

Cinema science

Ring Current Loss Processes


Ring Current Belt

(1-300 keV)

Density Isocontours













Ring Currents

( L~4)




(Shaded Area)

( L~8 )

( L~6 )

Wave Scattering

of Ring Current Ions

[Kozyra & Nagy, 1991]

Tutorial, GEM Workshop, 6/27/03


Electron microbursts

Electron Microbursts

  • Microbursts are bursts (<0.25s) of electrons thought to be the result of a resonant wave particle interaction.

  • They occur from midnight to ~9am local time and are very intense

  • Extend from L=4-8

Ubursts cont d

uBursts Cont’d

  • Energy range extends to greater than 1MeV

  • Thought to be a significant loss process for the radiation belts at these high energies

  • Root waves may also be

    a significant source process

  • Observations suggest

    microbursts do not precip-

    itate electrons below ~20keV

Science objective 1

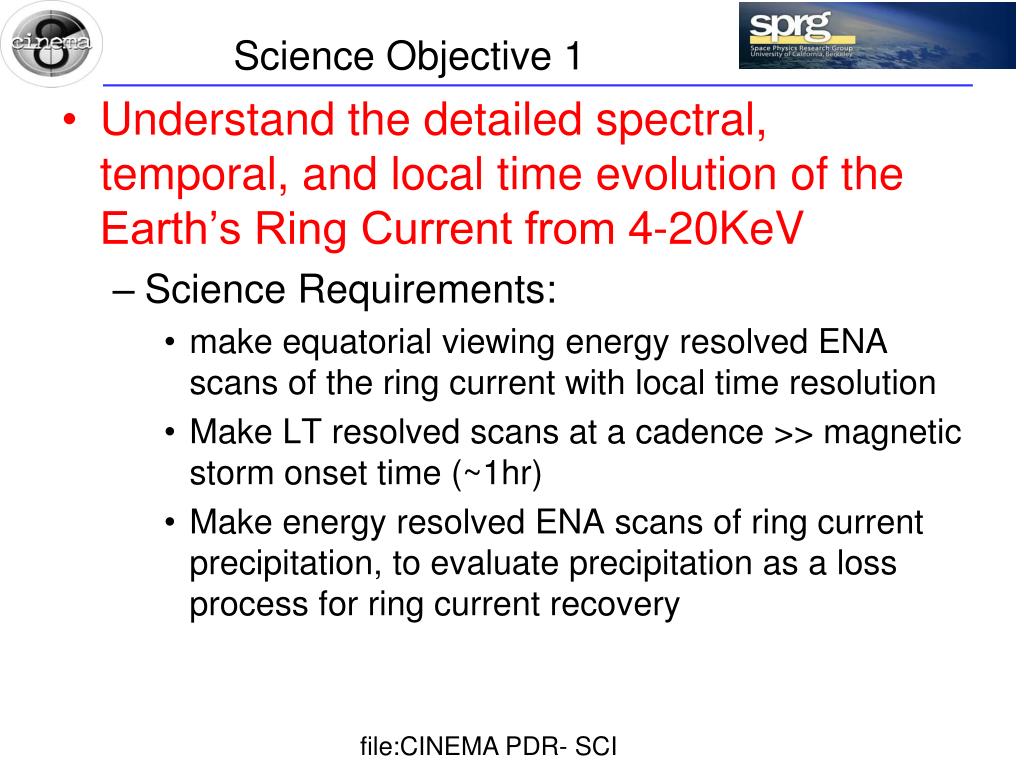

Science Objective 1

  • Understand the detailed spectral, temporal, and local time evolution of the Earth’s Ring Current from 4-20KeV

    • Science Requirements:

      • make equatorial viewing energy resolved ENA scans of the ring current with local time resolution

      • Make LT resolved scans at a cadence >> magnetic storm onset time (~1hr)

      • Make energy resolved ENA scans of ring current precipitation, to evaluate precipitation as a loss process for ring current recovery

Ring current ena requirements

Ring Current ENA requirements

  • make accurate (~1kev) spectral measurements of ring current ENAs from 4-20keV with the ability to unambiguously identify neutrals

  • Measure ENAs from 20keV-100keV with the ability to separate neutral anf charged particles based on extra information such as periodicity relative to the local field

  • for accurate local time imaging, the longitudinal field of view of the detector must be ~20 degrees FWHM.

    • Corresponds to ~1.5 hrs local time FWHM

  • Images of >8 hours of local time should be available at a cadence of several minutes

    • Requires spin axis perpendicular to local time plane

    • Requires Spin rate comparable to or greater than 1rpm

  • In order to make observations of ENA’s at high latitude we need a low earth orbit of inclination greater than 65 degrees.

Ring current ena requirements 2

Ring Current ENA requirements 2

  • The detector’s absolute orientation (ground reconstruction adequate) must be on the order of 10deg.

  • Expected count rates in the equatorial region of ~300cts/s

  • CINEMA must record and telemeter adequate spectral information and time resolution sufficient for ground-based energy-resolved image reconstruction.

    • 16bits per event implies average rate of this data source is 5kbps at >80%duty cycle

  • Expected counting rates at high latitude zone 3000 cts/s for 50kbps at ~10% duty cycle

  • Ability to recover from sunlight in detector within ~40 degrees

  • Electron microburst spectrum

    Electron Microburst Spectrum

    • Understand variations in the low energy spectrum of electron microbursts

      • Science Requirements:

        • Make high resolution energy spectra of individual electron microbursts from 2keV to 100keV.

        • Measure microbursts across a range of local times, activity levels, and magnetic latitudes

    Uburst requirements

    uBurst Requirements

    • Requires an energy range from 2kev to 100kev

    • Energy resolution of ~2keV.

    • Time resolution of better than 0.1 seconds.

    • Ability to handle count rates of 5000 counts/second/pixel with <1keV energy resolution loss

    • Ability to attenuate electron fluxes by factor of 100 to observe large range in uBurst fluxes

      • Attenuator must be thick enough to stop <50keV electrons

    • Attenuator should have automated actuation based on commandable parameters such as count rate and geographic location.

    • The ability to choose modes in our voltage sweep:

      • Pegged high: Maximum reduction of low energy counts in central pixel

      • Pegged low: Counts in central detector assumed to be electrons based on context/time structure provides minimum distortion of energy spectrum

      • sweeping with a sweep rate comparable to the angular resolution (20deg.) divided by spin rate (~30deg./second)

    Uburst req ts continued

    uBurst req’ts continued

    • Microburst science requires orbit requirements latitude > 65degrees

    • Field of view should be defined with angular aperture that minimizes scattering of electrons onto the detector

    • The detector field of view relative to the local magnetic field must be able to be reconstructed to 10deg at a time scale such that the angular resolution blur due to spin is small. Interpolation on 1s magnetometer data is adequate.

    • Accurately record event information at 5000 cts/s

    • Average data generation rate of 500cts/s at orbit duty cycle of 20% for an estimated orbit averaged data rate of 1.6kbps



    • Test predictions on the orientation and speed of ULF waves launched from the region around the Earth’s bowshock.

    • Background: Cluster allows tomographic reconstruction of shape and size of foreshock ULF waves, including flow-perpendicular scale

    • Archer et al., JGR, 2005

    Crossing the perpendicular scale

    Crossing the perpendicular scale

    Parallel scale crossing

    • Predict ~30s (steady, observed)

      Perpendicular scale crossing

    • Predict 2-5 minutes (variable)

    • Quasi-periodic enhancements of |B|, accompanied by whistlers

    • Look like SLAMS

    • Also, modulation of ULF wave amplitude

    Fte periodicities

    FTE periodicities?

    • Hypothesis

    • ULF waves generate ~few minutes periodic forcing at magnetopause

    • Cause of ~few minutes occurrence rate of FTEs?

    • Test

    • Compare dayside ULF wave signatures and FTEs (CINEMA) with upstream and magnetopause data (THEMIS, Cluster)

    • Also use THEMIS ground-based magnetometer chain (+others?)

    • Compare: occurrence, wavelength, phase fronts, propagation direction of ULF wave signatures



    • Test predictions on the orientation and speed of ULF waves launched from the region around the Earth’s bowshock.

    • Magnetic field direction knowledge 1deg

      • Spin axis orientation knowledge <1 deg

      • Ability to pulse torque coils in order to determine absolute orientation of outboard magnetometer to 1deg about the stacer axis

      • Knowledge of the spin phase to ~10ms

    • Absolute field measurement to 500nT

      • Spin-variable magnetic interference at outboard sensor <500nT (ideally much less than this)

      • Gain knowledge (including temperature variations) to 0.5%

      • Knowledge of absolute position for comparison to magnetic field models in quiet times of 50km (complete guess – Horbury)

    Magnetometer cont d

    Magnetometer cont’d

    • Measurement of physical field variations at better than 1s

      • Science mode cadence of 10 vector/s

    • Essential: resolution of phenomena at amplitudes of 100nT on timescales of few seconds

      • Instrument resolution of 50nT, noise below 50nT at 1Hz

      • Hence effective 11 bits

    • Desirable: resolution of phenomena at amplitudes of 1nT on timescales of few seconds

      • Instrument resolution of 0.5nT, noise below 1nT at 1Hz

      • Hence effective 19 bits

    • Expect 20 bits/axis, effective science data rate 640bits/s

    Auroral particle precipitation

    Auroral Particle Precipitation

    • Correlate in situ measurements of particle precipitation with ENA imaging of ring current populations.

      • Measure the spectrum, time evolution and location of precipitation at low earth orbit from 4keV to 100keV.

      • Separate ions and electrons up to 20keV

    Auroral particles

    Auroral particles

    • Electrostatic potential to separate ions and electrons

    • Sweeping of voltage for varying which low energies ion/electron pixels on time scales faster than auroral pulsations (10s of seconds)

    • Knowledge of detector FOV with respect to local magnetic field better than 10deg.

    • Attenuator action based on count rate should be autonomous, but with adjustable thresholds

    • Attenuator flux reduction of ~100x.

    • Adjustable attenuator stowage period

    • Commandable decimation scheme to handle large data rates, limit auroral science data rate to ~1kbps orbit averaged
