Presentation Transcript

  1. PRESS F5 TO START This presentation contains Intermediate 2 past paper questions complete with solutions for the year 2003. The questions are sorted into topics based on the specific outcomes for the Intermediate 2 course. To access a particular question from the main grid click on the question number. To get the solution for a question press the space bar. To access the formula sheet press the button To begin click on Main Grid button. F Main Grid

  2. Formulae List START Page

  3. This is the formula that we use

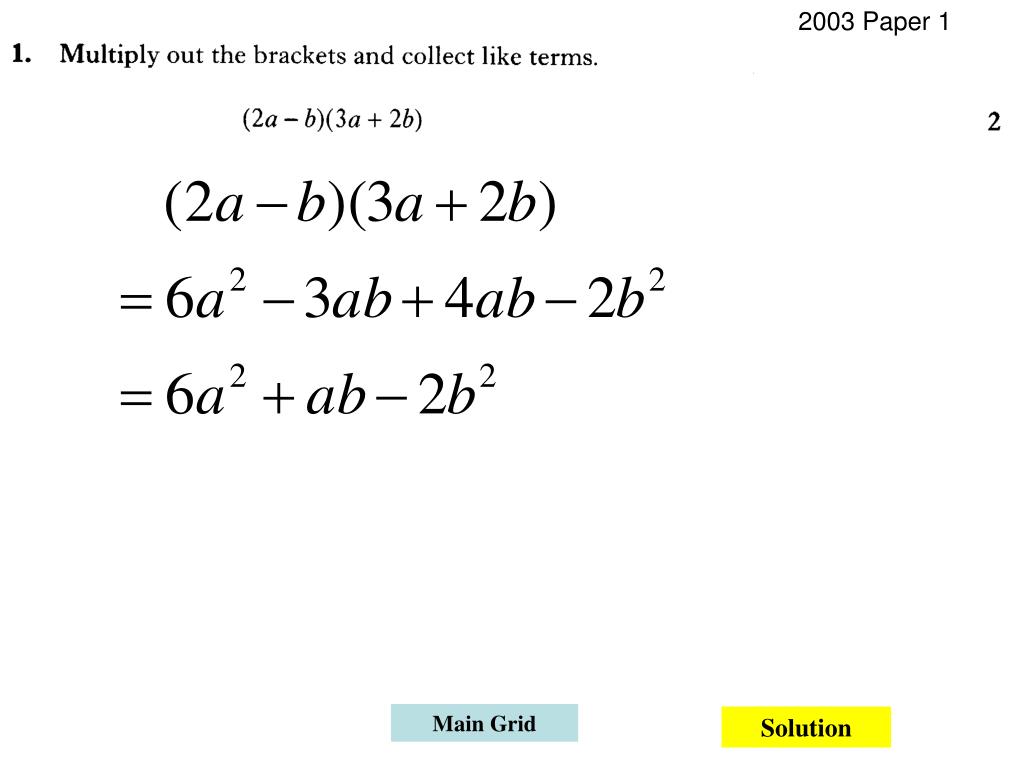

  4. 2003 Paper 1 Main Grid Solution

  5. Main Grid Solution

  6. 2 (a) (b) Main Grid

  7. Main Grid Solution

  8. Main Grid Solution

  9. Main Grid

  10. a = 3 (amplitude 3x ‘normal’ height) b = 2 ( period = 360 ÷ 2 = 180 Main Grid Solution

  11. Cancelling by (x + 1) Main Grid Solution

  12. 6cm 8cm Main Grid Solution

  13. Main Grid Solution

  14. 8 (a) 7 + 6x – x2 factorises to (7 – x)(1 + x) (b) Roots are; x = 7 and x = -1 (c Turning Point halfway between –1 and 7. i.e. x = 3 So y = 7 + (6 x 3) – (32) = 7 + 18 – 9 = 16 Coords of Max T.P. (3,16) Main Grid

  15. Main Grid Solution

  16. OLN = 90° (tangent) PLJ = 90° – 47° = 43° PKL = 90° (angle in a semi circle) PLK = 180° – (90° + 31°) = 59° KLJ = PLK + PLJ = 43° + 59° = 102° Main Grid

  17. Main Grid Solution

  18. Main Grid

  19. Main Grid Solution

  20. x + y = 130 eq 1 x 50 • 30x + 50y = 6000 eq 2 • 50x + 50y = 6500 • 30x + 50y = 6000 • Subtract 20x = 500 • x = 25 • Sub into eq 1 25 + y = 130 • y = 105 • 25 tickets at £30 • 105 tickets at £50 Main Grid

  21. Main Grid Solution

  22. Main Grid Solution

  23. Yes. Mean temperature of 19°C is within range of 15°C to 25°C • Standard deviation of 3.65 °C is less than 5 °C so less variation should mean good growth. Main Grid

  24. (4) (3) Main Grid Solution

  25. 6(a) Total area of cross section = area of rectangle + area of circle =(30 x 46) + (3.14 x 15²) =2086.5 cm² Volume of prism = Ah = area of cross section x height = 2086.5 x 25 = 52162.5 cm³ = 52 000 cm³ (2 sig figs) (b) So volume of quarter of a cylinder. Vol = ¼πr2h 30 000 = ¼ x 3.14 x r2 x 20 r2 = 30 000 x 4 3.14 x 20 r = √1910.8 = 43.7cm Main Grid

  26. Main Grid Solution

  27. Main Grid Solution

  28. Main Grid

  29. Main Grid Solution

  30. Main Grid Solution

  31. 10 (a) (b) Main Grid

  32. Main Grid Solution

  33. √ (a) S A T C (b) = 1 √ Main Grid Solution
