  1. The Respiratory System

  2. ANATOMY OF THE RESPIRATORY SYSTEM

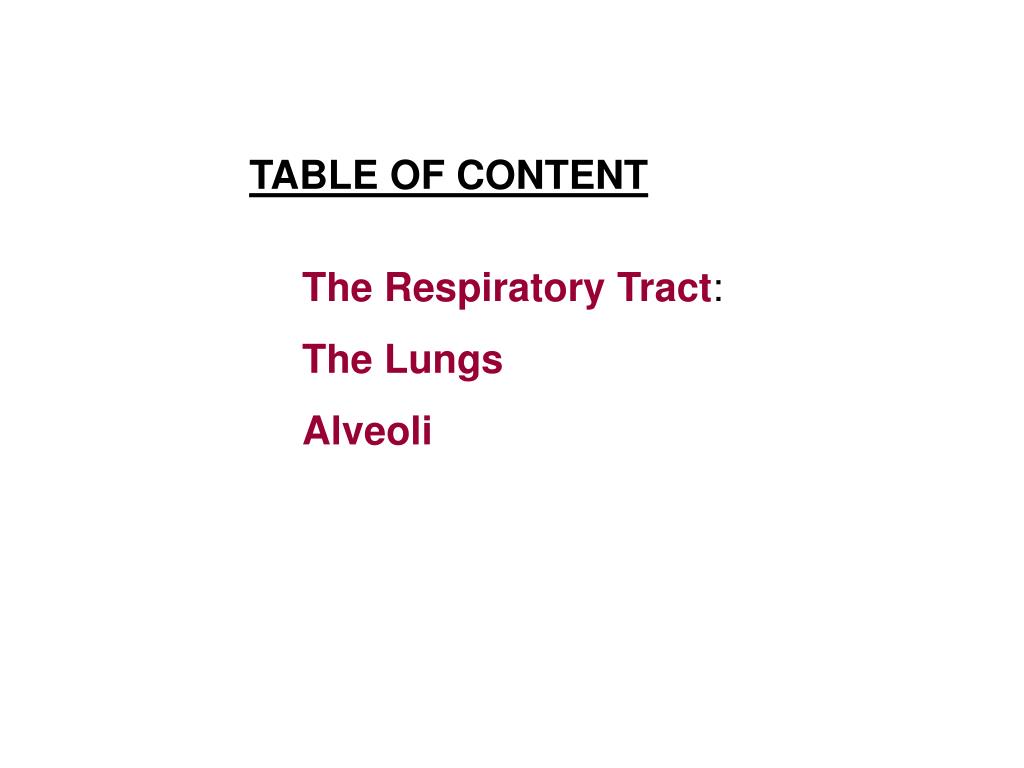

  3. TABLE OF CONTENT The Respiratory Tract: The Lungs Alveoli

  4. THE RESPIRATORY SYSTEM CONSISTS OF: 1) Respiratory Tract: Nose through bronchi 2) The lungs.

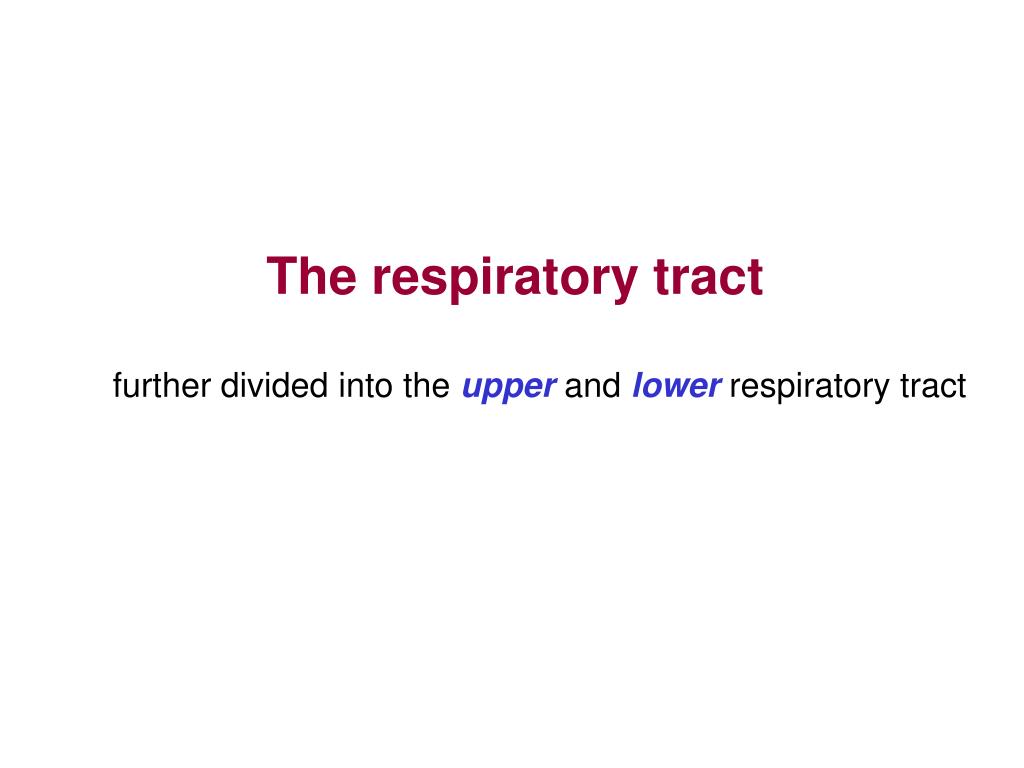

  5. The respiratory tract further divided into the upper and lower respiratory tract

  6. The upper respiratory tract from the nose through the pharynx

  7. The lower respiratory tract (The Bronchial Tree) from the larynx to tertiary bronchi

  8. The Bronchial Tree

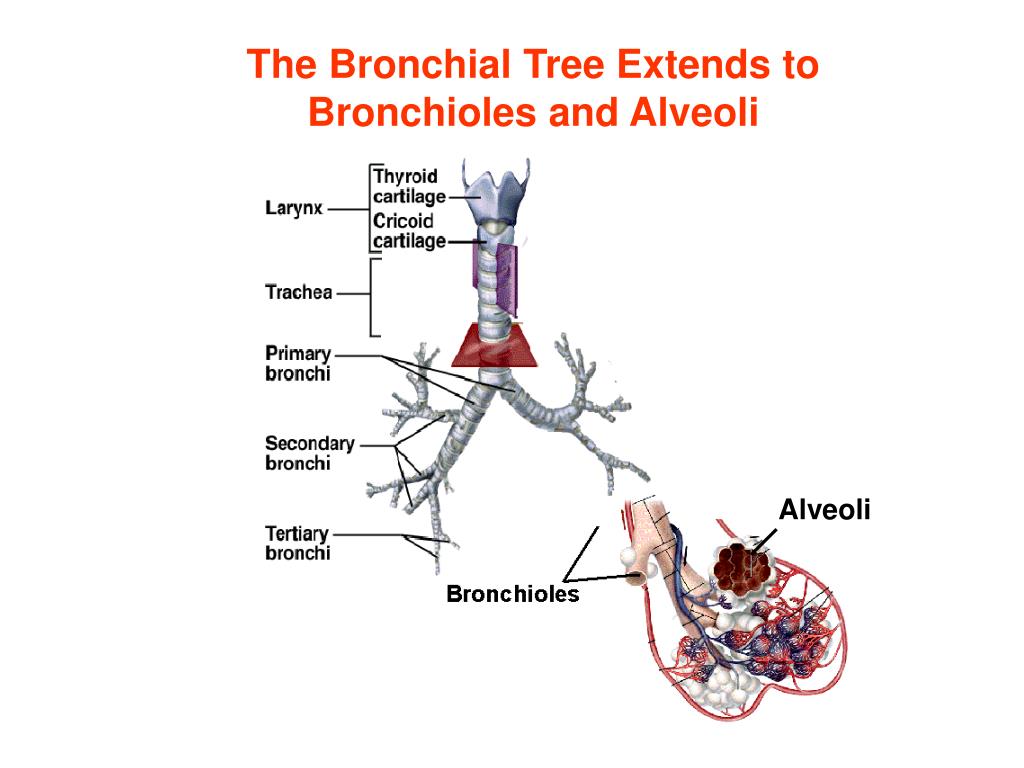

  9. The Bronchial Tree Extends to Bronchioles and Alveoli Alveoli

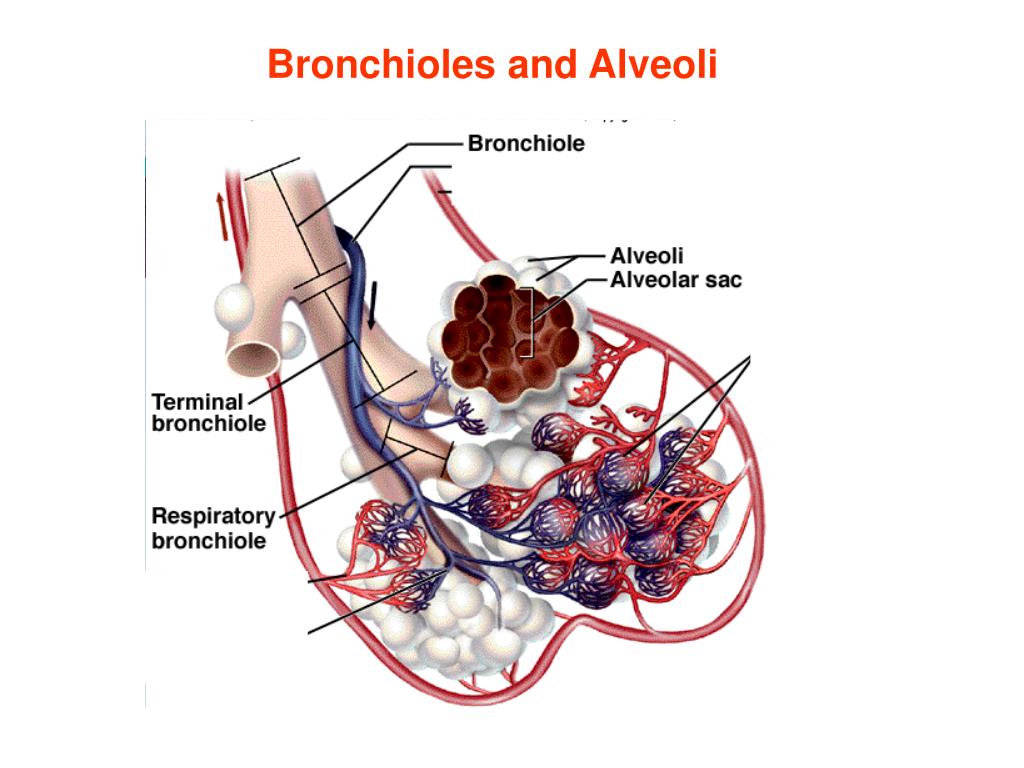

  10. Bronchioles and Alveoli

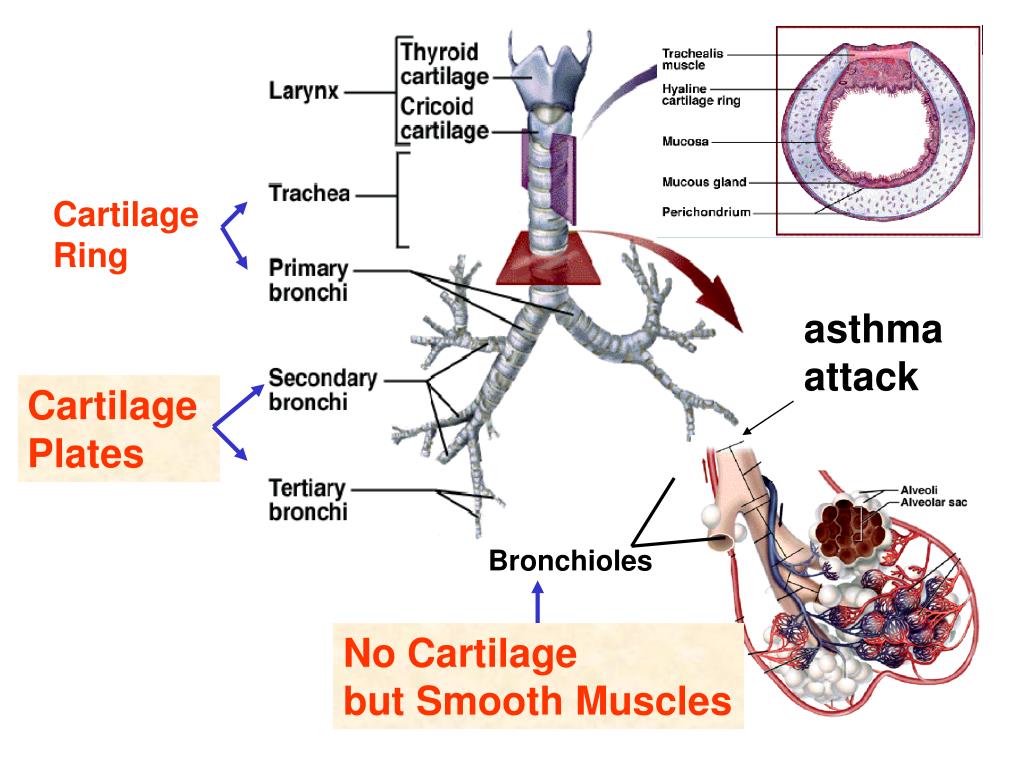

  11. Cartilage Ring asthma attack Cartilage Plates Bronchioles No Cartilage but Smooth Muscles

  12. Ciliary Lining of the Lower Respiratory Tract Cilia Longitudinal Section Cross Section

  13. Electron Micrograph of Cilia

  14. The cilia beat upward and drive the debris-laden mucus to the pharynx, where it is swallowed.

  15. THE LUNGS

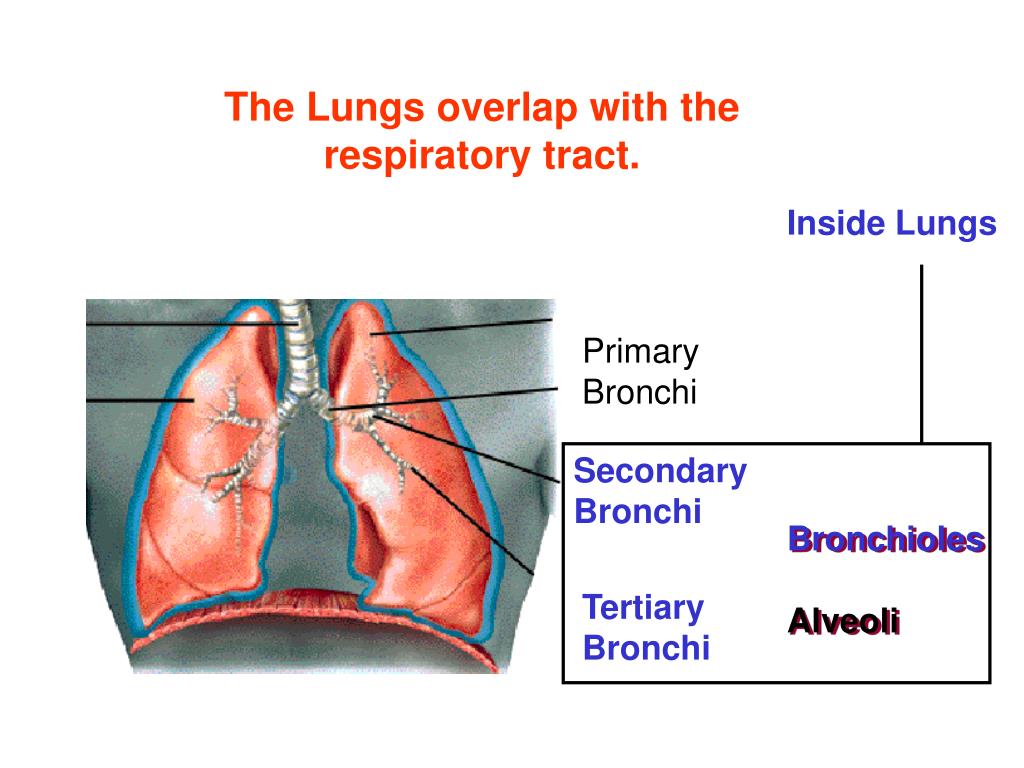

  16. The Lungs overlap with the respiratory tract. Inside Lungs Primary Bronchi Secondary Bronchi Bronchioles Alveoli Tertiary Bronchi

  17. THE LUNGS - consist of the left and the right lungs - The left lung is divided into two lobes; the right into three. • receives the bronchus, blood and lymphatic vessels, and nerves through its hilum. • - The bronchi extend into alveoli

  18. ALVEOLI

  19. ~700 SF surface area

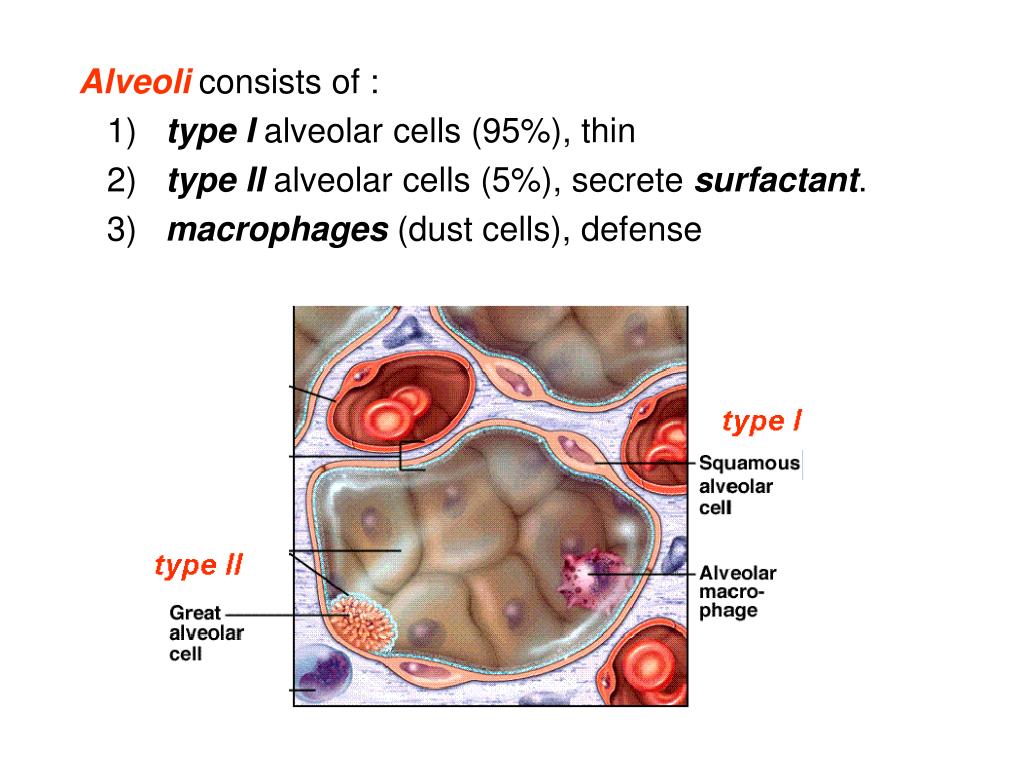

  20. Alveoliconsists of : 1) type I alveolar cells (95%), thin 2) type II alveolar cells (5%), secrete surfactant. 3) macrophages (dust cells), defense

  21. - Each alveolus is surrounded with a basket of capillaries.

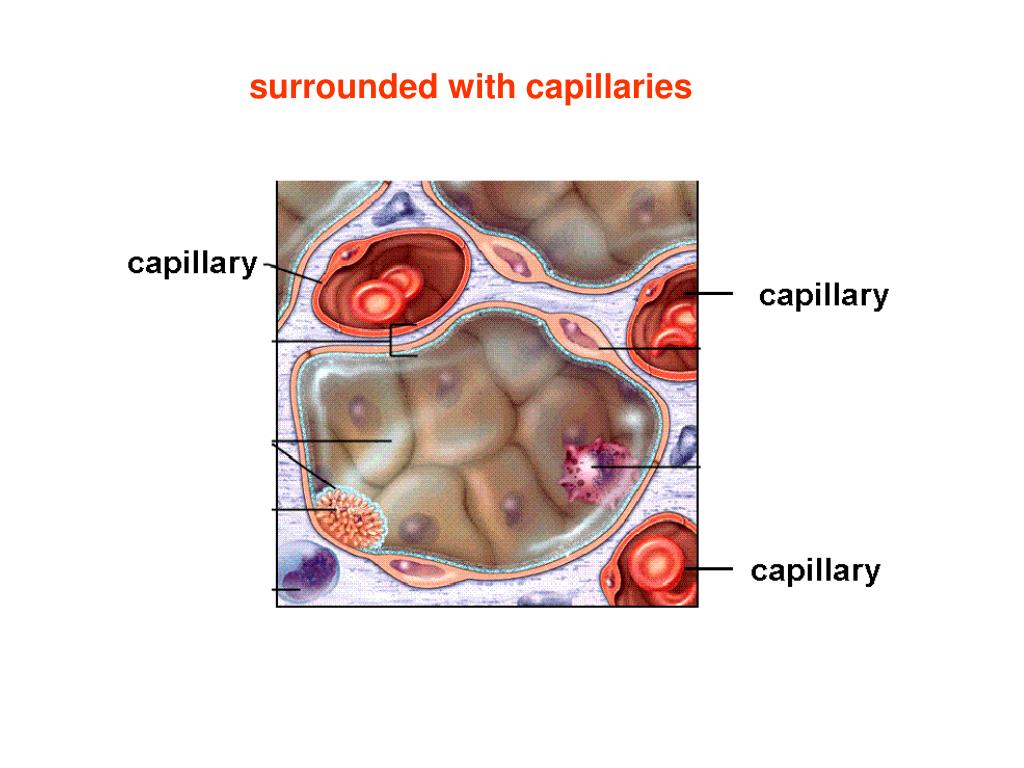

  22. surrounded with capillaries

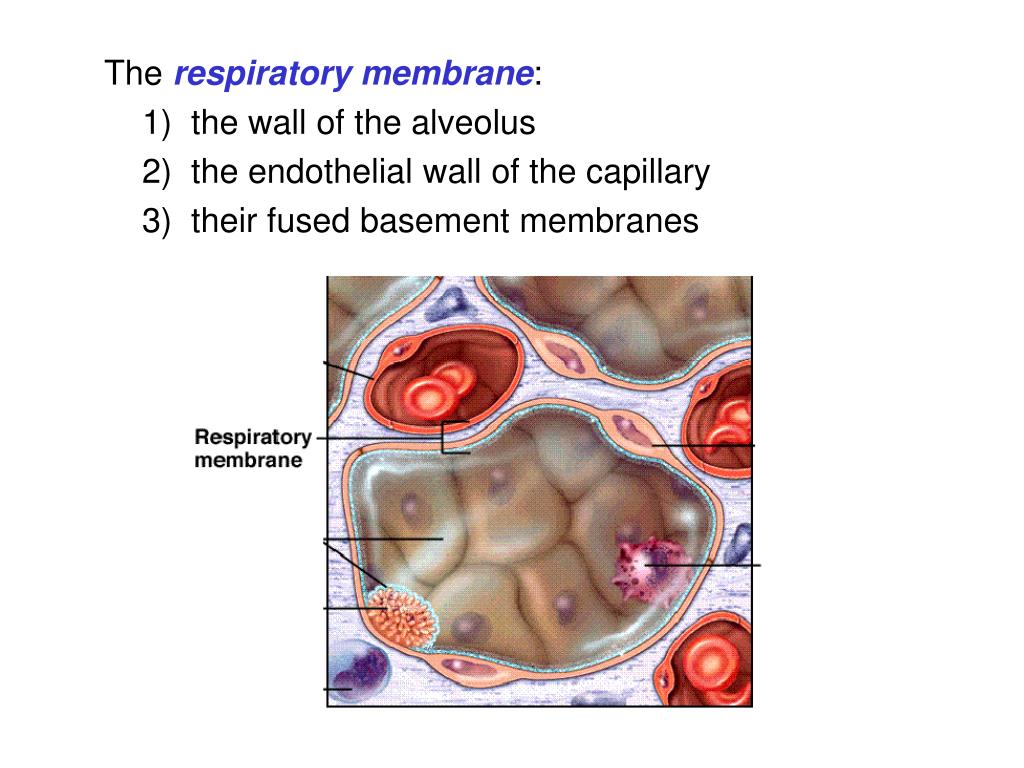

  23. The respiratory membrane: 1) the wall of the alveolus 2) the endothelial wall of the capillary 3) their fused basement membranes

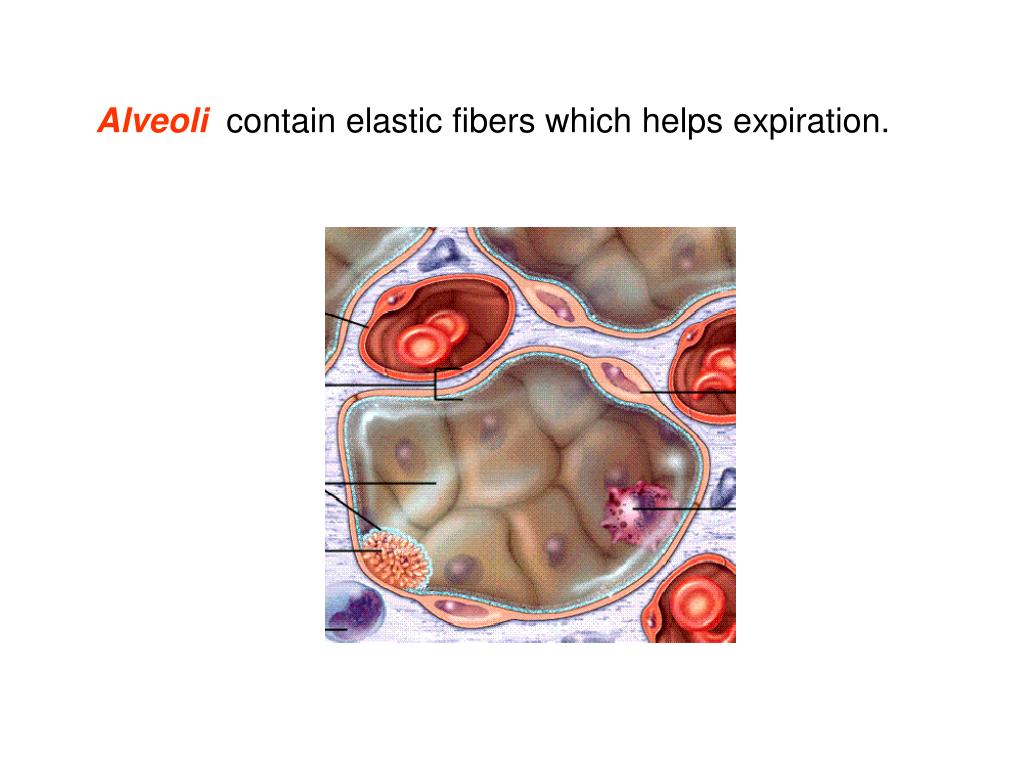

  24. Alveoli contain elastic fibers which helps expiration.

  25. Low blood pressure keeps alveoli dry.

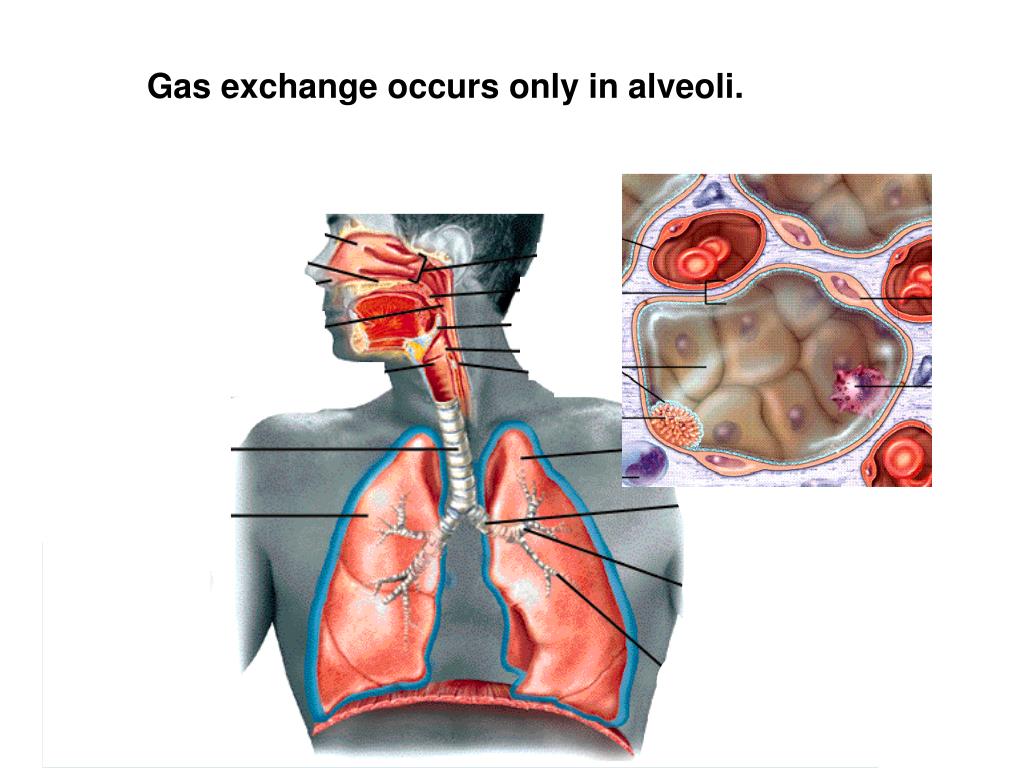

  26. Gas exchange occurs only in alveoli.

  27. Dead Space • - starts from nose to terminal bronchiole • where there is no gas exchange • ~ 150 ml terminal bronchiole

  28. SUMMARY ANATOMY OF THE RESPIRATORY SYSTEM The Respiratory Tract: The Lungs Alveoli

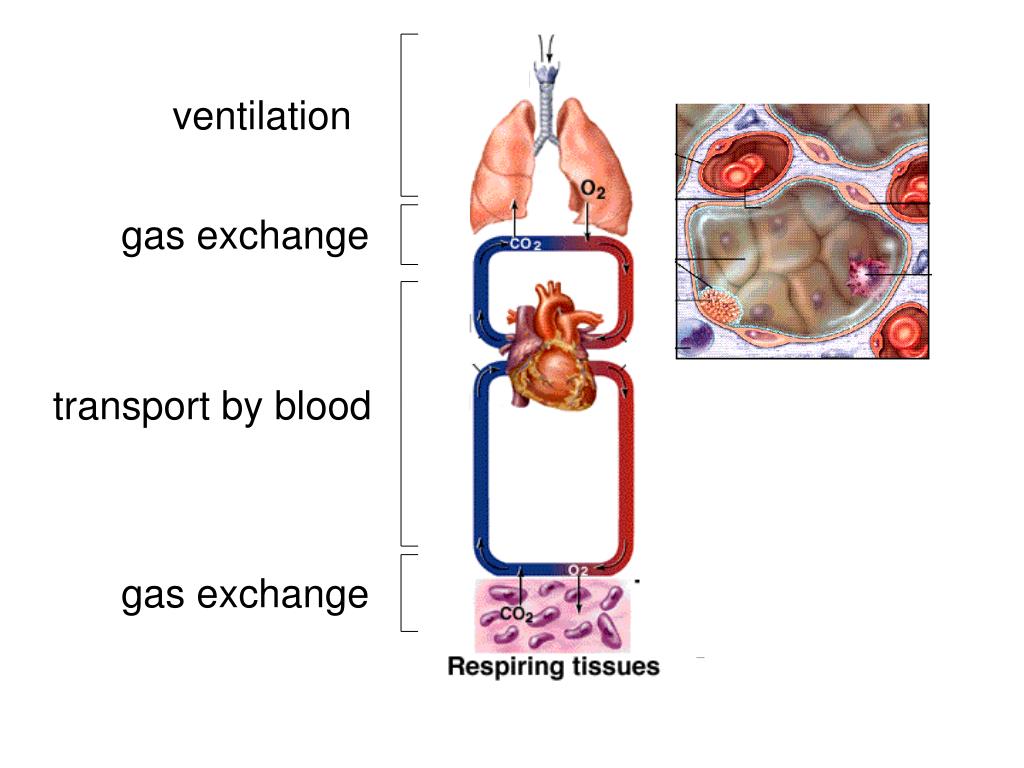

  29. ventilation gas exchange transport by blood gas exchange

  30. MECHANICS OF VENTILATION

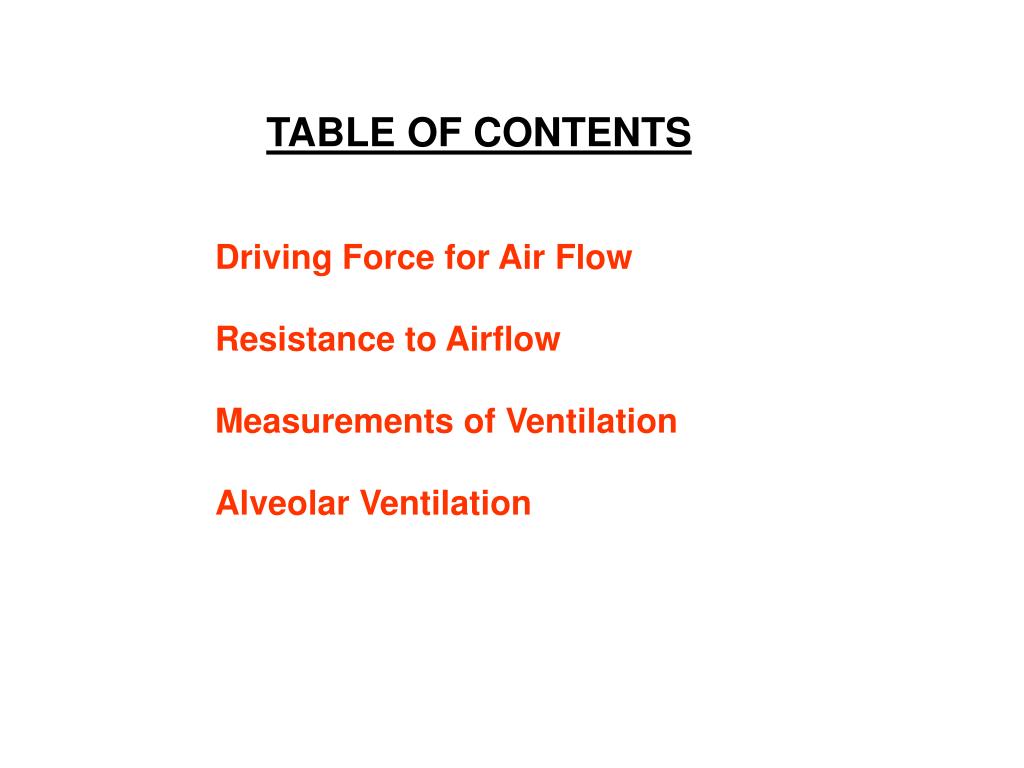

  31. TABLE OF CONTENTS Driving Force for Air Flow Resistance to Airflow Measurements of Ventilation Alveolar Ventilation

  32. Terms: inspiration or inhalation: breathing in expiration or exhalation: breathing out

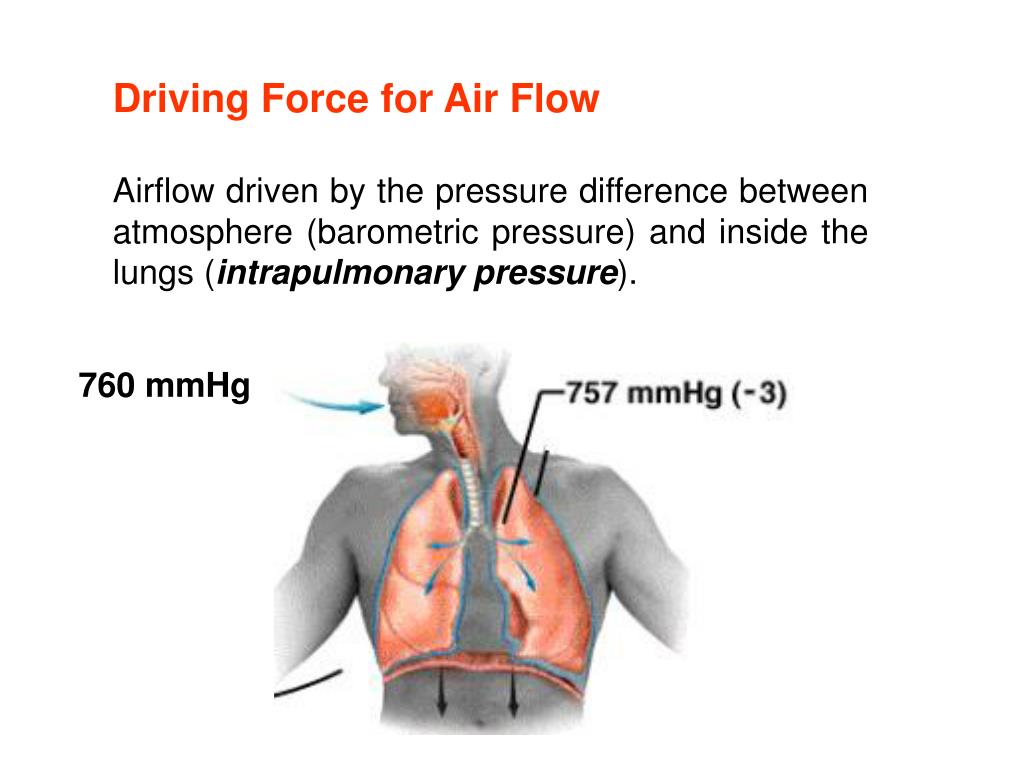

  33. Driving Force for Air Flow Airflow driven by the pressure difference between atmosphere (barometric pressure) and inside the lungs (intrapulmonary pressure). 760 mmHg

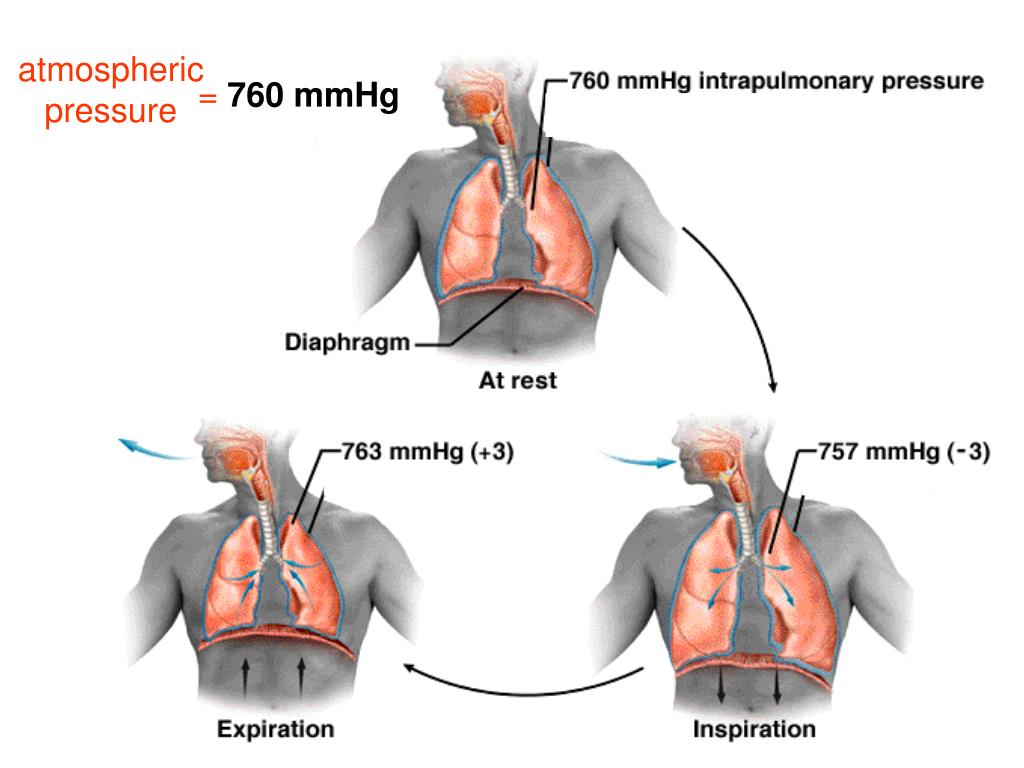

  34. atmospheric pressure = 760 mmHg Before inspiration

  35. atmospheric pressure = 760 mmHg

  36. atmospheric pressure = 760 mmHg

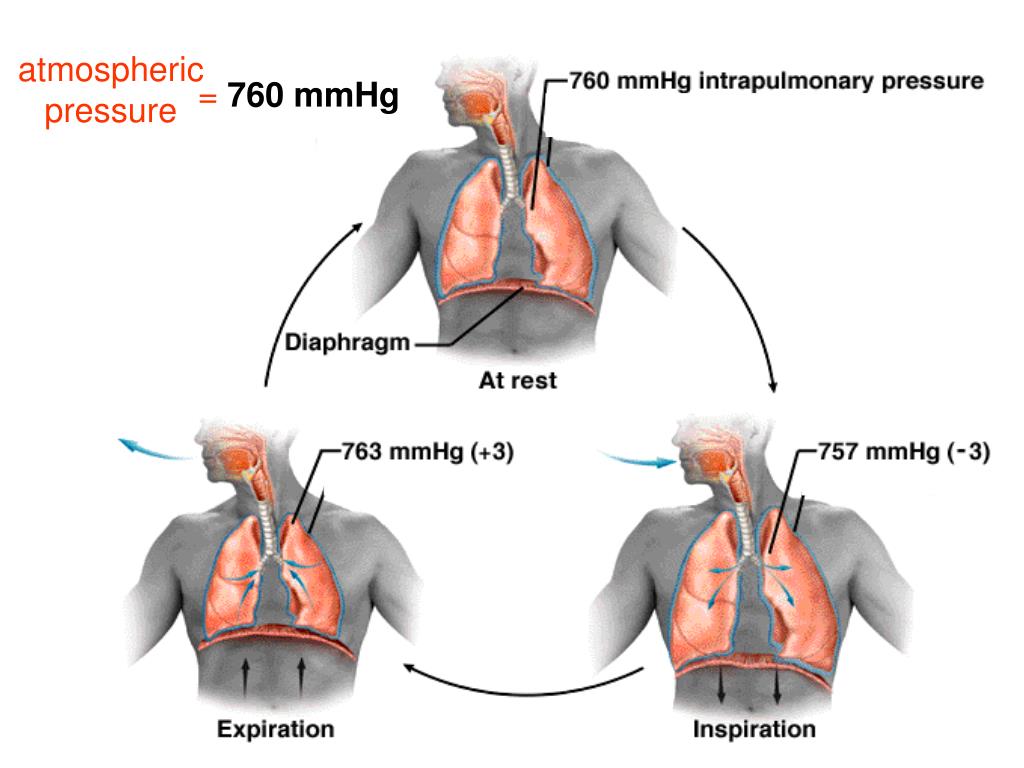

  37. atmospheric pressure = 760 mmHg

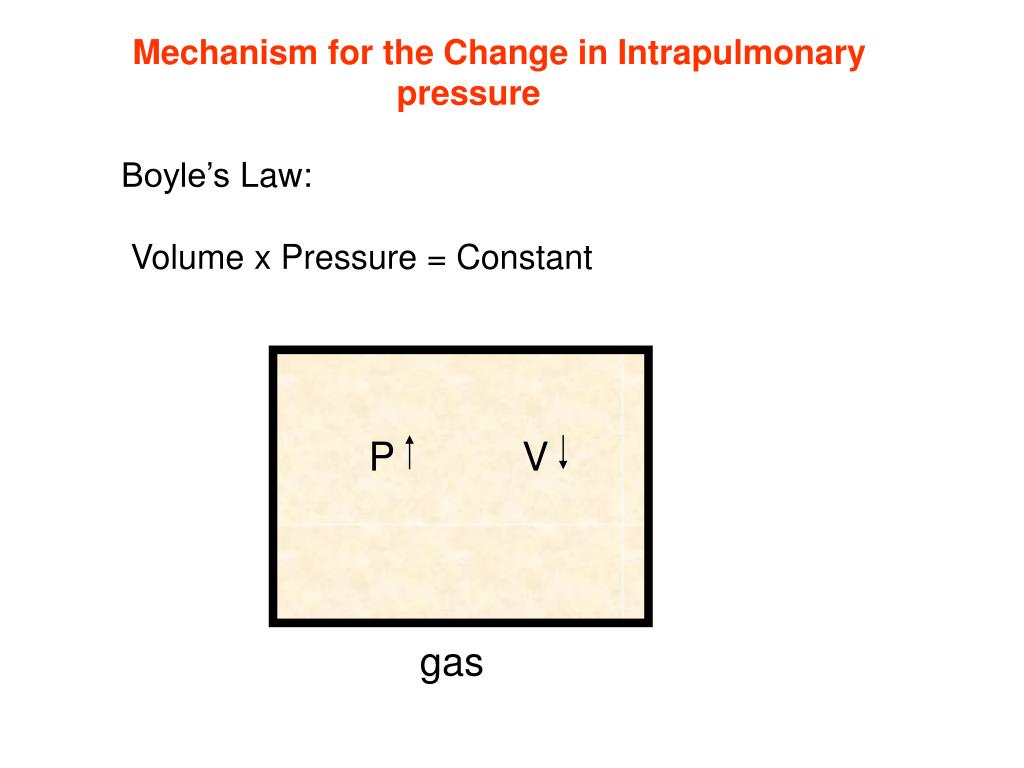

  38. Mechanism for the Change in Intrapulmonary pressure Boyle’s Law: Volume x Pressure = Constant P V gas

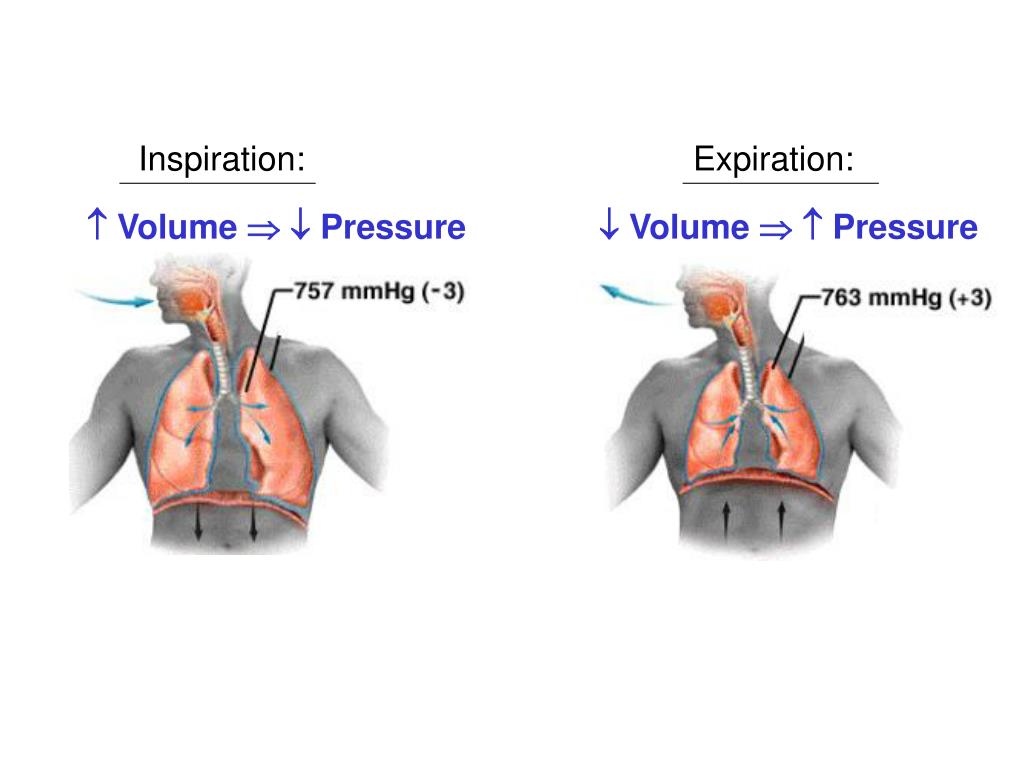

  39. Inspiration: Expiration:  Volume   Pressure  Volume   Pressure

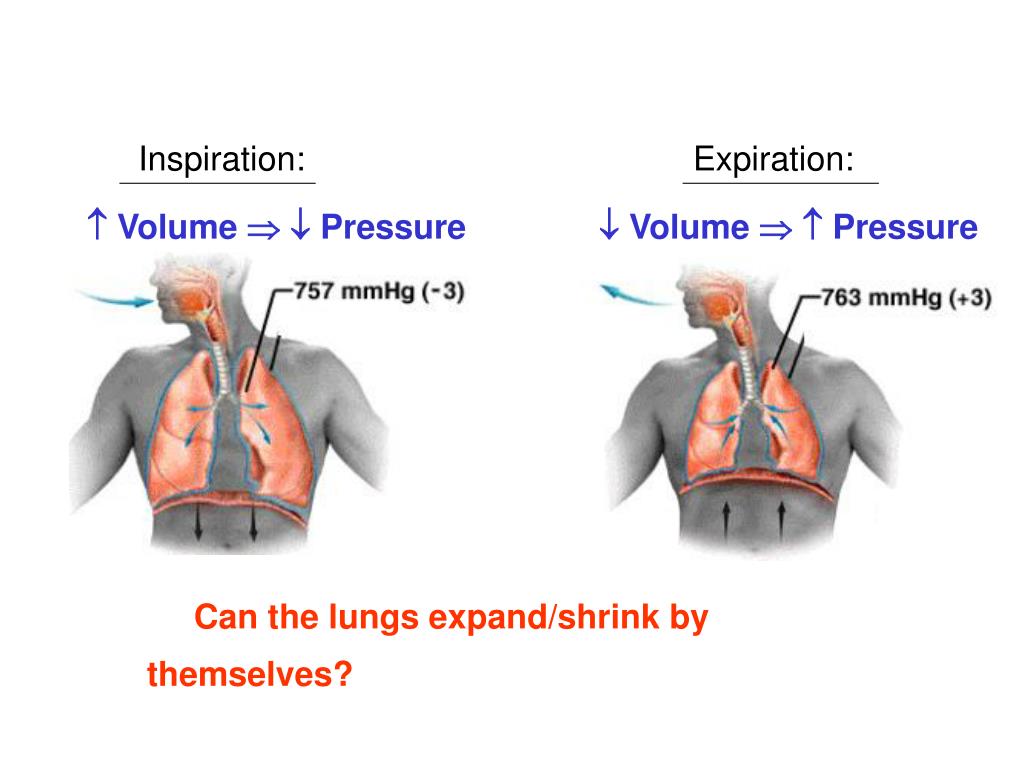

  40. Inspiration: Expiration:  Volume   Pressure  Volume   Pressure Can the lungs expand/shrink by themselves?

  41. Major Respiratory Muscles 1) The Diaphragm 2) External Intercostal Muscles 3) Internal Intercostal Muscles 4) The Abdominal Muscles 1) The Diaphragm 2) External Intercostal Muscles 3) The Abdominal Muscles - Expiration muscles - pulls the diaphragm up, reducing the vertical dimension of the thoracic cage. 1) The Diaphragm 2) External Intercostal Muscles - Inspiration muscles - increases the anteroposterior and transverse dimensions of the chest. 1) The Diaphragm 2) External Intercostal Muscles 3) The Abdominal Muscles 4) Internal Intercostal Muscles - Extra Expiration muscles - the principal muscle of inspiration - pulls the diaphragm down, increasing all three dimensions of the thoracic cage.

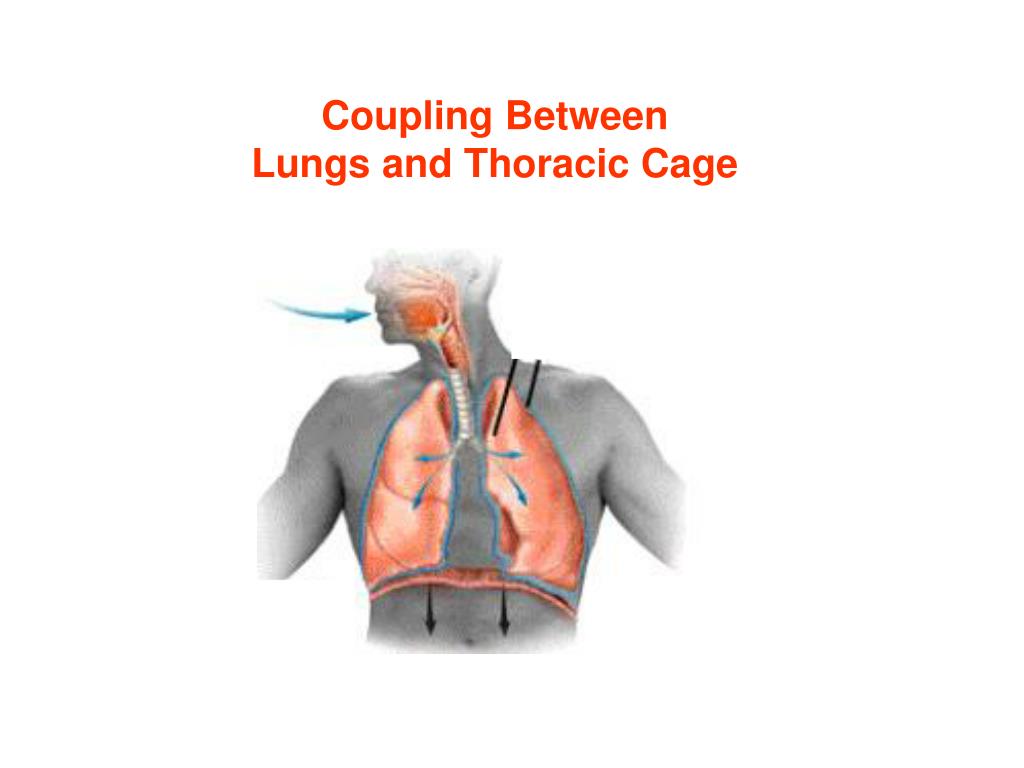

  42. Coupling Between Lungs and Thoracic Cage

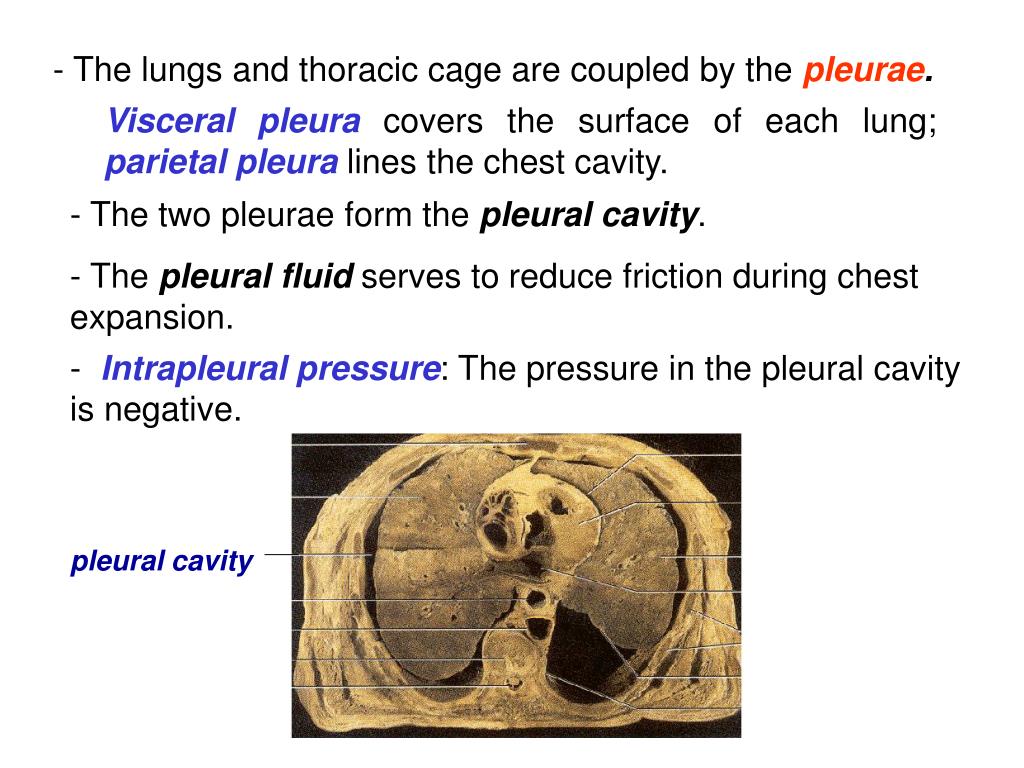

  43. - The lungs and thoracic cage are coupled by the pleurae. Visceral pleura covers the surface of each lung; parietal pleura lines the chest cavity. - The two pleurae form the pleural cavity. - The pleural fluid serves to reduce friction during chest expansion. - Intrapleural pressure: The pressure in the pleural cavity is negative. pleural cavity

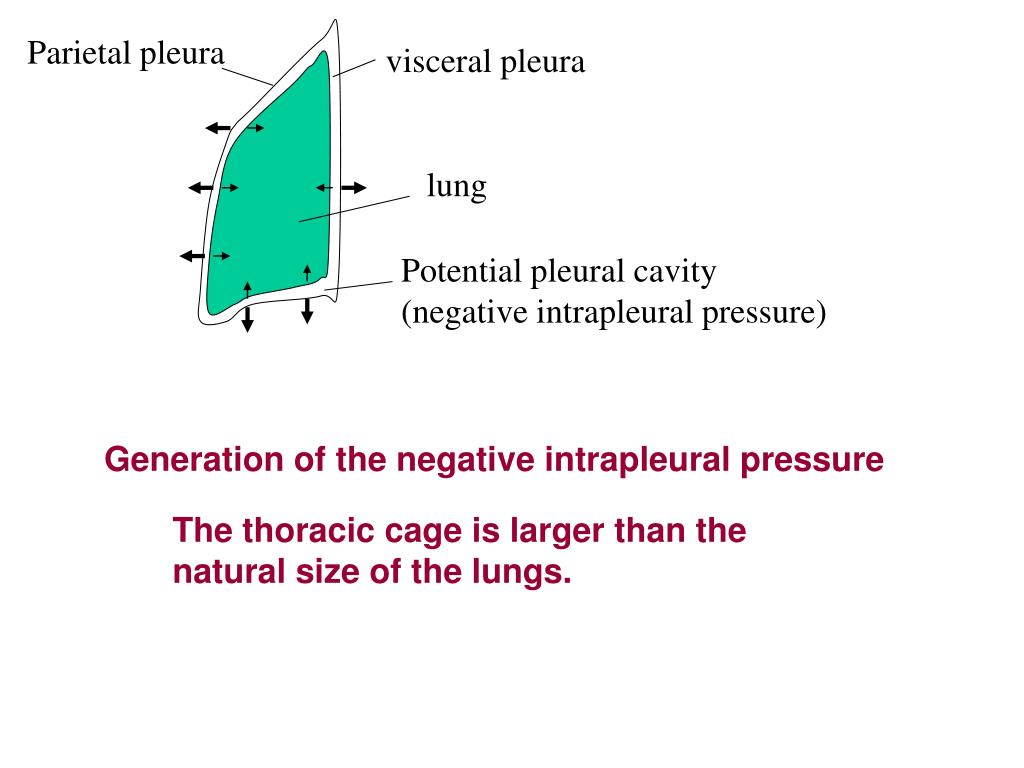

  44. Parietal pleura visceral pleura lung Potential pleural cavity (negative intrapleural pressure) Generation of the negative intrapleural pressure The thoracic cage is larger than the natural size of the lungs.

  45. Parietal pleura visceral pleura lung Potential pleural cavity (negative intrapleural pressure) pneumathorax air air

  46. Conclusion pleurae Lungs Thoracic Cage - pressure

  47. Inspiration • Contraction of • 1) diaphragm • 2) external intercostal muscles •  • The lungs are carried along. •  •  Lung volume •  •  pressure •  • Air flows in. active

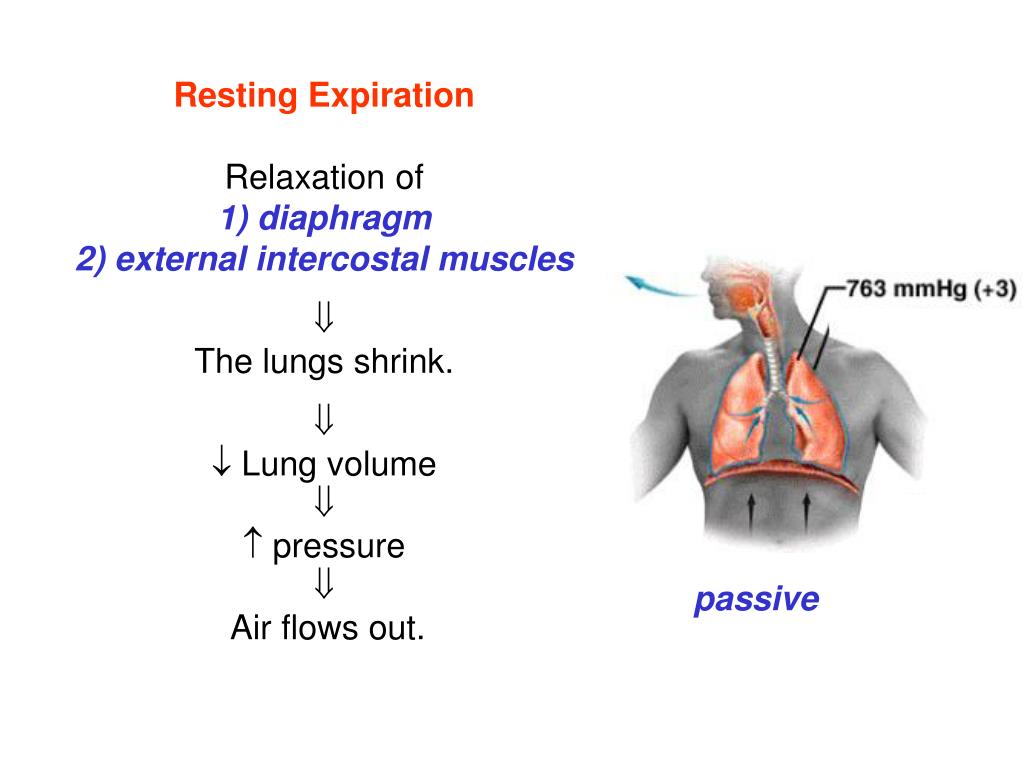

  48. Resting Expiration • Relaxation of • 1) diaphragm • 2) external intercostal muscles •  • The lungs shrink. •  •  Lung volume •  •  pressure •  • Air flows out. passive

  49. Forced Expiration • Relaxation of • 1) diaphragm2) external intercostal muscles • and • Contraction of • abdominal, internal intercostal and other accessory respiratory muscles. •  •  Lung volume •  •  pressure •  • Air flows out. active

  50. SUMMARY • Driving Force for Air Flow • Atmosphere-lung pressure gradient • Major respiratory muscles • Coupling between lungs and thoracic cage
