Presentation Transcript


Slide1 l.jpg

SAS, Mini-SAS, & SATA

Tutorial & Ordering Information

Technical Cable Concepts, Inc.

[email protected]

www.techcable.com

350 Lear Avenue Costa Mesa, CA 92626 (800) 832-2225


Table of contents l.jpg

SATA Terminology & Properties -----------------------------------------

16

SATA Assembly Properties -----------------------------------------------

33

SATA Environment ----------------------------------------------------------

20

SATA Cable Properties (Frequency & Quality) ----------------------

19

SAS Properties ---------------------------------------------------------------

Mini-SAS Assembly Properties ------------------------------------------

Mini-SAS Properties --------------------------------------------------------

3

13

14

SAS Assembly Properties -------------------------------------------------

9

SAS Environment ------------------------------------------------------------

6

SATA & SAS Similarities & Differences --------------------------------

38

TCC Part Numbers -----------------------------------------------------------

43

Ending Statement -----------------------------------------------------------

50

Table of Contents

References --------------------------------------------------------------------

49


Sas properties l.jpg

SASProperties

SAS (Serial Attached SCSI)

  • Supports SCSI disk drives, tape drives, software, etc.

  • Supports SAS expanders.

  • Uses both SAS and SATA connectors (fanouts).

  • Uses different pinouts:

    • Backplane to Controller = 1-1

    • Controller to Backplane = “Crossover” 1-7

    • Controller to Controller = “Crossover” for SFF-8470 to (4) SATA Assemblies


Sas properties4 l.jpg

SASProperties

SAS

  • Supports SATA

  • Uses differential signaling

  • Has a passive interconnect

  • Available in 6 standard connector types:

    • SAS: SFF-8470, SFF-8484, SFF-8482

    • Mini-SAS: SFF-8086, SFF-8087, SFF-8088

  • Runs at 3.0Gbs duplex communication

  • Known sometimes as iSAS


Sas properties5 l.jpg

SASProperties

SAS SATA Compatibility

  • SAS backplanes OK with SATA drives.

  • SATA backplanes not OK with SAS drives.

Backplane

Backplane

SATA Drive

SAS Drive

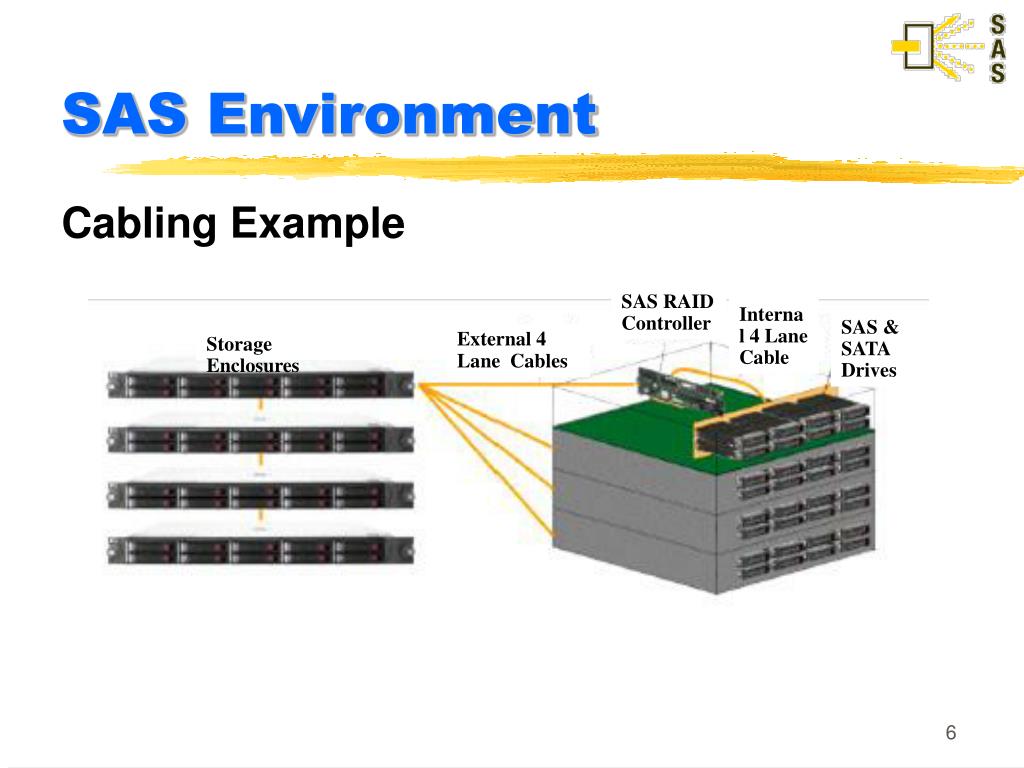

Sas environment l.jpg

SASEnvironment

Cabling Example

SAS RAID Controller

Internal 4 Lane Cable

SAS & SATA Drives

External4 Lane Cables

Storage Enclosures


Sas environment7 l.jpg

SASEnvironment

Cabling Example

Internal

External

Internal

External


Sas environment8 l.jpg

SAS Environment

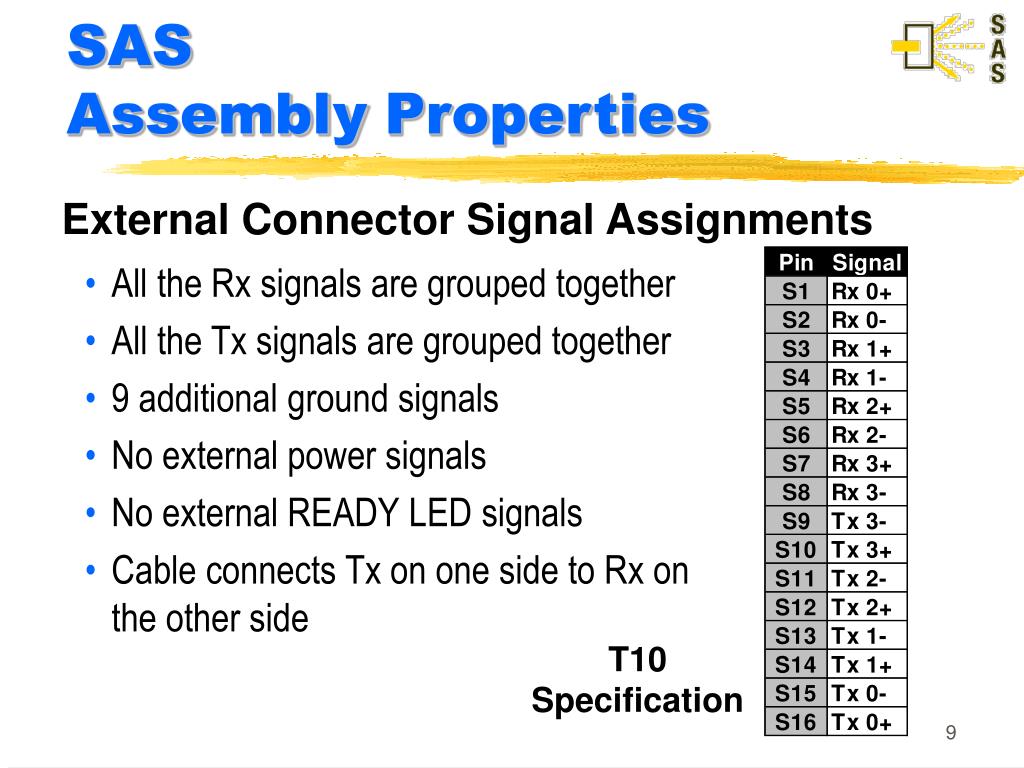

Sas assembly properties l.jpg

SASAssemblyProperties

External Connector Signal Assignments

  • All the Rx signals are grouped together

  • All the Tx signals are grouped together

  • 9 additional ground signals

  • No external power signals

  • No external READY LED signals

  • Cable connects Tx on one side to Rx on the other side

T10 Specification


Sas assembly properties10 l.jpg

SASAssemblyProperties

Connectors

  • SFF-8470

    • 4X or 4 Lane

    • Thumbscrew Backshell (standard)

    • Squeeze-Latch Backshell

    • Low Profile Squeeze-Latch (3 Ware)

SFF-8470 Standard Thumbscrew

SFF-8470 Squeeze-Latch

SFF-8470 Low Profile Squeeze-Latch (used for 3Ware products)


Sas assembly properties11 l.jpg

SASAssemblyProperties

Connectors

  • SFF-8484

    • 32 ML, Multi Lane, SAS Wide, or SAS 4i

    • Same connector on internal & external assemblies

    • Side-band options

    • Up to 4 phys links & 6 side-band links

Internal SFF-8484

External SFF-8484


Sas assembly properties12 l.jpg

SASAssemblyProperties

Connectors

  • SFF-8482

    • 29 or Drive Connector

    • Used on drive cables with power supply

      4 or15 power supply available

      Used on some fanout assemblies

    • Female & Male Versions

      Male used in SAS drive extension cables

SFF-8482 Male on SAS Drive Extension

SFF-8482 Female Drive Receptacle


Mini sas properties l.jpg

Mini-SASProperties

Mini-SAS Cables

  • Type of SAS cable

  • 2 internal versions

  • 1 external version

  • Available with side-band

  • SATA fanouts use 3Gb cable

Internal Mini-SAS

Side-band on Internal Mini-SAS

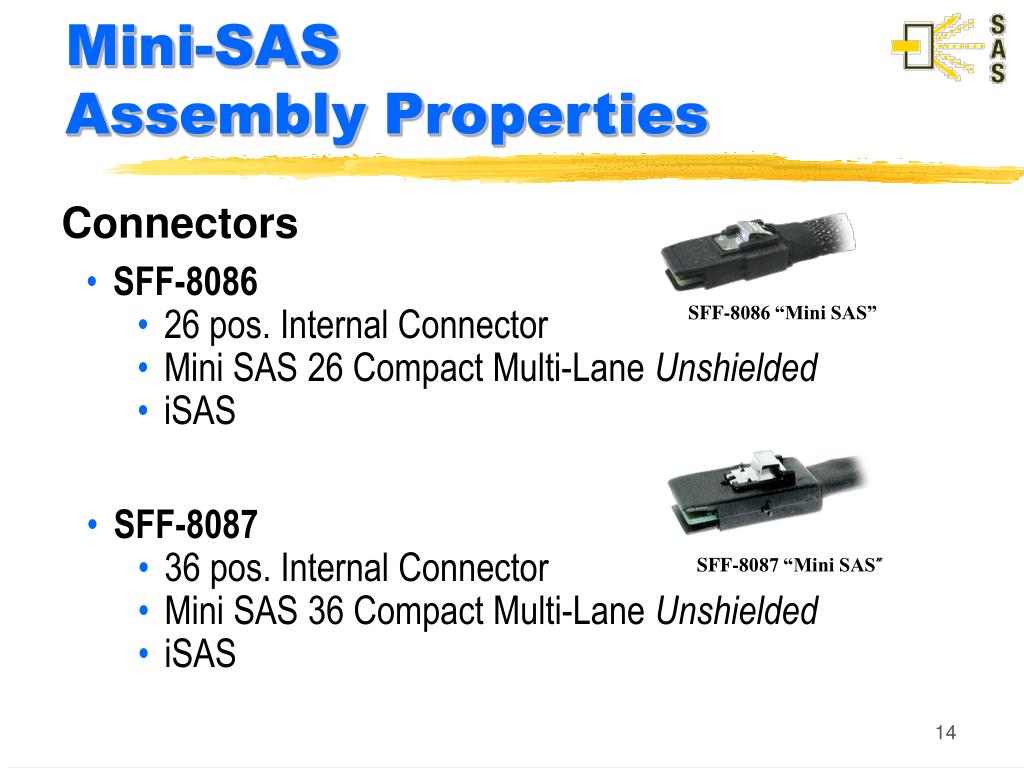

Mini sas assembly properties l.jpg

Mini-SASAssemblyProperties

Connectors

  • SFF-8087

    • 36 pos. Internal Connector

    • Mini SAS 36 Compact Multi-Lane Unshielded

    • iSAS

  • SFF-8086

    • 26 pos. Internal Connector

    • Mini SAS 26 Compact Multi-Lane Unshielded

    • iSAS

SFF-8086 “Mini SAS”

SFF-8087 “Mini SAS”

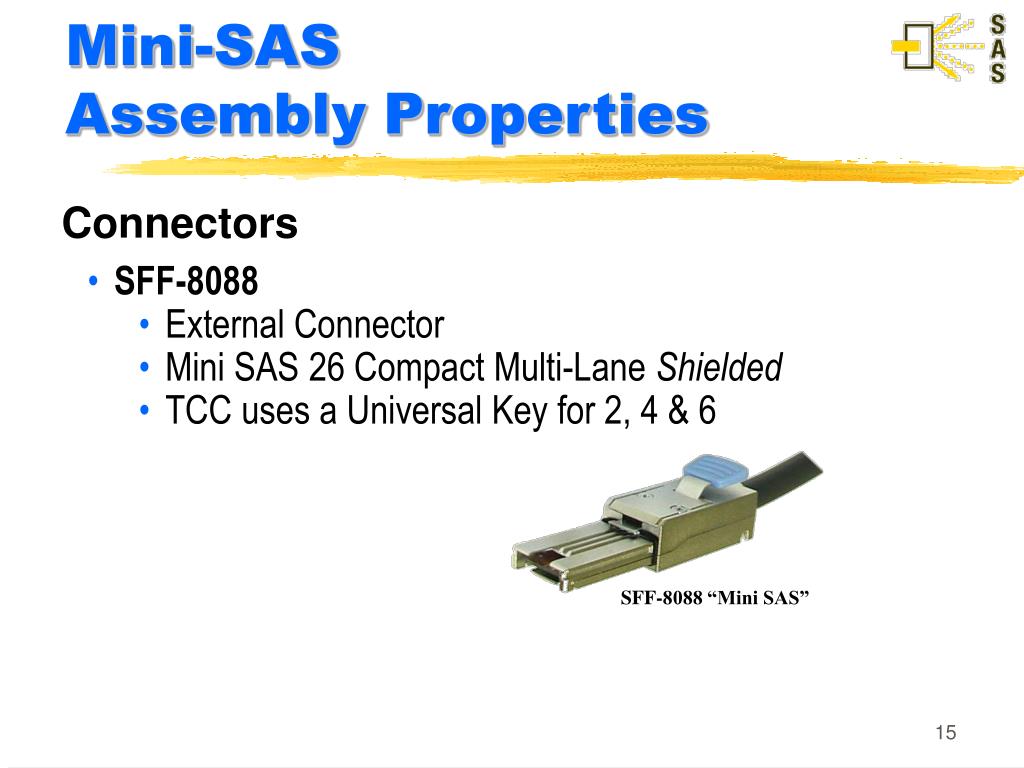

Mini sas assembly properties15 l.jpg

Mini-SASAssemblyProperties

Connectors

  • SFF-8088

    • External Connector

    • Mini SAS 26 Compact Multi-Lane Shielded

    • TCC uses a Universal Key for 2, 4 & 6

SFF-8088 “Mini SAS”


Sata terminology l.jpg

SATATerminology

Parallel ATA (PATA)

  • Parallel bus architecture

  • Also known as ATA

Serial ATA (SATA)

  • Serial bus architecture

  • Generation 1 = 1.5Gbs

  • Generation 2 = 3.0Gbs

  • Compatible with Ultra software

  • Devices use ATA command set


Sata terminology17 l.jpg

SATATerminology

SATA II

Is name of the organization that authored the second generation SATA specifications.

That organization is now called the Serial ATA International Organization (SATA-IO)

For more information, read the naming guideline spec:

http://www.sata-io.org/6gbnamingguidelines.asp


Sata terminology18 l.jpg

SATATerminology

All TCC SATA assemblies are:

  • Second Generation 3Gbs

  • Low Profile

  • High Frequency Cables

  • High Quality Cables


Sata properties l.jpg

SATAProperties

SATA 2nd Generation Cables

  • Also known as SATA 3Gbs

  • Backwards compatible with 1st Generation 1.5 Gbs

  • Point-to-Point

  • 100 ohm

  • 2-pair flat cable

  • Additional 15 conductor for power available

    • Power available in 4 or 15 position


Sata environment l.jpg

SATAEnvironment

Cabling Example

Internal

External


Sata cable properties l.jpg

SATACableProperties

Frequency and Quality

  • high frequency and high quality

  • backwards compatible with 1st Generation

All TCC SATA and SAS assemblies are

TCC uses the latest engineering and manufacturing techniques to provide improved cable signal integrity through impedance matching and reduced crosstalk.


Sata cable properties22 l.jpg

SATACableProperties

High Frequency and High Quality Cable

The following information about frequency and quality is given to understand the basic:

  • characteristics of the cable used in assemblies

  • cable’s affect on performance


Sata cable properties23 l.jpg

SATACableProperties

High Frequency and High Quality Cable:

Frequency and speed are the same when discussing data transmission in these SATA 3Gbs cables.

Frequency

  • High Frequency cables meet the SATA standard 3Gbs for data transmission.

  • Low Frequency cables do not and are generally poor quality cables.


Sata cable properties24 l.jpg

SATACableProperties

High Frequency and High Quality Cable

High Frequency Cables

  • transmit signals down the cable at a high rate of speed.

  • run at 1.5 and 3.0 Gbs

  • meet SATA specifications


Sata cable properties25 l.jpg

SATACableProperties

High Frequency and High Quality Cable:

Low Frequency Cables

  • The signals are transmitted down the cable at a low rate of speed.

They are usually:

  • low quality cables

  • out of 3Gbs specification


Sata cable properties26 l.jpg

SATACableProperties

High Frequency and High Quality Cable:

Low Frequency Cables

  • Low performance usually because of poor quality:

  • - inadequate soldering joints

  • -careless cable preparation

  • - inferior cable and cable assembly manufacturing methods.


Sata cable properties27 l.jpg

SATACableProperties

High Frequency and High Quality Cable

High Quality Cables

Cables must be manufactured by reputable suppliers to ensure:

  • assembly quality

  • electrical quality

  • cables were not manufactured on the bench top


Sata cable properties28 l.jpg

SATACableProperties

High Frequency and High Quality Cable:

High Quality Cables

  • support high bandwidth differential signaling

figure 1

  • use twin-ax wiring in a coax-type transmission cable (figure 1)

Internal Cables: Single-lane and multi-lane

External Cables: Multi-lane


Sata cable properties29 l.jpg

SATACableProperties

High Frequency and High Quality Cable:

High Quality Cables

SHIELDING & DRAIN WIRES

figure 1

The method of shielding the cable has a profound effect on the cable’s performance and is a major factor in quality and cost (figure 1).


Sata cable properties30 l.jpg

SATACableProperties

High Frequency and High Quality Cable

High Quality Cables

Proper Shielding Methods

  • Each channel hastwo conductors, both jacketed by a primary insulator.

  • The pair of conductors is covered completely by a conductive shield, either foil or braided.

  • Precision-wound, spiral wrap foil shielding and drain wires guarantee continuity of the shield.

  • The entire assembly is covered with (usually PVC) an insulating and protective outer layer called the jacket.


Sata cable properties31 l.jpg

SATACableProperties

High Frequency and High Quality Cable

High Quality Cables:

Inadequate shielding causes:

  • Impedance Discontinuities: unraveled shields or broken shield connections will cause reflected signal energy.

  • Cross-Talk, Signal Loss, EMI (electromagnetic interference): will be caused by discontinuous shielding.

  • Excessive Conductor Skew: faulty connector terminationalso causes the above performance hindrances.


Sata cable properties32 l.jpg

SATACable Properties

High Frequency and High Quality Cable

Remember:

High Frequency cables meet the SATA standard for data transmission.

Low Frequency cables do not and are generally poor quality cables.


Sata assembly properties l.jpg

SATAAssemblyProperties

SATA 3Gbs Cables

  • Thin, flexible, coax-like cable

  • SATA connector types:

    • Straight or right-angle

    • Click-connect (latch) or friction-fit attachment

    • Low profile or large

  • SAS connectors can be on SATA cables (fanouts)


Sata assembly properties34 l.jpg

SATAAssemblyProperties

TCC’s SATA Cables

  • Low Profile Connectors

“Click-Connect” Latch

Friction-Fit Latch

Straight

Right-Angle

Straight

Right-Angle

  • Fanout Cables

    • Variety ofSAS or Mini-SAS connectors

Mini-SASFanout

SASFanout


Sata assembly properties35 l.jpg

SATAAssemblyProperties

eSATA Cables

eSATA

  • Not a SATA “L” connector interface

  • For portable external drives

  • 6X faster than USB 2 and 1394

  • Single lane transfer

  • Guide keys on both sides of connector face

  • Secured by latch on top of connector face

  • Designed for 5K insertions & removals

    • Regular SATA only 50 Insertion & Removal Cycles


Sata assembly properties36 l.jpg

SATAAssemblyProperties

External SATA Cables

  • Same “L” Interface as internal SATA

  • Different Interface than eSATA

    • Key on one side only

    • No securing latch- uses friction method

Shielded SATA

eSATA

Securing Latch

Guide Keys

“L”Interface

Guide Key


Sata assembly properties37 l.jpg

(SATA)

15 pin power signal

(SATA)

15 pin power signal

SATAAssemblyProperties

Power Connector Detail

(Ultra ATA)


Sata and sas l.jpg

SATAandSAS

Similarities

  • Both SATA and SAS connectors can be on the same cable assembly.

  • Both types of HDD drives plug into the SAS backplane.

  • Both types of drives are interchangeable within a SAS drive bay module.

  • Both are long-proven technologies with worldwide acceptance.


Sata and sas39 l.jpg

SATAandSAS

Differences

  • SATA backplane cannot accept SAS drives.

  • SAS backplane can accept SATA drives.

  • SATA drives are less expensive than SAS.

  • SAS drives have:

    • Dual porting capability, faster spindle speeds, & lower latencies.


Sata and sas40 l.jpg

SATAandSAS

Differences

  • SAS drives undergo more rigid testing specifications than SATA.

  • SAS drives have longer MTBF and duty cycle than SATA.

  • SAS drives are faster and offer more features than SATA:

    • Variable sector sizes, LED indicators, dual ports, & more stable data integrity


Sata and sas41 l.jpg

SATAandSAS

SAS & SATA Connector Details

SAS has same footprint as SATA (7 + 15 pins) except it has 2nd physical layer

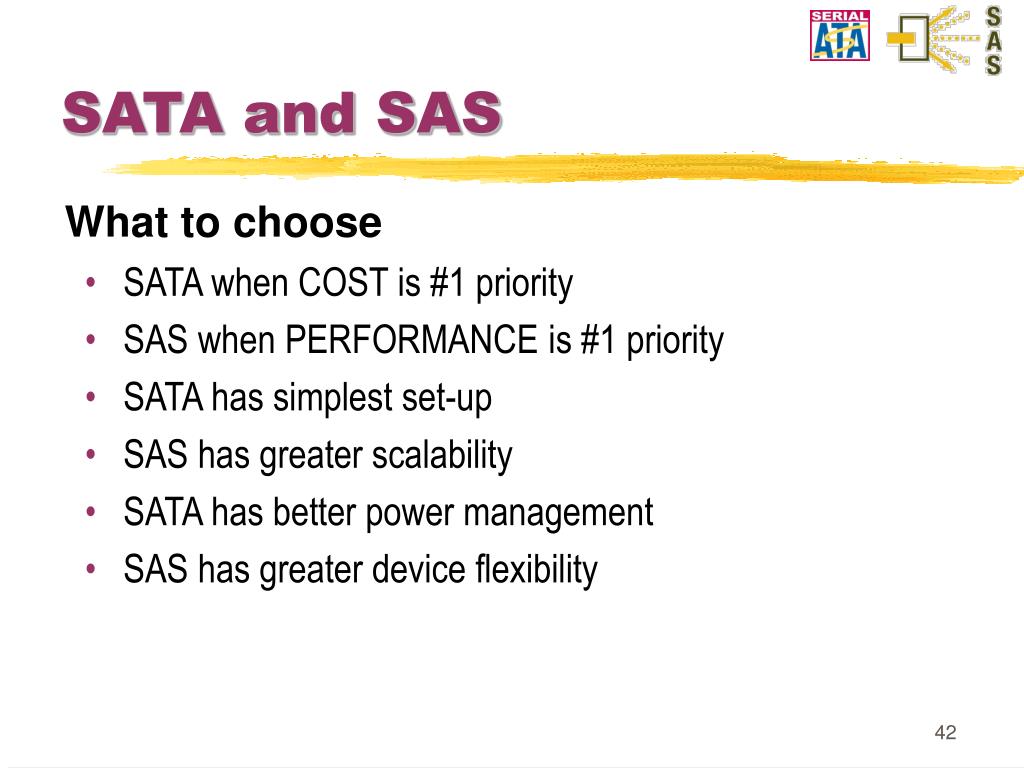

Sata and sas42 l.jpg

SATA and SAS

What to choose

  • SATA when COST is #1 priority

  • SAS when PERFORMANCE is #1 priority

  • SATA has simplest set-up

  • SAS has greater scalability

  • SATA has better power management

  • SAS has greater device flexibility

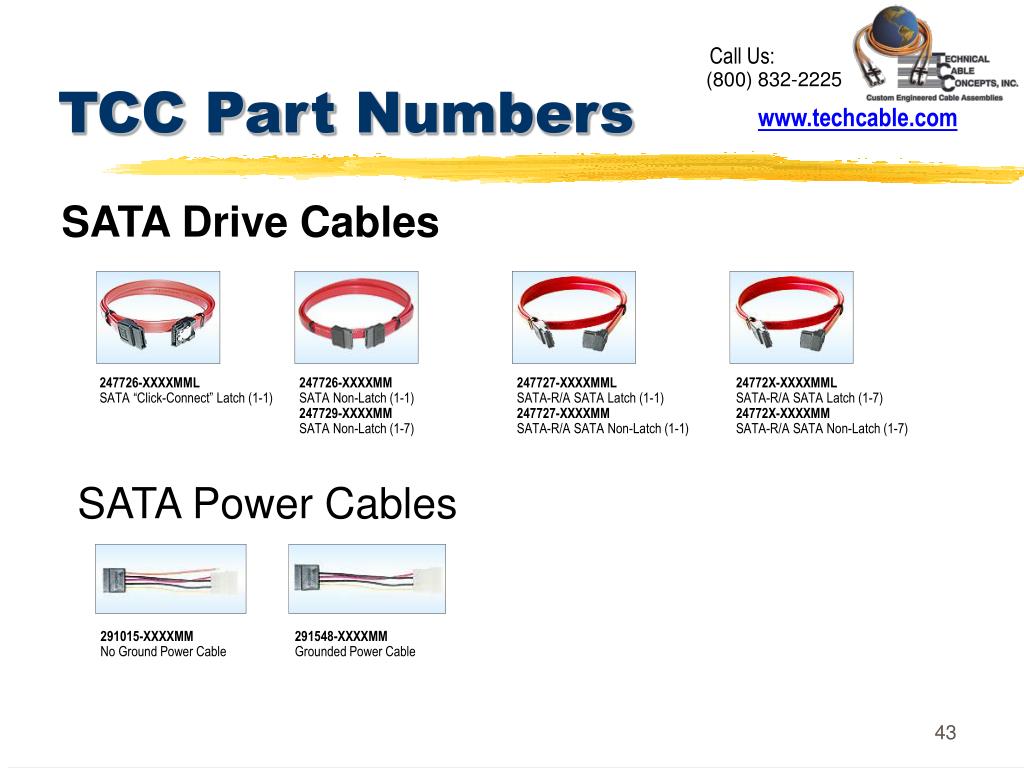

Tcc part numbers l.jpg

Call Us:

(800) 832-2225

www.techcable.com

TCCPartNumbers

SATA Drive Cables

247726-XXXXMML

SATA “Click-Connect” Latch (1-1)

247726-XXXXMM

SATA Non-Latch (1-1)

247729-XXXXMM

SATA Non-Latch (1-7)

247727-XXXXMML

SATA-R/A SATA Latch (1-1)

247727-XXXXMM

SATA-R/A SATA Non-Latch (1-1)

24772X-XXXXMML

SATA-R/A SATA Latch (1-7)

24772X-XXXXMM

SATA-R/A SATA Non-Latch (1-7)

SATA Power Cables

291015-XXXXMM

No Ground Power Cable

291548-XXXXMM

Grounded Power Cable


Tcc part numbers44 l.jpg

Call Us:

(800) 832-2225

www.techcable.com

TCCPartNumbers

SATA Fanout Cables

Internal SAS

297526-XXXXMM

SFF-8484-(4)SATA RR/A (1-1)

297529-XXXXMM

SFF-8484-(4)SATA RR/A (1-7)

297626-XXXXMM

SFF-8484- (4)SATA R/A (1-1)

297629-XXXXMM

SFF-8484- (4)SATA R/A (1-7)

297426-XXXXMM

SFF-8484- (4)SATA (1-1)

297429-XXXXMM

SFF-8484- (4)SATA (1-7)

2136476-XXXXMM

SFF-8087- (4)SATA (1-1)

2136479-XXXXMM

SFF-8087- (4)SATA (1-7)

294626-XXXXMM

SFF-8470 to (4) SATA (1-7)

294629-XXXXMM

SFF-8470 to (4) SATA (C-C)

291629R-XXXXMM

SFF-8470 LP – (4) SATA R/A (1-7)

291626-XXXXMM

SFF-8470 LP – (4) SATA (1-1)


Tcc part numbers45 l.jpg

Call Us:

(800) 832-2225

www.techcable.com

TCC Part Numbers

Internal SAS

291715-XXXXMM

SFF-8482M to SATA w/6” 15Pwr

292715-XXXXMM

SFF-8482M to (2)SATA w/6” 15 Pwr

299715-XXXXMM

SFF-8482 to (2)SATA w/6” 15 Pwr

298715-XXXXMM

SFF-8482M to SATA w/15 Pwr Extender

292296P-XXXXMM

SFF-8470 to (2)8482 w/6” 4 Pwr

324296-XXXXMM

SFF-8484-(4)8482 w/4 Pwr (1-1)

324299-XXXXMM

SFF-8484-(4)8482 w/4 Pwr (1-7)

292704-XXXXM

SFF-8482 to (2)SATA w/12” 4 Pwr

299706-XXXXMM

SFF-8482 to (2)SATA w/6” 4 Pwr

293226-XXXXMM

SFF-8484 Mesh w/Side Band


Tcc part numbers46 l.jpg

Call Us:

(800) 832-2225

www.techcable.com

TCCPartNumbers

External SAS

294428-XXXXMM

SFF-8470 Assembly

292228-XXXXMM

4X SQ Assembly

292428-XXXXMM

SFF-8470 to 4X SQ

290428-XXXXMM

SFF-8470 to4 X InfiniBand

294728-XXXXMM

SFF-8470 to (4) 1X InfiniBand

291128-XXXXMM

4X LPSQ Assembly

291428-XXXXMM

SFF-8470 to 4X LP SQ

294328-XXXXMM

SFF-8470 to SFF-8484

293328-XXXXMM

SFF-8484 Round Assembly


Tcc part numbers47 l.jpg

Call Us:

(800) 832-2225

www.techcable.com

TCCPartNumbers

Mini-SAS

2136446-XXXXMM

SFF-8087 to SFF-8470 (1-1)

2136449-XXXXMM

SFF-8087 to SFF-8470 (1-7)

212261-XXXXMM

SFF-8086 Assembly

213636-XXXXMM

SFF-8087 Assembly

213632-XXXXMM

SFF-8087 to SFF-8484 no SB

212626-XXXXMM

SFF-8088 Assembly

212644-XXXXMM

SFF-8088 to SFF-8470

212636-XXXXMM

SFF-8088 to SFF-8087

2136426-XXXXMM

2136429-XXXXMM

SFF-8087 to SFF-8470 LPSQ (1-1)

SFF-8087 to SFF-8470 LPSQ (1-7)


Tcc part numbers48 l.jpg

Call Us:

(800) 832-2225

www.techcable.com

TCC Part Numbers

External SATA

External SATA

eSATA

eSATA

247756-XXXXMM

eSATA – SATA Shielded Round

247796-XXXXMM

eSATA Assembly

294696-XXXXMM

SFF-8470 to (4)eSATA (1-7)

294699-XXXXMM

SFF-8470 to (4)eSATA (1-1)

247716-XXXXMM

SATA Shielded Round Assembly

2926R6-XXXXMM

(4)SATA Shield to SAS 4X SQ (1-1)

2926R9-XXXXMM

(4)SATA Shield to SAS 4X SQ (1-7)

2906R6-XXXXMM

(4)SATA Shield to InfiniBand 4X (1-1)

2906R9-XXXXMM

(4)SATA Shield to InfiniBand 4X (1-7)

247816-XXXXMM

SATA Shield to InfiniBand 1X (1-1)

247819-XXXXMM

SATA Shield to InfiniBand 1X (1-7)

290796-XXXXMM

(4)eSATA to InfiniBand 4X (1-1)

290799-XXXXMM

(4)eSATA to InfiniBand 4X (1-7)


References l.jpg

References

TCC appreciates the SCSI Trade Association (STA) and Hewlett-Packard for providing most of the information used in this tutorial.

  • Serial ATA International Organization http://www.sata-io.org/index.asp

  • International Committee for Information Technology Standards http://www.ncits.org/

    • T13 (ATA Standards) http://www.ncits.org/tc_home/t13.htm

    • T10 (SCSI Standards)

      http://www.ncits.org/tc_home/t10.htm


End of tutorial l.jpg

End of Tutorial

Technical Cable Concepts, Inc., thanks you for your time.

TCC is always pursuing the latest technology and together with your valued partnership, we can ensure our mutual success in the future.

Produced by TCC, 2009

www.techcable.com


  • Login
