Notions of capacity in wireless networksThroughput capacityTransport capacityTwo models for successful signal receptionProtocol modelPhysical modelResults for arbitrary networksResults for random networksImplicationsExtensions. Outline. 2. For each source-destination pair, it is the average number of bits delivered successfully from the source to the destinationFor the network, it is the sum of these throughputs over all source-destination pairs.
E N D

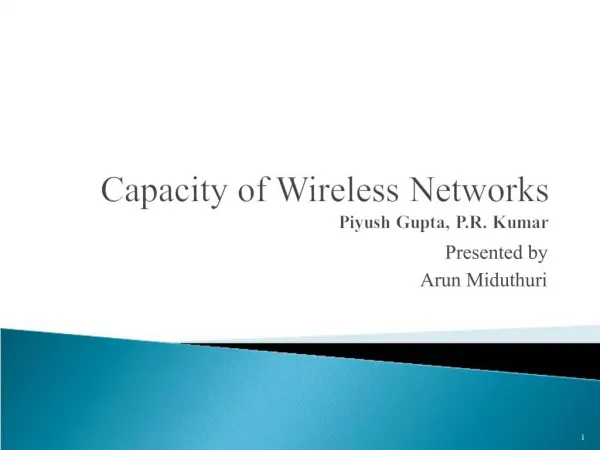

1. Capacity of Wireless NetworksPiyush Gupta, P.R. Kumar Presented by
Arun Miduthuri 1
2. Notions of capacity in wireless networks
Throughput capacity
Transport capacity
Two models for successful signal reception
Protocol model
Physical model
Results for arbitrary networks
Results for random networks
Implications
Extensions
Outline 2
3. For each source-destination pair, it is the average number of bits delivered successfully from the source to the destination
For the network, it is the sum of these throughputs over all source-destination pairs Throughput capacity 3
4. Unit of measurement ‘bit-meter’
One bit-meter – 1 bit transported 1m toward destination
Transport capacity is the number of bit-meters transported by a network through successful transmissions
Transport capacity 4
5. Network of n nodes in a unit area region
Location of nodes fixed
Each node can transmit at W bps
Packets sent from node to node in multi-hop fashion
Several nodes can transmit simultaneously
For simple exposition, assume transmissions are slotted Setup 5
6. A transmission from node Xi to node Xj is successfully received by Xj if
for every other node Xk simultaneously transmitting over the network
represents a “guard band” between the two transmitting nodes Protocol Model 6
7. Transmission from Xi successfully received by Xj if
T = Subset of nodes Xk transmitting in time slot
Pk = Power level of node Xk
a = Fading exponent
Physical Model 7
8. “Arbitrary” means we have control over the structure of the network
n nodes are arbitrarily located in a disk of unit area
Each node has arbitrarily chosen destination, and arbitrary rate
Hence traffic patterns are also arbitrary
Can choose all of these characteristics in an ‘optimal’ way to get upper bounds on performance
Arbitrary networks 8
9. If nodes are optimally placed, traffic pattern and transmission range optimally chosen, then transport capacity is of the order
In less optimal scenarios, this acts as an upper bound on performance Bound on transport capacity – Arbitrary Networks 9
10. The actual bound on all arbitrary networks is
In the optimal scenario, if we also equitably divide transport capacity between all n nodes, then each node attains a transport capacity of Bound on transport capacity – Arbitrary Networks 10
11. Assume nodes are optimally placed, traffic patterns and transmission ranges optimally chosen
Assume transport capacity equitably divided between all n nodes
Assume each source has its destination unit distance away
Then throughput capacity per S-D pair is of the order Bound on throughput – Arbitrary Networks 11
12. Paper shows that
bit-meters per second is feasible, while
is not, for appropriate c, c’ Similar transport capacity bounds for physical model 12
13. Postulates upper bound of order
bit-meters per second
Proves this for the case in which
Where Pmax and Pmin are the max and min powers that transmitters can use
Similar transport capacity bounds for physical model 13
14. n nodes independently and identically distributed
Not over a circle of unit area, but over a unit area spherical surface
Avoids “edge effects”
Each node has an independently chosen destination
Unit distance away from source on average
Throughput requirement of ?(n) bps Random networks 14
15. A throughput of ?(n) bps for each node is feasible if each node can send ?(n) bps on average to its destination under the constraints of
The existence of some spatial and temporal scheduling scheme to support it
Scheme allows for multi-hop and buffering at intermediate nodes Feasible throughput in random networks 15
16. Throughput capacity is of order T(f(n)) bps if there are constants c, c’ such that
where
T notation in random setting 16
17. Throughput is of order
The result is the same for protocol and physical models
Results for random networks 17
18. Routing hot spots are not the cause of throughput constriction
Rather, each node needs to share its channel with other nodes to accommodate multi-hops
Implications 18
19. Networks aimed at smaller numbers of users are better
When nodes communicate only with nearby nodes
distant, they can transmit at constant bit rate per S-D pair
Dividing channel into subchannels does not alter result
Larger a (fading exponent) allows greater transport and throughput capacity Implications 19
20. Briefly analyzes use of nodes dedicated solely to relaying
If m additional homogenous pure relays are added (random network model), throughput is
Number of additional relays per node to be added can be quite large Implications 20
21. Considering the effect of mobility
Throughput vs delay tradeoff
Use of relays
A rate region approach Extensions 21
22. Mobility increases the capacity of wireless ad hoc networks, Grossglauser and Tse
Assumes loose delay constraints (eg, email) where network topology changes considerably over time
Throughput per S-D pair (time average) can be kept constant as n increases Mobility 22
23. In Gupta and Kumar, nearest neighbor scheme was suggested to achieve this constant throughput
This cannot be used in the case of mobility
Problem: Fraction of time two nodes are nearest neighbors is of order n-1
Instead, split node’s packet stream and handoff to closest mobile relay; relays handoff to destination when close to destination
How to exploit mobility 23
24. [2] Exploiting mobility:Relay scheme – Handoff to relay 24
25. [2] Exploiting mobility:Relay scheme – Handoff to destination 25
26. Throughput-delay tradeoff in wireless networks, El Gamal et al. [3]
Throughput and delay influenced by
Number of hops
Transmission range
Node mobility and velocity
For a fixed random network, the optimal delay depends on throughput as in Gupta and Kumar:
Throughput-delay tradeoff 26
27. In a mobile network as discussed in Grossglauger and Tse, Throughput-delay tradeoff 27
28. Parameterized by a(n), where
is the average distance per hop.
The optimal throughput-delay tradeoff is Throughput-delay tradeoff 28
29. [3] Throughput-delay tradeoff 29
30. Capacity regions for wireless ad hoc networks, S. Toumpis, A.J. Goldsmith [4]
Computes achievable rate regions in a time-division strategy for a number of suboptimal transmission strategies, including
Single or multi-hop routing
Power control
Successive interference cancellation
Uses rate matrices (function of nodes transmitting in a time slot, link SINR, transmission strategy) Capacity regions for wireless ad hoc networks 30
31. 31 [4] Capacity regions for wireless ad hoc networks
32. Studies uniform capacity for linear and ring networks
Uniform capacity is the maximum sum rate assuming all nodes communicate with all other nodes at a common rate
Linear networks show degrading performance as the number of nodes increase
Ring networks take advantage of spatial separation; uniform capacity shows limited gains as number of nodes increase
Capacity regions for wireless ad hoc networks 32
33. [4] Capacity regions for wireless ad hoc networks 33
34. Analyzes effect of node mobility
Models mobility as Brownian walks with a large number of spatial configurations
As opposed to modeling nodes as moving continuously
Plots convergence of uniform capacity vs the number of spatial configurations
Without scheduling across different spatial configurations, it tries to use the current configuration most efficiently, but does not exploit mobility
Using scheduling is subject to tolerating large delays Capacity regions for wireless ad hoc networks 34
35. [4] Capacity regions for wireless ad hoc networks 35
36. Use of relaying [5]
In the case where only one S-D pair exists and the rest of the nodes are relays, and arbitrarily complex network coding is allowed, can achieve log n bps with n nodes
Source broadcasts information to all relays, which use arbitrary cooperation techniques
Exploiting cooperative relaying 36
37. Throughput and transport capacity of networks is bounded inversely by the number of nodes in the network
The reason is that intermediate nodes use most of their resources to forward other nodes’ packets
Result pessimistic; mobility, neighborhood communication, broadcast, and relay cooperation can improve throughput
Conclusion 37
38. [1] P. Gupta, P.R. Kumar , Capacity of Wireless Networks, IEEE Transactions on Information Theory, Vol. 46, No. 2, March 2000
[2] M. Grossglauser, D. Tse, Mobility increases the capacity of ad hoc wireless networks, IEEE/ACM Transactions on Networking, Vol. 10, No. 4, August 2002
[3] A. El Gamal, J. Mammen, B. Prabhakar, D. Shah, Throughput-delay tradeoff in wireless networks, IEEE Infocom 2004.
[4] S. Toumpis, A.J. Goldsmith, Capacity regions for wireless ad hoc networks, IEEE Transactions on Wireless Communications, Vol. 2, No. 4, July 2003
[5] M. Gastpar, M. Vetterli, On the capacity of wireless networks: The relay case, IEEE 2002
Additional references
[6] G. Kramer, M. Gastpar, P. Gupta, Cooperative strategies and capacity theorems for relay networks
[7] P. Gupta, P.R. Kumar, Towards an information theory of large networks: An achievable rate region, IEEE Transactions on Information Theory, Vol. 49, No. 8, August 2003 References 38
