  1. H.323 Onno W. Purbo Onno@indo.net.id

  2. Referensi .. • Dr. Andreas Steffen, Komunikationsysteme

  3. ITU-T H.323

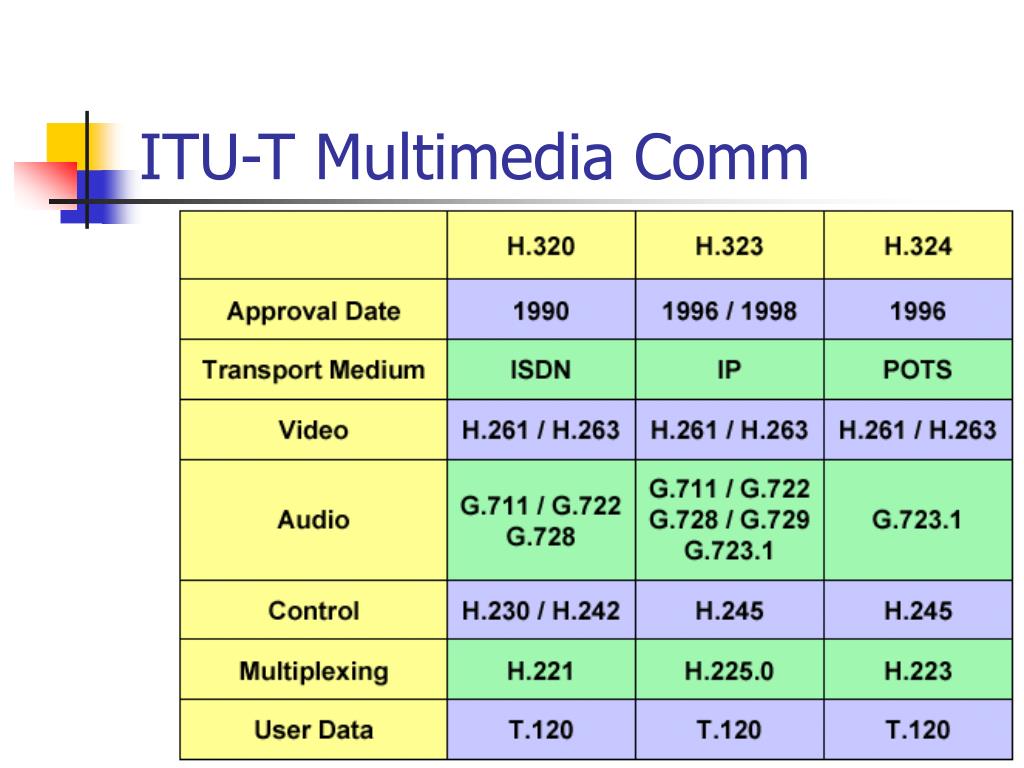

  4. ITU-T Multimedia Comm

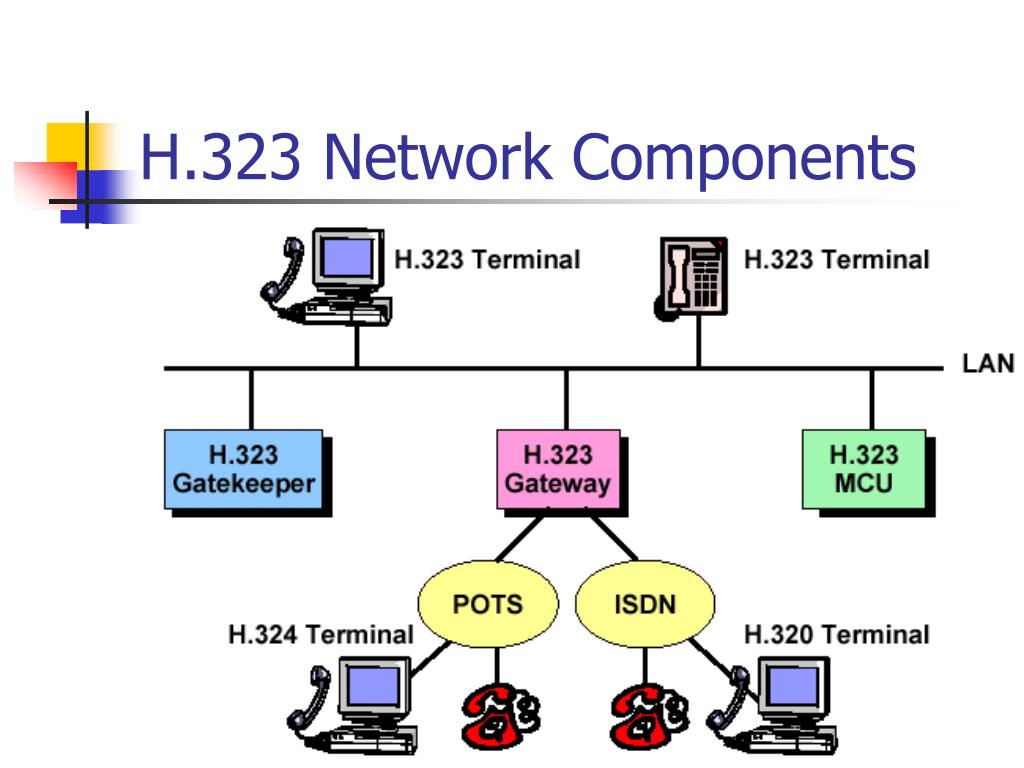

  5. H.323 Network Components

  6. H.323 Gateways Functions .. • Physical Interface LAN  PSTN • POTS (analog) • ISDN (digital) • Call setup • Setup & release call both LAN & PSTN • Translation of Transmission Multiplex Formats • H.225.0 to H.221 / H.223

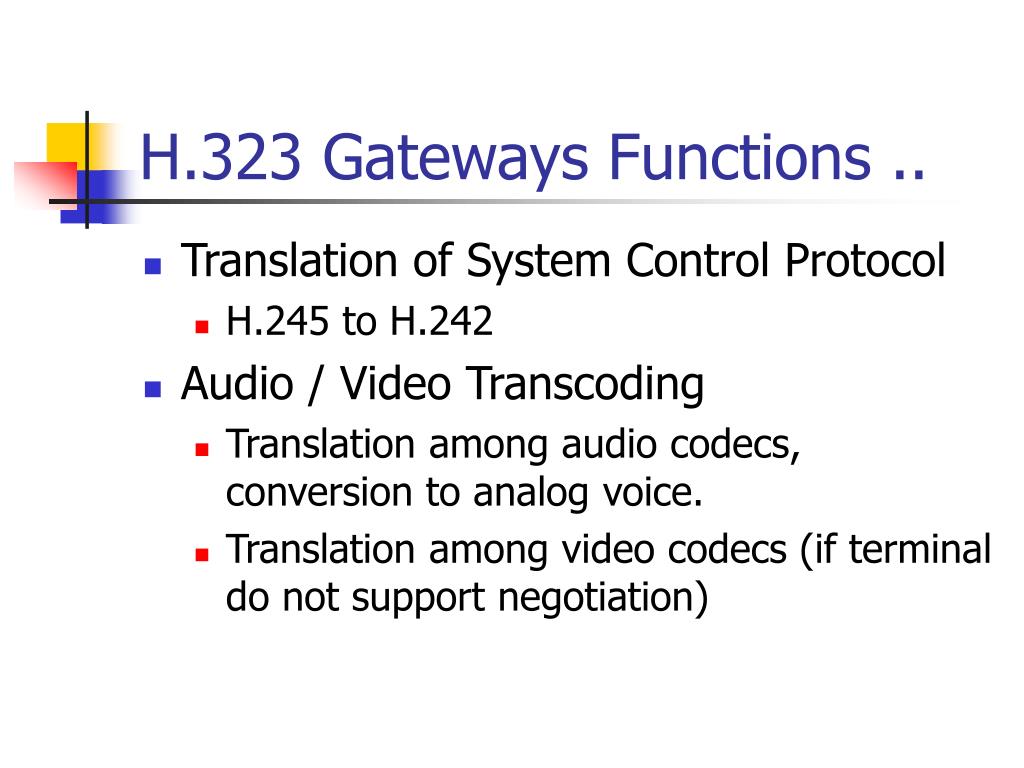

  7. H.323 Gateways Functions .. • Translation of System Control Protocol • H.245 to H.242 • Audio / Video Transcoding • Translation among audio codecs, conversion to analog voice. • Translation among video codecs (if terminal do not support negotiation)

  8. H.323 gatekeepers

  9. Registration, Admission and Status ..

  10. Registration, Admission and Status (RAS) • RAS defined in ITU-T H.225.0 • RAS is used between H.323 endpoint and the gatekeeper of H.323 zone they are assigned to.

  11. Automatic Gatekeeper Discovery

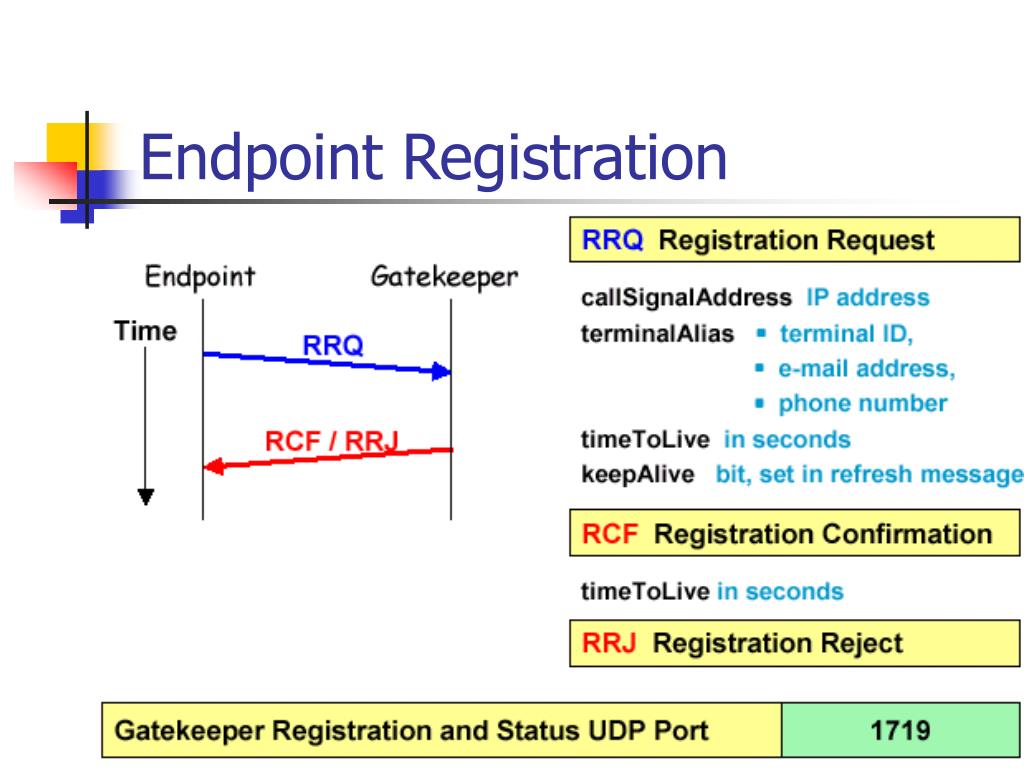

  12. Endpoint Registration

  13. Endpoint Unregistration

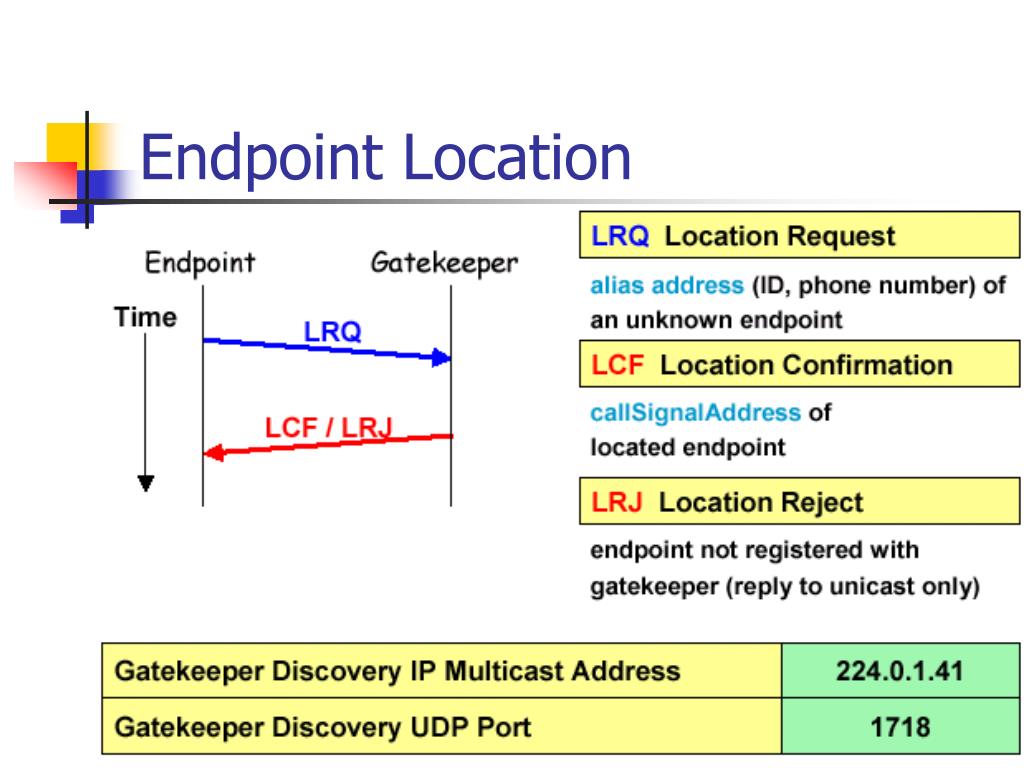

  14. Endpoint Location

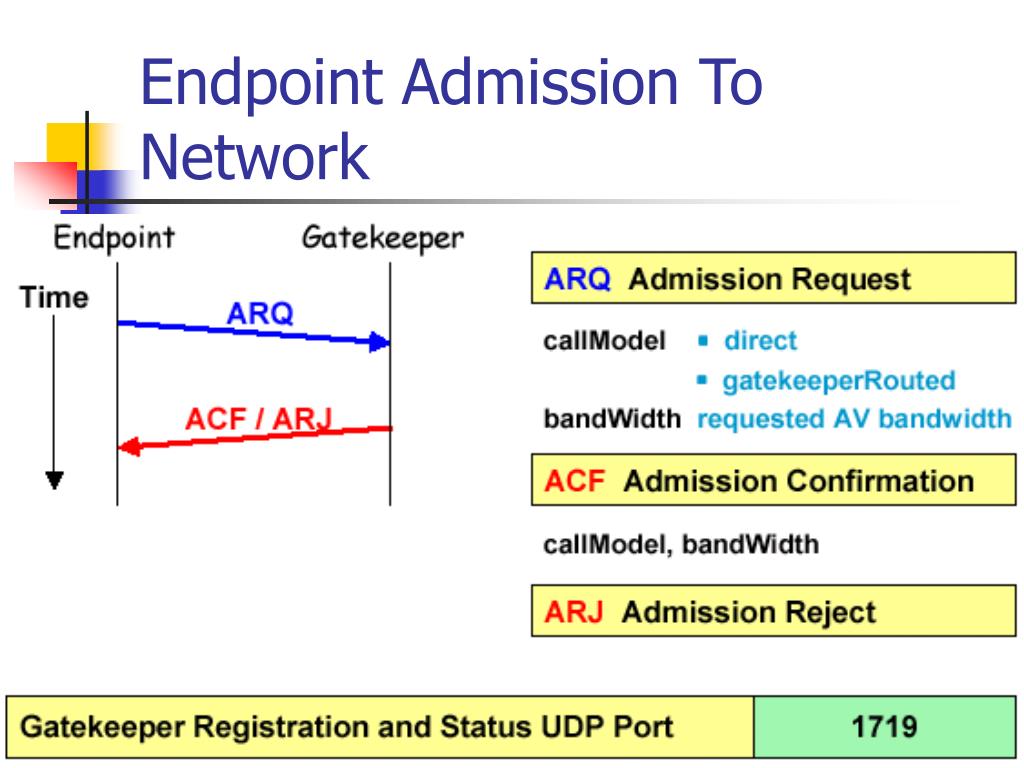

  15. Endpoint Admission To Network

  16. H.323 Gatekeeper Functionality • Address Registration & Translation • RRQ/RCF/RRJ and LRQ/LCF/LRJ messages. • Translation of alias addresses to transport addresses. • Admission Control • ARQ/ACF/ARJ messages. • Authorization of LAN access (call authorization, bandwidth). • Bandwidth Control and Management • BRQ/BCF/BRJ messages. • Dynamic change of requested and available bandwidth.

  17. H.323 call setup & control
