BIOMAN 2010 Immunoassays Barbara Bielska Northampton Community College Tannersville, PA

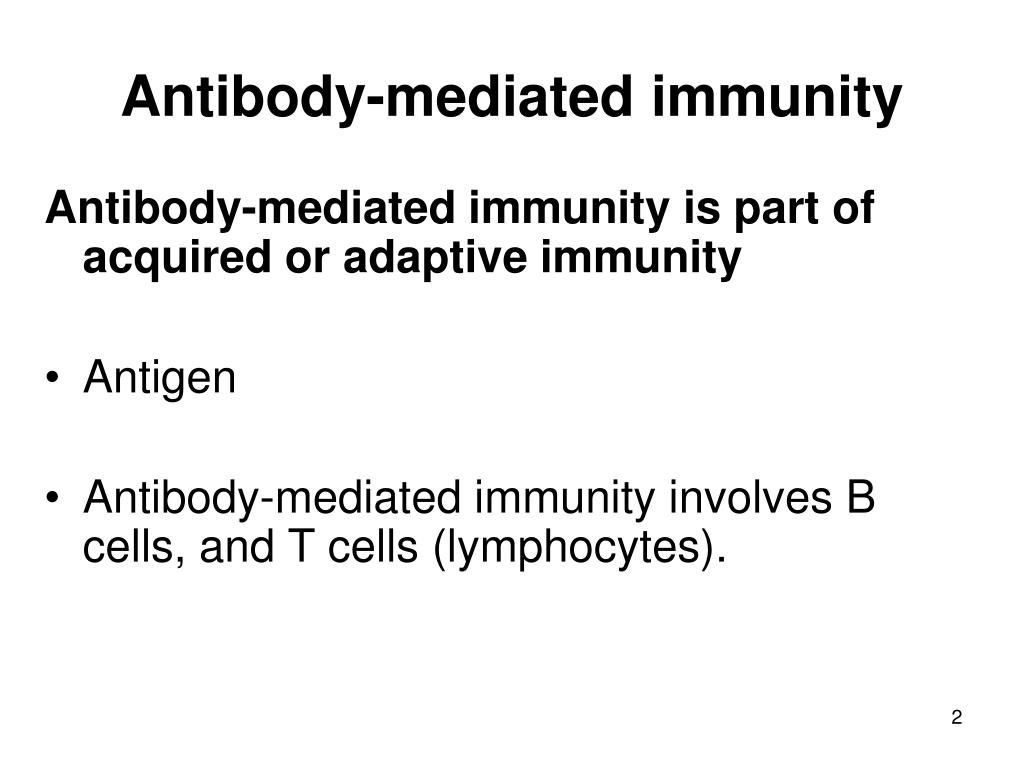

Antibody-mediated immunity Antibody-mediated immunity is part of acquired or adaptive immunity • Antigen • Antibody-mediated immunity involves B cells, and T cells (lymphocytes).

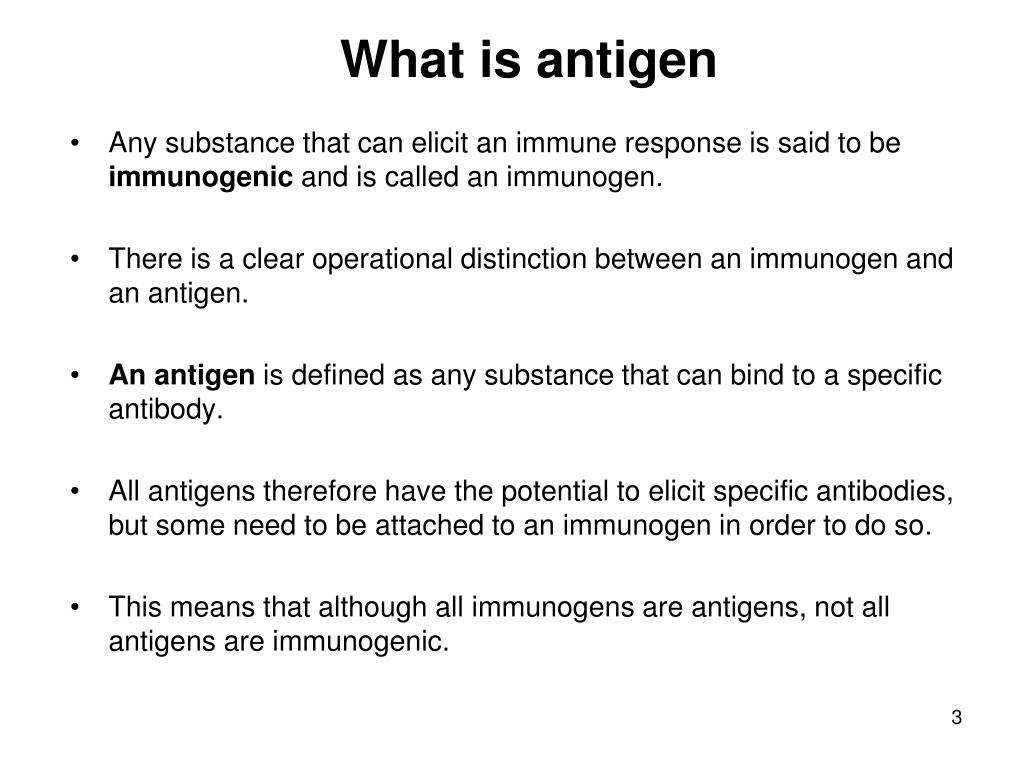

What is antigen • Any substance that can elicit an immune response is said to be immunogenic and is called an immunogen. • There is a clear operational distinction between an immunogen and an antigen. • An antigen is defined as any substance that can bind to a specific antibody. • All antigens therefore have the potential to elicit specific antibodies, but some need to be attached to an immunogen in order to do so. • This means that although all immunogens are antigens, not all antigens are immunogenic.

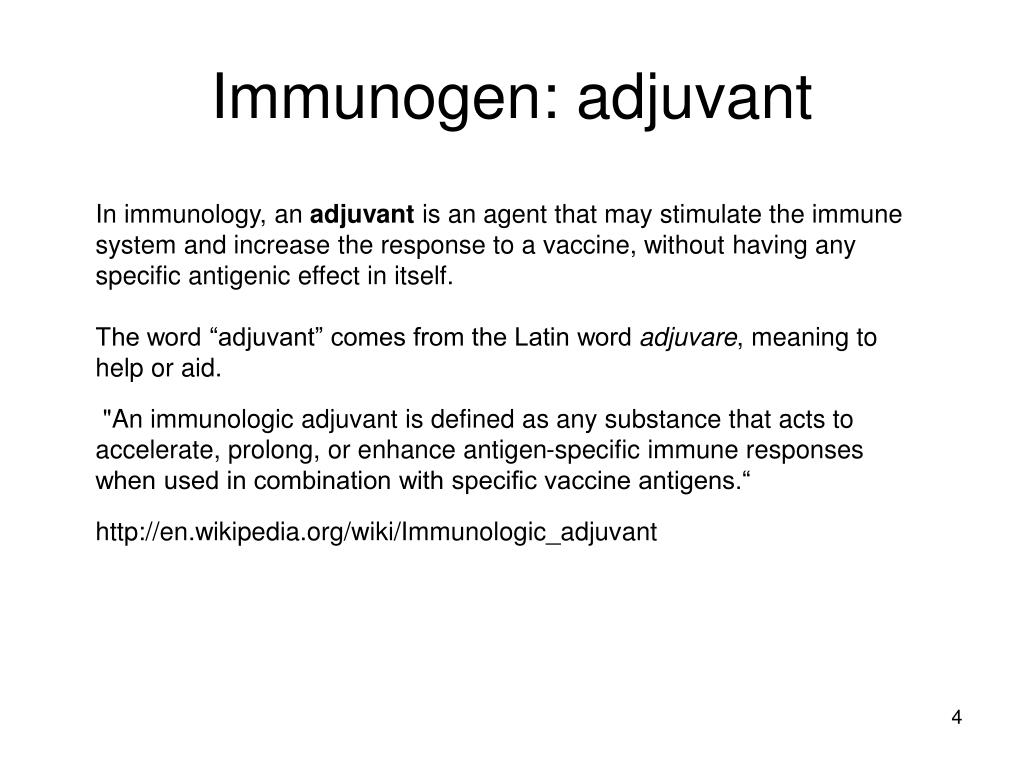

Immunogen: adjuvant In immunology, an adjuvant is an agent that may stimulate the immune system and increase the response to a vaccine, without having any specific antigenic effect in itself. The word “adjuvant” comes from the Latin word adjuvare, meaning to help or aid. "An immunologic adjuvant is defined as any substance that acts to accelerate, prolong, or enhance antigen-specific immune responses when used in combination with specific vaccine antigens.“ http://en.wikipedia.org/wiki/Immunologic_adjuvant

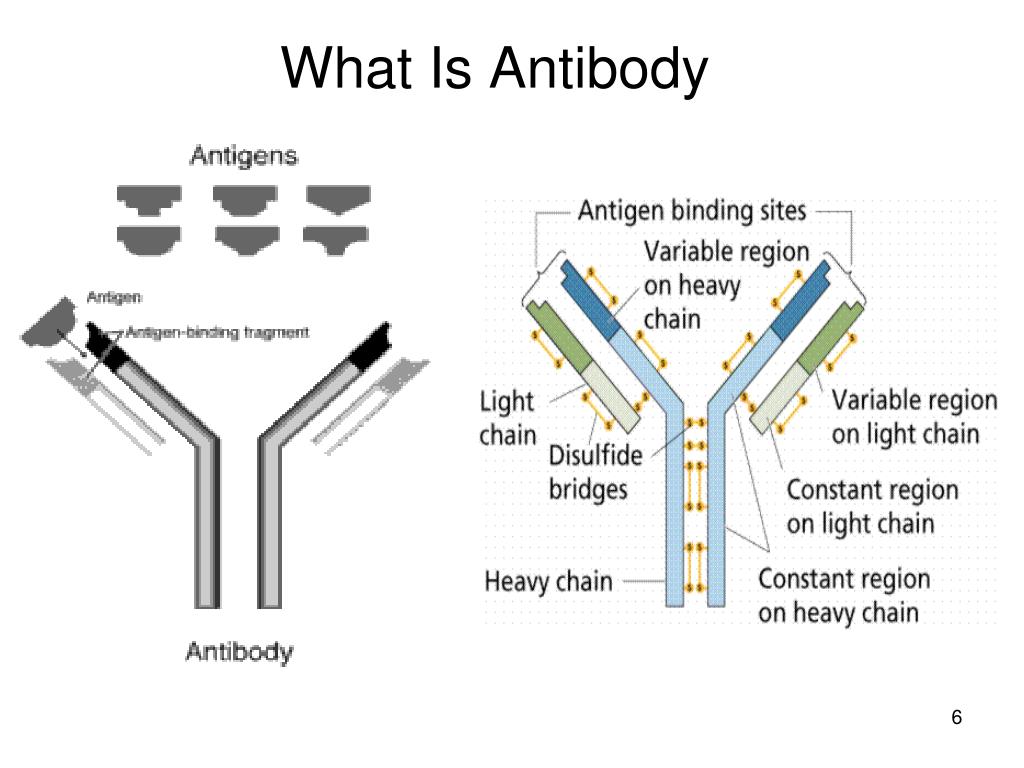

What Is Antibody Antibody: An immunoglobulin, a specialized immune protein, produced because of the introduction of an antigen (immunogen) into the body, and which possesses the remarkable ability to combine with the very antigen that triggered its production. The production of antibodies is a major function of the immune system and is carried out by a type of white blood cell called a B cell (B lymphocyte). Antibodies can be triggered by and directed at foreign proteins, microorganisms, or toxins. The term "antibody" dates to 1901. Prior to that time, an "antibody" referred to any of a host of different substances that served as "bodies" (foot soldiers) in the fight against infection and its ill effects. According to http://www.medicinenet.com/script/main/hp.asp

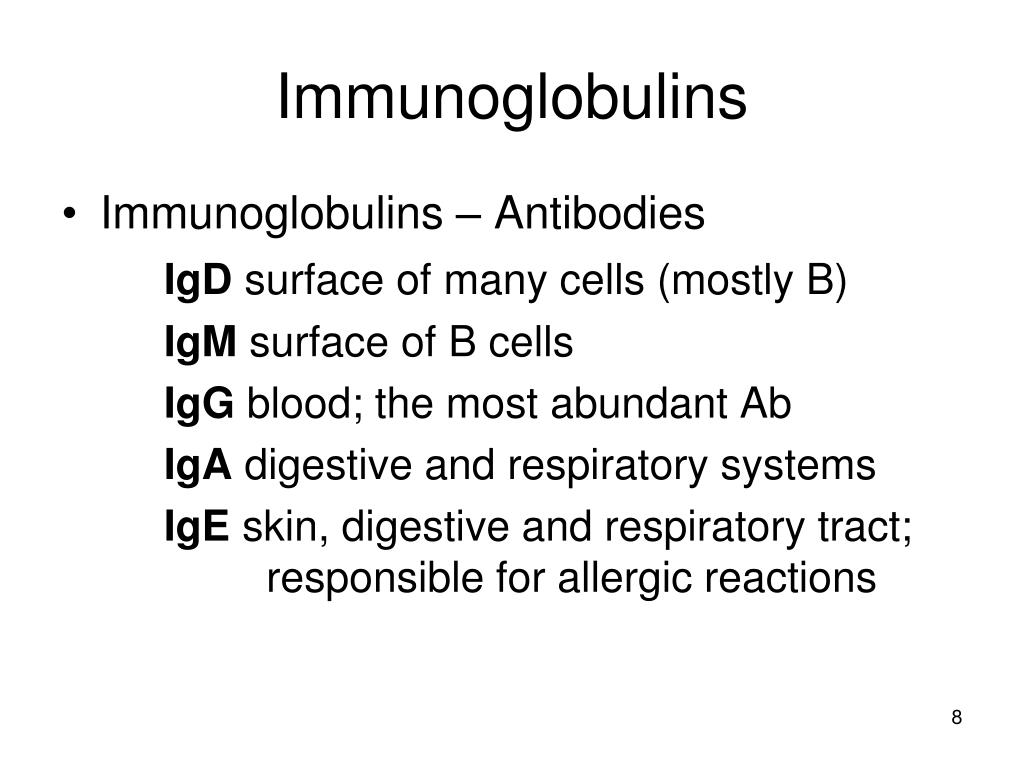

Immunoglobulins • Immunoglobulins – Antibodies IgD surface of many cells (mostly B) IgM surface of B cells IgG blood; the most abundant Ab IgA digestive and respiratory systems IgE skin, digestive and respiratory tract; responsible for allergic reactions

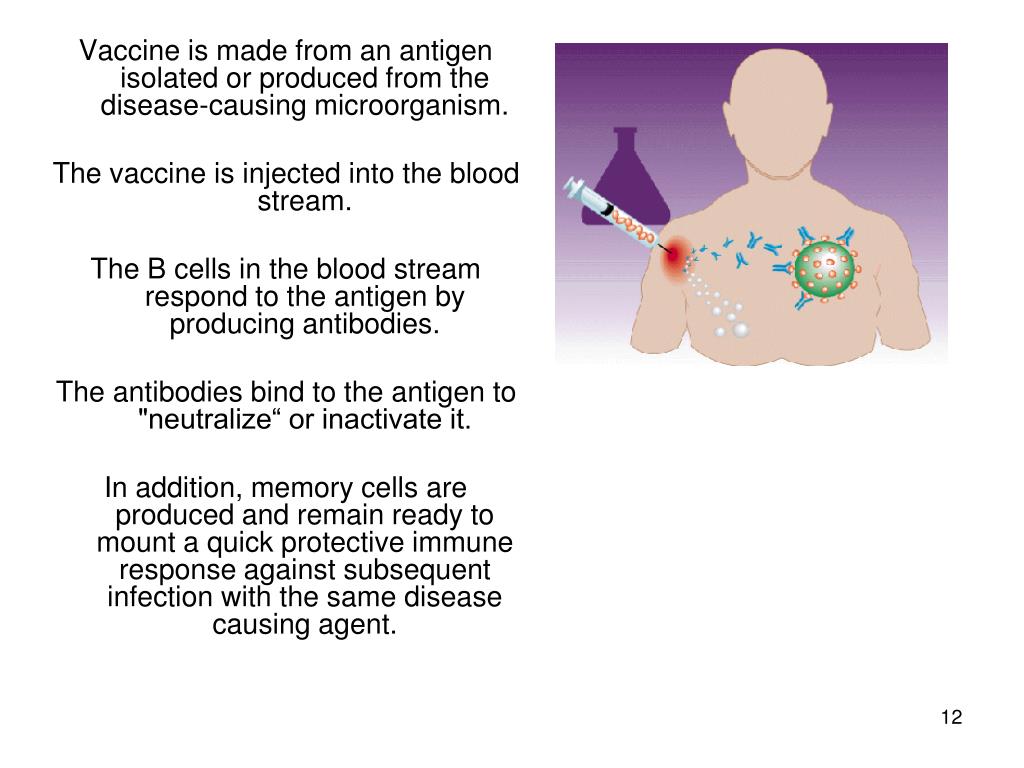

Vaccine is made from an antigen isolated or produced from the disease-causing microorganism. The vaccine is injected into the blood stream. The B cells in the blood stream respond to the antigen by producing antibodies. The antibodies bind to the antigen to "neutralize“ or inactivate it. In addition, memory cells are produced and remain ready to mount a quick protective immune response against subsequent infection with the same disease causing agent.

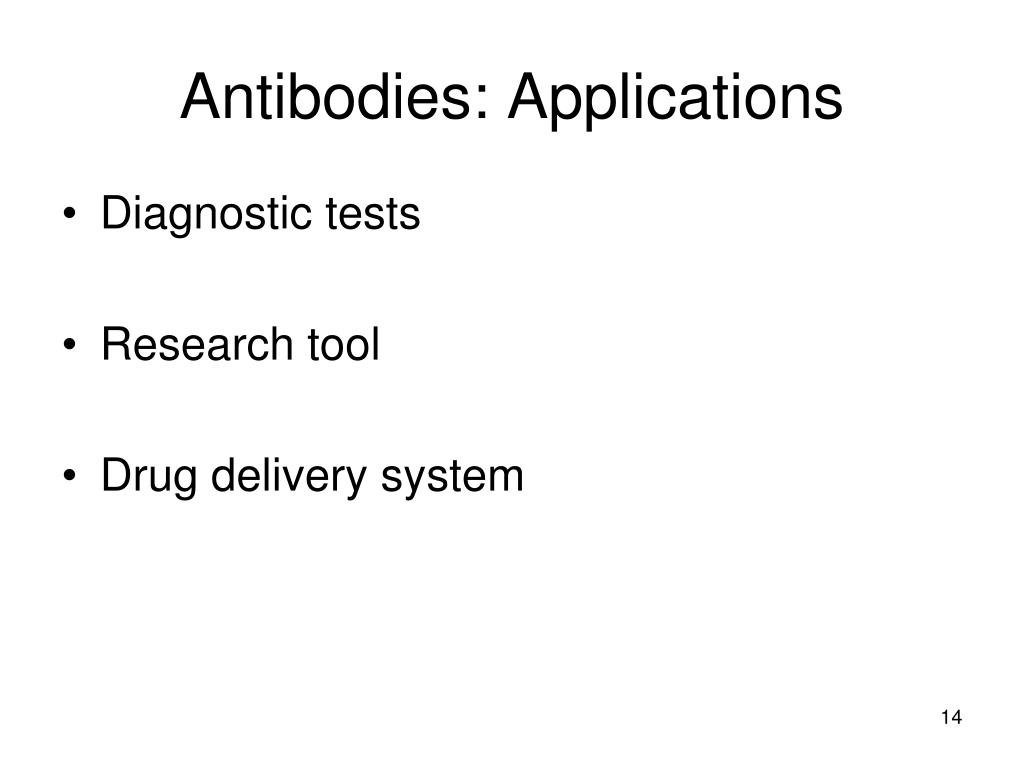

Antibodies: Applications • Diagnostic tests • Research tool • Drug delivery system

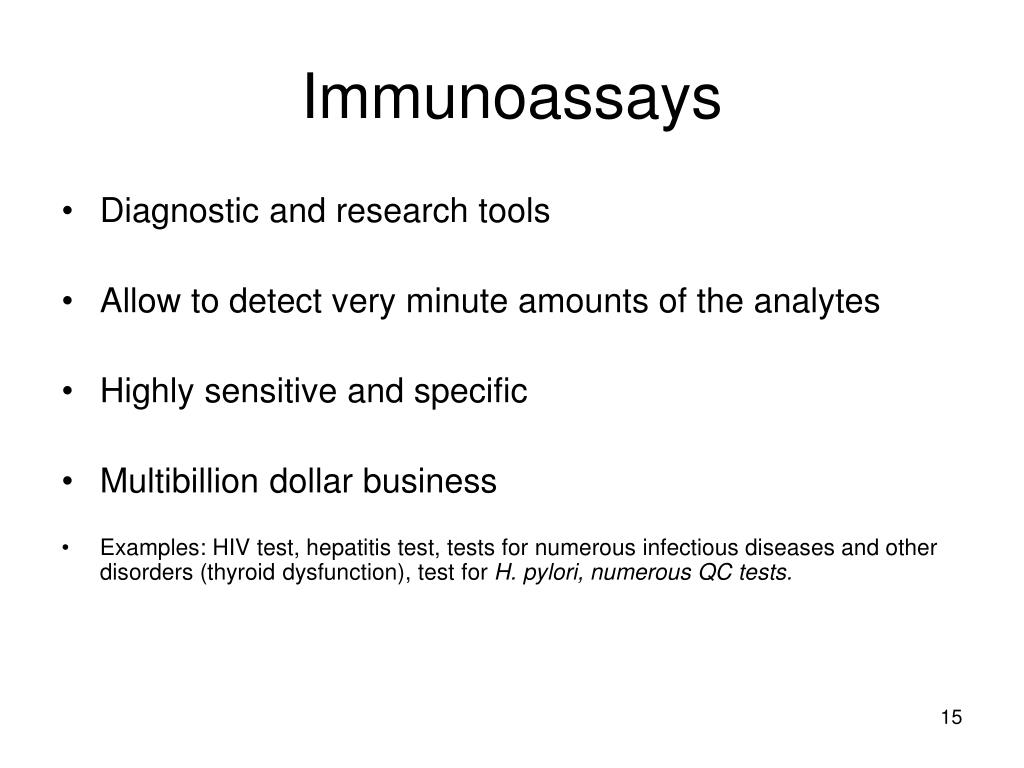

Immunoassays • Diagnostic and research tools • Allow to detect very minute amounts of the analytes • Highly sensitive and specific • Multibillion dollar business • Examples: HIV test, hepatitis test, tests for numerous infectious diseases and other disorders (thyroid dysfunction), test for H. pylori, numerous QC tests.

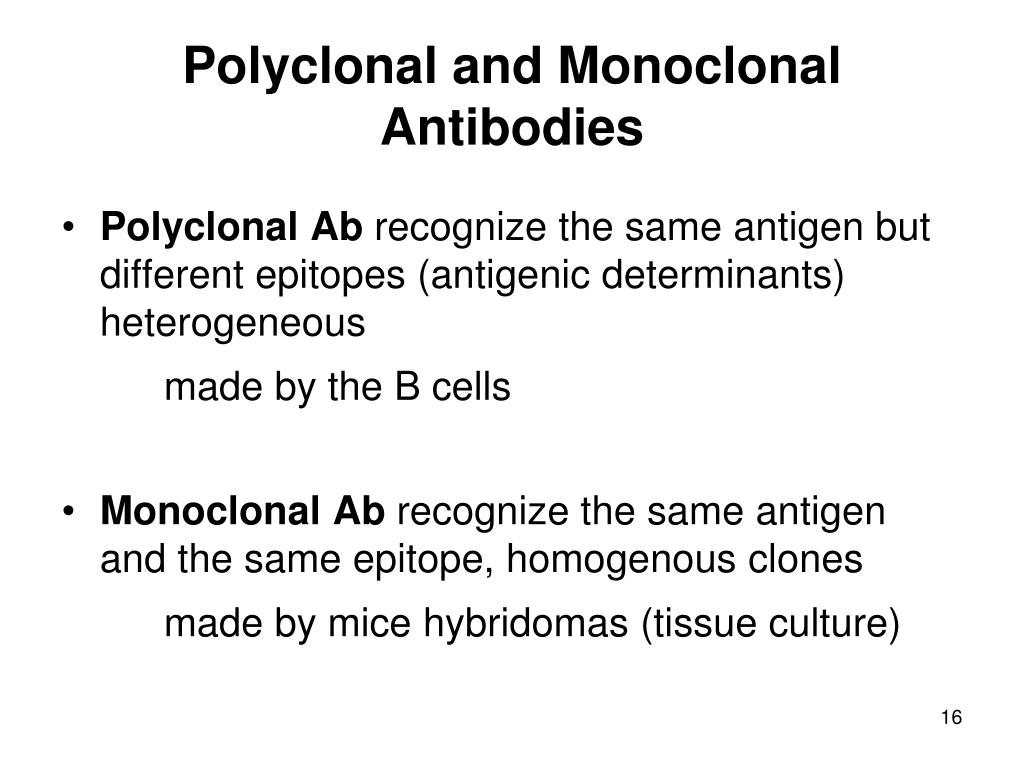

Polyclonal and Monoclonal Antibodies • Polyclonal Ab recognize the same antigen but different epitopes (antigenic determinants) heterogeneous made by the B cells • Monoclonal Ab recognize the same antigen and the same epitope, homogenous clones made by mice hybridomas (tissue culture)

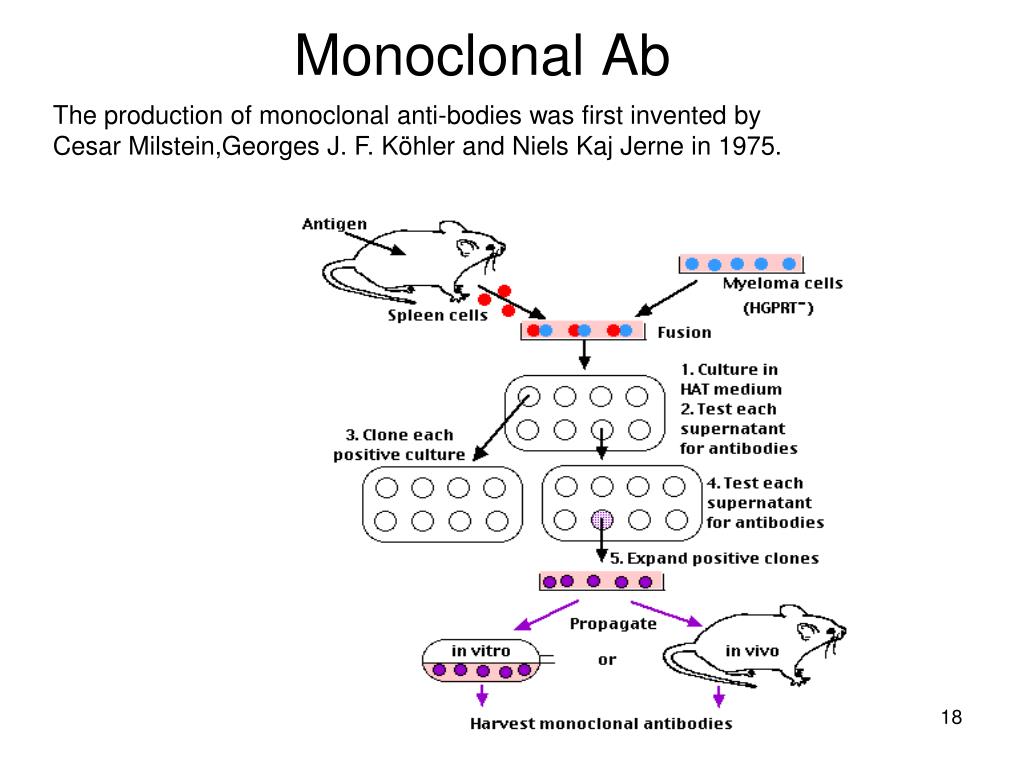

Monoclonal Ab The production of monoclonal anti-bodies was first invented by Cesar Milstein,Georges J. F. Köhler and Niels Kaj Jerne in 1975.

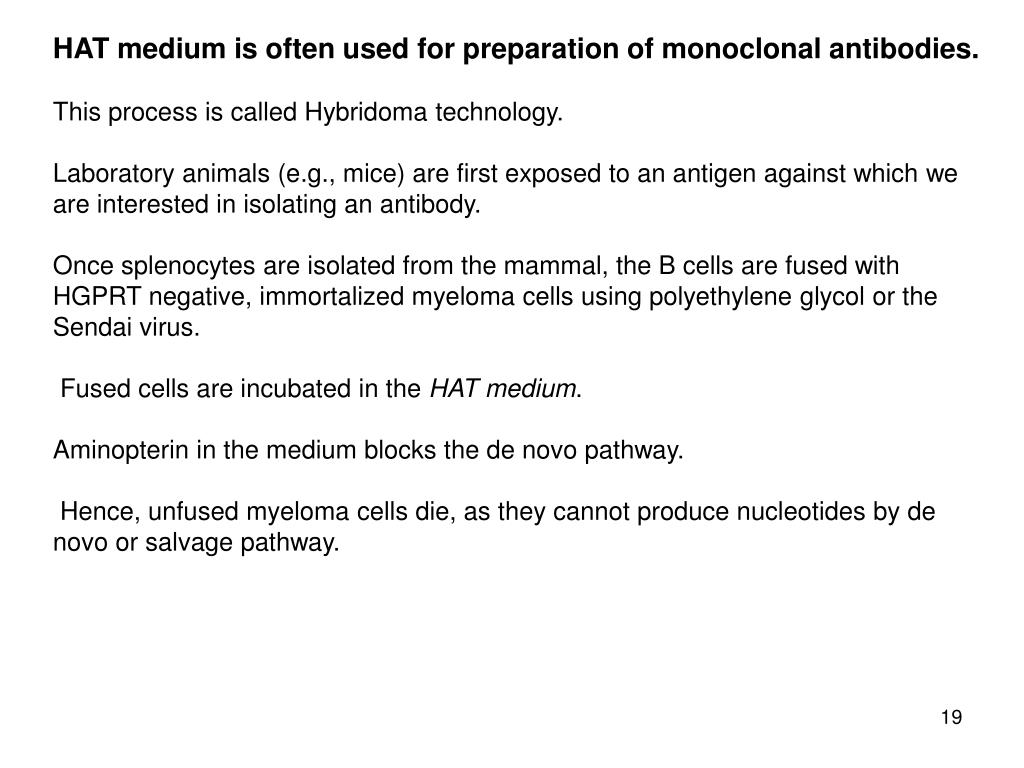

HAT medium is often used for preparation of monoclonal antibodies. This process is called Hybridoma technology. Laboratory animals (e.g., mice) are first exposed to an antigen against which we are interested in isolating an antibody. Once splenocytes are isolated from the mammal, the B cells are fused with HGPRT negative, immortalized myeloma cells using polyethylene glycol or the Sendai virus. Fused cells are incubated in the HAT medium. Aminopterin in the medium blocks the de novo pathway. Hence, unfused myeloma cells die, as they cannot produce nucleotides by de novo or salvage pathway.
HAT medium is often used for preparation of monoclonal antibodies. Cont’d Unfused B cells die as they have a short lifespan. In this way, only the B cell-myeloma hybrids survive. These cells produce antibodies (a property of B cells) and are immortal (a property of myeloma cells). The incubated medium is then diluted into multiwell plates to such an extent that each well contains only 1 cell. Then the supernatant in each well can be checked for desired antibody. Since the antibodies in a well are produced by the same B cell, they will be directed towards the same epitope, and are known as monoclonal antibodies.
HAT Medium (Hypoxanthine Aminopterin Thymidine medium) is a selection medium for mammalian cell culture, which relies on the combination of aminopterin, a drug that acts as a folate metabolism inhibitor by inhibiting dihydrofolate reductase, with hypoxanthine and thymidine, which are intermediates in DNA synthesis—a purine derivative and a deoxynucleoside, respectively. The trick is that aminopterin blocks DNA de novo synthesis, which is absolutely required for cell division to proceed, but the other components provide cells with the raw material to evade the blockage (the "salvage pathway"), provided that they have the right enzymes, which means having functioning copies of the genes that encode them.
Therefore, the use of HAT medium for cell culture is a form of artificial selection for cells containing working TK and HGPRT (Hypoxanthine-guanine phosphoribosyltransferase). • The protein encoded by this gene is a transferase, which catalyzes conversion of hypoxanthine to inosine monophosphate and guanine to guanosine monophosphate via transfer of the 5-phosphoribosyl group from 5-phosphoribosyl1-pyrophosphate. • This enzyme plays a central role in the generation of purine nucleotides through the purine salvage pathway. • Mutations in this gene result in Lesch-Nyhan syndrome or gout.

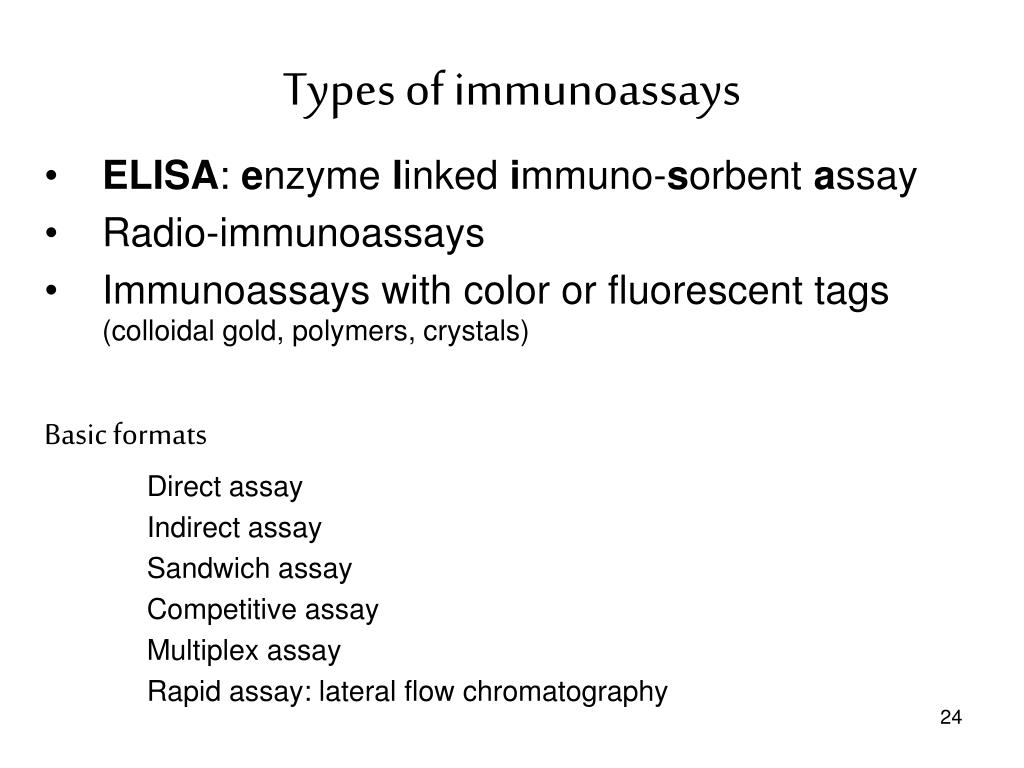

Types of immunoassays • ELISA: enzyme linked immuno-sorbent assay • Radio-immunoassays • Immunoassays with color or fluorescent tags (colloidal gold, polymers, crystals) Basic formats Direct assay Indirect assay Sandwich assay Competitive assay Multiplex assay Rapid assay: lateral flow chromatography

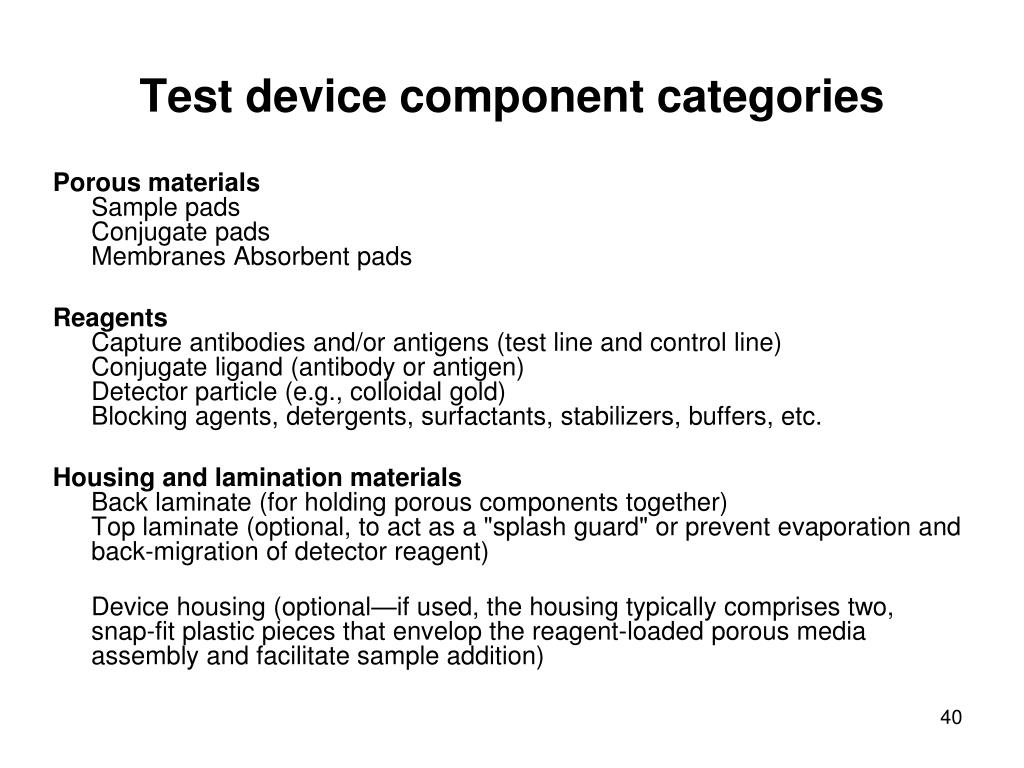

Test device component categories Porous materialsSample pads Conjugate pads Membranes Absorbent pads ReagentsCapture antibodies and/or antigens (test line and control line) Conjugate ligand (antibody or antigen) Detector particle (e.g., colloidal gold) Blocking agents, detergents, surfactants, stabilizers, buffers, etc. Housing and lamination materialsBack laminate (for holding porous components together) Top laminate (optional, to act as a "splash guard" or prevent evaporation and back-migration of detector reagent) Device housing (optional—if used, the housing typically comprises two, snap-fit plastic pieces that envelop the reagent-loaded porous media assembly and facilitate sample addition)

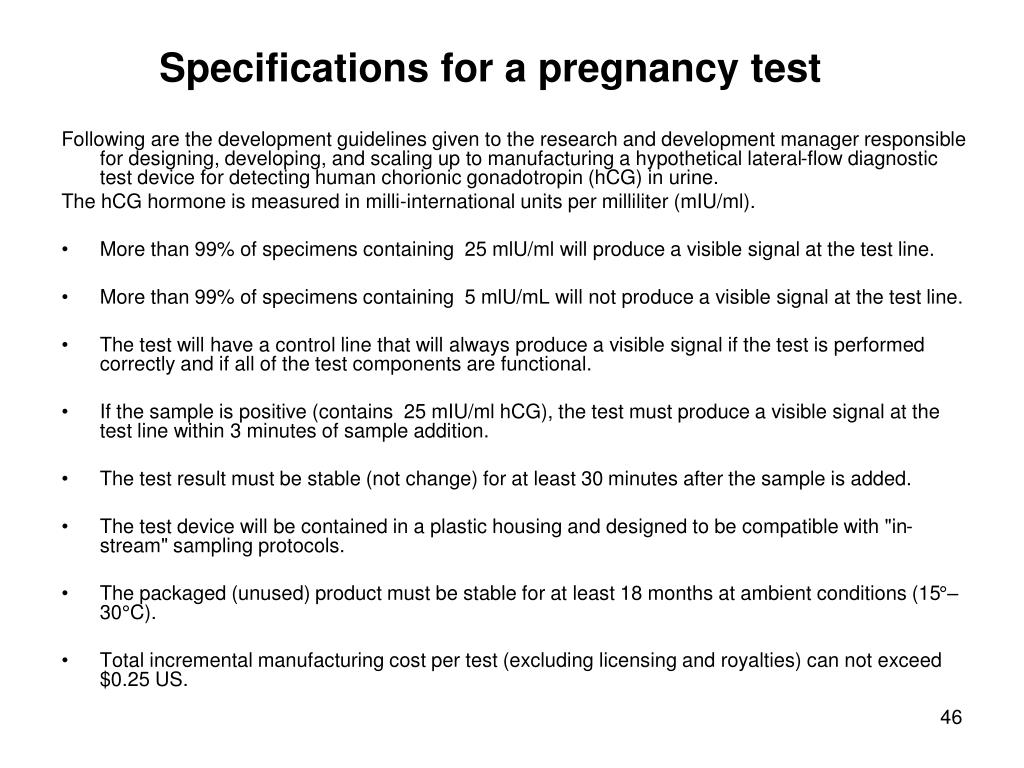

Specifications for a pregnancy test Following are the development guidelines given to the research and development manager responsible for designing, developing, and scaling up to manufacturing a hypothetical lateral-flow diagnostic test device for detecting human chorionic gonadotropin (hCG) in urine. The hCG hormone is measured in milli-international units per milliliter (mIU/ml). • More than 99% of specimens containing 25 mlU/ml will produce a visible signal at the test line. • More than 99% of specimens containing 5 mlU/mL will not produce a visible signal at the test line. • The test will have a control line that will always produce a visible signal if the test is performed correctly and if all of the test components are functional. • If the sample is positive (contains 25 mIU/ml hCG), the test must produce a visible signal at the test line within 3 minutes of sample addition. • The test result must be stable (not change) for at least 30 minutes after the sample is added. • The test device will be contained in a plastic housing and designed to be compatible with "in-stream" sampling protocols. • The packaged (unused) product must be stable for at least 18 months at ambient conditions (15°–30°C). • Total incremental manufacturing cost per test (excluding licensing and royalties) can not exceed $0.25 US.
