Solute transport

Solute Transport

  • Ions and molecules being transported in the subsurface often travel at rates slower than water

  • The migration is “retarded” primarily due to their interactions with mineral surfaces

  • Surface complexationreactions


Surface complexation reactions

Surface Complexation Reactions

  • Reactions occurring at the mineral-water interface (mineral surface)

  • Important for:

    • Transport and transformation of metals and organic contaminants

    • Nutrient availability in soils

    • Formation of ore deposits

    • Acidification of watersheds

    • Global cycling of elements

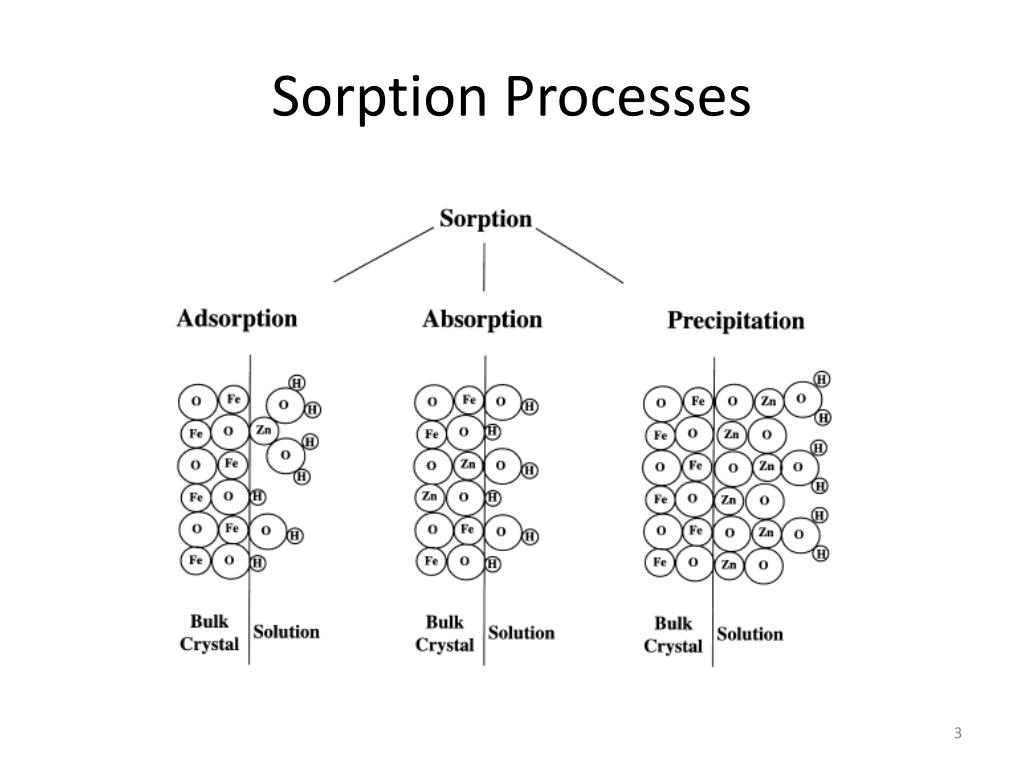

Sorption processes

Sorption Processes


Surface charge

Surface Charge

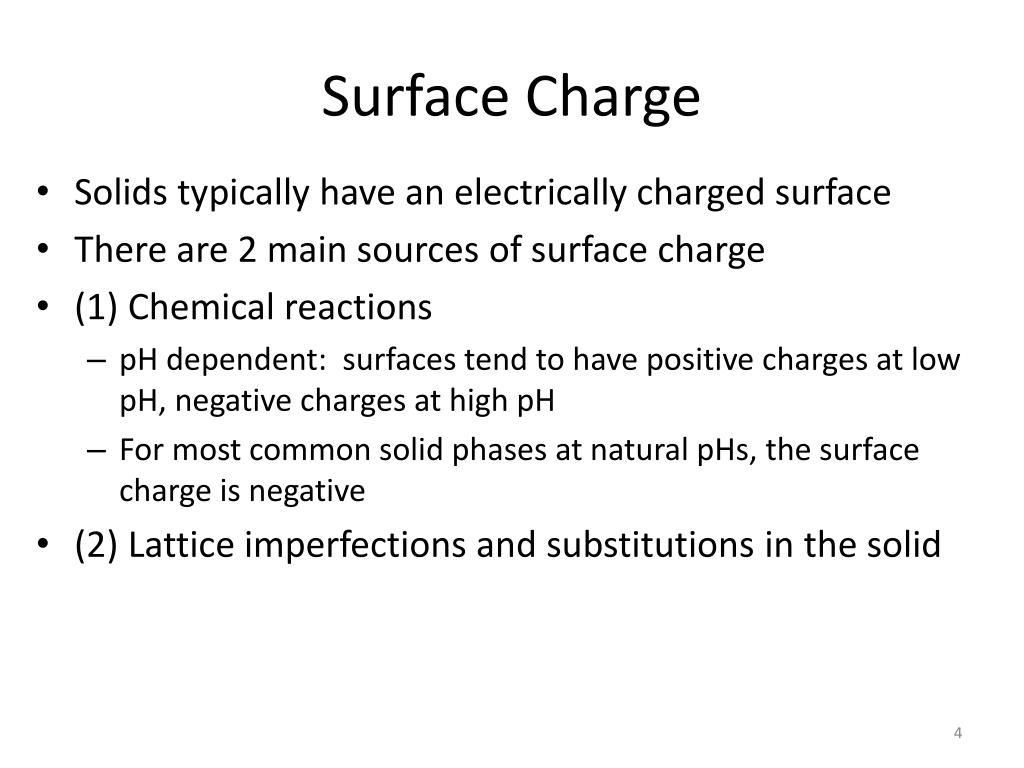

  • Solids typically have an electrically charged surface

  • There are 2 main sources of surface charge

  • (1) Chemical reactions

    • pH dependent: surfaces tend to have positive charges at low pH, negative charges at high pH

    • For most common solid phases at natural pHs, the surface charge is negative

  • (2) Lattice imperfections and substitutions in the solid


Surface charge1

Surface Charge

  • Clays: substitution or vacancy result in negative charge, which is the dominant charge

  • Al/Fe hydroxides adsorb both cations and anions depending on pH: Amphoteric

    • Low pH: positive surface charge

    • High pH: negative surface charge

  • Organic compounds can also have pH dependent charge

    • DOM can be important in transport of low solubility metals


Surface charge2

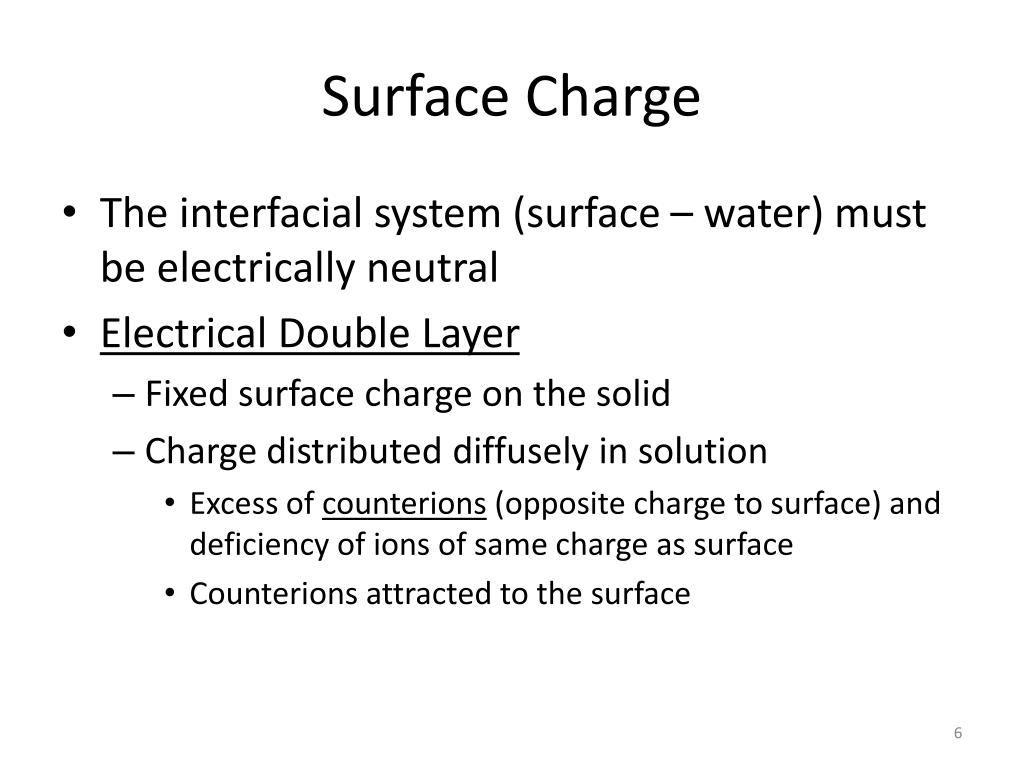

Surface Charge

  • The interfacial system (surface – water) must be electrically neutral

  • Electrical Double Layer

    • Fixed surface charge on the solid

    • Charge distributed diffusely in solution

      • Excess of counterions (opposite charge to surface) and deficiency of ions of same charge as surface

      • Counterions attracted to the surface


Adsorption

Adsorption

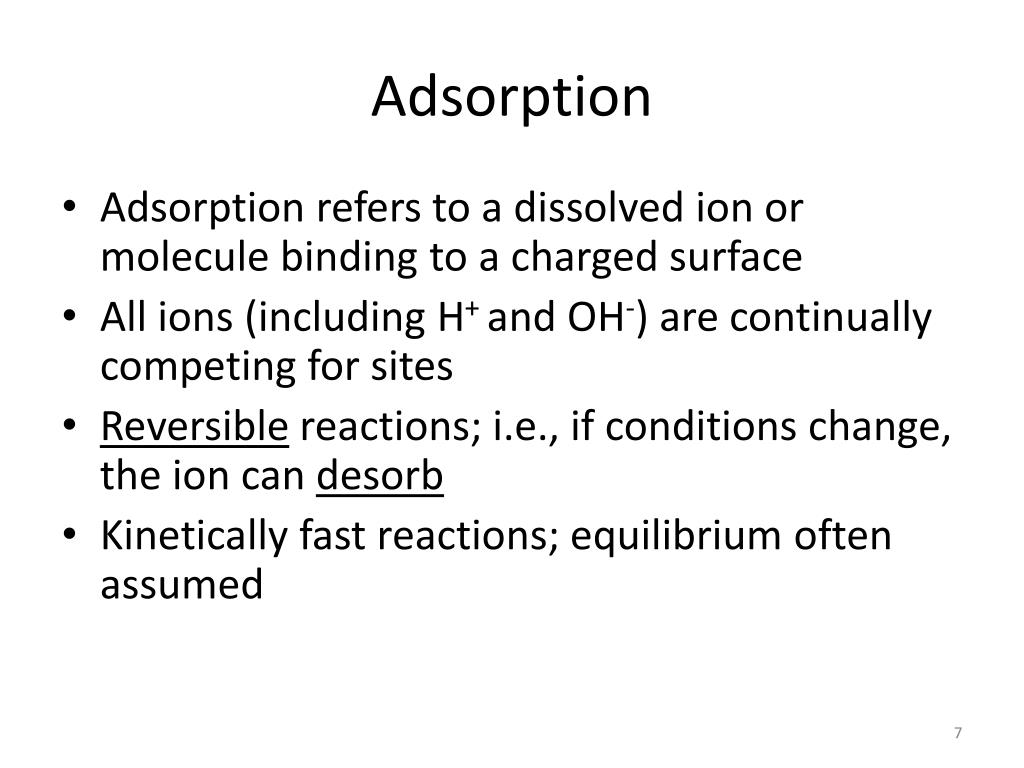

  • Adsorption refers to a dissolved ion or molecule binding to a charged surface

  • All ions (including H+ and OH-) are continually competing for sites

  • Reversible reactions; i.e., if conditions change, the ion can desorb

  • Kinetically fast reactions; equilibrium often assumed


Adsorption1

Adsorption

Counterions

Fixed Surface

Charge


Ion exchange

Ion Exchange

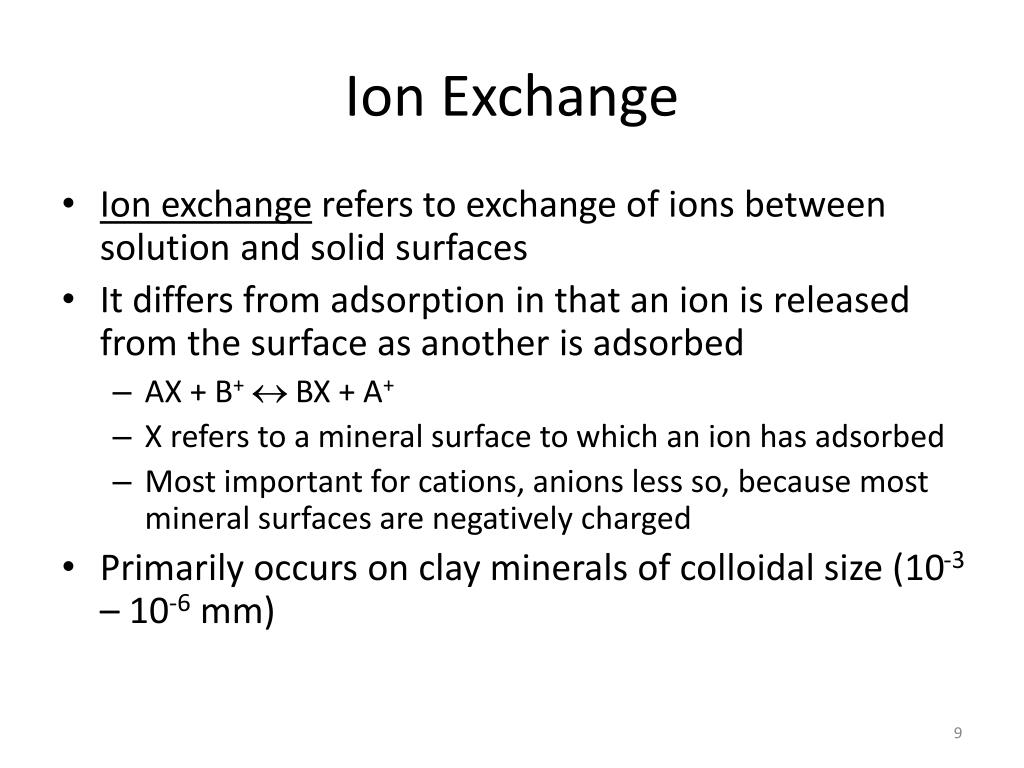

  • Ion exchange refers to exchange of ions between solution and solid surfaces

  • It differs from adsorption in that an ion is released from the surface as another is adsorbed

    • AX + B+ BX + A+

    • X refers to a mineral surface to which an ion has adsorbed

    • Most important for cations, anions less so, because most mineral surfaces are negatively charged

  • Primarily occurs on clay minerals of colloidal size (10-3 – 10-6 mm)


Ion exchange1

Ion Exchange

  • Ion size (radius) and charge affect how they exchange

    • Smaller ions from stronger bonds on surfaces

    • Ions with more positive charge form stronger bonds on surfaces

    • Stronger to weaker, increasing ionic radii:

      • Al3+ > Ca2+ > Mg2+ > K+ = NH4+ > Na+

  • Reversible reactions


Cation exchange capacity cec

Cation Exchange Capacity (CEC)

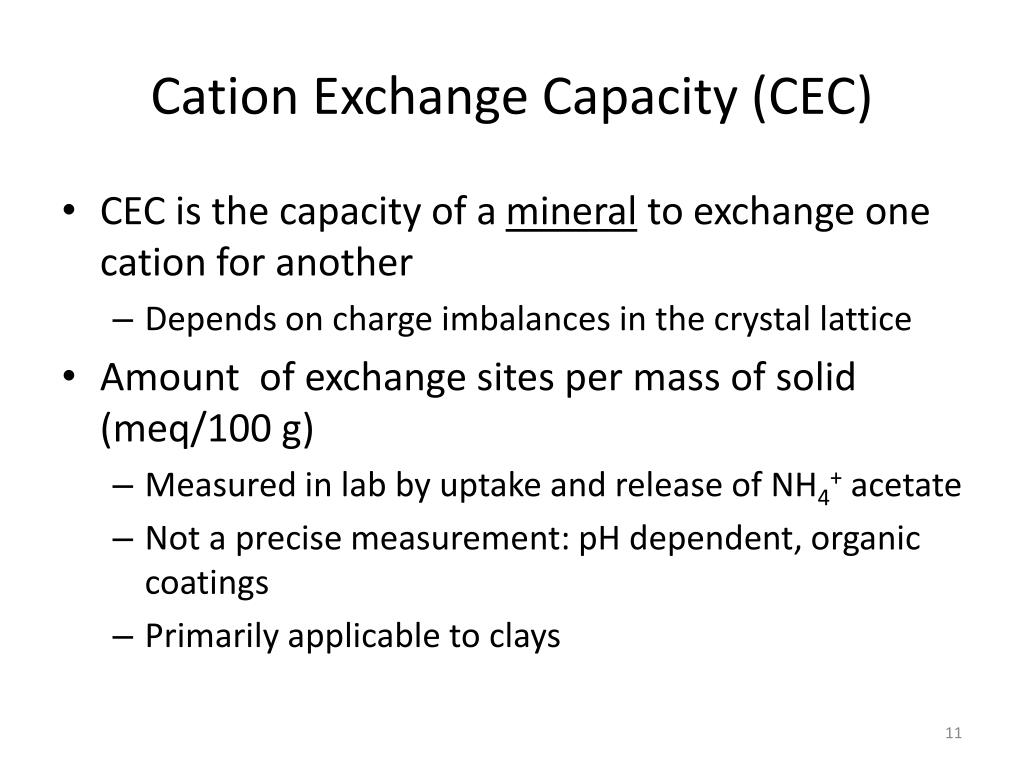

  • CEC is the capacity of a mineral to exchange one cation for another

    • Depends on charge imbalances in the crystal lattice

  • Amount of exchange sites per mass of solid (meq/100 g)

    • Measured in lab by uptake and release of NH4+ acetate

    • Not a precise measurement: pH dependent, organic coatings

    • Primarily applicable to clays


Ion exchange equilibrium

Ion Exchange Equilibrium

  • Mass action equation:

    • B-clay + A+ ↔ A-clay + B+

      • Where A+ and B+ are monovalentcations

      • aA-clay and aB-clay = activities of A and B on exchange sites

      • aA+ and aB+ = activities in solution

      • KAB = exchange constant


Ion exchange equilibrium1

Ion Exchange Equilibrium

  • Mass action equation can be rewritten using mole fractions in the solid phase

    • XA-clay and XB-clay = mole fractions of A and B on clay

      • XA-clay + XB-clay = 1

    • K’AB = selectivity coefficient

    • K’AB is not a constant because activity coefficients in the solid dependent on composition


Ion exchange equilibrium2

Ion Exchange Equilibrium

  • Example: Mix 10 g of a Na-saturated smectite with CEC = 100 meq/100 g with 1 liter of water containing 20 mg/L Na+ and 20 mg/L K+ as the only cations. Assume KK+-Na+ = 2.

  • What will the final Na+ and K+ concentrations be?


Ion exchange equilibrium3

Ion Exchange Equilibrium

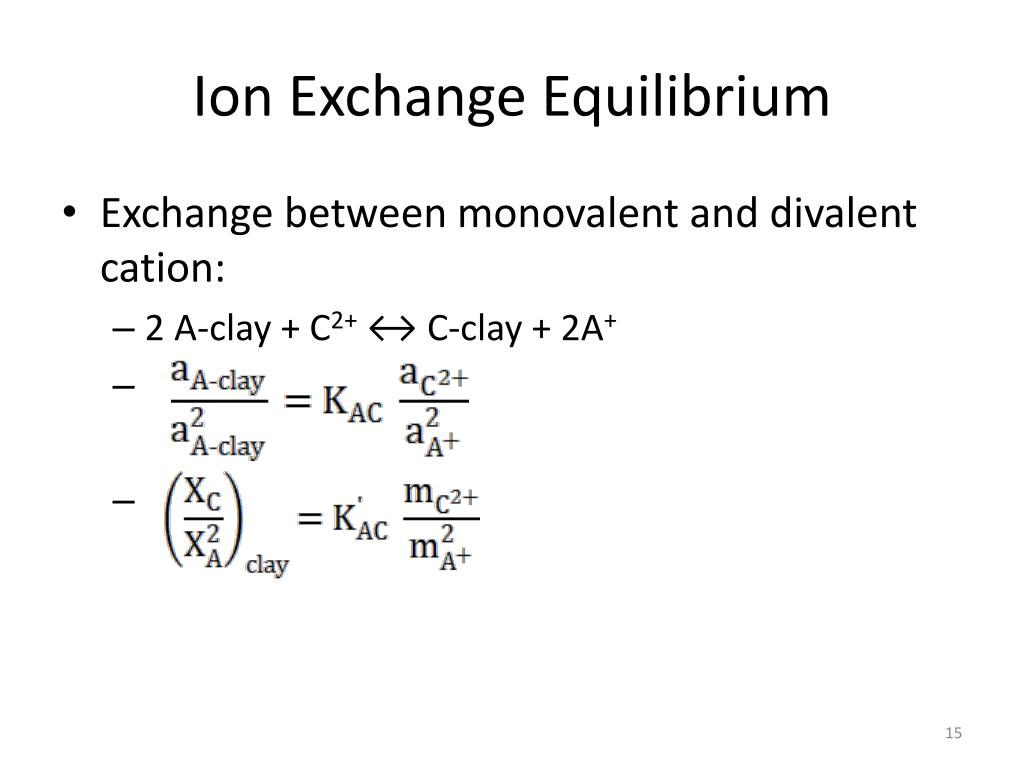

  • Exchange between monovalent and divalent cation:

    • 2 A-clay + C2+ ↔ C-clay + 2A+


Ion exchange equilibrium4

Ion Exchange Equilibrium

  • Example: Suppose a solution in contact with a clay is at equilibrium and has a Ca2+ concentration = 35 mg/L and Na+ = 10 mg/L. Assume KCa2+-Na+ = 2.

  • What are the mole fractions (XCa2+ and XNa+) in the solid phase?

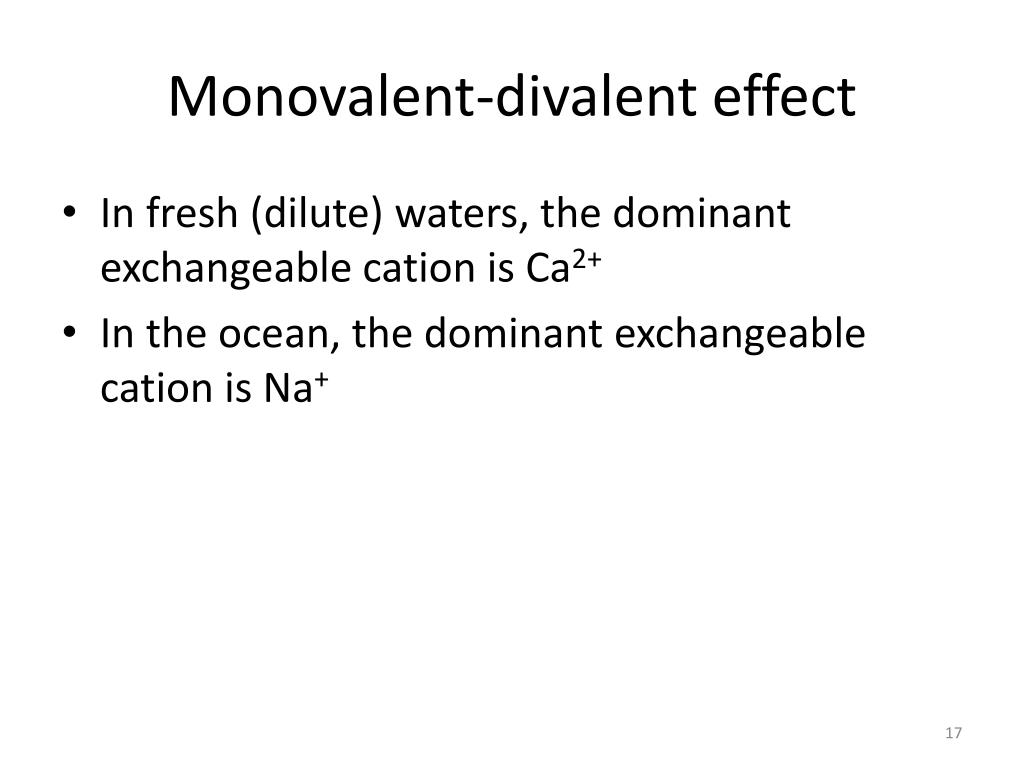

Monovalent divalent effect

Monovalent-divalent effect

  • In fresh (dilute) waters, the dominant exchangeable cation is Ca2+

  • In the ocean, the dominant exchangeable cation is Na+


Cation exchange capacity and groundwater composition

Cation Exchange Capacity and Groundwater Composition

  • Ion exchange reacts important control on groundwater chemistry

  • Typically CEC value in aquifer of 5 meq/100 g gives an exchange capacity of ~500 meq/L

    • Much larger than concentration of dissolved cations in dilute groundwater


Clay mineralogy

Clay Mineralogy

  • Clays are fine-grained, crystalline, hydrous silicates with sheet structures

    • Phyllosilicates

  • Most common type of secondary mineral

  • Have surface charge, usually negative

    • Charge attracts cations to surface where they are bound by electrostatic forces

    • Not part of crystal structure so they can easily exchange with other ions in solution


Clay structure

Clay structure

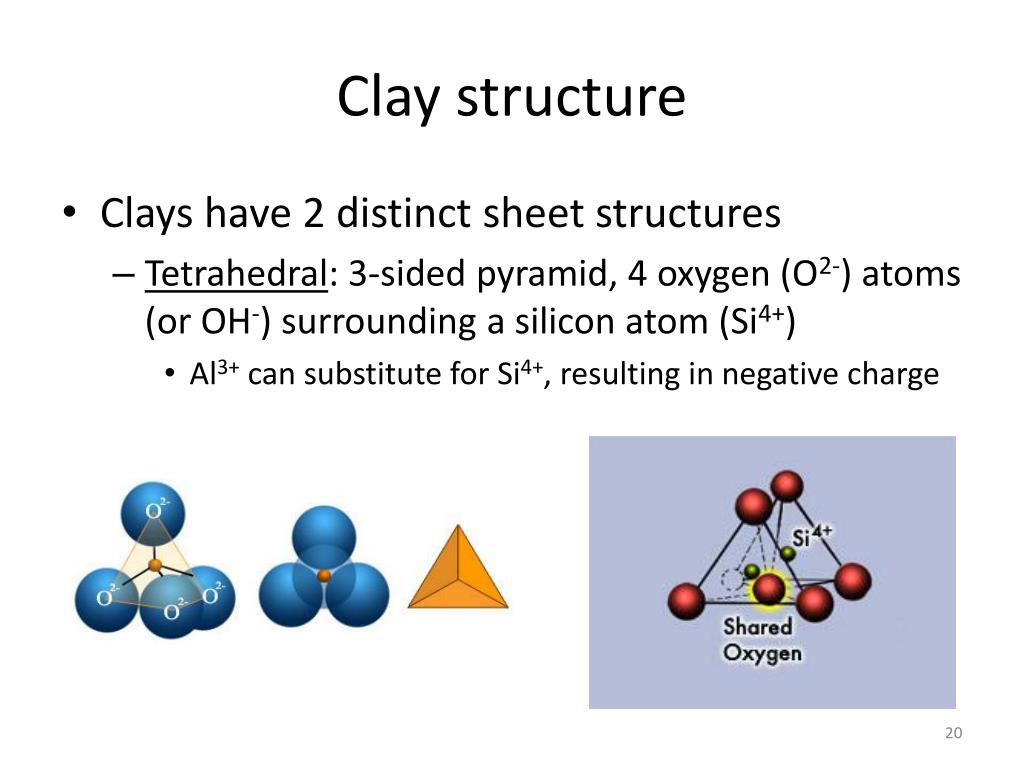

  • Clays have 2 distinct sheet structures

    • Tetrahedral: 3-sided pyramid, 4 oxygen (O2-) atoms (or OH-) surrounding a silicon atom (Si4+)

      • Al3+ can substitute for Si4+, resulting in negative charge


Clay structure1

Clay structure

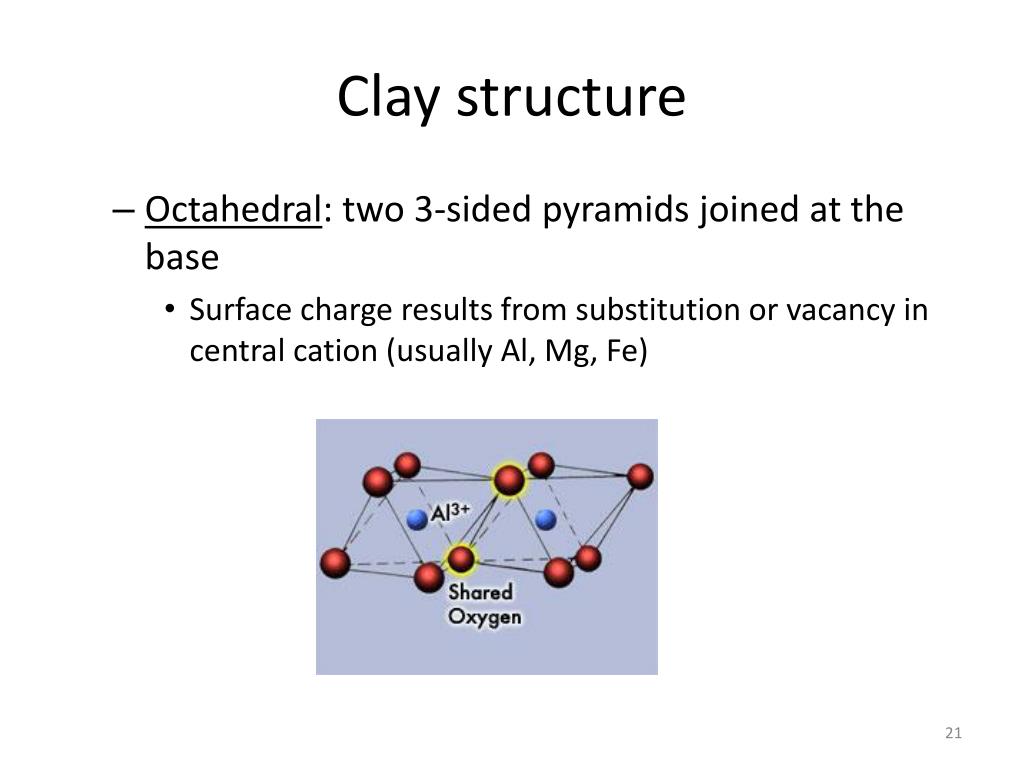

  • Octahedral: two 3-sided pyramids joined at the base

    • Surface charge results from substitution or vacancy in central cation (usually Al, Mg, Fe)

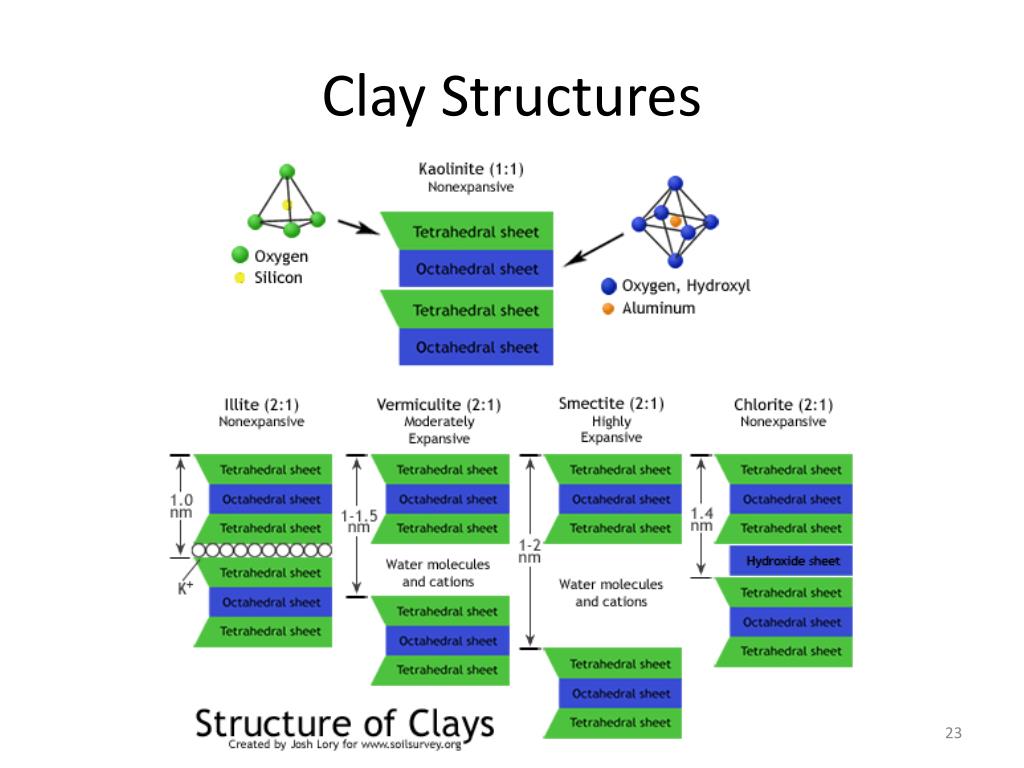

Clay structures

Clay Structures

  • The tetrahedrons and octahedrons are joined to each other in sheets

  • The sheets join in 2 main patterns to create different clays: 2-layer and 3-layer


Clay structures1

Clay Structures


Types of clays

Types of clays

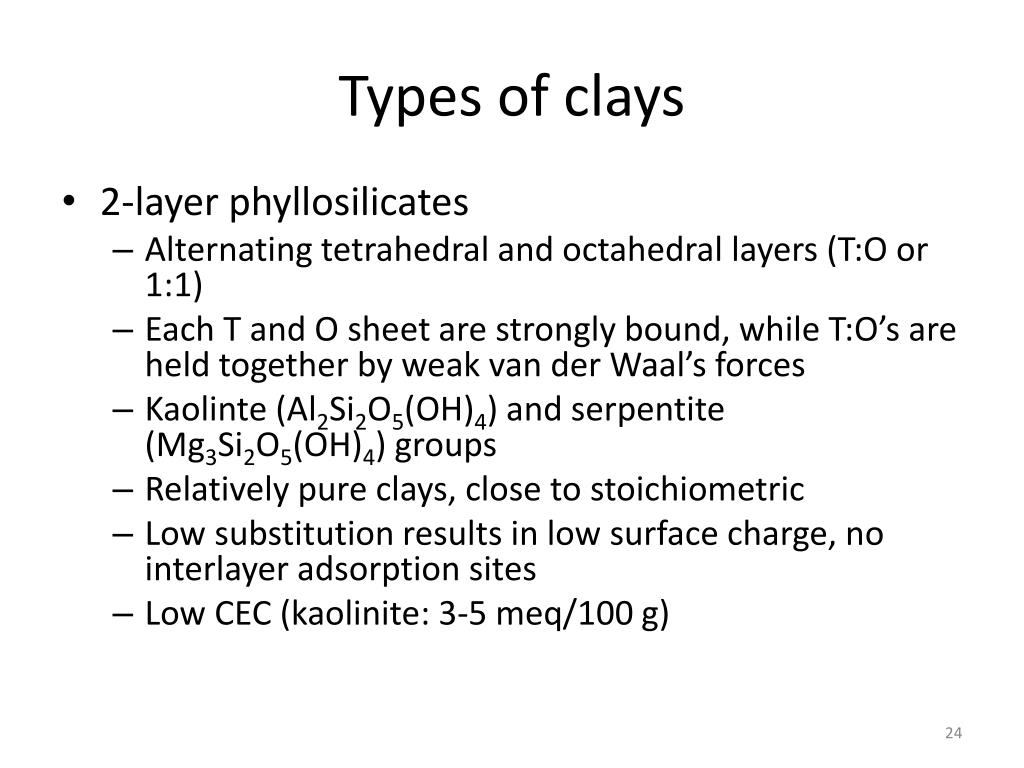

  • 2-layer phyllosilicates

    • Alternating tetrahedral and octahedral layers (T:O or 1:1)

    • Each T and O sheet are strongly bound, while T:O’s are held together by weak van der Waal’s forces

    • Kaolinte (Al2Si2O5(OH)4) and serpentite (Mg3Si2O5(OH)4) groups

    • Relatively pure clays, close to stoichiometric

    • Low substitution results in low surface charge, no interlayer adsorption sites

    • Low CEC (kaolinite: 3-5 meq/100 g)

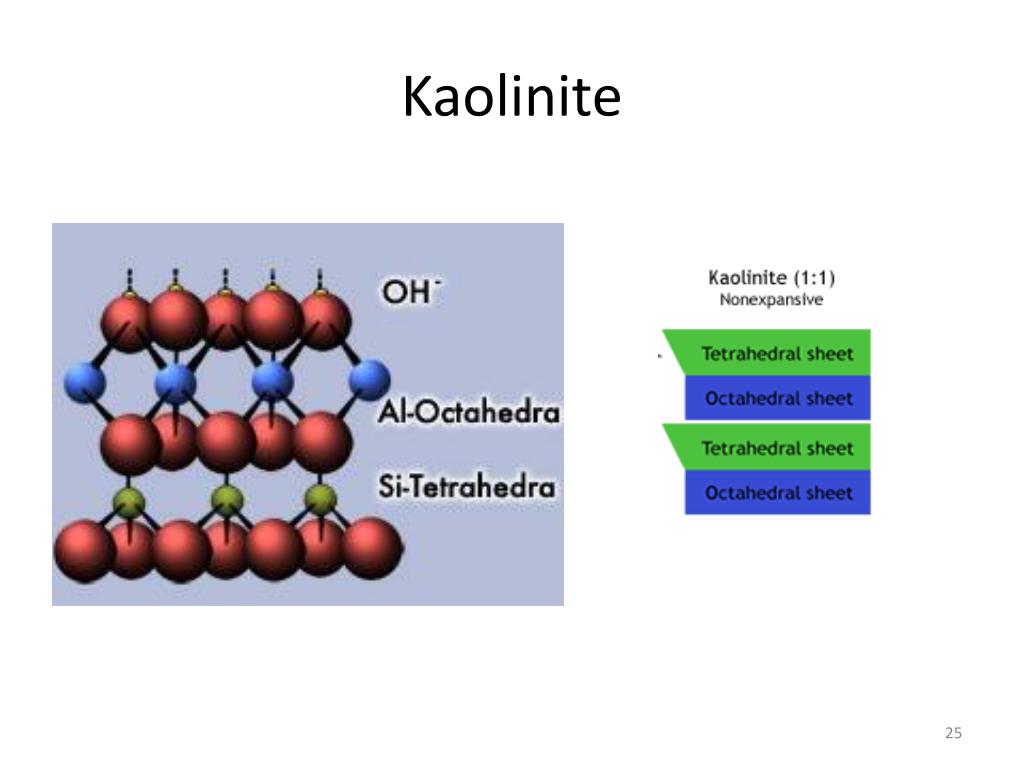

Kaolinite

Kaolinite


Types of clays1

Types of clays

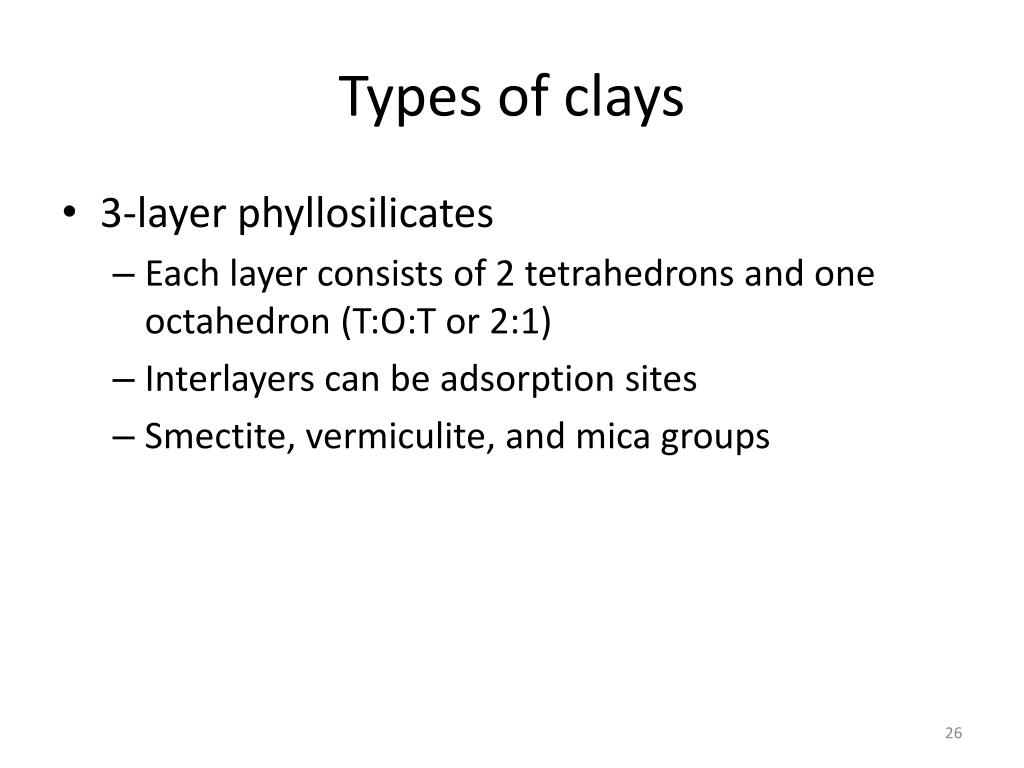

  • 3-layer phyllosilicates

    • Each layer consists of 2 tetrahedrons and one octahedron (T:O:T or 2:1)

    • Interlayers can be adsorption sites

    • Smectite, vermiculite, and mica groups


3 layer phyllosilicates

3-Layer Phyllosilicates

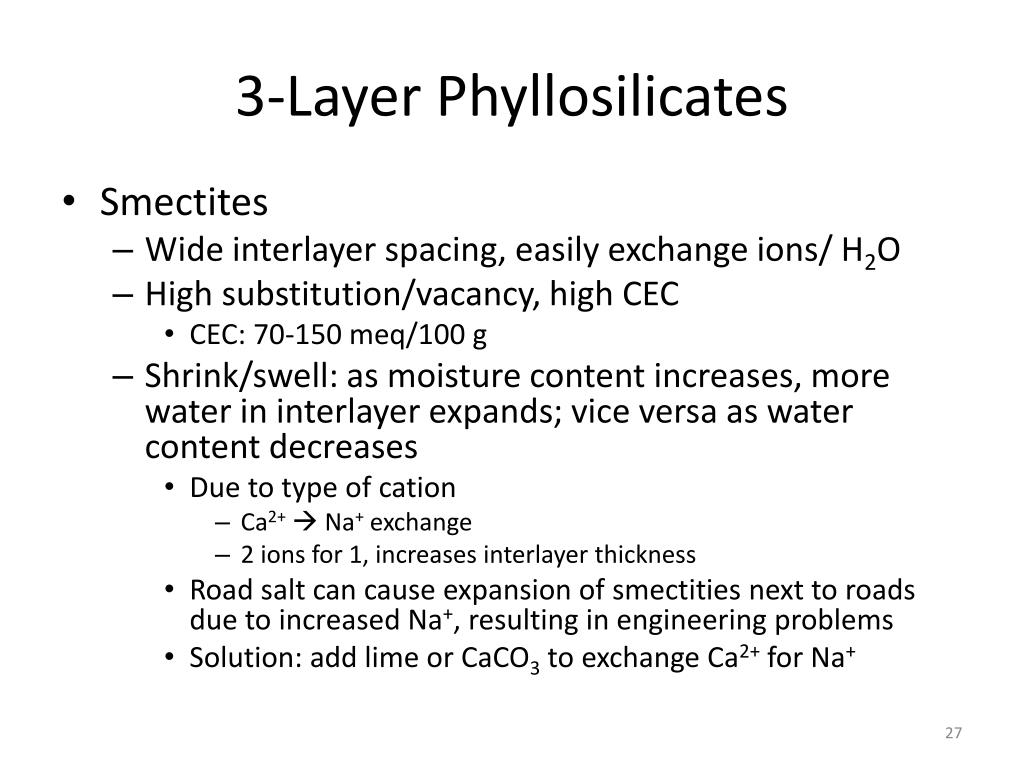

  • Smectites

    • Wide interlayer spacing, easily exchange ions/ H2O

    • High substitution/vacancy, high CEC

      • CEC: 70-150 meq/100 g

    • Shrink/swell: as moisture content increases, more water in interlayer expands; vice versa as water content decreases

      • Due to type of cation

        • Ca2+ Na+ exchange

        • 2 ions for 1, increases interlayer thickness

      • Road salt can cause expansion of smectities next to roads due to increased Na+, resulting in engineering problems

      • Solution: add lime or CaCO3 to exchange Ca2+ for Na+


Smectite

Smectite


3 layer phyllosilicates1

3-Layer Phyllosilicates

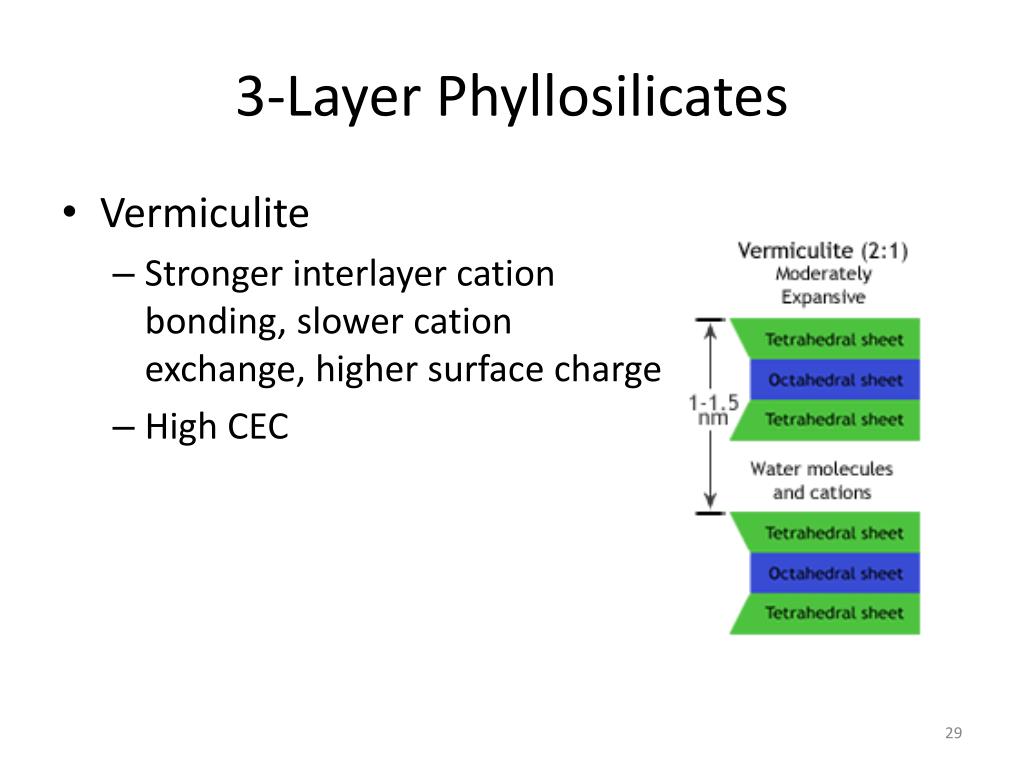

  • Vermiculite

    • Stronger interlayer cation bonding, slower cation exchange, higher surface charge

    • High CEC


3 layer phyllosilicates2

3-Layer Phyllosilicates

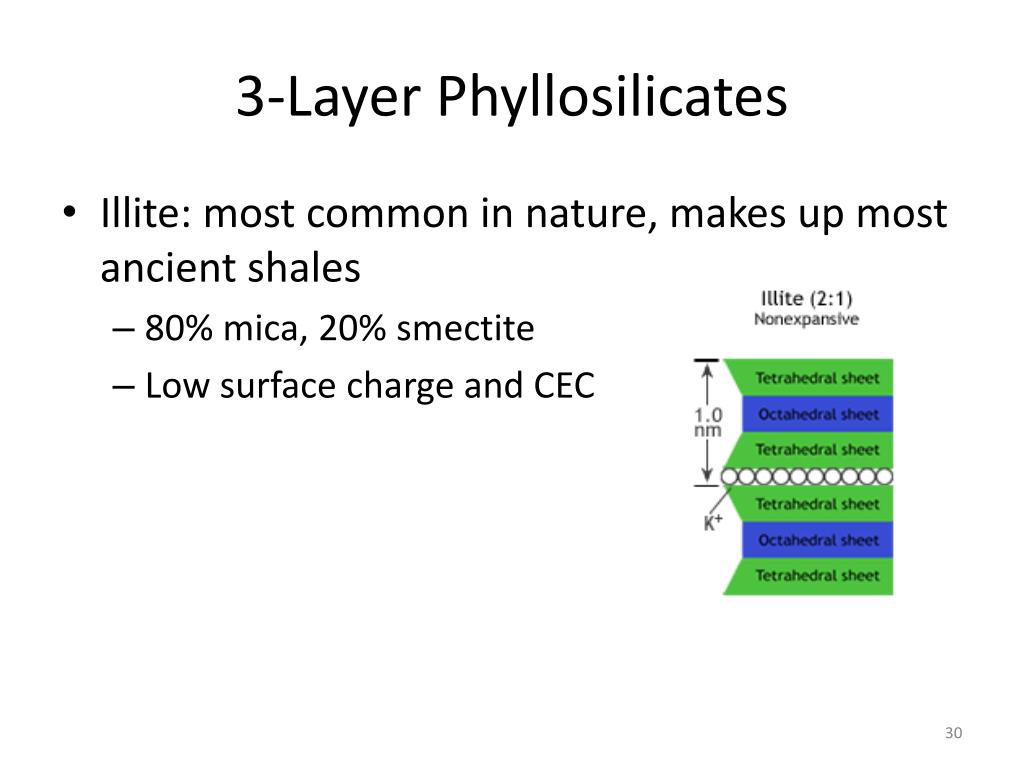

  • Illite: most common in nature, makes up most ancient shales

    • 80% mica, 20% smectite

    • Low surface charge and CEC


3 layer phyllosilicates3

3-Layer Phyllosilicates

  • Mica

    • Muscovite and biotite primary minerals with little substitution or vacancy, little surface charge

    • Similar structure to illite

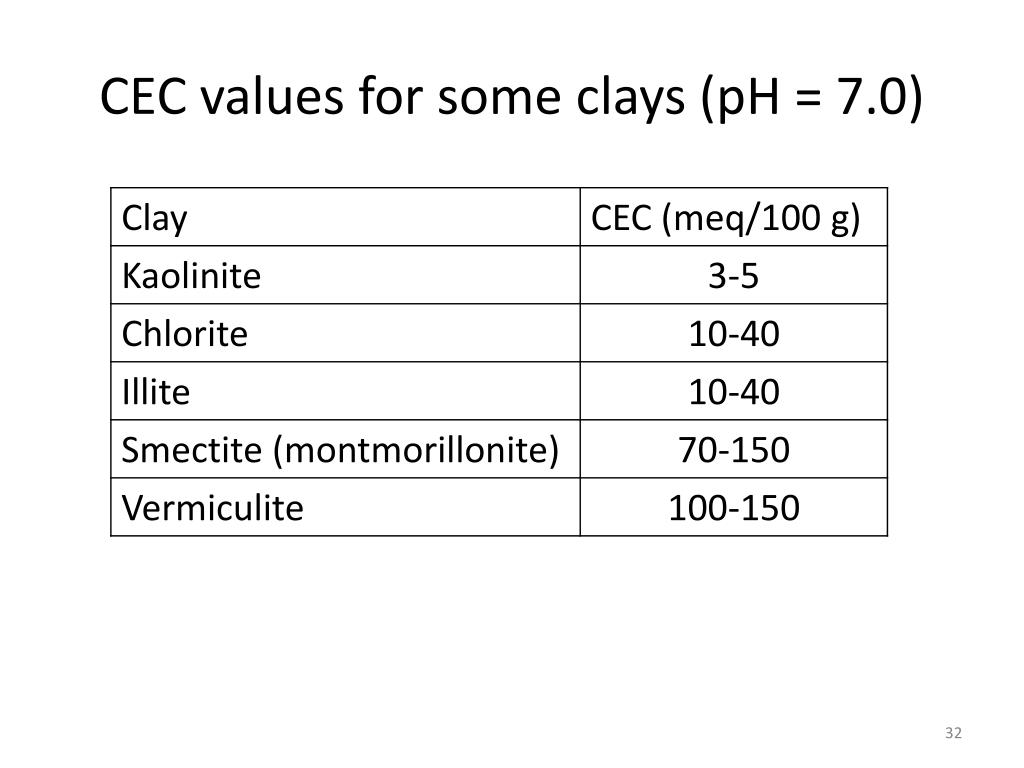

Cec values for some clays ph 7 0

CEC values for some clays (pH = 7.0)


Double layer theory

Double Layer Theory

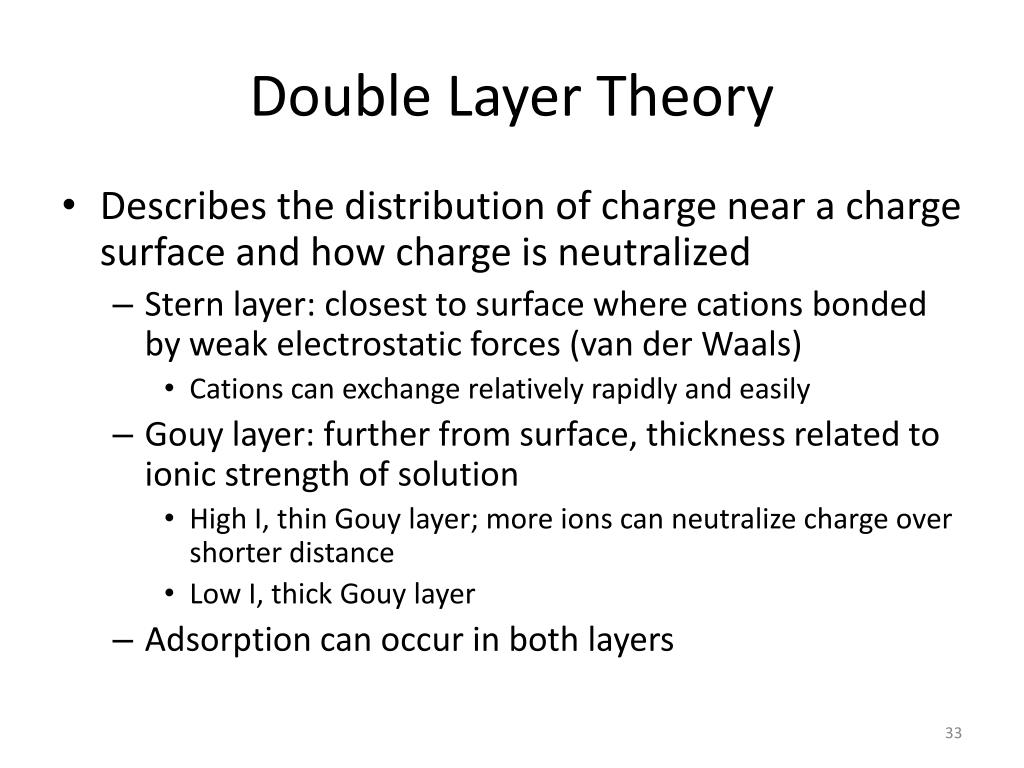

  • Describes the distribution of charge near a charge surface and how charge is neutralized

    • Stern layer: closest to surface where cations bonded by weak electrostatic forces (van der Waals)

      • Cations can exchange relatively rapidly and easily

    • Gouy layer: further from surface, thickness related to ionic strength of solution

      • High I, thin Gouy layer; more ions can neutralize charge over shorter distance

      • Low I, thick Gouy layer

    • Adsorption can occur in both layers


Double layer theory1

Double Layer Theory

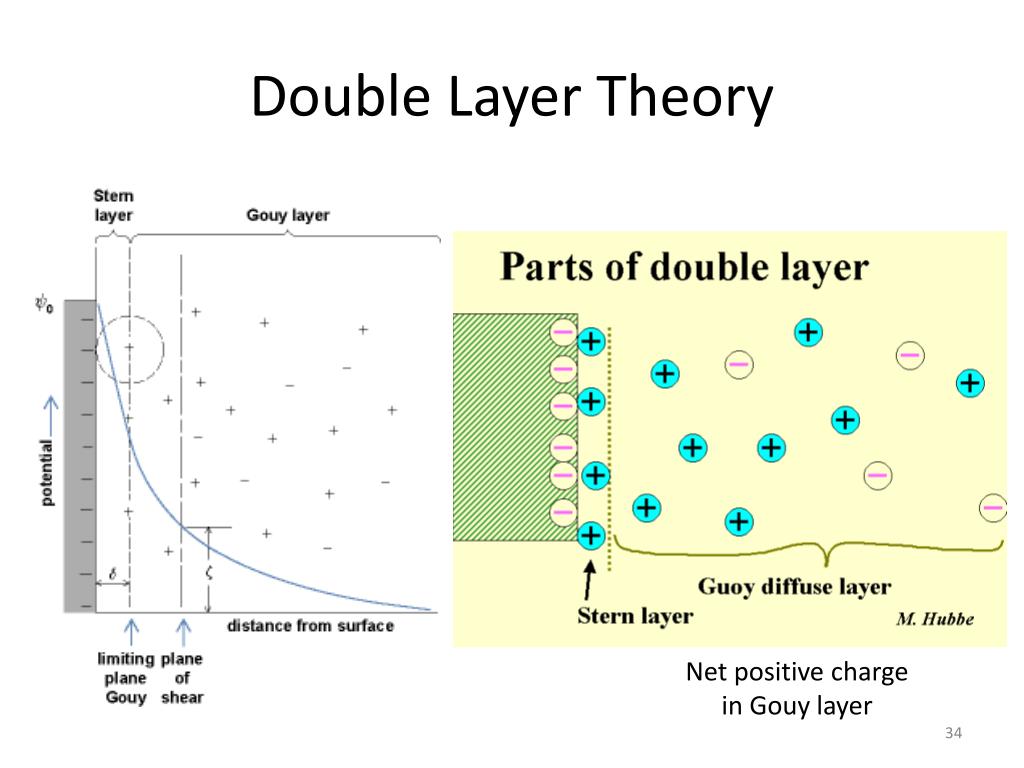

Net positive charge

in Gouy layer


Double layer theory2

Double Layer Theory

  • The likelihood of attachment of a charged species approaches a surface is controlled by the sum of attractive and repulsive forces

    • Attractive: van der Waals between species of opposite charge

    • Repulsive: net positive charge in Gouy layer repels incoming cations

    • Sum of these 2 is the energy barrier (or lack thereof) needed to be overcome before a species can adsorb at the surface (Stern layer)


Double layer theory3

Double Layer Theory

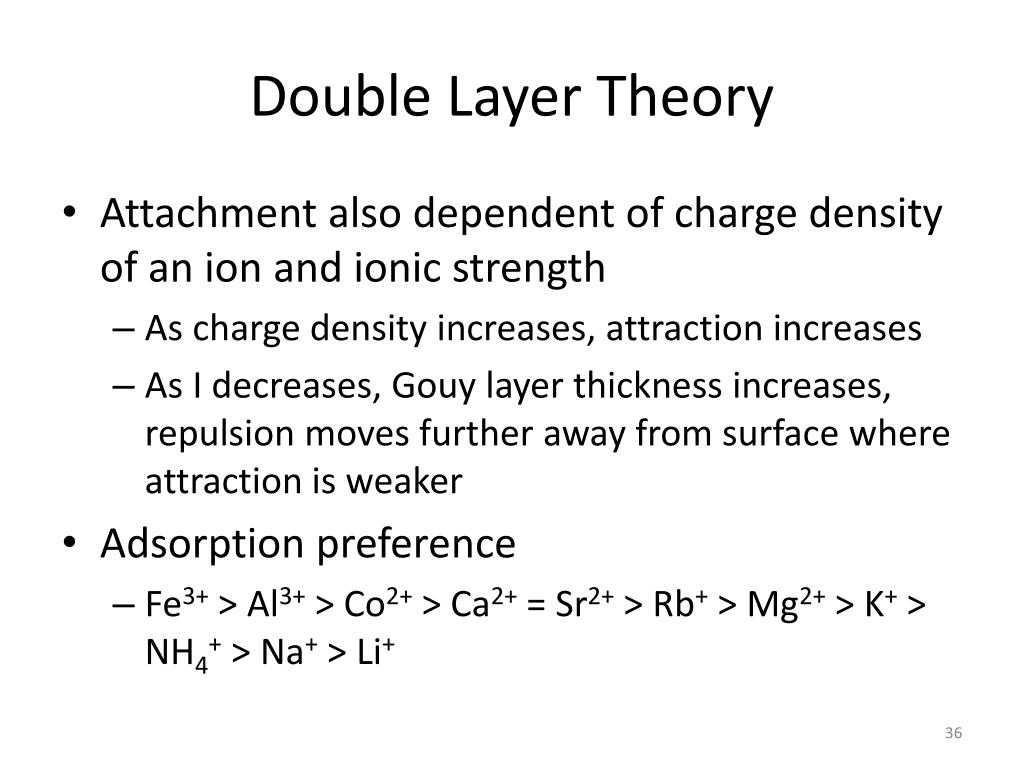

  • Attachment also dependent of charge density of an ion and ionic strength

    • As charge density increases, attraction increases

    • As I decreases, Gouy layer thickness increases, repulsion moves further away from surface where attraction is weaker

  • Adsorption preference

    • Fe3+ > Al3+ > Co2+ > Ca2+ = Sr2+ > Rb+ > Mg2+ > K+ > NH4+ > Na+ > Li+


Strength of adsorption

Strength of adsorption

  • Outer (Gouy) layer complexes: cation still surrounded by sphere of hydration

    • Weakly bound to surface, easily exchanged

  • Inner (Stern) layer: no sphere of hydration, strongly bound directly to solid surface

    • Not easily exchange, may be effectively irreversible


Desorption

Desorption

  • Reversible reactions: desorption can be caused by:

    • Decreasing ionic strength

    • Change in composition of ions in solution

      • Ions with higher charge density are more likely to adsorb


Measuring adsorption

Measuring adsorption

  • Adsorption is measured in the laboratory by mixing a solution containing an ion with a solid phase (batch experiments)

    • Mix solution of known concentration with solid

    • Agitate until equilibrium is reached

    • Measure final dissolved concentration

    • Initial – final = amount adsorbed

    • Repeat at different initial concentrations

  • Plot data, and a graph called an adsorption isotherm is prepared

    • Isotherm = experiments done at constant temperature

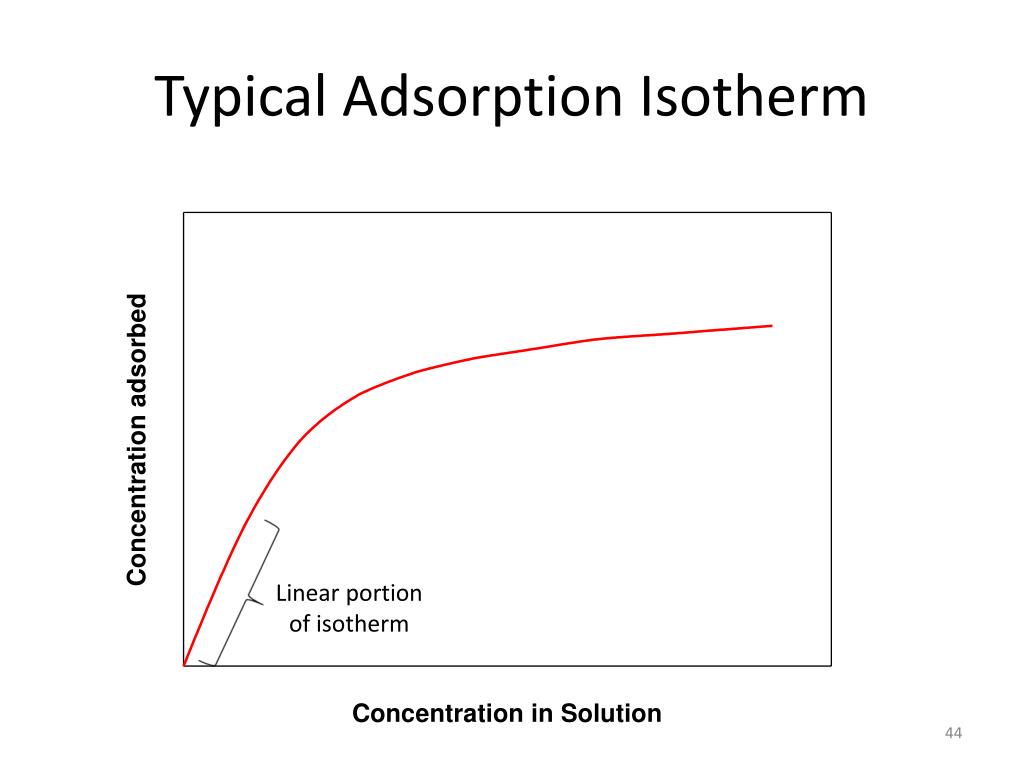

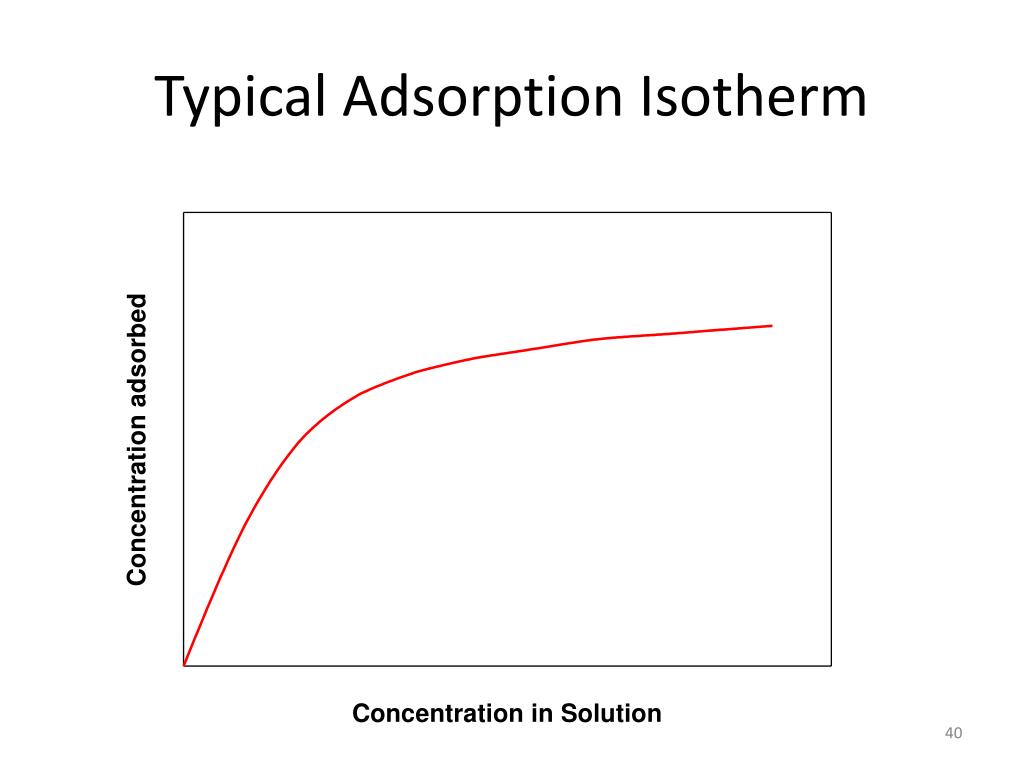

Typical adsorption isotherm

Typical Adsorption Isotherm


Depicting adsorption mathematically

Depicting Adsorption Mathematically

  • Can be represented in terms of relatively simple empirical formulas, or more sophisticated models like double layer, triple layer, or constant capacitance theories

  • Most often, the simple empirical formulas are used because we don’t have the data for more sophisticated approaches


Adsorption2

Adsorption

  • Since adsorption is a chemical process, we can write chemical reactions to describe it:

    • C + S ↔ CS

      • C = ion (mg/L)

      • S = surface (g)

      • CS = adsorbed ion (mg/g)

        • Adsorbed ion measure with respect to amount of solid

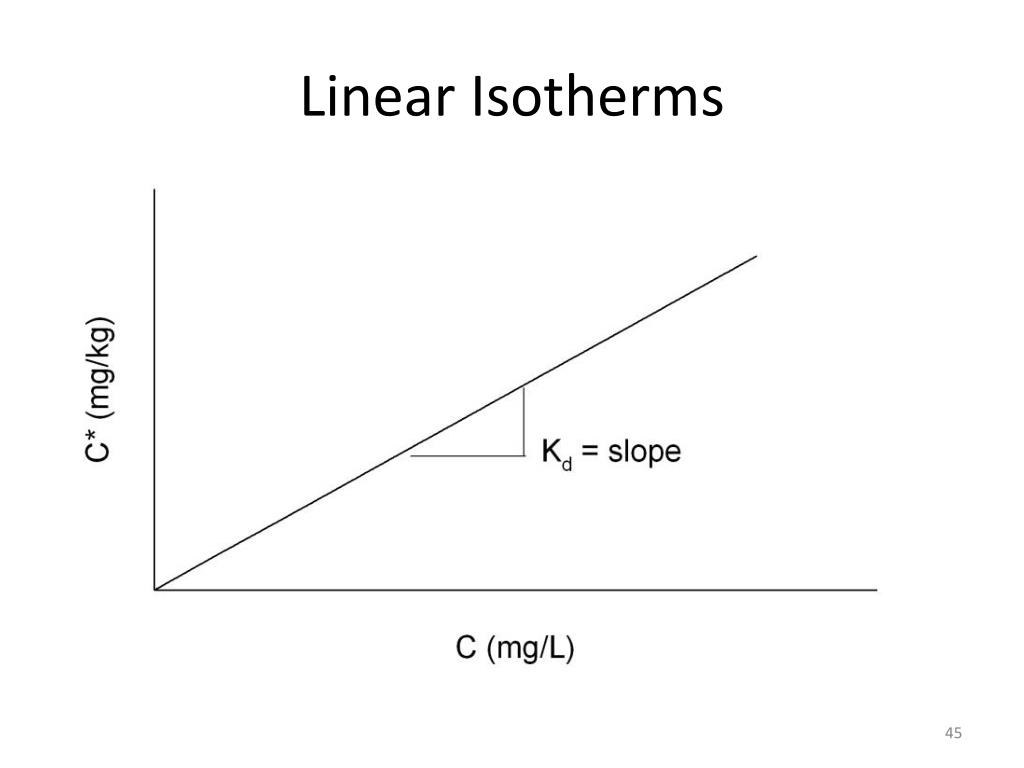

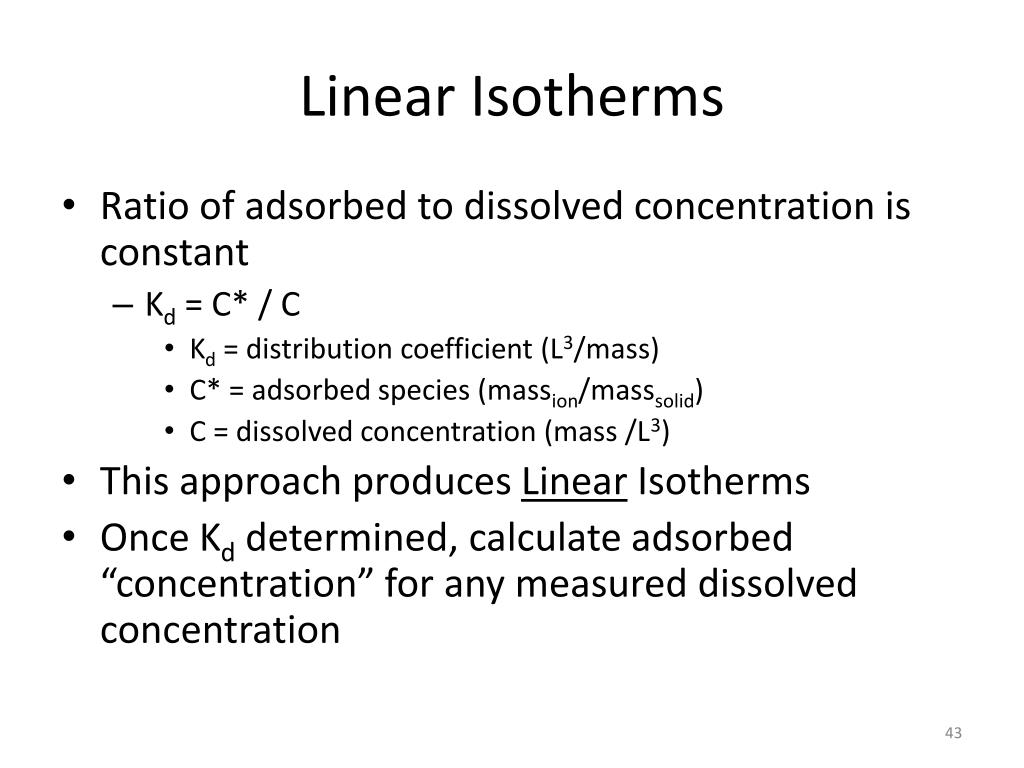

Linear isotherms

Linear Isotherms

  • Ratio of adsorbed to dissolved concentration is constant

    • Kd = C* / C

      • Kd = distribution coefficient (L3/mass)

      • C* = adsorbed species (massion/masssolid)

      • C = dissolved concentration (mass /L3)

  • This approach produces Linear Isotherms

  • Once Kd determined, calculate adsorbed “concentration” for any measured dissolved concentration


Typical adsorption isotherm1

Typical Adsorption Isotherm

Linear portion

of isotherm


Linear isotherms1

Linear Isotherms


Linear isotherms2

Linear Isotherms

  • Assumptions:

    • Fast reaction (i.e. equilibrium quickly reached)

    • Reversible reaction

    • Isothermal

    • Monolayer adsorption

  • Use Kd’s with great care because:

    • Reactions are pH, temperature, and Eh dependent

    • Species specific, don’t account for competition

    • Ionic strength dependent

    • Surface dependent

    • Can’t be universally applied


Langmuir isotherms

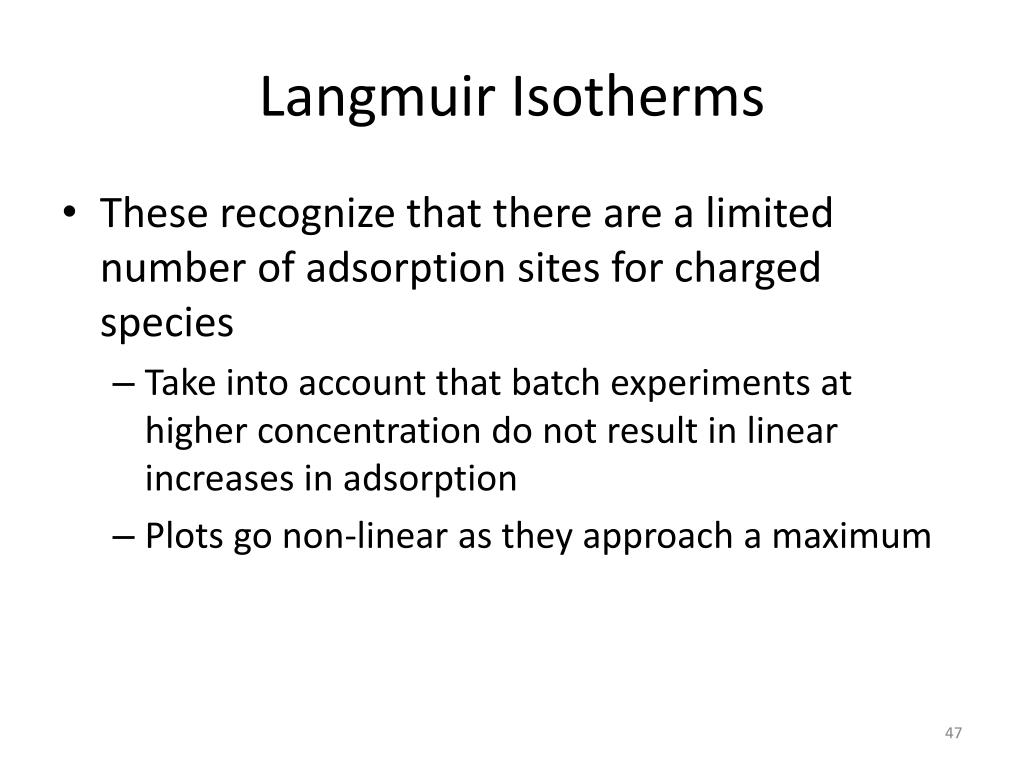

Langmuir Isotherms

  • These recognize that there are a limited number of adsorption sites for charged species

    • Take into account that batch experiments at higher concentration do not result in linear increases in adsorption

    • Plots go non-linear as they approach a maximum


Langmuir isotherms1

Langmuir Isotherms

Cmax*

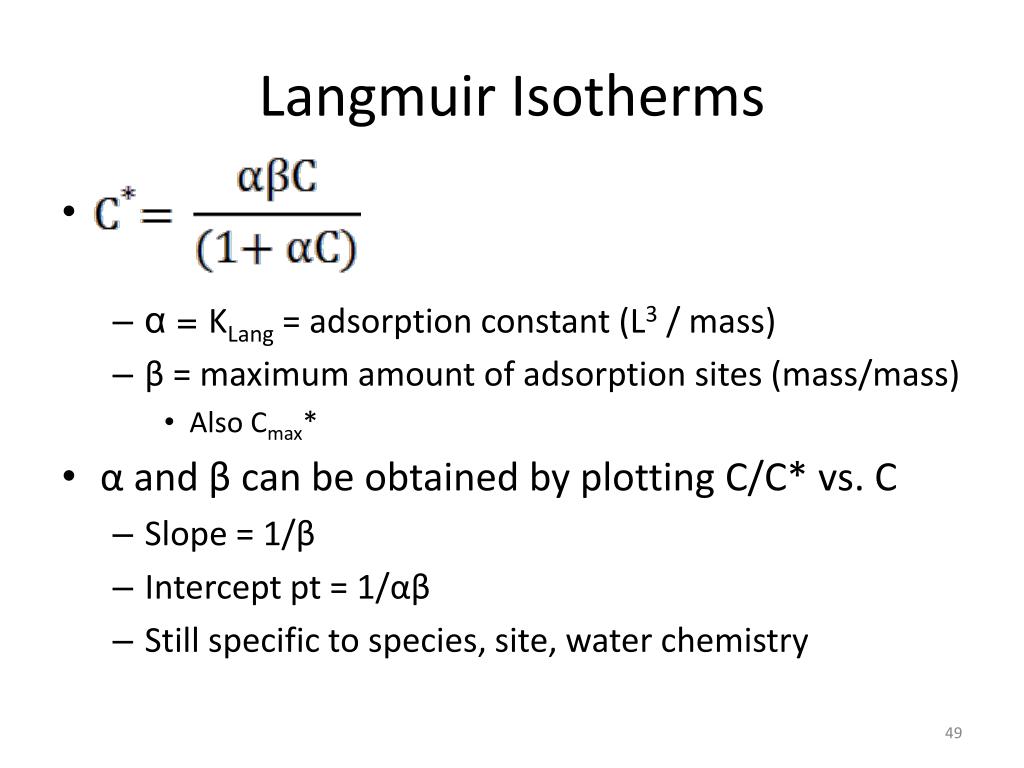

Langmuir isotherms2

Langmuir Isotherms

  • α = KLang = adsorption constant (L3 / mass)

  • β = maximum amount of adsorption sites (mass/mass)

    • Also Cmax*

  • α and β can be obtained by plotting C/C* vs. C

    • Slope = 1/β

    • Intercept pt = 1/αβ

    • Still specific to species, site, water chemistry

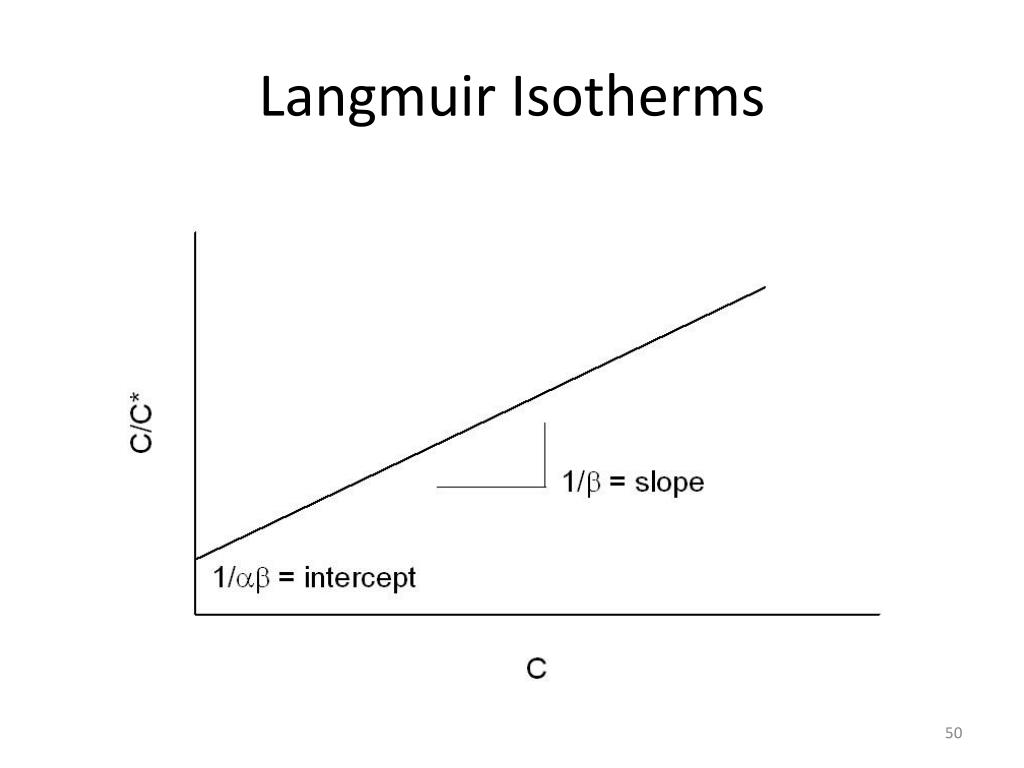

  • Langmuir isotherms3

    Langmuir Isotherms


    Surface complexation adsorption models

    Surface Complexation Adsorption Models

    • Diffuse double layer, triple layer, constant capacitance

    • Best used to describe adsorption of metals and other cationic species


    Surface complexation adsorption models1

    Surface Complexation Adsorption Models

    • Advantages:

      • Based on thermodynamics

      • Balanced reactions

      • Law of mass action

      • Adsorption function of pH and solution chemistry


    Surface complexation adsorption models2

    Surface Complexation Adsorption Models

    • Recognizes that all exchange sites are not equal (inner vs. outer)

    • Types of exchange sites:

      • Aluminosilicates: crystal damage results in permanent change, “exchange” sites

      • Surface functional groups: usually a hydroxyl (OH-) on mineral edge

        • Surface charge is pH dependent

        • Positive and negative sites can co-exist


    Surface complexation adsorption models3

    Surface Complexation Adsorption Models

    • So there are a variety of sites based on surface type, charge varies between types

      • The same surface type can have sites with different bond strength

        • Inner sphere complex: strong covalent bond, bonds directly to surface

        • Outer sphere complex: cation still surrounded by sphere of hydration; held by weaker electrostatic forces


    Surface complexation adsorption models4

    Surface Complexation Adsorption Models

    • Writing surface complexation reactions; account for free energy based on chemical and electrostatic contributions

      • ≡S-OH + M2+ ↔ ≡S-OM + H+

        • ≡S = surface

        • OH = functional group

        • M2+ = dissolved metal

      • Anion adsorption

        • ≡S-OH + A- ↔ ≡S-A + OH-


    Surface complexation adsorption models thermodynamically based

    Surface Complexation Adsorption Models: Thermodynamically Based

    • Law of mass action for reaction:

      • This reaction accounts for chemical ΔG, but not electrostatic

      • Based on activity of species in bulk solution

      • Work is necessary to move ions through charged Gouy layer

      • Close to the surface, the diffuse layer has excess of cations, therefore activity (concentration) of cations increases


    Surface complexation adsorption models5

    Surface Complexation Adsorption Models

    • The equations from these models take into account multiple site types, multiple species, changes in solution chemistry

    • These surface complexation models have been shown to realistically model adsorption in lab experiments

      • However, most lab experiments use pure mineral phases and artificial solutions.

    • Surface complexation models require measurement of numerous parameters on heterogeneous materials, so their field application may not be practical


    Adsorption3

    Adsorption

    • Adsorption is an enormously complicated subject

    • It is usually very difficult to apply laboratory derived values to the field

      • It is very difficult to get meaningful field data on surface properties

      • Beware!

    • Changing conditions can lead to changing behavior

      • e.g., contaminated sites and plumes


    Organic compounds

    Organic Compounds


    Organic compounds1

    Organic Compounds

    • Definition: molecules with a carbon skeleton

      • Usually have H and O as well

    • Importance:

      • Weathering and diagenesis

      • Redox conditions of water

      • Transport of trace metals

      • Contaminants: organic contaminants and biodegradation


    Organic compound properties

    Organic Compound Properties

    • In general, organic matter is not very soluble in water.

      • Organics are non-polar or slightly polar while water is highly polar

    • Uncharged or weakly charged

    • Can exist as dissolved, solid, or gaseous phases

    • Organic matter in water is composed of an almost infinite variety of compounds

      • With current technology, can determine the general chemical composition of organics, but don’t know specific formulas

      • The exception is anthropogenic compounds where we know exact formulas


    Organic compound properties1

    Organic Compound Properties

    • Most dissolved organic matter in groundwater are humic acids

      • Substances are formed by the microbial degradation of dead plant matter, such as lignin

      • Very resistant to further biodegradation

        • Easy stuff already degraded

        • Explains why old groundwater still has organic matter

      • Defined operationally: extracted into a strongly basic aqueous solution, then precipitated from solution when pH adjusted to 1 with HCl

        • Remaining organics in solution = fulvic acids (dominate surface water)


    Typical humic acid

    Typical Humic Acid


    Humic acid chromatography

    Humic Acid Chromatography


    Measuring organic compound in groundwater

    Measuring Organic Compound in Groundwater

    • Dissolved organic carbon (DOC) (water passed through 0.45 μm filter)

      • Arbitrary division between dissolved and suspended material

      • DOC can be converted to CO2, which is how it’s typically measured

      • Can also measure DON and DOP

    • Total organic carbon (TOC)

      • Same procedures, but not filtered

    • DOC in groundwater typically low, ≤ 2 mg/L

    • DOC visible in water at about 10 mg/L (dark color)

    • Swamps and other wetlands have some of the highest DOC values, ~60 mg/L


    Organic compound nomenclature

    Organic Compound Nomenclature

    • All organics have carbon skeletons with functional groups attached

    • Aliphatics: straight or branched chains

      • e.g., propane, methylpropane


    Propane c 3 h 8 and butane c 4 h 10

    Propane (C3H8) and Butane (C4H10)


    Organic compound nomenclature1

    Organic Compound Nomenclature

    • Aromatics: ring structure

      • e.g., benzene, naphthalene


    A very little humor

    A (Very) Little Humor

    Benzene (C6H6)

    Mercedes Benzene


    Organic compound nomenclature2

    Organic Compound Nomenclature

    • Aromatics: ring structure

      • e.g., benzene, naphthalene

      • Multi-rings = polyaromatics (PNAs or PAHs)


    Polyaromatics pahs

    Polyaromatics (PAHs)


    Organic compound nomenclature3

    Organic Compound Nomenclature

    • Aromatics: ring structure

      • e.g., benzene, naphthalene

      • Multi-rings = polyaromatics (PNAs or PAHs)

      • Heterocyclic: ring structure with atoms other than C in skeleton

        • e.g. pyridine


    Pyridine

    Pyridine


  • Login
