Hyperbolic pdes numerical methods for pdes spring 2007

Hyperbolic PDEs Numerical Methods for PDEsSpring 2007

Jim E. Jones


Partial differential equations pdes 2 nd order model problems

Partial Differential Equations (PDEs) :2nd order model problems

  • PDE classified by discriminant: b2-4ac.

    • Negative discriminant = Elliptic PDE. Example Laplace’s equation

    • Zero discriminant = Parabolic PDE. Example Heat equation

    • Positive discriminant = Hyperbolic PDE. Example Wave equation


Example hyperbolic equation infinite domain

Example: Hyperbolic Equation (Infinite Domain)

Wave equation

Initial Conditions


Example hyperbolic equation infinite domain1

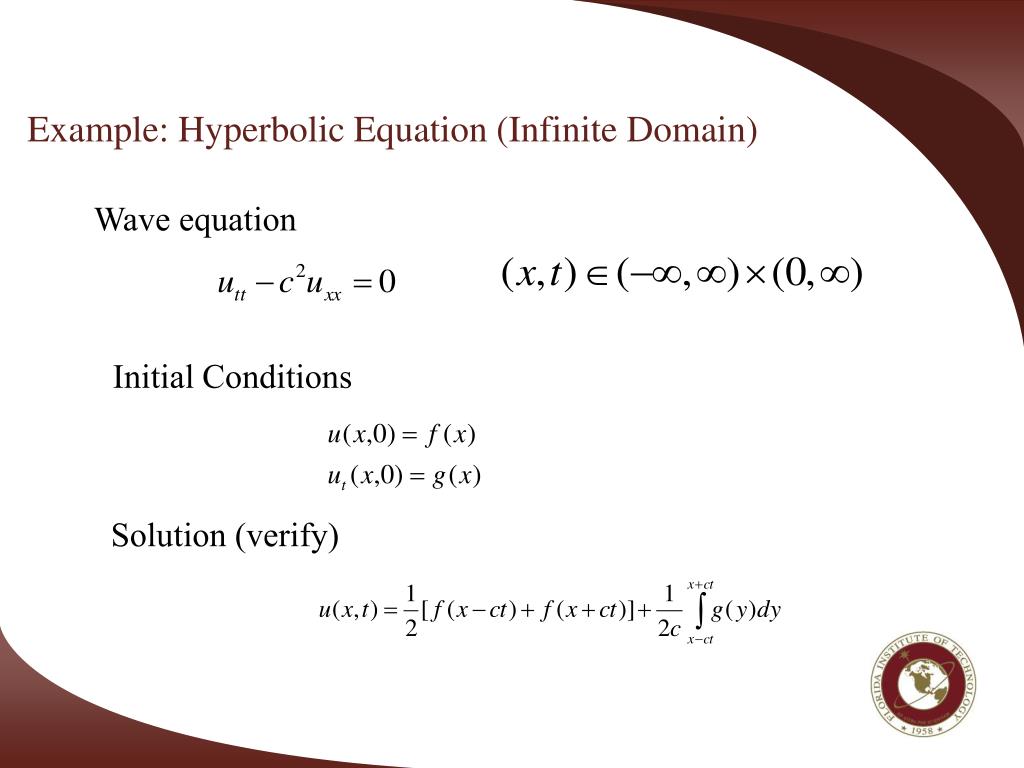

Example: Hyperbolic Equation (Infinite Domain)

Wave equation

Initial Conditions

Solution (verify)


Hyperbolic equation characteristic curves

Hyperbolic Equation: characteristic curves

x+ct=constant

x-ct=constant

t

(x,t)

x


Example hyperbolic equation infinite domain2

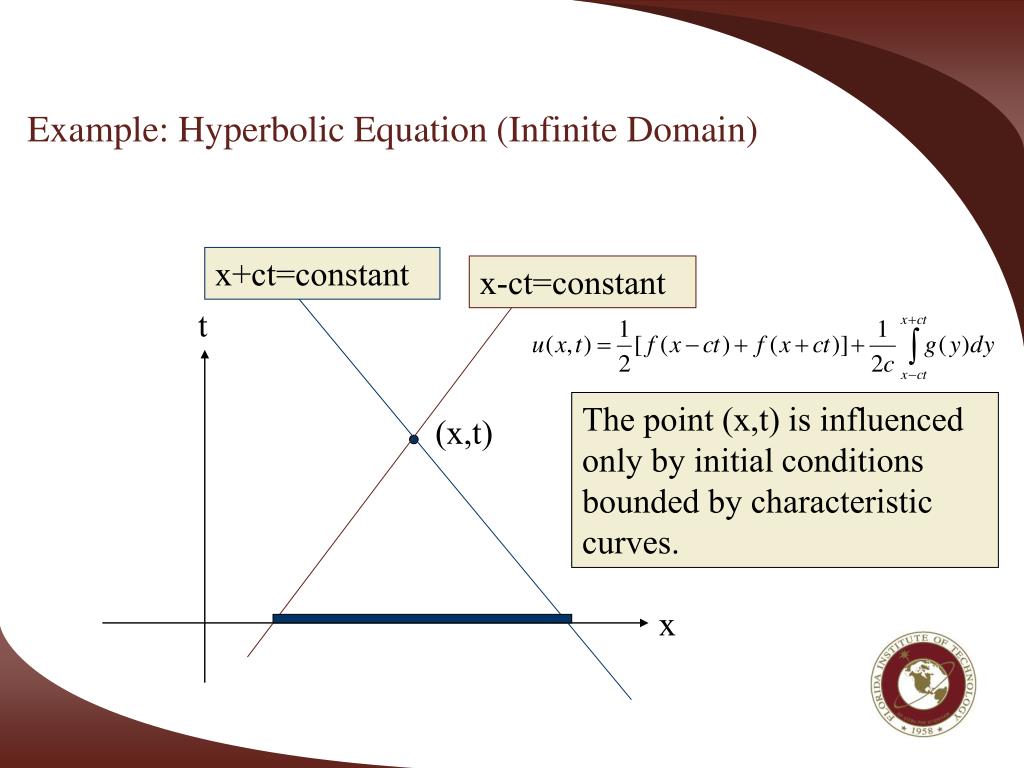

Example: Hyperbolic Equation (Infinite Domain)

x+ct=constant

x-ct=constant

t

The point (x,t) is influenced only by initial conditions bounded by characteristic curves.

(x,t)

x


Example hyperbolic equation infinite domain3

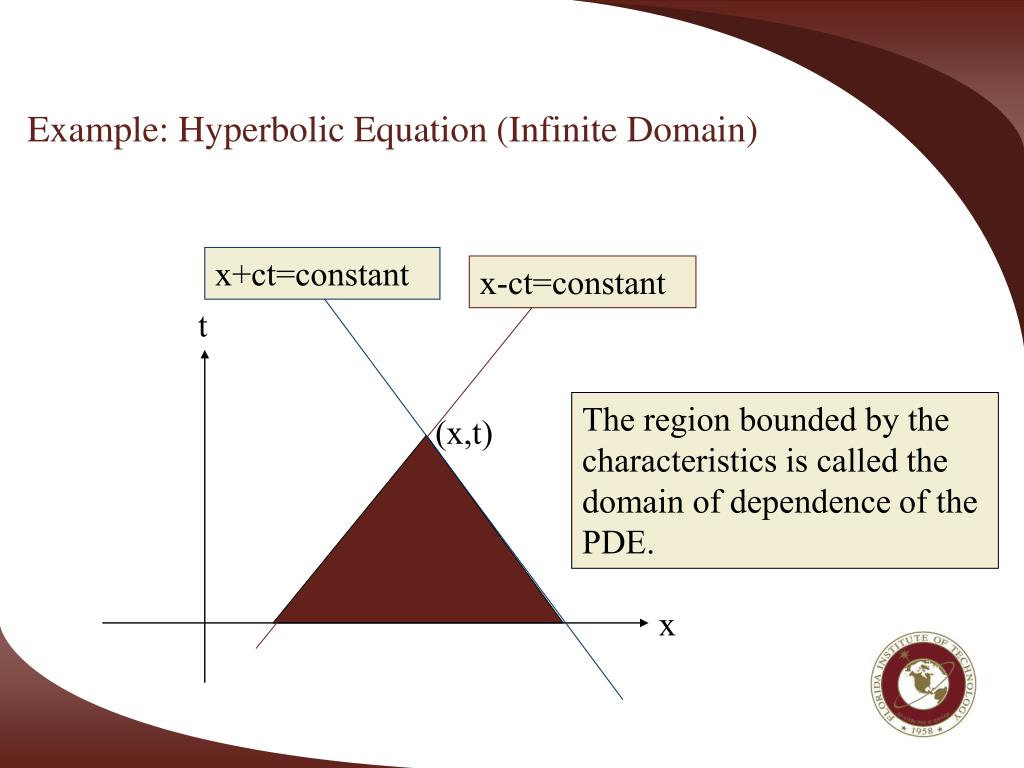

Example: Hyperbolic Equation (Infinite Domain)

x+ct=constant

x-ct=constant

t

The region bounded by the characteristics is called the domain of dependence of the PDE.

(x,t)

x


Example hyperbolic equation infinite domain4

Example: Hyperbolic Equation (Infinite Domain)

Wave equation

Initial Conditions


Example hyperbolic equation infinite domain5

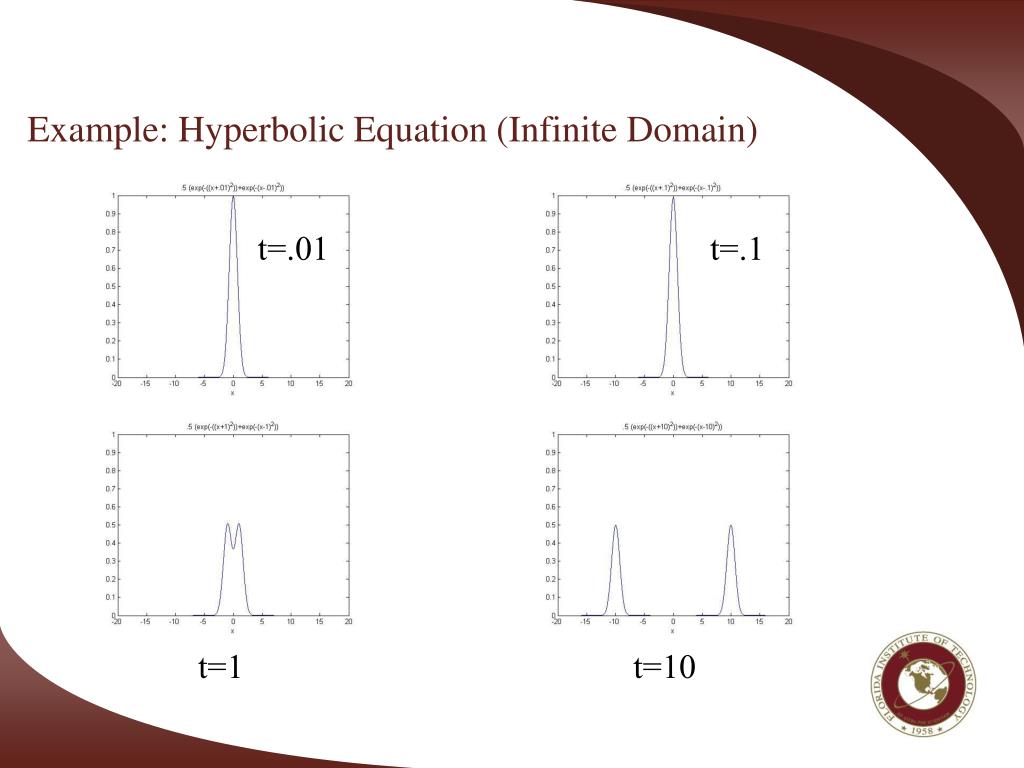

Example: Hyperbolic Equation (Infinite Domain)

t=.01

t=.1

t=1

t=10


Hyperbolic pdes

Hyperbolic PDES

  • Typically describe time evolution with no steady state.

    • Model problem: Describe the time evolution of the wave produced by plucking a string.

  • Initial conditions have only local effect

    • The constant c determines the speed of wave propagation.


Finite difference method for wave equation

Finite difference method for wave equation

Wave equation

Choose step size h in space and k in time

k

t

x

h


Finite difference method for wave equation1

Finite difference method for wave equation

Wave equation

Choose step size h in space and k in time


Finite difference method for wave equation2

Finite difference method for wave equation

Wave equation

Choose step size h in space and k in time

Solve for ui,j+1


Finite difference method for wave equation3

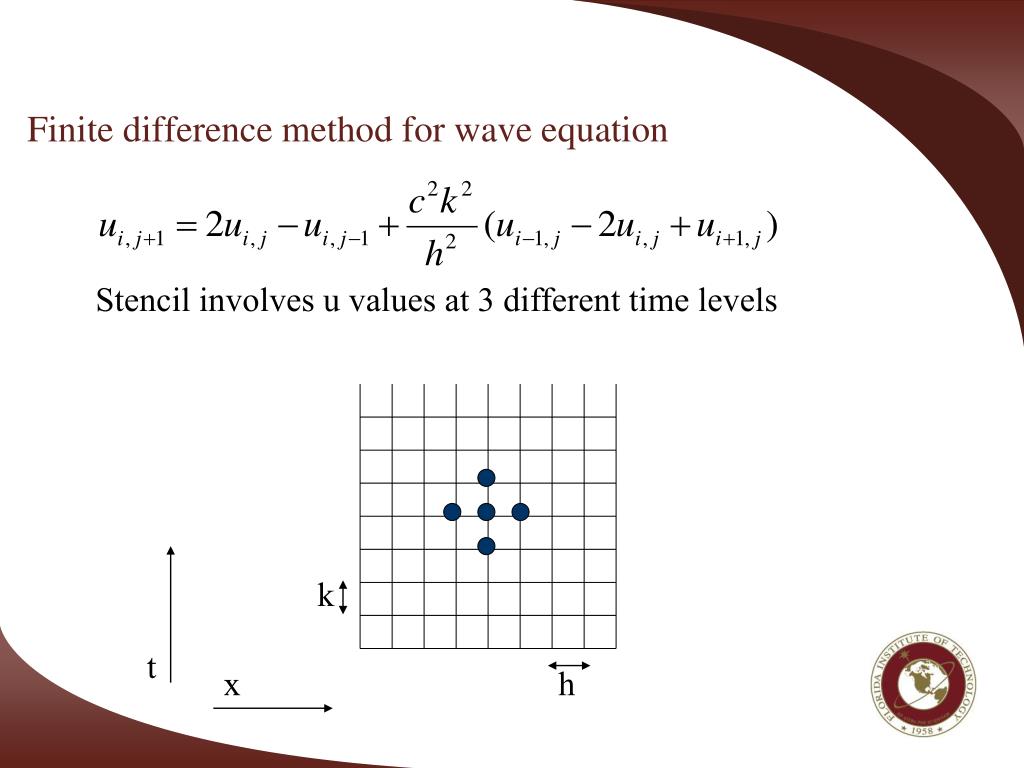

Finite difference method for wave equation

Stencil involves u values at 3 different time levels

k

t

x

h


Finite difference method for wave equation4

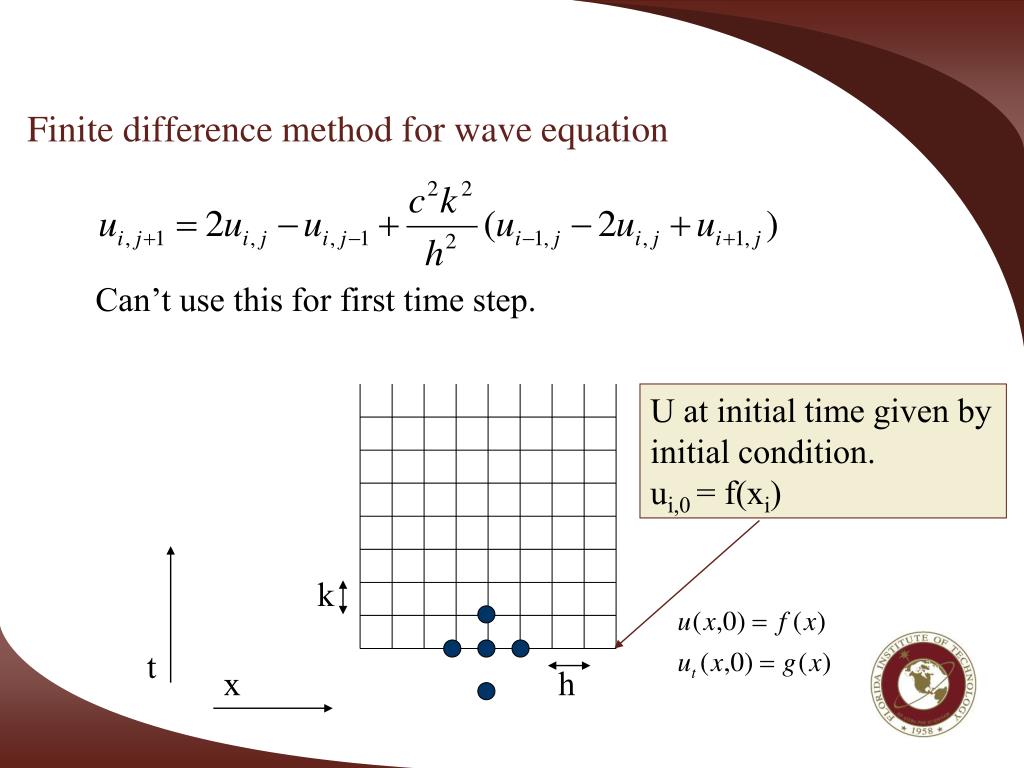

Finite difference method for wave equation

Can’t use this for first time step.

U at initial time given by initial condition.

ui,0 = f(xi)

k

t

x

h


Finite difference method for wave equation5

Finite difference method for wave equation

Use initial derivative to make first time step.

U at initial time given by initial condition

k

t

x

h


Finite difference method for wave equation6

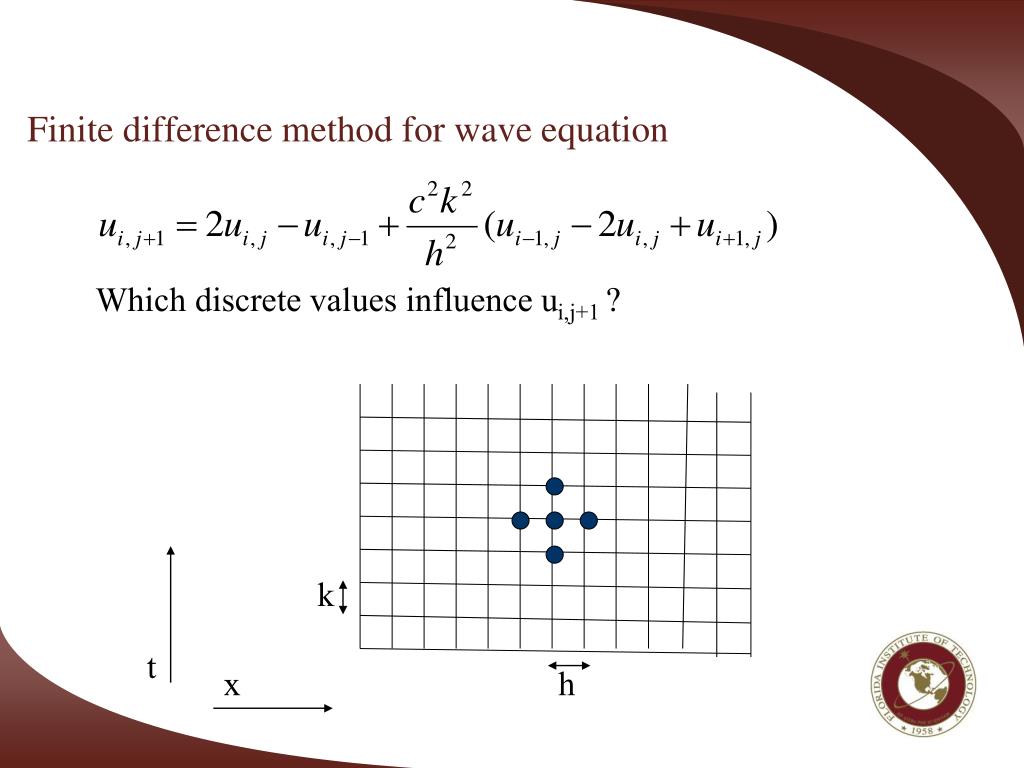

Finite difference method for wave equation

Which discrete values influence ui,j+1 ?

k

t

x

h


Finite difference method for wave equation7

Finite difference method for wave equation

Which discrete values influence ui,j+1 ?

k

t

x

h


Finite difference method for wave equation8

Finite difference method for wave equation

Which discrete values influence ui,j+1 ?

k

t

x

h


Finite difference method for wave equation9

Finite difference method for wave equation

Which discrete values influence ui,j+1 ?

k

t

x

h


Finite difference method for wave equation10

Finite difference method for wave equation

Which discrete values influence ui,j+1 ?

k

t

x

h


Domain of dependence for finite difference method

Domain of dependence for finite difference method

Those discrete values influence ui,j+1 define the discrete domain of dependence

k

t

x

h


Cfl courant friedrichs lewy condition

CFL (Courant, Friedrichs, Lewy) Condition

A necessary condition for an explicit finite difference scheme for a hyperbolic PDE to be stable is that for each mesh point the domain of dependence of the PDE must lie within the discrete domain of dependence.


Cfl courant friedrichs lewy condition1

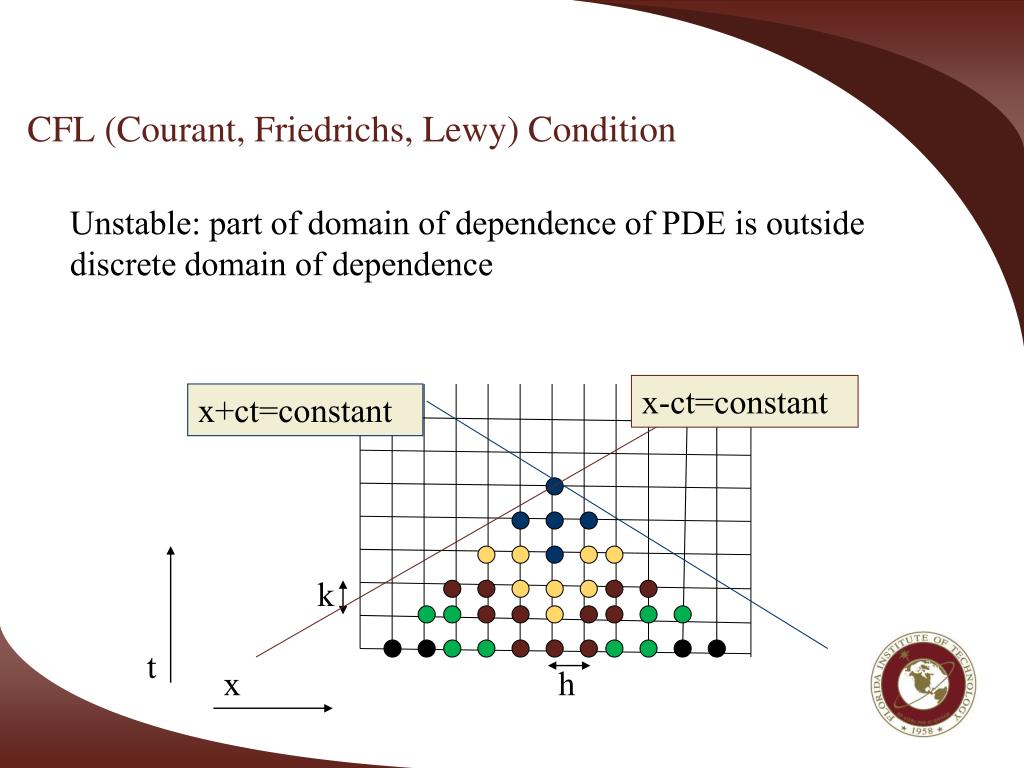

CFL (Courant, Friedrichs, Lewy) Condition

Unstable: part of domain of dependence of PDE is outside discrete domain of dependence

x-ct=constant

x+ct=constant

k

t

x

h


Cfl courant friedrichs lewy condition2

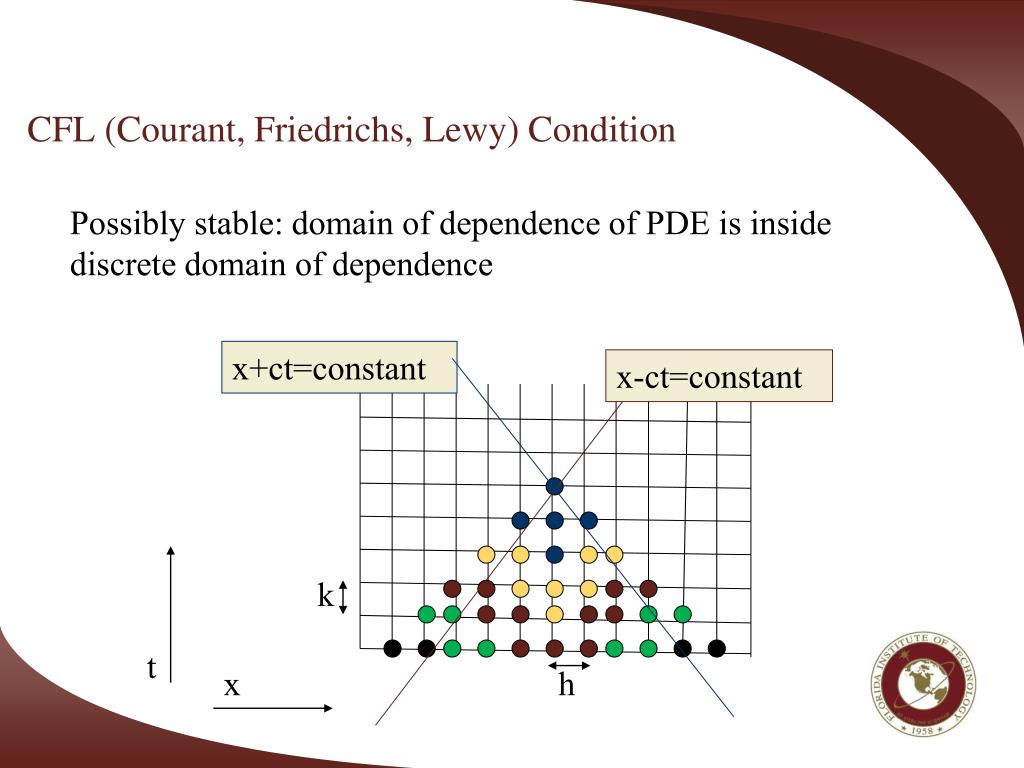

CFL (Courant, Friedrichs, Lewy) Condition

Possibly stable: domain of dependence of PDE is inside discrete domain of dependence

x+ct=constant

x-ct=constant

k

t

x

h


Cfl courant friedrichs lewy condition3

CFL (Courant, Friedrichs, Lewy) Condition

Boundary of unstable: domain of dependence of PDE is discrete domain of dependence

x+ct=constant

x-ct=constant

k

t

x

h


Cfl courant friedrichs lewy condition4

CFL (Courant, Friedrichs, Lewy) Condition

Boundary of unstable: domain of dependence of PDE is discrete domain of dependence

x+ct=constant

x-ct=constant

k/h=1/c

k

t

x

h


Cfl courant friedrichs lewy condition5

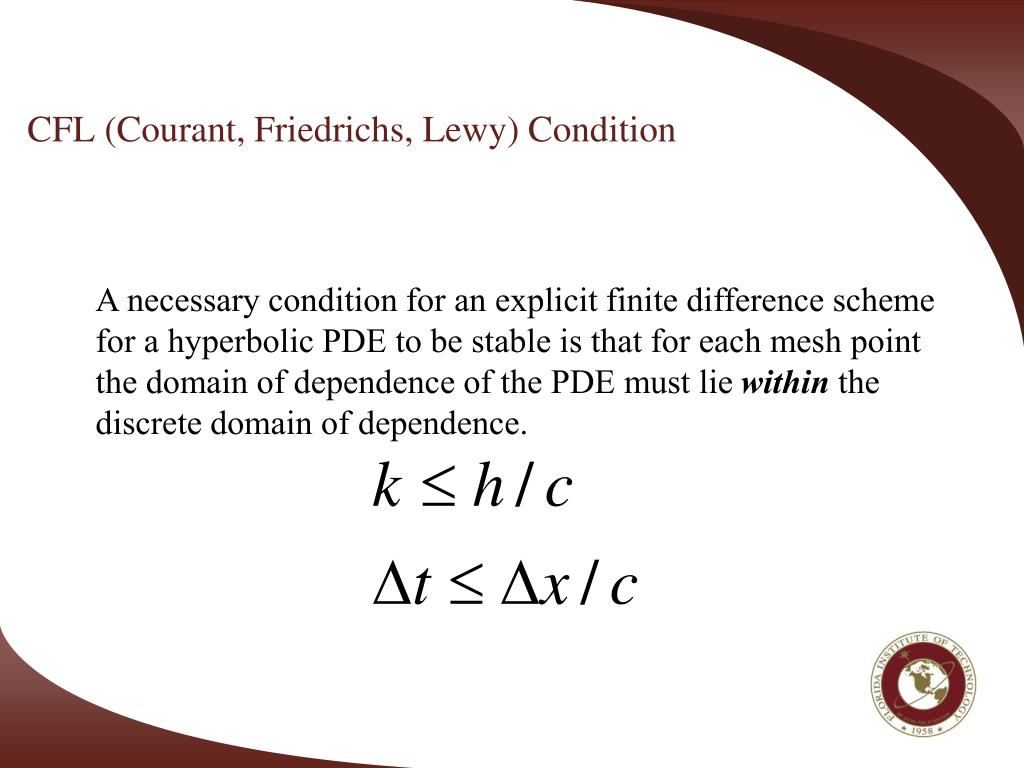

CFL (Courant, Friedrichs, Lewy) Condition

A necessary condition for an explicit finite difference scheme for a hyperbolic PDE to be stable is that for each mesh point the domain of dependence of the PDE must lie within the discrete domain of dependence.


Cfl courant friedrichs lewy condition6

CFL (Courant, Friedrichs, Lewy) Condition

The constant c is the wave speed, CFL condition says that a wave cannot cross more than one grid cell in one time step.


Example hyperbolic equation finite domain

Example: Hyperbolic Equation (Finite Domain)

Wave equation

Initial Conditions


Hyperbolic equation characteristic curves on finite domain

Hyperbolic Equation: characteristic curves on finite domain

x+ct=constant

x-ct=constant

t

(x,t)

x

x=a

x=b


Hyperbolic equation characteristic curves on finite domain1

Hyperbolic Equation: characteristic curves on finite domain

x+ct=constant

x-ct=constant

t

Value is influenced by boundary values. Represents incoming waves

(x,t)

x

x=a

x=b


Example hyperbolic equation finite domain1

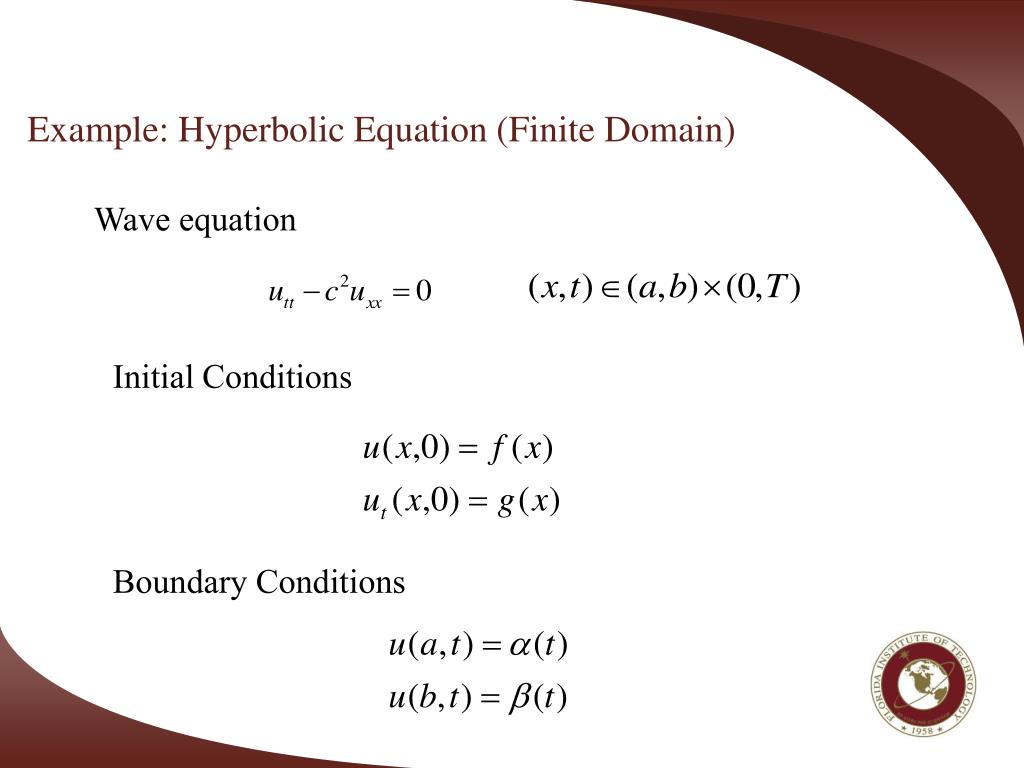

Example: Hyperbolic Equation (Finite Domain)

Wave equation

Initial Conditions

Boundary Conditions
