  1. excitablemembranes resting membrane potential Basic Neuroscience NBL 120 (2007)

  2. overview • electrical signaling • dendritic synaptic inputs • transfer to the soma • generate APs • axonal propagation • ionic basis of RMP • passive membrane properties • AP initiation & propagation

  3. resting membrane potential • electrochemical gradients • equilibrium potentials - Nernst equation • driving forces – Ohm’s Law • GHK equation

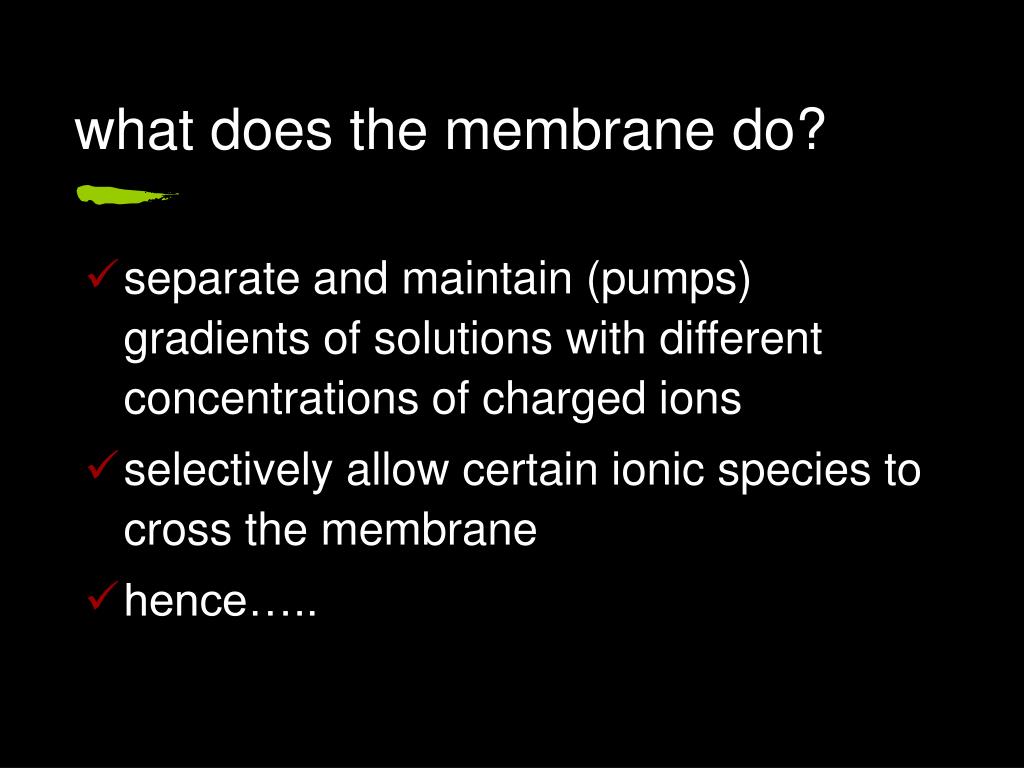

  4. what does the membrane do? • separate and maintain (pumps) gradients of solutions with different concentrations of charged ions • selectively allow certain ionic species to cross the membrane • hence…..

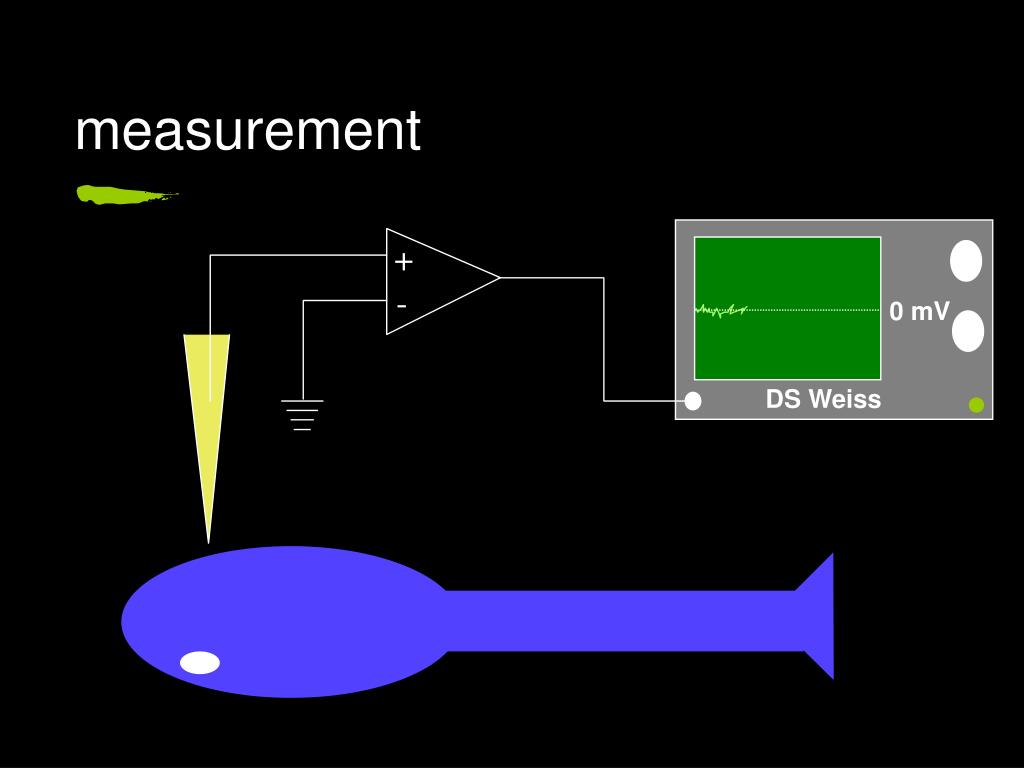

  5. measurement + - 0 mV DS Weiss

  6. measurement + - 0 mV -70 mV DS Weiss

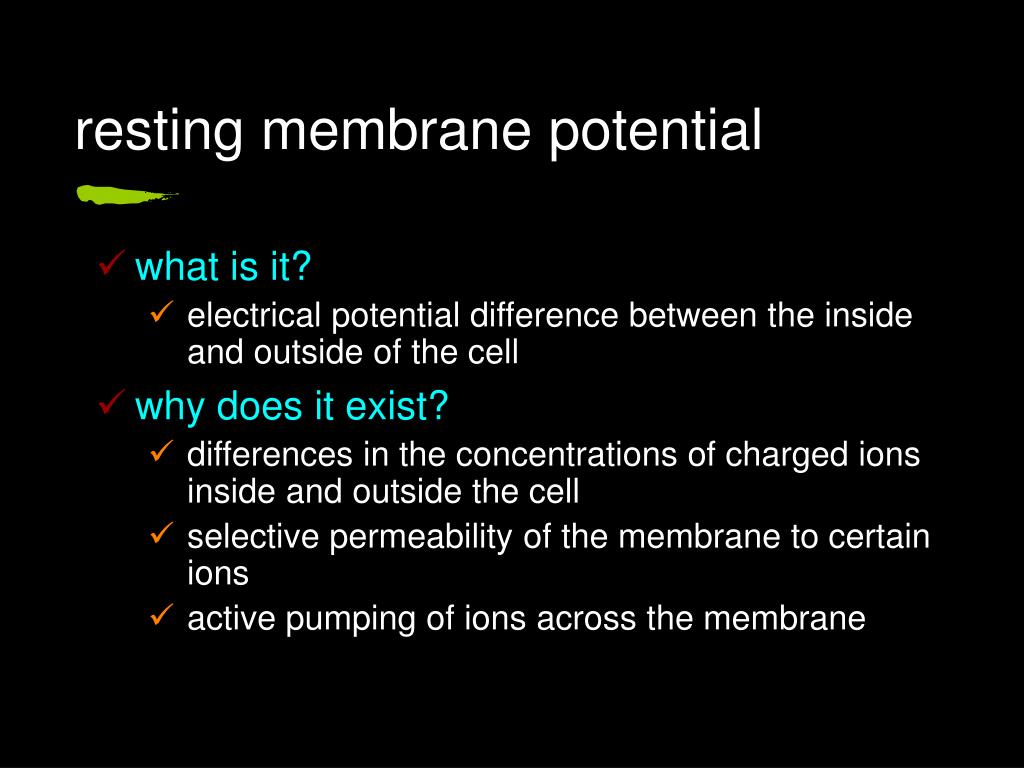

  7. resting membrane potential • what is it? • electrical potential difference between the inside and outside of the cell • why does it exist? • differences in the concentrations of charged ions inside and outside the cell • selective permeability of the membrane to certain ions • active pumping of ions across the membrane

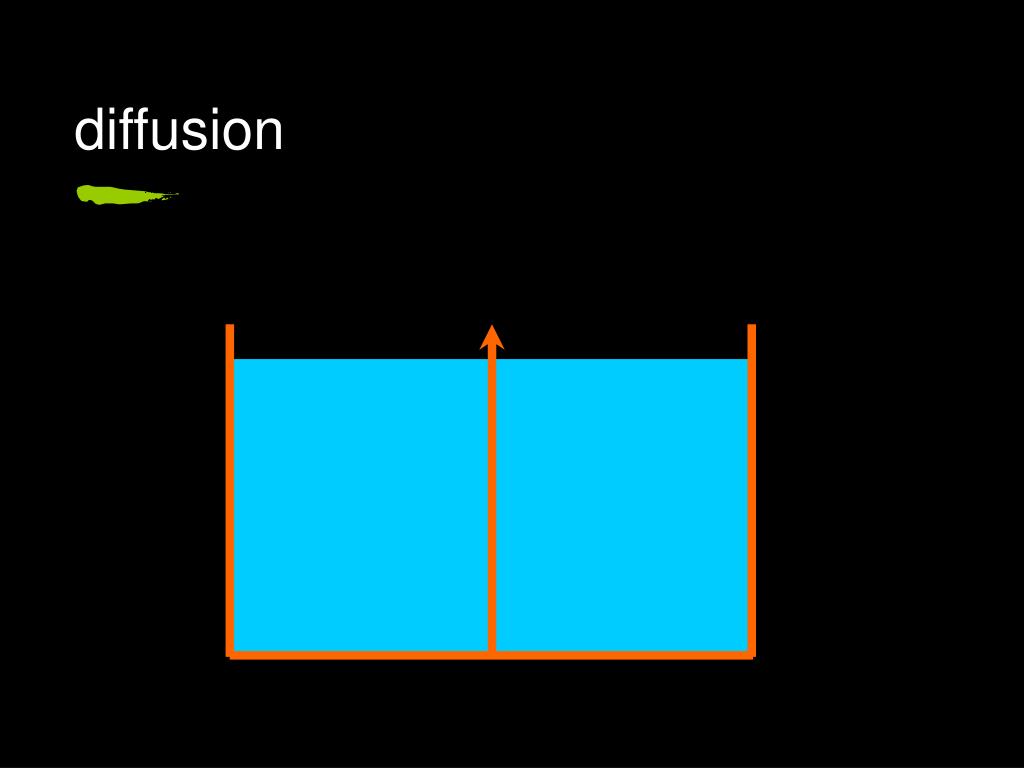

  8. diffusion

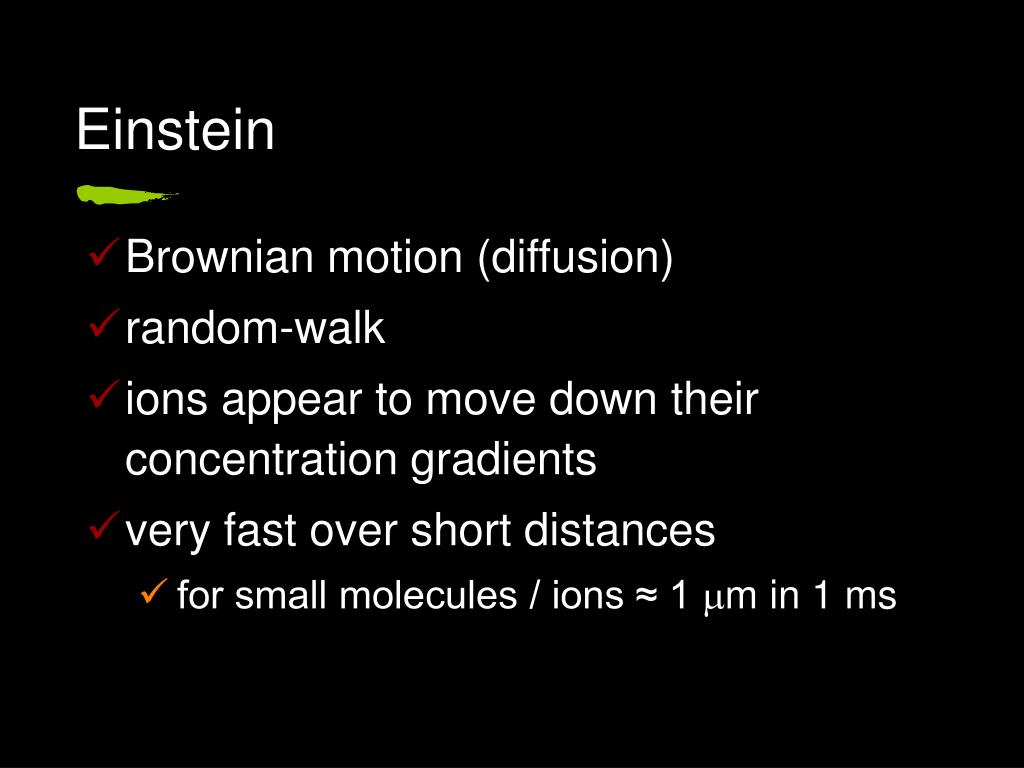

  9. Einstein • Brownian motion (diffusion) • random-walk • ions appear to move down their concentration gradients • very fast over short distances • for small molecules / ions ≈ 1 m in 1 ms

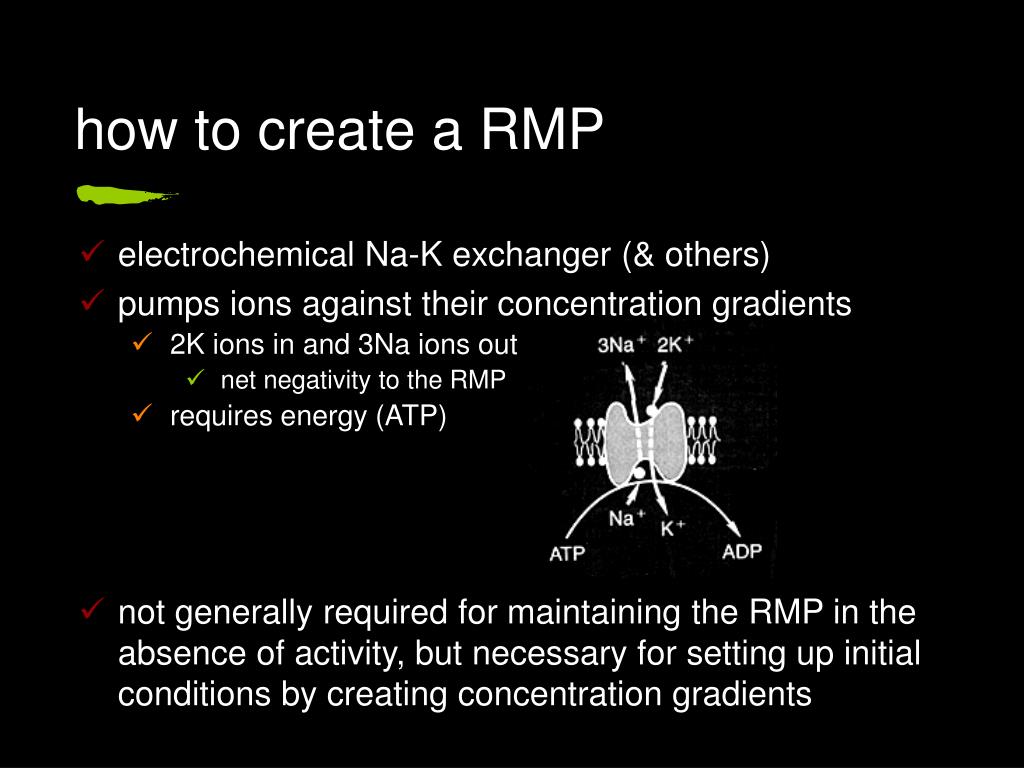

  10. how to create a RMP • electrochemical Na-K exchanger (& others) • pumps ions against their concentration gradients • 2K ions in and 3Na ions out • net negativity to the RMP • requires energy (ATP) • not generally required for maintaining the RMP in the absence of activity, but necessary for setting up initial conditions by creating concentration gradients

  11. initial conditions: different distribution of a K-salt membrane is only permeable to K there is no potential difference across the membrane at equilibrium: K ions diffuse down concentration gradient anions are left behind: net negativity develops inside the cell further movement of ions is opposed by the potential difference

  12. r.m.p. review Try here?

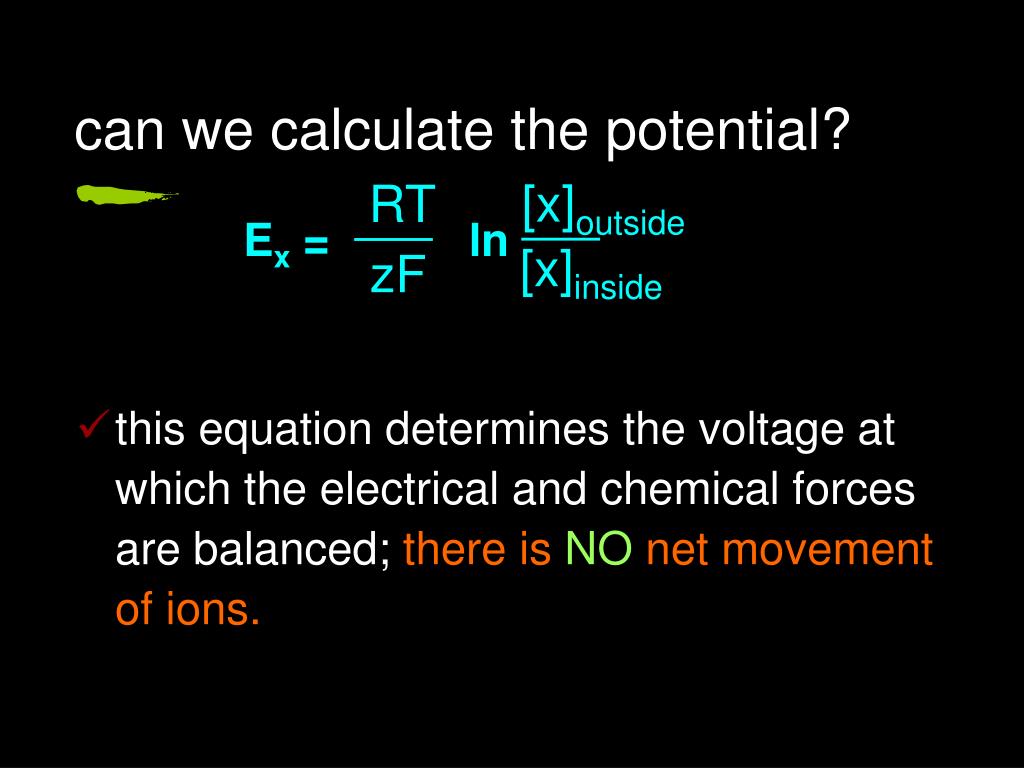

  13. can we calculate the potential? [x]outside RT Ex = ln • this equation determines the voltage at which the electrical and chemical forces are balanced; there is NO net movement of ions. [x]inside zF

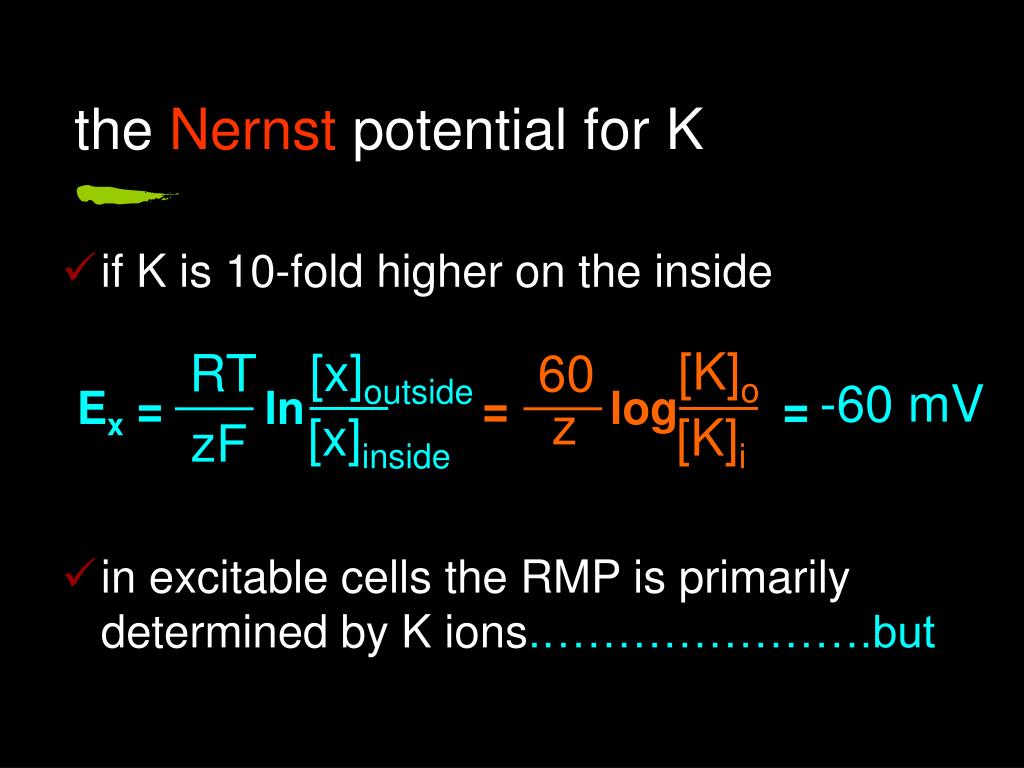

  14. [K]o [x]outside RT 60 -60 mV Ex = ln = log = z [x]inside [K]i zF the Nernst potential for K • if K is 10-fold higher on the inside • in excitable cells the RMP is primarily determined by K ions.………………….but

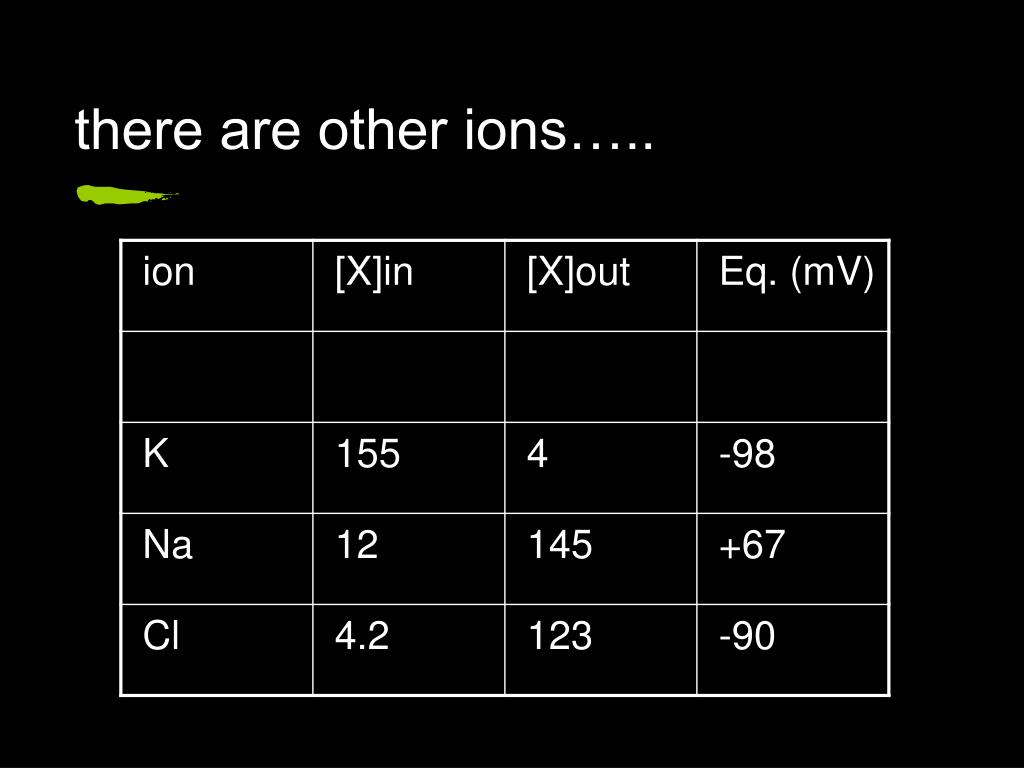

  15. there are other ions…..

  16. general rule ENa +67 membrane potential (mV) • relationship between: membrane potentialion equilibrium potentials • if the membrane becomes more permeable to one ion over other ions then the membrane potential will move towards the equilibrium potential for that ion (basis of AP). DRIVING FORCE • artificial manipulation of MP - reverse direction of current flow (hence reversal potential) RMP ECl -90 EK -98

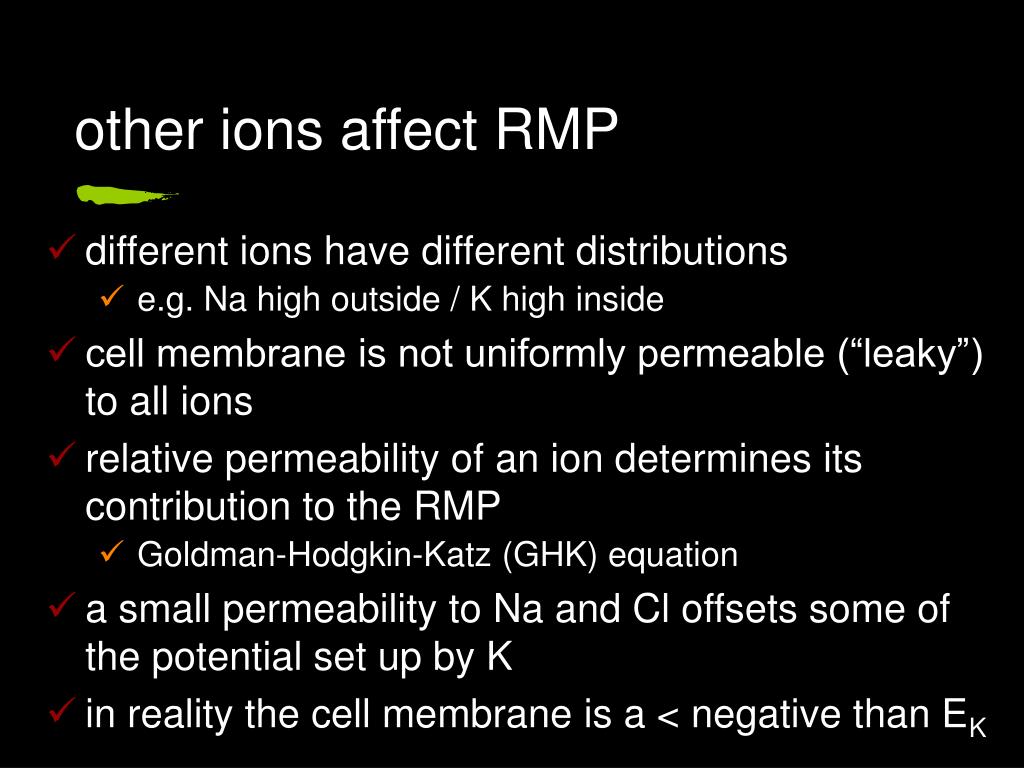

  17. other ions affect RMP • different ions have different distributions • e.g. Na high outside / K high inside • cell membrane is not uniformly permeable (“leaky”) to all ions • relative permeability of an ion determines its contribution to the RMP • Goldman-Hodgkin-Katz (GHK) equation • a small permeability to Na and Cl offsets some of the potential set up by K • in reality the cell membrane is a < negative than EK

  18. calculating the true RMP • driving force on an ion X will vary with MP • = (Em - Ex) • Ohm’s law • V = IR = Ig, or transformed I = gV • Ix = gx (Em - Ex) • there will be no current if: • no channels for ion X are open (no conductance) • no driving force (MP is at Ex)

  19. chord conductance equation IK=gK (Em-EK) • at steady state: IK+ INa+ICl= 0 • therefore: gK (Em-EK)+gNa (Em-ENa)+gCl (Em-ECl)= 0 INa=gNa (Em-ENa) ICl=gCl (Em-ECl) gK gK+gNa+gCl gNa gK+gNa+gCl gCl gK+gNa+gCl Em = EK+ ENa+ ECl

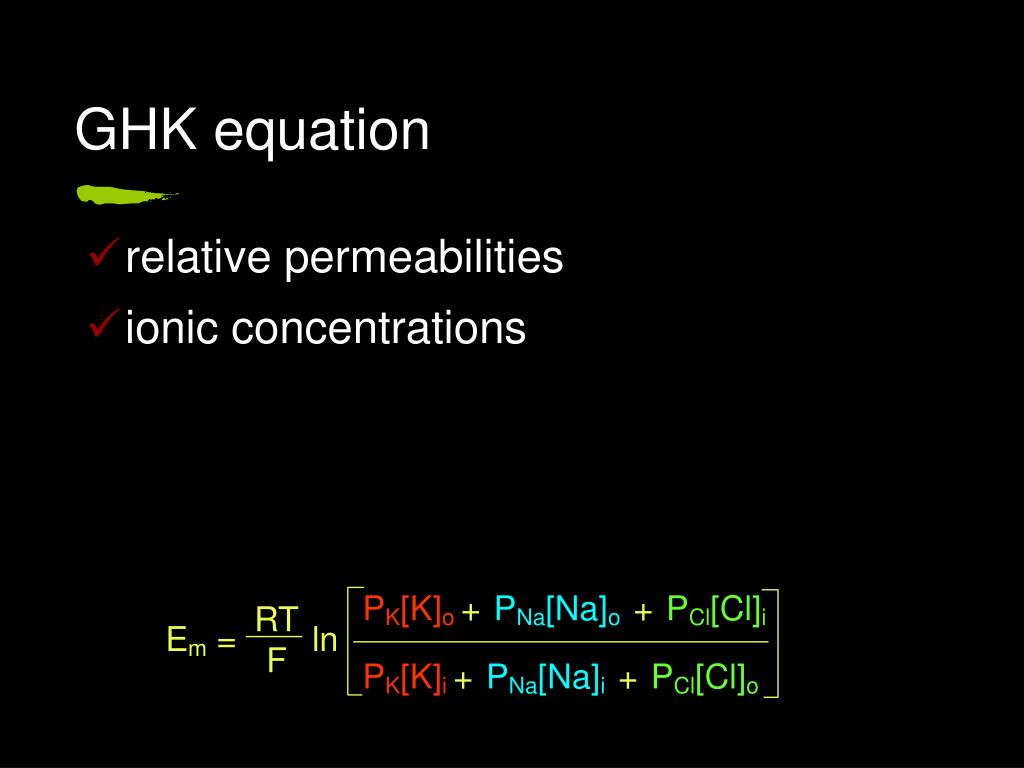

  20. GHK equation • relative permeabilities • ionic concentrations PK[K]o+PNa[Na]o+PCl[Cl]i PK[K]i+PNa[Na]i+PCl[Cl]o RT F Em = ln
