Presentation Transcript


Membranes

Membranes

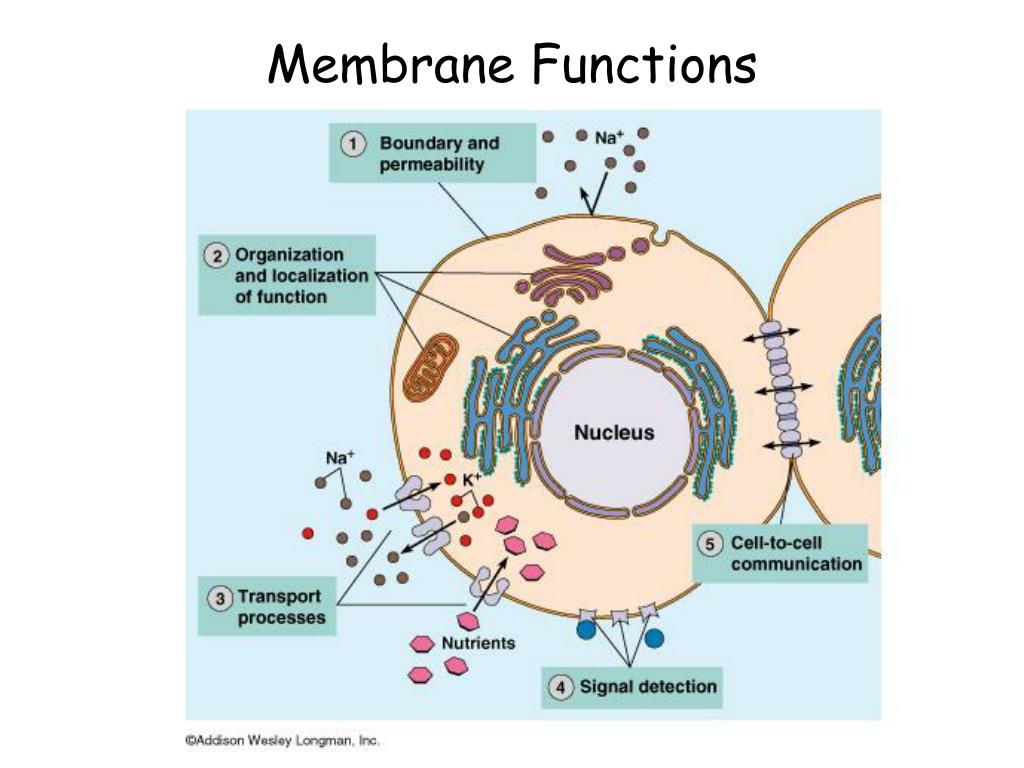

Membrane functions

Membrane Functions

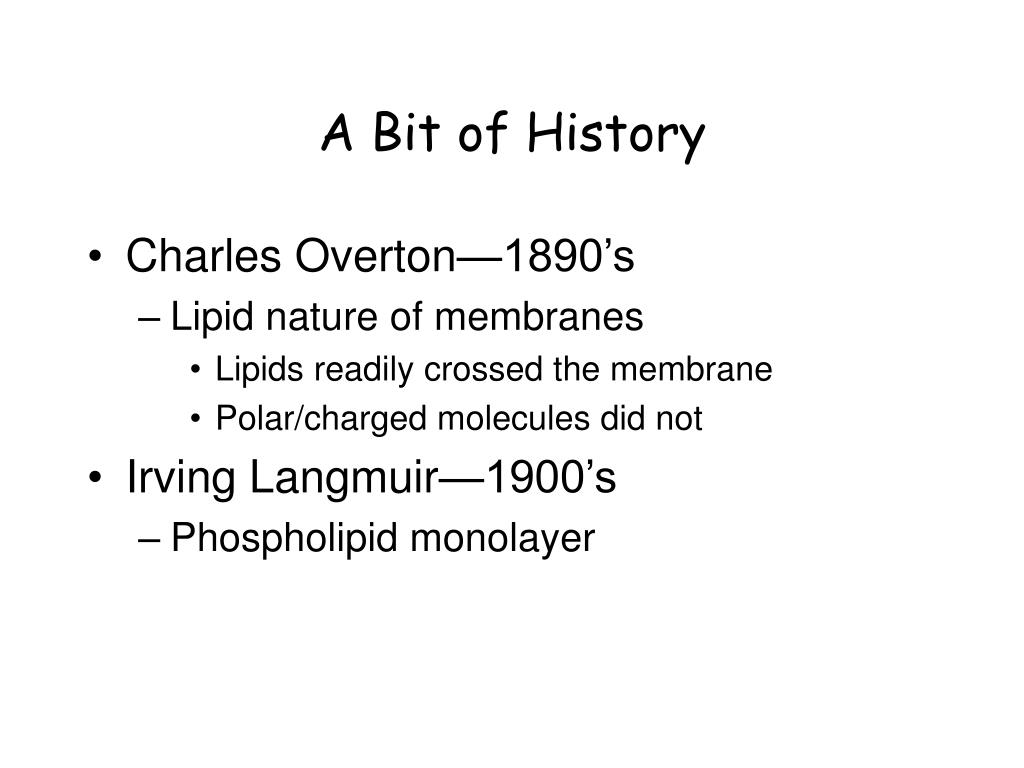

A bit of history

A Bit of History

  • Charles Overton—1890’s

    • Lipid nature of membranes

      • Lipids readily crossed the membrane

      • Polar/charged molecules did not

  • Irving Langmuir—1900’s

    • Phospholipid monolayer


Membranes

  • E. Gorter and F. Grendel—1925

    • RBCs

    • Lipid bilayer

      Lipid bilayer was not enough to describe differential permeability

  • Hugh Davson and James Danielli—1935

    • Protein-lipid "sandwich"


Membranes

  • Electron microscope—1950s

    • Organelles have membranes too

    • Membranes have trilaminar appearance

  • J. David Robertson—1960

    • "unit membrane" theory

    • Basically extension of "sandwich" to all membranes

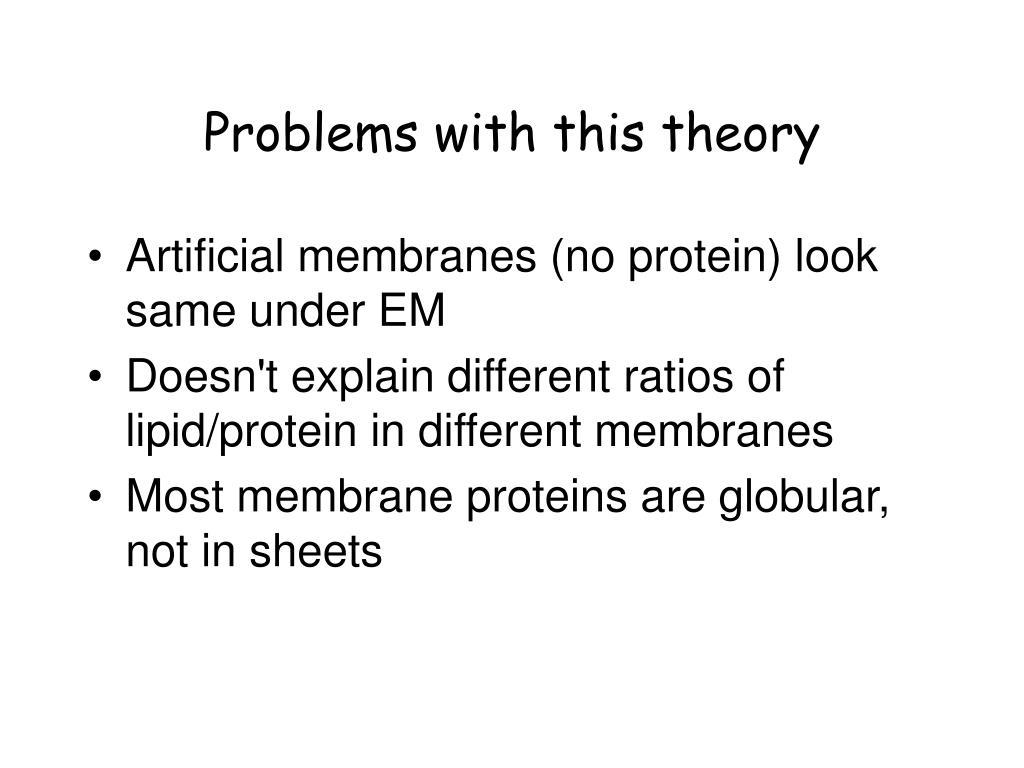

Problems with this theory

Problems with this theory

  • Artificial membranes (no protein) look same under EM

  • Doesn't explain different ratios of lipid/protein in different membranes

  • Most membrane proteins are globular, not in sheets


Fluid mosaic model

Fluid Mosaic Model

  • S. Jonathan Singer and Garth Nicolson—1972

    • Lipid bilayer (fluid)

    • Mosaic of proteins floating in the lipids

  • Richard Henderson and Nigel Unwin—1975

    • Structure of membrane-bound protein

    • Went through the membrane (not just on surface)


The lipids of membranes

The Lipids of Membranes

  • Phospholipids

  • Glycolipids

  • Sterols

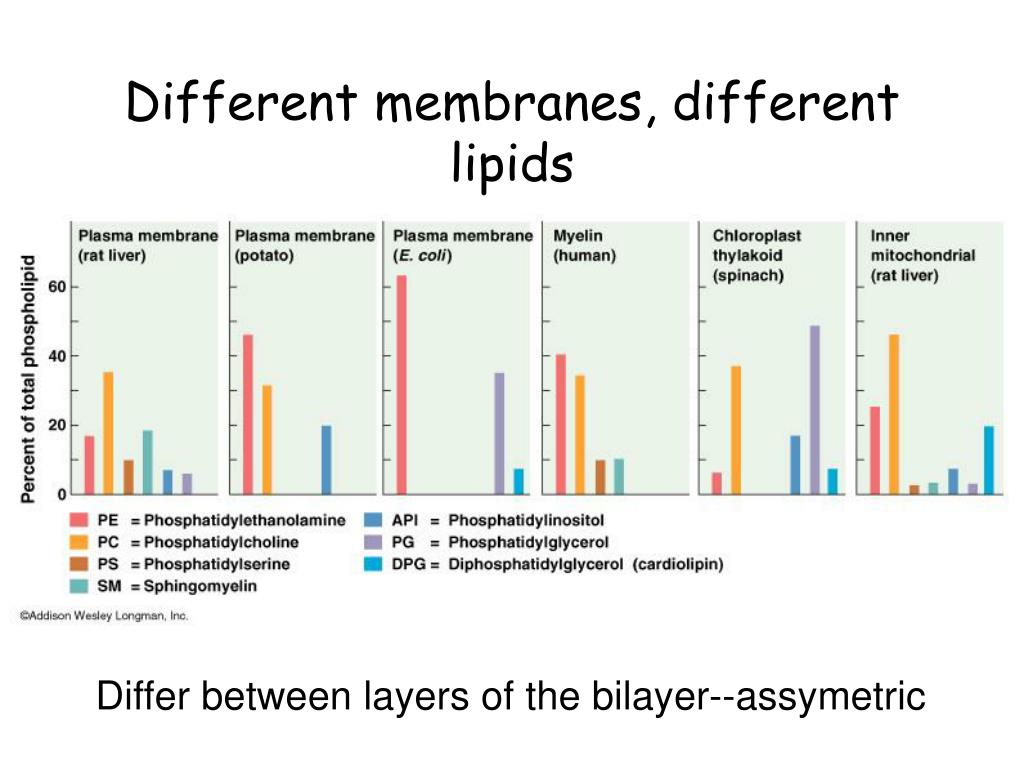

Different membranes different lipids

Different membranes, different lipids

Differ between layers of the bilayer--assymetric

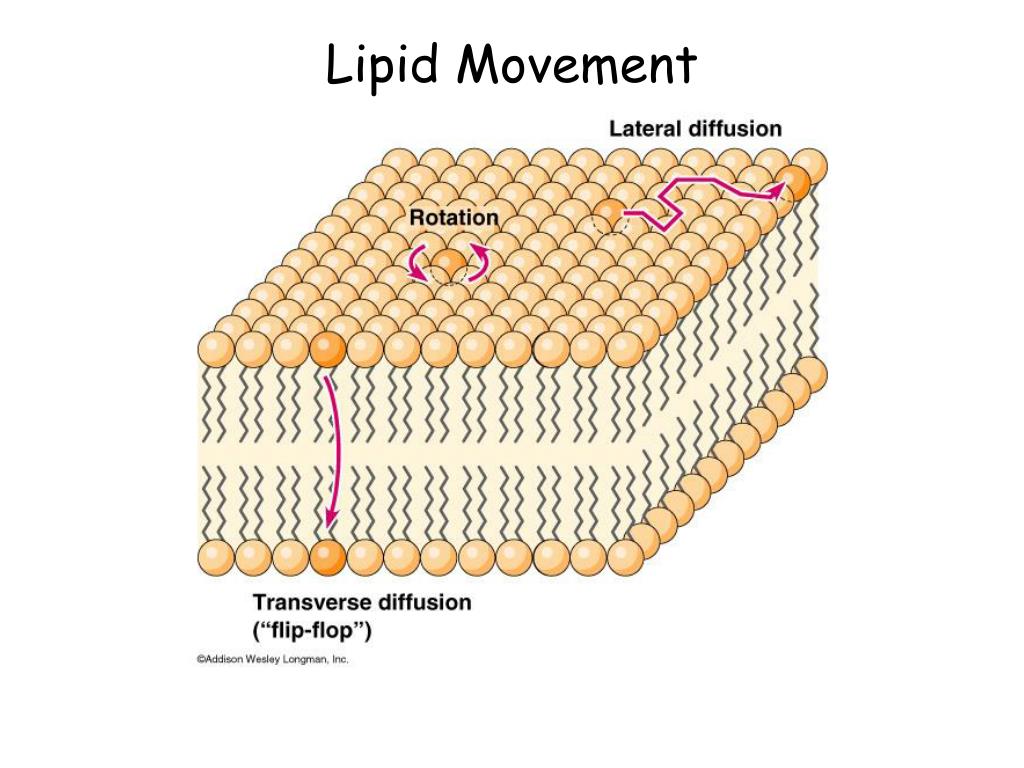

Lipid movement

Lipid Movement


Evidence for fluidity

Evidence for fluidity


Photobleaching

Photobleaching


Laser tweezers

Laser tweezers

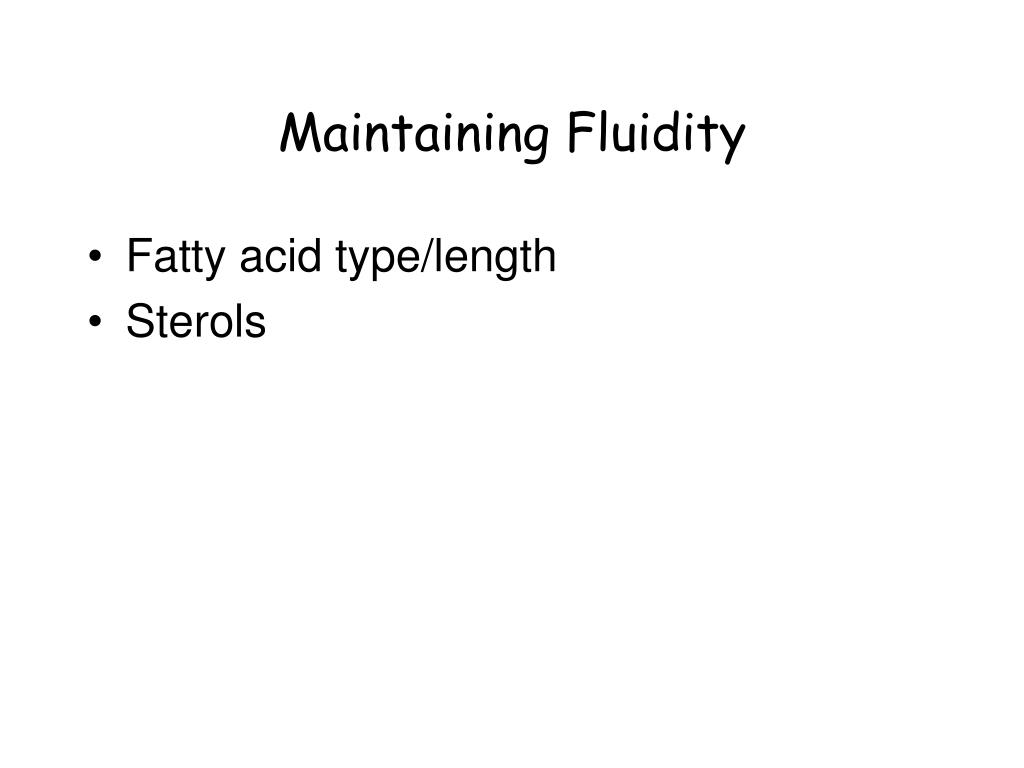

Maintaining fluidity

Maintaining Fluidity

  • Fatty acid type/length

  • Sterols


Membranes

Sterols

Moderate extremes


Membrane proteins

Membrane Proteins

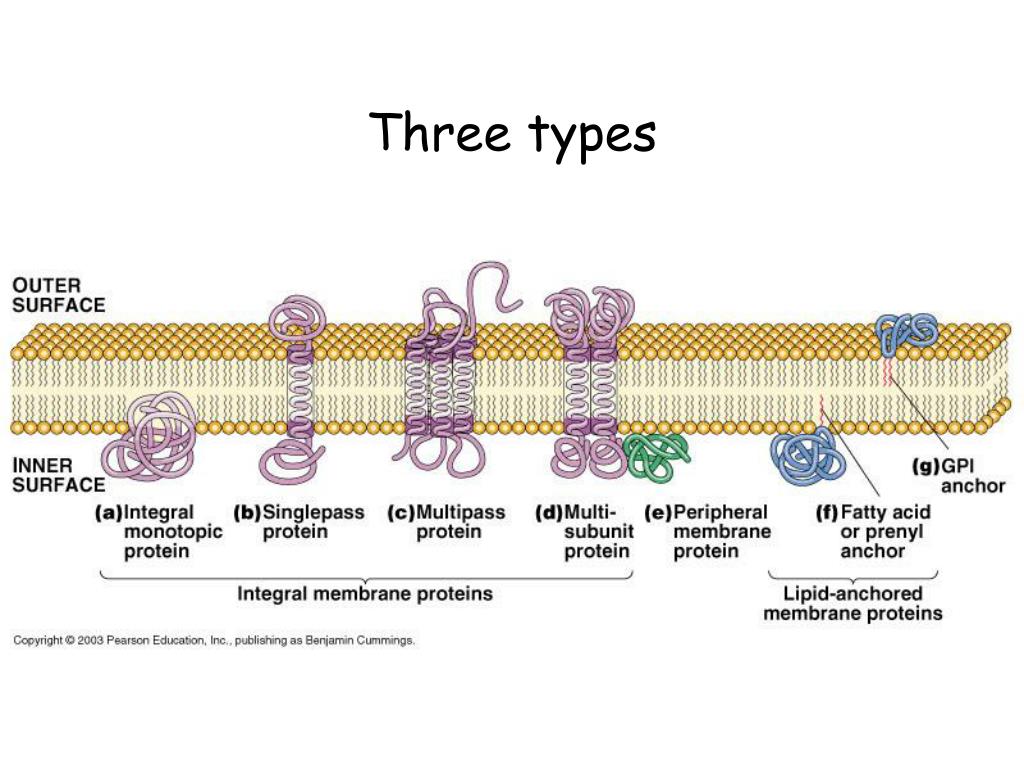

Three types

Three types

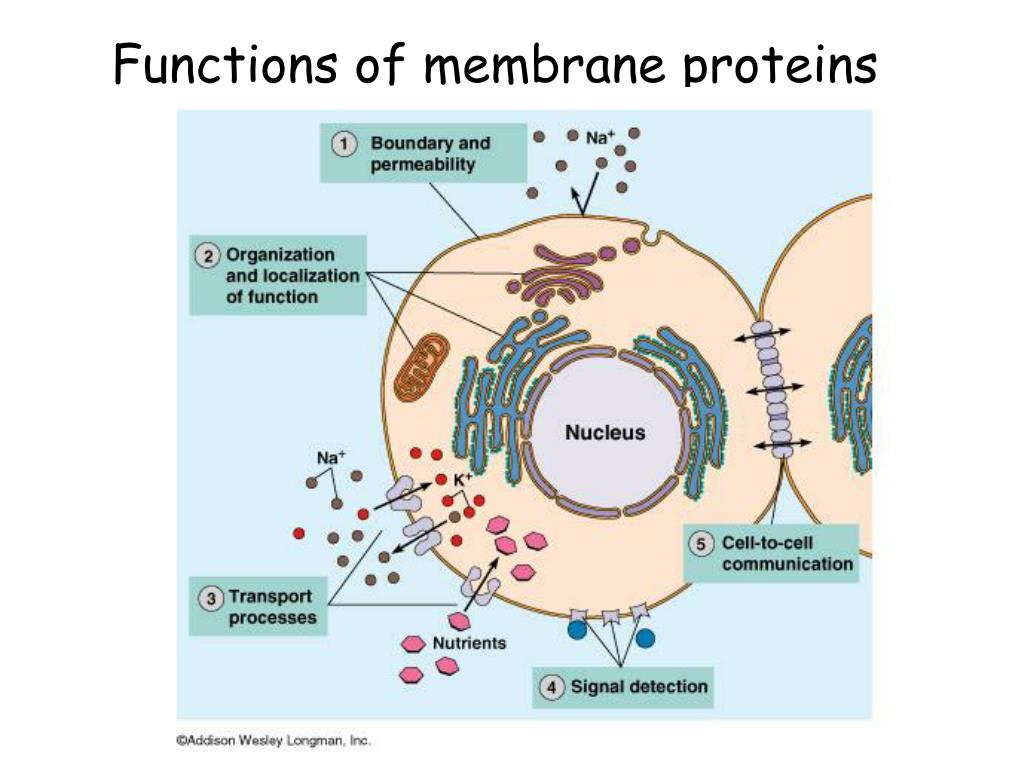

Functions of membrane proteins

Functions of membrane proteins


Properties of membrane proteins

Properties of membrane proteins

  • Asymmetric

    • Evidence--structures

  • Diffuse laterally, rotate

    • NO flip-flop

    • Can be anchored to other things

      • Restricted mobility

  • Often glycosylated


Evidence for protein mobility

Evidence for Protein Mobility


Glycoproteins

Glycoproteins
