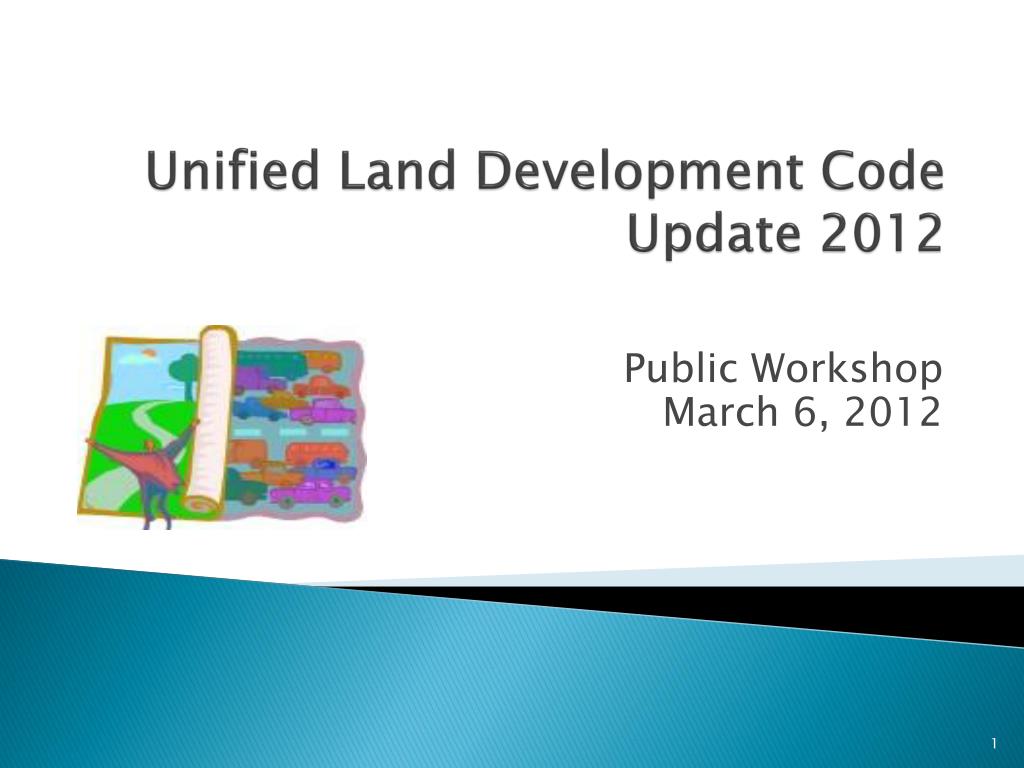

  1. Unified Land Development CodeUpdate 2012 Public Workshop March 6, 2012

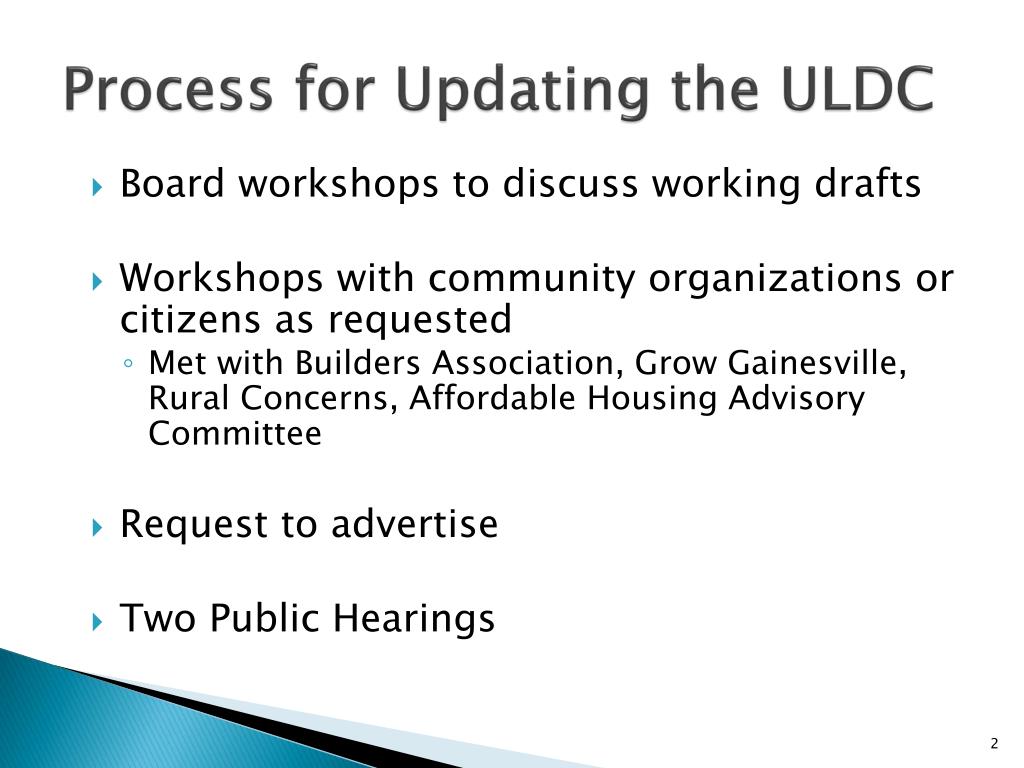

  2. Process for Updating the ULDC • Board workshops to discuss working drafts • Workshops with community organizations or citizens as requested • Met with Builders Association, Grow Gainesville, Rural Concerns, Affordable Housing Advisory Committee • Request to advertise • Two Public Hearings

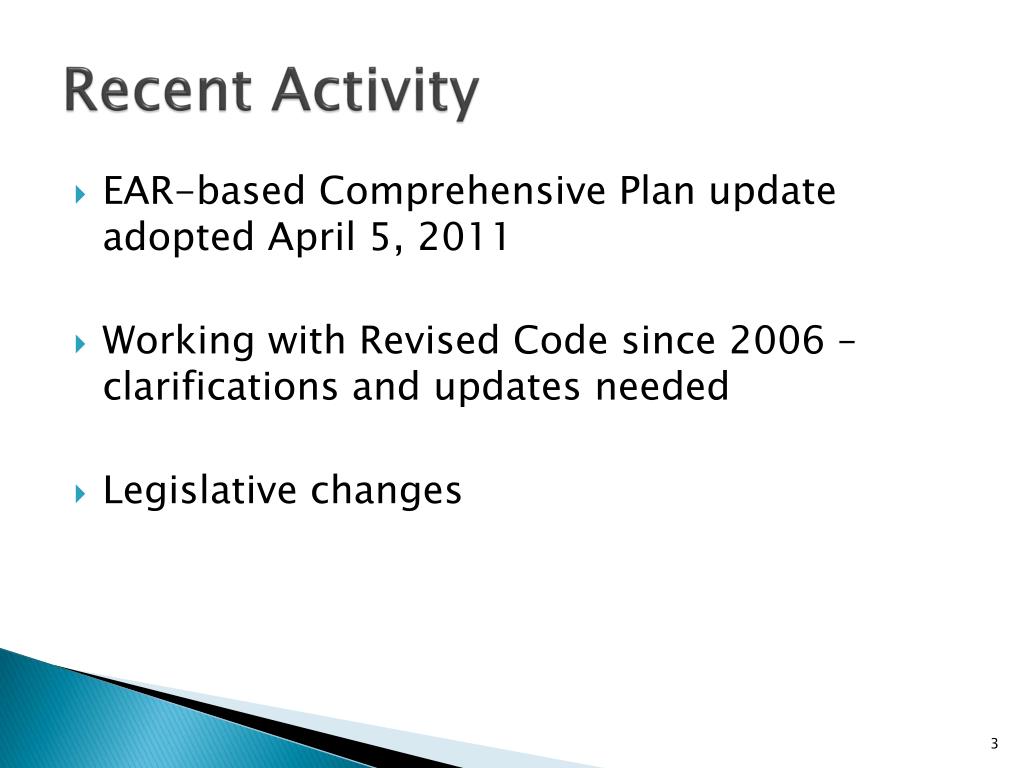

  3. Recent Activity • EAR-based Comprehensive Plan update adopted April 5, 2011 • Working with Revised Code since 2006 – clarifications and updates needed • Legislative changes

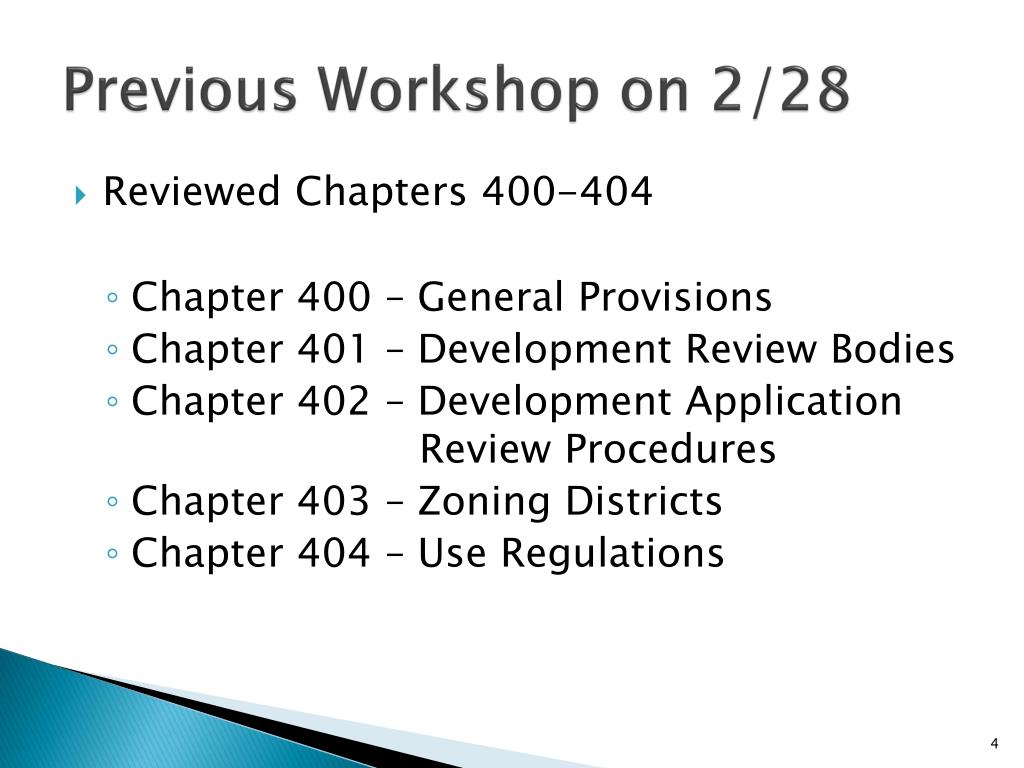

  4. Previous Workshop on 2/28 • Reviewed Chapters 400-404 • Chapter 400 – General Provisions • Chapter 401 – Development Review Bodies • Chapter 402 – Development Application Review Procedures • Chapter 403 – Zoning Districts • Chapter 404 – Use Regulations

  5. Chapter 405 Special Districts and Activity Centers • Comprehensive Plan Policy 2.1.9, Future Land Element: • Development standards for Activity Centers shall be adopted into the Land Development Code to implement Activity Center Policies 2.1.1 – 2.1.8 and shall address permitted uses, mixed use ratios, block sizes, civic space standards, etc. • Objective 8.6 Policies 8.6.2 and 8.6.3 require developments over certain thresholds to be developed as TNDs and TODs

  6. Future Land Use – Urban Cluster Area Urban Cluster Urban Services Area (USA) Urban Cluster

  7. Chapter 405 Special Districts and Activity Centers • Article 2, Section 405.03 • Activity Center categories have been redesignated– high intensity/low intensity. • Article 2, Section 405.04 • Deleted Activity Center Master Plans and Development Review • Added development on 25 or more acres or 150 or more residential units shall develop as a Traditional Neighborhood Development or a Transit Oriented Development • 1,000 or more residential units or 350,00 sq. ft. on a planned Rapid Transit Corridor shall develop as a Transit Oriented Development

  8. Chapter 405 Special Districts and Activity Centers • Article 2 Section 405.07(a)7 Language requiring public access easements on all private roads, alleys and pedestrian pathways has been added. • Article 3, Springhills, has been deleted

  9. Chapter 405 • Article 4, 405.15(d) Cross Creek Village bald eagle nesting zone language has been updated to be consistent with state and federal guidelines • Article 5 Section 405.19(c) Idylwild/Seranola bald eagle nesting zone language updated • Article 11 added Urban Service Area regulations consistent with the Comprehensive Plan • Design standards • Exceptions • Alternative Design for Activity Centers and Urban Service Areas

  10. Activity Centers / Urban Service Area • Some existing A.C. and portions of USA are already highly subdivided. (0.5-2.0 acres) • Presents unique challenges for creating walkable mixed-use centers as envisioned Jonesville Activity Center

  11. Activity Centers / Urban Service Area • Redevelopment introduces other issues • Code has to offer guidance to owner and staff but allow appropriate flexibility Former Texaco Station Parcel

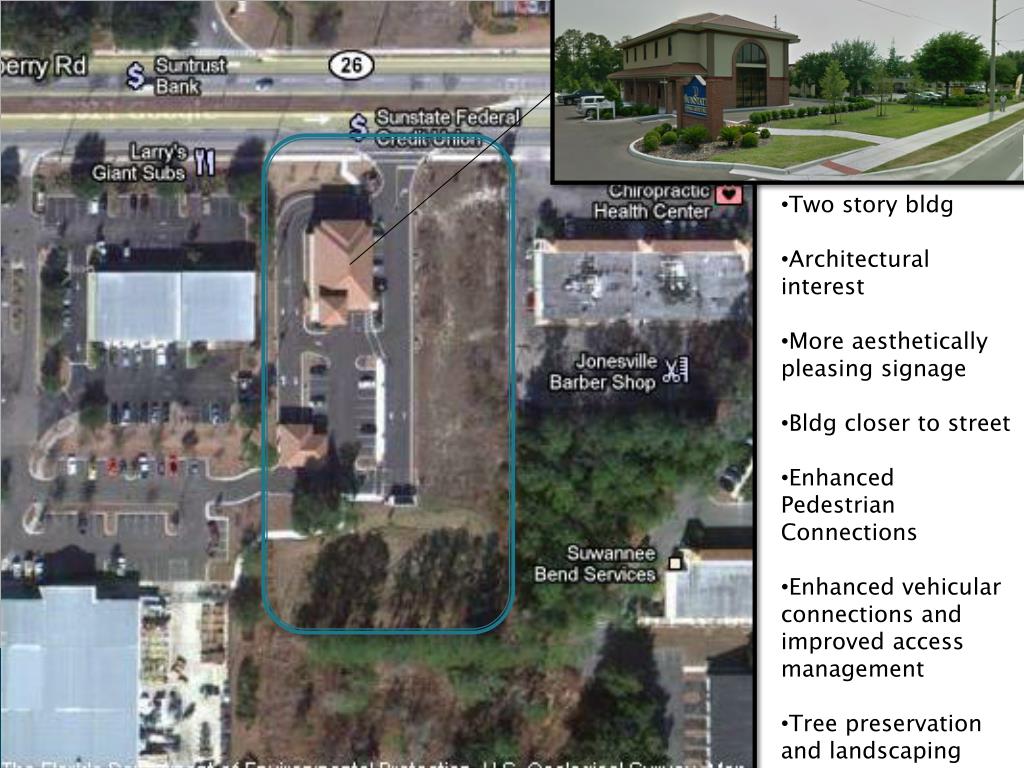

  12. Two story bldg • Architectural interest • More aesthetically pleasing signage • Bldg closer to street • Enhanced Pedestrian Connections • Enhanced vehicular connections and improved access management • Tree preservation and landscaping

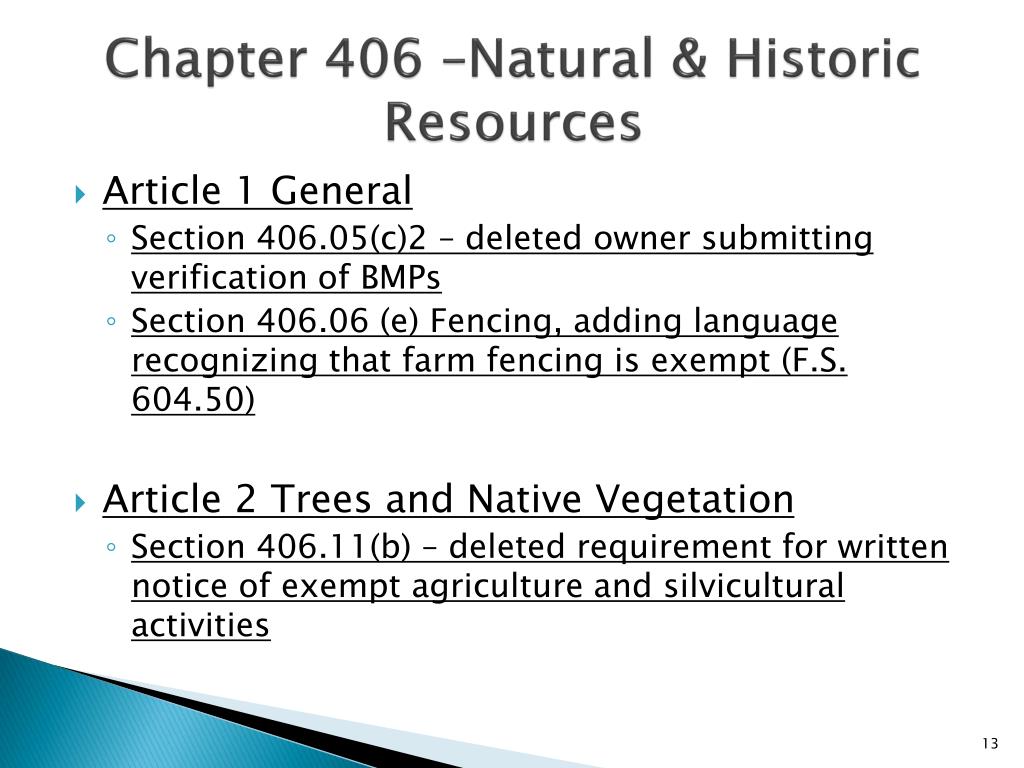

  13. Chapter 406 –Natural & Historic Resources • Article 1 General • Section 406.05(c)2 – deleted owner submitting verification of BMPs • Section 406.06 (e) Fencing, adding language recognizing that farm fencing is exempt (F.S. 604.50) • Article 2 Trees and Native Vegetation • Section 406.11(b) – deleted requirement for written notice of exempt agriculture and silvicultural activities

  14. Chapter 406 Natural & Historic Resources • Article 2 Trees and Native Vegetation • Section 406.12 • 30% canopy requirement within 20 years for residential developments has been expanded to include credit for up to 400 sq. feet of canopy coverage on private platted lots • Article 7 100- Year Floodplains • Adding language to the article concerning property within flood hazard areas – change to Building Code

  15. Chapter 406 Natural & Historic Resources • Article 8 Springs and High Aquifer Recharge Areas has been added • Previous Article 9 High Aquifer Recharge Areas has been combined with Article 8 • New combined article includes (Sections 406.58-406.59.2): • Outdoor water conservation standards • New residential lots 1/8 acre or greater • No more than 60% of landscaped area may be irrigated by high-volume irrigation • Maximum irrigated area 0.5 acres per lot • Florida Water Star standards

  16. Chapter 406 Article 8 • Section 406.59.1 (c) and (d)Land application of Class A & B biosolids and septage prohibited within high aquifer recharge areas • Section 406.59.1 (d) Golf course design must protect springs • Article 16 Significant Geologic Features • 406.90(b)150 foot average buffer width (at least 100 feet) for sinkholes, swallets, quarries, karst windows and other such water containing features

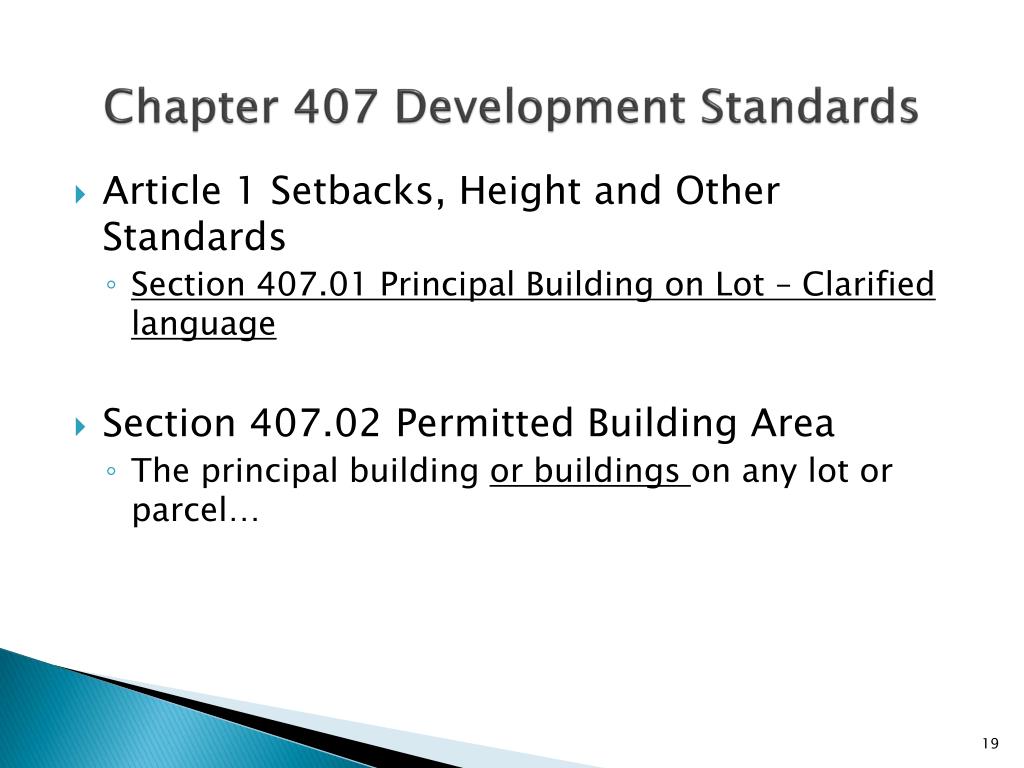

  17. Chapter 407 Development Standards • Article 1 Setbacks, Height and Other Standards • Section 407.01 Principal Building on Lot – Clarified language • Section 407.02 Permitted Building Area • The principal building or buildings on any lot or parcel…

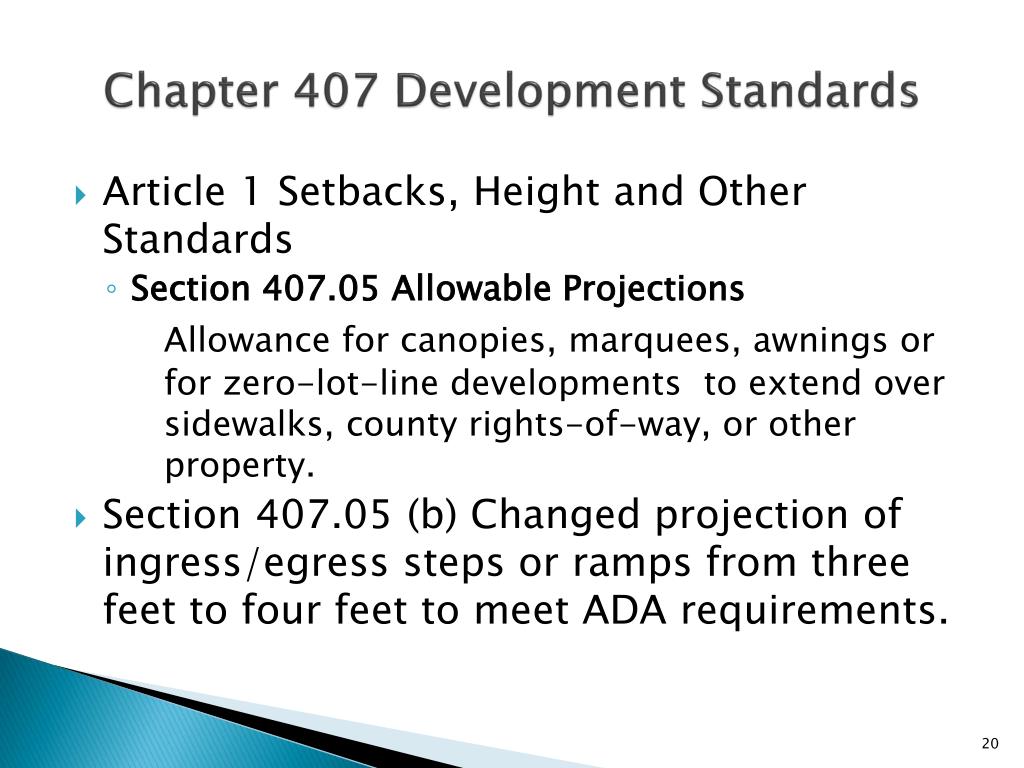

  18. Chapter 407 Development Standards • Article 1 Setbacks, Height and Other Standards • Section 407.05 Allowable Projections Allowance for canopies, marquees, awnings or for zero-lot-line developments to extend over sidewalks, county rights-of-way, or other property. • Section 407.05 (b) Changed projection of ingress/egress steps or ramps from three feet to four feet to meet ADA requirements.

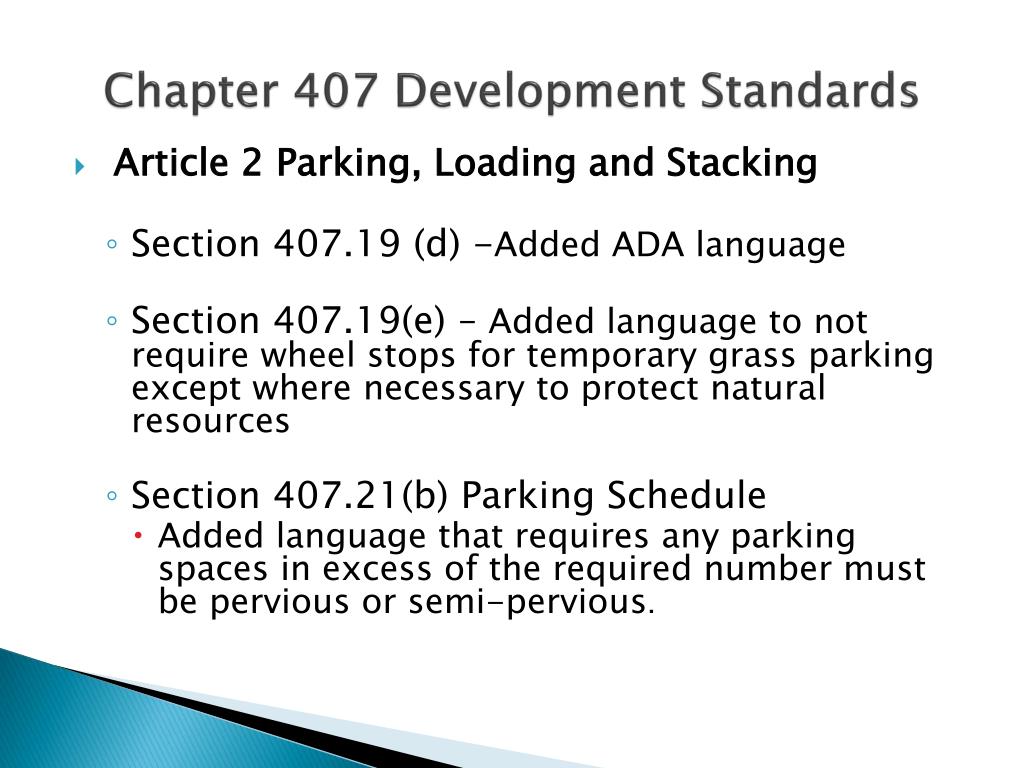

  19. Chapter 407 Development Standards • Article 2 Parking, Loading and Stacking • Section 407.19 (d) -Added ADA language • Section 407.19(e) – Added language to not require wheel stops for temporary grass parking except where necessary to protect natural resources • Section 407.21(b) Parking Schedule • Added language that requires any parking spaces in excess of the required number must be pervious or semi-pervious.

  20. Chapter 407 Development Standards • Article 3 – Signs - article reformatted • Deleted sections 407.36 and 407.36.5 Mixed Use and TND/TOD Sign standards • Section 407.34 Signs Allowed for Nonresidential Development • 407.34(a)2. Changed allowance for freestanding signs in Activity Centers and mixed use planned developments from one sign per 400 feet of frontage to one sign per driveway connection • 407.34(a)3. Reduced the separation requirement between signs from 300 feet to 250 feet.

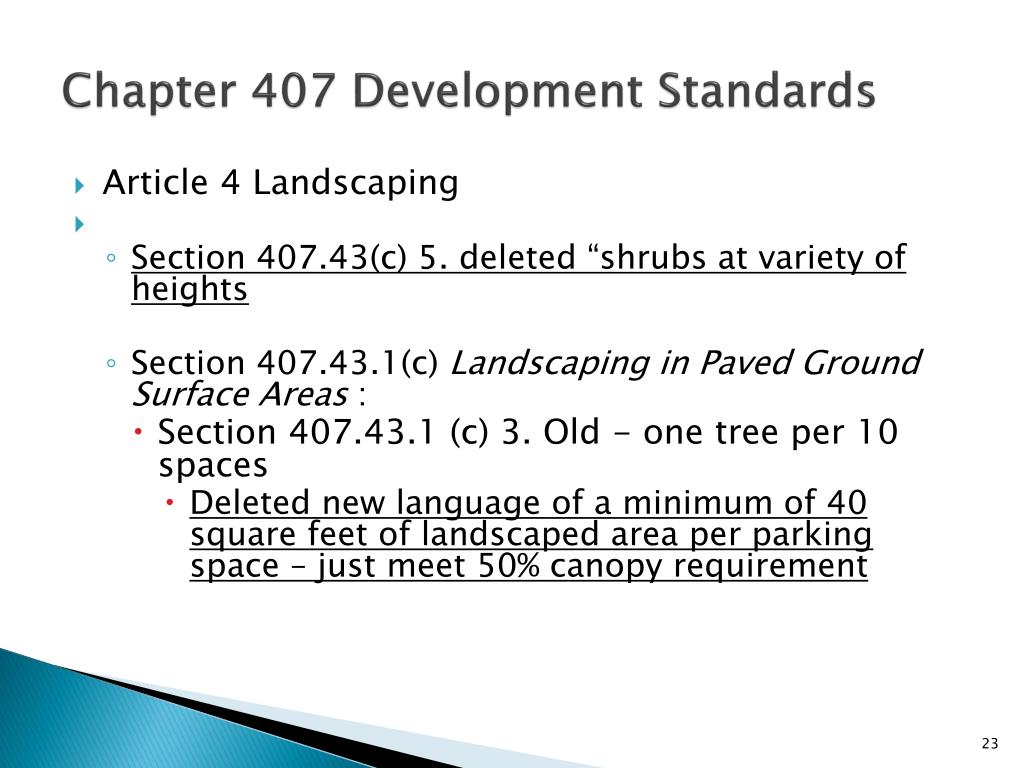

  21. Chapter 407 Development Standards • Article 4 Landscaping • Section 407.43(c) 5. deleted “shrubs at variety of heights • Section 407.43.1(c) Landscaping in Paved Ground Surface Areas : • Section 407.43.1 (c) 3. Old - one tree per 10 spaces • Deleted new language of a minimum of 40 square feet of landscaped area per parking space – just meet 50% canopy requirement

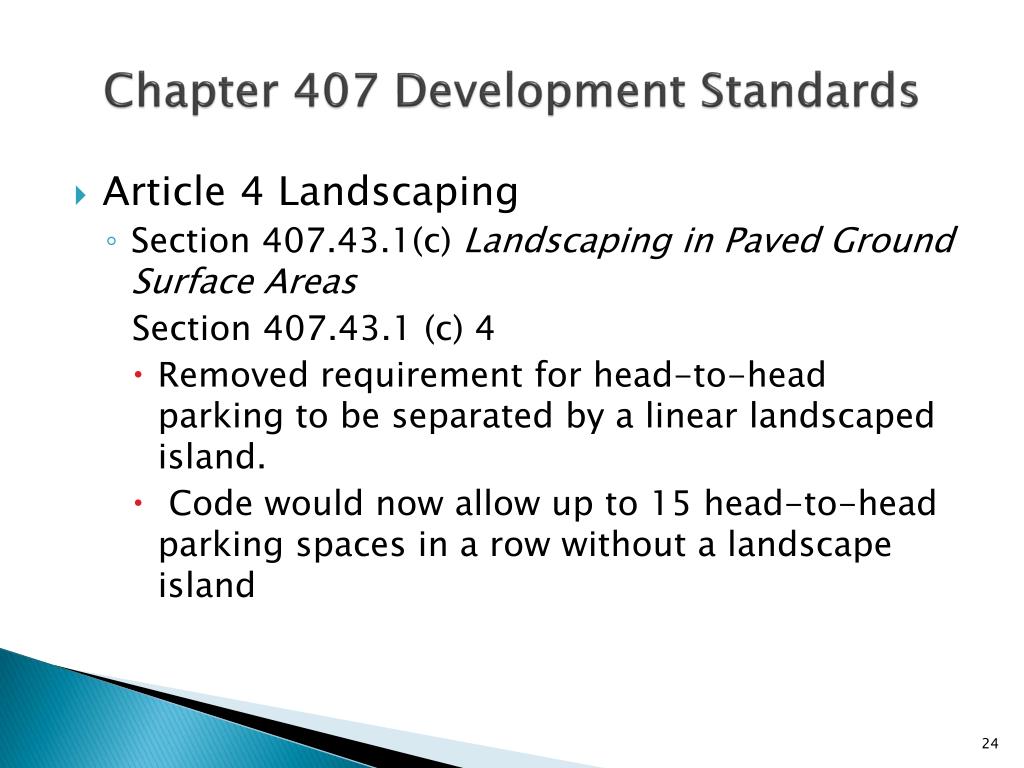

  22. Chapter 407 Development Standards • Article 4 Landscaping • Section 407.43.1(c) Landscaping in Paved Ground Surface Areas Section 407.43.1 (c) 4 • Removed requirement for head-to-head parking to be separated by a linear landscaped island. • Code would now allow up to 15 head-to-head parking spaces in a row without a landscape island

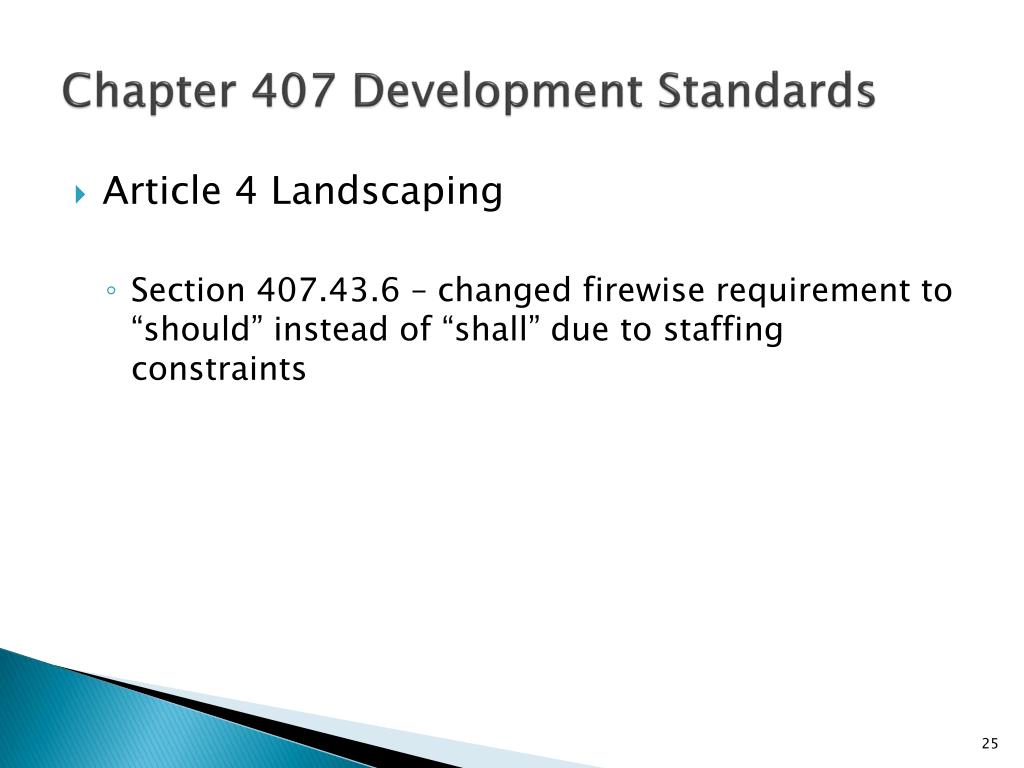

  23. Chapter 407 Development Standards • Article 4 Landscaping • Section 407.43.6 – changed firewise requirement to “should” instead of “shall” due to staffing constraints

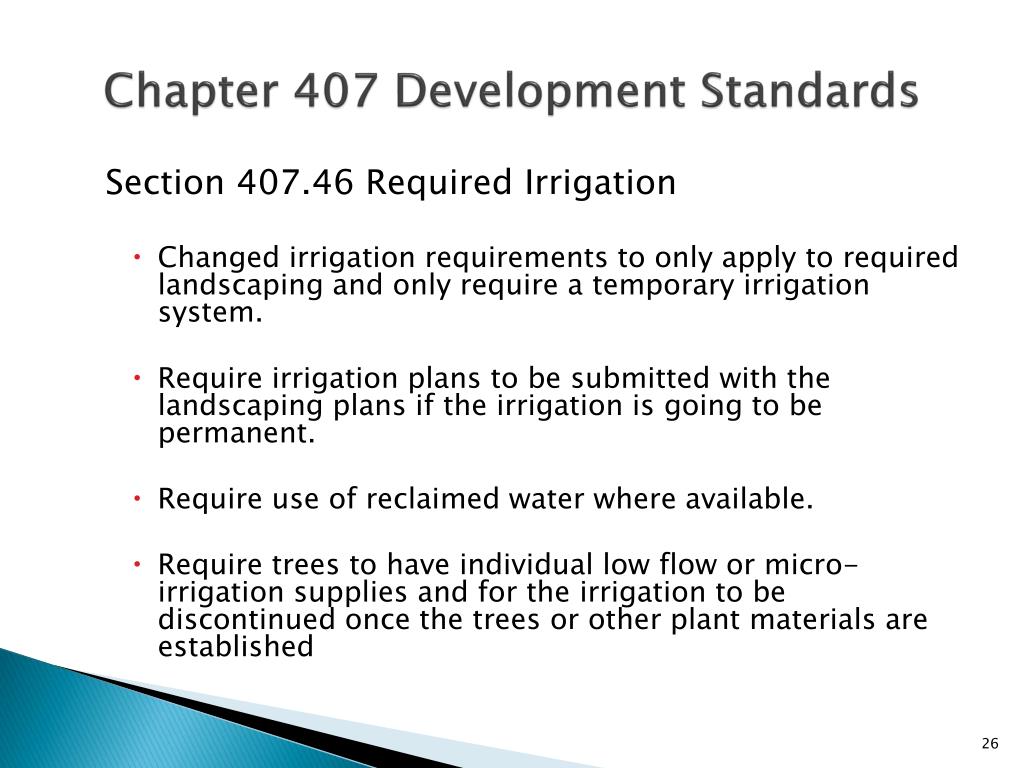

  24. Chapter 407 Development Standards Section 407.46 Required Irrigation • Changed irrigation requirements to only apply to required landscaping and only require a temporary irrigation system. • Require irrigation plans to be submitted with the landscaping plans if the irrigation is going to be permanent. • Require use of reclaimed water where available. • Require trees to have individual low flow or micro-irrigation supplies and for the irrigation to be discontinued once the trees or other plant materials are established

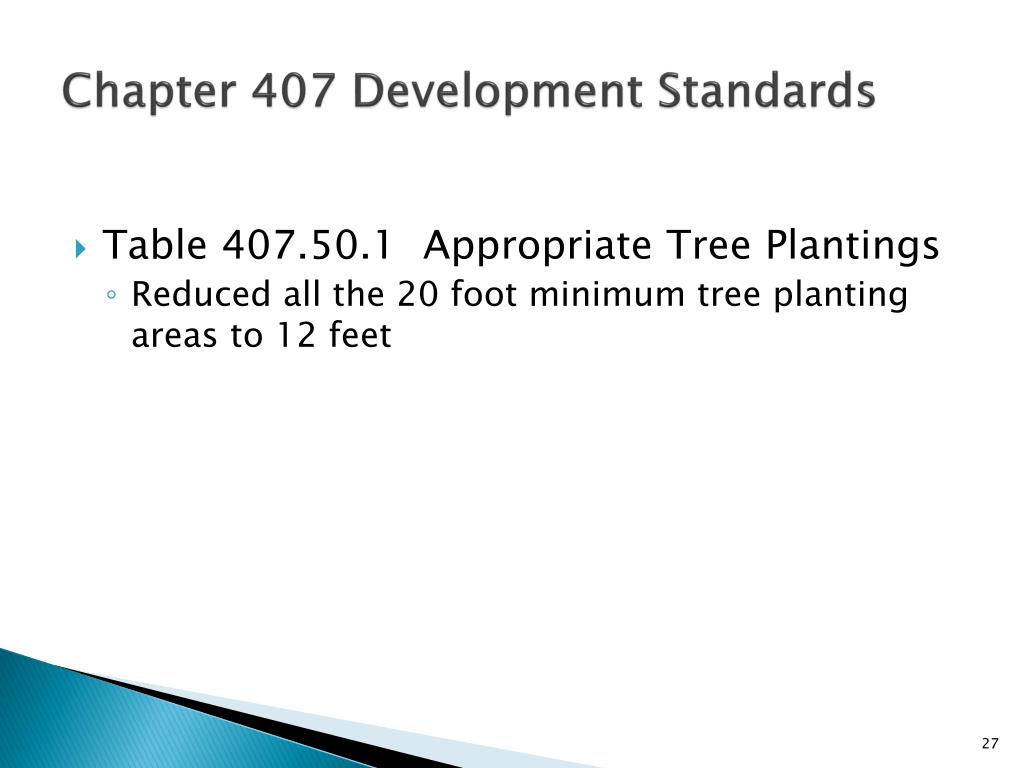

  25. Chapter 407 Development Standards • Table 407.50.1 Appropriate Tree Plantings • Reduced all the 20 foot minimum tree planting areas to 12 feet

  26. Chapter 407 Development Standards • Article 5 Open Space • Section 407.54 (c) TNDs, TODs, and Mixed-Use Developments • Deleted Quality Mixed-Use Developments • Combined regulations for open space for TNDs, TODs and Mixed Use Developments into one place.

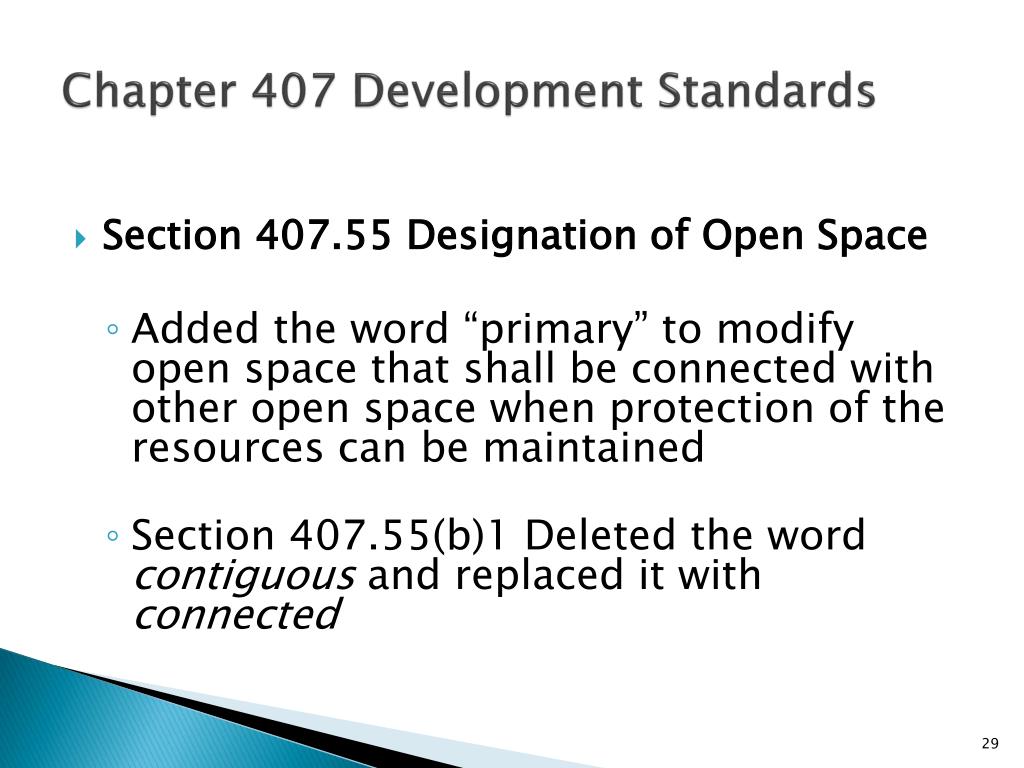

  27. Chapter 407 Development Standards • Section 407.55 Designation of Open Space • Added the word “primary” to modify open space that shall be connected with other open space when protection of the resources can be maintained • Section 407.55(b)1 Deleted the word contiguous and replaced it with connected

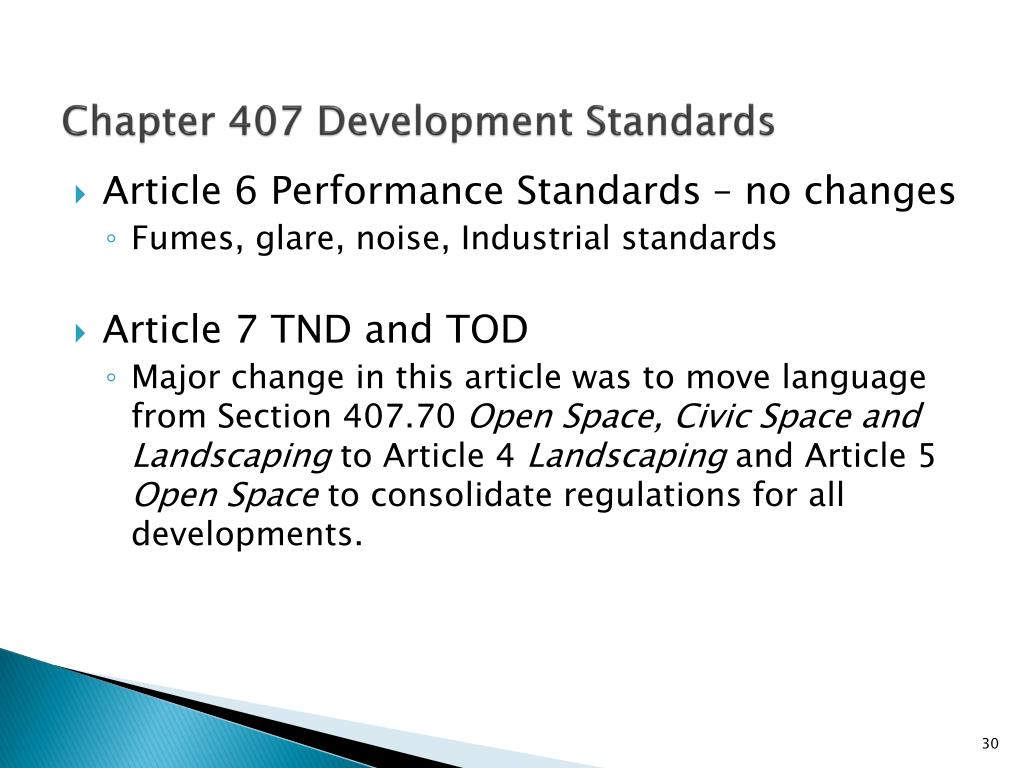

  28. Chapter 407 Development Standards • Article 6 Performance Standards – no changes • Fumes, glare, noise, Industrial standards • Article 7 TND and TOD • Major change in this article was to move language from Section 407.70 Open Space, Civic Space and Landscaping to Article 4 Landscaping and Article 5 Open Spaceto consolidate regulations for all developments.

  29. Article 8 - Subdivision Regulations • Section 407.73(f)1 Clarified language concerning parent tracts that are divided once without having to comply with the subdivision regulations. • Section 407.77(b)1.a.vii. Added common renewable energy systems to the list of permitted uses in open space areas for Rural/Agriculture Clustered Subdivisions. • Section 407.83 Plat Document Requirements • added amount of the required surety and acceptable documentation • Section 407.86(c)2. a. Clarified language for which documents are required to be submitted when an applicant is requesting the County to take over the maintenance of a facility

  30. Chapter 407 Development Standards • Article 9 Stormwater Management • No major changes – just clarifications • Article 10 Building Design • No changes

  31. Chapter 407 Development Standards • Article 11 Potable Water, Wastewater and Reclaimed Water Service • Section 407.109 • DRC may authorize an exception for connection to centralized water and sewer for certain non-residential uses and for new residential uses designated Estate Residential in the Comprehensive Plan. • This clarification is consistent with the Comprehensive Plan. • Section 407.109(d) Granting of Exceptions • Deleted requirement to install dry lines • Added requirements use low-flow plumbing fixtures and use the St. John’s River Water Management District’s Water Star standards.

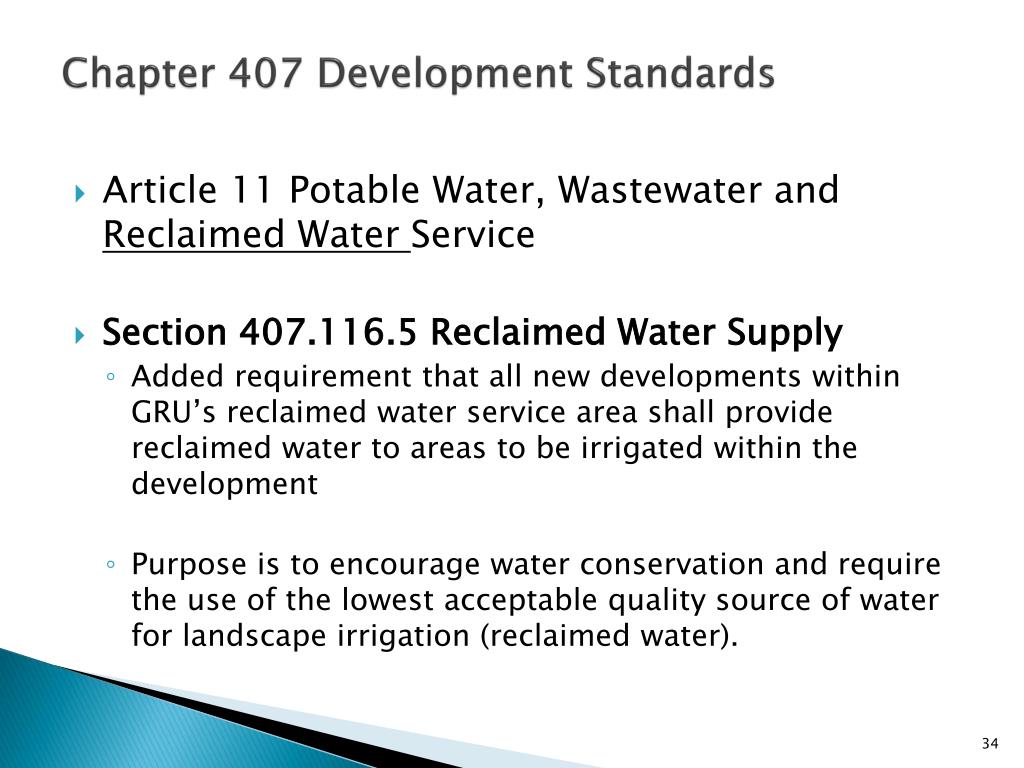

  32. Chapter 407 Development Standards • Article 11 Potable Water, Wastewater and Reclaimed Water Service • Section 407.116.5 Reclaimed Water Supply • Added requirement that all new developments within GRU’s reclaimed water service area shall provide reclaimed water to areas to be irrigated within the development • Purpose is to encourage water conservation and require the use of the lowest acceptable quality source of water for landscape irrigation (reclaimed water).

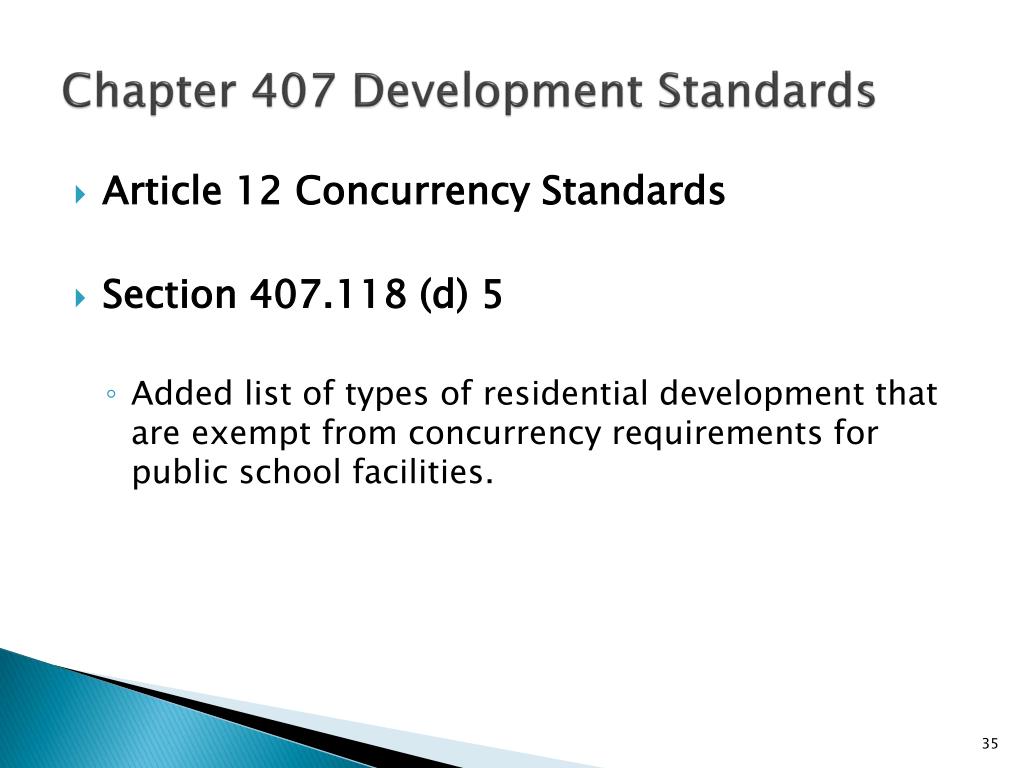

  33. Chapter 407 Development Standards • Article 12 Concurrency Standards • Section 407.118 (d) 5 • Added list of types of residential development that are exempt from concurrency requirements for public school facilities.

  34. Chapter 407 Development Standards • Article 13 Access Management • Section 407.133 Required Information • Clarified information required for all driveway connection permits • Section 407.136 Other Access Management Considerations • Added requirement that all left-turn storage lanes, at a minimum must include the addition of paved shoulders and a full-width asphalt overlay

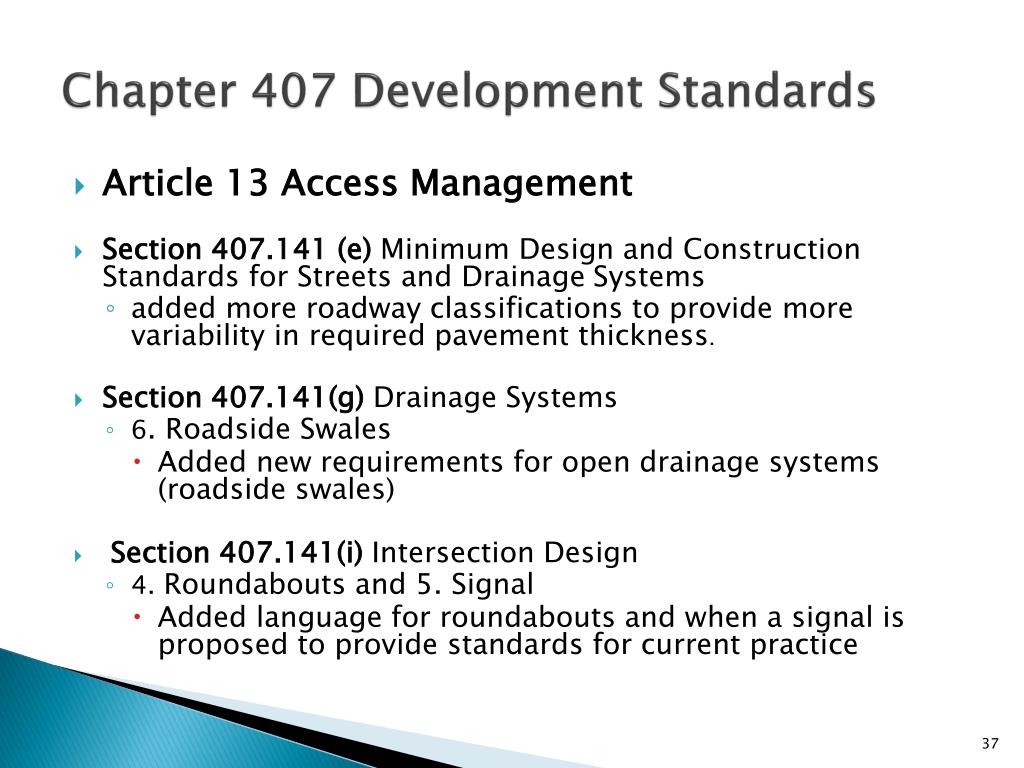

  35. Chapter 407 Development Standards • Article 13 Access Management • Section 407.141 (e) Minimum Design and Construction Standards for Streets and Drainage Systems • added more roadway classifications to provide more variability in required pavement thickness. • Section 407.141(g) Drainage Systems • 6. Roadside Swales • Added new requirements for open drainage systems (roadside swales) • Section 407.141(i) Intersection Design • 4. Roundabouts and 5. Signal • Added language for roundabouts and when a signal is proposed to provide standards for current practice

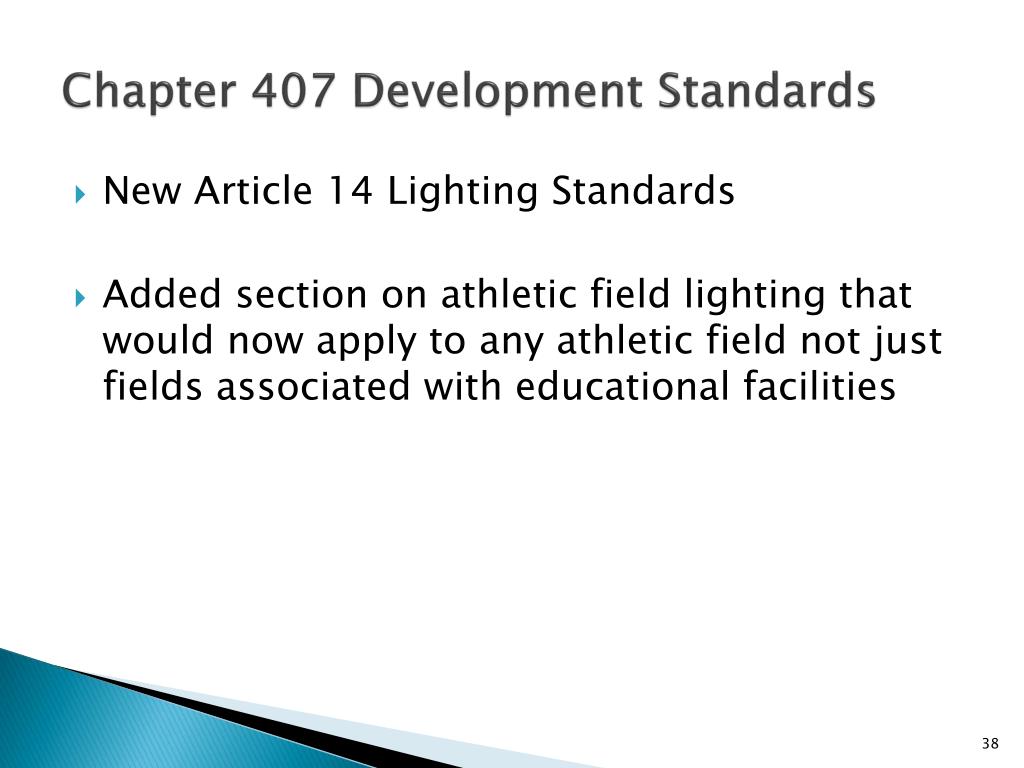

  36. Chapter 407 Development Standards • New Article 14 Lighting Standards • Added section on athletic field lighting that would now apply to any athletic field not just fields associated with educational facilities

  37. Chapter 408 Nonconformities • Section 408.21(a) 1.a. deleted language requiring a sign to conform to current code including illumination standards when changing use of a property

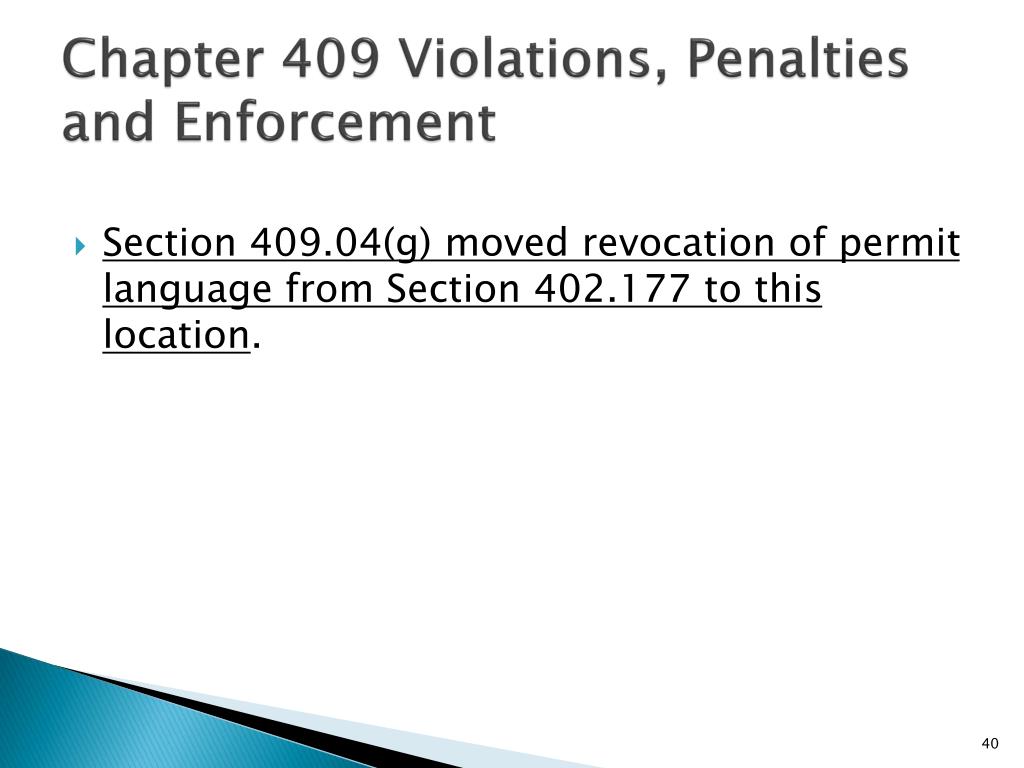

  38. Chapter 409 Violations, Penalties and Enforcement • Section 409.04(g) moved revocation of permit language from Section 402.177 to this location.

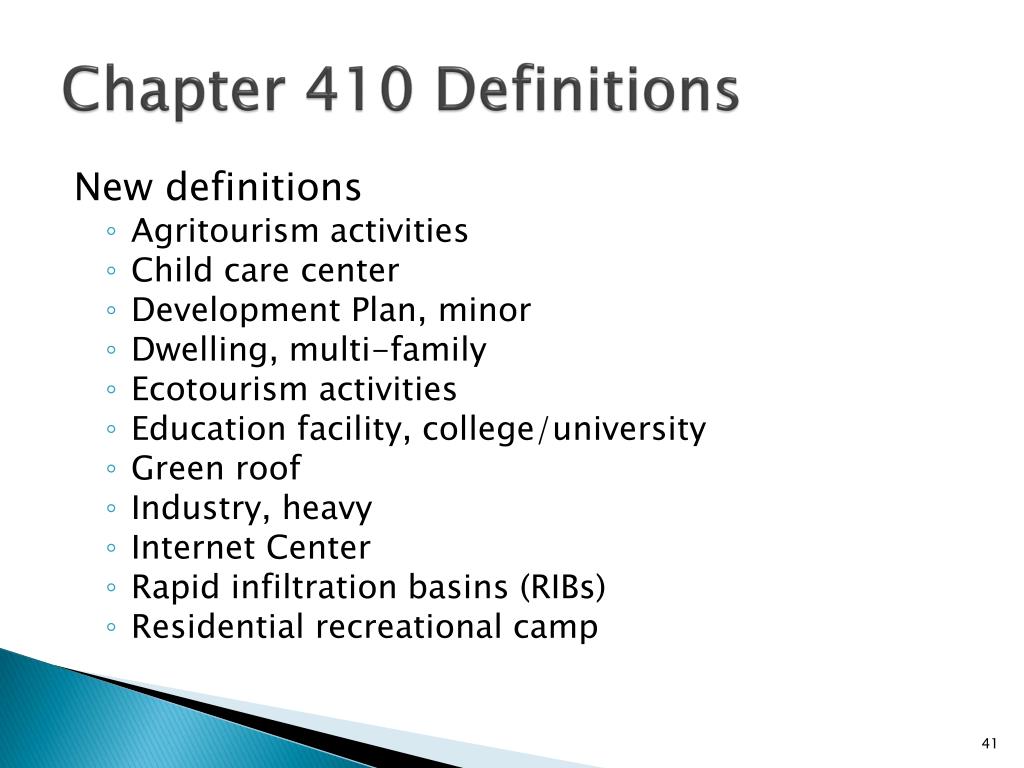

  39. Chapter 410 Definitions New definitions • Agritourism activities • Child care center • Development Plan, minor • Dwelling, multi-family • Ecotourism activities • Education facility, college/university • Green roof • Industry, heavy • Internet Center • Rapid infiltration basins (RIBs) • Residential recreational camp

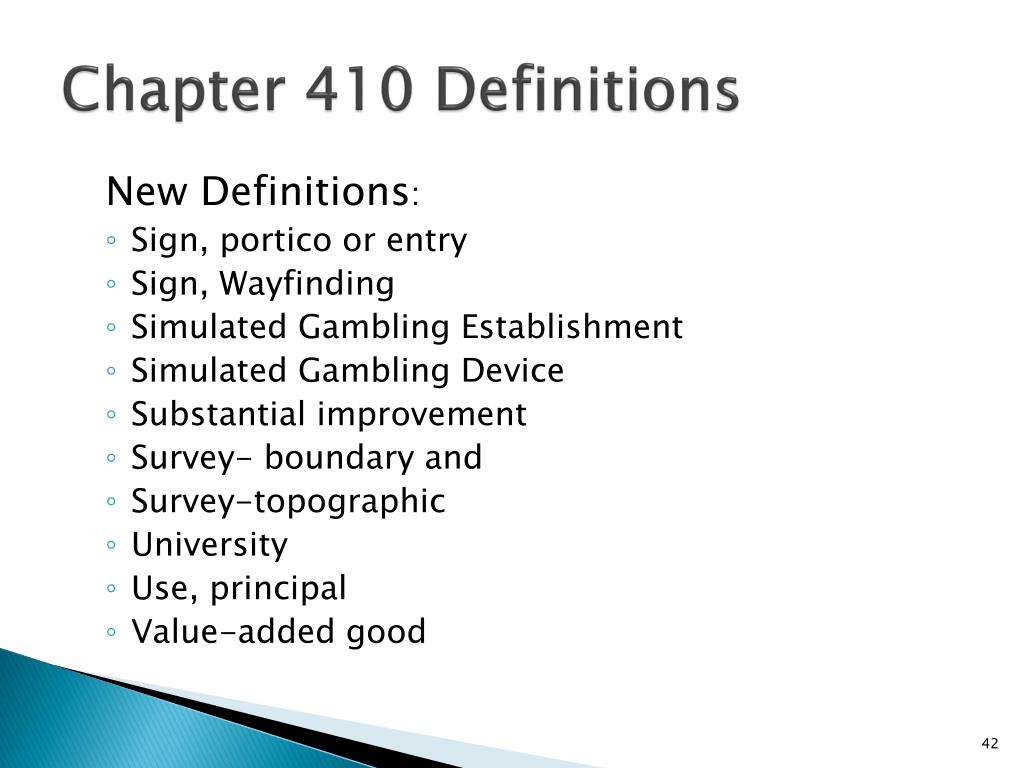

  40. Chapter 410 Definitions New Definitions: • Sign, portico or entry • Sign, Wayfinding • Simulated Gambling Establishment • Simulated Gambling Device • Substantial improvement • Survey- boundary and • Survey-topographic • University • Use, principal • Value-added good

  41. Chapter 410 Definitions Amended Definitions: • Education facility, private • Education facility, public • Cocktail lounge, bar, tavern or nightclub • High aquifer recharge areas • Industry, light • Low Impact Development • Nursing Home facility • Small-scale comprehensive plan amendment

  42. Contact Information • For questions, comments or suggestions: • Alachua County Department of Growth Management • (352) 374-5249 • planning@alachuacounty.us
