Translation

Translation

PROTEIN SYNTHESIS


4 components used in translation

4 Components used in Translation

  • mRNA- the message to be translated into protein.

  • Amino acids- the building blocks that are linked together to form the protein.

  • Ribosomes- the “machines” that carry out translation.


Translation

  • tRNA(transfer RNA)- brings an amino acid to the mRNA and ribosome.

    • One end of a tRNA molecule has an anticodon that complements with an mRNA codon.

    • The other end has a specific amino acid.

    • A tRNA molecule with a particular anticodon always carries the same type of amino acid.


How does translation occur

How does translation occur?

  • The ribosome binds to the mRNA molecule.

  • The tRNA with the anticodon that complements the first codon on the mRNA binds to the first site on the ribosome.

  • Another tRNA with the anticodon that complements the second codon on the mRNA binds to the second site on the ribosome.


Translation

  • A peptide bond forms between the first two amino acids.

  • The first tRNA leaves, and the ribosome moves along the mRNA to the next codon.

  • The next tRNA brings in the next amino acid, and a peptide bond is formed between this amino acid and the growing amino acid chain.

  • The process continues with the ribosome moving along the mRNA molecule and the amino acids linking together until a STOP codon is reached.


Transcription and translation urls

Transcription and translationURLs

  • http://www.lpscience.fatcow.com/jwanamaker/animations/Protein%20Synthesis%20-%20long.html


The code of translation

The CODE of translation


Translation

CODONS

mRNA nucleotides are translated in groups of 3 called codons.

AUGCACUGCAGUCGAUGA


Translation

Each codon codes for a specific amino acid. 20 different amino acids can be used in different combinations to form a protein.

For example:

mRNA codonamino acid

AAUasparagine

CGCarginine

GGGglycine

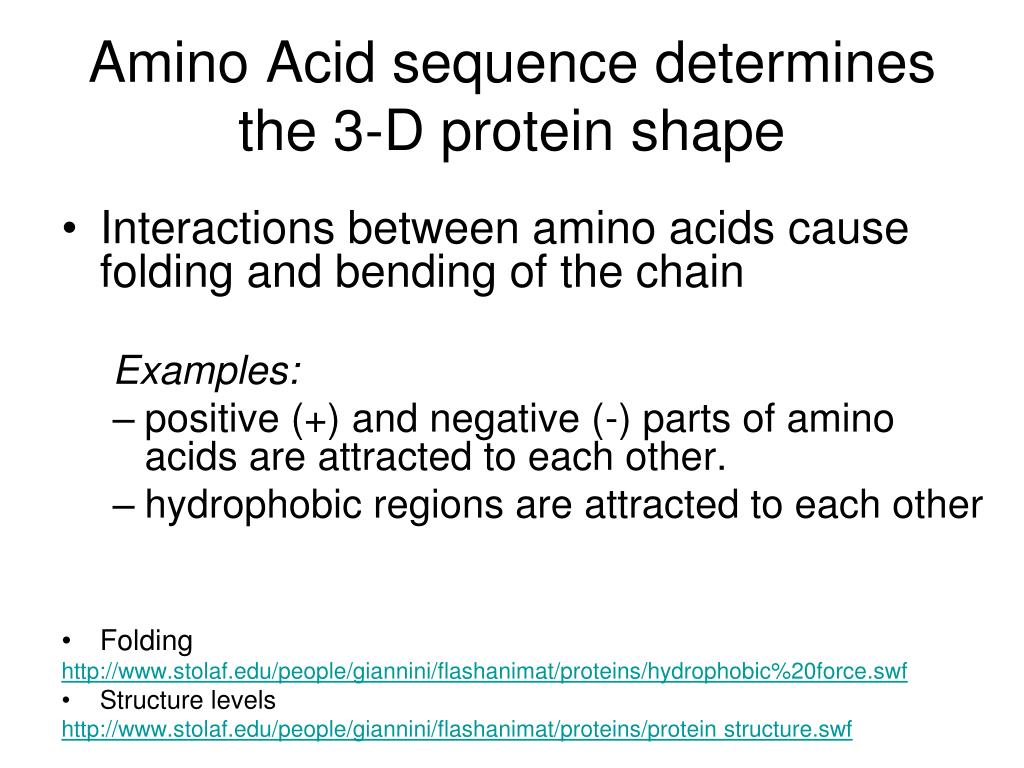

Amino acid sequence determines the 3 d protein shape

Amino Acid sequence determines the 3-D protein shape

  • Interactions between amino acids cause folding and bending of the chain

    Examples:

    • positive (+) and negative (-) parts of amino acids are attracted to each other.

    • hydrophobic regions are attracted to each other

  • Folding

    http://www.stolaf.edu/people/giannini/flashanimat/proteins/hydrophobic%20force.swf

  • Structure levels

    http://www.stolaf.edu/people/giannini/flashanimat/proteins/protein structure.swf

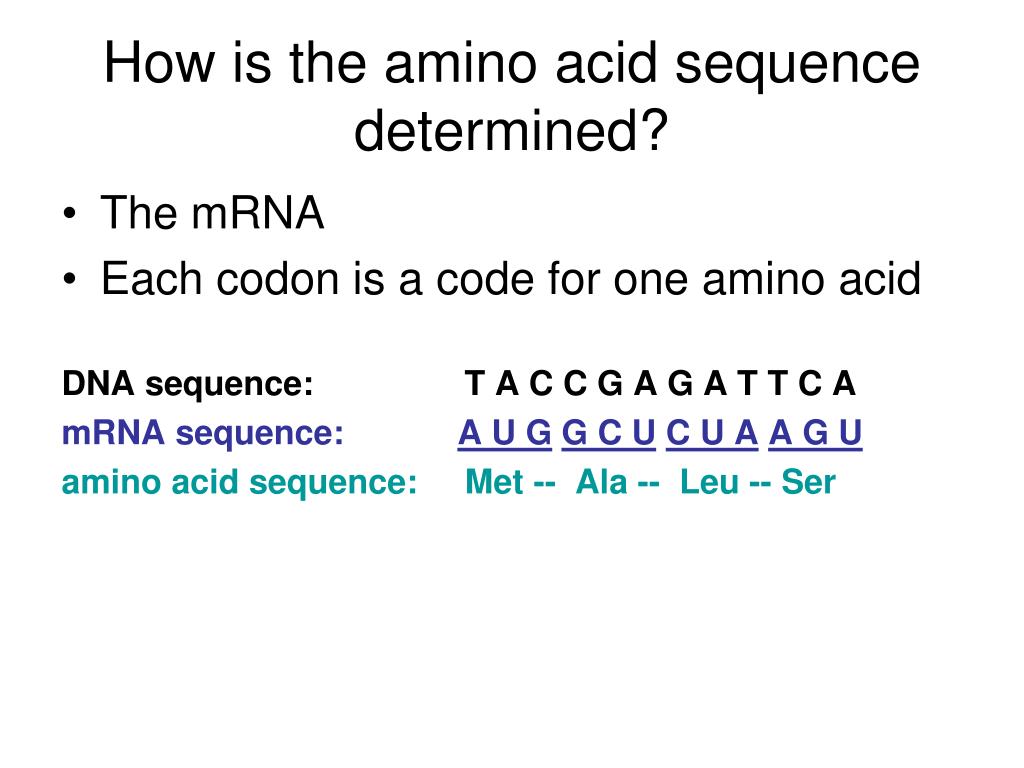

How is the amino acid sequence determined

How is the amino acid sequence determined?

  • The mRNA

  • Each codon is a code for one amino acid

    DNA sequence: T A C C G A G A T T C A

    mRNA sequence: A U GG C UC U AA G U

    amino acid sequence: Met -- Ala -- Leu -- Ser


Your turn

Your turn

  • Decoder construction-DNA Bingo

  • Translation exercise (Find the secret message)

  • Genes to proteins-practice worksheet.

    • or

  • Complete the “Translation Practice” worksheet
